Dahua TPC-BF2221-T Quick Start Manual

Thermal Hybrid Network Bullet Camera

Quick Start Guide

V1.0.0

Regulatory Information

The regulatory information herein might vary according to the model you purchased. Some
information is only applicable for the country or region where the product is sold.

FCC Information

Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.

FCC conditions:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:

 This device may not cause harmful interference.
 This device must accept any interference received, including interference that may cause

undesired operation.

FCC compliance:

This equipment has been tested and found to comply with the limits for a digital device,
pursuant to part 15 of the FCC Rules. This equipment generate, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the guide, may cause
harmful interference to radio communication.

 For class A device, these limits are designed to provide reasonable protection against

harmful interference in a commercial environment. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.

 For class B device, these limits are designed to provide reasonable protection against

harmful interference in a residential installation. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:

 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to which the

 Consult the dealer or an experienced radio/TV technician for help.

receiver is connected.

Regulatory Information I

Signal Words

Meaning

WARNING

Indicates a medium or low potential hazard which, if not avoided,
could result in slight or moderate injury.

CAUTION

Indicates a potential risk which, if not avoided, could result in
property damage, data loss, lower performance, or unpredictable
result.

TIPS

Provides methods to help you solve a problem or save you time.

NOTE

Provides additional information as the emphasis and supplement
to the text.

No.

Version

Revision Content

Release Date

1

V1.0.0

First release.

January 21, 2019

Foreword

General

This Quick Start Guide (hereinafter referred to be "the Guide") introduces the functions,
installation and operations of the camera.

Safety Instructions

The following categorized signal words with defined meaning might appear in the Guide.

Revision History

Privacy Protection Notice

As the device user or data controller, you might collect personal data of others' such as face,
fingerprints, car plate number, Email address, phone number, GPS and so on. You need to be
in compliance with the local privacy protection laws and regulations to protect the legitimate
rights and interests of other people by implementing measures include but not limited to:
providing clear and visible identification to inform data subject the existence of surveillance
area and providing related contact.

About the Guide

 The Guide is for reference only. If there is inconsistency between the Guide and the actual

product, the actual product shall prevail.

 We are not liable for any loss caused by the operations that do not comply with the Guide.
 The Guide would be updated according to the latest laws and regulations of related

Foreword II

regions. For detailed information, see the paper manual, CD-ROM, QR code or our official
website. If there is inconsistency between paper manual and the electronic version, the
electronic version shall prevail.

 All the designs and software are subject to change without prior written notice. The product

updates might cause some differences between the actual product and the Guide. Please
contact the customer service for the latest program and supplementary documentation.

 There still might be deviation in technical data, functions and operations description, or

errors in print. If there is any doubt or dispute, please refer to our final explanation.

 Upgrade the reader software or try other mainstream reader software if the Guide (in PDF

format) cannot be opened.

 All trademarks, registered trademarks and the company names in the Guide are the

properties of their respective owners.

 Please visit our website, contact the supplier or customer service if there is any problem

occurred when using the device.

 If there is any uncertainty or controversy, please refer to our final explanation.

Foreword III

Important Safeguards and Warnings

This chapter describes the contents covering proper handling of the device, hazard prevention,
and prevention of property damage. Read these contents carefully before using the device,
comply with them when using, and keep it well for future reference.

Installation and Maintenance Professionals Requirements

All the installation and maintenance professionals must have qualification certificate or
experiences of installing and maintaining CCTV system, electric apparatus in the explosive gas
environment and working high above the ground. Besides, they have to acquire the following
knowledge and operation skills.

 Basic knowledge and installation skills of CCTV system.
 Basic knowledge and operation skills of low voltage wiring and low voltage electronic

circuit wire connection.

 Basic knowledge and operation skills of electric apparatus installation and maintenance in

hazardous sites.

Power Requirements

 All installation and operation should conform to your local electrical safety code.
 Please check if the power supply is correct before operating the device.
 Use power supply conforming to SELV requirements and power the camera in the rated

voltage conforming to Limited Power Source in IEC60950-1. And, refer to the camera
label’s power supply requirements for your final operation.

 Please install easy-to-use device for power off before installing wiring, which is for

emergent power off when necessary.

 Please prevent the line cord from being trampled or pressed, especially the plug, power

socket and the junction from the device.

Application Environment Requirements

 Please use the device within the allowed humidity (<95%RH) and altitude (<3000m).
 Do not use the device in the corrosive environment such as high salt fog area (sea, beach

and coastal area), acid gas environment and chemical plants.

 Do not use the device in the strong vibration environment such as in boats and vehicles.

If you still want to use thermal cameras in the three conditions mentioned above, please contact
our sales staff to buy cameras of special model or cameras that are customized. If you use
cameras in improper environments, we shall not take the costs of camera damage.

 Please don’t place the device in the humid, dusty, extremely hot and cold site with strong

electromagnetic radiation or unstable illumination.

Important Safeguards and Warnings IV

 Please don’t block the ventilation opening near the device, which is to avoid heat

accumulation for the device.

 Please don’t install the device near the place with heat source, such as radiator, heater,

stove or other heating equipment, which is to avoid fire.

 Please don’t aim the lens at intense radiation source directly (such as sun, laser and

molten steel etc.), which is to avoid causing damage to the thermal detector.

 Please don’t let any liquid enter the device, which is to avoid causing damage to the

internal components; please stop using the device immediately and cut off the power, plug
out all the cables which are connected to the device if there is liquid entering the device,
and contact the local customer service center.

 Please don’t stuff any foreign matter into the device in case that it may cause device short

circuit, which may cause damage to the device or human injury.

 Please use the factory default package or material with equal quality to pack the device

when transporting the device.

 Please don’t press, vibrate or soak the device during transportation, storage and

installation.

Operation and Maintenance Requirements

 Please don’t touch the heat dissipation component of the device in case you may get burnt.
 Please don’t dismantle the device; there is no part which can be repaired by users

themselves. It may cause water leakage or bad image for the device if it is dismantled
unprofessionally.

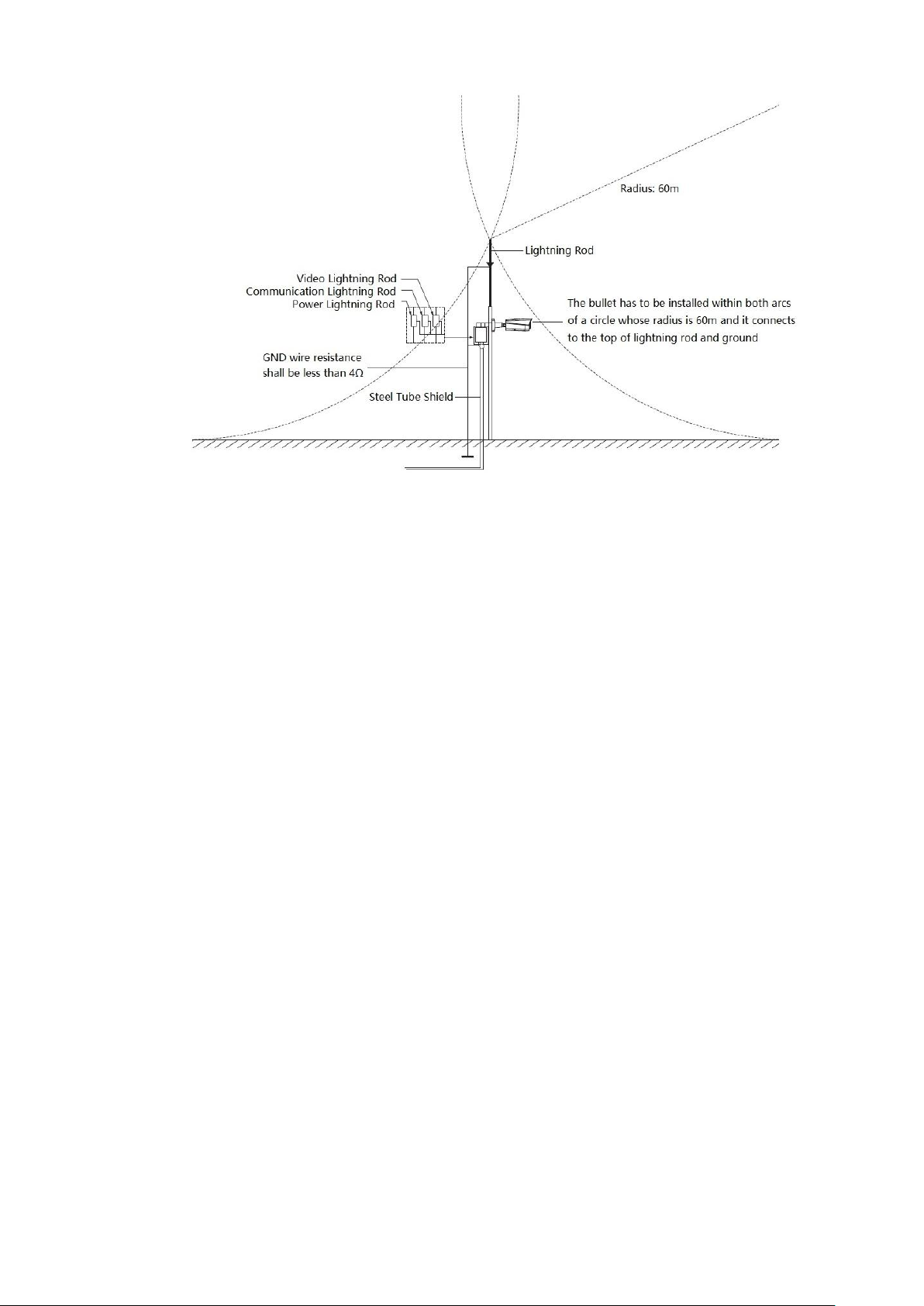

 It is recommended to use the device together with a lightning arrester, which is to improve

the effect of lightning protection, it needs to conform to the lightning protection regulation
for outdoor application.

 Do not touch the photosensitive device with your hands. To clean the dust and filth on the

lens, an air blower can be used. For further cleaning, please pour a little alcohol into a
piece of dry cloth with which you can softly wipe the dirt away.

 Clean device body with a piece of soft dry cloth. For any dirt hard to remove, pick up a

piece of clean and soft cloth, dip it with a little neutral detergent and gently wipe the dust
away with it -- after that, wipe all the liquids on the device away with another dry cloth.
Never use any volatile solvent such as alcohol, benzene and thinner, or any cleaner that is
strong and abrasive. Otherwise, the device’s surface coating will be hurt and its working
performance will be encumbered.

WARNING

 Please modify the default password after login, in case it is stolen.
 Please use the accessories regulated by the manufacturer, and the device should be

installed and maintained by professionals.

 Internal and external ground connection should be stable.
 Please don’t provide two or more power supply modes to the device, otherwise, it may

cause damage to the device.

Important Safeguards and Warnings V

 Around 2.5m long control cable is reserved when the device is delivered out of factory, it

should use explosionproof flexible tube or armor cable to protect when the control cable is
connected to the explosionproof control cabinet.

 Please cut off power before device maintenance and overhaul. It is prohibited to open the

cover with power on in the explosion environment.

 Please make sure all the explosionproof components and parts are complete without any

cracks and there is no defect which may affect explosionproof performance.

 Please contact the local dealer or the nearest service center if the device fails to work

normally, please don’t dismantle or modify the device.

Important Safeguards and Warnings VI

Cybersecurity is more than just a buzzword: it’s something that pertains to every device that is
connected to the internet. IP video surveillance is not immune to cyber risks, but taking basic
steps toward protecting and strengthening networks and networked appliances will make them
less susceptible to attacks. Below are some tips and recommendations on how to create a
more secured security system.

Mandatory actions to be taken for basic equipment network security

1. Use Strong Passwords

Please refer to the following suggestions to set passwords:

- The length should not be less than 8 characters;

- Include at least two types of characters; character types include upper and lower case

letters, numbers and symbols;

- Do not contain the account name or the account name in reverse order;

- Do not use continuous characters, such as 123, abc, etc.;

- Do not use overlapped characters, such as 111, aaa, etc.;

2. Update Firmware and Client Software in Time

Cybersecurity Recommendations

- According to the standard procedure in Tech-industry, we recommend to keep your
equipment (such as NVR, DVR, IP camera, etc.) firmware up-to-date to ensure the
system is equipped with the latest security patches and fixes. When the equipment is
connected to the public network, it is recommended to enable the “auto-check for
updates” function to obtain timely information of firmware updates released by the
manufacturer.

- We suggest that you download and use the latest version of client software.

“Nice to have” recommendations to improve your equipment network security:

1. Physical Protection

We suggest that you perform physical protection to equipment, especially storage devices. For
example, place the equipment in a special computer room and cabinet, and implement well-done
access control permission and key management to prevent unauthorized personnel from carrying
out physical contacts such as damaging hardware, unauthorized connection of removable
equipment (such as USB flash disk, serial port), etc.

2. Change Passwords Regularly

We suggest that you change passwords regularly to reduce the risk of being guessed or
cracked.

3. Set and Update Passwords Reset Information Timely

The equipment supports password reset function. Please set up related information for password
reset in time, including the end user’s mailbox and password protection questions. If the
information changes, please modify it in time. When setting password protection questions, it is
suggested not to use those that can be easily guessed.

Cybersecurity Recommendations VII
