Dahua SD6980-HN User Manual

IR Speed Dome User’s Manual
Version 1.1
2
1111 FEATURES AND FUNCTIO
FEATURES AND FUNCTIOFEATURES AND FUNCTIO
FEATURES AND FUNCTIONS
NSNS
NS .................................................................................... 8
1.1
1.11.1
1.1
General Intr
General IntrGeneral Intr
General Introduction
oductionoduction
oduction ...........................................................................................................................................8
1.2
1.21.2
1.2
Features
FeaturesFeatures
Features ...............................................................................................................................................................8
1.2.1 On-Screen Menu ............................................................................................................................................8
1.2.2 On-screen Tips ...............................................................................................................................................8
1.2.3 Support multiple protocols ............................................................................................................................8
1.2.4 Proportional Pan and Tilt...............................................................................................................................8
1.2.5 Preset Setup and Recall ...............................................................................................................................8
1.2.6 Auto Scan ........................................................................................................................................................9
1.2.7 Auto Touring ...................................................................................................................................................9
1.2.8 Auto Pattern ....................................................................................................................................................9
1.2.9 Privacy Masking .............................................................................................................................................9
1.2.10 IR Night Vision ...........................................................................................................................................9
1.2.11 Action on Alarm .........................................................................................................................................9
1.2.12 Auto Flip ......................................................................................................................................................9
1.2.13 Self-diagnosis.............................................................................................................................................9
1.2.14 Day/Night Mode (B/W & Color Mode) ....................................................................................................9
1.2.15 Auto Focus .................................................................................................................................................9
1.2.16 Backlight Compensation ......................................................................................................................... 10
1.2.17 Pan Tilt and Zoom ................................................................................................................................... 10
1.2.18 3D Intelligent Location ............................................................................................................................ 10
1.2.19 Idle Status ................................................................................................................................................. 10
1.2.20 Image Flip ................................................................................................................................................. 10
1.3
1.31.3
1.3
Specifications
SpecificationsSpecifications
Specifications .................................................................................................................................................... 10
1.3.1 Performance Specifications ........................................................................................................................ 10
1.3.2 Technical Specifications .............................................................................................................................. 11
2222 PROTOCOL, BAUD RATE,
PROTOCOL, BAUD RATE,PROTOCOL, BAUD RATE,
PROTOCOL, BAUD RATE, ADDRESS SETUP
ADDRESS SETUPADDRESS SETUP
ADDRESS SETUP ......................................................... 13
2.1
2.12.1
2.1
Protocol and Baud Rate Setup
Protocol and Baud Rate SetupProtocol and Baud Rate Setup
Protocol and Baud Rate Setup ....................................................................................................................... 13
2.2
2.22.2
2.2

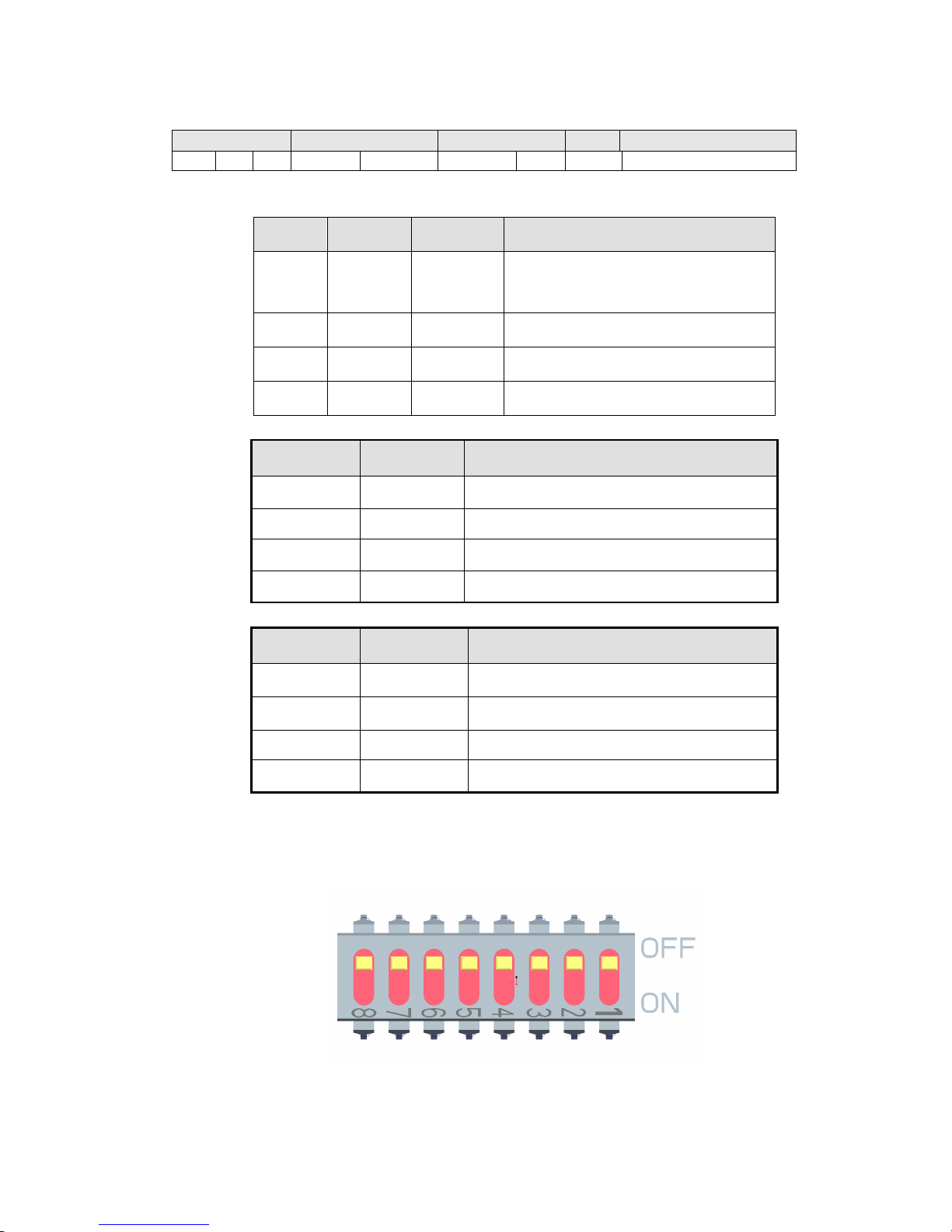

Set address dial switch
Set address dial switchSet address dial switch
Set address dial switch .................................................................................................................................... 14
3
3333 CABLE CONNECTION
CABLE CONNECTIONCABLE CONNECTION
CABLE CONNECTION ............................................................................................... 16
3.1
3.13.1
3.1

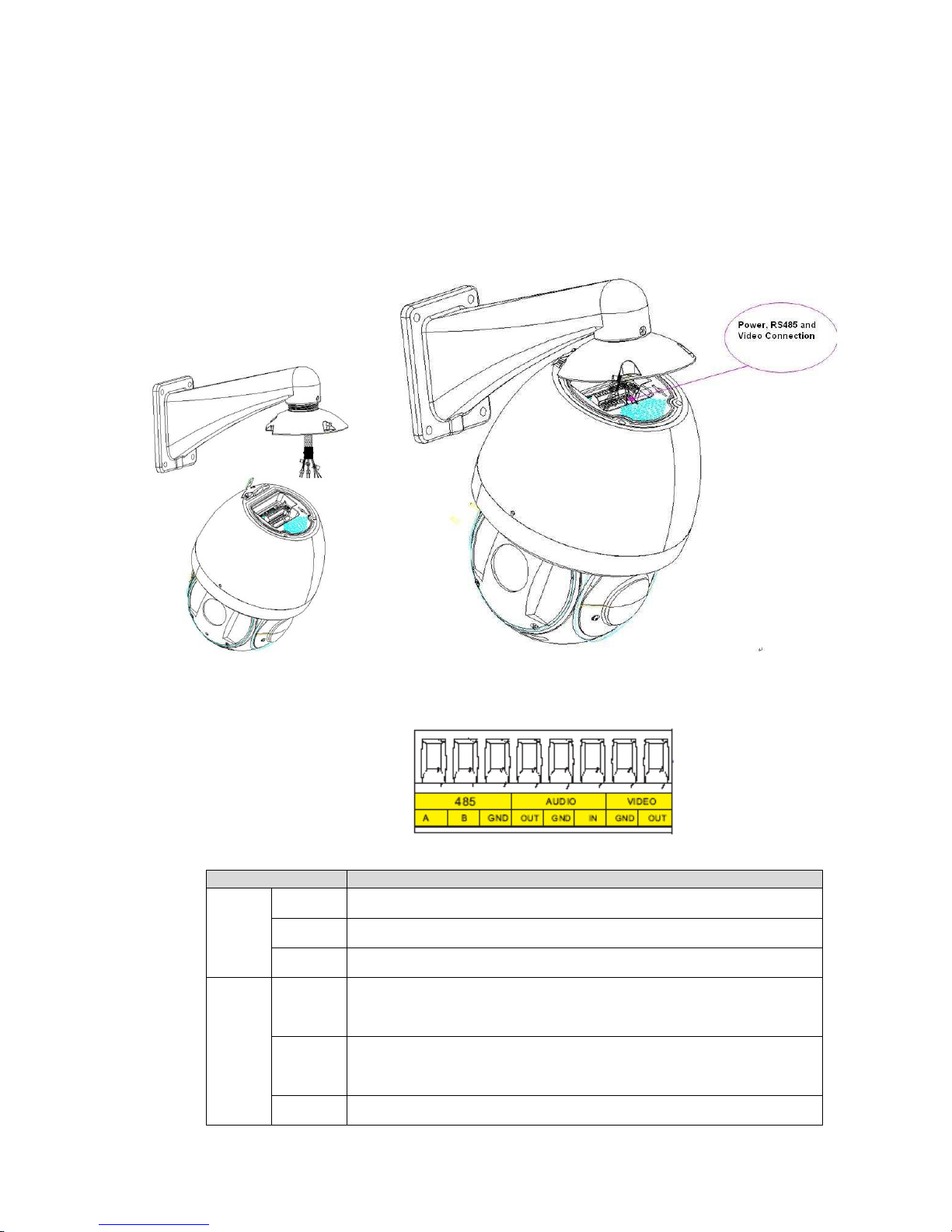

RS485 and Power Cable Connection
RS485 and Power Cable ConnectionRS485 and Power Cable Connection
RS485 and Power Cable Connection ............................................................................................................ 16
3.2

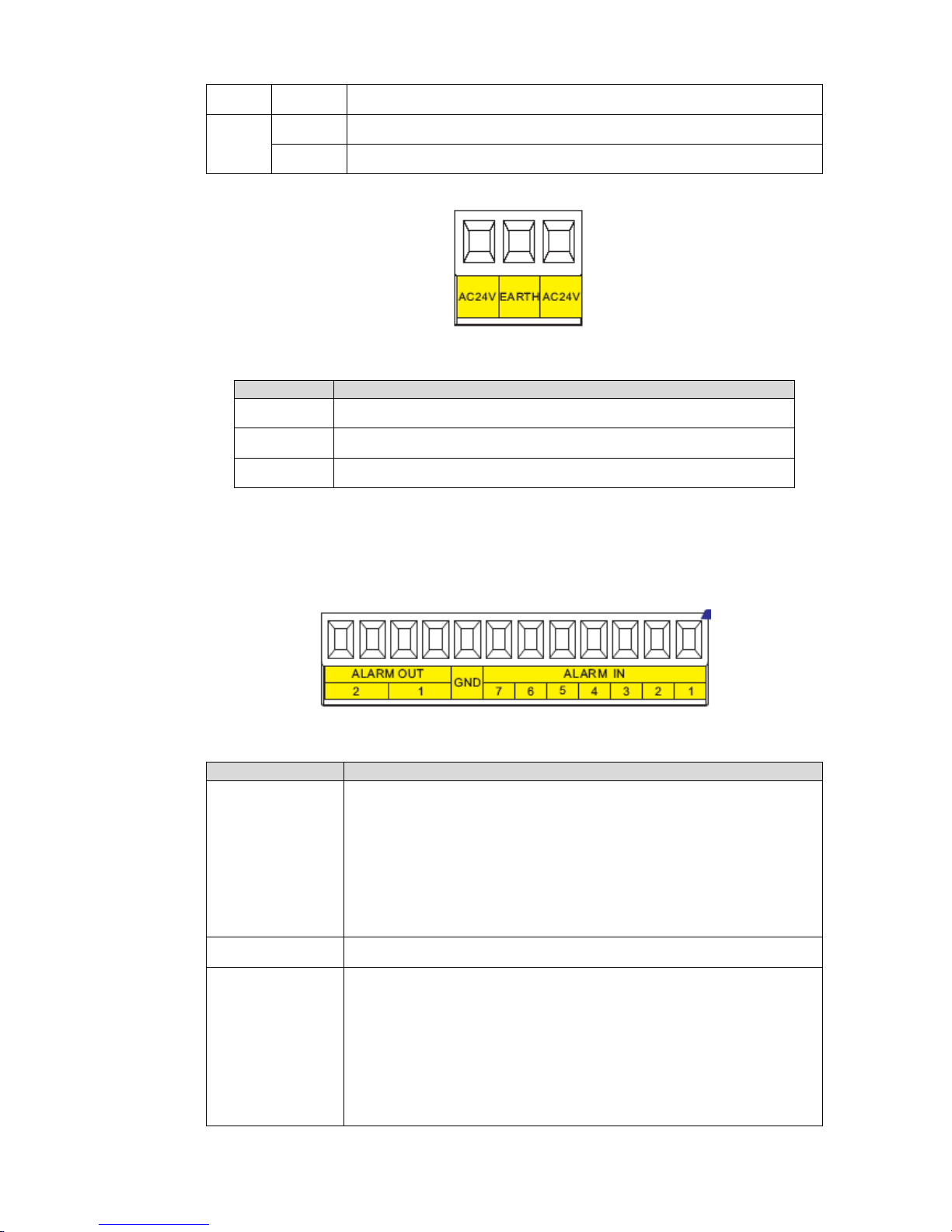

Alarm Cable Connection ............................................................................................................................... 17

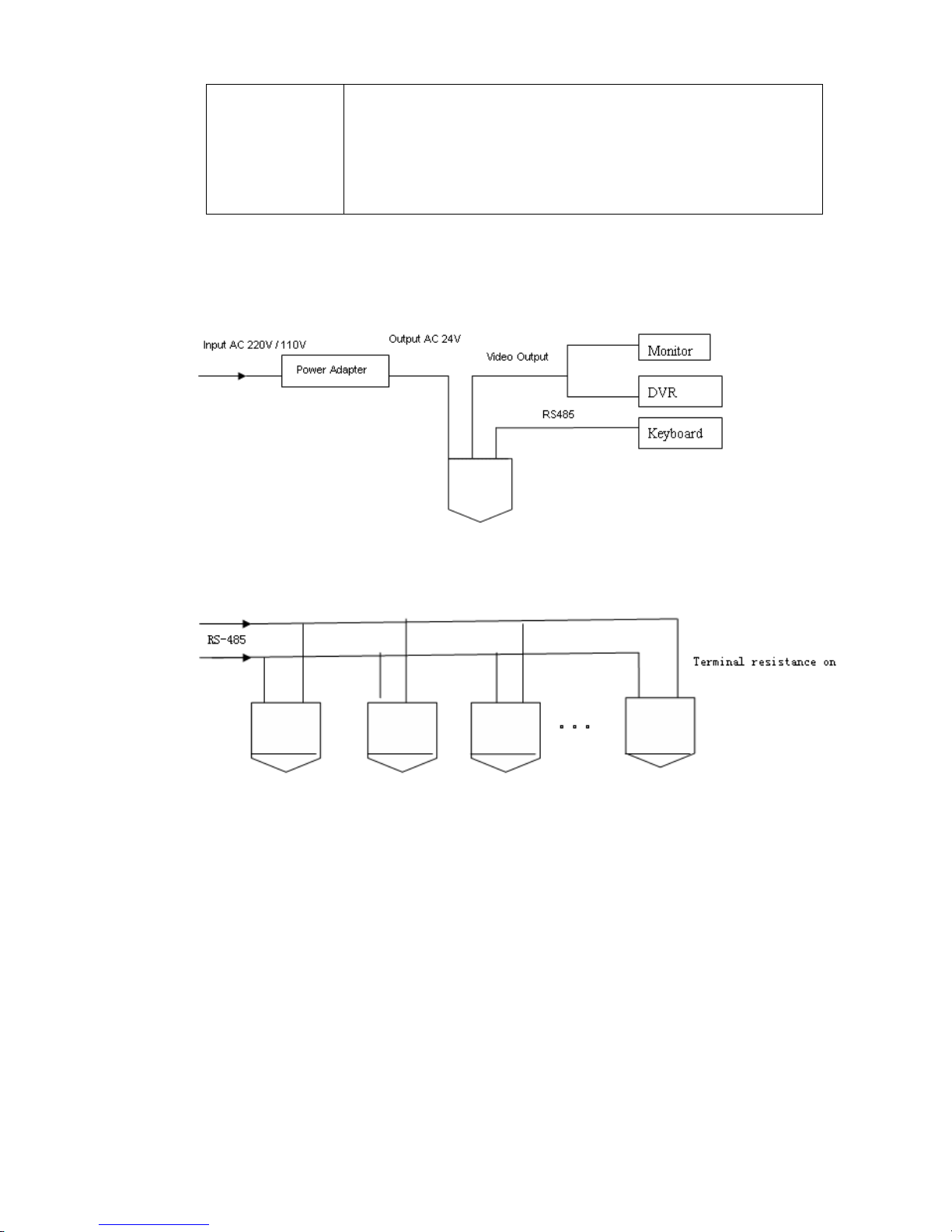

3.2.1 System Layout .............................................................................................................................................. 18
3.2.2 Alarm Connection ......................................................................................................................................... 19
3.2.3 Keyboard Connection .................................................................................................................................. 19
4444 MENU
MENUMENU
MENU ......................................................................................................................... 21
4.1
Screen Menu Index ......................................................................................................................................... 21
4.2
4.24.2
4.2
Self
SelfSelf
Self----diagnosis System Information
diagnosis System Informationdiagnosis System Information
diagnosis System Information ................................................................................................................. 22
4.3
4.34.3
4.3
Main Menu
Main MenuMain Menu
Main Menu ......................................................................................................................................................... 22
4.4
Menu Operation ............................................................................................................................................... 23
4.4.1 System Information ...................................................................................................................................... 23
4.4.2 Display Setting .............................................................................................................................................. 24
4.4.3 Camera Setting ............................................................................................................................................. 25
4.4.4 Function Setting............................................................................................................................................ 28
4.4.5 IR Light Setup ............................................................................................................................................... 34
4.4.6 Alarm Setup .................................................................................................................................................. 35
4.5
Dome Abnormal Phenomenon Operation ................................................................................................ 36
4.5.1 Restore to Factory Default Setup .............................................................................................................. 36
4.5.2 PTZ Movement is not smooth .................................................................................................................... 36
5555 FAQ
FAQFAQ
FAQ ............................................................................................................................ 37
5.1
Daily Maintenance .......................................................................................................................................... 37
5.2
Problems and Solutions................................................................................................................................ 37
6666 APPENDIX
APPENDIX APPENDIX
APPENDIX ⅠⅠⅠⅠ THUNDER PROOF AND SU
THUNDER PROOF AND SUTHUNDER PROOF AND SU
THUNDER PROOF AND SURGE PROTECTION
RGE PROTECTIONRGE PROTECTION
RGE PROTECTION ................................ 38
7777 APPENDIX
APPENDIX APPENDIX
APPENDIX ⅡⅡⅡⅡ ABOUT RS485 BUS
ABOUT RS485 BUSABOUT RS485 BUS
ABOUT RS485 BUS ............................................................................ 39
4
7.1
7.17.1
7.1
RS485 Bus Main Feature
RS485 Bus Main FeatureRS485 Bus Main Feature
RS485 Bus Main Feature ................................................................................................................................ 39
7.2
7.27.2
7.2
RS485 Bus Transmission Distance
RS485 Bus Transmission DistanceRS485 Bus Transmission Distance
RS485 Bus Transmission Distance ................................................................................................................ 39
7.3
7.37.3
7.3

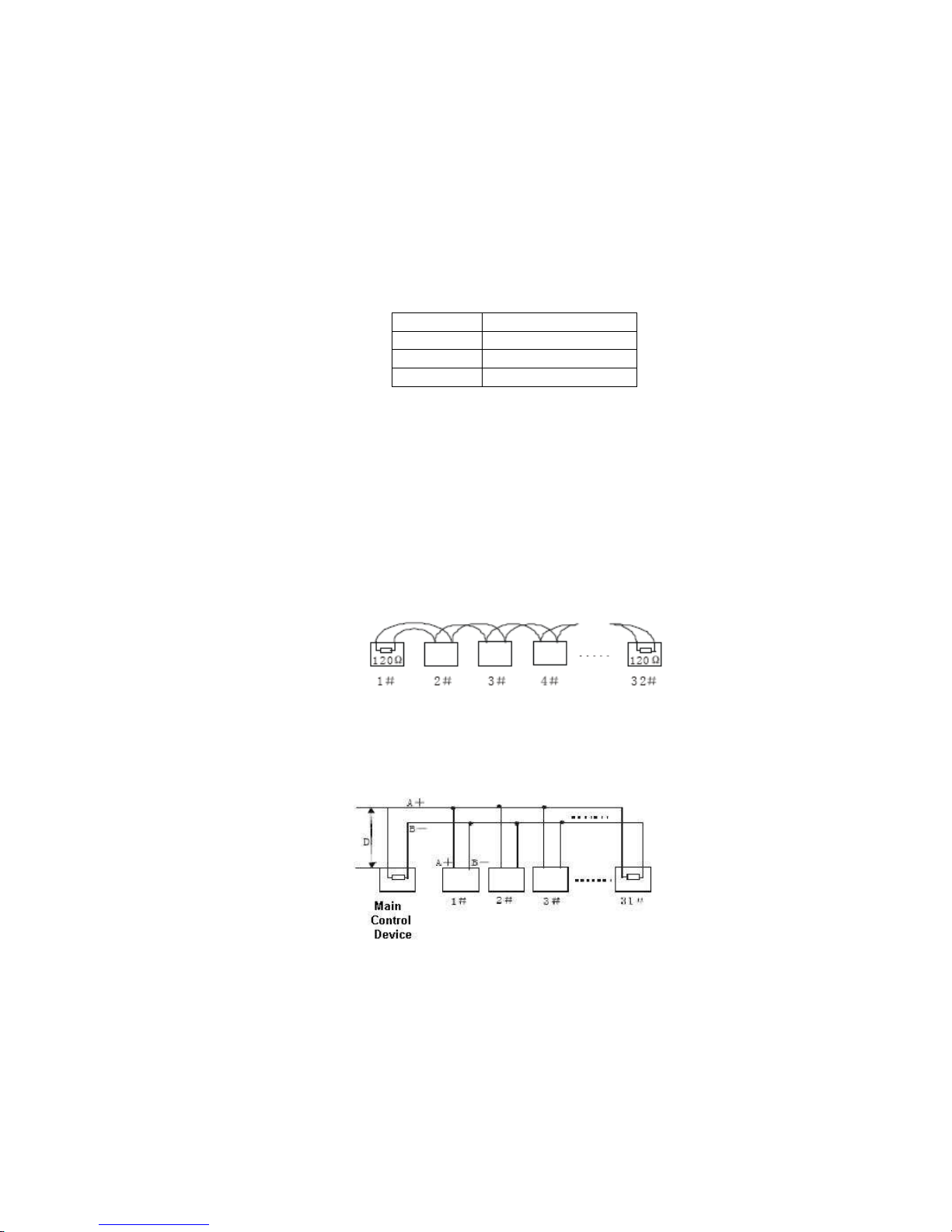

Connection Methods and Terminal Resistance
Connection Methods and Terminal ResistanceConnection Methods and Terminal Resistance
Connection Methods and Terminal Resistance ........................................................................................... 39
7.4
7.47.4
7.4
The Problem in Practical Use
The Problem in Practical UseThe Problem in Practical Use
The Problem in Practical Use.......................................................................................................................... 39
7.5
7.57.5
7.5
RS485 Bus FAQ
RS485 Bus FAQRS485 Bus FAQ
RS485 Bus FAQ ................................................................................................................................................ 40
8888 APPENDIX TOXIC OR HA
APPENDIX TOXIC OR HAAPPENDIX TOXIC OR HA
APPENDIX TOXIC OR HAZARDOUS MATERIALS OR
ZARDOUS MATERIALS ORZARDOUS MATERIALS OR
ZARDOUS MATERIALS OR ELEMENTS
ELEMENTSELEMENTS
ELEMENTS ........................ 41
5
Welcome
Thank you for purchasing our product! This user’s manual is designed to be a reference tool for the operation of your system. Here you can find information about this speed dome features and functions, as well as a detailed menu tree. Please keep it well for future reference!
Before installation and operation, please read the following safeguards and warnings carefully!
6
Important Safeguards and Warnings
1..Electrical safety
All installation and operation here should conform to your local electrical safety codes. The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the
Limited power source is rated 24V AC in the IEC60950-1.
We assume no liability or responsibility for all the fires or electrical shock caused by improper
handling or installation.
We are not liable for any problems caused by unauthorized modification or attempted repair.
2..Transportation Security
No heavy stress, violent vibration or water splash are allowed during transportation, storage and
installation.
Please use the original packing material (or the material of the same quality) when you ship it back
to the manufacturer.
3..Installation
Do not apply power to the product before completing installation. Do not put object on the product.
4..Environment
This series product should be installed in a cool, dry place away from direct sunlight, inflammable,
explosive substances and etc.
The working temperature ranges from -30—60 (Outdoor). Please keep it away from the
electromagnetic radiation object and environment.
Please keep the sound ventilation. Do not allow the water and other liquid falling into the device. Please make sure the CCD (CMOS) component is out of the radiation of the laser beam device.
Otherwise it may result in CCD (CMOS) optical component damage.
5. Daily Maintenance
Current series product has no power button. Please unplug all corresponding power cables before
your begin installation or daily maintenance work.
Please keep the dustproof cap back to protect the CCD or CMOS part if the device does not work
for a long time.
Do not touch CCD (CMOS) component. You can use the blower to clean the dust on the surface of
the device. You can use the dry cloth with some alcohol or mild detergent to clear if necessary.
Do not use the volatility solvent such as the benzene or thinner, or detergent with strong
abradibility. It may result in lens damage or it may adversely affect the device performance.
If there is too much dust, please use the water to dilute the mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the device
6. About Accessories
Always use all the accessories recommended by manufacturer. Before installation, please open the package and check that all the components are included in the package: Contact you local retailer ASAP if something is missing in your package.
8
1
11
1 Features and
Features and Features and
Features and FFFFunction
unctionunction
unctionssss
1.1
1.11.1
1.1 General Introduction
General IntroductionGeneral Introduction
General Introduction
This series IR speed dome product is an integrated high intelligent speed dome. It adopts water drop configuration design and has small and delicate shape. This is a digital and intelligent product of vivid video. It supports the auto IR light enable function in low illumination environments and the near and far light intelligent control. The installation is convenient.
The IR speed dome external ports adopt the buckle device to realize the quick installation. There is waterproof interface for the pipe thread. All of these make the installation easier. It supports various languages, real-time clock function and protocol auto recognition. It supports 360° continuously pan, 92°tilt and 180° auto flip. It can realize no blind spot mo nitor.
This series product can be widely used in remote monitor environments such as electric power, customs, and water conservancy. It is suitable for the monitor environments of low illuminations such as the village, town and suburb.
1.2
1.21.2
1.2 F
FF
Feature
eatureeature
eaturessss
This series speed dome has the following features:
1.2.1 On-Screen Menu
This series product menu supports multiple languages display and switch. It is easy for you to view dome information and configure dome, camera parameters.
1.2.2 On-screen Tips
Here you can view:
Preset name and system version (Software and hardware) Dome system temperature. (Optional. You can disable this function)
Dome address. (Optional. You can disable this function)
1.2.3 Support multiple protocols
This series speed dome supports universally used protocols such as PELCO-P and PELCO-D. You can use various devices (such as matrix, control keyboard and DVR) and protocols to operate speed dome.
1.2.4 Proportional Pan and Tilt
This function keeps the image from moving too fast when there is a large amount of zoom. Speed dome continually decreases or increases pan and tilt speeds in proportion to depth of zoom. When zooms speed is increasing, the camera moving speed becomes slow. When zooms speed is decreasing, the camera moving speed becomes fast.
1.2.5 Preset Setup and Recall
Preset function is to save the address information (such as PTZ pan/tilt, focus and etc) to the memory so that you can quickly adjust the dome and PTZ to the correct position. This series speed dome max supports 255 presets in PELCOD and PELCOP protocols. .
9
1.2.6 Auto Scan
Camera scans back and forth regularly in a horizontal field. Here you need to set left and right limit and scan speed. You can set 5 scanning paths.
1.2.7 Auto Touring
Add addresses into a routine in a desired order and then set time and stop duration for each address. The dome will begin an auto touring between these addresses. You can set 8 touring paths.
1.2.8 Auto Pattern
Memorize dome operation such as pan, tilt, and zoom to repeat. Focus and iris are in auto mode during auto pattern. For each pattern, the time should be less than 60 seconds. You can set 5 pattern paths.
1.2.9 Privacy Masking
Privacy masking is a user-defined, four-sided area that can not be viewed by you. The masking area will move with pan and tilt functions and automatically adjust in size as the lens zooms. You can set 8 privacy masking zones (Depends on camera type).
1.2.10 IR Night Vision
In the night vision status, it can use the IR light to spot the monitor object, or you can monitor the environments in the low illumination at night.
1.2.11 Action on Alarm
This series speed dome support three alarm activation operations. There are 7 alarm inputs (NO/NC). Alarms can be individually programmed to initiate an associated preset, scanning, or tour when received. Dome will return to a previously programmed state after alarm acknowledgement or to its previous position before alarm.
1.2.12 Auto Flip
As long as you continue to hold the keyboard joystick in the down position, the dome rotates 180 degrees and repositions itself for uninterrupted viewing of any subjects that passes directly beneath the dome.
1.2.13 Self-diagnosis
There is a self diagnosis procedure when dome boots up.
Tilt and vertical engine check Camera diagnostics
Display dome information and diagnosis information such as address, protocol, baud rate, type.
1.2.14 Day/Night Mode (B/W & Color Mode)
System supports auto/manual switch in low illumination. You can specify the switch time.
In the auto mode and photosensitive resistance mode, the camera can automatically switch the
CCD level according to the light change. In the manual mode, it can use the menu or the button to realize the color display, black and white display, and schedule switch. All the modes will have automatically activation operation on the IR light except the camera auto mode.
This function works with the IR night vision function.
1.2.15 Auto Focus
10
Auto focus allows the lens to remain in focus during zoom-in, zoom-out and motion functions to get vivid image. You can use FAR or NEAR button to adjust focus manually.
1.2.16 Backlight Compensation
Balance the brightest and darkest sections of a scene to produce a more vivid picture.
1.2.17 Pan Tilt and Zoom
Supports zoom in and zoom out during tilt and pan movement. In this period focus and iris are both in auto mode to get vivid image.
1.2.18 3D Intelligent Location
Working with DVR, just click part of the current scene will be displayed in the central window and automatically zooms. All of these allow you to trace precisely.
1.2.19 Idle Status
When there is no available order, you can use menu to set dome idle status after specified duration. The idle status includes turn to specified preset or go to scan, tour or pattern function.
1.2.20 Image Flip
You can enable image flip in the menu. The flip function allows you to view continuous video.
1.3
1.31.3
1.3 Specification
SpecificationSpecification
Specificationssss
1.3.1 Performance Specifications
11
1.3.2 Technical Specifications
Built-in Decode
All digital design. All data are in the connection board. No data loss when power off occurs.
Integrated design, high stability.
IR speed dome max support 255 presets. Support 8 auto touring. Each touring max has 32 presets.
5 auto scan.
5 auto pattern. Each pattern can max support 400 commands and the interval shall be less than 60s.
Built-in direction indicator.
RS485 BUS control.
Support max 8 privacy mask zones(Depends on the camera type)
7 alarm inputs and 2 alarm outputs.
Built-in various adjustable protocols, baud rate.
Built-in PTZ
Fine stepper driver, stable performance, react quickly, precisely positioning.
Integrated design, tight structure.
Elegant mechanical driver device. Support 360 degrees continuous rotation, no monitor blind spot.
0.1°/s rotation speed while maintain stable image.
180 degrees tilt continuous monitor.
Built-in IR light
Support zoom level has the higher priority (default), manual or the
height has the higher priority.
In the night vision status, it can use the IR light to spot the monitor
object, or you can monitor the environments in the low illumination at night.
B
uilt-in zoom
lens, high sensitive, high resolution integrated digital process color camera.
Auto focus
Auto iris control
Auto brightness control
Auto white balance
Auto day/night switch (Auto B/W & color switch)
OSD
Preset title display
View dome initial setup information
Modify camera parameter
Set preset
Set auto scan
Set 7 alarm inputs and 2 alarm outputs.
Set auto patter
Set auto day/night switch (Auto B/W & color switch)
Set privacy mask zones
12
Power
AC 24V/3A±20%)(Includes temperature control circuit)
C
amera Driver
Consumption
11W
IR Light Consumption
20W
Decode
r
Built-in
Engine
Stepper motor
Preset
255( in PELCO protocol)
Auto Tour
8
Auto Pattern
5
Auto Scan
5
Privacy Mask
Maximum 8 zones
Alarm
Input/Output
7/2
Information
Time, address, dome title, dome coordinates, temperature and etc.
Lens
Adjust speed in accordance with lens
Auto Rotation
Tilt 92º auto rotates to pan 180 º
Auto Pan
0 º -360º continuously
Manual Pan Motion
Speed
0.1º—200º/S
Preset Maximum
Speed
60 º240º/s. There are 16-level. You can set from the menu.
Manual Tilt Motion
0.1º—120º/S
Manual Tilt Scan
Section
0º—180º
Control Port
RS485 BUS
Baud Rate
1200/2400/4800/9600 (Optional)
PTZ Scan Accuracy
0.06 ± 0.015º
Signal Format
PAL/NTSC (Camera mode)
S/N Ratio
> 50dB
Effective Pixel
768(H)*494(V) 795(H)*596(V)
Horizontal Resolution
480TVL/540TVL
Fan
Fan works continuously
Humidity
90%
Environment
-30—60℃(Outdoor
13
2
22
2 Protocol
ProtocolProtocol
Protocol,,,, BBBBaud
aud aud
aud RRRRate
ateate
ate,
, ,
, AAAAddress
ddress ddress
ddress setup
setupsetup
setup
Before you operate, you need to set protocol, baud rate and address. Otherwise you can not control the product!
2.1
2.12.1
2.1 Protocol and
Protocol and Protocol and
Protocol and BBBBaud
aud aud
aud RRRRate
ate ate
ate SSSSetup
etupetup
etup
Please configure the following settings before begin controlling dome:
Protocol Baud rate
Address
Note: Please reboot the speed dome to get all the setups activated!
Open the lower dome, the interface is shown as below. See Figure 2-1.
SW2
SW1
Figure 2-1
SW1
Figure 2-2
Loading...
+ 28 hidden pages
