Dahua LE-A User Manual

1U Series Standalone DVR User’s Manual

Table of Contents

1 FEATURES AND SPECIFICATIONS................................................................ 10

1.1 Overview ...............................................................................................................................................10

1.2 Features................................................................................................................................................10

1.3 Specification .........................................................................................................................................11

2 OVERVIEW AND CONTROLS .........................................................................15

2.1 Front Panel ...........................................................................................................................................15

2.2 Rear Panel............................................................................................................................................16

2.3 Connection Sample.............................................................................................................................17

2.4 Remote Control....................................................................................................................................18

2.5 Mouse Control......................................................................................................................................20

2.6 Virtual Keyboard & Front Panel.........................................................................................................21

2.6.1 Virtual Keyboard.............................................................................................................................. 21

2.6.2 Front Panel ......................................................................................................................................21

3 INSTALLATION AND CONNECTIONS.............................................................22

3.1 Check Unpacked DVR........................................................................................................................22

3.2 About Front Panel and Real Panel ...................................................................................................22

3.3 HDD Installation...................................................................................................................................22

3.4 Connecting Power Supply..................................................................................................................23

3.5 Connecting Video Input and Output Devices ..................................................................................23

3.5.1 Connecting Video Input.................................................................................................................. 23

3.5.2 Connecting Video Output...............................................................................................................24

3.6 Connecting Audio Input & Output, Bidirectional Audio ..................................................................24

3.6.1 Audio Input.......................................................................................................................................24

3.6.2 Audio Output.................................................................................................................................... 25

3.7 Alarm Input and Output Connection .................................................................................................25

3.7.1 Alarm Input and Output Details..................................................................................................... 26

3.7.2 Alarm Input Port .............................................................................................................................. 27

3.7.3 Alarm Output Port ........................................................................................................................... 27

3.8 RS232....................................................................................................................................................28

3.9 RS485....................................................................................................................................................28

3.10 Other Interfaces ...................................................................................................................................29

4 OVERVIEW OF NAVIGATION AND CONTROLS ............................................30

4.1 Login, Logout & Main Menu ...............................................................................................................30

4.1.1 Login ................................................................................................................................................. 30

4.1.2 Main Menu .......................................................................................................................................30

4.1.3 Logout............................................................................................................................................... 31

4.1.4 Auto Resume after Power Failure ................................................................................................ 31

4.1.5 Replace Button Battery .................................................................................................................. 31

4.2 Manual Record.....................................................................................................................................32

4.2.1 Live Viewing..................................................................................................................................... 32

4.2.2 Manual record..................................................................................................................................32

4.3 Search & Playback ..............................................................................................................................34

4.3.1 Search Menu ...................................................................................................................................34

4.3.2 Basic Operation............................................................................................................................... 35

4.3.3 Calendar........................................................................................................................................... 36

4.4 Schedule ...............................................................................................................................................36

4.4.1 Schedule Menu .................................................................................................................................... 36

4.4.2 Snapshot .......................................................................................................................................... 37

4.4.3 Image FTP .......................................................................................................................................39

4.5 Detect ....................................................................................................................................................39

4.5.1 Go to Detect Menu............................................................................................................................... 39

4.5.2 Motion Detect........................................................................................................................................ 39

4.5.3 Video Loss.............................................................................................................................................41

4.5.4 Camera Masking..................................................................................................................................42

4.6 Alarm Setup and Alarm Activation ....................................................................................................42

4.6.1 Go to alarm setup interface ........................................................................................................... 43

4.6.2 Alarm setup...................................................................................................................................... 43

4.7 Backup ..................................................................................................................................................45

4.7.1 Detect Device....................................................................................................................................... 45

4.7.1 Backup.............................................................................................................................................. 45

4.8 PTZ Control and Color Setup ............................................................................................................46

4.8.1 Cable Connection ................................................................................................................................46

4.8.2 PTZ Setup.............................................................................................................................................47

4.8.3 3D Intelligent Positioning Key............................................................................................................ 48

4.9 Preset/ Patrol/Pattern/Scan................................................................................................................49

4.9.1Preset Setup .........................................................................................................................................49

4.9.2 Activate Preset..................................................................................................................................... 50

4.9.3 Patrol setup (Tour Setup)................................................................................................................... 50

4.9.4 Activate Patrol (tour) ........................................................................................................................... 50

4.9.5 Pattern Setup....................................................................................................................................... 50

4.9.6 Activate Pattern Function...................................................................................................................51

4.9.7 Auto Scan Setup .................................................................................................................................51

4.9.8 Activate Auto Scan.............................................................................................................................. 51

4.10 Flip .........................................................................................................................................................51

5 UNDERSTANDING OF MENU OPERATIONS AND CONTROLS ................... 52

5.1 Menu Tree ............................................................................................................................................52

5.2 Main Menu ............................................................................................................................................52

5.3 Setting ...................................................................................................................................................53

5.3.1 General............................................................................................................................................. 53

5.3.2 Encode .............................................................................................................................................54

5.3.3 Schedule ..........................................................................................................................................56

5.3.4 RS232............................................................................................................................................... 56

5.3.5 Network ............................................................................................................................................56

5.3.6 Alarm.................................................................................................................................................63

5.3.7 Detect ...............................................................................................................................................63

5.3.8 Pan/Tilt/Zoom .................................................................................................................................. 63

5.3.9 Display..............................................................................................................................................63

5.3.10 Default.......................................................................................................................................... 65

5.4 Search ...................................................................................................................................................66

5.5 Advanced ..............................................................................................................................................66

5.5.1 HDD Management..........................................................................................................................66

5.5.2 Abnormity ......................................................................................................................................... 67

5.5.3 Alarm Output....................................................................................................................................68

5.5.4 Manual Record................................................................................................................................68

5.5.5 Account.............................................................................................................................................68

5.5.6 Auto Maintain................................................................................................................................... 69

5.5.7 TV Adjust.......................................................................................................................................... 70

5.6 Information............................................................................................................................................70

5.6.1 HDD Information .............................................................................................................................71

5.6.2 BPS...................................................................................................................................................71

5.6.3 Log ....................................................................................................................................................72

5.6.4 Version .............................................................................................................................................72

5.6.5 Online Users....................................................................................................................................72

5.7 Shutdown..............................................................................................................................................73

6 ABOUT AUXILIARY MENU ..............................................................................74

6.1 Go to Pan/Tilt/Zoom Menu .................................................................................................................74

6.1.1 3D Intelligent Positioning Key .......................................................................................................74

6.2 Preset /Patrol / Pattern /Border Function.......................................................................................75

6.2.1 Preset Setup....................................................................................................................................76

6.2.2 Activate Preset ................................................................................................................................ 76

6.2.3 Patrol Setup ..................................................................................................................................... 76

6.2.4 Activate Patrol .................................................................................................................................76

6.2.5 Pattern Setup................................................................................................................................... 76

6.2.6 Activate Pattern Function............................................................................................................... 77

6.2.7 Border Setup....................................................................................................................................77

6.2.8 Activate Border Function ...............................................................................................................77

6.2.9 Flip ....................................................................................................................................................77

7 WEB CLIENT OPERATION ..............................................................................79

7.1 Network Connection............................................................................................................................79

7.2 Login......................................................................................................................................................79

7.2.1 Real-time Monitor............................................................................................................................ 81

7.2.2 PTZ ...................................................................................................................................................83

7.2.3 Color .................................................................................................................................................86

7.2.4 Picture Path and Record Path ......................................................................................................86

7.3 Configure .............................................................................................................................................. 87

7.3.1 System Information......................................................................................................................... 87

7.3.2 System Configuration.....................................................................................................................89

7.3.3 Advanced ....................................................................................................................................... 108

7.3.4 Additional Function ....................................................................................................................... 113

7.4 Search .................................................................................................................................................114

7.5 Alarm ...................................................................................................................................................117

7.6 About ...................................................................................................................................................118

7.7 Log out ................................................................................................................................................119

7.8 Un-install Web Control......................................................................................................................119

8 PROFESSIONAL SURVEILLANCE SYSTEM ................................................120

9 FAQ.................................................................................................................121

APPENDIX A HDD CAPACITY CALCULATION .................................................126

APPENDIX B COMPATIBLE USB DRIVE LIST ..................................................127

APPENDIX C COMPATIBLE CD/DVD BURNER LIST........................................128

APPENDIX D COMPATIBLE SATA HDD LIST ...................................................129

APPENDIX E COMPATIBLE DISPLAYER LIST .................................................131

APPENDIX F EARTHING....................................................................................132

Welcome

Thank you for purchasing our DVR!

This operating manual is designed to be a reference tool for the installation and operation of your

system.

Here you can find information about this series DVR features and functions, as well as a detailed

menu tree.

Before installation and operation please read the following safeguards and warnings carefully!

Important Safeguards and Warnings

1．Electrical safety

All installation and operation here should conform to your local electrical safety codes.

We assume no liability or responsibility for all the fires or electrical shock caused by improper

handling or installation.

2．Transportation security

Heavy stress, violent vibration or water splash are not allowed during transportation, storage and

installation.

3．Installation

Keep upwards. Handle with care.

Do not apply power to the DVR before completing installation.

Do not place objects on the DVR

4．Qualified engineers needed

All the examination and repair work should be done by the qualified service engineers.

We are not liable for any problems caused by unauthorized modifications or attempted repair.

5．Environment

The DVR should be installed in a cool, dry place away from direct sunlight, inflammable,

explosive substances and etc.

6. Accessories

Be sure to use all the accessories recommended by manufacturer.

Before installation, please open the package and check all the components are included.

Contact your local retailer ASAP if something is broken in your package.

1 FEATURES AND SPECIFICATIONS

1.1 Overview

This series product is an excellent digital monitor product. It adopts embedded Linux OS to

maintain reliable operation. Popular H.264 compression algorithm and G.711 audio compression

technology realize high quality, low bit stream. Unique frame by frame play function is suitable for

detail analysis. It has various functions such as record, playback, monitor at the same time and

can guarantee audio video synchronization. This series product has advanced technology and

strong network data transmission function.

This series device adopts embedded design to achieve high security and reliability. It can work in

the local end, and at the same time, when connecting it to the professional surveillance software

(PSS), it can connect to security network to realize strong network and remote monitor function.

This series product can be widely used in various areas such as banking, telecommunication,

electric power, interrogation, transportation, intelligent resident zone, factory, warehouse,

resources, and water conservancy.

1.2 Features

This series product has the following features:

z Real-time monitor

It has analog output port, VGA port and HDMI port. You can use monitor or displayer to realize

surveillance function.

System supports TV/VGA/HDMI output at the same time.

z Storage function

Special data format to guarantee data security and can avoid vicious data modification.

z Compression format

Support multiple-channel audio and video. An independent hardware decodes the audio and

video signal from each channel to maintain video and audio synchronization.

z Backup function

Support backup operation via USB port (such as flash disk, portable HDD, burner)

Client-end user can download the file to local HDD to backup via network.

z Record playback function

Support each channel real-time record independently, and at the same time it can support search,

forward play, network monitor, record search, download and etc.

Support various playback modes: slow play, fast play, backward play and frame by frame play.

Support time title overlay so that you can view event accurate occurred time

Support specified zone enlargement.

z Network operation

Support network remote real-time monitor, remote record search and remote PTZ control.

z Alarm activation function

Several relay alarm outputs to realize alarm activation and on-site light control.

The alarm input port and output has the protection circuit to guarantee device safety.

z Communication port

RS485 port can realize alarm input and PTZ control.

RS232 port can connect to keyboard to realize central control, and can also connect to PC COM

to upgrade system and realize maintenance, and matrix control.

Standard Ethernet port can realize network access function.

z PTZ control

Support PTZ decoder via RS485.

Support various decode protocols to allow the PTZ to control the speed dome.

z Intelligent operation

Mouse operation function

In the menu, support copy and paste setup function

Slight function differences may be found due to different series.

1.3 Specification

System

Compression Standard

Video monitor

Parameter

Main Processor

OS System

Resources Interface Input

Devices Input Method Shortcut Function Video Compressio n Audio Compressio n

Video Input

Video Output

4-ch 8-ch 16-ch

High-performance industrial embedded micro controller

Embedded LINUX

Multiplex operations: Multiple-channel record, multiple-channel playback and network operation simultaneously User-friendly graphical user interface

Front panel, USB mouse, remote control

Arabic number, English character, donation and extension Chinese (optional) Copy/paste operation, USB mouse right-key shortcut menu, double click USB mouse to switch screen.

H.264

G.711A

4-CH composite video input: (NTSC/PAL) BNC (1.0V

P- P,

B75Ω)

8-CH composite video input: (NTSC/PAL)

BNC (1.0V

P- P,

B75Ω)

16-CH composite video input: (NTSC/PAL) BNC

P- P,

B75Ω)

(1.0V

1-ch PAL/NTSC, BNC (1.0VP- P, 75Ω) composite video signal output. 1-ch VGA output. 1-ch HDMI output. Support TV/VGA/HDMI video output at the same time.

Video Standard

Record Speed

PAL (625 line, 50f/s), NTSC (525 line, 60f/s)

Real-time Mode: PAL 1f/s to 25f/s per channel and NTSC 1f/s to 30f/s per channel

Video Partition Monitor Touring

Resolution (PAL/NTSC )

Motion Detection

Image Quality Privacy mask Image Information

1/4 windows(Optional) 1/4/9 windows 1/4/9 /16 windows

Support monitor tour functions such as alarm, motion detection, and schedule auto control. PAL/NTSC Real-time monitor： D1 704×576/704×480

Playback： 1/16-ch: D1 704×576/704×480 (6f/s, when other channels’ resolution are all CIF, the first channel and the ninth channel can support 25f/s.) , CIF 352×288/ 352×240 , QCIF 176×144/176×120 Other channels CIF 352×288/ 352×240 、QCIF 176×144/176×120.

Support dual streams: extra stream resolution QCIF 176×144/176×120

Zone setup: support max 396(22×18) zones. Support various sensitivities.

6-level image quality (Adjustable)

Support one privacy mask of user-defined size in full screen. Support max 4 zones.

Channel information, time information and privacy mask zone.

Audio

Hard disk

Record and playback

TV Adjust Adjust TV output zone suitable to anamorphic video.

Channel Lock

Channel Information

Color Configuratio n

Audio Input

Audio Output

Bidirectional Audio

Hard Disk Hard Disk

Occupation

Recording Mode

Recording Length

Cover secret channel with blue screen though system is encoding normally. Screen-lock function to prevent unauthorized user seeing secret video. Channel name, recording status, screen lock status, video loss status and motion detection status are shown on the bottom left of display screen. Hue, brightness, contrast, saturation and gain setup for each channel.

4-ch 200-2000mv 10KΩ(BNC)

1-ch audio output 200-3000mv 5KΩ(BNC)

Reuse the first channel audio input port to realize bidirectional talk function. 1 built-in SATA port. Support 1 HDD.

Audio：PCM 28.8MByte/h Video：56-900MByte/h Manual recording, motion detection recording, schedule recording and

alarm recording Priority: Manual recording> alarm recording>motion detection recording>schedule recording. 1 to 120 minutes single record duration (Default setup is 60 minutes)

8-ch 200-2000mv 10KΩ(BNC)

4-ch 2002000mv 10KΩ (BNC)

Playback

Backup function

Network Function

Motion Detection and Alarm

Interface

Repeat Way

Record Search Playback Mode Various File Switch Ways

Multichannel Playback

Window Zoom Partial Enlargemen t

Backup Mode

Network control

Motion Detection

Video Loss Alarm can activate external alarm or screen message prompt. External Alarm Manual Alarm Control

Alarm Input

Alarm Output

Alarm Relay USB

Interface

When hard disk is full, system can overwrite previous video file.

Various search engines such as time, type and channel.

Various fast play, slow play speeds, manual frame by frame playback and reverse play mode. Can switch to previous or next file or any file in current play list. Can switch to file on other channel of the same time. (If there is a file) Support file continuous play, when file is end system auto plays the next file in the current channel There are two playback modes: 4-ch and full-channel. In 4-ch playback mode, you can select the 1/2/3/4-ch playback according to your requirement. In full-channel mode, system can playback in full channels. Please note the 4-ch has no full-channel playback mode. Switch between self-adaptive screen/full screen when playback

When in one-window full-screen playback mode, you can select any zone to activate partial enlargement function.

HDD backup Support peripheral USB backup device. (Flash disk, portable disk and etc.) Support USB burner (extension function). Support network download and backup View monitor channel remotely.

DVR configuration through client-end and web browser Upgrade via client or browser to realize remote maintenance.

View alarm information such as external alarm, motion detection and video loss via client. Support network PTZ lens control File download backup and playback Multiple devices share information via corresponding software such as professional surveillance software (PSS) Duplex transparent COM Network alarm input and output Bidirectional audio. Zone setup: support 396((PAL 22×18, NTSC 22×15)) detection zones. Various sensitivity levels. Alarm can activate record or external alarm or screen message prompt.

Support record activation function or activate external alarm or screen message in specified period. Enable or disable alarm input channel Support analog alarm signal to specific alarm output channel.

4-ch alarm input（You can set normal open or normal close type to select the alarm type. ）

3-channel relay output.

30VDC 2A，125VAC 1A（activation alarm ） 2 USB 2.0 ports.

8-ch alarm input（You can set normal open or normal close type to select the alarm type. ）

16-ch alarm input （You can set normal open or normal close type to select the alarm type. ）

Network connection

RS485

RS232

System Information

User Management

Upgrade

General Parameter

Hard Disk Information Data Stream Statistics Log statistics

Version

On-line user Display current on-line user

User Manageme nt

Password Authenticati on

Power Power

Consumptio n

Working Temperatur e Working Humidity Air Pressure

Dimension Weight 3.25KG(Exclude HDD)

Installation Mode

RJ45 10M/100M self-adaptable Ethernet port

PTZ control port Support various PTZ control protocols. Ordinary COM (Debug),keyboard connection and transparent serial port(COM input and output via network ) Display HDD current status

Data stream statistics for each channel (in wave mode)

Backup to 1024 log files. Support various search engines such as time and type. Display version information: channel amount, alarm input and output amount, system version and release date.

Multi-lever user management; various management modes Integrated management for local user, serial port user and network user. Configurable user power. Support user /group and its corresponding rights modification. No limit to the user or group amount. Password modification Administrator can modify other user’s password. Account lock strategy Five times login failure in thirty minutes may result in account lock. Web browser, client-end and update tool.

Password login protection to guarantee safety

User-friendly interface when login. Provide the following options: Logout /shutdown/ restart. Right authentication when shut down to make sure only those proper people can turn off DVR DC +12V/3.3A

12W (Exclude HDD)

0℃－＋55℃

10%－90%

86kpa－106kpa

375 x285 x45mm

Desktop installation

2 Overview and Controls

This section provides information about front panel and rear panel. When you install this series

DVR for the first time, please refer to this part first.

2.1 Front Panel

The front panel is shown as in Figure 2-1.

Figure 2-1

Please refer to the following sheet for front panel button information.

Name Icon Function

Power button

Shift Shift

Up/1 Down/4

Left/2 Right/3

ESC ESC

S、T

W X

Power button, press this button for three seconds to boot up or shut down DVR.

In textbox, click this button to switch between numeral, English(Small/Capitalized),donation and etc.

Activate current control, modify setup, and then move up and down.

Increase/decrease numeral.

Assistant function such as PTZ menu.

In text mode, input number 1/4 (English character G/H/I)

Shift current activated control,

When playback, click these buttons to control playback bar. In text mode, input number 2(English character A/B/C) /3(English character D/E/F)

Go to previous menu, or cancel current operation.

When playback, click it to restore real-time monitor mode.

Confirm current operation

Enter ENTER

Record REC

Slow play/8

Assistant Fn

Go to default button

Go to menu

Manually stop/start recording, working with direction keys or numeral keys to select the recording channel.

Multiple slow play speeds or normal playback. In text mode, input number 8 (English character T/U/V).

One-window monitor mode, click this button to display assistant function: PTZ control and image color.

Backspace function: in numeral control or text control, press it for 1.5seconds to delete the previous character before the cursor.

In motion detection setup, working with Fn and direction keys to realize setup.

In text mode, click it to switch between numeral, English character(small/capitalized) and etc.

Realize other special functions.

Fast play/7

Play previous/0

Reverse/Pau se/6

Play Next/9

Play/Pause /5

USB port

Network abnormal indication light



W

f

Net

Various fast speeds and normal playback. In text mode, input number 7 (English character P/Q/R/S).

In playback mode, playback the previous video In text mode, input number 0.

In normal playback or pause mode, click this button to reverse playback In reverse playback, click this button to pause playback. In text mode, input number 6 (English character M/N/O)

In playback mode, playback the next video In menu setup, go to down ward of the dropdown list. In text mode, input number 9 (English character W/X/Y/Z)

In normal playback click this button to pause playback In pause mode, click this button to resume playback. In text mode, input number 5(English character J/K/L).

To connect USB storage device, USB mouse.

Network error occurs or there is no network connection, the light becomes red to alert you.

HDD abnormal indication light

Record light 1-16

IR Receiver IR It is to receive the signal from the remote control.

HDD

HDD error occurs or HDD capacity is below specified threshold value, the light becomes red to alert you.

System is recording or not. It becomes on when system is recording.

2.2 Rear Panel

The 4-ch rear panel is shown as below. See Figure 2-2.

Figure 2-2

The 8-ch rear panel is shown as below. See Figure 2-3.

Figure 2-3

The 16-ch real panel is shown as below. See Figure 2-4.

Figure 2-4

Please refer to the following sheet for detail information.

1 Video input 2 Audio input 3 Video CVBS output 4 Audio output 5 Network port 6 USB port 7 HDMI port 8 RS232 port 9 Video VGA output 10 Alarm input/alarm output/RS485 port 11 Power input port 12 Power button

When connect the Ethernet port, please use straight cable to connect the PC and use the

crossover cable to connect to the switcher or router.

2.3 Connection Sample

Please refer to X281H281H281H285HFigure 2-5X for connection sample.

Figure 2-5

2.4 Remote Control

The remote control interface is shown as in X282H282H282H286HFigure 2-6X.

Please note remote control is not our standard accessory and it is not included in the accessory

bag.

Figure 2-6

Serial Number Name Function 1 Address Click it to input device serial

2 Multiple-window switch Please refer to the multiple-

3 0-9 number key Input password, channel or

4 Record Please refer to the record in the

5 Auxiliary key Please refer to the Fn button in

6 Confirm /menu key Please refer to the ENTER

7 Cancel Please refer to the ESC button in

8 Direction key Please refer to the direction

9 forward Various forward speeds and

10 Previous Please refer to the previous in

11 Backward Various backward speeds and

12 Stop Please refer to the stop button in

13 Next Please refer to the next button in

14 Slow play Please refer to the slow play

15 Play/Pause Please refer to the play/pause

16 Fast play Please refer to the fast play

number, so that you can control it.

window switch button in the front panel (MULT)

switch channel. Shift is the button to switch the input method.

front panel.

the front panel.

button in the front panel.

the front panel.

buttons in the front panel.

normal speed playback.

the front panel.

normal speed playback.

the front panel.

button in the front panel.

2.5 Mouse Control

button in the front panel.

Left click mouse

Double left click mouse

System pops up password input dialogue box if you have not logged in. In real-time monitor mode, you can go to the main menu. When you have selected one menu item, left click mouse to view menu content. Implement the control operation.

Modify checkbox or motion detection status. Click combo box to pop up drop down list In input box, you can select input methods. Left click the corresponding button on the panel you can input numeral/English character (small/capitalized). Here ← stands for backspace button. ＿ stands for space button.

In English input mode: _stands for input a backspace icon and ← stands for deleting the previous character.

In numeral input mode: _ stands for clear and ← stands for deleting the previous numeral.

When input special sign, you can click corresponding numeral in the front panel to input. For example, click numeral 1 you can input“/” , or you can click the numeral in the on-screen keyboard directly.

Implement special control operation such as double click one item in the file list to playback the video. In multiple-window mode, double left click one channel to view in full-window. Double left click current video again to go back to previous multiple-window mode.

Right click mouse

Press middle button

Move mouse

In real-time monitor mode, pops up shortcut menu: one-window, four-window, nine-window and sixteen-window, Pan/Tilt/Zoom, color setting, search, record, alarm input, alarm output, main menu. Among which, Pan/Tilt/Zoom and color setting applies for current selected channel. If you are in multiple-window mode, system automatically switches to the corresponding channel.

Exit current menu without saving the modification. In numeral input box: Increase or decrease numeral value. Switch the items in the check box. Page up or page down Select current control or move control

Select motion detection zone Drag mouse

Select privacy mask zone.

2.6 Virtual Keyboard & Front Panel

2.6.1 Virtual Keyboard

The system supports two input methods: numeral input and English character (small and

capitalized) input.

Move the cursor to the text column, the text is shown as blue, input button pops up on the right.

Click that button to switch between numeral input and English input (capitalized and small), Use > or < to shift between small character and capitalized character.

2.6.2 Front Panel

Move the cursor to the text column. Click Fn key and use direction keys to select number you

wanted. Please click enter button to input.

3 Installation and Connections

Note: All the installation and operations here should conform to your local electric safety rules.

3.1 Check Unpacked DVR

When you receive the DVR from the forwarding agent, please check whether there is any visible

damage. The protective materials used for the package of the DVR can protect most accidental

clashes during transportation. Then you can open the box to check the accessories.

Please check the items in accordance with the list on the warranty card (Remote control is

optional). Finally you can remove the protective film of the DVR.

Note

Remote control is not a standard accessory and it is not included in the accessory bag.

3.2 About Front Panel and Real Panel

For detail information of the function keys in the front panel and the ports in the rear panel,

please refer to the appendix for detail information.

The model in the front panel is very important; please check according to your purchase order.

The label in the rear panel is very important too. Usually we need you to represent the serial

number when we provide the service after sales.

3.3 HDD Installation

This series DVR has only one SATA HDD. Please use HDD of 7200rpm or higher.

You can refer to the User’s Manual for recommended HDD brand.

Please follow the instructions below to install hard disk.

1. Loosen the screws of the

er cover.

2. Remove upper cover.

3. Turn four screws for three rounds to fix HDD bracket.

4. Place the HDD in

accordance with the four holes.

5. Turn the device upside down

and then turn the screw in firmly.

6. Fix the HDD firmly.

7. Connect the HDD cable and

power cable.

8. Place the upper cover back

and screw firmly.

After completing HDD installation, please check connection of data ribbon and power cord.

3.4 Connecting Power Supply

Please check input voltage and device power button match or not.

We recommend you use UPS to guarantee steady operation, DVR life span, and other peripheral

equipments operation such as cameras.

3.5 Connecting Video Input and Output Devices

3.5.1 Connecting Video Input

The video input interface is BNC. The input video format includes: PAL/NTSC BNC（1.0VB

B75Ω. See X283H283H283H287HFigure 3-1.X

The video signal should comply with your national standards.

The input video signal shall have high SNR, low distortion; low interference, natural color and

suitable lightness.

Guarantee the stability and reliability of the camera signal:

The camera shall be installed in a cool, dry place away from direct sunlight, inflammable,

explosive substances and etc.

The camera and the DVR should have the same grounding to ensure the normal operation of the

camera.

Guarantee stability and reliability of the transmission line

BTTTB

Please use high quality, sound shielded BNC. Please select suitable BNC model according to the

transmission distance.

If the distance is too long, you should use twisted pair cable, and you can add video

compensation devices or use optical fiber to ensure video quality.

You should keep the video signal away from the strong electromagnetic interference, especially

the high tension current.

Keep connection lugs in well contact

BTTTB

The signal line and shielded wire should be fixed firmly and in well connection. Avoid dry joint,

lap welding and oxidation.

BTTTB

P- P ，

Figure 3-1

3.5.2 Connecting Video Output

Video output includes a TBNC(PAL/NTSC BNC（1.0VP- P， 75Ω）output and a VGA output.

System supports BNC, VGA and HDMI output at the same time. See

X284H284H284H288HFigure 3-2X.

When you are using pc-type monitor to replace the monitor, please pay attention to the following

points:

z To defer aging, do not allow the pc monitor to run for a long time.

z Regular demagnetization will keep device maintain proper status.

z Keep it away from strong electromagnetic interference devices.

Using TV as video output device is not a reliable substitution method. You also need to reduce

the working hour and control the interference from power supply and other devices. The low

quality TV may result in device damage.

Figure 3-2

3.6 Connecting Audio Input & Output, Bidirectional Audio

3.6.1 Audio Input

These series products adopt BNC port.

Due to high impedance of audio input, please use active sound pick-up. See

Audio transmission is similar to video transmission. Try to avoid interference, dry joint, loose

contact and it shall be away from high tension current.

X285H285H285H289HFigure 3-4X.

Figure 3-3

3.6.2 Audio Output

The audio output signal parameter is usually over 200mv 1KΩ (BNC). It can directly connect to

low impedance earphone, active sound box or amplifier-drive audio output device.

If the sound box and the pick-up cannot be separated spatially, it is easy to arouse squeaking. In

this case you can adopt the following measures:

z Use better sound pick-up with better directing property.

z Reduce the volume of the sound box.

z Using more sound-absorbing materials in decoration can reduce voice echo and improve

acoustics environment.

z Adjust the layout to reduce happening of the squeaking.

Please refer to

X286H286H286H290HFigure 3-4X.

Figure 3-4

3.7 Alarm Input and Output Connection

Please refer to the following sheet for alarm input and output connection. See X287H287H287H291HFigure 3-5.X

Figure 3-5

There are two alarm input types for you to select: normal open (NO) and normal close (NC).

1. Alarm input

a. Please make sure alarm input mode is grounding alarm input.

b. Grounding signal is needed for alarm input.

c. When you are connecting two DVRs or you are connecting one DVR and one other device,

please use a relay to separate them,

2. Alarm output

The alarm output port should not be connected to high power load directly (It shall be less than

1A) to avoid high current which may result in relay damage. Please use the co contactor to

realize the connection between the alarm output port and the load.

3. How to connect PTZ decoder

a. Ensure the decoder has the same grounding with DVR, otherwise you may not control the PTZ.

Shielded twisted wire is recommended and the shielded layer is used to connect to the grounding.

b. Avoid high voltage. Ensure proper wiring and some thunder protection measures. c. For too long signal wires, 120Ω should be parallel connected between A, B lines on the far end

to reduce reflection and guarantee the signal quality.

d. “485 A, B” of DVR cannot parallel connect with “485 port” of other device.

e. The voltage between of A,B lines of the decoder should be less than 5v.

4. Please make sure the front-end device has soundly earthed.

Improper grounding may result in chip damage.

3.7.1 Alarm Input and Output Details

You can refer to the following sheet and X288H288H288H292HFigure 3-6X for alarm input and output information.

AB Connection port

Figure 3-6

Parameter

Grounding Alarm

Ground line

Alarm Input 1, 2, …, 8. It becomes valid in low voltage.

1-NO C， 2-NO C， 3-NO C

Three NO activation outputs.

Relay Output 1,2,3,4: NO and C(Normally Open and Com)

5: NO,C and NC(Normally Open, Com, Normally Closed) 6: Ctrl 12V(This is used for reset the senor)

485 A/B 485 communication port. They are used to control devices such as

PTZ. Please parallel connect 120 too many PTZ decoders.

TΩ between A/B cables if there are

3.7.2 Alarm Input Port

Please refer to the following sheet for more information.

z 4/8/16-ch grounding alarm inputs. (Normal open or Normal close type)

z Please parallel connect COM end and GND end of the alarm detector (Provide external

power to the alarm detector).

z Please parallel connect the Ground of the DVR and the ground of the alarm detector.

z Please connect the NC port of the alarm sensor to the DVR alarm input(ALARM)

z Use the same ground with that of DVR if you use external power to the alarm device.

Figure 3-7

3.7.3 Alarm Output Port

z 3 ways relay alarm output (NO contact). Provide external power to external alarm device.

z To avoid overloading, please read the following relay parameters sheet carefully.

z RS485 A/B cable is for the A/B cable of the PTZ decoder.

Relay Specification

Model:

Material of the touch

Rating （Resistance Load）

JRC-27F

Silver

Rated switch capacity 30VDC 2A, 125VAC 1A

Maximum switch power 125VA 160W

Maximum switch voltage 250VAC, 220VDC

Maximum switch currency 1A

Insulation

Surge voltage

Length of open time

Length of close time

Longevity

Temperature

Between touches with same polarity

Between touches with different polarity

Between touch and winding 1000VAC 1minute Between touches with same

polarity 3ms max

3ms max

Mechanical 50×106 times (3Hz)

Electrical 200×103 times (0.5Hz)

-40℃ ~+70℃

1000VAC 1minute

1500V (10×160us)

3.8 RS232

You can connect the DVR with POS or Keyboard through RS232.

With POS system, the DVR can communicate through RS232 and network. For the POS system, the

DVR can integrate the text content and even search the record through the info.

The series DVR also support NKB operation. You can operate the DVR from the keyboard controls

instead of using the control pad on the front panel of the unit.

To connect a NKB keyboard to the DVR:

1. Assemble the KBD keyboard according to the instructions in its accompanying installation manual.

2. Connect the KBD keyboard into one of the RS232 ports on the DVR or through network.

3.9 RS485

When the DVR receives a camera control command, it transmits that command up the coaxial cable

to the PTZ device. RS485 is a single-direction protocol; the PTZ device can’t return any data to the

unit. To enable the operation, connect the PTZ device to the RS485 (A,B) input on the DVR. See

X289H289H289H293HFigure 3-8X.

Since RS485 is disabled by default for each camera, you must enable the PTZ settings first. This

series DVRs support multiple protocols such as Pelco-D, Pelco-P.

To connect PTZ devices to the DVR:

1. Connect RS485 A,B on the DVR rear panel.

2. Connect the other end of the cable to the proper pins in the connector on the camera.

3. Please follow the instructions to configure a camera to enable each PTZ device on the DVR.

485 Port

Figure 3-8

3.10 Other Interfaces

There are still other interfaces on the DVR, such as USB ports. You can refer to the X290H290H290H294HFigure 3-9X for

more information.

Figure 3-9

4 Overview of Navigation and Controls

Before operation, please make sure:

z You have properly installed HDD and all the cable connections.

z The provided input power and the device power are matched.

z The external power shall be DC +12V 3.3A.

z Always use the stable current, if necessary UPS is a best alternative measure.

4.1 Login, Logout & Main Menu

4.1.1 Login

After system booted up, default video display is in multiple-window mode.

Click Enter or left click mouse, you can see the login interface. See

System consists of four accounts:

z Username: admin. Password: admin. (administrator, local and network) z Username: 888888. Password: 888888. (administrator, local only) z Username: 666666. Passwords: 666666(Lower authority user who can only monitor, playback,

backup and etc.)

z Username: default. Password: default(hidden user)

You can use USB mouse, front panel, remote control or keyboard to input. About input method:

X291H291H291H295HFigure 4-1X.

Click

Note: For security reason, please modify password after you first login.

Within 30 minutes, three times login failure will result in system alarm and five times login failure

will result in account lock!

to switch between numeral, English character (small/capitalized) and denotation.

Figure 4-1

4.1.2 Main Menu

After you logged in, the system main menu is shown as below. See X292H292H292H296HFigure 4-2.X

There are total six icons: search, information, setting, backup, advanced and shutdown.

You can move the cursor to highlight the icon, and then double click mouse to enter the sub-

menu.

Figure 4-2

4.1.3 Logout

There are two ways for you to log out.

One is from menu option:

In the main menu, click shutdown button, you can see an interface is shown as below. See

X293H293H293H297HFigure 4-3X.

Figure 4-3

There are several options for you. See X294H294H294H298HFigure 4-4X.

Figure 4-4

The other ways is to press power button on the front panel for at least 3 seconds, system will

stop all operations. Then you can click the power button in the rear panel to turn off the DVR.

4.1.4 Auto Resume after Power Failure

The system can automatically backup video and resume previous working status after power

failure.

4.1.5 Replace Button Battery

Please make sure to use the same battery model if possible.

We recommend replace battery regularly (such as one-year) to guarantee system time

accuracy.

Note:

Before replacement, please save the system setup, otherwise, you may lose the data

completely!

4.2 Manual Record

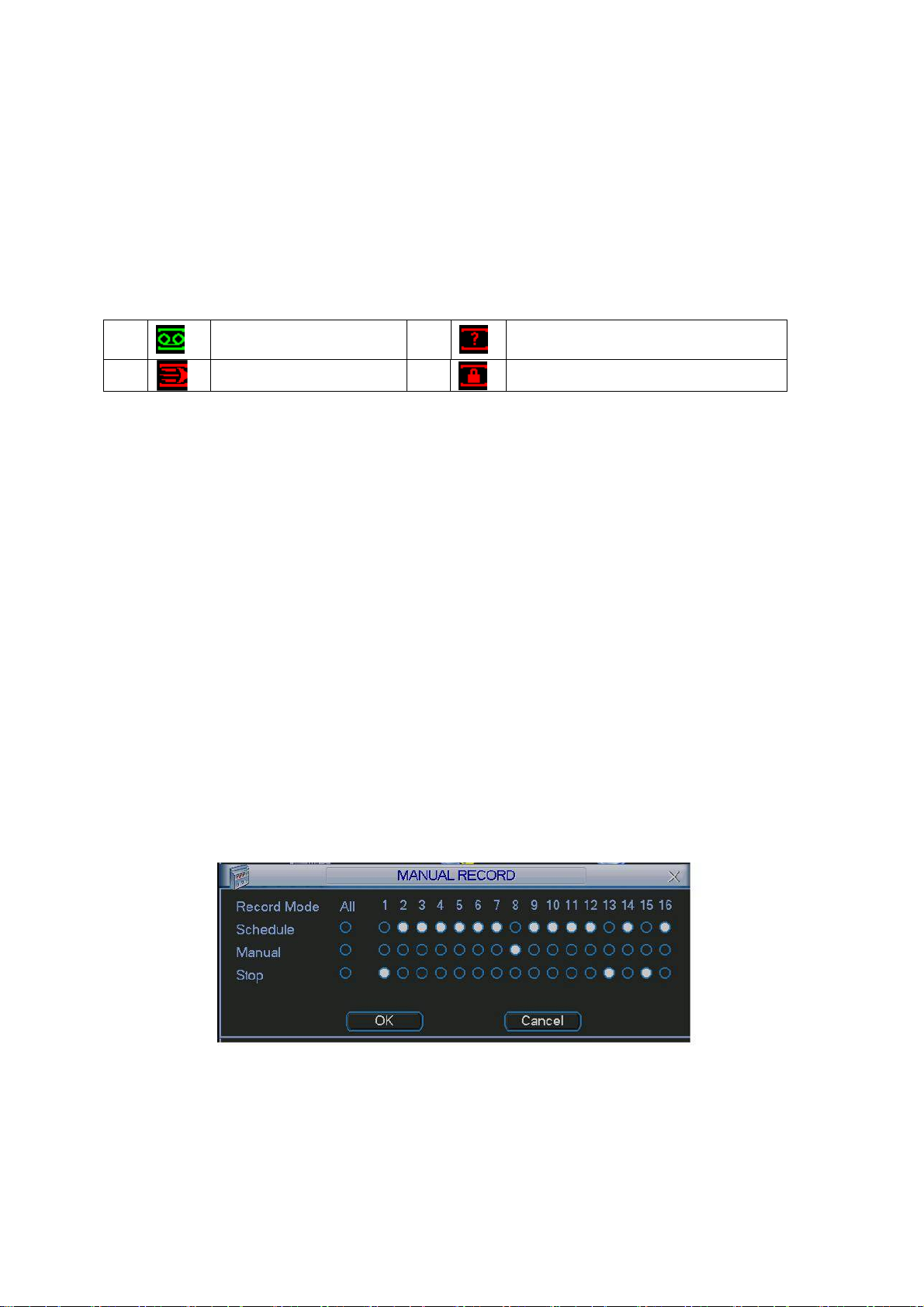

4.2.1 Live Viewing

After you logged in, the system is in live viewing mode. You can see system date, time and

channel name. If you want to change system date and time, you can refer to general settings

(Main Menu->Setting->General). If you want to modify the channel name, please refer to the

display settings (Main Menu->Setting->Display)

Recording status

Motion detection

Video loss

Camera lock

4.2.2 Manual record Note:

You need to have proper rights to implement the following operations. Please make sure the

HDD has been properly installed.

4.2.2.1 Manual record menu

There are two ways for you to go to manual record menu.

z Right click mouse or in the main menu, Advanced->Manual Record.

z In live viewing mode, click record button in the front panel or record button in the remote

control.

Manual record menu is shown as in

X295H295H295H299HFigure 4-5X.

4.2.2.2 Basic operation

There are three statuses: schedule/manual/stop. Please highlight icon“○” to select

corresponding channel.

z Manual: The highest priority. After manual setup, all selected channels will begin ordinary

recording.

z Schedule: Channel records as you have set in recording setup (Main Menu->Setting-

>Schedule)

z Stop: All channels stop recording.

Figure 4-5

4.2.2.3 Enable/disable record

Please check current channel status: “○” means it is not in recording status, “●” means it is in

recording status.

You can use mouse or direction key to highlight channel number. See X296H296H296H300HFigure 4-6X.

Figure 4-6

4.2.2.4 Enable all channel recording

Highlight ○ below All, you can enable all channel recording.

z All channel schedule record

Please highlight “ALL” after “Schedule”. See

When system is in schedule recording, all channels will record as you have previously set

(Main menu->Setting->Schedule).

The corresponding indication light in front panel will turn on.

X297H297H297H301HFigure 4-7X.

Figure 4-7

z All channel manual record

Please highlight “ALL” after “Manual.” See X298H298H298H302HFigure 4-8X.

When system is in manual recording, all scheduled set up you have set in will be null ((Main

menu->Setting->Schedule)).

You can see indication light in front panel turns on, system begins manual record now.

Figure 4-8

4.2.2.5 Stop all channel recording

Please highlight “ALL” after “Stop”. See X299H299H299H303HFigure 4-9X.

System stops all channel recording no matter what mode you have set in the menu (Main

menu->Setting->Schedule)

Figure 4-9

4.3 Search & Playback

4.3.1 Search Menu

Click search button in the main menu, search interface is shown as below. See Figure 4-10.

Usually there are three file types:

z R: Regular recording file.

z A: External alarm recording file.

z M: Motion detection recording file

Playback control bar

Select playback mode

here: 4-ch or All-channel

Set search setup

here :( Time/Channel/Type)

Figure 4-10

Please refer to the following sheet for more information.

Serial Number Function

1 Play 2 Backward 3 Stop 4 Slow play

5 Fast play 6 Previous frame 7 Next frame 8 Volume 9 Previous file 10 Next channel 11 Next file 12 Previous channel 13 Search 14 Backup

4.3.2 Basic Operation

4.3.2.1 Playback

There are various search modes: video type, channel number or time. The system can max

display 128 files in one screen. You can use page up/down button to view if there are more

than one page.

Select the file name and double click mouse (or click enter button), you can view file content.

4.3.2.2 Playback Mode

There are two playback modes: 4-ch and all-channel. In 4-ch playback mode, you can select

the 1/2/3/4-ch playback according to your requirement. In all-channel mode, system can

playback in full channels. Please note the 4-ch has no all-channel playback mode.

4.3.2.3 Accurate playback

Input time (h/m/s) in the time column and then click playback button, system can operate

accurate playback.

4.3.2.4 Synchronized playback function when playback

During playback process, click numeral key, system can switch to the corresponding channel

video of the same time.

4.3.2.5 Digital zoom

When the system is in full-screen playback mode, drag your mouse in the screen to select a

section and then left click mouse to realize digital zoom. You can right click mouse to exit.

4.3.2.6 File backup System supports backup operation during search. You can draw a √ before file name

(multiple choices). Then click backup button (Button 14 in Figure 4-10).

4.3.2.7 Slow playback and fast playback

Please refer to the following sheet for slow play and fast playback function.

Button Illustration Remarks

Fast play button 

Slow play button ►

Play/Pause►

Previous/next

In playback mode, click this button to switch between various fast play modes such as fast play 1,fast play 2 and more. In playback mode, click this button to switch between various slow play modes such as slow play 1 or slow play 2.

In slow playback mode, click this button to switch between play/pause modes. In playback mode, you can click

` to view previous or next video in current channel.

│_ and

Frame rate may vary due to different versions.

4.3.2.8 Backward playback and frame by frame playback

Button Illustration Remarks

Backward play: _ in playback interface.

Manual playback frame by frame.

Note:

All the operations here (such as playback speed, channel, time and progress) have

relationship with hardware version. Some series DVRs do not support some functions or

playback speeds.

In normal playback mode, left click backward play button playback.

Double click backward play button again, system goes to pause mode. Click pause button in normal playback mode, you can use frame.

_, system begins backward

W│ and │X to view frame by

When system is in backward play or frame by frame playback mode, you can click play button

normal playback.

►/ to go to

4.3.3 Calendar

Click calendar icon in Figure 4-10, system pops up a calendar for your reference.

The highlighted date means there are record files in that day. You can click blue date to view

file list.

X300H300H300H304HFigure 4-11X, there are video files in Juneh and 14th. Double click the date to view its file

list.

Figure 4-11

4.4 Schedule

After system booted up, it is in default 24-hour regular mode. You can set record type and

time in schedule interface.

4.4.1 Schedule Menu

In the main menu, from setting to schedule, you can go to schedule menu. See X301H301H301H305HFigure 4-12X.

z Channel: Please select the channel number first. You can select “all” if you want to set for

the whole channels.

z Week day: There are eight options: ranges from Saturday to Sunday and all.

z Pre-record: System can pre-record the video before the event occurs into the file. The value

ranges from 1 to 30 seconds depending on the bit stream.

z Redundancy: Please note redundancy function does not applies to 1U series since there is

only one HDD,

z Snapshot: You can enable this function to snapshoot image when alarm occurs.

z Record types: There are three types: regular, motion detection (MD) and Alarm.

Please highlight icon to select the corresponding function. After completing all the setups

please click save button, system goes back to the previous menu.

At the bottom of the menu, there are color bars for your reference. Green color stands for

regular recording, yellow color stands for motion detection and red color stands for alarm

recording.

Figure 4-12

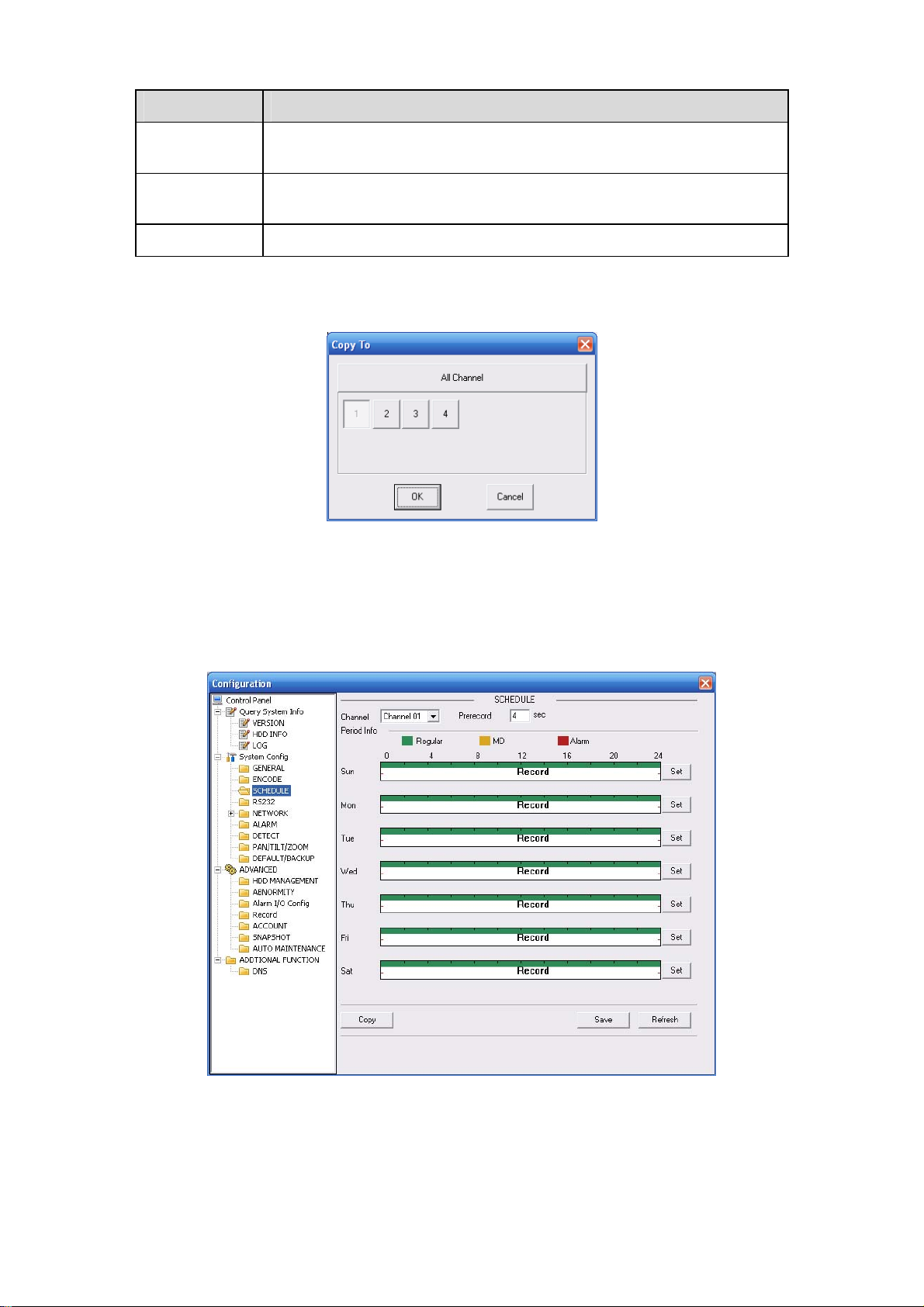

4.4.1.1 Quick Setup

This function allows you to copy one channel setup to another. After setting in channel 1, you can

click paste button and turn to channel 2 and then click copy button. You can finish setting for one

channel and then click save button or you can finish all setup and then click save button to

memorize all the settings.

4.4.2 Snapshot

4.4.2.1 Schedule Snapshot

In Encode interface, click snapshot button to input snapshot mode, size, quality and

frequency.

In General interface please input upload interval.

In Schedule interface, please enable snapshot function.

Please refer to the following figure for detail information. See Figure 4-13

Figure 4-13

4.4.2.2 Activation Snapshot

Please follow the steps listed below to enable the activation snapshot function. After you

enabled this function, system can snapshot when the corresponding alarm occurred.

z In Encode interface, click snapshot button to input snapshot mode, size, quality and

frequency.

z In General interface please input upload interval.

z In Detect interface please enable snapshot function for specified channels. Or in alarm

interface please enable snapshot function for specified channels.

Please refer to the following figure for detail information. See Figure 4-14.

Figure 4-14

4.4.2.3 Priority

Please note the activation snapshot has the higher priority than schedule snapshot. If you

have enabled these two types at the same time, system can activate the activation snapshot

when alarm occurs, and otherwise system just operates the schedule snapshot.

4.4.3 Image FTP

In Network interface, you can set FTP server information. Please enable FTP function and

then click save button. See Figure 4-15.

Please boot up corresponding FTP server.

Please enable schedule snapshot (Chapter 4.4.2.1) or activation snapshot (Chapter 4.4.2.2)

first, now system can upload the image file to the FTP server.

Please input the

corresponding information

here, if you just upload the

image FTP.

Figure 4-15

4.5 Detect

4.5.1 Go to Detect Menu

In the main menu, from Setting to Detect, you can see motion detect interface. See X302H302H302H306HFigure

X. There are three detection types: motion detection, video loss, camera masking.

4-16

4.5.2 Motion Detect

Detection menu is shown as below. See X303H303H303H307HFigure 4-16X.

z Event type: from the dropdown list you can select motion detection type.

z Channel: select the channel to activate recording function once alarm occurred. Please make

sure you have set MD record in encode interface(Main Menu->Setting->Schedule) and

schedule record in manual record interface(Main Menu->Advanced->Manual Record)

z Latch: when motion detection complete, system auto delays detecting for a specified time.

The value ranges from 10-300(Unit: second)

z Region: Click select button, the interface is shown as in

detection zone. There are 396(PAL)/330(NTSC) small zones. The green zone is current

cursor position. Grey zone is the motion detection zone. Black zone is the disarmed zone.

You can click Fn button to switch between the arm mode and disarm mode. In arm mode,

you can click the direction buttons to move the green rectangle to set the motion detection

zone. After you completed the setup, please click ENTER button to exit current setup. Do

remember click save button to save current setup. If you click ESC button to exit the region

setup interface system will not save your zone setup.

z Sensitivity: System supports 6 levels. The sixth level has the highest sensitivity.

z Show message: System can pop up a message to alarm you in the local host screen if you

enabled this function.

z Alarm upload: System can upload the alarm signal to the network (including alarm centre)

if you enabled current function.

X304H304H304H308HFigure 4-17. Here you can set motion

z Send email: System can send out email to alert you when alarm occurs.

z PTZ activation: Here you can set PTZ movement when alarm occurs. Such as go to preset,

tour &pattern when there is an alarm. Click “select” button, you can see an interface is

shown as in

z Period: Click set button, you can see an interface is shown as in

set for business day and non-business day. In

interface is shown as in

non-business day.

z Anti-dither: Here you can set anti-dither time.

z Alarm output: when alarm occurred, system enables peripheral alarm devices.

z Tour: Here you can enable tour function when alarm occurs. It is a one-window tour. Please

go to chapter 5.3.9 Display for tour interval setup.

X305H305H305H309HFigure 4-18X.

X306H306H306H310HFigure 4-19X. Here you can

X307H307H307H311HFigure 4-19X, click set button, you can see an

X308H308H308H312HFigure 4-20X. Here you can set your own setup for business day and

Please highlight icon

to select the corresponding function. After all the setups please click

save button, system goes back to the previous menu.

Note:

In motion detection mode, you can not use copy/paste to set channel setup since the video in

each channel may not be the same.

X309H309H309H313HFigure 4-17X, you can left click mouse and then drag it to set a region for motion detection.

Click Fn to switch between arm/withdraw motion detection. After setting, click enter button to exit.

Figure 4-16

Figure 4-17

Figure 4-18

Figure 4-19

Figure 4-20

4.5.3 Video Loss

In X310H310H310H314HFigure 4-16X, select video loss from the type list. You can see the interface is shown as in

X311H311H311H315HFigure 4-21X.This function allows you to be informed when video loss phenomenon occurred.

You can enable alarm output channel and then enable show message function.

Tips:

You can enable preset activation operation when video loss occurs.

Please refer to chapter 4.5.2 motion detection for detail information.

Figure 4-21

4.5.4 Camera Masking

When someone viciously masks lens, the system can alert you to guarantee video continuity.

Camera masking interface is shown as in

Tips:

You can enable preset/tour/pattern activation operation when video loss occurs.

Please refer to chapter 4.5.2 motion detection for detail information.

X312H312H312H316HFigure 4-22X.

Note:

In Detect interface, copy/paste function is only valid for the same type, which means you can

not copy a channel setup in video loss mode to camera masking mode.

Figure 4-22

4.6 Alarm Setup and Alarm Activation

Before operation, please make sure you have properly connected alarm devices such as

buzzer.

4.6.1 Go to alarm setup interface

In the main menu, from Setting to Alarm, you can see alarm setup interface. See X313H313H313H317HFigure 4-23X.

4.6.2 Alarm setup

Alarm interface is shown as below. See X314H314H314H318H Figure 4-23X.

z Alarm in: Here is for you to select channel number.

z Event type: There are two types. One is local input and the other is network input.

z Type: normal open or normal close.

z PTZ activation: Here you can set PTZ movement when alarm occurs. Such as go to preset,

tour& pattern when there is an alarm. Click “select” button, you can see an interface is

shown as in

z Period: Click set button, you can see an interface is shown as in

set for business day and non-business day. In

interface is shown as in

non-business day.

z Anti-dither: Here you can set anti-dither time.

z Show message: System can pop up a message to alarm you in the local host screen if you

enabled this function.

z Alarm upload: System can upload the alarm signal to the network (including alarm centre)

if you enabled current function.

z Send email: System can send out email to alert you when alarm occurs.

z Record channel: you can select proper channel to record alarm video (Multiple choices). At

the same time you need to set alarm record in schedule interface (Main Menu->Setting-

>Schedule) and select schedule record in manual record interface (Main Menu->Advance-

>Manual Record).

z Latch: Here is for you to set proper delay duration. Value ranges from 10 to 300 seconds.

System automatically delays specified seconds in turning off alarm and activated output after

external alarm cancelled.

z Tour: Here you can enable tour function when alarm occurs. It is a one-window tour: Please

go to chapter 5.3.9 Display for tour interval setup.

For snapshot operation, please refer to chapter 4.4.2.

X315H315H315H319HFigure 4-27X.

X316H316H316H320HFigure 4-25X. Here you can

X317H317H317H321HFigure 4-28X, click set button, you can see an

X318H318H318H322HFigure 4-29X. Here you can set your own setup for business day and

Please highlight icon

to select the corresponding function. After setting all the setups

please click save button, system goes back to the previous menu.

Figure 4-23

Figure 4-24

Figure 4-25

Figure 4-26

4.7 Backup

DVR support USB device backup and network download. Here we introduce USB backup

first. You can refer to Chapter 7 Web Client Operation for network download backup

operation.

4.7.1 Detect Device

Click backup button, you can see an interface is shown as in X319H319H319H323HFigure 4-27X.Here is for you to

view devices information.

You can view backup device name and its total space and free space. The device includes

USB burner, flash disk, SD card and portable HDD.

Figure 4-27

4.7.1 Backup

Select backup device and then set channel, file start time and end time.

Click add button, system begins search. All matched files are listed below. System

automatically calculates the capacity needed and remained. See system only backup files with a √ before channel name. You can use Fn or cancel button to delete √ after file serial number.

Click backup button, you can backup selected files. There is a process bar for you reference.

When the system completes backup, you can see a dialogue box prompting successful

backup.

X320H320H320H324HFigure 4-28X.

Figure 4-28

Click backup button, system begins burning. At the same time, the backup button becomes

stop button. You can view the remaining time and process bar at the left bottom. See

4-29

X321H321H321H325HFigure

Figure 4-29

The file name format usually is: SN_CH+channel number+time Y+M+D+H+M+S. In the file

name, the YDM format is the same as you set in general interface. (Main Menu ->Setting -

>General).File extension name is .dav. You can visit our website to view listed CD-ROM

brand.

Tips:

During backup process, you can click ESC to exit current interface for other operation. The

system will not terminate backup process.

Note:

When you click stop button during the burning process, the stop function becomes activated

immediately. For example, if there are ten files, when you click stop system just backup five

files, system only save the previous 5 files in the device (But you can view ten file names).

4.8 PTZ Control and Color Setup

Note: All the operations here are based on PELCOD protocol. For other protocols, there

might be a little difference.

4.8.1 Cable Connection

Please follow the procedures below to go on cable connection

z Connect the dome RS485 port to DVR 485 port.

z Connect dome video output cable to DVR video input port.

z Connect power adapter to the dome.

4.8.2 PTZ Setup

Note: The camera video should be in the current screen. Before setup, please check the

following connections are right:

z PTZ and decoder connection is right. Decoder address setup is right.

z Decoder A (B) line connects with DVR A (B) line.

Boot up the DVR, input user name and password.

In the main menu, click setting, and then click Pan/Tilt Control button. The interface is shown

X322H322H322H326HFigure 4-30X. Here you can set the following items:

as in

z Channel: select the current camera channel.

z Protocol: select corresponding PTZ protocol(such as PELCOD)

z Address: default address is 1.

z Baud rate: select corresponding baud rate. Default value is 9600.

z Data bits: select corresponding data bits. Default value is 8.

z Stop bits: select corresponding stop bits. Default value is 1.

z Parity: there are three options: odd/even/none. Default setup is none.

Figure 4-30

After completing all the setting please click save button.

In one window display mode, right click mouse (click “Fn” Button in the front panel or click

“Fn” key in the remote control). The interface is shown as in

X323H323H323H327HFigure 4-31X.

Figure 4-31

Click Pan/Tilt/Zoom, the interface is shown as below. See X324H324H324H328HFigure 4-32X.

Here you can set the following items:

z Step: value ranges fro 1 to 8.

z Zoom

z Focus

z Iris

Please click icon

and to adjust zoom, focus and iris.

Figure 4-32

In X325H325H325H329HFigure 4-32X, please click direction arrows (See X326H326H326H330HFigure 4-33X) to adjust PTZ position. There are

total 8 direction arrows.

Figure 4-33

4.8.3 3D Intelligent Positioning Key

In the middle of the eight direction arrows, there is a 3D intelligent positioning key. See X327H327H327H331HFigure

X Please make sure your protocol supports this function and you need to use mouse to

4-34.

control.

Click this key, system goes back to the single screen mode. Drag the mouse in the screen to

adjust section size. The dragged zone supports 4X to 16X speeds. It can realize PTZ

automatically. The smaller zone you dragged, the higher the speed.

Here is a sheet for you reference.

Name Function

key Zoom Focus Iris

function Shortcut

Near Near close

Figure 4-34

key

│_

W

Function key

function Shortcut

Key Far Far Open



│

►

f

4.9 Preset/ Patrol/Pattern/Scan

In X328H328H328H332HFigure 4-32X, please click the “set” button. The interface is shown as below. See X329H329H329H333HFigure 4-35X.

Here you can set the following items:

z Preset

z Tour

z Pattern

z Border

Figure 4-35

In X330H330H330H334HFigure 4-32X, click page switch button, the interface is shown as in X331H331H331H335HFigure 4-36X.

Here you can activate the following functions:

z Preset

z Tour

z Pattern

z Auto scan

z Auto pan

z Flip

z Reset

z Page switch

Figure 4-36

Note:

z Preset, tour and pattern all need the value to be the control parameter. You can define it as

you require.

z You need to refer to your speed dome user’s manual for Aux definition. In some cases, it

can be used for special process.

z The following setups are usually operated in the

X332H332H332H336HFigure 4-32X,X333H333H333H337HFigure 4-35X and X334H334H334H338HFigure 4-36X .

4.9.1Preset Setup

In X335H335H335H339HFigure 4-32X, use eight direction arrows to adjust camera to the proper position.

X336H336H336H340HFigure 4-35X, click preset button and input preset number. The interface is shown as in X337H337H337H341HFigure

4-37

Now you can add this preset to one tour.

Figure 4-37

4.9.2 Activate Preset

In X338H338H338H342HFigure 4-36X, please input preset number in the No. blank, and click preset button.

4.9.3 Patrol setup (Tour Setup)

In X339H339H339H343HFigure 4-35X, click patrol button. The interface is shown as in X340H340H340H344HFigure 4-38X.Input preset number

and add this preset to a patrol (tour). For each patrol (tour), you can input max 80 presets.

Figure 4-38

4.9.4 Activate Patrol (tour)

In X341H341H341H345HFigure 4-35X, input patrol (tour) number in the No. blank and click patrol button

4.9.5 Pattern Setup

In X342H342H342H346HFigure 4-35X, click pattern button and then click “begin” button. The interface is shown as in

X343H343H343H347HFigure 4-39X. Then you can go to X344H344H344H348HFigure 4-32X to modify zoom, focus, and iris.

Go back to

X345H345H345H349HFigure 4-39X and click “end” button. You can memorize all these operations as pattern

Figure 4-39

4.9.6 Activate Pattern Function

In X346H346H346H350HFigure 4-36X, input mode value in the No. blank, and click pattern button.

4.9.7 Auto Scan Setup

In X347H347H347H351HFigure 4-35X, click border button. The interface is shown as in X348H348H348H352HFigure 4-30X.

Please go to

Then please go to

X349H349H349H353HFigure 4-32X, use direction arrows to select camera left limit

X350H350H350H354HFigure 4-40X and click left limit button

Repeat the above procedures to set right limit.

Figure 4-40

4.9.8 Activate Auto Scan

In X351H351H351H355HFigure 4-36X, click “Auto Scan” button, the system begins auto scan. Correspondingly, the auto

scan button becomes Stop button. Click stop button to terminate scan operation.

4.10 Flip

In X352H352H352H356HFigure 4-36X, click page switch button, you can see an interface is shown as below. See X353H353H353H357HFigure

X. Here you can set auxiliary function. The aux value has relation ship with the Aux button of

4-41

the decoder.

Click page switch button again, system goes back to

X354H354H354H358HFigure 4-32X.

Figure 4-41

5 Understanding of Menu Operations and Controls

5.1 Menu Tree

This series DVR menu tree is shown as below.

Backup

Information

HDD Info BPS Log Version Online Users

Setting General Encode

Schedule RS232

Menu Network

Alarm Detect Pan/ Tilt/Zoom Display

Default Search Advanced HDD Management

Alarm Output

Abnormity Manual Record Account Auto Maintain TV Adjust

Shutdown

5.2 Main Menu

After you logged in, the system main menu is shown as below. See X355H355H355H359HFigure 5-1.X There are total

six icons: search, Information, setting, backup, advanced and shutdown. Move the cursor to

highlight the icon, then double click mouse to enter the sub-menu.

Figure 5-1

5.3 Setting

In main menu, highlight setting icon and double click mouse. System setting interface is shown

as below. See

X356H356H356H360HFigure 5-2.X

Figure 5-2

5.3.1 General

General setting includes the following items. See X357H357H357H361HFigure 5-3X.

z System time: Here is for you to set system time

z Date format: There are three types: YYYYY-MM-DD: MM-DD-YYYYY or DD-MM-YYYY.

z Date separator: There are three denotations to separate date: dot, beeline and solidus.

z DST: Here you can set DST time and date. Please enable DST function and then click set

button. You can see an interface is shown as in

end time by setting corresponding week setup. In

see an interface is shown as in

X360H360H360H364HFigure 5-5X. Here you can set start time and end time by

setting corresponding date setup.

z Time format: There are two types: 24-hour mode or 12-hour mode.

z Language: System supports various languages: Chinese (simplified), Chinese (Traditional),

English, Italian, Japanese, French, Spanish (All languages listed here are optional. Slight

difference maybe found in various series.)

z HDD full: Here is for you to select working mode when hard disk is full. There are two options:

stop recording or rewrite. If current working HDD is overwritten or the current HDD is full

X358H358H358H362HFigure 5-4X. Here you can set start time and

X359H359H359H363HFigure 5-4X, enable date button, you can

while the next HDD is no empty, then system stops recording, If the current HDD is full and

then next HDD is not empty, then system overwrites the previous files.

z Pack duration: Here is for you to specify record duration. The value ranges from 60 to 120

minutes. Default value is 60 minutes.

z DVR No: When you are using one remote control (not included in the accessory bag) to

control several DVRs, you can give a name to each DVR for your management.

z Video standard: There are two formats: NTSC and PAL.

z Auto logout: Here is for you to set auto logout interval once login user remains inactive for a

specified time. Value ranges from 0 to 60 minutes.

Note:

Since system time is very important, do not modify time casually unless there is a must!

Before your time modification, please stop record operation first!

After completing all the setups please click save button, system goes back to the previous menu.

Figure 5-3

Figure 5-4

Figure 5-5

5.3.2 Encode

Encode setting includes the following items. See X361H361H361H365HFigure 5-6.X

Please note some series do not support extra stream.

z Channel: Select the channel you want.

z Compression: System supports H.264.

z Resolution: System supports various resolutions, you can select from the dropdown list. For

this model, main stream supports D1/CIF/QCIF. Please note the resolution may vary due to

different channels. The extra stream supports QCIF only.

z Frame rate: It ranges from 1f/s to 25f/s in NTSC mode and 1f/s to 30f/s in PAL mode.

Note:

For the 8-ch series DVR, you can refer to the following information:

If the 1-channel resolution is D1and the frame rate is more than 6f/s, then the rest seven

channels (the second channel to the eights channel) resolution shall be CIF or QCIF.

If the 1-channel resolution is D1 and the frame rate is or less than 6f/s, then the rest seven

channels (the second channel to the eighth channel) resolution shall be D1/CIF/QCIF. Right now

in D1 resolution, the max frame rate is 6f/s.

z Bit rate type: System supports two types: CBR and VBR. In VBR mode, you can set video

quality.

z Quality: There are six levels ranging from 1 to 6. The sixth level has the highest image

quality.

z Video/audio: You can enable or disable the video/audio.

z Overlay: Click overlay button, you can see an interface is shown in

 Cover area (Privacy mask): Here is for you to set privacy mask section. You can drag you

mouse to set proper section size. In one channel video, system max supports 4 zones.

 Preview/monitor: privacy mask has two types. Preview and Monitor. Preview means the

privacy mask zone can not be viewed by user when system is in preview status. Monitor

means the privacy mask zone can not be view by the user when system is in monitor status.

 Time display: You can select system displays time or not when you playback. Please click

set button and then drag the title to the corresponding position in the screen.

 Channel display: You can select system displays channel number or not when you playback.

Please click set button and then drag the title to the corresponding position in the screen.

X362H362H362H366HFigure 5-7X

Please highlight icon

to select the corresponding function.

Figure 5-6

Figure 5-7

5.3.3 Schedule

Please refer to chapter 4.4 schedule.

5.3.4 RS232

RS232 interface is shown as below. There are five items. SeeX363H363H363H367H Figure 5-8

z Function: There are various devices for you to select. Console is for serial port or min-end

platform to upgrade program. Keyboard is for you to use special keyboard to control current

device.

z Baud rate: You can select proper baud rate.

z Data bit: You can select proper data bit. The value ranges from 5 to 8.

z Stop bit: There are three values: 1/1.5/2.

z Parity: there are three choices: none/odd/even.

System default setup is:

z Function: Console

z Baud rate:115200

z Data bit:8

z Stop bit:1

z Parity: None

After completing all the setups please click save button, system goes back to the previous menu.

Figure 5-8

5.3.5 Network

Here is for you to input network information. See X364H364H364H368HFigure 5-9.X

z IP address: Here you can input IP address.

z DHCP: It is to auto search IP. When enable DHCP function, you can not modify IP/Subnet

mask /Gateway. These values are from DHCP function. If you have not enabled DHCP

function, IP/Subnet mask/Gateway display as zero. You need to disable DHCP function to

view current IP information. Besides, when PPPoE is operating, you can not modify

IP/Subnet mask /Gateway.

z TCP port: Default value is 37777.

z UDP port: Default value is 37778.

z HTTP port: Default value is 80.

z Max connection: system support maximal 10 users. 0 means there is no connection limit.

z Transfer mode: Here you can select the priority between fluency/video qualities.

z LAN download: System can process the downloaded data first if you enable this function.

The download speed is 1.5X or 2.0X of the normal speed.

After completing all the setups please click save button, system goes back to the previous menu.

Figure 5-9

5.3.5.1 Advanced Setup

Advanced setup interface is shown as in X365H365H365H369HFigure 5-10X. Please draw a circle to enable

corresponding function and then double click current item to go to setup interface.

Figure 5-10

5.3.5.2 IP Filter

IP filter interface is shown as in X366H366H366H370HFigure 5-11X. You can add IP in the following list. The list

supports max 64 IP addresses.

Please note after you enabled this function, only the IP listed below can access current DVR.

If you disable this function, all IP addresses can access current DVR.

Figure 5-11

5.3.5.3 Multiple Cast Setup

Multiple-cast setup interface is shown as in X367H367H367H371HFigure 5-12X.

Figure 5-12

Here you can set a multiple cast group. Please refer to the following sheet for detailed

information.

z IP multiple cast group address

-224.0.0.0-239.255.255.255

-“D” address space

z The higher four-bit of the first byte=”1110”

z Reserved local multiple cast group address

-224.0.0.0-224.0.0.255

-TTL=1 When sending out telegraph

-For example

224.0.0.1 All systems in the sub-net

224.0.0.2 All routers in the sub-net

224.0.0.4 DVMRP router

224.0.0.5 OSPF router

224.0.0.13 PIMv2 router

z Administrative scoped addressees

-239.0.0.0-239.255.255.255

-Private address space

z Like the single broadcast address of RFC1918

z Can not be used in Internet transmission

z Used for multiple cast broadcast in limited space.

Except the above mentioned addresses of special meaning, you can use other addresses. For

example:

Multiple cast IP: 235.8.8.36

Multiple cast PORT: 3666.

After you logged in the Web, the Web can automatically get multiple cast address and add it to

the multiple cast groups. You can enable real-time monitor function to view the view.

Please note multiple cast function applies to special series only.

5.3.5.4 PPPoE

PPPoE interface is shown as in X368H368H368H372HFigure 5-13X.

Input “PPPoE name” and “PPPoE password” you get from your ISP (Internet service provider).

Click save button, you need to restart to activate your configuration.

After rebooting, DVR will connect to internet automatically. The IP in the PPPoE is the DVR

dynamic value. You can access this IP to visit the unit.

Figure 5-13

5.3.5.5 NTP Setup

You need to install SNTP server (Such as Absolute Time Server) in your PC first. In Windows XP

OS, you can use command “net start w32time” to boot up NTP service.

NTP setup interface is shown as in

z Host IP: Input your PC address.

z Port: This series DVR supports TCP transmission only. Port default value is 123.

z Update interval: minimum value is 1. Max value is 65535. (Unit: minute)

z Time zone: select your corresponding time zone here.

Here is a sheet for your time zone setup.

City /Region Name Time Zone

London GMT+0 Berlin GMT+1 Cairo GMT+2 Moscow GMT+3 New Deli GMT+5 Bangkok GMT+7 Beijing (Hong Kong) GMT+8 Tokyo GMT+9 Sydney GMT+10 Hawaii GMT-10

X369H369H369H373HFigure 5-14X.

Alaska GMT-9 Pacific Time(P.T) GMT-8

American Mountain Time(M.T) GMT-7 American Central Time(C.T) GMT-6 American Eastern Time(E.T) GMT-5 Atlantic Time GMT-4 Brazil GMT-3 Middle Atlantic Time GMT-2

Figure 5-14

5.3.5.6 DDNS Setup

DDNS setup interface is shown as in X370H370H370H374HFigure 5-15X.

You need a PC of fixed IP in the internet and there is the DDNS software running in this PC. In

other words, this PC is a DNS (domain name server).

In network DDNS, please select DDNS type and highlight enable item. Them please input your

PPPoE name you get from you IPS and server IP (PC with DDNS ) . Click save button and then

reboot system.

Click save button, system prompts for rebooting to get all setup activated.

After rebooting, open IE and input as below: http：//(DDNS server IP)/(virtual directory name)/webtest.htm e.g.: http：//10.6.2.85/DVR _DDNS/webtest.htm.)

Now you can open DDNSServer web search page.

Figure 5-15

Please note NNDS type includes: CN99 DDNS、NO-IP DDNS、Private DDNS、Dyndns DDNS

and sysdns DDNS. All the DDNS can be valid at the same time, you can select as you

requirement.

Private DDNS function shall work with Dahua DDNS server and Dahua Professional Surveillance

Software (PSS).

5.3.5.7 DNS

There are two modes: Manual setup and auto setup

z Manual Setup

You can double click DNS to set DNS address manually. See

375HFigure 5-16.

Please input preferred DNS server IP and alternative DNS server IP.

Figure 5-16

z Auto gets DNS address

Please enable DHCP function first and then double click DNS item.

If the DHCP function enabled successfully, system can get the DNS server IP address. See

Figure 5-17.

Then select

DNS item

here.

First, please enable

DHCP function here.

Figure 5-17

5.3.5.8 FTP

You need to download or buy FTP service tool (such as Ser-U FTP SERVER) to establish FTP

service.

Please install Ser-U FTP SERVER first. From “start” -> “program” -> Serv-U FTP Server -> Serv-

U Administator. Now you can set user password and FTP folder. Please note you need to grant

write right to FTP upload user. See

X372H372H372H376HFigure 5-18X.

Figure 5-18

You can use a PC or FTP login tool to test setup is right or not.

For example, you can login user ZHY to

folder or not. See

X373H373H373H377HFigure 5-19X.

H140H140H140H142HTUFTP://10.10.7.7UTH and then test it can modify or delete

Figure 5-19

System also supports upload multiple DVRs to one FTP server. You can create multiple folders

under this FTP.

X374H374H374H378HFigure 5-9X, select FTP and then double click mouse. You can see the following interface. See

X375H375H375H379HFigure 5-20X.

Figure 5-20

Please highlight the icon in front of Enable to activate FTP function.

Here you can input FTP server address, port and remote directory. When remote directory is null,

system automatically create folders according to the IP, time and channel.

User name and password is the account information for you to login the FTP.

File length is upload file length. When setup is larger than the actual file length, system will

upload the whole file. When setup here is smaller than the actual file length, system only uploads

the set length and auto ignore the left section. When interval value is 0, system uploads all

corresponding files.

After completed channel and weekday setup, you can set two periods for one each channel.

5.3.6 Alarm

Please refer to chapter 4.6 Alarm Setup and Activation.

5.3.7 Detect

Please refer to chapter 4.5 Detect.

5.3.8 Pan/Tilt/Zoom

The pan/tilt/zoom setup includes the following items. Please select channel first. See X376H376H376H380HFigure 5-21X.

z Protocol: Select corresponding PTZ protocol such as PELCOD.

z Address: input corresponding PTZ address.

z Baud rate: Select baud rate.

z Data bit: Select data bit.

z Stop bit: Select stop bit.

z Parity: There are three choices: none/odd/even.

After completed all the setups please click save button, system goes back to the previous menu.

For detailed setup, please refer to chapter 4.9 preset/patrol/pattern/scan.

Figure 5-21

5.3.9 Display

Display setup interface is shown as below. See X377H377H377H381HFigure 5-22X.

z Transparency: Here is for you to adjust transparency. The value ranges from 128 to 255.

z Channel name: Here is for you to modify channel name. System max support 25-digit (The

value may vary due to different series). Please note all your modification here only applies to

DVR local end. You need to open web or client end to refresh channel name.

z Time display: You can select to display time or not when system is playback.

z Channel display: You can select to channel name or not when system is playback.

z Overlay information: System displays some information in the screen for your reference. z Resolution: There are four options: 1280×1024(default),1280×720,1024×768,800×600.

z Display mode: you can select from the dropdown list: self-adaptive/VGA/TV.

z Enable tour: activate tour function.

z Interval: Input proper interval value here. The value ranges from 5-120 seconds. In tour

process, you can use mouse or click Shift to turn on window switch function.

opening switch function,

stands for closing switch function.

Stands for

z Motion tour type: System support 1/8 window tour.

z Alarm tour type: System support 1/4/9/16 window tour.

Please highlight icon

to select the corresponding function.

After completing all the setups please click save button, system goes back to the previous menu.

Figure 5-22

In X378H378H378H382HFigure 5-22X, click modify button after channel. You can see an interface is shown as in X379H379H379H383HFigure

X. Please note all your modification here applies to local end only. You need to refresh web or

5-23

client-end to get the latest channel name. System max support 25-digital character.

Figure 5-23

In tour mode, you can see the following interface. On the right corner, right click mouse or click

shift button, you can control the tour. There are two icons:

and

stands for enabling window function. See X380H380H380H384HFigure 5-24X.

stands for enabling window switch

Figure 5-24

5.3.10 Default

Click default icon, system pops up a dialogue box. You can highlight to restore default factory

setup. See

z Select all

z General

z Encode

z Schedule

z RS232

z Network

z Alarm

z Detect

z Pan/tilt/zoom

z Display

z Channel name

X381H381H381H385HFigure 5-25X.

Please highlight icon to select the corresponding function.

After all the setups please click save button, system goes back to the previous menu.

Warning!

System menu color, language, time display mode, video format, IP address, user account will not

maintain previous setup after default operation!

Figure 5-25

5.4 Search

Please refer to chapter 4.3 Search.

5.5 Advanced

Double click advanced icon in the main window, the interface is shown as below. See X382H382H382H386HFigure

X. There are total seven function keys: HDD management, alarm output, abnormity, manual

5-26

record, account, auto maintenance, and TV adjust.

Figure 5-26

5.5.1 HDD Management

Here is for you to view and implement hard disk management. See X383H383H383H387HFigure 5-27X.

You can see current HDD type, status, capacity and record time. When HDD is working properly,

system is shown as O. When HDD error occurred, system is shown as X.

You can select HDD mode from the dropdown list such as read-only or you can erase all data in

the HDD.

Please note system needs to reboot to get all the modification activated.

Figure 5-27

Click alarm set button, the interface is shown as below. See X384H384H384H388HFigure 5-28X (This interface is just

like the abnormity setup). Please refer to chapter 5.5.2 for detail information.

Please highlight icon

to select the corresponding function.

Figure 5-28

5.5.2 Abnormity

Abnormity interface is shown as in X385H385H385H389HFigure 5-29X.

z Event type: There are several options for you such as disk error, no disk, disconnection,

IP conflict and etc.

z Alarm output: Please select alarm activation output port (multiple choices).

z Latch: Here you can set corresponding delaying time. The value ranges from 10s-300s.

System automatically delays specified seconds in turning off alarm and activated output after

external alarm cancelled.

z Show message: system can pop up the message in the local screen to alert you when

alarm occurs.

z Alarm upload: System can upload the alarm signal to the network (including alarm centre)

if you enabled current function.

z Send email: System can send out email to alert you when alarm occurs.

Figure 5-29

5.5.3 Alarm Output

Here is for you to set proper alarm output.

Please highlight icon

After all the setups please click OK button, system goes back to the previous menu. See X386H386H386H390HFigure

5-30

to select the corresponding alarm output.

Figure 5-30

5.5.4 Manual Record

Please refer to chapter 4.2.2 manual record.

5.5.5 Account

Here is for you to implement account management. See X387H387H387H391HFigure 5-31X. Here you can:

z Add new user

z Modify user

z Add group

z Modify group

z Modify password.

For account management please note:

z System account adopts two-level management: group and user. No limit to group or user

amount.

z For group or user management, there are two levels: admin and user.

z The user name and group name can consist of eight bytes. One name can only be used

once. There are four default users: admin/888888/666666 and hidden user “default”. Except

user 6666, other users have administrator right.

z Hidden user “default” is for system interior use only and can not be deleted. When there is

no login user, hidden user “default” automatically login. You can set some rights such as

monitor for this user so that you can view some channel view without login.

z One user should belong to one group. User right can not exceed group right.

z About reusable function: this function allows multiple users use the same account to login.

After all the setups please click save button, system goes back to the previous menu.

Figure 5-31

5.5.6 Auto Maintain

Here you can set auto-reboot time and auto-delete old files setup. See X388H388H388H392HFigure 5-32X.

You can select proper setup from dropdown list.

After all the setups please click save button, system goes back to the previous menu.

Figure 5-32

5.5.7 TV Adjust

Here is for you to adjust TV output setup. See X389H389H389H393HFigure 5-33X.

Please drag slide bar to adjust each item.

After all the setups please click OK button, system goes back to the previous menu.

Figure 5-33

5.6 Information

Here is for you to view system information. There are total five items: HDD (hard disk

information), BPS (data stream statistics), Log and version, and online user. See

X390H390H390H394HFigure 5-34X.

Figure 5-34

5.6.1 HDD Information

Here is to list hard disk type, total space, free space, video start time and status. See X391H391H391H395HFigure 5-35X. ○ means current HDD is normal. X means there is error. - means there is no HDD.

If disk is damaged, system shows as “?”. Please remove the broken hard disk before you add a

new one.

Once there is a hard disk confliction, please check hard disk time and system time is the same or

not. Please go to setting then general to modify system time. At last, reboot the system to solve

this problem.

After system booted up, if there is any confliction, system goes to HDD information interface

directly. Please note, system does not ask you to deal with it forcedly.

When HDD confliction occurs, you can check system time and HDD time are identical or not. If

they are not identical, please go to General (Chapter 5.3.1) to adjust system time or go to HDD

Management (Chapter 5.5.1) to format HDD and then reboot the DVR.

Figure 5-35

Tips:

Please click Fn button or left click mouse to view HDD record time and HDD type and time.

5.6.2 BPS

Here is for you to view current video data stream (KB/s) and occupied hard disk storage (MB/h).

X392H392H392H396HFigure 5-36X.

See

Figure 5-36

5.6.3 Log

Here is for you to view system log file. System lists the following information. See X393H393H393H397HFigure 5-37X.

Log types include system operation, configuration operation, data management, alarm event,

record operation, log clear and etc.

Pleased select start time and end time, then click search button. You can view the log files.

Please page up/down button to view if there are more than ten files.

Figure 5-37

5.6.4 Version

Here is for you to view some version information. See X394H394H394H398HFigure 5-38X.

z Channel

z Alarm in

z Alarm out

z System version:

z Build Date

5.6.5 Online Users

Figure 5-38

Here is for you manage online users. See X395H395H395H399HFigure 5-39X.

You can disconnect one user or block one user if you have proper system right. Max

disconnection setup is 65535 seconds.

Figure 5-39

5.7 Shutdown

Double click shutdown button, system pops up a dialogue box for you to select. See X396H396H396H400HFigure 5-40X.

z Logout menu user: log out menu. You need to input password when you login the next time.

z Restart application: reboot DVR.

z Shutdown: system shuts down and turns off power.

z Restart system: system begins rebooting.

z Switch user: you can use another account to log in.

Figure 5-40

6 About Auxiliary Menu

6.1 Go to Pan/Tilt/Zoom Menu

In the one-window surveillance mode, right click mouse (click “fn” Button in the front panel or

click AUX key in the remote control). The interface is shown as below: See

Figure 6-1

Click Pan/Tilt/Zoom, the interface is shown as in X398H398H398H402HFigure 6-2X.

Here you can set the following items:

z Zoom

z Focus

z Iris

Please click icon

and to adjust zoom, focus and Iris.

X397H397H397H401HFigure 6-1X.

Figure 6-2

In X399H399H399H403HFigure 6-2X, please click direction arrows (See X400H400H400H404HFigure 6-3X ) to adjust PTZ position. There are

totally eight direction arrows. (Please note there are only four direction arrows in DVR front

panel.)

Figure 6-3

6.1.1 3D Intelligent Positioning Key

In the middle of the eight direction arrows, there is a 3D intelligent positioning key. See X401H401H401H405HFigure

X . Please make sure your protocol supports this function and you need to use mouse to

6-4

control.

Click this button, system goes back to the single screen mode. Drag the mouse in the screen to

adjust section size.

Figure 6-4

Here is a sheet for you reference.

Name Function

key Zoom Focus Iris

function Shortcut

key Near Near close

│_

W

Function key

function Shortcut

key Far Far Open



│

►

f

6.2 Preset /Patrol / Pattern /Border Function

In X402H402H402H406HFigure 6-2X click the set button. The interface is shown as below:

Here you can set the following items:

z Preset

z Patrol

z Pattern

z Border

Figure 6-5

In X403H403H403H407HFigure 6-2X, click page switch button, you can see an interface as in X404H404H404H408HFigure 6-6X.

Here you can activate the following functions:

z Preset

z Tour(Patrol)

z Pattern

z Auto scan

z Auto pan

z Flip

z Page Switch

Figure 6-6

6.2.1 Preset Setup

Note: The following setups are usually operated in the X405H405H405H409HFigure 6-2X, X406H406H406H410HFigure 6-5X and X407H407H407H411HFigure 6-6X.

X408H408H408H412HFigure 6-2X, use eight direction arrows to adjust camera to the proper position.

X409H409H409H413HFigure 6-5X, click preset button and input preset number. The interface is shown as in X410H410H410H414HFigure

6-7

Add this preset to one patrol number

Figure 6-7

6.2.2 Activate Preset

In X411H411H411H415HFigure 6-6X please input preset number in the No. blank, and click preset button.

6.2.3 Patrol Setup

In X412H412H412H416HFigure 6-5X, click patrol button. The interface is shown as in X413H413H413H417HFigure 6-8X.

Input preset number and then add this preset to one patrol.

Figure 6-8

6.2.4 Activate Patrol

In X414H414H414H418HFigure 6-6X, input patrol number in the No. blank and click patrol button

6.2.5 Pattern Setup

In X415H415H415H419HFigure 6-5X, click pattern button and then click begin button. The interface shows like X416H416H416H420HFigure 6-9X.

Please go to

button.

X417H417H417H421HFigure 6-2X to modify zoom, focus, and iris. Go back to X418H418H418H422HFigure 6-9X and click end

You can memorize all these setups as pattern 1.

Figure 6-9

6.2.6 Activate Pattern Function

In X419H419H419H423HFigure 6-6X input mode value in the No. blank, and click pattern button.

6.2.7 Border Setup

In X420H420H420H424HFigure 6-5X, click border button. The interface is shown as in X421H421H421H425HFigure 6-10X.

Please go to

X423H423H423H427HFigure 6-10X and click left limit button

Repeat the above procedures to set right limit.

X422H422H422H426HFigure 6-2X, use direction arrows to select camera left limit, and then please go to

Figure 6-10

6.2.8 Activate Border Function

In X424H424H424H428HFigure 6-6X, click auto scan button, the system begins auto scan. Correspondingly, the auto

scan button changes to stop button.

Click stop button to terminate scan operation.

6.2.9 Flip

In X425H425H425H429HFigure 6-6X, click page switch button, you can see an interface is shown as below. See X426H426H426H430HFigure

X. Here you can set auxiliary function.

6-11

Click page switch button again, system goes back to

X427H427H427H431HFigure 6-2X.

Figure 6-11

7 WEB CLIENT OPERATION

Please note all the operations here are based on our 4-ch DVR.

There might be slightly difference in the interface due to different series.

7.1 Network Connection

Before web client operation, please check the following items:

z Network connection is right

z DVR and PC network setup is right. Please refer to network setup(main menu->setting-

>network)

z Use order ping ***.***.***.***(* DVR IP address) to check connection is OK or not. Usually

the return TTL value should be less than 255.

z Open the IE and then input DVR IP address.

z System can automatically download latest web control and the new version can overwrite

the previous one.

z If you want to un-install the web control, please run uninstall webrec2.0.bat. Or you can go to

C:\Program Files\webrec to remove single folder. Please note, before you un-install, please

close all web pages, otherwise the un-installation might result in error.

7.2 Login

Open IE and input DVR address in the address column. For example, if your DVR IP is

10.10.3.16, then please input http:// 10.10.3.16 in IE address column. See

X428H428H428H432HFigure 7-1X

Input your IP

address here.

Figure 7-1

System pops up warning information to ask you whether install webrec.cab control or not. Please

click yes button.

If you can’t download the ActiveX file, please modify your settings as follows. See

X429H429H429H433HFigure 7-2X.

Figure 7-2

After installation, the interface is shown as below. See X430H430H430H434HFigure 7-3X.

Please input your user name and password.

Default factory name is admin and password is admin.

Note: For security reasons, please modify your password after you first login.

Figure 7-3

After you logged in, you can see the main window. See X431H431H431H435HFigure 7-6X.

This main window can be divided into the following sections.

z Section 1: there are five function buttons: configuration (chapter 7.3), search (chapter 7.4),

alarm (chapter 7.5), about (chapter 7.6), log out (chapter 7.7).

z Section 2: there are channel number and three function buttons: start dialog and local play,

refresh.

z Section3: there are PTZ (chapter 7.2.2), color (chapter 7.2.3) button and you can also select

picture path and record path.

z Section 4:real-time monitor window. Please note current preview window is circled by a

green rectangle zone.

z Section 5: Here you can view window switch button. You can also select video priority

between fluency or real-time.

 System monitor window switch supports full screen/1-window/4-window/6-window/8-

window/9-window/13-window/16-window/20-window/25-window/36-window. See

7-4

X432H432H432H436HFigure

Figure 7-4

 Preview window switch. System support 1/4/8/9/16-window real-time preview. Please you

need to have the proper rights to implement preview operation. You can not preview if you

have no right to preview the either channel. See

does not support this function.

437HFigure 7-5. Please note this series device

Section1

Section 2

Figure 7-5

Section 5

Section 3

Section 4

7.2.1 Real-time Monitor

Figure 7-6

In section 2, left click the channel name you want to view, you can see the corresponding video

in current window.

On the top left corner, you can view device IP, channel number, network monitor bit stream.

1 2 3

Figure 7-7

On the top right corer, there are six unction buttons. See X434H434H434H438HFigure 7-8X.

1 2 3 4 5 6

Figure 7-8

z 1: Digital zoom: Click this button and then left drag the mouse in the zone to zoom in. right

click mouse system restores original status.

z 2: Change show mode: resize or switch to full screen mode.

z 3: Local record. When you click local record button, the system begins recording and this

button becomes highlighted. You can go to system folder RecordDownload to view the

recorded file.

z 4: Capture picture. You can snapshoot important video. All images are memorized in system

client folder \download\picture (default).

z 5: Audio :Turn on or off audio.(It has no relationship with system audio setup )

z 6: Close video.

Please refer to

X435H435H435H439HFigure 7-9X for main stream and extra stream switch information.

Open All

You can click it to open all channels.

Figure 7-9

Refresh

You can use button to refresh camera list.

Start Dialogue

You can click this button to enable audio talk. Click 【▼】 to select bidirectional talk mode.

There are two options: DEFAULT/G711a.

Please note, the audio input port from the device to the client-end is using the first channel audio

input port. During the bidirectional talk process, system will not encode the audio data from the 1-

channel.

Local Play

The Web can playback the saved (Extension name is dav) files in the PC-end.

Click local play button, system pops up the following interface for you to select local play file. See

X436H436H436H440HFigure 7-10.X

Figure 7-10

7.2.2 PTZ

Before PTZ operation, please make sure you have properly set PTZ protocol. (Please refer to

chapter 7.3.2 Setting-> Pan/Tilt/Zoom).

Click PTZ button, the interface is shown as in

X437H437H437H441HFigure 7-11X.

3D Intelligent Positioning

Key

You can click this icon to

display or hide the PTZ

control platform.

Figure 7-11

7.2.2.1 Direction key and 3D positioning key

In Figure 7-10, there are eight direction keys.

In the middle of the eight direction keys, there is a 3D intelligent positioning key.

Click 3D intelligent positioning key, system goes back to the single screen mode. Drag the

mouse in the screen to adjust section size. It can realize PTZ automatically.

7.2.2.2 Speed

System supports eight-level speed. You can select from the dropdown list. Speed 2 is faster than

speed 1.

7.2.2.3 Zoom/Focus/Iris

Here is a sheet for you reference.

Name Function

key

Zoom

Focus

Iris

In Figure 7-11, click PTZ setup button you can see the following interface. See X438H438H438H442HFigure 7-12X.

Function Function

key

Near

Function

Far

Open

Figure 7-12

7.2.2.4 Auto Scan

In X439H439H439H443HFigure 7-12X, move the camera to you desired location and then click left limit button.

Then move the camera again and then click right limit button to set a right limit.

7.2.2.5 Pattern

In X440H440H440H444HFigure 7-12X, you can input pattern value and then click start record button to begin PTZ

movement. Please go back to Figure 7-11 to implement camera operation. Then you can click

stop record button. Now you have set one pattern.

7.2.2.6 Preset

In X441H441H441H445HFigure 7-12X, move the camera to your desired location and then input preset value. Click add

button, you have set one preset.

7.2.2.7 Auto tour

In X442H442H442H446HFigure 7-12X, input auto tour value and preset value. Click add button, you have added one

preset in the tour.

Repeat the above procedures you can add more presets in one tour.

7.2.2.8 Assistant

You can select the assistant item from the dropdown list. See X443H443H443H447HFigure 7-13X.

Figure 7-13

7.2.3 Color

Click color button in section 3, the interface is shown as X444H444H444H448HFigure 7-14X.

Here you can select one channel and then adjust its brightness, contrast, hue and saturation.

(Current channel border becomes green).

Or you can click default button to use system default setup.

Figure 7-14

7.2.4 Picture Path and Record Path

Click more button in X445H445H445H449HFigure 7-14X, you can see an interface is shown as in X446H446H446H450HFigure 7-15X.

Figure 7-15

Click picture path button, you can see an interface is shown as in X447H447H447H451HFigure 7-16X.

Please click choose button to modify path.

Figure 7-16

Click record path button, you can see an interface is shown as in X448H448H448H452HFigure 7-17X.

Please click choose button to modify path.

Figure 7-17

Click reboot button, system pops up the following dialogue box. See Figure 7-18,

Please click OK to reboot.

Figure 7-18

If there is local use logged in the system menu, or the Web logged in user has no right to reboot

the device system pops up a dialogue box to alert you.

7.3 Configure

7.3.1 System Information

7.3.1.1 Version Information

Here you can view device hardware feature and software version information. See X449H449H449H453HFigure 7-19X.

Figure 7-19

7.3.1.2 HDD information

Here you can view local storage status and network status including, free capacity and total

capacity. See

X450H450H450H454HFigure 7-20X.

Figure 7-20

7.3.1.3 Log

Here you can view system log. See X451H451H451H455HFigure 7-21X.

Figure 7-21

Click backup button, the interface is shown as in X452H452H452H456HFigure 7-22X.

Figure 7-22

Please refer to the following sheet for log parameter information.

Parameter Function

Type

Clear You can click this button to delete all displayed log files. Please note

Backup

Log types include: system operation, configuration operation, data management, alarm event, record operation, user management, log clear and file operation. You can select log type from the drop down list and then click search button to view the list.

system does not support clear by type.

You can click this button to backup log files to current PC.

7.3.2 System Configuration

Please click save button to save your current setup.

7.3.2.1 General Setup

Here you can set system time, record length, video format and etc. See X453H453H453H457HFigure 7-23X.

Figure 7-23

Figure 7-24

Figure 7-25

Please refer to the following sheet for detailed information.

Parameter Function

System Time

Sync PC You can click this button to save the system time as your PC current

Data Format

Data Separator

Time Format

DST Here you can set day night save time begin time and end time. See

Language You can select the language from the dropdown list. Device needs to

HDD Full

Pack Duration

Device No

Video Standard

Here is for you to modify system time. Please click Save button after your completed modification

time.

Here you can select data format from the dropdown list.

Please select separator such as – or /.

There are two options: 24-H and 12-H.

Figure 7-24 and Figure 7-25.

reboot to get the modification activated.

There are two options: stop recording or overwrite the previous files when HDD is full. When current working HDD is overwriting or it is full now, system stops record. If current working HDD is full now, system goes to overwrite the previous file. Here you can select file size. The value ranges from 1 to 120.Default setup is 60 minutes.

When you are using one remote control (not included in the accessory bag) to manage multiple devices, you can give a serial numbers to the device.

There are two options: PAL/NTSC.

Please note, for the Web user, this information is for reference only. You can not modify.

7.3.2.2 Encode

Encode interface is shown as in X454H454H454H458HFigure 7-26X.

Figure 7-26

Figure 7-27

Please refer to the following sheet for detailed information.

Parameter Function

Channel

Channel Name

Here is for you to select a monitor channel.

Here is to display current channel name. You can modify it.

Compression H.264

Main Stream It includes main stream, motion stream and alarm stream. You can

select different encode frame rates form different recorded events.

System supports active control frame function (ACF). It allows you to record in different frame rates.

For example, you can use high frame rate to record important events, record scheduled event in lower frame rate and it allows you to set different frame rates for motion detection record and alarm record.

Extra Stream Select extra stream if you enabled the extension stream to monitor.

Parameter Function

Audio/Video For the main stream, recorded file only contains video by default. You

need to draw a circle here to enable audio function.

For extra stream, you need to draw a circle to select the video first and then select the audio if necessary.

Resolution For 16ch series:

Main stream resolution supports D1/CIF/QCIF.

Extra stream of channel 1 to channel 16 support QCIF only.

Frame Rate

PAL：1～25f/s；NTSC：1～30f/s

For the 8-ch series DVR, you can refer to the following information: If the 1-channel resolution is D1and the frame rate is more than 6f/s, then the rest seven channels (the second channel to the eights channel) resolution shall be CIF or QCIF. If the 1-channel resolution is D1 and the frame rate is or less than 6f then the rest seven channels (the second channel to the eights channel) resolution shall be D1/CIF/QCIF. Right now in D1 resolutio the max frame rate is 6f/s.

Bit Rate Type

There are two options: VBR and CBR. Please note, you can set video quality in VBR mode only.

Quality

Bit Rate

The value ranges from 1 to 6. The level 6 is the best video quality.

In CBR, the bit rate here is the max value. In dynamic video, system needs to low frame rate or video quality to guarantee the value.

The value is null in VBR mode.

Please refer to recommend bit rate for the detailed information.

Recommended Bit

Recommended bit rate value according to the resolution and frame rate you have set.

Color Setting Here you can set video brightness, contrast ness, hue, saturation and

gain.

The value ranges from 0 to 100.Default value is 50. See Figure 7-27. Please note, some series devices do not support OSD transparent setup function.

Cover area (privacy mask)

Here you can privacy mask the specified video in the monitor video.

One channel max supports 4 privacy mask zones.

The privacy mask includes two options: Never/monitor. Never: It means do not enable privacy mask function. Monitor: the privacy mask zone can not be viewed in monitor mode.

Time Title

You can enable this function so that system overlays time information in video window.

OSD transparent value ranges from 0 to 255. 0 means complete transparent.

You can use the mouse to drag the time tile position.

Channel Title

You can enable this function so that system overlays channel information in video window.

OSD transparent value ranges from 0 to 255. 0 means complete transparent.

You can use the mouse to drag the channel tile position.

Parameter Function

Copy It is a shortcut menu button. You can copy current channel setup to

one or more channels. The interface is shown as in

X455H455H455H459HFigure 7-28X.

Save You can click save button after you complete setup for one channel, or

you can complete the whole setups and then click save button.

Refresh Click this button to get device latest configuration information.

Click copy interface, the interface is shown as in X456H456H456H460HFigure 7-28X.

If you have completed the setup for channel 1, you can click 3 to copy current setup to channel 3.

Or you can click 2, 3, and 4 to copy current setup to channel 2, channel 3 and channel 4.

Figure 7-28

7.3.2.3 Schedule

Here you can set different periods for various days. There are max six periods in one day. See

X457H457H457H461HFigure 7-29X

Figure 7-29

Figure 7-30

Please refer to the following sheet for detailed information.

Parameter Function

Channel

Please select a channel first.

Pre-record Please input pre-record value here.

System can record the three to five seconds video before activating the record operation into the file. (Depends on data size).

Setup

In X458H458H458H462HFigure 7-29X, click set button, you can go to the corresponding setup interface.

Please set schedule period and then select corresponding record or snapshot type: schedule/snapshot, motion detection/snapshot, and alarm/snapshot.

Please select date (Current setup applies to current day by default. You can draw a circle before the week to apply the setup to the whole week.)

After complete setup, please go back to X459H459H459H463HFigure 7-29X and then click save to save current time period setup.

Copy It is a shortcut menu button. You can copy current channel setup to

one or more (all) channels. The interface is shown as in

7-28

X460H460H460H464HFigure

Save You can click save button after you complete setup for one channel,

or you can complete the whole setups and then click save button.

Refresh Click this button to get device latest configuration information.

7.3.2.4 RS232

The RS232 interface is shown as in X461H461H461H465HFigure 7-31X.

Figure 7-31

Please refer to the following sheet for detailed information.

Parameter Function

RS232 There are two options: COM 01 and keyboard.

Function

Data Bit

Stop Bit

Baud Bit You can select corresponding baud bit here.

Parity

System default setup is:

z Function: Console.

z Data bit: 8

z Stop bit: 1

z Baud bit: 115200

z Parity: None.

Console is to upgrade the program or debug via COM or mini terminal software. Keyboard: COM control protocol. You can use keyboard to control DVR via COM. The value ranges from 5 to 8.

There are three options: 1/2.

There are four options: none/odd/even.

7.3.2.5 Network

Network interface is shown as in X462H462H462H466HFigure 7-32X.

Figure 7-32

Please refer to the following sheet for detailed information.

Parameter Function

Ethernet Please select the network card first.

DHCP Dynamically get IP address. You can get the device IP from

the DHCP server if you enabled this function.

TCP Port Default value is 37777.

HTTP Port Default value is 80.

UDP Port Default value is 37778.

Max Connection Network user max amount. The value ranges from 0 to 10.

O means there is no user can access current device.

Remote Host

Multiple cast group

PPPOE z Input the PPPoE user name and password you get from the

Set MULCAST address and port.

Enable MULCAST function.

IPS (internet service provider) and enable PPPoE function. Please save current setup and then reboot the device to get the setup activated.

Device connects to the internet via PPPoE after reboot. You can get the IP address in the WAN from the IP address column.

Please note if you want to reboot the device please make sure you have proper reboot right and there is no login user in current device.

The email interface is shown as in

X463H463H463H467HFigure 7-33X.

Figure 7-33

Please refer to the following sheet for detailed information.

Parameter Function

SMTP Server

Port Default value is 25. You can modify it if necessary.

User Name

Password

Sender

Subject

Address

DDNS

The DDNS interface is shown as in

Please make sure your DVR support this function.

Input server address and then enable this function.

The sender email account user name.

The sender email account password.

Sender email address.

Input email subject here.

Input receiver email address here. Max input three addresses.

X464H464H464H468HFigure 7-34X.

Figure 7-34

Please refer to the following sheet for detailed information.

Parameter Function

Server Type You can select DDNS protocol from the dropdown list and then

enable DDNS function. The private DDNS protocol means you use your self-defined private protocol to realize DDNS function.

Server IP DDNS server IP address

Server Port DDNS server port.

Domain Name Your self-defined domain name.

User The user name you input to log in the server.

Password The password you input to log in the server.

Interval

NAS

NAS interface is shown as in

Please make sure your DVR support this function.

Device sends out alive signal to the server regularly.

You can set interval value between the device and DDNS server here.

X465H465H465H469HFigure 7-35X.

Figure 7-35

Please refer to the following sheet for detailed information.

Parameter Function

NAS enable

Server IP Input remote storage server IP address.

Port

User Name

File length The file length you upload to the FTP.

Password The password you need to log in the server.

Remote Path Remote storage file path.

Save You can click save button after you complete setup for

Please select network storage protocol and then enable NAS function.

Input Remote storage server port number.

When setup is larger than the actual file length, system will upload the whole file. When setup here is smaller than the actual file length, system only uploads the set length and auto ignore the left section. When interval value is 0, system uploads all corresponding files.

one channel, or you can complete the whole setups and then click save button.

Refresh Click this button to get device latest configuration

information.

NTP

The NTP interface is shown as in

X466H466H466H470HFigure 7-36X.

Here you can realize network time synchronization. Please enable current function and then

input server IP, port number, time zone and update interval. Please note the SNTP supports TCP

100

Dahua LE-A User Manual
