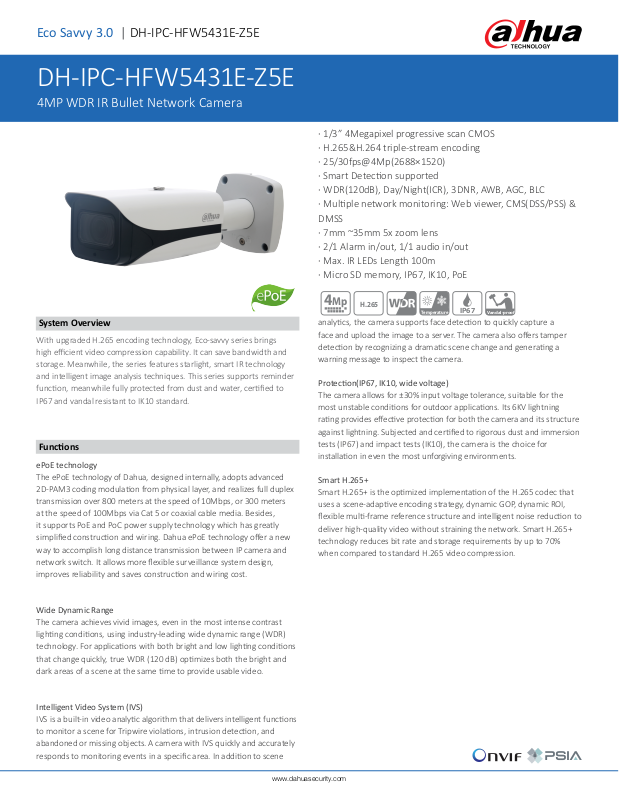

Dahua IPC-HFW5431E-Z5E Technical data

Eco Savvy 3.0 | DH-IPC-HFW5431E-Z5E

DH-IPC-HFW5431E-Z5E

4MP WDR IR Bullet Network Camera

· 1/3” 4Megapixel progressive scan CMOS

· H.265&H.264 triple-stream encoding

· 25/30fps@4Mp(2688×1520)

· Smart Detecon supported

· WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC

· Mulple network monitoring: Web viewer, CMS(DSS/PSS) &

DMSS

· 7mm ~35mm 5x zoom lens

· 2/1 Alarm in/out, 1/1 audio in/out

· Max. IR LEDs Length 100m

· Micro SD memory, IP67, IK10, PoE

System Overview

With upgraded H.265 encoding technology, Eco-savvy series brings

high ecient video compression capability. It can save bandwidth and
storage. Meanwhile, the series features starlight, smart IR technology
and intelligent image analysis techniques. This series supports reminder
funcon, meanwhile fully protected from dust and water, cered to

IP67 and vandal resistant to IK10 standard.

Funcons

ePoE technology

The ePoE technology of Dahua, designed internally, adopts advanced
2D-PAM3 coding modulaon from physical layer, and realizes full duplex
transmission over 800 meters at the speed of 10Mbps, or 300 meters
at the speed of 100Mbps via Cat 5 or coaxial cable media. Besides,
it supports PoE and PoC power supply technology which has greatly
simplied construcon and wiring. Dahua ePoE technology oer a new
way to accomplish long distance transmission between IP camera and
network switch. It allows more exible surveillance system design,
improves reliability and saves construcon and wiring cost.

4Mp

analycs, the camera supports face detecon to quickly capture a
face and upload the image to a server. The camera also oers tamper
detecon by recognizing a dramac scene change and generang a
warning message to inspect the camera.

Protecon(IP67, IK10, wide voltage)

The camera allows for ±30% input voltage tolerance, suitable for the
most unstable condions for outdoor applicaons. Its 6KV lightning
rang provides eecve protecon for both the camera and its structure
against lightning. Subjected and cered to rigorous dust and immersion
tests (IP67) and impact tests (IK10), the camera is the choice for
installaon in even the most unforgiving environments.

Smart H.265+

Smart H.265+ is the opmized implementaon of the H.265 codec that
uses a scene-adapve encoding strategy, dynamic GOP, dynamic ROI,
exible mul-frame reference structure and intelligent noise reducon to
deliver high-quality video without straining the network. Smart H.265+
technology reduces bit rate and storage requirements by up to 70%
when compared to standard H.265 video compression.

H.265

Temperature

IP67

Vandal-proof

Wide Dynamic Range

The camera achieves vivid images, even in the most intense contrast
lighng condions, using industry-leading wide dynamic range (WDR)
technology. For applicaons with both bright and low lighng condions
that change quickly, true WDR (120 dB) opmizes both the bright and
dark areas of a scene at the same me to provide usable video.

Intelligent Video System (IVS)

IVS is a built-in video analyc algorithm that delivers intelligent funcons
to monitor a scene for Tripwire violaons, intrusion detecon, and
abandoned or missing objects. A camera with IVS quickly and accurately
responds to monitoring events in a specic area. In addion to scene

www.dahuasecurity.com

Eco Savvy 3.0 | DH-IPC-HFW5431E-Z5E

Technical Specificaon

Camera

Image Sensor

Effective Pixels

RAM/ROM

Scanning System

Electronic Shutter Speed

Minimum Illumination

S/N Ratio

IR Distance

IR On/Off Control

IR LEDs

Lens

Lens Typ e

Moun t Ty pe

Focal Length

Max. Aperture

Angle of View

Optical Zoom

Focus Control

Close Focus Distance

Lens

DORI
Distance

W

T

Pan/Tilt/Rotaon

Pan/Tilt/Rotation Range

Intelligence

IVS

Advanced Intelligent Functions

Video

Compression

Streaming Capability

Resolution

Frame Rate

Bit Rate Control

1/3” 4Megapixel progressive scan CMOS

2688(H) x 1520(V)

512MB/32MB

Progressive

Auto/Manual, 1/3~1/100000s

0.03Lux/F1.4 (Color,1/3s,30IRE)

0.3Lux/F1.4 (Color,1/30s,30IRE)
0Lux/F1.4(IR on)

More than 50 dB

Distance up to 100m (328ft)

Auto/ Manual

4

Motorized/ Auto Iris(HALL)

Board-in

7mm~35mm

F1.4

H: 33°~13°, V:20°~6°

5x

Motorized

0.4m

Detect Observe Recognize Identify

190m(623ft) 76m(249 ft) 38m(124ft) 19m(62ft)

620m(2034ft) 248m(813f t) 124m(406f t) 62m(203 ft)

Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚

Tripwire, Intrusion, Object Abandoned/Missing

Face Detection

H.265+/H.265/H.264+/H.264

3 Streams

4M(2688 ×1520)/3M(2304 ×1296)/
1080P(1920×1080)/1.3M(1280x960)/
720P(1280×720)/D1(704×576/704×480)/
VGA(640×480)/CIF(352×288/352×240)

Main Stream: 4M(1~25/30fps)

Sub Stream: D1(1~25/30 fps)

Third Stream: 720P(1~25/30 fps)

CBR/VBR

Day/Night

BLC Mode

White Balance

Gain Control

Noise Reduction

Motion Detetion

Region of Interest

Electronic Image Stabilization
(EIS)

Smart IR

Defog

Digital Zoom

Flip

Mirror

Privacy Masking

Audio

Compression

Network

Ethernet

Protocol

Interoperability

Streaming Method

Max. User Access

Edge Storage

Web Viewer

Management Software

Smart Phone

Cercaons

Certifications

Interface

Video Interface

Audio Interface

RS485

Alarm

Electrical

Power Supply

Power Consumption

Auto(ICR) / Color / B/W

BLC / HLC / WDR(120dB)

Auto/Natural/Street Lamp/Outdoor/Manual

Auto/Manual

3D DNR

Off / On (4 Zone, Rectangle)

Off / On (4 Zone)

N/A

Support

N/A

16x

0°/90°/180°/270°

Off / On

Off / On (4 Area, Rectangle)

G.711a/ G.711Mu/ AAC/ G.726

RJ- 45 (10/100Base-T)

HTT P; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;
UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;
IGMP; SNMP

ONVIF, PSIA, CGI

Unicast / Multicas t

10 Users /20 User s

NAS
Local PC fo r instant recording
Mirco SD card 128GB

IE, Chrome, Firefox, Saf ari

Smart PSS, DSS, Easy4ip

IOS, Android

CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Par t 15 Subpart B

1 Port(For adjustment only)

1/1 channel In/Out

N/A

2 channel In: 5mA 5VDC
1 channel Out: 300m A 12VDC

DC12V, PoE (802.3af )(Class 0)

<12.95W
