Dahua IPC-HF8101E, IPC-HF8201E User Manual

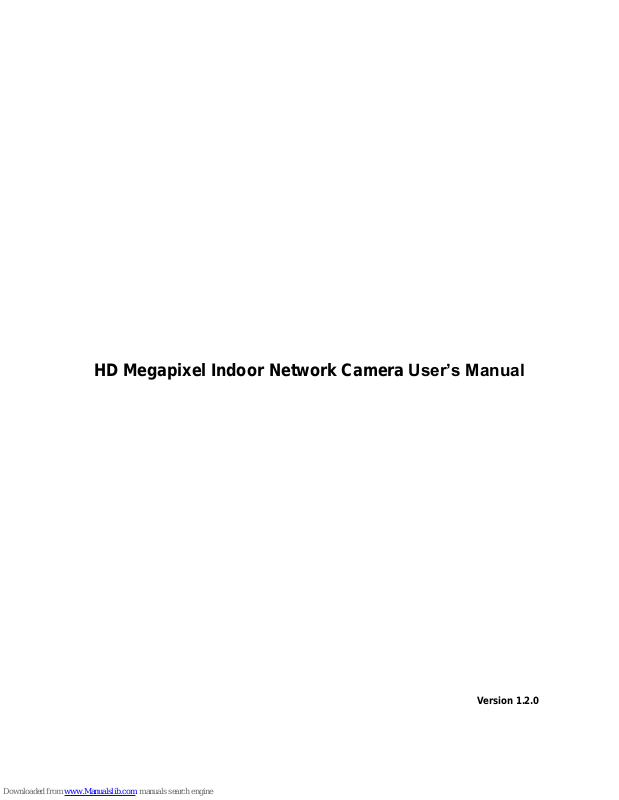

HD Megapixel Indoor Network Camera User’s Manual

Version 1.2.0

i

Welcome

Thank you for purchasing our network camera!
This user’s manual is designed to be a reference tool for your system.
Please read the following safeguard and warnings carefully before you use this series product!
Please keep this user’s manual well for future reference!

ii

Important Safeguards and Warnings

1．Electrical safety

All installation and operation here should conform to your local electrical safety codes.
The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited
power source is rated 12V DC or 24V AC in the IEC60950-1. (Refer to general introduction) Please

note: Do not connect two power supplying sources to the device at the same time; it may result
in device damage! The product must be grounded to reduce the risk of electronic shock.

We assume no liability or responsibility for all the fires or electrical shock caused by improper handling
or installation.
We are not liable for any problems caused by unauthorized modification or attempted repair.

2．Transportation security

Heavy stress, violent vibration or water splash are not allowed during transportation, storage and
installation.

3．Installation

Do not apply power to the camera before completing installation.
Please install the proper power cut-off device during the installation connection.
Always follow the instruction guide the manufacturer recommended.

4．Qualified engineers needed

All the examination and repair work should be done by the qualified service engineers.
We are not liable for any problems caused by unauthorized modifications or attempted repair.

5．Environment

This series network camera should be installed in a cool, dry place away from direct sunlight,
inflammable, explosive substances and etc.
Please keep it away from the electromagnetic radiation object and environment.
Please make sure the CCD (CMOS) component is out of the radiation of the laser beam device.
Otherwise it may result in CCD (CMOS) optical component damage.
Please keep the sound ventilation.
Do not allow the water and other liquid falling into the camera.
Thunder-proof device is recommended to be adopted to better prevent thunder.
The grounding studs of the product are recommended to be grounded to further enhance the reliability
of the camera.

6. Daily Maintenance

Please shut down the device and then unplug the power cable before you begin daily maintenance
work.

iii

Do not touch the CCD (CMOS) optic component. You can use the blower to clean the dust on the lens
surface.
Always use the dry soft cloth to clean the device. If there is too much dust, please use the water to
dilute the mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the
device.
Please put the dustproof cap to protect the CCD (CMOS) component when you do not use the camera.
Dome enclosure is the optical component, do not touch the enclosure when you are installing the
device or clean the enclosure when you are doing maintenance work. Please use professional optical
clean method to clean the enclosure. Improper enclosure clean method (such as use cloth) may result
in poor IR effect of camera with IR function.

7. Accessories

Be sure to use all the accessories recommended by manufacturer.
Before installation, please open the package and check all the components are included.
Contact your local retailer ASAP if something is broken in your package.

Accessory Name

Amount

Network Camera Unit

1

C/CS Adapter ring

1

Quick Start Guide

1

CD

1

iv

Table of Contents

1 General Introduction ...................................................................................................... 1

1.1 Overview ........................................................................................................... 1

1.2 Feature .............................................................................................................. 1

1.3 Specifications .................................................................................................... 2

1.3.1 Performance ............................................................................................... 2

2 Framework ..................................................................................................................... 9

2.1 Rear Panel ........................................................................................................ 9

2.2 Side Panel ....................................................................................................... 14

2.3 Front Panel ..................................................................................................... 15

2.4 Bidirectional talk .............................................................................................. 15

2.4.1 Device-end to PC ...................................................................................... 15

2.4.2 PC to the Device-end ................................................................................ 15

2.5 Alarm Setup ................................................................ ................................ .... 16

2.5.1 Alarm Input and Output Connection .......................................................... 16

2.5.2 IR Light Connection .................................................................................. 17

3 Installation ................................................................................................................... 18

3.1 Lens ................................................................................................................ 18

3.1.1 Lens Installation ........................................................................................ 18

3.1.2 Remove Lens ............................................................................................ 19

3.2 SD Card .......................................................................................................... 19

3.2.1 Installation ................................................................................................. 19

v

3.2.2 Remove .................................................................................................... 20

3.3 WIFI Antenna .................................................................................................. 20

3.3.1 WIFI Antenna Installation .......................................................................... 20

3.3.2 Remove WIFI Antenna.............................................................................. 21

3.4 I/O Port ............................................................................................................ 21

4 Quick Configuration Tool ............................................................................................. 23

4.1 Overview ......................................................................................................... 23

4.2 Operation ........................................................................................................ 23

5 Web Operation ............................................................................................................ 25

5.1 Network Connection ........................................................................................ 25

5.2 Login and Main Interface ................................................................................. 25

6 FAQ ............................................................................................................................. 27

Appendix Toxic or Hazardous Materials or Elements ........................................................ 28

1

1 General Introduction

1.1 Overview

This series network camera integrates the traditional camera and network video technology. It
adopts audio video data collection, transmission, storage together. It can connect to the network
directly without any auxiliary device.

This series network camera uses standard H.264 video compression technology and PCM,
G.711a/u audio compression technology, which maximally guarantees the audio and video
quality.

This series network camera has mega pixel resolution and supports 12V DC/24V AC power. It
supports the wireless network application, bidirectional talk, digital water mark and etc.

It can be used alone or used in a network area. When it is used lonely, you can connect it to the
network and then use a network client-end. Due to its high definition, multiple functions and
various applications, this series network camera is widely used in many indoor environments and
other important area surveillance.

1.2 Feature

User

Management

 Different user rights for each group, one user belongs to one group.
 The user right cannot exceed the group right.

Data

Transmission

 Support cable network data transmission via Ethernet
 Wireless device supports WIFI/3G network data transmission.

Storage

Function

 Support central server backup function in accordance with your configuration and

setup in alarm or schedule setting

 Support record via Web and the recorded file are storage in the client-end PC.
 Support local Micro SD card hot swap. Support short-time storage when encounter

disconnection.

 Support network storage such as FTP.

Alarm

Function

 Real-time respond to external on-off alarm input, and video detect as user pre-

defined activation setup and generate corresponding message in screen and audio
prompt(allow user to pre-record audio file)

 Real-time video detect: motion detect, camera masking.

Network

Monitor

 Network camera supports one-channel audio/video data transmit to network

terminal and then decode. Delay is within 270ms (network bandwidth support
needed)

 Max supports 20 connections.
 Adopt the following audio and video transmission protocol: HTTP, TCP, UDP,

MULTICAST, RTP/RTCP, RTSP and etc.

 Support web access.

Network

Management

 Realize network camera configuration and management via Ethernet.
 Support device management via web.
 Support various network protocols.

Peripheral

Equipment

 Support peripheral equipment connection via the RS232 port, each peripheral

equipment control protocol and interface can be set freely.

 Support serial port (RS232/RS485) transparent data transmission.
 Support the on-off alarm device to alarm via the sound or the light.

Power

 External power adapter. Support DC 12V/AC 24V power supply.

Warning！

2

Do not connect two power supplying sources to the device at the same time; it
may result in device damage!

PoE

 Support Power over Ethernet (PoE). Conform to the IEEE802.3af standard.
 Connect the device to the switcher or the router that supports the PoE function to

realize the network power supply.

 To guarantee proper performance, please make sure the power sourcing device

can supply at least 10W power.

 For WIFI/3G devices, PoE is not recommended.

Assistant

Function

 Day/Night mode auto switch (ICR switch.)
 Backlight compensation: screen auto split to realize backlight compensation to

adjust the bright.

 Support system resource information and running status real-time display. Support

log function.

 Support video watermark function to avoid vicious video modification.
 Support auto aperture.
 Support picture parameter setup such as electronic shutter and gain setup.
 Support dual-stream, ACF(Active frame control )

1.3 Specifications

1.3.1 Performance

Please refer to the following sheet for network camera performance specification.

Model
Parameter

IPC-HF8101E

IPC-HF8201E

System

Main
Processor

TI high performance DSP

OS

Embedded LINUX

System
Resources

Support real-time network monitor, local record, and remote operation at the
same time.

User Interface

Remote operation interface such as WEB, DSS, PSS

System Status

SD card status info, bit stream statistics, log, and software version.

Video Parameter

Image Sensor

1/3-inch CMOS

Pixel

1280(H)×1024(V)

1920(H)×1080(V)

Day/Night
Mode

Support IR-CUT electromagnetic switch

Auto Aperture

DC drive

Lens

C/CS port, lens optional

Illumination

0.01Lux/F1.2 (color mode), 0.001Lux/F1.2 (black white mode)

SNR

52db and up

Gain Control

Manual/Auto

White Balance

Manual/Auto

NR

Support 3D NR

WRD

120dB WDR

BLC

Off/BLC/WDR (1-100 adjustable)/HLC(anti-flicker is outdoor and is valid only
when exposure mode is auto with range 1-100)

Electronic
Shutter

Manual/Auto
It ranges from 1/3 to 1/30000.

Smart Focus

Support ABF

3

Video
Compression
Standard

H.264/H.264H/H.264B/MJPEG

Video Frame
Rate

PAL:
Main stream Max(1280*1024@25fps),
Extra stream Max(704*576@25fps),
Third stream Max(1280*1024@25fps)

PAL:
Main stream Max(1920*1080@25fps),
Extra stream Max(704*576@25fps),
Third stream Max(1920*1080@25fps)

NTSC:
Main stream Max(1280*1024@30fps),
Extra stream Max(704*480@30fps),
Third stream Max(1280*1024@30fps)

NTSC:
Main stream Max(1920*1080@30fps),
Extra stream Max(704*480@30fps),
Third stream Max(1920*1080@30fps)

Video Bit Rate

16K-14Mbps, adjustable and bit rate
is adjustable. Support customized
setup.

16K-20Mbps, adjustable and bit rate
is adjustable. Support customized
setup.

Video Setting

Support rotate mode

Snapshot

Max 1f/s snapshot. File extension name is JPEG

Privacy Mask

Each channel supports max 4 privacy mask zones

Video Setup

Support parameter setup such as brightness, contrast, acutance.

Video
Information

Channel title, time title, motion detect, tampering.

Intelligent
Detection

Tripwire, cross warning zone, abandoned /missing object detection, scene
change detection, defocus detection.

Face Detection

Detect face in video and link according to the result.

Audio
Detection

Detect if there is audio input, filter noise, scream emergency and etc.

Lens Interface

C/CS optional

Video
Interface

1-ch composite analog video output

Audio

Audio Input

1-channel， 3.5mm JACK LINE IN/ in-built MIC IN

Audio Output

1-channel， 3.5mm JACK LINE OUT

Audio Bit Rate

64kbps 16bit

Audio
Compression
Standard

G.711a/G.711Mu

Video

Motion Detect

396 (18*22) detection zones; sensitivity level ranges from 0 to 100; area
threshold ranges from 0 to 100.
Activation event, video storage, image snapshot, log, email function and etc.

Video Loss

Activation event: video storage, image snapshot, log, email function and etc.

Alarm Interface

2 channel input, 1 channel output (on-off)

Record

and

Backup

Record
Priority

Manual >Video detect>Schedule
Storage

Function

Support Micro SD card (64G) local storage, NAS storage

Network

Wire Network

1-channel 100M/1000M Ethernet, RJ45 port.
Note：
Ethernet port device.

Network
Protocol

Standard HTTP, TCP/IP, IPv4/IPv6, ARP, IGMP, ICMP, RTSP, RTP, UDP,
SMTP, FTP, DHCP, DNS, DDNS, PPPoE, UPnP, NTP, Bonjour, SNMP

Protocol

ONVIF(default), GB28181

Local Storage

Support Micro SD card (64G) local storage

4

AUX

Interface

Reset

External reset button

RS485 port

1-channel, support transparent channel connection. Support various PTZ
protocols.

General Parameter

Power

Support AC24V/DC12V/PoE power supply
Note: Don’t use AC24V and DC12V (two power modes) to the device at the
same time.

Power
Consumption

Max 10W (ABF and ICR enabled)

Working
Temperature

-30℃~+60℃

Working
Humidify

≤95%

Dimensions

74.1*65.5*135.4

Weight

0.30kg

Installation

Support various installation modes

Model
Parameter

IPC-HF8301E

IPC-HF8281E

System

Main
Processor

TI high performance DSP

OS

Embedded LINUX

System
Resources

Support real-time network, local record, and remote operation at the same
time.

User Interface

Remote operation interface such as WEB, DSS, PSS

System Status

SD card status info, bit stream statistics, log, and software version.

Video Parameter

Image Sensor

1/3-inch CMOS

1/1.9-inch CMOS

Pixel

2048(H)×1536(V)

1920(H)×1080(V)

Day/Night
Mode

Support IR-CUT electromagnetic switch

Auto Aperture

DC drive

Lens

C/CS port, lens optional

Illumination

0.01Lux/F1.2(color mode),

0.001/F1.2 (black white mode)

0.002Lux/F1.2(color mode),

0.0002/F1.2 (black white mode)

SNR

52db and up

Gain Control

Manual/Auto

White Balance

Manual/Auto

NR

3D NR

WRD

120dB WDR

BLC

Off/BLC/WDR (1-100 adjustable)/HLC(anti-flicker is outdoor and is valid only
when exposure mode is auto with range 1-100)

5

Electronic
Shutter

Manual/Auto, It ranges from 1/3 to 1/30000.

Smart Focus

Support ABF

Video
Compression
Standard

H.264/H.264H/H.264B/MJPEG

Video Frame
Rate

PAL:
Main stream Max(2048*1536@25fps),
Extra stream Max(704*576@25fps),
Third stream Max(1920*1080@25fps)

PAL:
Main stream Max(1920*1080@50fps),
Extra stream Max(704*576@50fps),
Third stream Max(1920*1080@50fps)

NTSC:
Main stream Max(2048*1536@30fps),
Extra stream Max(704*480@30fps),
Third stream Max(1920*1080@30fps)

NTSC:
Main stream Max(2048*1536@60fps),
Extra stream Max(704*480@60fps),
Third stream Max(1920*1080@60fps)

Video Bit Rate

16K-32Mbps, and bit rate is adjustable.
Support customized setup.

Video Flip

Support rotate mode

Snapshot

Max 1f/s snapshot. File extension name is JPEG

Privacy Mask

Each channel supports max 4 privacy mask zones

ROI

Support 4 ROI.

Video Setup

Support parameter setup such as brightness, contrast.

Video
Information

Channel title, time title, motion detect, tampering, overlay.

Intelligent
Detection

Tripwire, cross warning zone, abandoned /missing object detection, scene
change detection, defocus detection.

Face Detection

Detect face in video and link according to the result.

Audio
Detection

Detect if there is audio input, filter noise, scream emergency and etc.

Lens Interface

C/CS optional

Audio

Audio Input

1-channel， 3.5mm JACK LINE IN/ in-built MIC IN

Audio Output

1-channel， 3.5mm JACK LINE OUT

Audio Bit Rate

64kbps 16bit

Audio
Compression
Standard

G.711a/G.711Mu

Video

Motion Detect

396 (18*22) detection zones; sensitivity level ranges from 0 to 100; area
threshold ranges from 0 to 100.
Activation event, video storage, image snapshot, log, email function and etc.

Video Loss

Activation event: video storage, image snapshot, log, email function and etc.

Alarm Interface

2 channel input, 1 channel output (on-off)

Record

and

Backup

Record
Priority

Manual >Video detect>Schedule
Storage

Function

Support Micro SD card (64G) local storage, NAS storage

Network

Wire Network

1-channel 100M/1000M Ethernet, RJ45 port.

Network
Protocol

Standard HTTP, TCP/IP, ARP, IGMP, ICMP, RTSP, RTP, UDP, RTCP, SMTP,
FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, Bonjour, SNMP, Qos, 802.1x,

Protocol

ONVIF(default), GB28181

Local Storage

Support Micro SD card (64G) storage

6

AUX

Interface

Reset

External reset button

RS485 port

1-channel, support transparent channel connection. Support various PTZ
protocols.

General Parameter

Power

Support AC24V/DC12V/PoE power supply
Note: Don’t use AC24V and DC12V (two power modes) to the device at the
same time.

Power
Consumption

Max 10W (ABF and ICR enabled)

Working
Temperature

-30℃~+60℃

Working
Humidify

≤95%

Dimensions

74.1*65.5*135.4

Weight

0.30kg

Installation

Support various installation modes

Model
Parameter

IPC-HF8600E

IPC-HF81200E

System

Main
Processor

High performance DSP

OS

Embedded LINUX

System
Resources

Support real-time network, local record, and remote operation at the same
time.

User Interface

Remote operation interface such as WEB, DSS, PSS

System Status

SD card status info, bit stream statistics, log, and software version.

Video Parameter

Image Sensor

1/1.8-inch CMOS

1/2.3-inch CMOS

Pixel

3072(H)×2048(V)

4000(H)×3000(V)

Day/Night
Mode

Support IR-CUT electromagnetic switch

Auto Aperture

DC drive (-P model supports P-IRIS)

Lens

C/CS port, lens optional

Illumination

0.01Lux/F1.2(color mode),

0.001/F1.2 (black white mode)

0.01Lux/F1.2(color mode),

0.001/F1.2 (black white mode)

SNR

52db and up

Gain Control

Manual/Auto

White Balance

Manual/Auto

NR

3D NR

WRD

72.4dB WDR

BLC

Off/BLC/WDR (1-100 adjustable)/HLC(anti-flicker is outdoor and is valid only
when exposure mode is auto with range 1-100)

7

Electronic
Shutter

Manual/Auto, It ranges from 1/3 to 1/100000.

Smart Focus

Support ABF

Video
Compression
Standard

H.264/H.264H/H.264B/MJPEG

Video Frame
Rate

PAL:
Main stream Max(3072*2048@25fps),
Extra stream Max(D1@50fps),
Third stream Max(1920*1080@50fps)

PAL:
Main stream Max(4000*3000@15fps),
Extra stream Max(D1@50fps),
Third stream Max(1920*1080@50fps)

NTSC:
Main stream Max(3072*2048@30fps),
Extra stream Max(D1@60fps),
Third stream Max(1920*1080@60fps)

NTSC:
Main stream Max(4000*3000@15fps),
Extra stream Max(D1@60fps),
Third stream Max(1920*1080@60fps)

Video Bit Rate

32K-48Mbps,and bit rate is
adjustable.Support customized setup.

32K-96Mbps,and bit rate is
adjustable.Support customized setup.

Video Flip

Support rotate mode

Snapshot

Max 1f/s snapshot. File extension name is JPEG

Privacy Mask

Each channel supports max 4 privacy mask zones

ROI

Support 4 ROI.

Video Setup

Support parameter setup such as brightness, contrast.

Video
Information

Channel title, time title, motion detect, tampering, overlay.

Intelligent
Detection

Tripwire, cross warning zone, abandoned /missing object detection, scene
change detection, defocus detection.

Face Detection

Detect face in video and link according to the result.

Audio
Detection

Detect if there is audio input, filter noise, scream emergency and etc.

Lens Interface

CS, lens optional

Audio

Audio Input

1-channel， 3.5mm JACK LINE IN/ in-built MIC IN

Audio Output

1-channel， 3.5mm JACK LINE OUT

Audio Bit Rate

64kbps or 128kbps

Audio
Compression
Standard

G.711a/G.711Mu

Video

Motion Detect

396 (18*22) detection zones; sensitivity level ranges from 0 to 100; area
threshold ranges from 0 to 100.
Activation event, video storage, image snapshot, log, email function and etc.

Video Loss

Activation event: video storage, image snapshot, log, email function and etc.

Alarm Interface

2 channel input, 1 channel output (on-off)

Record

and

Backup

Record
Priority

Manual >Video detect>Schedule
Storage

Function

Support Micro SD card (128G) disconnection local storage, NAS storage

Network

Wire Network

1-channel 100M/1000M Ethernet, RJ45 port.

Network
Protocol

StandardHTTP,TCP/IP,IPv4/IPv6,ARP,IGMP,ICMP,RTSP,RTP,UDP,SMTP,FT
P,DHCP,DNS,DDNS,PPPoE,UPnP,NTP,Bonjour,SNMP,Qos,802.1x

Protocol

ONVIF(default), GB28181

Local Storage

Support Micro SD card (128G) storage

8

AUX

Interface

Reset

External reset button

RS485 port

1-channel, support transparent channel connection. Support various PTZ
protocols.

General Parameter

Power

Support AC24V/DC12V/PoE power supply
Note: Don’t use AC24V and DC12V (two power modes) to the device at the
same time.

Power
Consumption

Max 12W (ABF and ICR enabled)

Working
Temperature

-30℃~+60℃

Working
Humidify

≤95%

Dimensions

74.1*65.5*135.4

Weight

0.30kg

Installation

Support various installation modes

9

2 Framework

2.1 Rear Panel

This series network camera rear panel is shown as below. See Figure 2-1.

Figure 2-1 Rear panel with network port

10

Figure 2-2 Rear panel with MB optical fiber port

Note: Picture in this chapter is for reference only and actual rear panel may vary.

Please refer to the following sheet for detail information.

Interface Name

Connector

Function

VIDEO OUT

Video output port

BNC

Output analog video
signal. Can connect to
TV monitor to view
video.

AC 24V/ DC 12V

Power port

 Power port.
 Input 12V DC or

AC 24V

11

STATUS
Indication Light

Red light

 System boot up-

red light is on

 System

upgrades-red light
flashes

 System resets-

red light flashes.

Green light

 Normal working

status-green light
is on.

 Display record

status: Record­green light
flashes.

Yellow light

 Detect the

wireless device­yellow light is on.

3G port

-

 Connect to 3G

card.

 Note: Only 3G

model supports
3G function.

WIFI

Antenna port

-

 Connect to

3G/WIFI antenna,
receiving wireless
signal.

 Note: Only some

models support
this function.

IN1

Alarm input port 1

I/O port
Alarm input port. To
receive the signal from
the external alarm
device.

NO

Alarm output port

Alarm output port. To

12

C

output alarm signal to
the alarm device.
 NO: Normal open

alarm output end.

 C: Alarm output

public end.

IN2

Alarm input port 2

Alarm input port. To
receive the signal from
the external alarm
device.

A

RS485 port

RS485_A port, control
external PTZ

B

RS485_B port, control
external PTZ

RX

RS232 port

RS232_RX，RS232
receive end.

TX

RS232_TX，RS232
COM send out end.

G

GND

RS232 ground end

NA

IR light port

External IR light signal
control port.

RESET

RESET button

Restore factory default
setup.
When system is
running normally,
press the RESET
button for at least 5
seconds, system can
restore factory default
setup.

ABF

Auto back focus
adjustment

-

Auto back focus
adjustment, by
adjusting Sensor
position to achieve
precise focus.

13

AUDIO OUT

Audio output port

Audio output 3.5mm
JACK port.

Output audio signal to
the passive device
such as earphone.

AUDIO IN

Audio input port

Audio input 3.5mm
JACK port.

Input audio signal
from devices such as
pick-up.

LAN

Network port

Ethernet port

 Connect to

standard Ethernet
cable.

 Support PoE

function.

OPT

MB optical fiber port

155M single-fiber
bidirectional SFP
optical module

Transmit MB Ethernet
data.

SD

SD card port

Connect to SD card.

Note

 When you install

the Micro SD
card, please
make sure current
card is not in write
mode and then
you can install it
to the camera.

 When you

remove the Micro
SD card, please
make sure current
card is not in write
mode. Otherwise
it may result in
data loss or card
damage.

14

 Before hot swap,

please stop
record operation.

GND

Please make sure the
device is securely
earthed to prevent the
thunderstorm strike.

2.2 Side Panel

Please refer to the following interface for side panel dimension information. The unit is mm. See
Figure 2-3.

Figure 2-3 Side panel

15

2.3 Front Panel

Please refer to the following interface for the front panel information. The unit is mm. See Figure
2-4.

Figure 2-4 Front panel

2.4 Bidirectional talk

2.4.1 Device-end to PC
Device Connection

Please connect the speaker or the MIC to the audio input port in the device rear panel. Then
connect the earphone to the audio output port in the PC.
Login the Web and then click the Audio button to enable the bidirectional talk function.
You can see the button becomes orange after you enabled the audio talk function.
Click Audio button again to stop the bidirectional talk function.

Listening Operation

At the device end, speak via the speaker or MIC, and then you can get the audio from the
earphone or sound box at the pc-end.

2.4.2 PC to the Device-end
Device Connection

Connect the speaker or the MIC to the audio input port in the PC and then connect the earphone
to the audio output port in the device rear panel.
Login the Web and then click the Audio button to enable the bidirectional talk function.
You can see the button becomes orange after you enabled the audio talk function.
Click Audio button again to stop the bidirectional talk function.

Please note the listening operation is null during the bidirectional talk process.

Listening Operation

16

At the PC-end, speak via the speaker or MIC, and then you can get the audio from the earphone
or sound box at the device-end.

2.5 Alarm Setup

The alarm interface is shown as in Figure 2-5.

Figure 2-5 Alarm

The alarm setup interface is shown as below.
Step 1. Connect the alarm input device to the IN alarm input port on the rear panel I/O port.
Step 2. Connect the alarm output device to the NO alarm output port and C alarm output public

port on the rear panel I/O port. The alarm output port supports NO (normal open) alarm
device only.

Step 3. Open the Web, go to the Figure 2-5. Here you can set the alarm input setup and alarm

output setup. Here the alarm input is the alarm input on the rear panel I/O port (as IN
port). Then you can select the corresponding type (NO/NC) according to the high/low
level type when an alarm occurs.

Step 4. Set the WEB alarm output. The alarm output 01 is the alarm output port of the device

rear panel I/O port (as the NO port).

2.5.1 Alarm Input and Output Connection

Please refer to the following figure for alarm input information. See Figure 2-6.
Alarm input: When the input signal is idle or grounded, the device can collect the different
statuses of the alarm input port. When the input signal is connected to the 3.3V or is idle, the
device collects the logic “1”. When the input signal is grounded, the device collects the logic “0”.

17

Figure 2-6 Alarm input

Please refer to the following figure for alarm output information. See Figure 2-7.
Port NO and Port C composes an on-off button to provide the alarm output.
If the type is NO, this button is normal open. The button becomes on when there is an alarm
output.
If the type is NC, this button is normal off. The button becomes off when there is an alarm output.

Figure 2-7 Alarm output

2.5.2 IR Light Connection

Note:

 Device shall have external port for IR function.
 Log in Web, select Setup -> Camera -> Day&Night, and select sensor input. If it is not

available, then you do need to set it.

Please refer to the following figure for external IR light information. See Figure 2-8.
IR synchronization input signal. When the external IR light is on, the signal cable from the board
outputs the 3.3V/1mA. It outputs the 0V when the IR light is off.

Figure 2-8 IR light connection

18

3 Installation

3.1 Lens

3.1.1 Lens Installation

Figure 3- 1 Lens installation 1

Figure 3- 2 Lens installation 2

3.1.1.1 Auto Aperture Lens

Please follow the steps listed below for auto aperture lens installation.
Remove the CCD protection cap of the device, and then line up the lens to the proper installation
position. Turn clockwise until the lens is fixed firmly.
Step 1. Insert the lens cable socket to the auto lens connector in the side panel.
Step 2. Adjust focus length.

3.1.1.2 Manual Lens

Install C type lens

Step 1. Remove the CCD protection cap from the device.
Step 2. Install the C/CS adapter to the camera. Turn clockwise to secure against the focusing

ring firmly.

Step 3. Line up the C lens to the installation position of the C/CS adapter. Turn clockwise to fix

the lens.

Step 4. Use slotted screwdriver to fasten the screw near the focusing ring and then turn counter

clockwise to move the focusing ring out for several millimeters. Now you can focus manually
and check the video is clear or not. If you can not see the clear video, you can adjust via the
flange-back.

19

Step 5. After you completed the focus setup, use the slotted screwdriver to fix the screw firmly.

Fasten the focusing ring. Now the installation completed.

Install CS type lens

Step 1. Remove the CCD protection cap from the device.
Step 2. Line up the CS lens to the lens installation position of camera focusing ring. Turn

clockwise to fix the lens.

Step 3. Use slotted screwdriver to fasten the screw near the focusing ring and then turn counter

clockwise to move the focusing ring out for several millimeters. Now you can focus manually
and check the video is clear or not. If you cannot see the clear video, you can adjust via the
flange-back.

Step 4. After you completed the focus setup, use the slotted screwdriver to fix the screw firmly.

Fasten the focusing ring. Now the installation completed.

3.1.2 Remove Lens

Please follow the steps listed below to remove lens. The interface is shown as in Figure 3- 3
Remove lens.
Requirements for recording audio:

1. A single file size cannot exceed 800K or free space.

2. User customized audio file cannot exceed 8.

3. During recording, you must enable main stream audio since without stream, recording will
fail.

4. Record max length is 30s. Overtime and insufficient capacity will cause recording to end
automatically.

Step 1. Turn the lens counter clockwise and then remove it from the camera.
Step 2. Unplug the auto lens cable socket from the auto lens connector. If you are using the

manual aperture lens, please skip to the following step.

Step 3. If there is no lens, please put the CCD protection cap back to protect the CCD.

Figure 3- 3 Remove lens

3.2 SD Card

3.2.1 Installation

20

Please see Figure 3- 4 SD card installation to insert Micro SD card into the SD slot. The slot is
flexible, so the Micro SD card can be embedded via lightly pressing.

Figure 3- 4 SD card installation

3.2.2 Remove

Please see Figure 3- 5 Remove Micro SD card to lightly press Micro SD card and it will
automatically eject.

Figure 3- 5 Remove Micro SD card

3.3 WIFI Antenna

3.3.1 WIFI Antenna Installation

WIFI antenna installation illustration is shown in Figure 3- 6 WIFI antenna installation.

21

Figure 3- 6 WIFI antenna installation

Step 1. Face screw on WIFI antenna toward bolt of port on rear panel. Rotate according to the

figure until the antenna is fixed in place.

Step 2. After WIFI antenna is fixed on WIFI port on rear panel, you can adjust direction of WIFI

antenna corresponding to actual need.

3.3.2 Remove WIFI Antenna

Please see Figure 3- 7 Remove WIFI antenna to remove the antenna.

Figure 3- 7 Remove WIFI antenna

Step 1. Hold threaded end of WIFI antenna, rotate it according to direction in the figure until WIFI

antenna is removed from bolt of port.

Step 2. Take down WIFI antenna from port on rear panel.

3.4 I/O Port

Install Cable

Please follow the steps listed below to install the cable. See Figure 3- 8 I/O port.

22

Use the small slotted screwdriver to press the corresponding button of cable groove. Insert the
cable into the groove and then release the screwdriver.

Remove Cable

Please follow the steps listed below to remove the cable.
Use the small slotted screwdriver to press the corresponding button of cable groove. Remove the
cable out of the groove and then release the screwdriver.

Figure 3- 8 I/O port

23

4 Quick Configuration Tool

4.1 Overview

Quick configuration tool can search current IP address, modify IP address. At the same time, you
can use it to upgrade the device.
Please note the tool only applies to the IP addresses in the same segment.

4.2 Operation

Double click the “ConfigTools.exe” icon, you can see an interface is shown as in Figure 4-1.
In the device list interface, you can view device IP address, port number, subnet mask, default
gateway, MAC address and etc.

Figure 4-1 Search interface

Select one IP address and then right click mouse, you can see an interface is shown as in Figure
4-2.
Select the “Open Device Web” item; you can go to the corresponding web login interface.

Figure 4-2 Search interface 2

24

If you want to modify the device IP address without logging in the device web interface, you can
go to the configuration tool main interface to set.
In the configuration tool search interface (Figure 4-1), please select a device IP address and then
double click it to open the login interface. Or you can select an IP address and then click the
Login button to go to the login interface. See Figure 4-3.
In Figure 4-3, you can view device IP address, user name, password and port. Please modify the
corresponding information to login.
Please note the port information here shall be identical with the port value you set in TCP port in
Web Network interface. Otherwise, you cannot login the device.
If you are using device background upgrade port 3800 to login, other setups are all invalid.

Figure 4-3 Login prompt

After you logged in, the configuration tool main interface is shown as below. See Figure 4-4.

Figure 4-4 Main interface

For detailed information and operation instruction of the quick configuration tool, please
refer to the Quick Configuration Tool User’s Manual included in the resources CD.

25

5 Web Operation

This series network camera products support the Web access and management via PC.
Web includes several modules: Monitor channel preview, system configuration, alarm and etc.

5.1 Network Connection

Please follow the steps listed below for network connection.

 Make sure the network camera has connected to the network properly.
 Please set the IP address, subnet mask and gateway of the PC and the network camera

respectively. Network camera default IP address is 192.168.1.108. Subnet mask is

255.255.255.0. Gateway is 192.168.1.1

 Use order ping ***.***.***.***(* network camera address) to check connection is OK or not.

5.2 Login and Main Interface

Open IE and input network camera address in the address bar. See Figure 5- 1.

Figure 5- 1 IP address

The login interface is shown as below. See Figure 5- 2.
Please input your user name and password.
Default factory name is admin and password is admin.

Note: For security reasons, please modify your password after you first login.

Input your IP
address here

26

Figure 5- 2 Web login

After you successfully logged in, please install WEB plug-in unit. Please refer to the Web
Operation Manual included in the resource CD for detailed operation instruction.
See Figure 5- 3.

Figure 5- 3 Web monitoring window

27

6 FAQ

Bug

I can not boot up
the device or can
not control the
device.

Please click RESET button for at least five seconds to restore
factory default setup.
Micro SD card
write times

Do not set the Micro SD card as the storage media to storage the
schedule record file. It may damage the Micro SD card duration.

I can not use the
disk as the storage
media.

When disk information is shown as hibernation or capacity is 0,
please format it first (Via Web).

I can not upgrade
the device via
network.

The status indication light is shown as red when network upgrade
operation failed. You can use port 3800 to continue upgrade.

Recommended
Micro SD card
brand

Kingston 4GB, Kingston 16GB, Kingston32GB, Transcend 16GB,
SanDisk 4GB, SanDisk 32GB.

Usually we recommend the 4GB (or higher) high speed card in case
the slow speed results in data loss.

To guarantee
setup update

After you modified the important setup, please reboot the device via
the software to make sure the setup has been updated to the
storage medium.

General power
adapter

 The general power adapter can work ranging from 0℃ to 40 ℃.

The device may result in unstable power supply when the
temperature exceeds the working temperature.

 Please replace an industry-level power adapter if you are using

in the harsh environments.

28

Appendix Toxic or Hazardous Materials or Elements

Component

Name

Toxic or Hazardous Materials or Elements

Pb

Hg

Cd

Cr VI

PBB

PBDE

Circuit Board

Component

○ ○ ○ ○ ○

○

Case

○ ○ ○ ○ ○

○

Wire and Cable

○ ○ ○ ○ ○

○

Packing

Components

○ ○ ○ ○ ○

○

Accessories

○ ○ ○ ○ ○

○

O: Indicates that the concentration of the hazardous substance in all homogeneous materials in
the parts is below the relevant threshold of the SJ/T11363-2006 standard.

X: Indicates that the concentration of the hazardous substance of at least one of all
homogeneous materials in the parts is above the relevant threshold of the SJ/T11363-2006
standard. During the environmental-friendly use period (EFUP) period, the toxic or hazardous
substance or elements contained in products will not leak or mutate so that the use of these
(substances or elements) will not result in any severe environmental pollution, any bodily injury or
damage to any assets. The consumer is not authorized to process such kind of substances or
elements, please return to the corresponding local authorities to process according to your local
government statutes.

Note
 This user’s manual is for reference only. Slight difference may be found in user

interface.

 All the designs and software here are subject to change without prior written notice.
 All trademarks and registered trademarks mentioned are the properties of their

respective owners.

 If there is any uncertainty or controversy, please refer to the final explanation of us.
