Dahua IPC-HF3500, IPC-HF3300, IPC-HF3110, IPC-HF3200, IPC-HF3100 User Manual

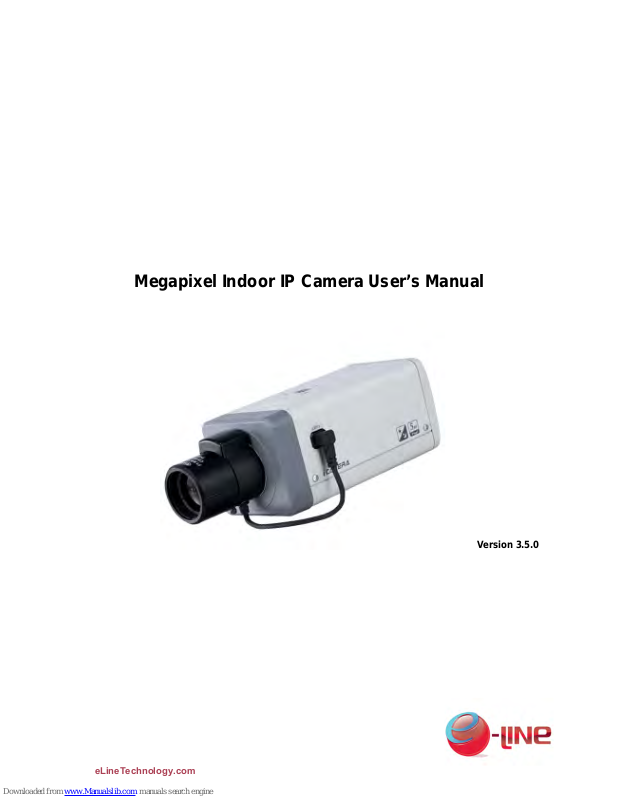

Megapixel Indoor IP Camera User’s Manual

Version 3.5.0

eLineTechnology.com

i

Welcome

Thank you for purchasing our IP camera!
This user’s manual is designed to be a reference tool for your system.
Please read the following safeguard and warnings carefully before you use this series product!
Please keep this user’s manual well for future reference!

eLineTechnology.com

ii

Important Safeguards and Warnings

1．Electrical safety

All installation and operation here should conform to your local electrical safety codes.
The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited
power source is rated 12V DC or 24V AC in the IEC60950-1.
Before you replace the SD card, please unplug the power cable and then remove the shell
We assume no liability or responsibility for all the fires or electrical shock caused by improper handling
or installation.
We are not liable for any problems caused by unauthorized modification or attempted repair.

2．Installation

Do not apply power to the IP camera before completing installation.
Do not put object on the IP camera.

3．Environment

This series IP camera should be installed in a cool, dry place away from direct sunlight, inflammable,
explosive substances and etc.
The working temperature ranges from -10℃ to +60℃. Please keep it away from the electromagnetic
radiation object and environment.
Please keep the sound ventilation.
Do not allow the water and other liquid falling into the IPC.
Thunder-proof device is recommended to be adopted to better prevent thunder.
The grounding studs of the product are recommended to be grounded to further enhance the reliability
of the camera.

4. Daily Maintenance

Current series IPC has no power button. Please unplug all corresponding power cables before your
installation.
Do not touch the CCD or CMOS part; you can use the blower to clean the dust on the surface of the
lens. You can use the dry cloth with some alcohol to clear if necessary.
Please keep the dustproof cap back to protect the CCD or CMOS part if the IP camera does not work
for a long time.

If there is too much dust on the housing, please use the water to dilute the mild detergent first and then
use it to clean the device with the clear dry cloth. Finally use the dry cloth to clean the device.

5. Accessories

Please open the accessory bag to check the items one by one in accordance with the list below.
Contact your local retailer ASAP if something is missing or damaged in the bag.

Accessory Name Amount
IPC Unit

■ 1

C/CS adapter

■ 1

eLineTechnology.com

iii

Quick Start
Guide

■ 1

CD

■ 1

eLineTechnology.com

iv

Table of Contents

1 General Introduction ..................................................................................................................1

1.1 Overview........................................................................................................................1

1.2 Feature...........................................................................................................................1

1.3 Specifications................................................................................................................2

1.3.1 Performance...........................................................................................................2

1.3.2 Factory Default Setup...........................................................................................4

2 Framework.................................................................................................................................13

2.1 Rear Panel...................................................................................................................13

2.2 Side Panel ...................................................................................................................17

2.3 Front Panel..................................................................................................................17

2.4 Bidirectional talk .........................................................................................................18

2.4.1 Device-end to PC-end........................................................................................18

2.4.2 PC-end to the Device-end..................................................................................18

2.5 Alarm Setup.................................................................................................................19

2.5.1 Alarm Input and Output Connection.................................................................19

2.5.2 IR Light Connection ............................................................................................20

3 Installation .................................................................................................................................21

3.1 Lens Installation..........................................................................................................21

3.1.1 Auto Aperture Lens.............................................................................................21

3.1.2 Manual Lens.........................................................................................................21

3.1.3 Remove Lens.......................................................................................................22

3.2 SD Card .......................................................................................................................22

3.2.1 Installation ............................................................................................................22

3.2.2 Remove.................................................................................................................23

3.3 3G Card .......................................................................................................................23

3.3.1 Installation ............................................................................................................23

3.3.2 Remove.................................................................................................................24

3.4 3G/WIFI Antenna........................................................................................................25

eLineTechnology.com

v

3.4.1 Installation ............................................................................................................25

3.4.2 Remove.................................................................................................................25

3.5 I/O Port.........................................................................................................................26

4 Quick Configuration Tool.........................................................................................................28

4.1 Overview......................................................................................................................28

4.2 Operation .....................................................................................................................28

5 Web Operation..........................................................................................................................31

5.1 Network Connection...................................................................................................31

5.2 Login and Logout........................................................................................................31

6 FAQ ............................................................................................................................................34

Appendix Toxic or Hazardous Materials or Elements ...............................................................35

eLineTechnology.com

1

1 General Introduction

1.1 Overview

This series IP camera integrates the traditional camera and network video technology. It adopts
audio video data collection, transmission, storage together. It can connect to the network directly
without any auxiliary device.

This series IPC uses standard H.264 video compression technology and PCM, G.711a/u audio
compression technology, which maximally guarantees the audio and video quality.

This series IPC has mega pixel resolution and supports 12V DC/24V AC power. It supports the
wireless network application, bidirectional talk, digital water mark and etc.

It can be used alone or used in a network area. When it is used lonely, you can connect it to the
network and then use a network client-end. Due to its high definition, multiple functions and
various applications, this series IPC is widely used in many indoor environments and other
important area surveillance.

1.2 Feature

User

Management

z Different user rights for each group, one user belongs to one group.
z The user right can not exceed the group right.

Data

Transmission

z Support cable network data transmission via Ethernet
z Wireless device supports WIFI/3G wireless data transmission.

Storage

Function

z Support central server backup function in accordance with your configuration and

setup in alarm or schedule setting

z Support record via Web and the recorded file are storage in the client-end PC.
z Support local SD card hot swap. Support short-time storage when encounter

disconnection.

z Support network storage such as FTP.

Alarm

Function

z Real-time respond to external on-off alarm input, and video detect as user pre-

defined activation setup and generate corresponding message in screen and audio
prompt(allow user to pre-record audio file)

z Real-time video detect: motion detect, camera masking.

Network

Monitor

z IPC supports one-channel audio/video data transmit to network terminal and then

decode. Delay is within 270ms (network bandwidth support needed)

z Max supports 20 connections.
z Adopt the following audio and video transmission protocol: HTTP, TCP, UDP,

MULTICAST, RTP/RTCP, RTSP and etc.

z Support web access.

Network

Management

z Realize IPC configuration and management via Ethernet.
z Support device management via web.
z Support various network protocols.

Peripheral

Equipment

z Support peripheral equipment connection via the RS232 port, each peripheral

equipment control protocol and interface can be set freely.

z Support serial port (RS232/RS485) transparent data transmission.
z Support the on-off alarm device to alarm via the sound or the light.

Power

z External power adapter. Support DC 12V/AC 24V power supply.

PoE

z Support Power over Ethernet (PoE). Conform to the IEEE802.3af standard.
z Connect the device to the switcher or the router that supports the PoE function to

eLineTechnology.com

2

realize the network power supply.

z To guarantee proper performance, please make sure the power sourcing device

can supply at least 10W power.

z Usually, do not use the PoE for the WIFI/3G device.

Assistant

Function

z Day/Night mode auto switch (ICR switch.)
z Backlight compensation: screen auto split to realize backlight compensation to

adjust the bright.

z Support system resource information and running status real-time display. Support

log function.

z Support video watermark function to avoid vicious video modification.
z Support auto aperture.
z Support picture parameter setup such as electronic shutter and gain setup.
z Support dual-stream, ACF(Active frame control )

1.3 Specifications

1.3.1 Performance

Please refer to the following sheet for IPC performance specification.

Model
Parameter

IPC-HF3500
Series

IPC-HF3300
Series

IPC-HF3200
Series

IPC-HF3100
Series

IPC-HF3110
Series

Main
Processor

TI Davinci high performance DSP

OS Embedded LINUX
System

Resources

Support real-time network, local record, and remote operation at the same
time.

User Interface Remote operation interface such as WEB, DSS, PSS

System

System Status SD card status, bit stream statistics, log, and software version.
Image Sensor

1/2.5-inch
CMOS

1/2.8-inch
CMOS

1/2.9-inch
CMOS

1/3-inch
CMOS

1/3-inch CCD

Pixel

2560(H)*192
0(V)

2080(H)*155
3(V)

1920(H)*120
0(V)

1280(H)*960(
V)

1280(H)*960(
V)

Day/Night
Mode

Support day/night mode switch and IR-CUT at the same time.

Auto Aperture Optional
Gain Control Fixed/Auto

White Balance On/off
BLC On/off

Electronic
Shutter

Manual/Auto
PAL: It ranges from 1/3 to 1/10000.
NTSC: It ranges from 1/4 to 1/10000.

Manual/Auto
PAL: It
ranges from
1/3 to
1/100000.
NTSC: It
ranges from
1/3 to
1/100000.

Video Parameter

Video
Compression
Standard

H.264/H.264B/MJPEG

eLineTechnology.com

3

PAL: Main
stream
(2560*1920
@8fps)
Extra
stream(704*5
76@8fps)
Main stream

(1920*1080
@25fps)

Extra stream

(704*576@2
5fps)

PAL: Main
stream
(2048*1536
@15fps)
Extra
stream(704*5
76@15fps)
Main stream

(1920*1080
@25fps)

Extra stream

(704*576@2
5fps)

PAL: Main
stream
（ 1920*1080

@25fps）
extra stream

（ 704*576
@25fps）

PAL: Main
stream
（ 1280*960

@25fps），
extra stream,
（ 704*576@
25fps）

PAL: Main
stream
（ 1280*960

@12.5fps ）
，
extra stream,
（ 704*576@

12.5fps）
Main stream

（ 1280*720
@25fps），
extra stream

(704*576@2
5fps）

Video Frame
Rate

NTSC：Main
stream
(2560*1920
@8fps)
Extra stream
(704*480@8f
ps)
Main stream
(1920*1080
@30fps)
Extra stream
(704*480@3
0fps)

NTSC：Main
stream
(2048*1536
@15fps)
Extra stream
(704*480@1
5fps)
Main stream
(1920*1080
@30fps)Extra
stream
(704*480@3
0fps)

NTSC： Main
stream
(1920*1080
@30fps)
Extra stream
(704*480@3
0fps)

NTSC： Main
stream
(1280*960@
30fps)
Extra stream
(704*480@3
0fps)

NTSC：Main
stream
(1280*960@

12.5fps)Extra
stream
(704*480@1

2.5fps)
Main stream
(1280*720@
30fps)
Extra stream
(704*480@3
0fps)

Video Bit Rate

H.264: 56Kbps-8192Kbps.
ＭJPEG is adjustable and bit rate is adjustable.
Support customized setup.

Flip Support
Mirror Support

Snapshot Max 1f/s snapshot. File extension name is JPEG
Privacy Mask Each channel supports max 4 privacy mask zones
Video Setup Support parameter setup such as bright, contrast.

Video
Information

Channel title, time title, motion detect, privacy mask.

Lens Optional
Lens Interface C/CS optional
Audio Input

1-channel， 3.5mm JACK LINE IN

Audio Output

1-channel， 3.5mm JACK SPEAK OUT

Bidirectional
Talk Input

Reuse the first audio input channel

Audio Bit Rate 16kbps 16bit

Audio

Audio
Compression
Standard

G.711A/G.711Mu/PCM

Motion Detect

396 (18*22) detection zones；sensitivity level ranges from 1 to 6 (The 6th
level has the highest sensitivity)
Activation event, alarm device, audio/video storage, image snapshot, log,
email function and etc.

Video

Camera
Masking

Sensitivity level ranges from 1 to 6. Each sensitivity level is the percentage of
the privacy mask zone.

eLineTechnology.com

4

Activation event, alarm device, audio/video storage, image snapshot, log,
email SMTP function and etc.

Alarm Input

1-channel input，1-channel output

Record
Priority

Manual>External alarm >Video detect>Schedule

Local Storage Support local SD card hot swap

Record and

Backup

Storage
Management

Support display local storage status

Wire Network 1-channel wire Ethernet port, 10/100 Base-T Ethernet
Network

Protocol

Standard HTTP, TCP/IP, ARP, IGMP, ICMP, RTSP, RTP, UDP, RTCP, SMTP,
FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, Bonjour, SNMP.

Network

Remote
Operation

Monitor, PTZ control, system setup, file download, log information,
maintenance , upgrade and etc

Video Output

1-channel analog video output，BNC port

Network
Interface

1-channel Ethernet, 10/100 Base-T Ethernet (The IPC-HF3110-F series
product has the optical port.)

3G Port

Support 3G SIM card, TD/EVDO/WCDMA function. (For 3G series product
only.)

Antenna Port

Support to receive the wireless signal (This function is for 3G and WIFI series
product only.)

AUX Interface

RS485 port PTZ control interface. Support various protocols.
Power

Support AC24V/DC12V power and PoE. (The IPC-HF3110-F/W/E/T/C series
product does not support the PoE function.)

Power
Consumption

<10W (For WIFI and 3G device, it is below 12W.)

Working
Temperature

-10 ~+60℃℃ (For –W device, it is from -10 ~+℃ 55℃. For 3G device, it is from -
10 ~+℃ 50℃ )

Working
Humidify

10%~90%

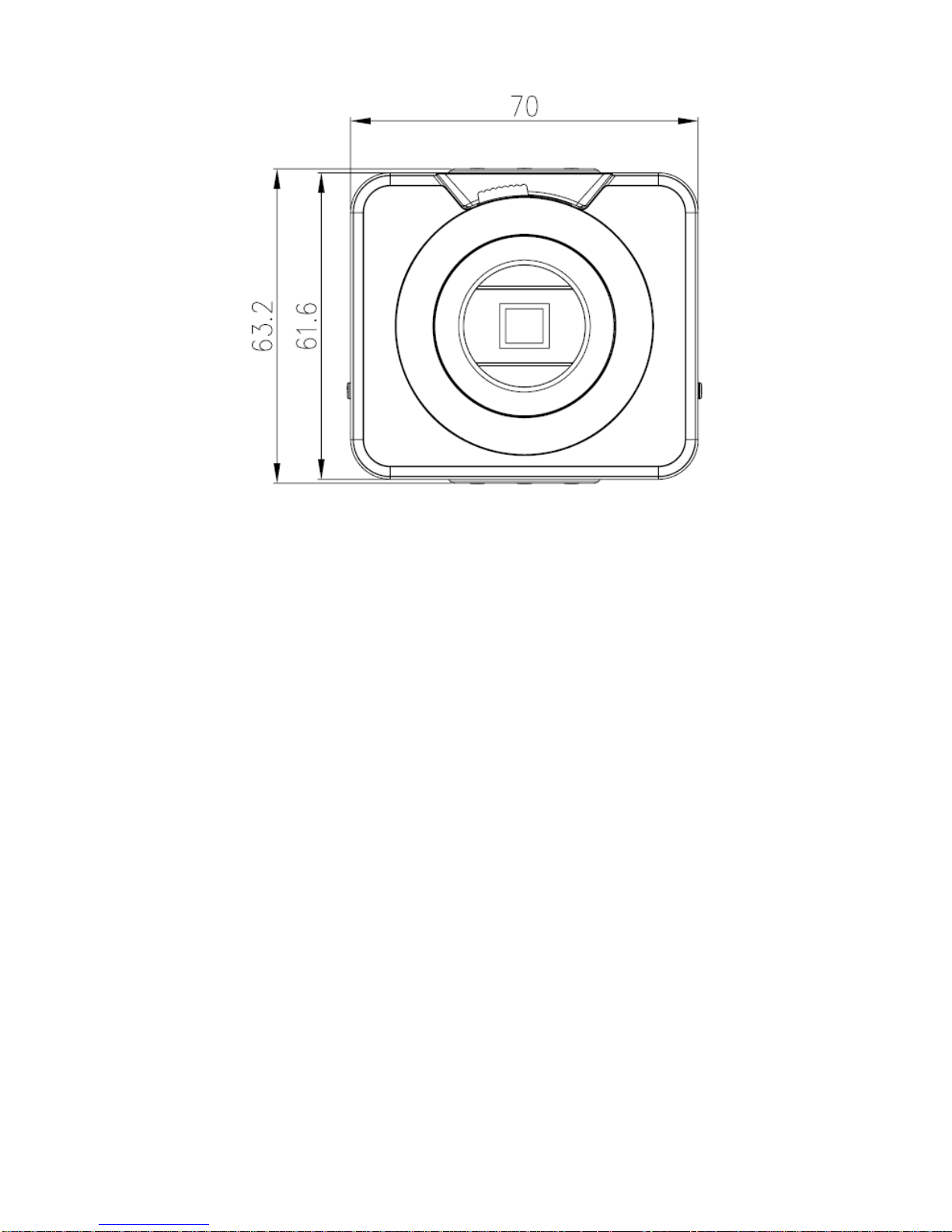

Dimensions 70*63.2*149.5
Weight 650g

General Parameter

Installation

Support various installation modes（Enclosure and bracket is optional）

1.3.2 Factory Default Setup

Please refer to the following sheet for factory default setup information.

Default Setup

Setup Item

IPC­HF3500

Series

IPC­HF3300

Series

IPC­HF3200

Series

IPC­HF3100

Series

IPC­HF3110
Series

Brightness 50
Contrast 50
Hue 50
Saturation 50

Exposure Mode Auto

Camera

Conditions

Gain Scope 0~80

eLineTechnology.com

5

Default Setup

Setup Item

IPC­HF3500

Series

IPC­HF3300

Series

IPC­HF3200

Series

IPC­HF3100

Series

IPC­HF3110
Series

Auto Iris On
Profile Auto
Day&Night Auto
Backlight Off

Mirror Off
Flip Off

Bit stream
type

General

Encode
mode

H.264

Resolution 1080P（1920*1080） 720P（1280*720）
Frame

Rate
（FPS）

PAL: 25
NTSC:30

Bit Rate
Type

CBR

Recommen
ded Bit

3584-8192 Kb/S

Bit Rate 8192
I Frame 50
Watermark Enable

Main
Stream

Watermark
character

DigitalCCTV

Enable Enable
Bit stream

type

General

Encode
mode

H.264B

Resolution CIF(352*288/352*240)
Frame

Rate
（FPS）

PAL: 25
NTSC:30

Bit Rate
Type

CBR

Recommen
ded Bit

192-1024Kb/S

Bit Rate 1024

Video bit stream

Sub
Stream

I Frame 50

Snapshot
Type

General

Size

1080P（1920*1080） 720P（1280*720）

Video

Snapshot

Quality 5

eLineTechnology.com

6

Default Setup

Setup Item

IPC­HF3500

Series

IPC­HF3300

Series

IPC­HF3200

Series

IPC­HF3100

Series

IPC­HF3110
Series

Interval 1s
Privacy

Mask

Disable

Channel
Title

Enable

Video Overlay

Time Title Enable

Snapshot
Path

C:\PictureDownload

Path

Record
Path

C:\RecordDownload

Enable Enable

Main Stream

Encode
Mode

G.711A

Enable Disable

Audio

Sub Stream

Encode
Mode

G.711A

Host Name IPC
Ethernet

Card

Wire(Default)

Mode Static
Mac

Address

Device MAC address when it is shipped out of the factory

IP Version IPV4
IP Address 192.168.1.108
Subnet

Mask

255.255.255.0

Default
Gateway

192.168.1.1

Preferred
DNS

8.8.8.8

Alternate
DNS

8.8.8.8

TCP/IP

Enable
ARP/Ping
set device
IP address
service

Enable

Max
Connection

10

TCP Port 37777
UDP Port 37778

Network

Connection

HTTP Port 80

eLineTechnology.com

7

Default Setup

Setup Item

IPC­HF3500

Series

IPC­HF3300

Series

IPC­HF3200

Series

IPC­HF3100

Series

IPC­HF3110
Series

RTSP Port 554

HTTPs
Port

443

Enable Disable
Username N/A

PPPoE

Password N/A
Server

Type

Disable，CN99 DDNS

Server IP none
Server Port 80
Domain

Name

none

User none
Password N/A

DDNS

Update
Period

10 minutes

IP Filter

Trusted
sites

Disable

SMTP
Server

none

Port 25
Anonymity Disable
User Name anonymity
Password N/A
Sender none
Authenticat

ion
(Encryption
mode)

N/A

Title
(Subject)

IPC Message

Attachment Enable
Mail

Receiver

N/A

Send
Interval

0 second

SMTP(Email)

Email Test Disable，interval=60 minutes

eLineTechnology.com
