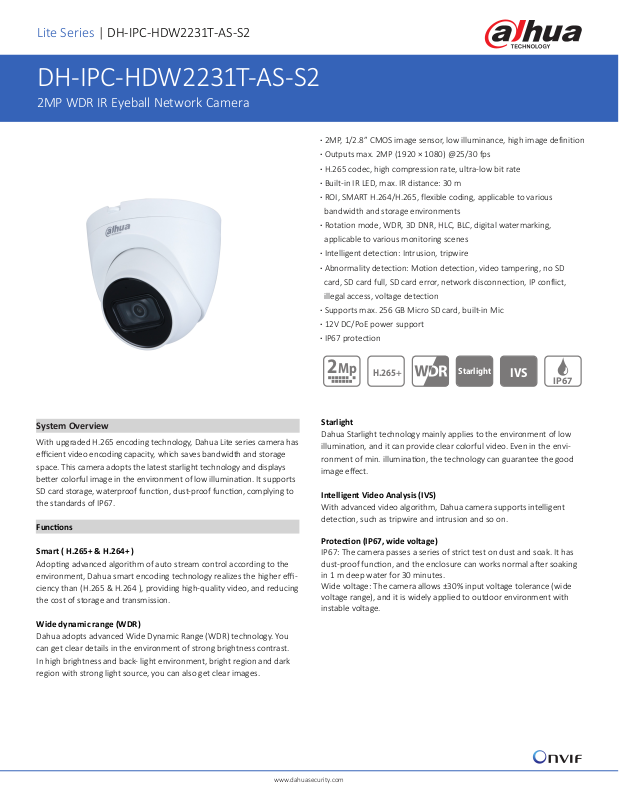

Dahua IPC-HDW2231T-AS-S2 Technical data

Lite Series | DH-IPC-HDW2231T-AS-S2

2

Mp

IP67

H.265+

Starlight

IVS

DH-IPC-HDW2231T-AS-S2

2MP WDR IR Eyeball Network Camera

· 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition

· Outputs max. 2MP (1920 × 1080) @25/30 fps

· H.265 codec, high compression rate, ultra-low bit rate

· Built-in IR LED, max. IR distance: 30 m

· ROI, SMART H.264/H.265, flexible coding, applicable to various

bandwidth and storage environments

· Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking,

applicable to various monitoring scenes

· Intelligent detection: Intrusion, tripwire

· Abnormality detection: Motion detection, video tampering, no SD

card, SD card full, SD card error, network disconnection, IP conflict,

illegal access, voltage detection

· Supports max. 256 GB Micro SD card, built-in Mic

· 12V DC/PoE power support

· IP67 protection

System Overview

With upgraded H.265 encoding technology, Dahua Lite series camera has

ecient video encoding capacity, which saves bandwidth and storage

space. This camera adopts the latest starlight technology and displays

beer colorful image in the environment of low illuminaon. It supports
SD card storage, waterproof funcon, dust-proof funcon, complying to
the standards of IP67.

Funcons

Smart ( H.265+ & H.264+ )

Adopng advanced algorithm of auto stream control according to the
environment, Dahua smart encoding technology realizes the higher e­ciency than (H.265 & H.264 ), providing high-quality video, and reducing
the cost of storage and transmission.

Wide dynamic range (WDR)

Dahua adopts advanced Wide Dynamic Range (WDR) technology. You
can get clear details in the environment of strong brightness contrast.
In high brightness and back- light environment, bright region and dark

region with strong light source, you can also get clear images.

Starlight

Dahua Starlight technology mainly applies to the environment of low
illuminaon, and it can provide clear colorful video. Even in the envi­ronment of min. illuminaon, the technology can guarantee the good
image eect.

Intelligent Video Analysis (IVS)

With advanced video algorithm, Dahua camera supports intelligent
detecon, such as tripwire and intrusion and so on.

Protecon (IP67, wide voltage)

IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof funcon, and the enclosure can works normal aer soaking
in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% input voltage tolerance (wide
voltage range), and it is widely applied to outdoor environment with
instable voltage.

www.dahuasecurity.com

Lite Series | DH-IPC-HDW2231T-AS-S2

Technical Specificaon

Camera

Image Sensor

Effective Pixels

ROM

RAM

Scanning System

Electronic Shutter Speed

Min. Illumination

IR Distance

IR On/Off Control

IR LEDs Number

Pan/Tilt/Rotation Range

Lens

Lens Typ e

Mount Type

Focal Length

Max. Aperture

Field of View

Iris Typ e

Close Focus Distance

Lens

DORI
Distance

2.8 mm

3.6 mm

Smart event

General IVS Analytics

Video

Video Compression

Smart Codec

Video Frame Rate

Stream Capability

1/2.8”2Megapixel progres sive CMOS

1920 (H) ×1080 (V)

128 MB

128 MB

Progressive

Auto/Manual 1/3 s–1/100 000 s

0.002 Lux @F1.6

30 m (98.4 ft)

Auto/Manual

2

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Fixed-focal

M12

2.8 mm

3.6 mm

F1.6
F1.6

2.8 mm:
Pan:106°
Tilt: 56°
Diagonal: 126°

3.6 mm:
Pan:87°
Tilt: 46°
Diagonal: 10 4°

Fixed aperture

2.8 mm: 0.6 m (2.0 ft)

3.6 mm: 1.2 m (3.9 ft)

Detect Observe Recognize Identify

38.6 m

(126.6 ft)

55.2 m

(181.1 ft)

Tripwire; intrusion

H.265; H.26 4; H.264B; MJPEG

Yes

Main stream:
1920 × 1080 (1 fps-25/30 fps)
Sub stream:
704 × 576 (1 fps-25 fps)
704 × 480 (1 fps-30 fps)

2 streams

15.4 m

(50.5 ft)

22.1 m

(72.5 ft)

7.7 m
(25.3 ft)

11.0 m
(36.1 ft)

3.9 m

(12.8 ft)

5.5 m

(18.0 ft)

Resolution

Bit Rate Control

Video Bit Rate

Day/Night

BLC

HLC

WDR

White Balance

Gain Control

Noise Reduction

Motion Detection

Region of Interest(RoI)

Smart IR

Image Rotation

Mirror

Privacy Masking

Audio

Built-in MIC

Audio Compression

Network

Network

Protocol

Interoperability

Use r/Host

Edge Storage

Browser

Management Software

Mobile Phone

Certification

Certifications

1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 ×

720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF
(352 × 288/352 × 240)

CBR/VBR

H.264: 32 Kbps–6144 Kbps
H.265: 12 Kbps–6144 Kbps

Auto(ICR)/Color/B/W

Yes

Yes

120 dB

Auto/natural/street lamp/outdoor/manual/regional
custom

Auto/Manual

3D DNR

OFF/ON (4 areas, rectangular)

Yes (4 areas)

Yes

0°/90°/180°/270° (Support 90°/270° with 1080p

resolution and lower.)

Yes

4 areas

Yes

G.711A; G.711Mu; G.726; AAC

RJ- 45 (10/100 Base-T)

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP;
RTCP; RTMP; SMTP; FTP; SF TP; DHCP; DNS; DDNS;
QoS; UPnP; NTP; Multicas t; ICMP; IGMP; NFS; PPPoE;

802.1x; Bonjour

ONVIF(Profile S/Profile G/Profile T);CGI; P2P;

Milestone; Genetec

20

Dahua Cloud; FTP; SFTP; Micro SD Card (suppor t max.

256 GB); NAS

IE
Chrome

Firefox

Smart PSS; DSS; DMSS

IOS; Android

CE-LVD: EN60 950-1
CE-EMC: Ele ctromagnetic Compatibility Directive
2014/3 0/EU
FCC: 47 CFR FCC Par t 15, Subpar t B
UL/CUL: UL60950-1 CAN/C SA C22.2 No.60950 -1- 07

www.dahuasecurity.com

Lite Series | DH-IPC-HDW2231T-AS-S2

Juncon Mount Wall Mount

PFB203W PFA152-E+PFB203W

Pole Mount

PFA130-E

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

< 6.5W

Environment

Operating Conditions

Strorage Conditions

Ingress Protection

-40°C to +60°C (-40°F to +140°F)/ less than ≤ 95% RH

-40°C to +60°C (-4 0°F to +140°F)

IP67

Structure

Casing

Dimensions

Net Wei ght

Gross Weight

Metal

100.9 mm × Φ109.9 mm (4.0" × Φ4.3")

0.39 kg (0.9 lb)

0.56 kg (1.2 lb)

Ordering Informaon

Type Part Number Descripon

2MP Camera

DH-IPC­HDW2231TP-AS-S2

DH-IPC­HDW2231T N-AS -S2

PFA130-E Junction Box

PFB203W Wall Mount

2MP WDR IR Eyeball Network Camer a, PAL

2MP WDR IR Eyeball Network Camer a, NTSC

Dimensions (mm[inch])

Accessories
(optional)

Accessories

Oponal:

PFA130-E

Junction Box

PFM321D

DC12V1A

Power Adapter

PFA152-E Pole Mount

PFM321D DC12V1A Power Adapter

LR1002-1ET/1EC

PFM900 -E Integrated Mount Tester

PFM114 TLC SD Card

Single-por t Long Reach Ethernet over Coax

Extender

PFB203W

Wall Mount

LR1002-1ET/1EC

Single-port Long

Reach Ethernet over

Coax Extender

PFA152-E

Pole Mount

PFM900 -E

Integrated Mount

Tes te r

PFM114

TLC SD Card

Rev 001.0 01 © 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.

Pictures in the document are for reference only, and the actual product shall prevail.
