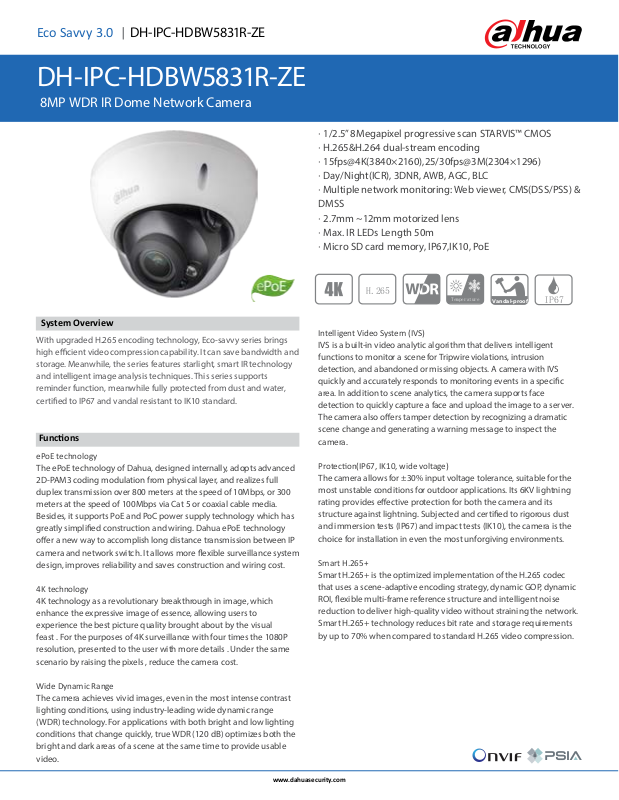

Dahua IPC-HDBW5831R-ZE Technical data

Eco Savvy 3.0 | DH-IPC-HDBW5831R-ZE

DH-IPC-HDBW5831R-ZE

8MP WDR IR Dome Network Camera

· 1/2.5” 8Megapixel progressive scan STARVIS™ CMOS

· H.265&H.264 dual-stream encoding

· 15fps@4K(3840×2160),25/30fps@3M(2304×1296)

· Day/Night(ICR), 3DNR, AWB, AGC, BLC

· Multiple network monitoring: Web viewer, CMS(DSS/PSS) &

DMSS

· 2.7mm ~12mm motorized lens

· Max. IR LEDs Length 50m

· Micro SD card memory, IP67,IK10, PoE

System Overview

With upgraded H.265 encoding technology, Eco-savvy series brings
high ecient video compression capability. It can save bandwidth and
storage. Meanwhile, the series features starlight, smart IR technology
and intelligent image analysis techniques. This series supports
reminder function, meanwhile fully protected from dust and water,
certied to IP67 and vandal resistant to IK10 standard.

Funcons

ePoE technology

The ePoE technology of Dahua, designed internally, adopts advanced
2D-PAM3 coding modulation from physical layer, and realizes full
duplex transmission over 800 meters at the speed of 10Mbps, or 300
meters at the speed of 100Mbps via Cat 5 or coaxial cable media.
Besides, it supports PoE and PoC power supply technology which has
greatly simplied construction and wiring. Dahua ePoE technology
oer a new way to accomplish long distance transmission between IP
camera and network switch. It allows more exible surveillance system
design, improves reliability and saves construction and wiring cost.

4K technology

4K technology as a revolutionary breakthrough in image, which
enhance the expressive image of essence, allowing users to
experience the best picture quality brought about by the visual
feast . For the purposes of 4K surveillance with four times the 1080P
resolution, presented to the user with more details . Under the same
scenario by raising the pixels , reduce the camera cost.

+

Intelligent Video System (IVS)

IVS is a built-in video analytic algorithm that delivers intelligent
functions to monitor a scene for Tripwire violations, intrusion
detection, and abandoned or missing objects. A camera with IVS
quickly and accurately responds to monitoring events in a specic
area. In addition to scene analytics, the camera supports face
detection to quickly capture a face and upload the image to a server.
The camera also oers tamper detection by recognizing a dramatic
scene change and generating a warning message to inspect the
camera.

Protecon(IP67, IK10, wide voltage)

The camera allows for ±30% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 6KV lightning
rating provides eective protection for both the camera and its
structure against lightning. Subjected and certied to rigorous dust
and immersion tests (IP67) and impact tests (IK10), the camera is the
choice for installation in even the most unforgiving environments.

Smart H.265+

Smart H.265+ is the optimized implementation of the H.265 codec
that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic
ROI, exible multi-frame reference structure and intelligent noise
reduction to deliver high-quality video without straining the network.
Smart H.265+ technology reduces bit rate and storage requirements
by up to 70% when compared to standard H.265 video compression.

7HPSHUDWXUH

Vandal-proof

,3

Wide Dynamic Range

The camera achieves vivid images, even in the most intense contrast
lighting conditions, using industry-leading wide dynamic range
(WDR) technology. For applications with both bright and low lighting
conditions that change quickly, true WDR (120 dB) optimizes both the
bright and dark areas of a scene at the same time to provide usable
video.

www.dahuasecurity.com

Eco Savvy 3.0 |DH-IPC-HDBW5831R-ZE

Technical Specificaon

Camera

Image Sensor

Effective Pixels

RAM/ROM

Scanning System

Electronic Shutter Speed

Minimum Illumination

S/N Ratio

IR Distance

IR On/Off Control

IR LEDs

Lens

Lens Ty pe

Mount Typ e

Focal Length

1/2.5” 8Megapixel progressive scan CMOS

3840(H)x2160(V)

512MB/32MB

Progressive

Auto/Manual, 1/3~1/100000s

0.05Lux/F1.4 (Color,1/3s,30IRE)

0.2Lux/F1.4 (Color,1/30s,30IRE)
0Lux/F1.4(IR on)

More than 50dB

Distance up to 50m (164ft)

Auto/ Manual

2

Motorize d/ Auto Iris(DC)

Board-in

2.7mm~12mm

Day/Night

BLC Mode

White Balance

Gain Control

Noise Reduction

Motion Detetion

Region of Interest

Electronic Image Stabilization
(EIS)

Smart IR

Defog

Digital Zoom

Flip

Mirror

Privacy Masking

Audio

Compression

Auto(ICR) / Color / B/W

BLC / HLC / WDR

Auto/Natural/Street Lamp/Outdoor/Manual

Auto/Manual

3D DNR

Off / On (4 Zone, Rectangle)

Off / On (4 Zone)

N/A

Support

N/A

16x

0°/90°/180°/270°

Off / On

Off / On (4 Area, Rectangle)

G.711a/ G.711Mu/ AAC/ G.726

Max. Aperture

Angle of View

Optical Zoom

Focus Control

Close Focus Distance

Lens

DORI
Distance

W

T

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Intelligence

IVS

Advanced Intelligent Functions

Video

Compression

Streaming Capability

Resolution

Frame Rate

Bit Rate Control

Bit Rate

F1.4

H:110°~40° , V:58°~23°

4x

Motorized

0.3m

Detect Observe Recognize Identify

85m(280ft) 34m (112 ft ) 17m(5 6ft) 8.5m(28ft)

228m(748f t) 91m(299 ft 4 6m(151f t) 23m(75ft)

Pa n:0 ˚~355 ˚; Ti lt:0 ˚~75˚; Ro tat ion :0˚~ 355˚

Tripwire, Intrusion, Object Abandoned/Missing

Face D etect ion

H.265+/H.265/H. 264+/H.264

3 Streams

4K(384 0×2160)/ 6M(3072×20 48)/5M(3072x1728)/
5M(2592×1944)/ 4M(268 8×1520)/ 3M(2048x1536)/
3M(2304×1296)/ 1080P(1920×1080)/1.3M(128
0x96 0)/ 720P(1280×720)/ D1(704×576/704×480)/
VGA(640×480)/ CIF(352×288/352×240)

Main Stream: 4K(1~15fps)/3M(1~25/30fps)

Sub Stream: D1(1~25/30fps)

Third Stream: 720P(1~25/30fps)

CBR/VBR

H.264: 24K ~ 10240Kbps H.265: 14K ~ 9984K bps

www.dahuasecurity.com

Network

Ethernet

Protocol

Interoperability

Streaming Method

Max. User Access

Edge Storage

Web Viewer

Management Software

Smart Phone

Certications

Certifications

Interface

Video Interface

Audio Interface

RS485

Alarm

Electrical

Power Supply

Power Consumption

RJ -45 (10/ 100Ba se-T)

HTTP; HT TPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP;
DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP;
Bonjour; 8 02.1x; Multicast; ICMP; IGMP; SNMP

ONVIF, PSIA, CGI

Unicast / Multicast

10 Users /20 Users

NAS
Local PC for instant recording
Mirco SD card 128GB

IE, Chrome, Firefox, Safari

Smart PSS, DSS, Easy4ip

IOS, Android

CE (EN 60950:20 00)
UL:UL60950-1
FCC: FCC Part 15 Subpart B

N/A

1/1 channel In/Out

N/A

1 channel In: 5mA 5VDC
1 channel Out: 300mA 12VDC

DC12V, PoE(802.3af )(Class 0)

<8.5W
