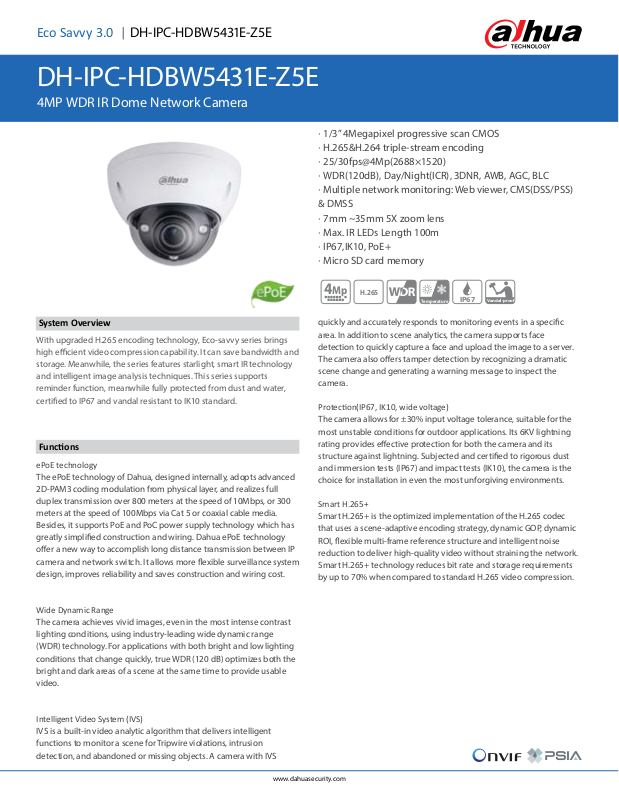

Dahua IPC-HDBW5431E-Z5E Technical data
Eco Savvy 3.0 | DH-IPC-HDBW5431E-Z5E
DH-IPC-HDBW5431E-Z5E
4MP WDR IR Dome Network Camera
· 1/3” 4Megapixel progressive scan CMOS
· H.265&H.264 triple-stream encoding
· 25/30fps@4Mp(2688×1520)
· WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
· Multiple network monitoring: Web viewer, CMS(DSS/PSS)
& DMSS
· 7mm ~35mm 5X zoom lens
· Max. IR LEDs Length 100m
· IP67,IK10, PoE+
· Micro SD card memory
System Overview
With upgraded H.265 encoding technology, Eco-savvy series brings
high ecient video compression capability. It can save bandwidth and
storage. Meanwhile, the series features starlight, smart IR technology
and intelligent image analysis techniques. This series supports
reminder function, meanwhile fully protected from dust and water,
certied to IP67 and vandal resistant to IK10 standard.
Funcons
ePoE technology
The ePoE technology of Dahua, designed internally, adopts advanced
2D-PAM3 coding modulation from physical layer, and realizes full
duplex transmission over 800 meters at the speed of 10Mbps, or 300
meters at the speed of 100Mbps via Cat 5 or coaxial cable media.
Besides, it supports PoE and PoC power supply technology which has
greatly simplied construction and wiring. Dahua ePoE technology
oer a new way to accomplish long distance transmission between IP
camera and network switch. It allows more exible surveillance system
design, improves reliability and saves construction and wiring cost.
4Mp
quickly and accurately responds to monitoring events in a specic
area. In addition to scene analytics, the camera supports face
detection to quickly capture a face and upload the image to a server.
The camera also oers tamper detection by recognizing a dramatic
scene change and generating a warning message to inspect the
camera.
Protecon(IP67, IK10, wide voltage)
The camera allows for ±30% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 6KV lightning
rating provides eective protection for both the camera and its
structure against lightning. Subjected and certied to rigorous dust
and immersion tests (IP67) and impact tests (IK10), the camera is the
choice for installation in even the most unforgiving environments.
Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec
that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic
ROI, exible multi-frame reference structure and intelligent noise
reduction to deliver high-quality video without straining the network.
Smart H.265+ technology reduces bit rate and storage requirements
by up to 70% when compared to standard H.265 video compression.
H.265
Temperature
IP67
Vandal-proof
Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast
lighting conditions, using industry-leading wide dynamic range
(WDR) technology. For applications with both bright and low lighting
conditions that change quickly, true WDR (120 dB) optimizes both the
bright and dark areas of a scene at the same time to provide usable
video.
Intelligent Video System (IVS)
IVS is a built-in video analytic algorithm that delivers intelligent
functions to monitor a scene for Tripwire violations, intrusion
detection, and abandoned or missing objects. A camera with IVS
www.dahuasecurity.com
Eco Savvy 3.0 |DH-IPC-HDBW5431E-Z5E
Technical Specificaon
Camera
Image Sensor
Effective Pixels
RAM/ROM
Scanning System
Electronic Shutter Speed
Minimum Illumination
S/N Ratio
IR Distance
IR On/Off Control
IR LEDs
Lens
Lens Typ e
Mount Type
Focal Length
Max. Aperture
Angle of View
Optical Zoom
Focus Control
Close Focus Distance
Lens
DORI
Distance
W
T
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range
Intelligence
IVS
Advanced Intelligent Functions
Video
Compression
Streaming Capability
Resolution
Frame Rate
Bit Rate Control
1/3” 4Megapixel progressive scan CMOS
2688(H)x1520(V)
512MB/32MB
Progressive
Auto/Manual, 1/3~1/100000s
0.03Lux/F1.4 (Color,1/3s,30IRE)
0.3Lux/F1.4 (Color,1/30s,30IRE)
0Lux/F1.4(IR on)
More than 50dB
Distance up to 100m (328ft)
Auto/ Manual
3
Motorize d/ Auto Iris(HALL)
Board-in
7mm~35mm
F1.4
H: 33°~13°, V:20°~6°
5x
Motorized
0.4m
Detect Observe Recognize Identify
190 m(623f t) 76m(249f t) 38 m(124 ft) 19m(62ft )
620m(2034ft) 248m (813f t) 124m(406ft) 62m(203ft)
Pan:0˚~355˚; Tilt:0˚~65˚; Rotation: 0˚~355˚
Tripwire, Intrusion, Object Abandoned/Missing
Face D etect ion
H.265+/H.265/H.264+/H.26 4
3 Streams
4M(2688x1520)/3M(2304x1296)/
1080P(1920x1080)/1.3M(1280×960)/
720P(1280×720)/D1(704×576/704×480)/
VGA(640×480)/CIF(352×288/352×240)
Main Stream: 4M(1~25/30fps)
Sub Stream: D1(1~25/30fps)
Third Stream: 720P(1~25/30fps)
CBR/VBR
Day/Night
BLC Mode
White Balance
Gain Control
Noise Reduction
Motion Detetion
Region of Interest
Electronic Image Stabilization
(EIS)
Smart IR
Defog
Digital Zoom
Flip
Mirror
Privacy Masking
Audio
Compression
Network
Ethernet
Protocol
Interoperability
Streaming Method
Max. User Access
Edge Storage
Web Viewer
Management Software
Smart Phone
Certications
Certifications
Interface
Video Interface
Audio Interface
RS485
Alarm
Electrical
Power Supply
Power Consumption
Auto(ICR) / Color / B/W
BLC / HLC / WDR(120dB)
Auto/Natural/Street Lamp/Outdoor/Manual
Auto/Manual
3D DNR
Off / On (4 Zone, Rectangle)
Off / On (4 Zone)
N/A
Support
N/A
16x
0°/90°/180°/270°
Off / On
Off / On (4 Area, Rect angle)
G.711a/ G.711Mu/ AAC/ G.726
RJ -45 (10/ 100Ba se-T)
HTTP; HT TPs; TCP; ARP; RTSP; RTP; UDP; SMTP;
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;
UPnP;NTP; Bonjour; 8 02.1x; Multicast; ICMP;
IGMP; SNMP
ONVIF, PSIA, CGI
Unicast / Multicast
10 Users /20 Users
NAS
Local PC for instant recording
Mirco SD card 128GB
IE, Chrome, Firefox, Safari
Smart PSS, DSS, Easy4ip
IOS, Android
CE (EN 60950:20 00)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
1 Port(For adjustment only)
1/1 channel In/Out
N/A
1 channel In: 5mA 5VDC
1 channel Out: 300mA 12VDC
DC12V, AC24V, PoE+(802.3at)(Class 4)
<15W
www.dahuasecurity.com
