Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide
Dahua HD IR Waterproof Fixed Network Camera
Quick Start Guide
Version 1.0.0
Dahua Technology CO., LTD
Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide
i
Welcome
Thank you for purchasing our Network camera!
This user’s manual is designed to be a reference tool for your system.
Please read the following safeguard and warnings carefully before you use this series product!
Please keep this user’s manual well for future reference!
Important Safeguards and Warnings
1．Electrical safety
All installation and operation here should conform to your local electrical safety codes.
Please check if the power supply is correct before operating the device.
The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited
power source is rated 12V DC, DC5V or AC24V in the IEC60950-1. (Power supply requirement is
subject to the device label).
Please install easy-to-use device for power off before installing wiring, which is for emergent power off
when necessary.
Please prevent the line cord from being trampled or pressed, especially the plug, power socket and the
junction from the device.
Note: Do not connect these two power supplying sources to the device at the same time; it may
result in device damage!
We assume no liability or responsibility for all the fires or electrical shock caused by improper handling
or installation.
We are not liable for any problems caused by unauthorized modification or attempted repair.
2．Environment
Please don’t aim the device at strong light (such as lighting, sunlight and so on) to focus; otherwise it
may cause overexposure (It is not the device malfunction), which will affect the longevity of CCD or
CMOS.
Please transport, use and store the device within the range of allowed humidity and temperature.
Please don’t keep the device in a place which is wet, dusty, extremely hot, and extremely cold and with
strong electromagnetic radiation or unstable lighting.
Please do not allow water and other liquid falling into the camera in case that the internal components
are damaged.
Please do not allow rain or damp to the indoor device in case fire or lightning may occur.
Please keep the sound ventilation in case of heat accumulation.
Please pack the device with standard factory packaging or material with same quality when transporting
the device.
Heavy stress, violent vibration or water splash are not allowed during transportation, storage and
installation.
3. Operation and Daily Maintenance
Please do not touch the heat dissipation component of the device directly in order to avoid scald.
Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide
ii
Please do not dismantle the device; there is no component which can be fixed by users themselves in
the machine. It may cause water leakage or bad image for the device due to unprofessional dismantling.
It is recommended to use the device with thunder proof device in order to improve thunder proof effect.
The grounding holes of the product are recommended to be grounded to further enhance the reliability
of the camera.
Do not touch the CCD (CMOS) optic component directly. You can use the blower to clean the dust or
dirt on the lens surface. Please use a dry cloth wetted by alcohol to wipe away the dust gently if it is
necessary to clean.
Always use the dry soft cloth to clean the device. If there is too much dust, please use the water to
dilute the mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the
device. Don’t use volatile solvent like alcohol, benzene, thinner and etc or strong detergent with
abrasiveness, otherwise it will damage the surface coating or reduce the working performance of the
device.
Dome cover is an optical device, please don’t touch or wipe cover surface directly during installation
and use, please refer to the following methods to deal with once dirt is found:
Stained with dirt
Use oil-free soft brush or hair dries to remove it gently.
Stained with grease or fingerprint
Use soft cloth to wipe the water drop or oil gently to make it dry, then use oil-free cotton cloth or paper
soaked with alcohol or detergent to wipe from the lens center to outward. It is ok to change the cloth
and wipe several times if it is not clean enough.
Warning
Please use the standard accessories provided by manufacturer and make sure the device is installed
and fixed by professional engineers.
Please prevent the device surface from the radiation of laser beam when using laser beam device.
Please do not provide two or more power supply modes for the device, otherwise it may cause damage
to the device.
Statement
Please refer to the actual product for more details; the manual is just for reference.
The manual will be regularly upgraded according to the product update; the upgraded content will be
added in the manual without prior announcement.
Please contact the supplier or customer service if there is any problem occurred when using the device.
Please contact the customer service for the latest procedure and supplementary documentation.
There may be deviation between the actual value of some data and the value provided in the manual
due to the reasons such as the real environment is not stable and so on. Please refer to the company’s
final explanation if there is any doubt or dispute.
The company is not liable for any loss caused by the operation which is not followed by the manual.
Note:
Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide
iii
Please refer to the disk for more details, check and download corresponding user’s manual and tool.
Before installation, please open the package and check all the components are included.
Contact your local retailer ASAP if something is broken in your package.
Accessory Name
Amount
Network Camera Unit
1
Quick Start Guide
1
Installation Accessories Bag (Optional)
1
CD
1
Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide
iv
Table of Contents
1 Structure ........................................................................................................................ 1
1.1 Device External Cable ....................................................................................... 1
1.2 Framework and Dimension ............................................................................... 2
1.3 Bidirectional talk ................................................................................................ 4
1.3.1 Device-end to PC-end................................................................................. 4
1.3.2 PC-end to the Device-end ........................................................................... 4
1.4 Alarm Setup ...................................................................................................... 4
1.4.1 Alarm IN/OUT Connection .......................................................................... 5
2 Device Installation ......................................................................................................... 6
2.1 Install Device ..................................................................................................... 6
2.2 SD Card Installation and Button Instruction ...................................................... 6
3 Network Configuration ................................................................................................... 8
3.1 Modify IP Address ............................................................................................. 8
3.2 Login WEB Interface ....................................................................................... 10
Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide
1
1 Structure
1.1 Device External Cable
Note:
The following figure is for reference only, which is used to know the functions of cable ports.
Different devices may have different cables, please refer to the actual product for more details.
Figure 1-1
Please refer to the following sheet for detailed information.
No.
Port
Port Name
Connector
Function Description
1
VIDEO OUT
Video output
port
BNC
Output analog video signal. It can
connect to the TV monitor to view the
video.
2
AUDIO IN
Audio input
port
RCA
Input audio signal. It can receive the
analog audio signal from the pickup.
3
AUDIO OUT
Audio output
port
RCA
Output audio signal to the devices such
as the sound box.
4
LAN
Network port
Ethernet
port
Connect to standard Ethernet cable.
Note:
Some series products don’t support
PoE.
5
I/O
I/O port
-
Include alarm input and output.
Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide
2
No.
Port
Port Name
Connector
Function Description
6
RESET
Reset button
-
The reset button is to restore device
factory default setup.
7
POWER
Power input
port
-
Power port. Input DC 12V or AC 24V
power.
Note:
Please connect the default DC5.5
round port to 2-pin converter cable
when you are using AC 24V power.
Actual use in accordance with
device label instruction.
Sheet 1-1
Please refer to the follow sheet for detailed information about I/O port.
Port Name
SN
Port name
Function Description
I/O port
1
ALARM_COM
Alarm output common port.
2
ALARM_NO
Alarm output port. It is to output the alarm signal to
the alarm device.
NO: normal open alarm output port.
3
ALARM_IN1
Alarm input port 1. It is to receive the on-off signal
from the external alarm source.
4
ALARM_IN2
Alarm input port 2. It is to receive the on-off signal
from the external alarm source.
5
GND
Ground port
1.2 Framework and Dimension
Note:
The following figures are for reference only, which are used to know the device dimension.
Please refer to the actual product for more information.
Please refer to the following three figures for dimension information. The unit is mm. See Figure
1-2 to Figure 1-5.
Figure 1-2
Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide
3
Figure 1-3
Figure 1-4
Figure 1-5
Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide
4
1.3 Bidirectional talk
Note:
Some devices don’t support bidirectional talk function, which can’t be applied to this chapter.
1.3.1 Device-end to PC-end
Device Connection
Step 1: Please connect the speaker or the MIC to the audio input port of the device.
Step 2: Then connect the earphone to the audio output port of the PC.
Step 3: Login the Web and then click the Talk button to enable the bidirectional talk function. You
can see the button becomes orange after you enabled the bidirectional talk function. Click Talk
button again to stop the bidirectional talk function.
Listening Operation
At the device end, speak via the speaker or MIC, and then you can get the audio from the
earphone or sound box at the pc-end.
1.3.2 PC-end to the Device-end
Device Connection
Step 1: Connect the speaker or the MIC to the audio input port of the PC.
Step 2: Then connect the earphone to the audio output port of the device.
Step 3: Login the Web and then click the Talk button to enable the bidirectional talk function. You
can see the button becomes orange after you enabled the audio talk function. Click Talk button
again to stop the bidirectional talk function.
Please note the on-site listening operation is null during the bidirectional talk process.
Listening Operation
At the PC-end, speak via the speaker or MIC, and then you can get the audio from the earphone
or sound box at the device-end.
1.4 Alarm Setup
Note:
Some devices don’t support alarm function, which can’t be applied to this chapter.
The alarm interface is shown as in Figure 1-6.
Figure 1-6 Alarm
Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide
5
Alarm input, output description:
Step 1 Connect alarm input device to the alarm input of I/O cable.
Step 2 Connect alarm output device to the alarm output of I/O cable, alarm output is collector
open circuit output which connects 10K resistor to 3.3V externally.
Step 3 Open the Web, set alarm input and output correspondingly. Alarm input on WEB
corresponds to I/O cable on device. When there is alarm, alarm input device will
generate signal of high and low level. Set corresponding NO and NC inputs.
Step 4 Set the WEB alarm output. The alarm output is for the alarm output port of the device. It
is the alarm output port of the I/O cable.
1.4.1 Alarm IN/OUT Connection
Please refer to the following figure for alarm input information. See Figure 1-7.
Alarm input: When the input signal is idle or grounded, the device can collect the different
statuses of the alarm input port. When the input signal is connected to 3.3V or it is idle, the
device collects the logic “1”. When the input signal is grounded, the device collects the logic “0”.
Figure 1-7 Alarm input
Please refer to the following figure for alarm output information. See Figure 1-8.
When alarm output is OC, it needs to increase pull-up resistance externally to work normally;
output signal is high and low level. After external pull-up resistance is increased, the default of
output signal is high level, and it switches to low level when there is alarm output.
The working current of alarm output port is recommended as <= 10mA. The max current which is
used to drive external circuit is 80mA, it is advised to add a relay if it is beyond the value.
Figure 1-8 Alarm output
Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide
6
2 Device Installation
2.1 Install Device
Figure 2-1 Device installation illustration
Note:
Please make sure the installation surface can min support the 3X weight of the camera
and the bracket.
Please follow the steps listed below to install the device. Please refer to Figure 2-1 for reference.
Step 1
Aim the installation holes of the device enclosure bottom at the installation holes on the front end
of the wall-mounted bracket, then insert the screws into the screw holes and secure them firmly,
and fix the device on the installation bracket.
Step 2
Mark the bracket installation holes on the installation surface and dig four expansion holes on the
marked holes of the installation surface, then put the four expansion bolts into the installation
holes and secure them firmly.
Step 3
Aim the four screw holes on the wall-mounted bracket bottom at the four installation holes on the
installation surface, then put four fixing screws into the four screw holes on the bracket bottom
respectively and secure them firmly, finally fix the bracket on the installation surface.
2.2 SD Card Installation and Button Instruction
Note:
Some devices don’t support Micro SD card function, which can’t be applied to this chapter.
Micro SD card installation mode is different according to different devices; the Figure 2-2 is
for reference only. Please refer to the actual product.
Please cut off the power and turn off the device before installing Micro SD card.
Open the lower flip of the device, then you can see the lens, SD card, and five-direction button
and reset button.
Note:
Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide
7
Insert the SD card into the card slot shown in Figure 2-2, the card slot is elastic, press the
SD card lightly and it can be embedded.
Motorized vari-focal lens is the default accessories for the motorized vari-focal series device,
it doesn’t need manual adjustment, it supports five-direction button adjustment at the same
time; manual vari-focal lens is the default accessories for the manual vari-focal series device,
it needs to adjust manually according to the scene. See Figure 2-2 for more details.
Press reset button for 4-5 seconds to realize the device reset function, see Figure 2-2 for
more details.
Figure 2-2
Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide
8
3 Network Configuration
The IP address of all the cameras is the same when leaving factory (default IP192.168.1.108), in
order to make the camera get access to the network smoothly, please plan the useable IP
segment reasonably according to the actual network environment.
3.1 Modify IP Address
IP address can be acquired and modified through quick configuration tool for the cameras which
are accessed via wired network, it needs to connect wired network to configure wireless
parameters before using wireless network cameras. In this chapter, it will introduce the approach
of modifying IP address via “Quick Configuration Tool”; also you can modify the IP address in the
network parameters of the WEB interface, please refer to the document in the disk << WEB
Operation Manual>> for more details.
Note:
Currently the quick configuration tool only supports the cameras which apply to the same
network segment with computer IP address.

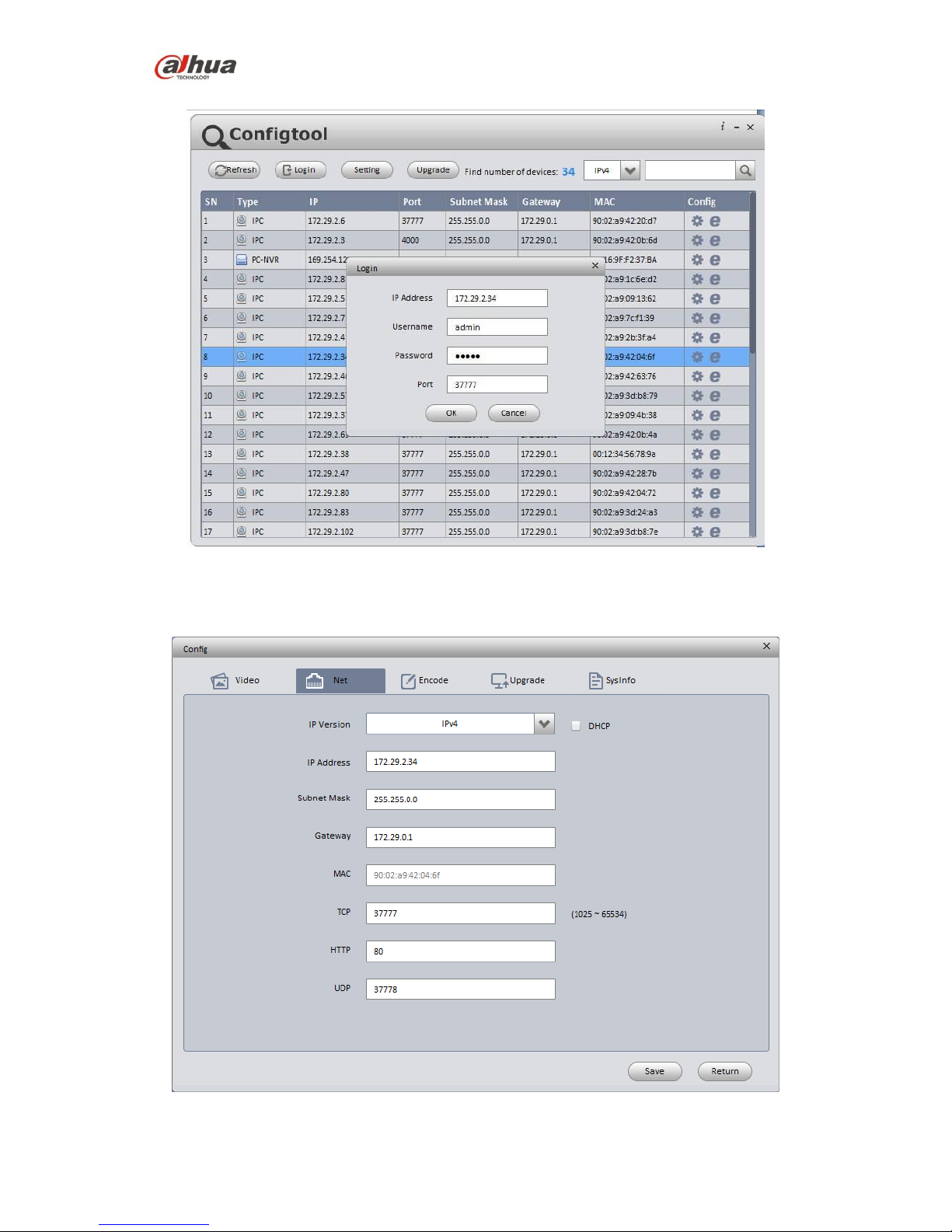

Step 1 Double click the “ConfigTools.exe” and open the quick configuration tool.
Step 2 Double click the device to be configured, the system will pop out the “Login” dialog box.
Enter the IP address, user name, password and port number of the camera, and click
“Confirm”.
Note:
The default user name and password are admin and admin respectively, the default of port is
37777. See Figure 3-1 for more details.
Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide
9
Figure 3-1
Step 3 Modify the camera IP address on the “Net” interface, click “Save” to finish modification.
See Figure 3-2 for more details.
Figure 3-2
Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide
10
3.2 Login WEB Interface
Note:
Different devices may have different WEB interfaces, the figures below are just for reference,
please refer to the document <<WEB Operation Manual>> in the disk and the actual interface for
more details
Step 1 Open IE and input the modified camera IP address in the address bar.
Step 2 The login interface is shown below, please input your user name and password (Default
user name is admin and password is admin respectively), click “login”.
See Figure 3-3 for more details.
Figure 3-3
Step 3 Install controls according to the system prompt; see Figure 3-4 for the WEB main interface.
Please modify the administrator password as soon as possible after you successfully logged in.
Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide
11
Figure 3-4
Note:
This quick start guide is for reference only. Slight difference may be found in user
interface.
All the designs and software here are subject to change without prior written notice.
If there is any uncertainty or controversy, please refer to the final explanation of us.
Please visit our website or contact your local service engineer for more information.
Dahua Technology Co., Ltd
Address：No.1199 Bin’an Road, Binjiang District, Hangzhou, PRC.
Postcode: 310053
Tel: +86-571-87688883
Fax: +86-571-87688815
Email:overseas@dahuatech.com
Website: www.dahuatech.com
Loading...
