Dahua Network Speed Dome Web3.0 Operation Manual
i
Dahua Network Speed Dome Web3.0 Operation Manual
Version 1.0.0
Dahua Technology CO., LTD
Dahua Network Speed Dome Web3.0 Operation Manual
ii
Table of Contents
1 Network Config ............................................................................................................................ 1
1.1 Network Connection ..................................................................................................... 1
1.2 Log in .............................................................................................................................. 1
2 Live ................................................................................................................................................ 5
2.1 Encode Setup ................................................................................................................ 5
2.2 System Menu ................................................................................................................. 6
2.3 Video Window Function Option .................................................................................. 6
2.4 Video Window Setup .................................................................................................... 7
2.4.1 Image Adjustment ..................................................................................................... 7
2.4.2 Original Size ............................................................................................................. 8
2.4.3 Full Screen ................................................................................................................ 8
2.4.4 Width and Height Ratio ............................................................................................ 8
2.4.5 Fluency Adjustment .................................................................................................. 8
2.4.6 Rule Info ................................................................................................................... 8
2.4.7 PTZ ........................................................................................................................... 9
2.5 PTZ Configuration ......................................................................................................... 9
2.5.1 PTZ Control .............................................................................................................. 9
2.5.2 Virtual Joystick ......................................................................................................... 9
2.5.3 PTZ Function .......................................................................................................... 10
3 Playback ..................................................................................................................................... 12
3.1 Playback ....................................................................................................................... 12
3.1.1 Function of Play ...................................................................................................... 13
3.1.2 Playback File .......................................................................................................... 13
3.1.3 Playback Cut (Clip) ................................................................................................ 16
3.1.4 Record Type ........................................................................................................... 16
3.1.5 Progress Bar Time Format ...................................................................................... 16
3.1.6 Assistant Function .................................................................................................. 17
3.2 Picture Playback ......................................................................................................... 17
3.2.1 Play ......................................................................................................................... 18
3.2.2 Playback File .......................................................................................................... 18
3.2.3 Snapshot Type ........................................................................................................ 19
4 Setup ........................................................................................................................................... 20
4.1 Camera ......................................................................................................................... 20
4.1.1 Conditions ............................................................................................................... 20
4.1.2 Video ...................................................................................................................... 28
4.2 Network ......................................................................................................................... 34
Dahua Network Speed Dome Web3.0 Operation Manual
iii
4.2.1 TCP/IP .................................................................................................................... 34
4.2.2 ONVIF .................................................................................................................... 36
4.2.3 Connection .............................................................................................................. 37
4.2.4 PPPoE ..................................................................................................................... 39
4.2.5 DDNS ..................................................................................................................... 40
4.2.6 IP filter .................................................................................................................... 42
4.2.7 SMTP （e-mail) ..................................................................................................... 42
4.2.8 UPnP ....................................................................................................................... 44
4.2.9 SNMP ..................................................................................................................... 45
4.2.10 Bonjour ................................................................................................................... 47
4.2.11 Multicast ................................................................................................................. 48
4.2.12 802.1x ..................................................................................................................... 49
4.2.13 QoS ......................................................................................................................... 50
4.3 PTZ ................................................................................................................................ 51

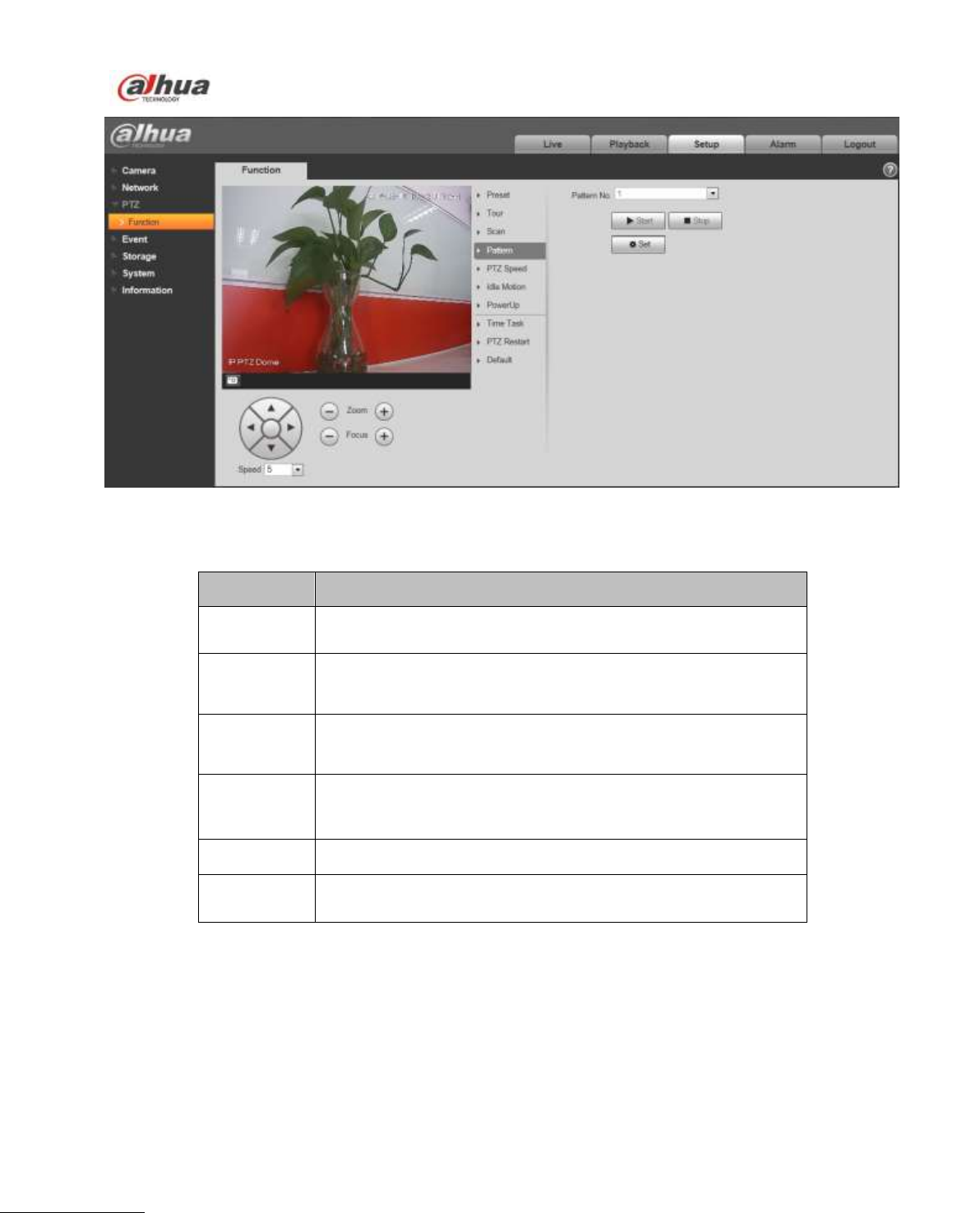

4.3.1 Function .................................................................................................................. 51
4.4 Event ............................................................................................................................. 62
4.4.1 Video detect ............................................................................................................ 62
4.4.2 IVS Analysis ........................................................................................................... 66
4.4.3 Face Detect ............................................................................................................. 69
4.4.4 Abnormality ............................................................................................................ 71
4.5 Storage Management ................................................................................................. 74
4.5.1 Schedule .................................................................................................................. 74
4.5.2 Destination .............................................................................................................. 78
4.5.3 Record control ........................................................................................................ 80
4.6 System .......................................................................................................................... 81
4.6.1 General .................................................................................................................... 81
4.6.2 Account ................................................................................................................... 83
4.6.3 Default .................................................................................................................... 87
4.6.4 Import/Export ......................................................................................................... 88

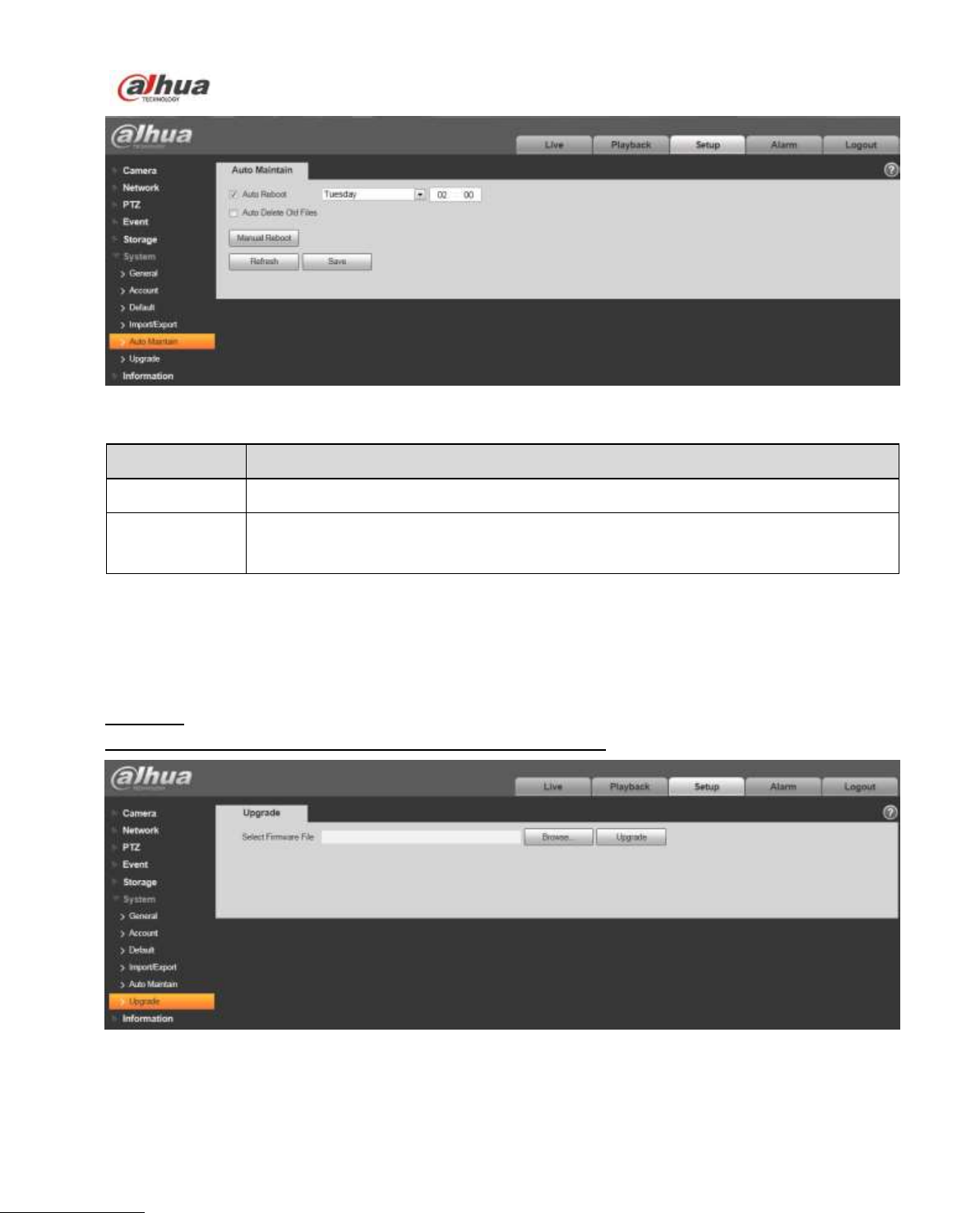

4.6.5 Auto Maintenance ................................................................................................... 88
4.6.6 Upgrade .................................................................................................................. 89
4.7 Information ................................................................................................................... 90
4.7.1 Version .................................................................................................................... 90
4.7.2 Log .......................................................................................................................... 90
4.7.3 Online User ............................................................................................................. 91
5 Alarm ........................................................................................................................................... 92
6 Log out ........................................................................................................................................ 94
Dahua Network Speed Dome Web3.0 Operation Manual
iv
Important The following functions are for reference only. Some series products may not support all the functions listed below.
Dahua Network Speed Dome Web3.0 Operation Manual
1
1 Network Config
1.1 Network Connection
Speed dome and PC connection mainly has two ways. See Figure 1-1 and Figure 1-2.
Figure 1-1
Figure 1-2
Before you access speed dome via the Internet, you need to have its IP address. You can use quick config tool to search IP of the speed dome. Please refer to Quick Configuration Tool manual.
1.2 Log in
Open IE and input speed dome address in the address bar. For example, if your speed dome IP is 192.168.1.108, then please input http:// 192.168.1.108 in IE address bar. See Figure 1-3.
Dahua Network Speed Dome Web3.0 Operation Manual
2
Figure 1-3
The login interface is shown as below. See Figure 1-4. Please input your user name and password. Default factory username is admin and password is admin.
Note: For security reasons, please modify your password after you first login.
Figure 1-4
Input your IP address here
Dahua Network Speed Dome Web3.0 Operation Manual
3
If it is your first time to login in, you may see the interface shown as in Figure 1-5.
Figure 1-5
Click “Please click here to download and install the plug-in”. The system pops up warning information to ask you whether run or save this plug-in. Please download to your local computer and then click webplugin.exe; you can see an interface shown as in Figure 1-6.
Dahua Network Speed Dome Web3.0 Operation Manual
4
Figure 1-6
Click install, you will see Figure 1-7.
Figure 1-7
When plug-in installation is complete, the installation page closes automatically. The web-end will refresh automatically, and then you can view video captured by the camera.
Dahua Network Speed Dome Web3.0 Operation Manual
5
2 Live
After you logged in, you can see the live monitor window. See Figure 2-1.
Figure 2-1
There are four sections:
Section 1: Encode setup bar Section 2: System menu Section 3: Window function option bar Section 4: Window adjust bar
2.1 Encode Setup
The encode setup interface is shown as in Figure 2-2.
2
3
4
Dahua Network Speed Dome Web3.0 Operation Manual
6
Figure 2-2
Please refer to the following sheet for detailed information.
Parameter
Function
Main stream
Streaming media protocol connection, under main stream config, monitor video or not. Generally for storage and monitor.
Sub (Extra) stream 1
Streaming media protocol connection, under sub stream 1 config, monitor video or not. When network bandwidth is insufficient, it substitutes main stream for monitoring.
Sub (Extra) stream 2
Streaming media protocol connection, under sub stream 2 config, monitor video or not. When network bandwidth is insufficient, it substitutes main stream for monitoring.
Protocol
You can select stream media protocol from the dropdown list. There are three options: TCP/UDP/Multicast
2.2 System Menu
System menu is shown as in Figure 2-3. Please refer to chapter 2 Live, chapter 3 Playback, chapter 4 Setup, chapter 5 Alarm, chapter 6 Log out for detailed information.
Figure 2-3
2.3 Video Window Function Option
The interface is shown as below. See Figure 2-4.
Figure 2-4
Please refer to the following sheet for detailed information.
Dahua Network Speed Dome Web3.0 Operation Manual
7
SN
Parameter
Function
1
Regional Focus
Click the button and use mouse to select an area in the box on the video screen, which will make the device auto focus in the selected box area.
2
Remark
Click it and then select pen color, you can write down the mark information on the preview interface.
3
Zoom
When the video is in the original status, click it you can
select any zone to zoom in. In the non-original status, you can drag the zoom-in zone in specified range. Right click mouse to restore previous status.
Click it; you can use the middle button of the mouse to
zoom in/out the video size.
4
Snapshot
Click the button to snapshot, save picture to path in Chapter
4.1.2.4.
5
Triple snap
Click it, system can snap at 1f/s. All images are saved to path in Chapter 4.1.2.4.
6
Record
Click it, system can record. All images are saved to path in Chapter 4.1.2.4.
7
Help
Click it to open help file.
2.4 Video Window Setup
The interface is shown as in Figure 2-5.
Figure 2-5
2.4.1 Image Adjustment
Click this button to display/hide image control interface. Click it to open picture setup interface. This interface is on the top right pane. See Figure 2-6
Parameter
Function
Video setup
It is to adjust monitor video brightness.
Note: All the operations here apply
Dahua Network Speed Dome Web3.0 Operation Manual
8
It is to adjust monitor video contrastness.
to WEB end only.
Please go to Setup-
>Camera->Conditions to adjust corresponding items.
It is to adjust monitor video hue.
It is to adjust monitor video saturation.
Reset
R e
Restore brightness, contrastness saturation and hue to system default setup.
Figure 2-6
2.4.2 Original Size
Click this button to go to original size. It is to display the actual size of the video stream. It depends on the resolution of the bit stream.
2.4.3 Full Screen
Click it to go to full-screen mode. Double click the mouse or click the Esc button to exit the full screen.
2.4.4 Width and Height Ratio
Click it to restore original ratio or suitable window.
2.4.5 Fluency Adjustment
There are three levels of fluency for you to select (real-time, normal, fluent). The default is normal.
2.4.6 Rule Info
Click it to enable the function that the intelligent rule will be displayed in the live interface. The default is enable.
Dahua Network Speed Dome Web3.0 Operation Manual
9
2.4.7 PTZ
Click it to open PTZ setup interface. Please refer to chapter 2.5 for detailed setup information.
2.5 PTZ Configuration
2.5.1 PTZ Control
Before PTZ operation, please make sure you have properly set PTZ protocol.
Parameter
Note
① Quick
Position
Use mouse to draw a box in monitoring video, PTZ will rotate and focus to quickly positioning.
② PTZ direction
PTZ supports eight directions: left/right/up/down/upper left/upper right/bottom left/bottom right.
③ Speed
It controls rotation speed. The longer the step length, the higher the speed. Step length control PTZ, zoom, focus and iris.
④ Zoom/focus Click to increase value and click to decrease value.
The PTZ setup/Menu interface is shown as in Figure 2-7.
Figure 2-7
2.5.2 Virtual Joystick
Dahua Network Speed Dome Web3.0 Operation Manual
10
The virtual joystick interface is shown as below. See Figure 2-8. This function allows you to control the button in then center to simulate the joystick operation. You can use it to control device movement.
Figure 2-8
2.5.3 PTZ Function
Click PTZ set button, the interface is shown as in Figure 2-9. Here you can select scan, preset, tour pattern, assistant function and etc.
Figure 2-9
Please refer to the following sheet for PTZ setup information.
Dahua Network Speed Dome Web3.0 Operation Manual
11
Parameter
Function
Scan
Select Scan from the dropdown list, click Start button, you can
begin scan operation. Default SN is 1.
Preset
Input the preset value and then click View button, the camera
turns to the corresponding position of the preset.
Tour
Select Tour from the dropdown list and then click Start button,
you can begin tour.
Pattern
You can select Pattern from the dropdown list and then click
Start button to begin PTZ movement.
Assistant
Reserved assistant function.
Go to
It is the accurate positioning function. Please input
corresponding horizontal angle, tilt angle, and speed dome zoom speed and then click Goto button to go to a specified position.
One unit of the horizontal angle or tile angle stands for 0.1
degree.
For detailed setup information, please go to Setup->PTZ->Function.
Click button to begin a PTZ operation. Now you can see it becomes Stop button. Click it again to stop current PTZ operation.
Dahua Network Speed Dome Web3.0 Operation Manual
12
3 Playback
Web client playback supports video playback and picture playback. Note: Before playback, user shall set storage management as in Chapter 4.5.
3.1 Playback
The playback interface is shown as in Figure 3-1.
Figure 3-1
There are six sections:
Section 1: Assistant function Section 2: Playback file Section 3: Clip Section 4: Playback bar Section 5: Record type Section 6: Progress bar time format
Dahua Network Speed Dome Web3.0 Operation Manual
13
3.1.1 Function of Play
The function of play is shown as in Figure 3-2.
Figure 3-2
Parameter
Function
① Play
When you see this button, it means pause or not played record. Click this button, switch to normal play status.
② Stop
Click this button to stop playing.
③ Frame by
frame play
Click this button to go to next frame.
Note:
You shall pause record when you use this function.
④ Slow
Click this button to play slowly.
⑤ Quick
Click this button to play quickly.
⑥ Mute
When this button displays, it means audio is silent. Click this button to switch back to normal.
⑦ Volume
Left click mouse to adjust volume.
3.1.2 Playback File
In calendar, blue date represents data currently has video record or snapshot. See Figure 3-3.
Dahua Network Speed Dome Web3.0 Operation Manual
14
Figure 3-3
Parameter
Function
File Type
Select “dav”, as video playback. Select “jpg” as picture playback.
Data Source
Default is SD card.
Step 1. Click data in blue, time axis displays record file progress bar in color. While, green represents normal record, yellow represents motion detect record, red represents alarm record, and blue represents manual record. Step 2. Step 3. Click certain time on progress bar, playback starts from this time. See Figure 3-4.
Figure 3-4
Step 4. Click file list , select date file will be displayed in list. Step 5. Double click file in list, playback this file and display file size, start time and end time.
See Figure 3-5.
Dahua Network Speed Dome Web3.0 Operation Manual
15
Figure 3-5
Parameter
Function
Search
It means records within searched start time and end time on the date.
Record Download Format
There are two formats: dav, mp4.
Download
Record type is “dav”, click download button to download file to local. Record type is “mp4”, click download button and download file to path in Ch
5.1.2.5. Note: System does not support download and playback of MP4 file.
Back
Click back button to go to calendar interface.
Dahua Network Speed Dome Web3.0 Operation Manual
16
3.1.3 Playback Cut (Clip)
Note: Playback cut function will automatically pause playing record as playback cut and playback cannot be at the same time. Step 1. Click start time to cut on time axis. This time must be within progress bar range. Step 2.
Move mouse to cut icon . You will be ask to select start time. Click cut icon as finish cutting. Step 3.
Click playback cut end time on time axis. This time must be within progress bar range. Step 4.
Move mouse to cut icon , you will be asked to select end time. Click cut icon as finish cutting.
Step 5. Click Save button to save file cut to path in chapter 4.1.2.4. See Figure 3-6.
Figure 3-6
3.1.4 Record Type
Check record file type, only selected file will be displayed in progress bar and file list. See Figure 3-7.
Figure 3-7
3.1.5 Progress Bar Time Format
The interface is shown as in Figure 3-8.
Figure 3-8
Please refer to the following sheet for detailed information.
Dahua Network Speed Dome Web3.0 Operation Manual
17
Parameter
Function
24 hours
Click it, means video in past 24 hours.
2 hours
Click it, means video in past 2 hours.
1 hour
Click it, means video in past 1 hour.
30 min
Click it, means video in past 30 min.
3.1.6 Assistant Function
Video playback assistant function is shown in Figure 3-9.
Figure 3-9
Please refer to the following sheet for detailed information.
Parameter
Function
Digital Zoom
Click it, you can zoom in any area when then playback video is in
original status. In non-original status, you can zoom in specified zone, Right click mouse to restore its original size.
Click this button; you can scroll to zoom in/out video.
Snapshot
Click this button; you can snapshoot video under playback status. Snapshot will be saved to path in chapter 4.1.2.4.
3.2 Picture Playback
Web client picture playback interface has the following three functions. See Figure 3-10.
Parameter
Function
1
Play function bar
2
Playback file bar
3
Snapshot type bar
Dahua Network Speed Dome Web3.0 Operation Manual
18
Figure 3-10
3.2.1 Play
The play button is shown as below. See Figure 3-11.
Figure 3-11
Default icon is , and it means pause or not played picture.
Click play button to switch to normal play status. Icon becomes . Click it to pause.
3.2.2 Playback File
Step 1: Click file list , select snapshot file of the date.
Dahua Network Speed Dome Web3.0 Operation Manual
19
Step 2: Double click file in list to play this snapshot.
Figure 3-12 Figure 3-13
Please refer to the following sheet for detailed information.
Parameter
Function
Search
It means all snapshot files within the start time and end time of selected date.
Download
Click download button to download snapshot file to local.
Back
Click back button to return to calendar interface and re-select time.
3.2.3 Snapshot Type
Check snapshot file type, file list only displays file of selected type. See Figure 3-14.
Figure 3-14
Dahua Network Speed Dome Web3.0 Operation Manual
20
4 Setup
Web client setup support camera, network, PTZ, event, storage, system and system info view.
4.1 Camera
4.1.1 Conditions
Here you can view device property information. Slight differences may be found due to different speed dome series. The setups become valid immediately after you set. See Figure 4-1.
Figure 4-1
Please refer to the following sheet for detailed information.
Parameter
Function
Config File
Here you can set camera setup mode. It includes: normal/day/night.
White Balance
It is to set camera white balance. It includes: auto/manual/ATW/outdoor/indoor/outdoor auto/sodium light auto/sodium light.
Exposure
It is to set camera exposure mode. It includes: auto and manual
Backlight
It is to set camera backlight mode, including WDR, HLC, and BLC.
Day/Night
It is to set camera day/night switch mode. The type includes: electronic/mechanical. It includes four modes: auto/B&W/Color/Photosensor.
Dahua Network Speed Dome Web3.0 Operation Manual
21
Zoom& Focus
It is to set camera zoom and focus mode. It is to set digital zoom/camera zoom rate. Focus mode includes: auto/manual/semi auto.
It is to set camera video. It includes: style/hue/brightness/saturation/ chroma control/gamma/picture flip/picture freeze/sharpness /sharpness control
Defog
It is to set the defog mode for the picture, including “Off” and “Auto”.
Default
It is to restore factory default setup.
Important Please make sure your purchased camera supports all the functions listed here.
4.1.1.1 White Balance
White balance interface is shown as below. See Figure 4-2.
Figure 4-2
Please refer to the following sheet for detailed information.
Parameter
Function
WB mode
It is to set camera white balance. It includes:
auto/manual/ATW/outdoor/indoor/outdoor auto/sodium light auto/sodium light.
For manual mode, you can input red gain and blue gain
value.
Dahua Network Speed Dome Web3.0 Operation Manual
22
4.1.1.2 Exposure Exposure interface is shown as below. See Figure 4-3.
Figure 4-3
Please refer to the following sheet for detailed information.
Parameter
Function
Exposure mode
It is to set camera exposure mode. It includes: auto and
manual. The default setup is auto.
For the auto exposure mode, the gain, shutter and iris are
in auto mode.
For manual exposure mode, the gain, shutter and iris are
in manual mode.
Anti-flicker
50Hz： Under the condition of AC/50Hz, automatically
adjust exposure and ensure there are no horizontal stripes in the image according to the scene brightness.
60Hz： Under the condition of AC/60Hz, automatically
adjust exposure and ensure there are no horizontal stripes in the image according to the scene brightness.
Outdoor：Able to switch exposure mode under this mode,
and reach the effect of corresponding exposure mode.
Exposure compensation
It can adjust video whole brightness via setting exposure object brightness so that it can suit for different environments.
Gain level
It is to set video brightness under the low illumination environments.
Shutter
It is to set camera exposure time.
Dahua Network Speed Dome Web3.0 Operation Manual
23
Slow exposure
If the light may change greatly, you can use slow exposure to get image so that the camera can get stable video.
Max Auto gain
It is to set camera max gain.
Slow shutter
In lower illumination environment, you can lower the cameras auto exposure time to capture the image and enhance the definition. For the moving object, the trail may appear. Please note it is valid in auto mode.
Auto Slow Shutter Min value
It is to set camera min shutter value. 2D NR
It is to control noise. The higher the level is; the small the noise is. Comparing with the previous one, the picture may become a little bit blurry.
3D NR
It is to control noise. The higher the level is; the small the noise is. Comparing with the previous one, there may appear some smear phenomenon.
4.1.1.3 Backlight The backlight interface is shown as in Figure 4-4.
Figure 4-4
Please refer to the following sheet for detailed information.
Dahua Network Speed Dome Web3.0 Operation Manual
24
Parameter
Function
WDR Mode
For the environments of strong contrast effect, it can auto adjust image contrast so that you can see the dark and bright section at the same time.
HLC
When there is strong light source in the environment, system can auto adjust video brightness to remove the over exposure effect.
BLC
For the environments of strong contrast effect, such as under the backlight environment, system can auto adjust image contrast to get clear object.
4.1.1.4 Day/Night Important Please make sure your purchased product camera supports this function.
The day/night mode is shown as in Figure 4-5.
Figure 4-5
Please refer to the following sheet for detailed information.
Parameter
Function
Type
It is to set camera day/night type, including electronic, ICR.
Day/night
It is to set camera day/night mode. The mode includes: B&W/color/auto.
Sensitivity
It is to camera day/night switch sensitivity.
Dahua Network Speed Dome Web3.0 Operation Manual
25
4.1.1.5 Zoom &Focus The zoom &focus interface is shown as in Figure 4-6.
Figure 4-6
Please refer to the following sheet for detailed information.
Parameter
Function
Digital zoom
Check the box here to enable digital zoom function.
Zoom speed
It is to set camera zoom speed. The bigger the value is, the faster the speed is.
Focus mode
It is to set camera focus mode. It includes: auto/manual/semi auto.
Focus limit
It is to camera focus distance in case the focus distance is too small and the focus goes to the enclosure. At the same time, you can change focus distance to adjust focus speed.
Sensitivity
It is to set camera focus sensitivity. The higher the value is, the easier it is to activate focus. The lower the value is, the difficult it is to activate focus.
IR Correction
It is to set IR light focus correction function to enhance focus effect and remove the IR light effect on the focus.
4.1.1.6 Picture Picture interface is shown as in Figure 4-7.
Dahua Network Speed Dome Web3.0 Operation Manual
26
Figure 4-7
Please refer to the following sheet for detailed information.
Parameter
Function
Style
It is to set video style. It includes：Standard/soft/ flamboyant.
Hue
It is to set picture hue.
Brightness
It is to set video brightness. The higher is value is, the bright the video is.
Saturation
It is to set color purity. The higher the purity is, the more color the video is. The lower the purity is, the dark the video is.
Chroma control
It is to set video color control level. The higher the value is, the higher the control level is.
Gamma
It is to set image gamma value.
Sharpness
It is to set camera sharpness. The higher the sharpness is, the clearer the image is. The object edge becomes clear too.
Sharpness control level
It is to set camera control level. The higher the value is, the stronger the control level is.
Picture Flip
It is to set video display mode. It is to turn camera.
4.1.1.7 Defog
Dahua Network Speed Dome Web3.0 Operation Manual
27
Figure 4-8
Parameter
Note
Mode
It is to set the camera defog mode, it includes: off and auto.
4.1.1.8 Default Default interface is shown as in Figure 4-8.
Dahua Network Speed Dome Web3.0 Operation Manual
28
Figure 4-8
Please refer to the following sheet for detailed information.
Parameter
Function
Default
It is to restore camera parameter to factory default setup.
4.1.1.9 Profile Management Profile management interface is shown as in Figure 4-9.
Figure 4-9
Please refer to the following sheet for detailed information.
Parameter
Function
Profile Management
There are three modes: normal/full-time/schedule. The default setup is normal.
Normal
It is to adopt the general parameter on the profile file.
Full-time
It is to adopt day or night general parameter on the profile file all the time.
Schedule
It is to adopt the day or night parameter on the profile file by time you set here.
4.1.2 Video
4.1.2.1 Video bit stream
The video bit stream interface is shown as below. See Figure 4-10.
Dahua Network Speed Dome Web3.0 Operation Manual
29
Figure 4-10
Please refer to the following sheet for detailed information.
Parameter
Function
Sub Stream Enable
Please check the box here to enable extra stream function. This function is enabled by default.
Code-Stream Type
ACF means using different fps to record. There are two options: VBR and CBR. Please note, you can set video quality in VBR mode.
Encode mode
There are three options: H.264, H.264B, H.264H and MJPEG encode.
H.264: Main Profile encode mode. H.264B: Baseline Profile encode mode. H.264H: High Profile encode mode. MJPEG: In this encode mode, the video needs
large bit stream to guarantee the video definition. You can use the max bit stream value in the recommend bit to get the better video output effect.
Resolution
There are multiple resolutions. You can select from the dropdown list.
For each resolution, the recommended bit stream value is different.
Frame Rate
PAL: 1～25f/s，NTSC: 1～30f/s.. The frame rate may vary due to different resolutions.
Bit Rate Type
There are two options: VBR and CBR. Please note, you can set video quality in VBR mode. Under MJPEG mode, only CBR is available.
Dahua Network Speed Dome Web3.0 Operation Manual
30
Parameter
Function
Recommended Bit
Recommended bit rate value according to the resolution and frame rate you have set.
Bit Rate
In CBR, the bit rate here is the max value. In
dynamic video, system needs to low frame rate or video quality to guarantee the value.
The value is null in VBR mode.
Please refer to recommend bit rate for the detailed
information.
I Frame
Here you can set the P frame amount between two I frames. The value ranges from 1 to 150. Default value is 50.
Recommended value is frame rate *2.
Watermark Settings
By calibrating watermark, to see if video is modified. Select Watermark function. Default watermark is Digital CCTV.
Watermark character can only be number, letter, _, ­within 128 characters.
4.1.2.2 Snapshot The snapshot interface is shown as in Figure 4-11.
Figure 4-11
Please refer to the following sheet for detailed information.
Parameter
Function
Snapshot type
There are two modes: general (schedule) and Event (activation).
Image size
It is the same with the resolution of snapshot (main stream or sub stream).
Quality
It is to set the image quality. There are six levels.
Interval
It is to set snapshot frequency. The value ranges from 1s to 7s.
Dahua Network Speed Dome Web3.0 Operation Manual
31
4.1.2.3 Video Overlay The video overlay interface is shown as in Figure 4-12 to Figure 4-16.
Figure 4-12
Figure 4-13
Dahua Network Speed Dome Web3.0 Operation Manual
32
Figure 4-14
Figure 4-15
Dahua Network Speed Dome Web3.0 Operation Manual
33
Figure 4-16
Please refer to the following sheet for detailed information.
Parameter
Function
Privacy Masking
Select “privacy mask zone”, click “draw”, drag mouse on
the video monitoring window and draw the corresponding privacy shielded zone of “privacy mask zone”.
Select “privacy mask zone”, click “delete” to delete the
corresponding privacy shielded zone of “privacy mask zone”.
Click “clear” to clear all privacy mask zone(s) on the
preview window.
Select “privacy mask zone”, click “check” to check the
corresponding privacy shielded zone of the “privacy mask zone”.
Channel Title
You can enable this function so that system overlays
channel information in video window. See Figure 4-.
You can use the mouse to drag the channel tile position.
Time Title
You can enable this function so that system overlays time
information in video window. See Figure 4-.
You can use the mouse to drag the time tile position.
OSD
Select corresponding “enable” button, it will display preset,
PTZ coordinate, location in video window. It won’t display if you select corresponding “disable” button. See Figure 4-.
You can adjust preset, temperature, PTZ coordinate,
location by dragging “OSD Info” box. Alignment include align left and align right.
Dahua Network Speed Dome Web3.0 Operation Manual
34
Picture Overlay
You can enable this function to display overlay picture.
Click disable to turn it off. See Figure 4-.
Click Upload Picture to overlay local picture into monitoring
window. You can drag the yellow box to move it. Note: You cannot enable OSD and overlay at the same time.
Refresh
Set channel title, time title, OSD info, picture overlay and
save the change. You can click Refresh to see effect.
4.1.2.4 Path The storage path interface is shown as in Figure 4-17. Here you can set snap image saved path and the record storage path. The default monitor image path is C:\Documents and
Settings\Administrator\WebDownload\LivePicture.
The default monitor record path is C:\Documents and
Settings\Administrator\WebDownload\LiveRecord.
The default playback snapshot path is C:\Documents and
Settings\Administrator\WebDownload\PlayBackPicture.
The default playback download path is C:\Documents and
Settings\Administrator\WebDownload\PlayBackRecord.
The default playback cut path is: C:\Documents and
Settings\Administrator\WebDownload\PlayBackRecordCut.
Note:
Administrator is locally logged in PC account. Please click the Save button to save current setup.
Figure 4-17
4.2 Network
4.2.1 TCP/IP
Dahua Network Speed Dome Web3.0 Operation Manual
35
The TCP/IP interface is shown as in Figure 4-18. It supports IPv4 and IPv6. IPv4 supports static IP and DHCP. IPv6 supports static IP only. When you manually modify IP address, WEB will automatically jump to the new IP address.
Figure 4-18
Please refer to the following sheet for detailed information.
Parameter
Function
Host Name
It is to set current host device name. It max supports 15 characters.
Ethernet Card
Please select the Ethernet port. Default is wired. Please note you can modify the default Ethernet card if there is
more than one card. . Please note the device needs to reboot to activate the new
setup once you modify the default setup.
Mode
There are two modes: static mode and the DHCP mode. Select DHCP mode, it auto searches IP, and you cannot set IP/subnet mask/gateway. Select static mode, you must manually set IP/subnet mask/gateway.
Mac Address
It is to display hose Mac address.
IP Version
It is to select IP version. IPV4 or IPV6. You can access the IP address of these two versions.
Dahua Network Speed Dome Web3.0 Operation Manual
36
IP Address
Please use the keyboard to input the corresponding number to modify the IP address and then set the corresponding subnet mask and the default gateway.
Preferred DNS
DNS IP address.
Alternate DNS
Alternate DNS IP address.
Enable ARP/Ping set device IP address service.
You can use ARP/Ping command to modify or set the device IP address if you know the device MAC address.
Before the operation, please make sure the speed dome and the PC in the same LAN. This function is on by default.
You can refer to the steps listed below. Step 1: Get an IP address. Set the speed dome and the PC in
the same LAN. Step 2: Get the physical address from the label of the speed
dome . Step 3: Go to the Run interface and then input the following
commands.
arp –s <IP Address> <MAC>
ping –l 480 –t <IP Address>
Such as：arp -s 192.168.0.125 11-40-8c-18-10-11
ping -l 480 -t 192.168.0.125
Step 4: Reboot the device. Step 5: You can see the setup is OK if you can see there are
output information such as “Reply from 192.168.0.125 …” from
the command output lines. Now you can close the command line.
Step 6: Open the browse and then input http://<IP address>. Click the Enter button, you can access now.
4.2.2 ONVIF
ONVIF(Open Network Video Interface Forum), this specification describes the model, port, data type
and data interaction mode of network video. ONVIF specification’s aim is to realize a framework
agreement of network video to make the network video products (including video front end, video device and etc) from different manufacturers completely compatible.
ONVIF function is “disable” by default, see Figure 4-19 for more information.
Dahua Network Speed Dome Web3.0 Operation Manual
37
Figure 4-19
4.2.3 Connection
4.2.3.1 Connection
The connection interface is shown as in Figure 4-20.
Figure 4-20
Please refer to the following sheet for detailed information.
Dahua Network Speed Dome Web3.0 Operation Manual
38
Parameter
Function
Max connection
It is the max Web connection for the same device. The value ranges from 1 to 20. Default connection amount is 10.
TCP port
Port range is 1025~65534. The default value is 37777. You can input the actual port number if necessary.
UDP port
Port range is 1025~65534. The default value is 37778. You can input the actual port number if necessary.
HTTP port
Port range is 1025~65524. The default value is 80. You can input the actual port number if necessary.
RTSP port
The default value is 554. Please leave blank if use default. User uses
QuickTime or VLC can play the following formats. BlackBerry can play
too. Real-time monitoring URL format, please require real-time RTSP
media server, require channel no., bit stream type in URL. You may
need username and password. User uses BlackBerry need to set encode mode to H.264B, resolution
to CIF and turn off audio. URL format is: rtsp://username:password@ip:port/cam/realmonitor?channel=1&subtype=0 username/password/IP and port. The IP is device IP and the port default value is 554. You can leave it in
blank if it is the default value. Follow standard RTP protocol and when encode mode is MJPEG; the max
resolution only supports 2040*2040.
HTTPs Enable
Check HTTPs enable, login as https://ip:port. Protect data. Default port is
HTTPs Port
HTTPs communication port, range is 1025~65534, default is 443.
Note:
0～1024, 37780～37880, 1900, 3800, 5000, 5050, 9999, 37776, 39999, 42323 are all special ports.
User cannot modify them.
Avoid using default port value of other ports.
4.2.3.2 ONVIF
ONVIF (Open Network Video Interface Forum) describes network video model, port, data type and data switch modes. ONVIF standard targets to create a network video frame protocol that communicates network video products from different manufacturers. See Figure 4-21.
Dahua Network Speed Dome Web3.0 Operation Manual
39
Figure 4-21
Please refer to the following sheet for detailed information.
Parameter
Function
Authentication
The login authentication is off by default.
4.2.4 PPPoE
The PPPoE interface is shown as in Figure 4-22. Input the PPPoE user name and password you get from the IPS (internet service provider) and enable
PPPoE function. Please save current setup and then reboot the device to get the setup activated. Device connects to the internet via PPPoE after reboot. You can get the IP address in the WAN from
the IP address column. When PPPoE is on, please disable UPnP to avoid influence on dial-up.
When you Check PPPoE enable, please disable UPnP. Please note, you need to go to the IP address item to via the device current device information. You can access the client-end via this address.
Dahua Network Speed Dome Web3.0 Operation Manual
40
Figure 4-22
4.2.5 DDNS
The DDNS interface is shown as in Figure 4-23. The DDNS is to set to connect the various servers so that you can access the system via the server. Please go to the corresponding service website to apply a domain name and then access the system via the domain. It works even your IP address has changed. When the device connects to WLAN, you should disable UPnP.
Dahua Network Speed Dome Web3.0 Operation Manual
41
Figure 4-23
Please refer to the following sheet for detailed information.
Parameter
Function
Server Type
You can select DDNS protocol from the dropdown list: CN99 DDNS, NO-IP DDNS, Dyndns DDNS, and Dahua DDNS. The QUICK DDNS protocol means you use your self-defined private protocol to realize DDNS function.
Server Address
DDNS server IP address
Domain Name
Your self-defined domain name.
Username
The user name you input to log in the server.
Password
The password you input to log in the server.
Update period
Device sends out alive signal to the server regularly. Default is 10min.
The QUICK DDNS interface is shown as in Figure 4-24.
Figure 4-24
Please refer to the following sheet for detailed information.
Parameter
Function
Server Type
You can select DDNS protocol from the dropdown list and then enable DDNS function. The Dahua DDNS means you use your self-defined private protocol to realize DDNS function.
Dahua Network Speed Dome Web3.0 Operation Manual
42
Parameter
Function
Server Address
DDNS server IP address. Under DDNS the default server address is www.Dahuaddns.com
Mode
The default is auto, and you can select manual.
Domain Name
Auto and self-defined domain names are both MAC address.quickddns.com. You can self-define prefix.
Test
It is to test domain name. It is available only under manual mode.
Username
The user name you input to log in the server. Optional.
4.2.6 IP filter
The IP filter interface is shown as in Figure 4-25. You can enable IP filter function so that some specified IP/MAC user can access the speed dome. You can add IP address or IP address section. If you do not check the box here, it means there is on access limit. Here you can add IP address and MAC address. You must add these addresses before enabling the trusted sites. Please note: You must set MAC address in the same network segment.
Figure 4-25
4.2.7 SMTP （e-mail)
The SMTP interface is shown as in Figure 4-26.
Dahua Network Speed Dome Web3.0 Operation Manual
43
Figure 4-26
Please refer to the following sheet for detailed information.
Parameter
Function
SMTP Server
Input server address and then enable this function.
Port
Default value is 25. You can modify it if necessary.
Anonymity
For the server supports the anonymity function. You can auto login anonymously. You do not need to input the user name, password and the sender information.
User Name
The user name of the sender email account.
Password
The password of sender email account.
Sender
Sender email address.
Authentication (Encryption mode)
You can select SSL, TLS or none. Title (Subject)
Input email subject here.
Attachment
System can send out the email of the snapshot picture once you check the box here.
Mail receiver
Input receiver email address here. Max three addresses.
Dahua Network Speed Dome Web3.0 Operation Manual
44
Parameter
Function
Interval
The send interval ranges from 0 to 3600 seconds. 0 means there is no interval. Please note system will not send out the email immediately when the alarm occurs. When the alarm, motion detection or the abnormity event activates the email, system sends out the email according to the interval you specified here. This function is very useful when there are too many emails activated by the abnormity events, which may result in heavy load for the email server.
Health mail enable
Please check the box here to enable this function.
Email test
The system will automatically sent out a email once to test the connection is OK or not .Before the email test, please save the email setup information.
4.2.8 UPnP
It allows you to establish the mapping relationship between the LAN and the public network. Here you can also add, modify or remove UPnP item. For UPnP on different routers, you must disable UPnP function. See Figure 4-27. In the Windows OS, From Start->Control Panel->Add or remove programs. Click the “Add/Remove Windows Components” and then select the “Network Services” from the Windows Components Wizard.
Click the Details button and then check the “Internet Gateway Device Discovery and Control client” and “UPnP User Interface”. Please click OK to begin installation.
Enable UPnP from the Web. If your UPnP is enabled in the Windows OS, the speed dome can auto detect it via the “My Network Places”. Under manual mode, you can add, delete or modify mapping. Under auto mode, select idle port for auto port mapping without user modification.
Dahua Network Speed Dome Web3.0 Operation Manual
45
Figure 4-27
4.2.9 SNMP
The SNMP interface is shown as in Figure 4-28. The SNMP allows the communication between the network management work station software and the proxy of the managed device. Please install the software such as MG MibBrowser 8.0c software or establish the SNMP service before you use this function. You need to reboot the device to activate the new setup.
Dahua Network Speed Dome Web3.0 Operation Manual
46
Figure 4-28
Please refer to the following sheet for detailed information.
Parameter
Function
SNMP Version
Check SNMP v1, device only process v1 info. Check SNMP v2, device only process v2 info. Check SNMP v3, can set username, password and
encryption method. Server calibrate corresponding
username, password and encryption method too access
device and v1/v2 are unavailable.
SNMP port
The listening port of the proxy program of the device. It is a UDP port not a TCP port. The value ranges from 1 to 65535. The default value is 161
Community
It is a string, as command between management and proxy, , defining a proxy, and a manager’s authentication.
Read community
Read-only access to all SNMP targets, default is public. Note: Only number, letter, _, and – supported.
Write community
Read/write access to all SNMP targets, default is private. Note: Only number, letter, _, and – supported.
Trap address
The destination address of the Trap information from the proxy program of the device.
Trap
SNMP trap is a proxy message sent to admin as important event notice or status change.
Trap Address
Address where to send Trap message.
Trap Port
Port which send Trap message, default is 162, range 1~65535.
Check SNMP v3 version and SNMP port, read community, write community, Trap address, Trap port are same with SNMP v1 and SNMP v2 versions. Only when SNMP version is SNMP v3, user need to configure parameter in chart. See Figure 4-29.
Dahua Network Speed Dome Web3.0 Operation Manual
47
Figure 4-29
Please refer to the following sheet for detailed information.
Parameter
Function
SNMP Version
SNMP v3
Read-only Username
Default is public. Note: Name only can be number, letter and underline.
Read/Write Username
Default is private. Note: Name only can be number, letter and underline.
Authentication
You may select MD5 or SHA, default is MD5.
Authentication Password
Password not less than 8 characters.
Encryption
Default is CBC-DES.
Encryption Password
Password not less than 8 characters.
4.2.10 Bonjour
The Bonjour interface is shown as below. See Figure 4-30.
Dahua Network Speed Dome Web3.0 Operation Manual
48
Bonjour is based on the multicast DNS service from the Apple. The Bonjour device can automatically broadcast its service information and listen to the service information from other device. You can use the browse of the Bonjour service in the same LAN to search the speed dome device and then access if you do not know the speed dome information such as IP address. You can view the server name when the speed dome is detected by the Bonjour. Please note the safari browse support this function. Click the “Display All Bookmarks: and open the Bonjour, system can auto detect the speed dome of the Bonjour function in the LAN.
Figure 4-30
4.2.11 Multicast
The multicast interface is shown as in Figure 4-31. Multicast is a transmission mode of data packet. When there is multiple-host to receive the same data packet, multiple-cast is the best option to reduce the broad width and the CPU load. The source host can just send out one data to transit. This function also depends on the relationship of the group member and group of the outer. Note:
Open preview, streaming media protocol, select multicast, and monitor via multicast format. Here you can set multicast address and port. You also need to go to Live interface to set the
protocol as Multicast.
Dahua Network Speed Dome Web3.0 Operation Manual
49
Figure 4-31
Please refer to the following sheet for detailed information.
4.2.12 802.1x
802.1x (port based network access control protocol) supports manual selection of authentication method to control if device connected to LAN can join the LAN. It well supports authentication, charging, safety and management requirement of network. See Figure 4-32.
Parameter
Function
Enable
Select to enable multicast function. Main stream and sub stream cannot be used at the same time.
Multicast address
Main/sub stream multicast default address is 224.1.2.4 and its range is
224.0.0.0～239.255.255.255.
Port
Multicast port. Main stream is 40000, sub stream is 40002 and the range is 1025～65534.
Dahua Network Speed Dome Web3.0 Operation Manual
50
Figure 4-32
Please refer to the following sheet for detailed information.
Parameter
Function
Authentication
PEAP (protected EAP protocol).
Username
It needs the username to login, which is authenticated by the server.
Password
Please input password here.
4.2.13 QoS
The QoS interface is shown as below. See Figure 4-33. Qos (Quality of Service) is network security mechanism. It is a technology to fix the network delay and jam problem and etc. For the network service, the quality of service includes the transmission bandwidth, delay, the packet loss and etc. We can guarantee the transmission bandwidth, lower the delay, reduce the loss of the data packet and anti-dither to enhance the quality. We can set the DSCP (Differentiated Services Code Point) of the IP to distinguish the data packet so that the router or the hub can provide different services for various data packets. It can select the different queues according to the priority (64 different priority levels) of the packets and select the bandwidth of the each queue. Level 0 is the lowest, and level 63 is the highest. It can also discard at the different ratio when the broad bandwidth is jam.
Dahua Network Speed Dome Web3.0 Operation Manual
51
Figure 4-33
Please refer to the following sheet for detailed information.
Parameter
Function
Real-time monitor
The value ranges from 0 to 63. The router or the switcher can provide different service for various data packets.
Command
The value ranges from 0 to 63. The router or the switcher can provide different service for various data packets.
4.3 PTZ
4.3.1 Function
Dahua Network Speed Dome Web3.0 Operation Manual
52
Figure 4-34
In this part, you can operate the PTZ of the camera and control PTZ movement.
Parameter
Function
Preset
Set camera preset.
Tour
Set camera tour. Max 8 tours.
Scan
Set camera scan.
Pattern
Set camera pattern.
PTZ speed
Set PTZ movement speed.
Idle motion
Set camera idle operation.
Power up
Set camera operation when system boots up.
Time Task
Set camera time task.
PTZ restart
Restart camera PTZ.
Default
Restore camera PTZ default setup.
Dahua Network Speed Dome Web3.0 Operation Manual
53
4.3.1.1 Preset Preset interface is shown as in Figure 4-35.
Figure 4-35
Please refer to the following sheet for detailed information.
Parameter
Function
Preset No.
Set preset No. It becomes valid after you set.
Preset title
Set preset name. You can input self-defined preset name here.
Delete
Delete corresponding preset.
Save
Save current preset setup.
Add
Click it to add a new preset.
Clear
Clear all presets setup.
4.3.1.2 Tour Tour interface is shown as below. See Figure 4-36.
Dahua Network Speed Dome Web3.0 Operation Manual
54
Figure 4-36
Please refer to the following sheet for detailed information.
Parameter
Function
Tour No.
System auto allocates.
Tour title
Set tour name. You can input self-defined tour name here.
Start
Begin tour.
Please note this function is null if you have not set a tour.
Stop
Stop tour Please note this function is null if you have not set a tour
Add
Click it to add a new tour.
Preset
Click Add button, you can add a new tour. The default preset value is 1. Double click tour No, you can see a dropdown list for you to select.
Please set presets before you use tour function.
Duration (Interval)
It is to set the staying time of the tour.
Save
Click it to save current setup.
Refresh
Refresh current interface.
Dahua Network Speed Dome Web3.0 Operation Manual
55
4.3.1.3 Scan Scan interface is shown as below. See Figure 4-37.
Figure 4-37
Please refer to the following sheet for detailed information.
Parameter
Function
Scan No.
System auto allocates.
Speed
Set scan speed here.
You cannot set speed when camera is running scan.
Start
Begin scan.
Please note this function is null if you have not set a scan.
Stop
Stop scan Please note this function is null if you have not set a scan
Set
Click set button, you can set left limit and right limit.
Left limit
Set camera left limit.
Right limit
Set camera right limit.
4.3.1.4 Pattern Pattern interface is shown as below. See Figure 4-38.
Dahua Network Speed Dome Web3.0 Operation Manual
56
Figure 4-38
Please refer to the following sheet for detailed information.
Parameter
Function
Pattern No.
System auto allocates.
Start
Begin pattern.
Please note this function is null if you have not set a pattern.
Stop
Stop pattern
Please note this function is null if you have not set a pattern
Set
Click it you can see start/stop record buttons. Start record
Click it to begin recording pattern setup.
Stop record
Click it to stop recording pattern setup.
4.3.1.5 PTZ speed PTZ speed interface is shown as below. See Figure 4-39.
Dahua Network Speed Dome Web3.0 Operation Manual
57
Figure 4-39
Please refer to the following sheet for detailed information.
Parameter
Function
PTZ speed
Here you can set camera PTZ speed.
4.3.1.6 Idle Motion Idle motion interface is shown as below. See Figure 4-40.
Dahua Network Speed Dome Web3.0 Operation Manual
58
Figure 4-40
Please refer to the following sheet for detailed information.
Parameter
Function
Enable
Check the box here to enable idle motion function.
Idle Motion
Here you can set preset, scan, pattern, tour.
Please note you need to set the corresponding operation first if you want to use this function.
Idle time
Set idle time.
4.3.1.7 Power up Power up interface is shown as below. See Figure 4-41.
Dahua Network Speed Dome Web3.0 Operation Manual
59
Figure 4-41
Please refer to the following sheet for detailed information.
Parameter
Function
Enable
Check the box here to enable power up function.
Power up
Here you can set preset, scan, pattern, tour and auto.
Please note you need to set the corresponding function first if you want to use it.
4.3.1.8 Time Task
Dahua Network Speed Dome Web3.0 Operation Manual
60
Figure 4-42
Figure 4-43
Dahua Network Speed Dome Web3.0 Operation Manual
61
Parameter
Note
Enable
It is to enable time task function.
Task Action
It is to set the time task action, such as preset, tour, scan and pattern.
Auto Home
When call PTZ artificially and interrupt time task, it can auto restore the time that time task needs.
Period Setting
It is to set the exact period of time task, click “setting” to set.
Copy to Task No
Click “Copy” to copy the well-set task information to the designated task number.
4.3.1.9 PTZ Restart PTZ restart interface is shown as below. See Figure 4-44.
Figure 4-44
Please refer to the following sheet for detailed information.
Parameter
Function
PTZ restart
It is to reboot PTZ.
4.3.1.10 Default Default interface is shown as below. See Figure 4-45.
Dahua Network Speed Dome Web3.0 Operation Manual
62
Figure 4-45
Please refer to the following sheet for detailed information.
Parameter
Function
Default
Restore PTZ factory default setup.
4.4 Event
4.4.1 Video detect
4.4.1.1 Motion Detect
The motion detect interface is shown as in Figure 4-46 through Figure 4-49.
Dahua Network Speed Dome Web3.0 Operation Manual
63
Figure 4-46
Figure 4-47
Dahua Network Speed Dome Web3.0 Operation Manual
64
Figure 4-48
Dahua Network Speed Dome Web3.0 Operation Manual
65
Figure 4-49
Please refer to the following sheet for detailed information.
Parameter
Function
Enable
You need to check the box to enable motion detection function.
Working Period
Here you can set arm/disarm period. Click set button to open period setup menu. See Figure 4-. There are six periods every day for setup and you must check box in front of each period to enable it. Note: Period setup can be done by dragging mouse while not release left mouse.
Anti-dither
System only memorizes one event during the anti-dither period. The value ranges from 0s to 100s.
Area
Here you can set motion detection region and its sensitivity and area. (The higher the sensitivity is, the easier to trigger motion detect; the smaller the area, the easier to trigger motion detect.) The default covers all regions. You must click save before enabling your setup. See Figure 4-.
Record
Check it and so when alarm occurs, system will auto record. You shall set record period in Storage>Schedule and select auto record in record control interface.
Record Delay
System can delay the record for specified time after alarm ended. The value ranges from 10s to 300s.
Send Email
If you enabled this function, System can send out email to alert you when alarm occurs and ends. User can set email address in Network>SMTP.
PTZ
Here you can set PTZ movement when alarm occurs. Such
as go to preset x when there is an alarm. The event type includes: preset, tour and pattern.
Snapshot
You need to check the box here so that system can backup motion detection snapshot file. You shall set snapshot period in Storage>Schedule.
The zone setup interface is shown as Figure 4-. Different colors represent different areas. Each area can set different detection zones. Detection zone cam be irregular and discontinuous. If device monitoring zone is large, user can sub-divide the area into several zones for better motion detect. Please refer to the following sheet for detailed information.
Parameter
Function
Name
Default area name includes Region0, Region1, Region2, Region3 and custom.
Sensitivity
It is sensitivity of brightness as motion detection is more possible to be trigger with high sensitivity. You can set up to four areas. The range is 0~100. The recommenced value is 30~70.
Dahua Network Speed Dome Web3.0 Operation Manual
66
Area threshold
It is to check target object area related to detection area. The lower the area threshold, the easier to trigger motion detection. You can set up to four areas. The range is 0~100. The recommenced value is 0~10.
Waveform
Red means motion detect is triggered. Green means motion detect is not triggered.
Delete all
Clear all areas.
Delete
Delete selected area.
4.4.2 IVS Analysis
Figure 4-50
Dahua Network Speed Dome Web3.0 Operation Manual
67
Figure 4-51
Figure 4-52
Dahua Network Speed Dome Web3.0 Operation Manual
68
Figure 4-53
Figure 4-54
Parameter
Note
Enable
Check it to enable IVS analysis alarm.
Dahua Network Speed Dome Web3.0 Operation Manual
69
Parameter
Note
Working Period
This function becomes activated in the specified periods. There are six periods in one day. Please draw a circle to enable corresponding
period. Select date. If you do not select, current setup applies to today only. You can
select all week column to apply to the whole week. Click OK button, system goes back to motion detection interface; please click
save button to exit. Note: User can set via dragging mouse while not releasing left mouse.
SN
It is to set the SN of the current rule.
Rule Type
It is to select “object abandoned” and “missing”.
Rule Name
It is to set the name of the current rule.
Direction
It is to set the direction of the selected rule:
For “Tripwire”, you can select A->B, B->A, and A<->B. For “Intrusion”, you can select enter, leave and enter&leave.
Duration
It is to set the shortest time from when the object is moved or abandoned to alarm
activation.
Record
Check it and the System auto activates alarm record once local alarm occurs.
Meanwhile, set the record period in the “Storage Management > Schedule” and
select auto record in the record control interface.
Record Delay
System can delay the record for specified time after alarm ended. The value ranges from 10s to 300s.
Send Email
If you enabled this function, the system can send out email to inform the user when alarm occurs. User can set email address in “Network>SMTP”.
PTZ
Here you can set PTZ movement when alarm occurs. Such as go to preset x
when there is an alarm. The event type includes: preset, tour and pattern.
Snapshot
Check it and the system can auto activate alarm snapshot when alarm occurs. You shall set snapshot period in Storage>Schedule.
Draw Rule
Click “Draw Rule” to draw the current rule.
Clear
Click “Clear” to delete all the selected rules.
Target Filter
Check enable, click “Draw”, and you can draw the size model of filter target for the
rule in the scene; click “Clear” to delete all the target filter models which have been drawn.
4.4.3 Face Detect
Dahua Network Speed Dome Web3.0 Operation Manual
70
Figure 4-55
Figure 4-56
Dahua Network Speed Dome Web3.0 Operation Manual
71
Parameter
Note
Enable Face Detect
Check it to enable face detect alarm.
Working Period
This function becomes activated in the specified periods. There are six periods in one day. Please draw a circle to enable corresponding
period. Select date. If you do not select, current setup applies to today only. You can
select all week column to apply to the whole week. Click OK button, system goes back to motion detection interface; please click
save button to exit. Note: User can set via dragging mouse while not releasing left mouse.
Enable Face Enhancement
Check it and enable face enhancement function.
Alarm Face Amount
It is to set the min face amount to activate alarm, select from 1~35.
Record
Check it and the system auto activates alarm record once local alarm occurs.
Meanwhile, set the record period in the “Storage > Schedule” and select auto record
in the record control interface.
Record Delay
System can delay the record for specified time after alarm ended. The value ranges from 10s to 300s.
Send Email
If you enabled this function, the system can send out email to inform the user when alarm occurs. User can set email address in “Network>SMTP”.
PTZ
Here you can set PTZ movement when alarm occurs. Such as go to preset x
when there is an alarm. The event type includes: preset, tour and pattern.
Snapshot
Check it and the system can auto activate alarm snapshot when alarm occurs. You shall set snapshot period in Storage>Schedule.
Target Filter
Check enable, click “Draw”, and you can draw the size model of filter target for the rule in the scene; click “Clear” to delete all the target filter models which have been
drawn.
4.4.4 Abnormality
Abnormality includes SD Card (Figure 4-57 to Figure 4-59), network (Figure 4-60 to Figure 4-61), and Unauthorized Access (Figure 4-62). Note: Only device with SD card function has these three statuses: No SD card, capacity warning, and SD card error.
Dahua Network Speed Dome Web3.0 Operation Manual
72
Device without SD card function does not have the above three statuses.
Figure 4-57
Figure 4-58
Figure 4-59
Please refer to the following sheet for detailed information.
Dahua Network Speed Dome Web3.0 Operation Manual
73
Parameter
Function
Event Type
There are three kinds of events for SD card abnormality alarm: No SD card, Capacity Warning, SD card error.
Enable
Check to alarm when SD card is abnormal.
Send email
After you enabled this function, the system can send out email to alarm the specified user.
This function is invalid when network is offline or IP conflict occurs.
SD Card Capacity Limit
User can set SD card capacity that is left free. When SD card space left is smaller than this limit, alarm occurs.
When device is offline or IP conflicts, you can go to Figure 4-60 and Figure 4-61 to set.
Figure 4-60
Figure 4-61
Dahua Network Speed Dome Web3.0 Operation Manual
74
When login password keep been wrong for a few times, unauthorized access alarm occurs. This operation is similar to SD card error. Allow login error times as when it exceeds this limit, user account will be locked. See Figure 4-59.
Figure 4-62
4.5 Storage Management
4.5.1 Schedule
Before schedule setup, user must set record mode is auto or manual.
Note:
If record mode in record control is off, then device will not snapshoot according to schedule.
4.5.1.1 Record Schedule Record schedule steps: Step 1. Click Record Schedule, see Figure 4-63.
Dahua Network Speed Dome Web3.0 Operation Manual
75
Figure 4-63
Step 2. From Monday to Sunday select record time, click setup on the right. See Figure 4-64.
Set period according to actual need. There are six periods available each day. By checking or cancel, you can add or delete three types of record schedule: General, Motion, and
Alarm.
Note:
Period setup can be done by dragging in record schedule interface while not releasing left mouse.
Figure 4-64
Step 3. Click OK, return to record schedule interface. See Figure 4-65.
Green color stands for the general record/snapshot. Yellow color stands for the motion detect record/snapshot. Red color stands for the alarm record/snapshot.
Dahua Network Speed Dome Web3.0 Operation Manual
76
Figure 4-65
Step 4. In record schedule interface, click OK. System prompts it is successfully saved.
4.5.1.2 Snapshot Schedule Snapshot setup as: Step 1. Click Snapshot Schedule tab, see Figure 4-66.
Figure 4-66
Step 2. From Monday to Sunday select snapshot time, click setup on the right. See Figure 4-67.
Set snapshot period according to actual need. There are six periods available each day. By checking or cancel, user can add or delete three types of snapshot schedule: General, Motion
and Alarm. Note: Period setup can be done by dragging in snapshot schedule interface while not releasing left mouse.
Dahua Network Speed Dome Web3.0 Operation Manual
77
Figure 4-67
Step 3. Click OK, return to snapshot schedule interface. See Figure 4-68.
Green color stands for the general record/snapshot. Yellow color stands for the motion detect record/snapshot. Red color stands for the alarm record/snapshot.
Figure 4-68
Step 5. In snapshot interface, click OK. System prompts it is successfully saved.
4.5.1.3 Holiday Schedule Holiday schedule can set specific date as holiday. Step 1. Click Holiday Schedule tab. See Figure 4-69.
Dahua Network Speed Dome Web3.0 Operation Manual
78
Figure 4-69
Step 2. Select date to set as holiday. The selected date will be highlighted in yellow. Step 3. Check Record/Snapshot, click Save. System prompts it is successfully saved. Step 4. Check Record Schedule/Snapshot Schedule interface, click setup next to Holiday, refer to setup
of Monday to Sunday. Step 5. Complete setup of holiday, then it records/snapshots according to date in holiday schedule.
4.5.2 Destination
4.5.2.1 Path
The destination interface is shown as in Figure 4-70. Path can config record and snapshot storage path. There are three options: Local, FTP and NAS. You can only select one mode. System can save according to the event types. It is corresponding to the three modes (general/motion/alarm) in the Schedule interface. Please check the box to enable the save functions. Note: Only device supports SD card has local.
Dahua Network Speed Dome Web3.0 Operation Manual
79
Figure 4-70
Please refer to the following sheet for detailed information.
Parameter
Function
Event Type
It includes: scheduled, motion detect and alarm. Local
It saved in the SD card.
FTP
It saved in the FTP server.
NAS
It saved in NAS disk.
4.5.2.2 Local The local interface is shown as in Figure 4-71. Here you can view local Micro SD card or NAS disk information. You can also operate the read-only, write-only, hot swap and format operation.
Figure 4-71
4.5.2.3 FTP The FTP interface is shown as in Figure 4-72. You need to check the box to enable the FTP function. When network disconnect occurred or there is malfunction. Emergency storage can save the record/snapshot picture to the local SD card.
Dahua Network Speed Dome Web3.0 Operation Manual
80
Figure 4-72
4.5.2.4 NAS You need to check the box to enable the NAS function. Select NAS storage as to same file to NAS disk. See Figure 4-73.
Figure 4-73
4.5.3 Record control
The record control interface is shown as in Figure 4-74.
Dahua Network Speed Dome Web3.0 Operation Manual
81
Figure 4-74
Please refer to the following sheet for detailed information.
Parameter
Function
Pack Duration
Here you can select file size within 1min~120min. Default setup is 8 minutes.
Pre-record
Please input pre-record value here. For example, system can record the four seconds video in the buffer.
The record begins from the fifth second. Note: Configure pre-record time, when alarm or motion detection occurs, if
there is no record, system will record the preceding n seconds record.
Disk Full
There are two options: stop recording or overwrite the previous files when HDD is full. Stop: Current working HDD is overwriting or current HDD is full,
it will stop record.
Overwrite: Current working HDD is full; it will overwrite the
previous file.
Record mode
There are three modes: Auto/manual/close.
Record stream
There are two options: main stream and sub stream.
4.6 System
4.6.1 General
The General interface is shown as in Figure 4-75.
Dahua Network Speed Dome Web3.0 Operation Manual
82
Figure 4-75
Please refer to the following sheet for detailed information.
Parameter
Function
Device Name
It is to set device name.
Video Standard
This is to display video standard such as PAL.
Language
You can select the language from the dropdown list.
The date and time interface is shown as in Figure 4-76.
Figure 4-76
Please refer to the following sheet for detailed information.
Parameter
Function
Date format
Here you can select date format from the dropdown list.
Time Format
There are two options: 24-H and 12-H. Time zone
The time zone of the device.
System time
It is to set system time. It becomes valid after you set.
Sync PC
You can click this button to save the system time as your PC current time.
Dahua Network Speed Dome Web3.0 Operation Manual
83
DST
Here you can set day night save time begin time and end time. You can set according to the date format or according to the week format.
NTP
You can check the box to enable NTP function.
NTP server
You can set the time server address. Port
It is to set the time server port.
Update period
It is to set the sync periods between the device and the time server.
4.6.2 Account
For the character in the following user name or the user group name, system max supports 15-
digits. The valid string includes: character, number, and underline. Password can be 0~32 characters in number and letter only. User can modify other user’s
password. The user amount is 18 and the group amount is 8 when the device is shipped out of the factory.
The factory default setup includes two levels: user and admin. You can set the corresponding group
and then set the rights for the respective user in the specified groups. User management adopts group/user modes. The user name and the group name shall be unique.
One user shall be included in only one group.
Currently logged in user cannot change his/her own right.
4.6.2.1 Username In this interface you can enable anonymity login, add/remove user and modify user name. See Figure 4-77.
Dahua Network Speed Dome Web3.0 Operation Manual
84
Figure 4-77
Enable anonymity login: Enable anonymity login, and input IP. No username or password is required, you can log in by anonymity (with limited rights). You can click logout to end your session. Add user: It is to add a name to group and set the user rights. See Figure 4-78. There are four default users: admin/888888/666666 and hidden user “default”. Except user 6666, other users have administrator right. The user 666666 can only have the monitor rights.
Hidden user “default” is for system interior use only and cannot be deleted. When there is no login user,
hidden user “default” automatically login. You can set some rights such as monitor for this user so that
you can view some channel view without login. Here you can input the user name and password and then select one group for current user. Please note the user rights shall not exceed the group right setup. For convenient setup, please make sure the general user has the lower rights setup than the admin.
Dahua Network Speed Dome Web3.0 Operation Manual
85
Figure 4-78
Modify user
It is to modify the user property, belonging group, password and rights. See Figure 4-79.
Modify password
It is to modify the user password. You need to input the old password and then input the new password twice to confirm the new setup. Please click the OK button to save. Please note, the password ranges from 0-digit to 32-digit. It shall include the number and letter only. For the user who has the account rights, he can modify the password of other users.
Dahua Network Speed Dome Web3.0 Operation Manual
86
Figure 4-79
4.6.2.2 Group The group management interface can add/remove group, modify group password and etc. The interface is shown as in Figure 4-80.
Figure 4-80
Add group: It is to add group and set its corresponding rights. See Figure 4-81.
Dahua Network Speed Dome Web3.0 Operation Manual
87
Please input the group name and then check the box to select the corresponding rights. It includes: preview, playback, record control, PTZ control and etc.
Figure 4-81
Modify group
Click the modify group button, you can see an interface is shown as in Figure 4-82. Here you can modify group information such as remarks and rights.
Figure 4-82
4.6.3 Default
The default setup interface is shown as in Figure 4-83. Please note system cannot restore some information such as network IP address.
Dahua Network Speed Dome Web3.0 Operation Manual
88
Figure 4-83
4.6.4 Import/Export
The interface is shown as in Figure 4-84.
Figure 4-84
Please refer to the following sheet for detailed information.
Parameter
Function
Import
It is to import the local setup files to the system.
Export
It is to export the corresponding system setup to your local PC.
4.6.5 Auto Maintenance
The auto maintenance interface is shown as in Figure 4-85. Here you can select auto reboot and auto delete old files interval from the dropdown list. If you want to use the auto delete old files function, you need to set the file period.
Dahua Network Speed Dome Web3.0 Operation Manual
89
Figure 4-85
Parameter
Function
Auto Reboot
Check it and set auto reboot time.
Auto Delete Old Files
Check it and set period within 1~31 days.
4.6.6 Upgrade
The upgrade interface is shown as in Figure 4-86. Please select the upgrade file (file extension is “.bin”) and then click the update button to begin firmware update.
Important Improper upgrade program may result in device malfunction!
Figure 4-86
Dahua Network Speed Dome Web3.0 Operation Manual
90
4.7 Information
4.7.1 Version
The version interface is shown as in Figure 4-87. Here you can view system hardware features, software version, release date and etc. Please note the following information is for reference only.
Figure 4-87
4.7.2 Log
Here you can view system log. See Figure 4-88.
Figure 4-88
Please refer to the following sheet for log parameter information.
Dahua Network Speed Dome Web3.0 Operation Manual
91
Parameter
Function
Start time
Set the start time of the requested log. (The earliest time is 2000/1/1)
End time
Set the end time of the requested log. (The latest time is 2037/12/31)
Type
Log type.
Search
You can select log type from the drop down list and then click search button to view the list. You can click the stop button to terminate current search operation.
Log information
You can select one item to view the detailed information.
Clear
You can click this button to delete all displayed log files. Please note system does not support clear by type.
Backup
You can click this button to backup log files to current PC.
4.7.3 Online User
The online user interface is shown as in Figure 4-89. Here you can view current online user, group name, IP address and login time.
Figure 4-89
Dahua Network Speed Dome Web3.0 Operation Manual
92
5 Alarm
Please note some series product does not support this function.
Click alarm function, you can see an interface is shown as in Figure 5-1. Here you can set device alarm type and alarm sound setup.
Figure 5-1
Please refer to the following sheet for detailed information.
Type
Parameter
Function
Alarm type
Motion detection
System alarms when motion detection alarm occurs,
Disk full
System alarms when disk is full.
Disk error
System generates an alarm when HDD is malfunction.
Video tampering
System alarms when camera is viciously masking.
Illegal access
System alarms when there is unauthorized access.
Operation
Prompt When alarm is triggered, there will be s
inmain menu of alarm interface and system automatically records alarm info. The icon disappears when user click alarm menu bar. Note: If alarm interface is displayed, when alarm is triggered, there will be no image prompt, but alarm record will be in list on the right.
Alarm audio
Audio
When alarm occurs, system auto generates alarm audio. The audio supports customized setup.
Dahua Network Speed Dome Web3.0 Operation Manual
93
Type
Parameter
Function
Path
Here you can specify alarm sound file.
Dahua Network Speed Dome Web3.0 Operation Manual
94
6 Log out
Click log out button, system goes back to log in interface. See Figure 6-1.
Figure 6-1
Note:
This manual is for reference only. Slight difference may be found in user interface. All the designs and software here are subject to change without prior written notice.
All trademarks and registered trademarks mentioned are the properties of their respective
owners.
If there is any uncertainty or controversy, please refer to the final explanation of us. Please visit our website for more information.
Dahua Technology Co., Ltd Address：No.1199 Bin’an Road, Binjiang District, Hangzhou, China. Postcode: 310053 Tel: +86-571-87688883 Fax: +86-571-87688815 Email:overseas@dahuatech.com Website: www.dahuatech.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
