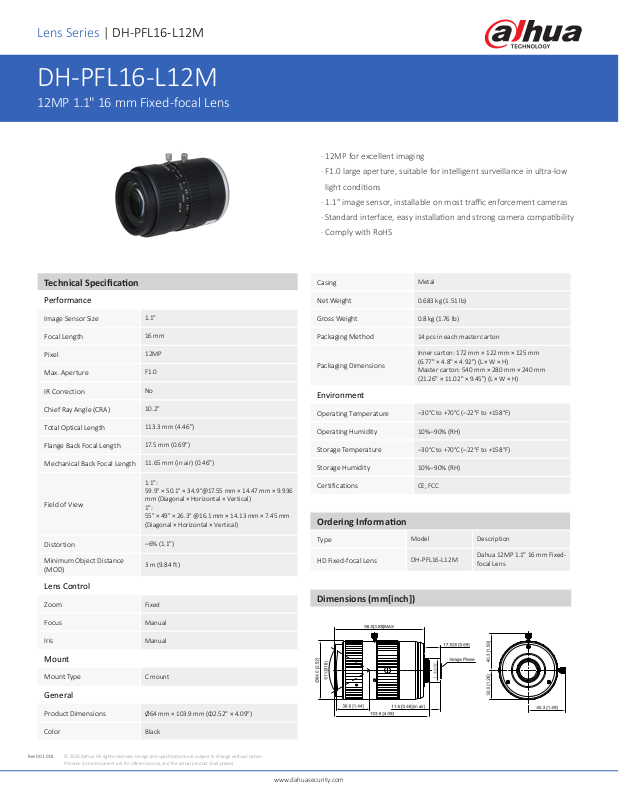

Dahua DH-PFL16-L12M Technical Specification
Lens Series | DH-PFL16-L12M
DH-PFL16-L12M
12MP 1.1" 16 mm Fixed-focal Lens
· 12MP for excellent imaging
· F1.0 large aperture, suitable for intelligent surveillance in ultra-low
light condions
· 1.1" image sensor, installable on most trac enforcement cameras
· Standard interface, easy installaon and strong camera compability
· Comply with RoHS
Technical Specificaon
Performance
Image Sensor Size
Focal Length
Pixel
Max. Aperture
IR Correction
Chief Ray Angle (CRA)
Total Optical Length
Flange Back Focal Length
Mechanical Back Focal Leng th
Field of View
Distortion
Minimum Object Distance
(MOD)
Lens Control
Zoom
1.1"
16 mm
12MP
F1.0
No
10.2°
113.3 mm (4.46")
17.5 mm (0.69")
11.65 mm (in air) (0.46")
1.1":
59.9° × 50.1° × 34.9°@17.55 mm × 14.47 mm × 9.936
mm (Diagonal × Horizontal × Vertic al)
1":
55° × 49° × 26.3° @16.1 mm × 14.13 mm × 7.45 mm
(Diagonal × Horizontal × Vertical)
–6% (1.1")
3 m (9.84 ft)
Fixed
Casing
Net Wei ght
Gross Weight
Packaging Method
Packaging Dimensions
Environment
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Certifications
Ordering Informaon
Typ e
HD Fixed-focal Lens
Dimensions (mm[inch])
Metal
0.683 kg (1.51 lb)
0.8 kg (1.76 lb)
14 pcs in each master carton
Inner car ton: 172 mm × 122 mm × 125 mm
(6.77" × 4.8" × 4.92") (L × W × H)
Master carton: 540 mm × 280 mm × 24 0 mm
(21.26" × 11.02" × 9.45") (L × W × H)
–30°C to +70°C (–22°F to +158° F)
10% –90 % (RH)
–30°C to +70°C (–22°F to +158° F)
10% –90 % (RH)
CE, FCC
Model Description
DH-PFL16-L12M
Dahua 12MP 1.1" 16 mm Fixedfocal Lens
Focus
Iris
Manual
Manual
Mount
Mount Type
C mount
General
Product Dimensions
Color
Rev 001.001 © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
Ø64 mm × 103.9 mm (Φ2.52" × 4.09")
Black
