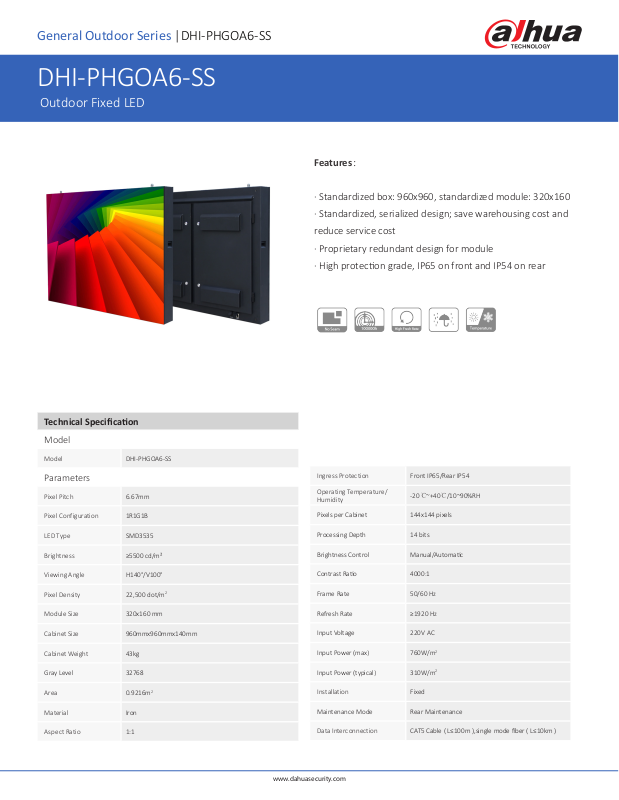

General Outdoor Series |DHI-PHGOA6-SS
DHI-PHGOA6-SS
Outdoor Fixed LED
Features:
· Standardized box: 960x960, standardized module: 320x160
· Standardized, serialized design; save warehousing cost and
reduce service cost
· Proprietary redundant design for module
· High protecon grade, IP65 on front and IP54 on rear
Technical Specificaon
Model
Model DHI-PHGOA6-SS
Parameters
Pixel Pitch 6.67mm
Pixel Configuration 1R1G1B
LED Typ e SMD3535
Brightness ≥5500 cd/m²
Viewing Angle H140°/V100°
Pixel Density 22,500 dot/m
Module Size 320x160 mm
Cabinet Size 960mmx960mmx140mm
Cabinet Weight 43kg
Gray Level 32768
Area 0.9216m
Material Iron
2
2
Ingress Protection Front IP65/Rear IP54
Operating Temperature/
Humidity
Pixels per Cabinet 144x144 pixels
Processing Depth 14 bits
Brightness Control Manual/Automac
Contrast Rao 4000:1
Frame Rate 50/60 Hz
Refresh Rate ≥1920 Hz
Input Voltage 220V AC
Input Power (max) 760W/m
Input Power (typical) 310W/m
Installation Fixed
Maintenance Mode Rear Maintenance
-20℃~+40℃/10~90%RH
2
2
Aspect Ratio 1:1
Data Interconnection CAT5 Cable ( L≤100m ),single mode ber ( L≤10km )
