DH-DVR3104/3108/3116E
4/8/16 Channel CIF Mini 1U Standalone DVR
Features
> Up to 4/8/16 cameras with SXGA(1280×1024) realtime preview
> H.264 dual-stream video compression
> All channel@CIF realtime recording
> VGA / TV simultaneous video output
> All channel synchronous realtime playback, GRID interface & smart search
> 3D intelligent positioning with Dahua PTZ dome camera
> Support 1 SATA HDD up to 4TB, 2 USB2.0
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

DH-DVR3104/3108/3116E
Specifications
Model DH-DVR3104E DH-DVR3108E DH-DVR3116E
System
Main Processor Embedded processor
Operating System Embedded LINUX
Video
Input 4 channel, BNC 8 channel, BNC 16 channel, BNC
Standard NTSC(525Line, 60f/s), PAL(625Line, 50f/s)
Audio
Input 1 channel, RCA
Output 1 channel, RCA
Two-w a y Ta l k Same with audio input channel 1
Display
Interface 1 VGA, 1 TV, BNC(1.0Vp-p, 75Ω)
Resolution 1280×1024, 1280×720, 1024×768, 800×600
Display Split 1/4 1/4/8/9 1/4/8/9/16
Privacy Masking 4 rectangular zones (each camera)
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio
Compression
H.264 / G.711
Resolution
D1/4CIF(704×576/704×480) / CIF(352×288/352×240) /
QCIF(176×144/176×120)
Record
Rate
Main
Stream:
D1(1~6/7fps)/CIF(1~25/30fps)
Extra
Stream
QCIF(1~25/30fps)
Bit Rate 48~4096Kb/s
Record Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300
sec
Video Detection
Trigger Events Recording, PTZ movement, Tour, Email
Motion Detection Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
Playback & Backup
Sync Playback 1/4 1/4/9 1/4/9/16
Search Mode Time/Date, MD & Exact search (accurate to second)
Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,
Next camera, P
revious camera, Full screen, Repeat, Shuffle, Backup
selection, Digital zoom(any size)
Backup Mode USB Device / Network
Network
Ethernet RJ-45 port (10/100M)

DH-DVR3104/3108/3116E
Network Functions H T TP, IPv4/IPv6,
TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE,
DDNS, FTP, IP Filter, Alarm Server
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Storage
Internal HDD 1 SATA port, up to 4TB
Auxiliary Interface
USB Interface 2 ports (1 Rear), USB2.0
RS485 PTZ control
Environmental
Power Supply DC12V/2A
Power Consumption 10W(without HDD)
Working
Environment
-10 ~+55°C / 10~90%RH / 86~106kpa
Dimension(W×D×H) Mini 1U, 325mm×245mm×45mm
Weight 1.5KG(without HDD)
System Connection

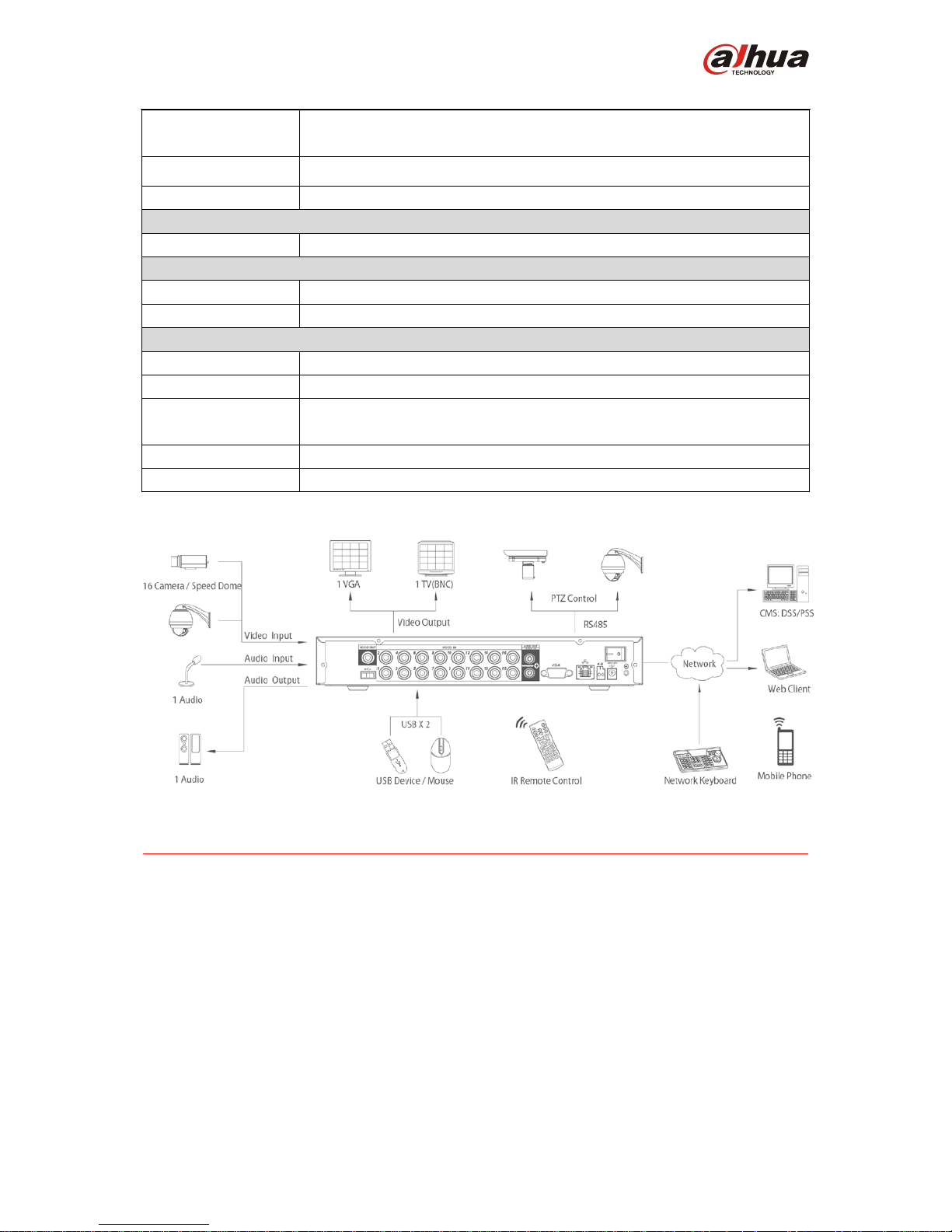

DVR3116-E System Connection
Dahua Technology Co., Ltd.
1187 BinAn Road, Binjiang District, Hangzhou, China
Tel: +86-571-87688883
Fax: +86-571-87688815
Email: overseas@dahuatech.com
www.dahuatech.com
*Design and specifications are subject to change without notice.
© 2011 Dahua Technology Co., Ltd.
