1U 3100 Series Standalone DVR User’s Manual
Version 1.0
2
Table of Contents
1 FEATURES AND SPECIFICATIONS................................................................ 10
1.1 Overview ............................................................................................................................................... 10
1.2 Features ................................................................................................................................................ 10
1.3 Specifications ....................................................................................................................................... 11
2 OVERVIEW AND CONTROLS ......................................................................... 15
2.1 Front Panel ........................................................................................................................................... 15
2.2 Rear Panel............................................................................................................................................ 15
2.3 Connection Sample ............................................................................................................................. 16
2.4 Remote Control .................................................................................................................................... 17
2.5 Mouse Control...................................................................................................................................... 19
2.6 Virtual Keyboard & Front Panel......................................................................................................... 20
3 INSTALLATION AND CONNECTIONS............................................................. 22
3.1 Check Unpacked DVR ........................................................................................................................ 22
3.2 About Front Panel and Real Panel ................................................................................................... 22
3.3 HDD Installation ................................................................................................................................... 22
3
3.4 Connecting Power Supply .................................................................................................................. 23
3.5 Connecting Video Input and Output Devices .................................................................................. 23
3.6 Connecting Audio Input & Output, Bidirectional Audio .................................................................. 24
3.7 RS485.................................................................................................................................................... 26
3.8 Other Interfaces ................................................................................................................................... 26
4 OVERVIEW OF NAVIGATION AND CONTROLS ............................................ 27
4.1 Login, Logout & Main Menu ............................................................................................................... 27
4.2 Record................................................................................................................................................... 29
4.3 Search & Playback .............................................................................................................................. 31
4.4 Schedule ............................................................................................................................................... 34
4.5 Detect .................................................................................................................................................... 37
4
4.6 Backup .................................................................................................................................................. 40
4.7 PTZ Control and Color Setup ............................................................................................................ 42
4.8 Preset/ Patrol/Pattern/Scan................................................................................................................ 44
4.9 Flip ......................................................................................................................................................... 47
5 UNDERSTANDING OF MENU OPERATIONS AND CONTROLS ................... 48
5.1 Menu Tree ............................................................................................................................................ 48
5.2 Main Menu ............................................................................................................................................ 48
5.3 Setting ................................................................................................................................................... 49
5
5.4 Search ................................................................................................................................................... 63
5.5 Advanced .............................................................................................................................................. 63
5.6 Information............................................................................................................................................ 69
5.7 Shutdown .............................................................................................................................................. 72
6 ABOUT AUXILIARY MENU .............................................................................. 74
6.1 Go to Pan/Tilt/Zoom Menu ................................................................................................................. 74
6.2 Preset /Patrol / Pattern /Border Function....................................................................................... 75
7 WEB OPERATION............................................................................................ 79
6
7.1 Network Connection ............................................................................................................................ 79
7.2 Login ...................................................................................................................................................... 79
7.3 Configure .............................................................................................................................................. 87
7.3.3 Advanced ....................................................................................................................................... 105
7.3.4 Additional Function ....................................................................................................................... 109
7.4 Search ................................................................................................................................................. 111
7.5 Alarm ................................................................................................................................................... 115
7.6 About ................................................................................................................................................... 116
7.7 Log out ................................................................................................................................................ 117
7.8 Un-install Web Control ...................................................................................................................... 117
8 PROFESSIONAL SURVEILLANCE SYSTEM ................................................ 118
9 FAQ................................................................................................................. 119
APPENDIX A HDD CAPACITY CALCULATION ................................................. 123
APPENDIX B COMPATIBLE BACKUP DEVICE LIST........................................ 124
APPENDIX C COMPATIBLE CD/DVD DEVICE LIST ............................................ 128
7
APPENDIX D COMPATIBLE DISPLAYER LIST ................................................. 129
APPENDIX E COMPATIBLE SWITCHER LIST .................................................. 130
APPENDIX F COMPATIBLE WIRELESS MOUSE LIST ..................................... 131
APPENDIX G EARTHING.................................................................................... 132
APPENDIX H TOXIC OR HAZARDOUS MATERIALS OR ELEMENTS................ 137
8
Welcome
Thank you for purchasing our DVR! This user’s manual is designed to be a reference tool for the installation and operation of your system. Here you can find information about this series DVR features and functions, as well as a detailed menu tree. Before installation and operation please read the following safeguards and warnings carefully!
9
Important Safeguards and Warnings
1．Electrical safety
All installation and operation here should conform to your local electrical safety codes. We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation.
2．Transportation security
Heavy stress, violent vibration or water splash are not allowed during transportation, storage and installation.
3．Installation
Keep upwards. Handle with care. Do not apply power to the DVR before completing installation. Do not place objects on the DVR
4．Qualified engineers needed
All the examination and repair work should be done by the qualified service engineers. We are not liable for any problems caused by unauthorized modifications or attempted repair.
5．Environment
The DVR should be installed in a cool, dry place away from direct sunlight, inflammable, explosive substances and etc. This series product shall be transported, storage and used in the environment ranging from 0℃ to 40 ℃
6. Accessories
Be sure to use all the accessories recommended by manufacturer. Before installation, please open the package and check all the components are included. Contact your local retailer ASAP if something is broken in your package.
7. Lithium battery
Improper battery use may result in fire, explosion, or personal injury! When replace the battery, please make sure you are using the same model!
10
1 FEATURES AND SPECIFICATIONS
1.1 Overview
This series product is an excellent digital monitor product. It adopts embedded Linux OS to maintain reliable operation. Popular H.264 compression algorithm and G.711 audio compression technology realize high quality, low bit stream. Unique frame by frame play function is suitable for detailed analysis. It has various functions such as record, playback, monitor at the same time and can guarantee audio video synchronization. This series product has advanced technology and strong network data transmission function.
This series device adopts embedded design to achieve high security and reliability. It can work in the local end, and at the same time, when connecting it to the professional surveillance software (PSS), it can connect to security network to realize strong network and remote monitor function.
This series product can be widely used in various areas such as banking, telecommunication, electric power, interrogation, transportation, intelligent resident zone, factory, warehouse, resources, and water conservancy.
1.2 Features
This series product has the following features:
Real-time monitor
It has analog output port, VGA port. You can use monitor or displayer to realize surveillance function. System supports TV/VGA output at the same time.
Storage function
Special data format to guarantee data security and can avoid vicious data modification.
Compression format
Support multiple-channel audio and video. An independent hardware decodes the audio and video signal from each channel to maintain video and audio synchronization.
Backup function
Support backup operation via USB port (such as flash disk, portable HDD, burner) Client-end user can download the file to local HDD to backup via network.
Record playback function
Support each channel real-time record independently, and at the same time it can support search, forward play, network monitor, record search, download and etc. Support various playback modes: slow play, fast play, backward play and frame by frame play. Support time title overlay so that you can view event accurate occurred time Support specified zone enlargement.
Network operation
11
Support network remote real-time monitor, remote record search and remote PTZ control.
Communication port
RS485 port can realize alarm input and PTZ control. Standard Ethernet port can realize network access function.
PTZ control
Support PTZ decoder via RS485. Support various decode protocols to allow the PTZ to control the speed dome.
Intelligent operation
Mouse operation function In the menu, support copy and paste setup function
Slight function differences may be found due to different series.
1.3 Specifications
Parameter
4-ch
8-ch
16-ch
System
Main Processor
High-performance industrial embedded micro controller
OS
Embedded LINUX
System Resources
Multiplex operations: Multiple-channel record, multiple-channel playback and network operation simultaneously
Interface
User-friendly graphical user interface
Input Devices
USB mouse, remote control
Input Method
Arabic number, English character, donation and extension Chinese (optional)
Shortcut Function
Copy/paste operation, USB mouse right-key shortcut menu, double click USB mouse to switch screen.
Compression Standard
Video Compressio n
H.264
Audio Compressio n
G.711A
Video monitor
Video Input
4-CH composite video input: (NTSC/PAL) BNC (1.0VB
P- P,
B75Ω)
8-CH composite video input: (NTSC/PAL) BNC (1.0VB
P- P,
B75Ω)
16-CH composite video input: (NTSC/PAL) BNC (1.0VB
P- P,
B75Ω)
Video Output
1-ch PAL/NTSC, BNC (1.0VP- P, 75Ω) composite video signal output. 1-ch VGA output. Support TV/VGA video output at the same time.
Video Standard
PAL (625 line, 50f/s), NTSC (525 line, 60f/s)
Record Speed
Real-time Mode: PAL 1f/s to 25f/s per channel and NTSC 1f/s to 30f/s per channel
Video Partition
1/4 windows(Optional)
1/4/9 windows
1/4/8/9 /16 windows
12
Monitor Touring
Support monitor tour functions such as motion detection, and schedule auto control.
Resolution (PAL/NTSC )
PAL（625TV Line，50f/s），NTSC（525TV line，60f/s）
Real-time monitor： D1 704×576/704×480
Playback： D1 704×576/704×480 (PAL: 6f/s, NTSC:7f/s), CIF 352×288/ 352×240 , QCIF 176×144/176×120
Support dual streams. Extra stream resolution CIF 352×288/ 352×240(PAL: 6f/s, NTSC:7f/s),QCIF 176×144/176×120
Image Quality
6-level image quality (Adjustable)
Privacy mask
Support one privacy mask of user-defined size in full screen. Support max 4 zones.
Image Information
Channel information, time information and privacy mask zone.
TV Adjust
Adjust TV output zone suitable to anamorphic video.
Channel Lock
Cover secret channel with blue screen though system is encoding normally. Screen-lock function to prevent unauthorized user seeing secret video.
Channel Information
Channel name, recording status, screen lock status, video loss status and motion detection status are shown on the bottom left of display screen.
Color Configuratio n
Hue, brightness, contrast, saturation and gain setup for each channel.
Audio
Audio Input
2-ch 200-2000mv 10KΩ(BNC)
4-ch 200-2000mv 10KΩ(BNC)
4-ch 200­2000mv 10KΩ (BNC)
Audio Output
1-ch audio output 200-3000mv 5KΩ(BNC)
Bidirectional Audio
Reuse the first channel audio input port to realize bidirectional talk function.
Hard disk Hard Disk
1 built-in SATA port. Support 1 HDD.
Hard Disk Occupation
Audio：PCM 28.8MByte/h Video：56-900MByte/h
Record and playback
Recording Mode
Manual recording, motion detection recording, schedule recording and alarm recording Priority: Manual recording> alarm recording>motion detection recording>schedule recording.
Recording Length
1 to 120 minutes single record duration (Default setup is 60 minutes)
Playback Repeat Way
When hard disk is full, system can overwrite previous video file. Record
Search
Various search engines such as time, type and channel.
Playback Mode
Various fast play, slow play speeds, manual frame by frame playback and reverse play mode.
Various File Switch Ways
Can switch to previous or next file or any file in current play list. Can switch to file on other channel of the same time. (If there is a file) Support file continuous play, when file is end system auto plays the next file in the current channel
13
Multi­channel Playback
There are two playback modes: 1­chanel and 4­channel.
There are three playback modes: 1­chanell, 4-channel and 8-channel.
There are four playback modes: 1­chanell, 4-channel, 8­channel and 16­channel.
Window Zoom
Switch between self-adaptive screen/full screen when playback
Partial Enlargemen t
When in one-window full-screen playback mode, you can select any zone to activate partial enlargement function.
Backup function
Backup Mode
HDD backup
Support peripheral USB backup device. (Flash disk, portable disk and etc.)
Support USB burner (extension function).
Support network download and backup
Network Function
Network control
View monitor channel remotely.
DVR configuration through client-end and web browser
Upgrade via client or browser to realize remote maintenance.
View alarm information such as external motion detection and video loss via client.
Support network PTZ lens control
File download backup and playback
Multiple devices share information via corresponding software such as professional surveillance software (PSS)
Network alarm input and output
Bidirectional audio.
Motion Detection and Alarm
Motion Detection
Zone setup: support 396((PAL 22×18, NTSC 22×15)) detection zones. Various sensitivity levels. Alarm can activate record or external alarm or screen message prompt.
Video Loss
Alarm can activate screen message prompt.
External Alarm
N/A
Manual Alarm Control
N/A
Alarm Input
N/A
Alarm Output
N/A Alarm Relay
N/A
Interface
USB Interface
2 USB 2.0 ports.
Network connection
RJ45 10M/100M self-adaptable Ethernet port RS485
PTZ control port Support various PTZ control protocols.
RS232
N/A
System Information
Hard Disk Information
Display HDD current status
Data Stream Statistics
Data stream statistics for each channel (in wave mode) Log statistics
Backup to 1024 log files. Support various search engines such as time and type.
Version
Display version information: channel amount, system version and release date.
On-line user
Display current on-line user
14
User Management
User Manageme nt
Multi-lever user management; various management modes Integrated management for local user, serial port user and network user. Configurable user power.
Support user /group and its corresponding rights modification. No limit to the user or group amount.
Password Authenticati on
Password modification Administrator can modify other user’s password.
Account lock strategy Three times login failure may result in buzzer beeps. Five times login failure in thirty minutes may result in account lock.
Upgrade
USB, ConfigTool.
Login, Logout and Shutdown
Password login protection to guarantee safety
User-friendly interface when login. Provide the following options: Logout /shutdown/ restart and etc.
Right authentication when shut down to make sure only those proper people can turn off DVR
General Parameter
Power
DC +12V / 2A
Power Consumptio n
12W (Exclude HDD)
Working Temperatur e
0℃－＋55℃ Working Humidity
10%－90%
Air Pressure
86kpa－106kpa
Dimension (W*D*H)
325 x242 x55mm Weight
1.25KG(Exclude HDD)
Installation Mode
Desktop installation
15
2 Overview and Controls
This section provides information about front panel and rear panel. When you install this series DVR for the first time, please refer to this part first.
2.1 Front Panel
The front panel is shown as in Figure 2-1.
Figure 2-1
Please refer to the following sheet for detailed information.
Icon
Name
Function
Network status indication light
The red light becomes on when the network connection is not proper.
Power status indication light
The red light is on when the power connection is proper.
HDD status indication light
The red light is on when the HDD malfunction occurred.
2.2 Rear Panel
The 4-channel series product rear panel is shown as in Figure 2-2.
Figure 2-2
The 8-channel series product rear panel is shown as in Figure 2-3.
Figure 2-3
16
The 16-channel series product rear panel is shown as in Figure 2-4.
Figure 2-4
Please refer to the following sheet for detailed information.
1
Video input
2
Audio input
3
Video CVBS output
4
Audio output
5
Video VGA output
6
USB port
7
Network port
8
RS485 port
9
Power input port
10
Power button
11
GND
When connect the Ethernet port, please use crossover cable to connect the PC and use the straight cable to connect to the switcher or router.
2.3 Connection Sample
The connection sample is shown as below. See Figure 2-5. The following figure is based on the 4-channel series product.
17
Figure 2-5
2.4 Remote Control
The remote control interface is shown as in Figure 2-6. Please note remote control is not our standard accessory and it is not included in the accessory bag.
18
Figure 2-6
Serial Number
Name
Function
1
Power button
Click it to boot up or shut down the device.
2
Address
Click it to input device number, so that you can control it.
3
Forward
Various forward speeds and normal speed playback.
4
Slow play
Multiple slow play speeds or normal playback.
5
Next record
In playback mode, playback the next video.
6
Previous record
In playback mode, playback the previous video.
7
Play/Pause
In pause mode, click this button to realize normal playback.
In normal playback click this button to pause playback.
In real-time monitor mode, click this button to enter video search menu.
8
Reverse/pause
Reverse playback pause mode, click this button to realize normal playback.
In reverse playback click this button to pause playback.
19
9
Cancel
Go back to previous menu or cancel current operation (close upper interface or control)
10
Record
Start or stop record manually In record interface, working with the direction buttons to select the record channel.
11
Direction keys
Switch current activated control, go to left or right. In playback mode, it is to control the playback process bar. Aux function(such as switch the PTZ menu)
12
Confirm /menu key
go to default button go to the menu
13
Multiple-window switch
Switch between multiple-window and one-window.
14
Auxiliary key
In 1-ch monitor mode: pop up assistant function：PTZ control and Video color.
Switch the PTZ control menu in PTZ control interface.
In motion detection interface, working with direction keys to complete setup.
15
0-9 number key
Input password, channel or switch channel.
Shift is the button to switch the input method.
2.5 Mouse Control
Left click mouse
System pops up password input dialogue box if you have not logged in. In real-time monitor mode, you can go to the main menu.
When you have selected one menu item, left click mouse to view menu content.
Implement the control operation.
Modify checkbox or motion detection status.
Click combo box to pop up drop down list
20
In input box, you can select input methods. Left click the corresponding button on the panel you can input numeral/English character
(small/capitalized). Here ← stands for backspace button. ＿ stands for space button.
In English input mode: _stands for input a backspace icon and ← stands for deleting the previous character.
In numeral input mode: _ stands for clear and ← stands for deleting the previous numeral.
When input special sign, you can click corresponding numeral in the front panel to input. For example, click numeral 1 you can input“/” , or you can click the numeral in the on-screen keyboard directly.
Double left click mouse
Implement special control operation such as double click one item in the file list to playback the video.
In multiple-window mode, double left click one channel to view in full-window. Double left click current video again to go back to previous multiple-window mode.
Right click mouse
In real-time monitor mode, pops up shortcut menu: one-window, four-window, Pan/Tilt/Zoom, color setting, search, record, main menu. Among which, Pan/Tilt/Zoom and color setting applies for current selected channel. If you are in multiple-window mode, system automatically switches to the corresponding channel.
Exit current menu without saving the modification.
Press middle button
In numeral input box: Increase or decrease numeral value.
Switch the items in the check box.
Page up or page down
Move mouse
Select current control or move control
Drag mouse Select motion detection zone
Select privacy mask zone.
2.6 Virtual Keyboard & Front Panel
21
2.6.1 Virtual Keyboard
The system supports two input methods: numeral input and English character (small and capitalized) input. Move the cursor to the text column, the text is shown as blue, input button pops up on the right. Click that button to switch between numeral input and English input (capitalized and small), Use > or < to shift between small character and capitalized character.
2.6.2 Front Panel
Move the cursor to the text column. Click Fn key and use direction keys to select number you wanted. Please click enter button to input.
22
3 Installation and Connections
Note: All the installation and operations here should conform to your local electric safety rules.
3.1 Check Unpacked DVR
When you receive the DVR from the forwarding agent, please check whether there is any visible damage. The protective materials used for the package of the DVR can protect most accidental clashes during transportation. Then you can open the box to check the accessories. Please check the items in accordance with the list on the warranty card (Remote control is optional). Finally you can remove the protective film of the DVR.
Note
Remote control is not a standard accessory and it is not included in the accessory bag.
3.2 About Front Panel and Real Panel
For detailed information of the function keys in the front panel and the ports in the rear panel, please refer to the appendix for detailed information. The model in the front panel is very important; please check according to your purchase order. The label in the rear panel is very important too. Usually we need you to represent the serial number when we provide the service after sales.
3.3 HDD Installation
This series DVR has only one SATA HDD. Please use HDD of 7200rpm or higher. You can refer to the Appendix for recommended HDD brand. Please follow the instructions listed below to install hard disk.
1. Loosen the screws of the
upper cover and side panel.
2. Fix four screws in the HDD
(Turn just three rounds).
3. Place the HDD in accordance with the four holes in the bottom.
4. Turn the device upside down and then turn the screws in firmly.
5. Fix the HDD firmly.
6. Connect the HDD cable and power cable.
23
Note:
You can connect the HDD data cable and the power cable first and then fix the HDD in the
device.
Please pay attention to the front cover. It adopts the vertical sliding design. You need to
push the clip first and then put down.
3.4 Connecting Power Supply
Please check input voltage and device power button match or not. We recommend you use UPS to guarantee steady operation, DVR life span, and other peripheral equipments operation such as cameras.
3.5 Connecting Video Input and Output Devices
Please note the following figure is based on the general series product.
3.5.1 Connecting Video Input
The video input interface is BNC. The input video format includes: PAL/NTSC BNC（1.0VB
P- P
，
B75Ω. See Figure 3-1.
The video signal should comply with your national standards. The input video signal shall have high SNR, low distortion; low interference, natural color and suitable lightness.
Guarantee the stability and reliability of the camera signal:
The camera shall be installed in a cool, dry place away from direct sunlight, inflammable, explosive substances and etc. The camera and the DVR should have the same grounding to ensure the normal operation of the camera.
Guarantee stability and reliability of the transmission lineBTTTB
Please use high quality, sound shielded BNC. Please select suitable BNC model according to the transmission distance. If the distance is too long, you should use twisted pair cable, and you can add video compensation devices or use optical fiber to ensure video quality. You should keep the video signal away from the strong electromagnetic interference, especially the high tension current.
Keep connection lugs in well contactBTTTB
The signal line and shielded wire should be fixed firmly and in well connection. Avoid dry joint, lap welding and oxidation.BTTTB
7. Put the cover in accordance with the clip and then place the upper cover back.
8. Secure the screws in the rear panel and the side panel.
24
Figure 3-1
3.5.2 Connecting Video Output
Video output includes a TBNC(PAL/NTSC BNC（1.0VP- P， 75Ω）output ,and a VGA output. See Figure 3-2. When you are using pc-type monitor to replace the monitor, please pay attention to the following points:
To defer aging, do not allow the pc monitor to run for a long time. Regular demagnetization will keep device maintain proper status. Keep it away from strong electromagnetic interference devices.
Using TV as video output device is not a reliable substitution method. You also need to reduce the working hour and control the interference from power supply and other devices. The low quality TV may result in device damage.
Figure 3-2
3.6 Connecting Audio Input & Output, Bidirectional Audio
3.6.1 Audio Input
These series products adopt BNC port. Due to high impedance of audio input, please use active sound pick-up. See Figure 3-3.
25
Audio transmission is similar to video transmission. Try to avoid interference, dry joint, loose contact and it shall be away from high tension current.
Figure 3-3
3.6.2 Audio Output
The audio output signal parameter is usually over 200mv 1KΩ (BNC). It can directly connect to low impedance earphone, active sound box or amplifier-drive audio output device. If the sound box and the pick-up cannot be separated spatially, it is easy to arouse squeaking. In this case you can adopt the following measures:
Use better sound pick-up with better directing property. Reduce the volume of the sound box. Using more sound-absorbing materials in decoration can reduce voice echo and improve
acoustics environment.
Adjust the layout to reduce happening of the squeaking. Please refer to Figure 3-4.
Figure 3-4
26
3.7 RS485
When the DVR receives a camera control command, it transmits that command up the coaxial cable to the PTZ device. RS485 is a single-direction protocol; the PTZ device can’t return any data to the unit. To enable the operation, connect the PTZ device to the RS485 (A,B) input on the DVR. See Figure 3-5. Since RS485 is disabled by default for each camera, you must enable the PTZ settings first. This series DVRs support multiple protocols such as Pelco-D, Pelco-P. To connect PTZ devices to the DVR:
1. Connect RS485 A,B on the DVR rear panel.
2. Connect the other end of the cable to the proper pins in the connector on the camera.
3. Please follow the instructions to configure a camera to enable each PTZ device on the DVR.
Figure 3-5
3.8 Other Interfaces
There are still other interfaces on the DVR, such as USB ports. See Figure 3-6.
Figure 3-6
27
4 Overview of Navigation and Controls
Important
Slight difference may be found in the interface. All the interfaces listed below are based on
the 4-channel series product.
Before operation, please make sure:
You have properly installed HDD and connect all the cable connections. The provided input power and the device power are matched. The external power shall be DC +12V. Always use the stable current, if necessary UPS is a best alternative measure.
4.1 Login, Logout & Main Menu
4.1.1 Login
After system booted up, default video display is in multiple-window mode. Click Enter or left click mouse, you can see the login interface. See Figure 4-1. System consists of four accounts:
Username: admin. Password: admin. (administrator, local and network) Username: 888888. Password: 888888. (administrator, local only) Username: 666666. Passwords: 666666(Lower authority user who can only monitor, playback,
backup and etc.) Username: default. Password: default(hidden user) You can use USB mouse, front panel, remote control or keyboard to input. About input method:
Click to switch between numeral, English character (small/capitalized) and denotation.
Note: For security reason, please modify password after you first login.
Within 30 minutes, three times login failure will result in system alarm and five times login failure will result in account lock!
Figure 4-1
4.1.2 Main Menu
After you logged in, the system main menu is shown as below. See Figure 4-2. There are total six icons: search, information, setting, backup, advanced and shutdown. You can move the cursor to highlight the icon, and then double click mouse to enter the sub­menu.
28
Figure 4-2
4.1.3 Logout
There are two ways for you to log out. One is from menu option:
In the main menu, click shutdown button, you can see an interface is shown as below. See
Figure 4-3. There are several options for you.
Figure 4-3
4.1.4 Auto Resume after Power Failure
The system can automatically backup video and resume previous working status after power failure.
4.1.5 Replace Button Battery
Please make sure to use the same battery model if possible. We recommend replace battery regularly (such as one-year) to guarantee system time accuracy.
Note:
Before replacement, please save the system setup, otherwise, you may lose the data completely!
4.1.6 Preview Zoom Function
29
Move your mouse to the left top corner of the preview interface; you can see the preview zoom button. See Figure 4-4. Left click the icon; you can see a hook icon. Now you have enabled the preview zoom function. You can drag the mouse to zoom in the image.
Figure 4-4
4.2 Record
4.2.1 Live Viewing
After you logged in, the system is in live viewing mode. You can see system date, time and channel name. If you want to change system date and time, you can refer to general settings (Main Menu->Setting->General). If you want to modify the channel name, please refer to the display settings (Main Menu->Setting->Display)
4.2.2 Record Note:
You need to have proper rights to implement the following operations. Please make sure the HDD has been properly installed.
4.2.2.1 Record menu
There are two ways for you to go to Record menu.
Right click mouse or in the main menu, Advanced->Manual Record. In live viewing mode, click record button in the front panel or record button in the remote
control. Record menu is shown as in Figure 4-5.
4.2.2.2 Basic operation
There are three statuses: schedule/manual/stop. Please highlight icon“○” to select corresponding channel. Manual: The highest priority. After manual setup, all selected channels will begin ordinary
recording. Schedule: Channel records as you have set in recording setup (Main Menu->Setting-
>Schedule) Stop: All channels stop recording.
1
Recording status
3
Video loss
2
Motion detection
4
Camera lock
Preview
zoom button
30
Figure 4-5
4.2.2.3 Enable/disable record
Please check current channel status: “○” means it is not in recording status, “●” means it is in
recording status.
You can use mouse or direction key to highlight channel number. See Figure 4-6.
Figure 4-6
4.2.2.4 Enable all channel recording
Highlight ○ below All, you can enable all channel recording. All channel schedule record Please highlight “ALL” after “Schedule”. See Figure 4-7. When system is in schedule recording, all channels will record as you have previously set (Main menu->Setting->Schedule). The corresponding indication light in front panel will turn on.
Figure 4-7
All channel manual record
31
Please highlight “ALL” after “Manual.” See Figure 4-8. When system is in manual recording, all scheduled set up you have set in will be null ((Main menu->Setting->Schedule)). You can see indication light in front panel turns on, system begins manual record now.
Figure 4-8
4.2.2.5 Stop all channel recording
Please highlight “ALL” after “Stop”. See Figure 4-9. System stops all channel recording no matter what mode you have set in the menu (Main menu->Setting->Schedule)
Figure 4-9
4.3 Search & Playback
4.3.1 Search Menu
Click search button in the main menu, search interface is shown as below. See Figure 4-10. Usually there are three file types:
R: Regular recording file. A: External alarm recording file. M: Motion detection recording file
32
Figure 4-10
Please refer to the following sheet for more information.
SN
Name
Function
1
Display window
Here is to display the searched picture.Support 1/4/8/16-window playback.
2
Calendar
The blue highlighted date means there is picture or file. Otherwise, there is no
picture or file.
In any play mode, click the date you want to see, you can see the corresponding
record file trace in the time bar.
3
Playback mode and channel selection pane.
Playback mode：1/4/8/16. (It may vary due to different series.) In 1-window playback mode: you can select 1-16 channels. In 4-window playback mode: you can select 4 channels according to your
requirement.
In 9-window playback mode, you can switch between 1-9 and 10-16 channels. In 16-window playback mode, you can switch between1-16 and 17-32
channels. The time bar will change once you modify the playback mode or the channel option.
4
File list switch button
Double click it; you can view the picture/record file list of current day.The file list is to display the first channel of the record file.The system can display max 128 files in one time. Use the /or the mouse to
view the file. Select one item, and then double click the mouse or click the ENTER button to playback.
You can input the period in the following interface to begin accurate search.File type： R—regular record； A—external alarm record； M—Motion detect
record.
123
4
5
6 7
8
9
10
33
5
Clip
It is to edit the file.
●Please play the file you want to edit and then click this button when you want to edit. You can see the corresponding slide bar in the time bar of the corresponding channel. You can adjust the slide bar or input the accurate time to set the file end time. Click this button again and then save current contents in a new file.
6
Backup
Select the file(s) you want to backup from the file list. System max supports files from four channels. Then click the backup button, now you can see the backup menu. Click the start button to begin the backup operation. Check the file again you can cancel current selection. System max supports to display 32 files from one channel.
7
Playback control pane.
►/
Play/Pause There are three ways for you to begin playback.
The play button Double click the valid period of the time bar. Double click the item in the file list.
In slow play mode, click it to switch between play/pause.
■
Stop
Backward play In normal play mode, left click the button, the file begins backward play. Click it again to pause current play. In backward play mode, click ►/to restore normal play.
│/│
In playback mode, click it to play the next or the previous section. You can click continuously when you are watching the files from the same channel. In normal play mode, when you pause current play, you can click │ and │ to begin frame by frame playback. In frame by frame playback mode, click ►/to restore normal playback.
►
Slow play In playback mode, click it to realize various slow play modes such as slow play 1, slow play 2, and etc.
Fast forward In playback mode, click to realize various fast play modes such as fast play 1,fast play 2 and etc.
Note: The actual play speed has relationship with the software version.
Smart search. Please note current series product does not support this funciton.
The volume of the playback
8
Time bar
It is to display the record type and its period in current search criteria.
In 4-window playback mode, there are corresponding four time bars. In other
playback mode, there is only one time bar.
Use the mouse to click one point of the color zone in the time bar, system begins
playback. The time bar is beginning with 0 o'clock when you are setting the configuration. The time bar zooms in the period of the current playback time when you are playing the file.
The green color stands for the regular record file. The red color stands for the
external alarm record file. The yellow stands for the motion detect record file.
9
Time bar unit
●The option includes: 24H, 12H, 1H and 30M. The smaller the unit, the larger the zoom rate. You can accurately set the time in the time bar to playback the record.
The time bar is beginning with 0 o'clock when you are setting the configuration. The time bar zooms in the period of the current playback time when you are playing the file.
10
Record type
In any play mode, the time bar will change once you modify the search type.
34
Other Functions
14
Other channel synchronization switch to play when playback
When playing the file, click the number button, system can switch to the same period of the corresponding channel to play.
15
Digital zoom
When the system is in full-screen playback mode, left click the mouse in the screen. Drag your mouse in the screen to select a section and then left click mouse to realize digital zoom. You can right click mouse to exit.
Note:
All the operations here (such as playback speed, channel, time and progress) have relationship with hardware version. Some series DVRs do not support some functions or playback speeds.
4.4 Schedule
After system booted up, it is in default 24-hour regular mode. You can set record type and time in schedule interface.
4.4.1 Schedule Menu
In the main menu, from setting to schedule, you can go to schedule menu. See Figure 4-11. Channel: Please select the channel number first. You can select “all” if you want to set for the whole channels.
Week day: There are eight options: ranges from Saturday to Sunday and all. Pre-record: System can pre-record the video before the event occurs into the file. The value
ranges from 1 to 30 seconds depending on the bit stream.
Snapshot: You can enable this function to snapshoot image when alarm occurs. Redundancy: The redundancy backup function allows you backup recorded file in two disks.
You can highlight Redundancy button to activate this function. Please note, before enable this function, please set at least one HDD as redundant. (Main menu->Advanced->HDD Management). Please note current series product does not support this function since there is only one HDD.
Record types: There are four types: regular, motion detection (MD), Alarm, MD & alarm.
Please highlight icon to select the corresponding function. After completing all the setups please click save button, system goes back to the previous menu. At the bottom of the menu, there are color bars for your reference. Green color stands for regular recording, yellow color stands for motion detection and red color stands for alarm recording. The white means the MD and alarm record is valid. Once you have set to record when the MD and alarm occurs, system will not record neither motion detect occurs nor the alarm occurs.
35
Figure 4-11
4.4.1.1 Quick Setup
This function allows you to copy one channel setup to another. After setting in channel 1, you can click paste button and turn to channel 2 and then click copy button. You can finish setting for one channel and then click save button or you can finish all setup and then click save button to memorize all the settings.
4.4.2 Snapshot
4.4.2.1 Schedule Snapshot
In Encode interface, click snapshot button to input snapshot mode, size, quality and frequency. In General interface please input upload interval. In Schedule interface, please enable snapshot function. Please refer to the following figure for detailed information. See Figure 4-12.
36
Figure 4-12
4.4.2.2 Activation Snapshot
Please follow the steps listed below to enable the activation snapshot function. After you enabled this function, system can snapshot when the corresponding alarm occurred. In Encode interface, click snapshot button to input snapshot mode, size, quality and
frequency.
In General interface please input upload interval.
In Detect interface please enable snapshot function for specified channels.
Please refer to the following figure for detailed information. See Figure 4-13.
Figure 4-13
4.4.2.3 Priority
Please note the activation snapshot has the higher priority than schedule snapshot. If you have enabled these two types at the same time, system can activate the activation snapshot when alarm occurs, and otherwise system just operates the schedule snapshot.
4.4.3 Image FTP
37
In Network interface, you can set FTP server information. Please enable FTP function and then click save button. See Figure 4-14. Please boot up corresponding FTP server. Please enable schedule snapshot (Chapter 4.4.2.1) or activation snapshot (Chapter 4.4.2.2) first, now system can upload the image file to the FTP server.
Figure 4-14
4.5 Detect
4.5.1 Go to Detect Menu
In the main menu, from Setting to Detect, you can see motion detect interface. See Figure 4-15. There are three detection types: motion detection, video loss, camera masking.
4.5.2 Motion Detect
Detection menu is shown as below. See Figure 4-15.
Event type: from the dropdown list you can select motion detection type. Channel: select the channel to activate recording function once alarm occurred. Please make
sure you have set MD record in encode interface(Main Menu->Setting->Schedule) and schedule record in Record interface(Main Menu->Advanced->Record)
Delay: when motion detection complete, system auto delays record for a specified time. The
value ranges from 10-300(Unit: second)
Region: Click select button, the interface is shown as in Figure 4-16. Here you can set
motion detection zone. There are 396(PAL)/330(NTSC) small zones. The green zone is current cursor position. Grey zone is the motion detection zone. Black zone is the disarmed zone. You can click Fn button to switch between the arm mode and disarm mode. In arm mode, you can click the direction buttons to move the green rectangle to set the motion detection zone. After you completed the setup, please click ENTER button to exit current setup. Do remember click save button to save current setup. If you click ESC button to exit the region setup interface system will not save your zone setup.
Sensitivity: System supports 6 levels. The sixth level has the highest sensitivity. Show message: System can pop up a message to alarm you in the local host screen if you
enabled this function.
Alarm upload: System can upload the alarm signal to the network (including alarm centre)
if you enabled current function.
Please input the corresponding information here, if you just upload the image FTP.
38
Send email: System can send out email to alert you when alarm occurs. PTZ activation: Here you can set PTZ movement when alarm occurs. Such as go to preset,
tour &pattern when there is an alarm. Click “select” button, you can see an interface is shown as in Figure 4-17.
Period: Click set button, you can see an interface is shown as in Figure 4-18X. Here you can
set for business day and non-business day. In Figure 4-18 X307H307H307HX, click set button, you can see an interface is shown as in Figure 4-19. Here you can set your own setup for business day and non-business day.
Anti-dither: Here you can set anti-dither time. Alarm output: when alarm occurred, system enables peripheral alarm devices. Tour: Here you can enable tour function when alarm occurs. It is a one-window tour. Please
go to chapter 5.3.9 Display for tour interval setup.
Snapshot: You can enable this function to snapshoot image when alarm occurs.
Buzzer: Highlight icon to enable this function. The buzzer beeps when alarm occurs.
Please highlight icon to select the corresponding function. After all the setups please click save button, system goes back to the previous menu.
Note:
In motion detection mode, you can not use copy/paste to set channel setup since the video in each channel may not be the same. In Figure 4-16, you can left click mouse and then drag it to set a region for motion detection. Click Fn to switch between arm/withdraw motion detection. After setting, click enter button to exit.
Figure 4-15
Figure 4-16
39
Figure 4-17
Figure 4-18
Figure 4-19
4.5.3 Video Loss
In Figure 4-15, select video loss from the type list. You can see the interface is shown as in
X311H311H311HFigure 4-20. This function allows you to be informed when video loss phenomenon
occurred. You can enable show message function.
Tips:
You can enable preset/tour/pattern activation operation when video loss occurs. Please refer to chapter 4.5.2 motion detection for detailed information.
40
Figure 4-20
4.5.4 Camera Masking
When someone viciously masks the lens, or the output video is in one-color due to the environments light change, the system can alert you to guarantee video continuity. Camera masking interface is shown as in Figure 4-21. Here you can enable alarm output or show message in the screen.
Tips:
You can enable preset/tour/pattern activation operation when video loss occurs. Please refer to chapter 4.5.2 motion detection for detailed information.
Note:
In Detect interface, copy/paste function is only valid for the same type, which means you can not copy a channel setup in video loss mode to camera masking mode.
Figure 4-21
4.6 Backup
41
DVR support USB device backup and network download. Here we introduce USB backup first. You can refer to Chapter 7 Web Operation for network download backup operation.
4.7.1 Detect Device
Click backup button, you can see an interface is shown as in Figure 4-22.Here is for you to view devices information. You can view backup device name and its total space and free space. The device includes USB burner, flash disk, SD card and portable HDD.
Figure 4-22
4.6.1 Backup
Select backup device and then set channel, file start time and end time. Click add button, system begins search. All matched files are listed below. System automatically calculates the capacity needed and remained. See Figure 4-23. system only backup files with a √ before channel name. You can use Fn or cancel button to delete √ after file serial number. Click backup button, you can backup selected files. There is a process bar for you reference. When the system completes backup, you can see a dialogue box prompting successful backup.
Figure 4-23
42
Click backup button, system begins burning. At the same time, the backup button becomes stop button. You can view the remaining time and process bar at the left bottom. See Figure 4-24.
Figure 4-24
The file name format usually is: SN_CH+channel number+time Y+M+D+H+M+S. In the file name, the YDM format is the same as you set in general interface. (Main Menu ->Setting ­>General).File extension name is .dav. You can visit our website to view listed CD-ROM brand.
Tips:
During backup process, you can click ESC to exit current interface for other operation. The system will not terminate backup process.
Note:
When you click stop button during the burning process, the stop function becomes activated immediately. For example, if there are ten files, when you click stop system just backup five files, system only save the previous 5 files in the device (But you can view ten file names).
4.7 PTZ Control and Color Setup
Note: All the operations here are based on PELCOD protocol. For other protocols, there might be a little difference.
4.8.1 Cable Connection
Please follow the procedures below to go on cable connection
Connect the dome RS485 port to DVR 485 port. Connect dome video output cable to DVR video input port. Connect power adapter to the dome.
4.8.2 PTZ Setup
Note: The camera video should be in the current screen. Before setup, please check the
following connections are right:
PTZ and decoder connection is right. Decoder address setup is right. Decoder A (B) line connects with DVR A (B) line.
Boot up the DVR, input user name and password.
43
In the main menu, click setting, and then click Pan/Tilt Control button. The interface is shown as in Figure 4-25. Here you can set the following items:
Channel: select the current camera channel. Protocol: select corresponding PTZ protocol(such as PELCOD) Address: default address is 1. Baud rate: select corresponding baud rate. Default value is 9600. Data bits: select corresponding data bits. Default value is 8. Stop bits: select corresponding stop bits. Default value is 1. Parity: there are three options: odd/even/none. Default setup is none.
Figure 4-25
After completing all the setting please click save button.
In one window display mode, right click mouse (click “Fn” Button in the front panel or click “Fn” key in the remote control).
Click Pan/Tilt/Zoom, the interface is shown as below. See Figure 4-26. Here you can set the following items:
Step: value ranges fro 1 to 8. Zoom Focus Iris
Please click icon and to adjust zoom, focus and iris.
Figure 4-26
44
In Figure 4-26, please click direction arrows (See Figure 4-27) to adjust PTZ position. There are total 8 direction arrows.
Figure 4-27
4.8.3 3D Intelligent Positioning Key
In the middle of the eight direction arrows, there is a 3D intelligent positioning key. See Figure 4-28. Please make sure your protocol supports this function and you need to use mouse to control. Click this key, system goes back to the single screen mode. Drag the mouse in the screen to adjust section size. The dragged zone supports 4X to 16X speeds. It can realize PTZ automatically. The smaller zone you dragged, the higher the speed.
Figure 4-28
Here is a sheet for you reference.
Name
Function key
function
Shortcut key
Function
key
function
Shortcut
Key
Zoom
Near
Far
Focus
Near
│
Far
►│
Iris
close
Open
4.8 Preset/ Patrol/Pattern/Scan
In X328H328H328HFigure 4-26, please click the “set” button. The interface is shown as below. See Figure 4-29. Here you can set the following items:
Preset Tour Pattern Border
Figure 4-29
45
In X328H328H328HFigure 4-26, click page switch button, the interface is shown as in Figure 4-30. Here you can activate the following functions:
Preset Tour Pattern Auto scan Auto pan Flip Reset Page switch
Figure 4-30
Note:
Preset, tour and pattern all need the value to be the control parameter. You can define it as
you require.
You need to refer to your speed dome user’s manual for Aux definition. In some cases, it
can be used for special process.
The following setups are usually operated in theX328H328H328HFigure 4-26, Figure 4-29 and Figure 4-30.
4.9.1Preset Setup
In Figure 4-26, please use eight direction arrows to adjust camera to the proper position. In Figure 4-29X, click preset button and input preset number. The interface is shown as in Figure 4-31 Now you can add this preset to one tour.
Figure 4-31
4.9.2 Activate Preset
46
In Figure 4-30, please input preset number in the No. blank, and click preset button.
4.9.3 Patrol setup (Tour Setup)
In X339H339H339HFigure 4-29, please click patrol button. The interface is shown as in Figure 4-32.Input preset number and add this preset to a patrol (tour). For each patrol (tour), you can input max 80 presets.
Figure 4-32
4.9.4 Activate Patrol (tour)
In Figure 4-32, input patrol (tour) number in the No. blank and click patrol button
4.9.5 Pattern Setup
In Figure 4-31 click pattern button and then click “begin” button. The interface is shown as in Figure 4-33. Then you can go to Figure 4-26 to modify zoom, focus, and iris. Go back to Figure 4-33 and click “end” button. You can memorize all these operations as pattern
1.
Figure 4-33
4.9.6 Activate Pattern Function
In Figure 4-30, input mode value in the No. blank, and click pattern button.
4.9.7 Auto Scan Setup
In Figure 4-29, click border button. The interface is shown as in Figure 4-34. Please go to Figure 4-26, use direction arrows to select camera left limit Then please go to Figure 4-34 and click left limit button
47
Repeat the above procedures to set right limit.
Figure 4-34
4.9.8 Activate Auto Scan
In Figure 4-30, click “Auto Scan” button, the system begins auto scan. Correspondingly, the auto scan button becomes Stop button. Click stop button to terminate scan operation.
4.9 Flip
In Figure 4-30, click page switch button, you can see an interface is shown as below. See Figure 4-35. Here you can set auxiliary function. The aux value has relation ship with the Aux button of the decoder. Click page switch button again, system goes back to Figure 4-26.
Figure 4-35
48
5 Understanding of Menu Operations and Controls
5.1 Menu Tree
This series DVR menu tree is shown as below.

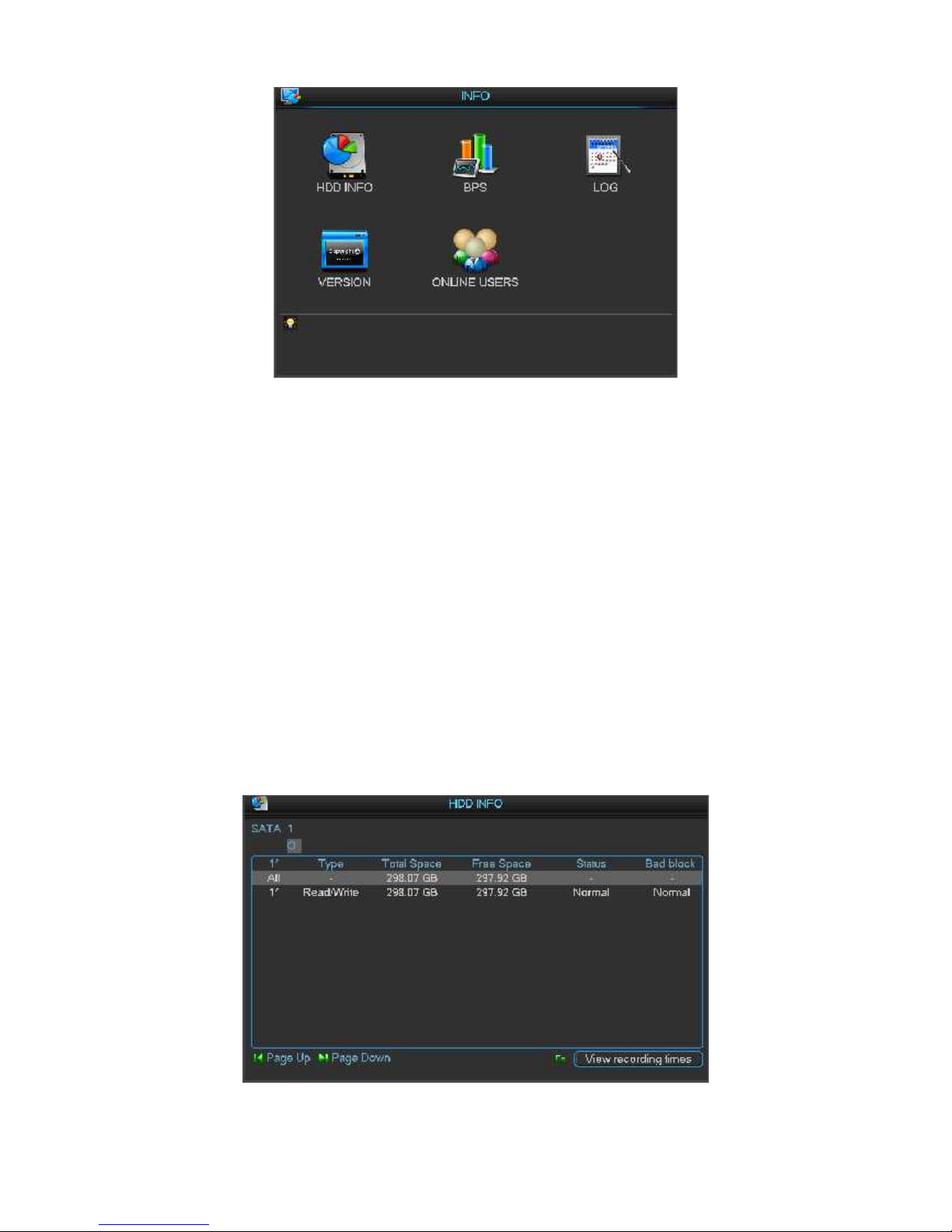

Backup
Information
HDD Info BPS Log Version Online Users
Setting
General Encode
Schedule
Menu Network
Detect PTZ Display
Default Search Advanced
HDD Management
Abnormity Record Account Auto Maintain TV Adjust
Shutdown
5.2 Main Menu
After you logged in, the system main menu is shown as below. See Figure 5-1. There are total six icons: search, Information, setting, backup, advanced and shutdown. Move the cursor to highlight the icon, then double click mouse to enter the sub-menu.
49
Figure 5-1
5.3 Setting
In main menu, highlight setting icon and double click mouse. System setting interface is shown as below. See Figure 5-2.
Figure 5-2
5.3.1 General
General setting includes the following items. See Figure 5-3.
System time: Here is for you to set system time Date format: There are three types: YYYYY-MM-DD: MM-DD-YYYYY or DD-MM-YYYY. Date separator: There are three denotations to separate date: dot, beeline and solidus. DST: Here you can set DST time and date. Please enable DST function and then click set
button. You can see an interface is shown as in Figure 5-4. Here you can set start time and end time by setting corresponding week setup. In X359H359H359HFigure 5-4X, enable date button, you can see an interface is shown as in Figure 5-5. Here you can set start time and end time by setting corresponding date setup.
Time format: There are two types: 24-hour mode or 12-hour mode. Language: System supports various languages: Chinese (simplified), Chinese (Traditional),
English, Italian, Japanese, French, Spanish (All languages listed here are optional. Slight difference maybe found in various series.)
50
HDD full: Here is for you to select working mode when hard disk is full. There are two options:
stop recording or rewrite. If current working HDD is overwritten or the current HDD is full while the next HDD is no empty, then system stops recording, If the current HDD is full and then next HDD is not empty, then system overwrites the previous files.
Pack duration: Here is for you to specify record duration. The value ranges from 1 to 120
minutes. Default value is 60 minutes.
DVR No: When you are using one remote control (not included in the accessory bag) to
control several DVRs, you can give a name to each DVR for your management.
Video standard: There are two formats: NTSC and PAL. Auto logout: Here is for you to set auto logout interval once login user remains inactive for a
specified time. Value ranges from 0 to 60 minutes.
Note:
Since system time is very important, do not modify time casually unless there is a must! Before your time modification, please stop record operation first! After completing all the setups please click save button, system goes back to the previous menu.
Figure 5-3
Figure 5-4
Figure 5-5
51
5.3.2 Encode
Encode setting includes the following items. See Figure 5-6. Please note some series do not support extra stream.
Channel: Select the channel you want. Compression: System supports H.264. Resolution: System supports various resolutions, you can select from the dropdown list. For
this model, main stream supports D1/CIF/QCIF. Please note the resolution may vary due to different channels. The extra stream supports CIF/QCIF.
Frame rate: It ranges from 1f/s to 25f/s in PAL mode and 1f/s to 30f/s in NTSC mode.
Note:
Main stream: D1 (1~6/7fps)/CIF (1~25/30fps)/QCIF (1~25/30fps) Extra stream: CIF 352×288/ 352×240(1-6/7 fps), QCIF 176×144/176×120. Bit rate type: System supports two types: CBR and VBR. In VBR mode, you can set video
quality.
Quality: There are six levels ranging from 1 to 6. The sixth level has the highest image
quality.
Video/audio: You can enable or disable the video/audio. Overlay: Click overlay button, you can see an interface is shown in Figure 5-7. Cover area (Privacy mask): Here is for you to set privacy mask section. You can drag you
mouse to set proper section size. In one channel video, system max supports 4 zones.
Preview/monitor: privacy mask has two types. Preview and Monitor. Preview means the
privacy mask zone can not be viewed by user when system is in preview status. Monitor means the privacy mask zone can not be view by the user when system is in monitor status.
Time display: You can select system displays time or not when you playback. Please click
set button and then drag the title to the corresponding position in the screen.
Channel display: You can select system displays channel number or not when you playback.
Please click set button and then drag the title to the corresponding position in the screen.
Please highlight icon to select the corresponding function.
Figure 5-6
52
Figure 5-7
5.3.3 Schedule
Please refer to chapter 4.4 schedule.
5.3.4 Network
Here is for you to input network information. See Figure 5-8.
IP address: Here you can input IP address. DHCP: It is to auto search IP. When enable DHCP function, you can not modify IP/Subnet
mask /Gateway. These values are from DHCP function. If you have not enabled DHCP function, IP/Subnet mask/Gateway display as zero. You need to disable DHCP function to view current IP information. Besides, when PPPoE is operating, you can not modify IP/Subnet mask /Gateway.
TCP port: Default value is 37777. UDP port: Default value is 37778. HTTP port: Default value is 80. Max connection: system support maximal 20 users. 0 means there is no connection limit. Preferred DNS: DNS IP address. Alternative DNS: DNS alternative IP address. Transfer mode: Here you can select the priority between fluency/video qualities. LAN download: System can process the downloaded data first if you enable this function.
The download speed is 1.5X or 2.0X of the normal speed.
After completing all the setups please click save button, system goes back to the previous menu.
53
Figure 5-8
5.3.4.1 Advanced Setup
Advanced setup interface is shown as in Figure 5-9. Please draw a circle to enable corresponding function and then double click current item to go to setup interface.
Figure 5-9
5.3.4.2 IP Filter
IP filter interface is shown as in Figure 5-10. You can add IP in the following list. The list supports max 64 IP addresses. Please note after you enabled this function, only the IP listed below can access current DVR. If you disable this function, all IP addresses can access current DVR.
54
Figure 5-10
5.3.4.3 Multiple Cast Setup
Multiple-cast setup interface is shown as in Figure 5-11.
Figure 5-11
Here you can set a multiple cast group. Please refer to the following sheet for detailed information. IP multiple cast group address
-224.0.0.0-239.255.255.255
-“D” address space
The higher four-bit of the first byte=”1110”
Reserved local multiple cast group address
-224.0.0.0-224.0.0.255
-TTL=1 When sending out telegraph
-For example
224.0.0.1 All systems in the sub-net
224.0.0.2 All routers in the sub-net
224.0.0.4 DVMRP router
224.0.0.5 OSPF router
224.0.0.13 PIMv2 router Administrative scoped addressees
55
-239.0.0.0-239.255.255.255
-Private address space
Like the single broadcast address of RFC1918 Can not be used in Internet transmission Used for multiple cast broadcast in limited space.
Except the above mentioned addresses of special meaning, you can use other addresses. For example: Multiple cast IP: 235.8.8.36 Multiple cast PORT: 3666. After you logged in the Web, the Web can automatically get multiple cast address and add it to the multiple cast groups. You can enable real-time monitor function to view the view. Please note multiple cast function applies to special series only.
5.3.4.4 PPPoE
PPPoE interface is shown as in Figure 5-12. Input “PPPoE name” and “PPPoE password” you get from your ISP (Internet service provider). Click save button, you need to restart to activate your configuration. After rebooting, DVR will connect to internet automatically. The IP in the PPPoE is the DVR dynamic value. You can access this IP to visit the unit.
Figure 5-12
5.3.4.5 NTP Setup
You need to install SNTP server (Such as Absolute Time Server) in your PC first. In Windows XP OS, you can use command “net start w32time” to boot up NTP service. NTP setup interface is shown as in Figure 5-13.
Host IP: Input your PC address. Port: This series DVR supports TCP transmission only. Port default value is 123. Update interval: minimum value is 1. Max value is 65535. (Unit: minute) Time zone: select your corresponding time zone here.
Here is a sheet for your time zone setup.
City /Region Name
Time Zone
London
GMT+0
Berlin
GMT+1
Cairo
GMT+2
Moscow
GMT+3
New Deli
GMT+5
Bangkok
GMT+7
Beijing (Hong Kong)
GMT+8
Tokyo
GMT+9
Sydney
GMT+10
56
Hawaii
GMT-10
Alaska
GMT-9
Pacific Time(P.T)
GMT-8
American Mountain Time(M.T)
GMT-7
American Central Time(C.T)
GMT-6
American Eastern Time(E.T)
GMT-5
Atlantic Time
GMT-4
Brazil
GMT-3
Middle Atlantic Time
GMT-2
Figure 5-13
5.3.4.6 DDNS Setup
DDNS setup interface is shown as in Figure 5-14. You need a PC of fixed IP in the internet and there is the DDNS software running in this PC. In other words, this PC is a DNS (domain name server). In network DDNS, please select DDNS type and highlight enable item. Them please input your PPPoE name you get from you IPS and server IP (PC with DDNS ) . Click save button and then reboot system. Click save button, system prompts for rebooting to get all setup activated. After rebooting, open IE and input as below: http：//(DDNS server IP)/(virtual directory name)/webtest.htm e.g.: http：//10.6.2.85/DVR _DDNS/webtest.htm.) Now you can open DDNSServer web search page.
Figure 5-14
57
Please note NNDS type includes: CN99 DDNS、NO-IP DDNS、Private DDNS、Dyndns DDNS and sysdns DDNS. All the DDNS can be valid at the same time, you can select as you requirement. Private DDNS function shall work with special DDNS server and special Professional Surveillance Software (PSS).
5.3.4.7 Email
The email interface is shown as below. See Figure 5-15.
SMTP server: Please input your email SMTP server IP here. Port: Please input corresponding port value here. User name: Please input the user name to login the sender email box. Password: Please input the corresponding password here. Sender: Please input sender email box here. Title: Please input email subject here. System support English character and Arabic number.
Max 32-digit.
Receiver: Please input receiver email address here. System max supports 3 email boxes. SSL enable: System supports SSL encryption box. Interval: The send interval ranges from 0 to 3600 seconds. 0 means there is no interval. Health email enable: Please check the box here to enable this function. This function allows
the system to send out the test email to check the connection is OK or not.
Interval: Please check the above box to enable this function and then set the corresponding
interval. System can send out the email regularly as you set here. Click the Test button, you can see the corresponding dialogue box to see the email connection is OK or not. See
Figure 5-16. Please note system will not send out the email immediately when the alarm occurs. When the alarm, motion detection or the abnormity event activates the email, system sends out the email according to the interval you specified here. This function is very useful when there are too many emails activated by the abnormity events, which may result in heavy load for the email server.
Figure 5-15
58
Figure 5-16
5.3.4.8 FTP
You need to download or buy FTP service tool (such as Ser-U FTP SERVER) to establish FTP service. Please install Ser-U FTP SERVER first. From “start” -> “program” -> Serv-U FTP Server -> Serv­U Administator. Now you can set user password and FTP folder. Please note you need to grant write right to FTP upload user. See Figure 5-17.
Figure 5-17
You can use a PC or FTP login tool to test setup is right or not. For example, you can login user ZHY to H140H140H140HTUFTP://10.10.7.7UTH and then test it can modify or delete folder or not. See Figure 5-18.
Figure 5-18
59
System also supports upload multiple DVRs to one FTP server. You can create multiple folders under this FTP. In Figure 5-8, select FTP and then double click mouse. You can see the following interface. See Figure 5-19.
Figure 5-19
Please highlight the icon in front of Enable to activate FTP function. Here you can input FTP server address, port and remote directory. When remote directory is null, system automatically create folders according to the IP, time and channel. User name and password is the account information for you to login the FTP. File length is upload file length. When setup is larger than the actual file length, system will upload the whole file. When setup here is smaller than the actual file length, system only uploads the set length and auto ignore the left section. When interval value is 0, system uploads all corresponding files. After completed channel and weekday setup, you can set two periods for one each channel.
5.3.4.9 UPNP
The UPNP protocol is to establish a mapping relationship between the LAN and the WAN. Please input the router IP address in the LAN in Figure 5-8. Double click the UPNP item in Figure 5-8, you can see the following interface. See Figure 5-20.
UPNP on/off ：Turn on or off the UPNP function of the device. Status: When the UPNP is offline, it shows as “Unknown”. When the UPNP works it shows
“Success”
Router LAN IP: It is the router IP in the LAN. WAN IP: It is the router IP in the WAN. Port Mapping list： The port mapping list here is the one to one relationship with the router’s
port mapping setting.
Enable Switch : ：It shows that the function of port mapping is enabled in this port.
List：
60
Service name：Defined by user.
Protocol： Protocol type
Internal port：Port that has been mapped in the router.
External port：Port that has been mapped locally. Default: UPNP default port setting is the HTTP, TCP and UDP of the DVR.
Add to the list: Click it to add the mapping relationship. Delete: Click it to remove one mapping item.
Double click one item; you can change the corresponding mapping information. See Figure 5-21.
Important: When you are setting the router external port, please use 1024~5000 port. Do not use well­known port 1~255 and the system port 256~1023 to avoid conflict. For the TCP and UDP, please make sure the internal port and external port are the same to guarantee the proper data transmission.
Figure 5-20
Figure 5-21
5.3.4.10 Alarm Centre
61
This interface is reserved for you to develop.
5.3.5 Detect
Please refer to chapter 4.5 Detect.
5.3.6 Pan/Tilt/Zoom
The pan/tilt/zoom setup includes the following items. Please select channel first. See Figure 5-22.
Protocol: Select corresponding PTZ protocol such as PELCOD. Address: input corresponding PTZ address. Baud rate: Select baud rate. Data bit: Select data bit. Stop bit: Select stop bit. Parity: There are three choices: none/odd/even.
After completed all the setups please click save button, system goes back to the previous menu. For detailed setup, please refer to chapter 4.9 preset/patrol/pattern/scan.
Figure 5-22
5.3.7 Display
Display setup interface is shown as below. See Figure 5-23.
Transparency: Here is for you to adjust transparency. The value ranges from 128 to 255. Channel name: Here is for you to modify channel name. System max support 25-digit (The
value may vary due to different series). Please note all your modification here only applies to
DVR local end. You need to open web or client end to refresh channel name.
Time display: You can select to display time or not when system is playback. Channel display: You can select to channel name or not when system is playback. Resolution: There are three options: 1280×1024(default),1280×720,1024×768. Please
note system needs to reboot to activate current setup. Enable tour: Activate tour function.
62
Interval: Input proper interval value here. The value ranges from 5-120 seconds. In tour
process, you can use mouse or click Shift to turn on window switch function. Stands for
opening switch function, stands for closing switch function.
Motion tour type: System support 1/4 window tour. Alarm tour type: System support 1/4 window tour.
Please highlight icon to select the corresponding function. After completing all the setups please click save button, system goes back to the previous menu.
Figure 5-23
In Figure 5-23X, click modify button after channel. You can see an interface is shown as in Figure 5-24. Please note all your modification here applies to local end only. You need to refresh web or client-end to get the latest channel name. System max support 25-digital character.
Figure 5-24
In tour mode, you can see the following interface. On the right corner, right click mouse or click
shift button, you can control the tour. There are two icons: stands for enabling window switch
and stands for enabling window function. See Figure 5-25.
Figure 5-25
63
5.3.8 Default
Click default icon, system pops up a dialogue box. You can highlight to restore default factory setup. See Figure 5-26.
Select all General Encode Schedule Network Detect Pan/tilt/zoom Display Channel name
Please highlight icon to select the corresponding function. After all the setups please click save button, system goes back to the previous menu.
Warning!
System menu color, language, time display mode, video format, IP address, user account will not maintain previous setup after default operation!
Figure 5-26
5.4 Search
Please refer to chapter 4.3 Search.
5.5 Advanced
Double click advanced icon in the main window, the interface is shown as below. See Figure 5-27. There are total seven function keys: HDD management, abnormity, record, account, auto maintenance, TV adjust and config backup.
64
Figure 5-27
5.5.1 HDD Management
Here is for you to view and implement hard disk management. See Figure 5-28. You can see current HDD type, status, capacity and record time. When HDD is working properly, system is shown as O. When HDD error occurred, system is shown as X. You can select HDD mode from the dropdown list such as read-only or you can erase all data in the HDD. Please note system needs to reboot to get all the modification activated.
Figure 5-28
Click alarm set button, the interface is shown as below. See Figure 5-29. (This interface is just like the abnormity setup). Please refer to chapter 5.5.2 for detailed information.
Please highlight icon to select the corresponding function.
65
Figure 5-29
5.5.2 Abnormity
Abnormity interface is shown as in Figure 5-30. Event type: There are several options for you such as disk error, no disk, disconnection,
IP conflict and etc. Show message: system can pop up the message in the local screen to alert you when
alarm occurs.
Alarm upload: System can upload the alarm signal to the centre (Including alarm centre). Send email: System can send out email to alert you when alarm occurs. Buzzer: System can activate the buzzer to beep when alarm occurs.
Figure 5-30
5.5.3 Record
Please refer to chapter 4.2.2 manual record.
5.5.4 Account
66
Here is for you to implement account management. See Figure 5-31. Here you can:
Add new user Modify user Add group Modify group Modify password.
For account management please note: For the user account name and the user group, the string max length is 6-byte. The
backspace in front of or at the back of the string is invalid. There can be backspace in the
middle. The string includes the valid character, letter, number, underline, subtraction sign,
and dot. System account adopts two-level management: group and user. No limit to group or user
amount.
For group or user management, there are two levels: admin and user. The user name and group name can consist of eight bytes. One name can only be used
once. There are four default users: admin/888888/666666 and hidden user “default”. Except
user 6666, other users have administrator right. Hidden user “default” is for system interior use only and can not be deleted. When there is
no login user, hidden user “default” automatically login. You can set some rights such as
monitor for this user so that you can view some channel view without login.
One user should belong to one group. User right can not exceed group right. About reusable function: this function allows multiple users use the same account to login.
After all the setups please click save button, system goes back to the previous menu.
Figure 5-31
5.5.4.1 Modify Password
Click password button, the interface is shown as in Figure 5-32. Here you can modify account password. Please select the account from the dropdown list, input the old password and then input the new password twice. Click the Save button to confirm current modification. For the users of user account right, it can modify password of other users.
67
Figure 5-32
5.5.4.2 Add/Modify Group
Click add group button, the interface is shown as below. See Figure 5-33. Here you can input group name and then input some memo information if necessary. There are total 60 rights such as control panel, shut down, real-time monitor, playback, record, record file backup, PTZ, user account, system information view, alarm input/output setup, system setup, log view, clear log, upgrade system, control device and etc. The modify group interface is similar to the Figure 5-33.
Figure 5-33
5.5.4.3 Add/Modify User
Click add user button, the interface is shown as in Figure 5-34. Please input the user name, password, select the group it belongs to from the dropdown list. Then you can check the corresponding rights for current user. For convenient user management, usually we recommend the general user right is lower than the admin account. The modify user interface is similar to Figure 5-34.
68
Figure 5-34
5.5.5 Auto Maintain
Here you can set auto-reboot time and auto-delete old files setup. You can set to delete the files for the specified days. See Figure 5-35. You can select proper setup from dropdown list. After all the setups please click save button, system goes back to the previous menu.
Figure 5-35
5.5.6 TV Adjust
Here is for you to adjust TV output setup. See Figure 5-36. Please drag slide bar to adjust each item. After all the setups please click OK button, system goes back to the previous menu.
69
Figure 5-36
5.5.7 Config File Backup
The configuration file backup interface is shown as below. See Figure 5-37. This function allows you to copy current system configuration to other devices.
Figure 5-37
5.6 Information
Here is for you to view system information. There are total five items: HDD (hard disk information), BPS (data stream statistics), Log and version, and online user. See Figure 5-38.
70
Figure 5-38
5.6.1 HDD Information
Here is to list hard disk type, total space, free space, video start time and status. See Figure 5-39. ○ means current HDD is normal. X means there is error. - means there is no HDD.
If disk is damaged, system shows as “?”. Please remove the broken hard disk before you add a
new one. Once there is a hard disk confliction, please check hard disk time and system time is the same or not. Please go to setting then general to modify system time. At last, reboot the system to solve this problem.
After system booted up, if there is any confliction, system goes to HDD information interface
directly. Please note, system does not ask you to deal with it forcedly.
When HDD confliction occurs, you can check system time and HDD time are identical or not. If
they are not identical, please go to General (Chapter 5.3.1) to adjust system time or go to HDD
Management (Chapter 5.5.1) to format HDD and then reboot the DVR.
Figure 5-39
71
Tips:
Please click Fn button or left click mouse to view HDD record time and HDD type and time.
5.6.2 BPS
Here is for you to view current video data stream (KB/s) and occupied hard disk storage (MB/h). See Figure 5-40.
Figure 5-40
5.6.3 Log
Here is for you to view system log file. System lists the following information. See Figure 5-41. Log types include system operation, configuration operation, data management, alarm event, record operation, log clear and etc. Pleased select start time and end time, then click search button. You can view the log files. Please page up/down button to view if there are more than ten files.
Figure 5-41
5.6.4 Version
Here is for you to view some version information. See Figure 5-42.
Channel System Build Date Web SN
72
Figure 5-42
5.6.5 Online Users
Here is for you manage online users. See Figure 5-43 You can disconnect one user or block one user if you have proper system right. Max disconnection setup is 65535 seconds.
Figure 5-43
5.7 Shutdown
Double click shutdown button, system pops up a dialogue box for you to select. See Figure 5-44. Here you can logout the menu, shutdown or restart the device and etc.
Logout menu user: Log out menu. You need to input password when you login the next time. Shutdown: It is to exit the system, Restart system: Reboot DVR. Switch user: you can use another account to log in.
When you are using the power button on the remote control to shutdown the device, you can see the shutdown process bar for your reference. It can shutdown the device in three seconds, you can not cancel the shutdown during the process bar is running. For the user of no shutdown right, you need to input the corresponding shutdown password.
73
Figure 5-44
74
6 About Auxiliary Menu
6.1 Go to Pan/Tilt/Zoom Menu
In the one-window surveillance mode, right click mouse (click “fn” Button in the front panel or click AUX key in the remote control). The interface is shown as below: See X397H397H397HFigure 6-1X.
Figure 6-1
Click Pan/Tilt/Zoom, the interface is shown as in X398H398H398HFigure 6-2X. Here you can set the following items:
Zoom Focus Iris
Please click icon and to adjust zoom, focus and Iris.
Figure 6-2
In X399H399H399HFigure 6-2X, please click direction arrows (See X400H400H400HFigure 6-3X ) to adjust PTZ position. There are totally eight direction arrows. (Please note there are only four direction arrows in DVR front panel.)
Figure 6-3
6.1.1 3D Intelligent Positioning Key
In the middle of the eight direction arrows, there is a 3D intelligent positioning key. See X401H401H401HFigure 6-4X . Please make sure your protocol supports this function and you need to use mouse to control. Click this button, system goes back to the single screen mode. Drag the mouse in the screen to adjust section size.
75
Figure 6-4
Here is a sheet for you reference.
Name
Function key
function
Shortcut key
Function
key
function
Shortcut
key
Zoom
Near
Far
Focus
Near
│
Far
►│
Iris
close
Open
6.2 Preset /Patrol / Pattern /Border Function
In X402H402H402HFigure 6-2X click the set button. The interface is shown as below: Here you can set the following items:
Preset
Patrol
Pattern
Border
Figure 6-5
In X403H403H403HFigure 6-2X, click page switch button, you can see an interface as in X404H404H404HFigure 6-6X. Here you can activate the following functions:
Preset
Tour(Patrol)
Pattern
Auto scan
Auto pan
Flip
Page Switch
Figure 6-6
76
6.2.1 Preset Setup
Note: The following setups are usually operated in the X405H405H405HFigure 6-2X, X406H406H406HFigure 6-5X and X407H407H407HFigure
6-6X. In X408H408H408HFigure 6-2X, use eight direction arrows to adjust camera to the proper position. In X409H409H409HFigure 6-5X, click preset button and input preset number. The interface is shown as in X410H410H410HFigure 6-7X. Add this preset to one patrol number
Figure 6-7
6.2.2 Activate Preset
In X411H411H411HFigure 6-6X please input preset number in the No. blank, and click preset button.
6.2.3 Patrol Setup
In X412H412H412HFigure 6-5X, click patrol button. The interface is shown as in X413H413H413HFigure 6-8X. Input preset number and then add this preset to one patrol.
Figure 6-8
6.2.4 Activate Patrol
In X414H414H414HFigure 6-6X, input patrol number in the No. blank and click patrol button
6.2.5 Pattern Setup
In X415H415H415HFigure 6-5X, click pattern button and then click begin button. The interface shows like X416H416H416HFigure 6-9X. Please go to X417H417H417HFigure 6-2X to modify zoom, focus, and iris. Go back to X418H418H418HFigure 6-9X and click end button. You can memorize all these setups as pattern 1.
77
Figure 6-9
6.2.6 Activate Pattern Function
In X419H419H419HFigure 6-6X input mode value in the No. blank, and click pattern button.
6.2.7 Border Setup
In X420H420H420HFigure 6-5X, click border button. The interface is shown as in X421H421H421HFigure 6-10X. Please go to X422H422H422HFigure 6-2X, use direction arrows to select camera left limit, and then please go to
X423H423H423HFigure 6-10X and click left limit button
Repeat the above procedures to set right limit.
Figure 6-10
6.2.8 Activate Border Function
In X424H424H424HFigure 6-6X, click auto scan button, the system begins auto scan. Correspondingly, the auto scan button changes to stop button. Click stop button to terminate scan operation.
6.2.9 Flip
In X425H425H425HFigure 6-6X, click page switch button, you can see an interface is shown as below. See
X426H426H426HFigure 6-11X. Here you can set auxiliary function.
Click page switch button again, system goes back to X427H427H427HFigure 6-2X.
78
Figure 6-11
79
7 WEB OPERATION
Important
Slight difference may be found in the interface. All the interfaces listed below are based on the 4­channel series product.
7.1 Network Connection
Before web operation, please check the following items:
Network connection is right DVR and PC network setup is right. Please refer to network setup(main menu->setting-
>network) Use order ping ***.***.***.***(* DVR IP address) to check connection is OK or not. Usually
the return TTL value should be less than 255.
Open the IE and then input DVR IP address. System can automatically download latest web control and the new version can overwrite
the previous one. If you want to un-install the web control, please run uninstall webrec2.0.bat. Or you can go to
C:\Program Files\webrec to remove single folder. Please note, before you un-install, please
close all web pages, otherwise the un-installation might result in error.
7.2 Login
Open IE and input DVR address in the address column. For example, if your DVR IP is
10.10.3.16, then please input http:// 10.10.3.16 in IE address column. See X428H428H428HFigure 7-1.X
Figure 7-1
System pops up warning information to ask you whether install webrec.cab control or not. Please click yes button. If you can’t download the ActiveX file, please modify your settings as follows. See X429H429H429HFigure 7-2X.
Input your IP address here.
80

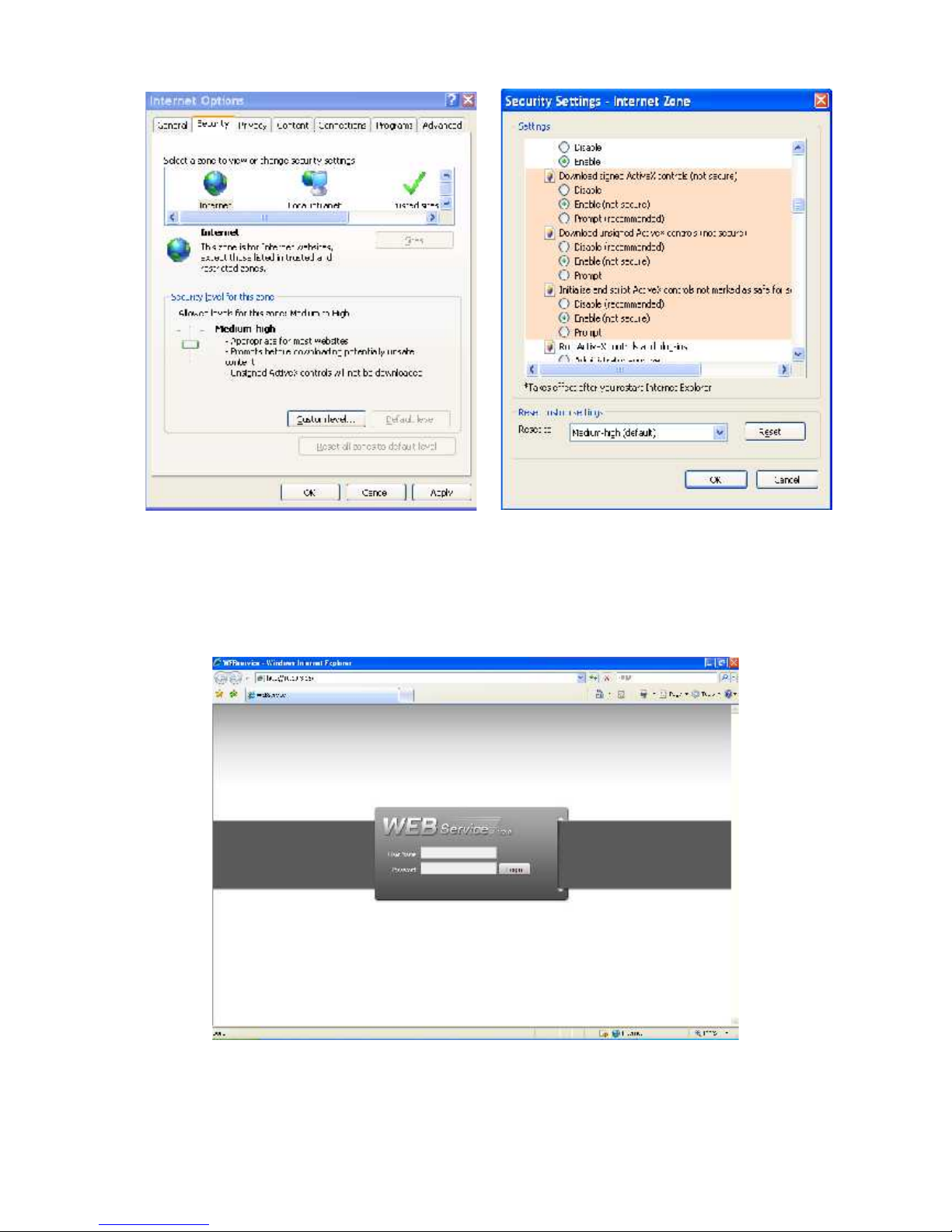

Figure 7-2
After installation, the interface is shown as below. See X430H430H430HFigure 7-3X. Please input your user name and password. Default factory name is admin and password is admin. Note: For security reasons, please modify your password after you first login.
Figure 7-3
After you logged in, you can see the main window. See X431H431H431HFigure 7-6X. This main window can be divided into the following sections.
81
Section 1: there are five function buttons: configuration (chapter 7.3), search (chapter 7.4),
alarm (chapter 7.5), about (chapter 7.6), log out (chapter 7.7). Section 2: there are channel number and three function buttons: start dialog and local play,
refresh. Section3: there are PTZ (chapter 7.2.2), color (chapter 7.2.3) button and you can also select
picture path and record path. Section 4:real-time monitor window. Please note current preview window is circled by a
green rectangle zone. Section 5: Here you can view window switch button. You can also select video priority
between fluency or real-time.
System monitor window switch supports full screen/1-window/4-window/6-window/8-
window/9-window/13-window/16-window/20-window/25-window/36-window. See
X432H432H432HFigure 7-4X.
Figure 7-4
Preview window switch. System support 1/4/8/9/16-window real-time preview. Please you
need to have the proper rights to implement preview operation. You can not preview if you
have no right to preview the either channel. See Figure 7-5. Please note this series device
does not support this function.
Figure 7-5
Figure 7-6
7.2.1 Real-time Monitor
Section1
Section 2
Section 3
Section 5
Section 4
82
In section 2, left click the channel name you want to view, you can see the corresponding video in current window. On the top left corner, you can view device IP, channel number, network monitor bit stream.
Figure 7-7
On the top right corer, there are six unction buttons. See X434H434H434HFigure 7-8X.
Figure 7-8
1: Digital zoom: Click this button and then left drag the mouse in the zone to zoom in. right
click mouse system restores original status.
2: Change show mode: resize or switch to full screen mode. 3: Local record. When you click local record button, the system begins recording and this
button becomes highlighted. You can go to system folder RecordDownload to view the recorded file.
4: Capture picture. You can snapshoot important video. All images are memorized in system
client folder \download\picture (default).
5: Audio :Turn on or off audio.(It has no relationship with system audio setup ) 6: Close video.
Please refer to X435H435H435HFigure 7-9X for main stream and extra stream switch information.
Figure 7-9
Open All
You can click it to open all channels.
1 2 3 4 5 6
1 2 3
83
Refresh
You can use button to refresh camera list.
Start Dialogue
You can click this button to enable audio talk. Click 【▼】 to select bidirectional talk mode. There are two options: DEFAULT/G711a. Please note, the audio input port from the device to the client-end is using the first channel audio input port. During the bidirectional talk process, system will not encode the audio data from the 1­channel.
Local Play
The Web can playback the saved (Extension name is dav) files in the PC-end. Click local play button, system pops up the following interface for you to select local play file. See
X436H436H436HFigure 7-10.X
Figure 7-10
7.2.2 PTZ
Before PTZ operation, please make sure you have properly set PTZ protocol. (Please refer to chapter 7.3.2 Setting-> Pan/Tilt/Zoom). Click PTZ button, the interface is shown as in X437H437H437HFigure 7-11X.
84
Figure 7-11
7.2.2.1 Direction key and 3D positioning key
In Figure 7-10, there are eight direction keys. In the middle of the eight direction keys, there is a 3D intelligent positioning key. Click 3D intelligent positioning key, system goes back to the single screen mode. Drag the mouse in the screen to adjust section size. It can realize PTZ automatically.
7.2.2.2 Speed
System supports eight-level speed. You can select from the dropdown list. Speed 2 is faster than speed 1.
7.2.2.3 Zoom/Focus/Iris
Here is a sheet for you reference.
Name
Function key
Function
Function
key
Function
Zoom
Near
Far
Focus
Near
Far
Iris
close
Open
In Figure 7-11, click PTZ setup button you can see the following interface. See X438H438H438HFigure 7-12X.
You can click this icon to display or hide the PTZ control platform.
3D Intelligent Positioning Key
85
Figure 7-12
7.2.2.4 Auto Scan
In X439H439H439HFigure 7-12X, move the camera to you desired location and then click left limit button.
Then move the camera again and then click right limit button to set a right limit.
7.2.2.5 Pattern
In X440H440H440HFigure 7-12X, you can input pattern value and then click start record button to begin PTZ movement. Please go back to Figure 7-11 to implement camera operation. Then you can click stop record button. Now you have set one pattern.
7.2.2.6 Preset
In X441H441H441HFigure 7-12X, move the camera to your desired location and then input preset value. Click add button, you have set one preset.
7.2.2.7 Auto tour
In X442H442H442HFigure 7-12X, input auto tour value and preset value. Click add button, you have added one preset in the tour. Repeat the above procedures you can add more presets in one tour.
7.2.2.8 Assistant
You can select the assistant item from the dropdown list. See X443H443H443HFigure 7-13X.
7.2.2.9 Matrix
This series product supports matrix extension function. You can control the video input and
output switch
7.2.2.10 Light and wiper
If your PTZ protocol supports the light and wiper control function. You can enable/disable the light or the wiper.
86
Figure 7-13
7.2.3 Color
Click color button in section 3, the interface is shown as X444H444H444HFigure 7-14X. Here you can select one channel and then adjust its brightness, contrast, hue and saturation. (Current channel border becomes green). Or you can click default button to use system default setup.
Figure 7-14
7.2.4 Picture Path and Record Path
Click more button in X445H445H445HFigure 7-14X, you can see an interface is shown as in X446H446H446HFigure 7-15X.
Figure 7-15
87
Click picture path button, you can see an interface is shown as in X447H447H447HFigure 7-16X. Please click choose button to modify path.
Figure 7-16
Click record path button, you can see an interface is shown as in X448H448H448HFigure 7-17X. Please click choose button to modify path.
Figure 7-17
Click reboot button, system pops up the following dialogue box. See Figure 7-18, Please click OK to reboot.
Figure 7-18
If there is local use logged in the system menu, or the Web logged in user has no right to reboot the device system pops up a dialogue box to alert you.
7.3 Configure
7.3.1 System Information
7.3.1.1 Version Information
Here you can view device hardware feature and software version information. See X449H449H449HFigure 7-19X.
88
Figure 7-19
7.3.1.2 HDD information
Here you can view local storage status and network status including, free capacity and total capacity. See X450H450H450HFigure 7-20X.
Figure 7-20
7.3.1.3 Log
Here you can view system log. See X451H451H451HFigure 7-21X.
89
Figure 7-21
Click backup button, the interface is shown as in X452H452H452HFigure 7-22X.
Figure 7-22
Please refer to the following sheet for log parameter information.
Parameter
Function
Type
Log types include: system operation, configuration operation, data management, alarm event, record operation, user management, log clear and file operation.
Search
You can select log type from the drop down list and then click search button to view the list.
Clear
You can click this button to delete all displayed log files. Please note system does not support clear by type.
Backup
You can click this button to backup log files to current PC.
7.3.2 System Configuration
Please click save button to save your current setup.
7.3.2.1 General Setup
Here you can set system time, record length, video format and etc. See Figure 7-23.
90
Figure 7-23
Figure 7-24
Figure 7-25
Please refer to the following sheet for detailed information.
Parameter
Function
System Time
Here is for you to modify system time. Please click Save button after your completed modification
Sync PC
You can click this button to save the system time as your PC current time.
91
Data Format
Here you can select data format from the dropdown list.
Data Separator
Please select separator such as – or /.
Time Format
There are two options: 24-H and 12-H. DST
Here you can set day night save time begin time and end time. See Figure 7-24 and Figure 7-25.
Language
You can select the language from the dropdown list. Device needs to reboot to get the modification activated.
HDD Full
There are two options: stop recording or overwrite the previous files when HDD is full. When current working HDD is overwriting or it is full now, system stops record. If current working HDD is full now, system goes to overwrite the previous file.
Pack Duration
Here you can select file size. The value ranges from 1 to 120.Default setup is 60 minutes.
Device No
When you are using one remote control (not included in the accessory bag) to manage multiple devices, you can give a serial numbers to the device.
Video Standard
There are two options: PAL/NTSC. Please note, for the Web user, this information is for reference only.
You can not modify.
7.3.2.2 Encode
Encode interface is shown as in X454H454H454HFigure 7-26X.
Figure 7-26
92
Figure 7-27
Please refer to the following sheet for detailed information.
Parameter
Function
Channel
Here is for you to select a monitor channel.
Channel Name
Here is to display current channel name. You can modify it.
Compression
H.264
Main Stream
It includes main stream, motion stream and alarm stream. You can select different encode frame rates form different recorded events.
System supports active control frame function (ACF). It allows you to record in different frame rates.
For example, you can use high frame rate to record important events, record scheduled event in lower frame rate and it allows you to set different frame rates for motion detection record and alarm record.
Extra Stream
Select extra stream if you enabled the extension stream to monitor.
Audio/Video
For the main stream, recorded file only contains video by default. You need to draw a circle here to enable audio function.
For extra stream, you need to draw a circle to select the video first and then select the audio if necessary.
Resolution
System supports various resolutions, you can select from the dropdown list. For this model, main stream supports D1/CIF/QCIF. Please note the resolution may vary due to different channels. The extra stream supports CIF/QCIF.
Frame Rate
PAL：1～25f/s；NTSC：1～30f/s Main stream: D1 (1~6/7fps)/CIF (1~25/30fps)/QCIF (1~25/30fps)
Extra stream: CIF 352×288/ 352×240(1-6/7 fps), QCIF 176×144/176×120.
Bit Rate Type
There are two options: VBR and CBR. Please note, you can set video quality in VBR mode only.
Quality
The value ranges from 1 to 6. The level 6 is the best video quality.
Bit Rate
In CBR, the bit rate here is the max value. In dynamic video, system needs to low frame rate or video quality to guarantee the value.
The value is null in VBR mode.
Please refer to recommend bit rate for the detailed information.
Recommended Bit
Recommended bit rate value according to the resolution and frame rate you have set.
93
Parameter
Function
Color Setting
Here you can set video brightness, contrast ness, hue, saturation and gain.
The value ranges from 0 to 100.Default value is 50. See Figure 7-27. Please note, some series devices do not support OSD transparent setup function.
Cover area (privacy mask)
Here you can privacy mask the specified video in the monitor video.
One channel max supports 4 privacy mask zones.
The privacy mask includes two options: Never/monitor. Never: It means do not enable privacy mask function. Monitor: the privacy mask zone can not be viewed in monitor mode.
Time Title
You can enable this function so that system overlays time information in video window.
OSD transparent value ranges from 0 to 255. 0 means complete transparent.
You can use the mouse to drag the time tile position.
Channel Title
You can enable this function so that system overlays channel information in video window.
OSD transparent value ranges from 0 to 255. 0 means complete transparent.
You can use the mouse to drag the channel tile position.
Copy
It is a shortcut menu button. You can copy current channel setup to one or more channels. The interface is shown as in X455H455H455HFigure 7-28X.
Save
You can click save button after you complete setup for one channel, or you can complete the whole setups and then click save button.
Refresh
Click this button to get device latest configuration information.
Click copy interface, the interface is shown as in X456H456H456HFigure 7-28X. If you have completed the setup for channel 1, you can click 3 to copy current setup to channel 3. Or you can click 2, 3, and 4 to copy current setup to channel 2, channel 3 and channel 4.
Figure 7-28
7.3.2.3 Schedule
Here you can set different periods for various days. There are max six periods in one day. See
X457H457H457HFigure 7-29X
94
Figure 7-29
Figure 7-30
Please refer to the following sheet for detailed information.
Parameter
Function
Channel
Please select a channel first.
Pre-record
Please input pre-record value here. System can record the three to five seconds video before activating
the record operation into the file. (Depends on data size).
95
Parameter
Function
Setup
In X458H458H458HFigure 7-29X, click set button, you can go to the corresponding setup interface.
Please set schedule period and then select corresponding record or snapshot type: schedule/snapshot, motion detection/snapshot, and alarm/snapshot.
Please select date (Current setup applies to current day by default. You can draw a circle before the week to apply the setup to the whole week.)
After complete setup, please go back to X459H459H459HFigure 7-29X and then click save to save current time period setup.
Copy
It is a shortcut menu button. You can copy current channel setup to one or more (all) channels. The interface is shown as in X460H460H460HFigure 7-28X.
Save
You can click save button after you complete setup for one channel, or you can complete the whole setups and then click save button.
Refresh
Click this button to get device latest configuration information.
7.3.2.4 Network
Network interface is shown as in Figure 7-31.
Figure 7-31
Please refer to the following sheet for detailed information.
Parameter
Function
Ethernet
Please select the network card first.
DHCP
Dynamically get IP address. You can get the device IP from the DHCP server if you enabled this function.
TCP Port
Default value is 37777.
HTTP Port
Default value is 80.
96
Parameter
Function
UDP Port
Default value is 37778.
Max Connection
Network user max amount. The value ranges from 0 to 20. O means there is no user can access current device.
Remote Host
Multiple cast group
Set MULCAST address and port.
Enable MULCAST function.
PPPOE
Input the PPPoE user name and password you get from the IPS (internet service provider) and enable PPPoE function. Please save current setup and then reboot the device to get the setup activated.
Device connects to the internet via PPPoE after reboot. You can get the IP address in the WAN from the IP address column.
Please note if you want to reboot the device please make sure you have proper reboot right and there is no login user in current device.
Email
The email interface is shown as in Figure 7-32.
Figure 7-32
Please refer to the following sheet for detailed information.
Parameter
Function
SMTP Server
Input server address and then enable this function.
Port
Default value is 25. You can modify it if necessary.
User Name
The sender email account user name.
Password
The sender email account password.
Sender
Sender email address.
97
Parameter
Function
Subject
Input email subject here.
Address
Input receiver email address here. Max input three addresses.
DDNS
The DDNS interface is shown as in Figure 7-33. Please make sure your DVR support this function.
Figure 7-33
Please refer to the following sheet for detailed information.
Parameter
Function
Server Type
You can select DDNS protocol from the dropdown list and then enable DDNS function. The private DDNS protocol means you use your self-defined private protocol to realize DDNS function.
Server IP
DDNS server IP address
Server Port
DDNS server port.
Domain Name
Your self-defined domain name.
User
The user name you input to log in the server.
Password
The password you input to log in the server.
Interval
Device sends out alive signal to the server regularly.
You can set interval value between the device and DDNS server here.
NAS
NAS interface is shown as in Figure 7-34. Please make sure your DVR support this function.
98
Figure 7-34
Please refer to the following sheet for detailed information.
Parameter
Function
NAS enable
Please select network storage protocol and then enable NAS function.
Server IP
Input remote storage server IP address.
Port
Input Remote storage server port number.
User Name
Log in user account.
File length
The file length you upload to the FTP. When setup is larger than the actual file length, system
will upload the whole file. When setup here is smaller than the actual file length, system only uploads the set length and auto ignore the left section. When interval value is 0, system uploads all corresponding files.
Password
The password you need to log in the server.
Remote Path
Remote storage file path.
Save
You can click save button after you complete setup for one channel, or you can complete the whole setups and then click save button.
Refresh
Click this button to get device latest configuration information.
NTP
The NTP interface is shown as in Figure 7-35. Here you can realize network time synchronization. Please enable current function and then input server IP, port number, time zone and update interval. Please note the SNTP supports TCP
99
transmission only and its port shall be 123.The update interval ranges from 1 to 65535. Default value is 10 minutes.
Figure 7-35
You can refer to the following sheet for time zone information.
City /Region Name
Time Zone
London
GMT+0
Berlin
GMT+1
Cairo
GMT+2
Moscow
GMT+3
New Deli
GMT+5
Bangkok
GMT+7
Beijing (Hong Kong)
GMT+8
Tokyo
GMT+9
Sydney
GMT+10
Hawaii
GMT-10
Alaska
GMT-9
Pacific Time(P.T)
GMT-8
American Mountain Time(M.T)
GMT-7
American Central Time(C.T)
GMT-6
American Eastern Time(E.T)
GMT-5
Atlantic Time
GMT-4
Brazil
GMT-3
Middle Atlantic Time
GMT-2
Alarm Centre
Alarm centre interface is shown as below. See Figure 7-36. This interface is for you to develop. The alarm signal can be uploaded to the alarm centre when there is local alarm. Please set the corresponding parameters such as server IP, port and etc. The system can send out the data as the protocol defined to the client-end.
100
Figure 7-36
Advanced
The advanced interface is shown as in Figure 7-37.
Multiple cast
Please refer to chapter 5.3.5.3 for detailed multiple cast setup information.
PPPoE
Please input the PPPoE user name and password you get from the IPS (internet service provider) and enable PPPoE function. Please save current setup and then reboot the device to get the setup activated.
Device connects to the internet via PPPoE after reboot. You can get the IP address in the WAN from the IP address column.
Note:
After PPPoE successful dial, you need to go to the device local end to get device current IP address and then use the client-end to access this IP address.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
