Daewoo NRF-370F User Manual

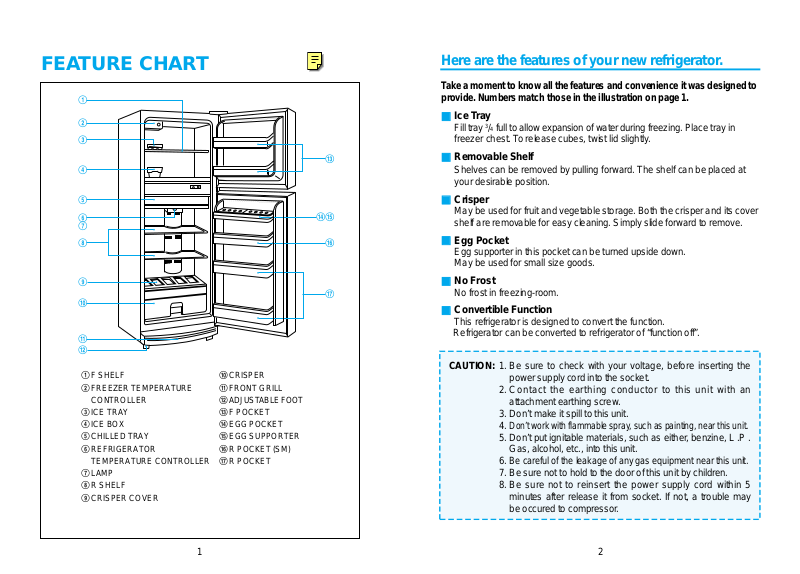

FEATURE CHART
!
@
#
	3
$
%
^	45
&
*	6
(
)	7
1
2

!F SHELF	)CRISPER
@FREEZER TEMPERATURE	1FRONT GRILL
CONTROLLER	2ADJUSTABLE FOOT
#ICE TRAY	3F POCKET
$ICE BOX	4EGG POCKET
%CHILLED TRAY	5EGG SUPPORTER
^REFRIGERATOR	6R POCKET (SM)
TEMPERATURE CONTROLLER	7R POCKET
&LAMP
*R SHELF
(CRISPER COVER

Here are the features of your new refrigerator.

Take a moment to know all the features and convenience it was designed to provide. Numbers match those in the illustration on page 1.

■ Ice Tray

Fill tray 3 /4 full to allow expansion of water during freezing. Place tray in freezer chest. To release cubes, twist lid slightly.

■ Removable Shelf

Shelves can be removed by pulling forward. The shelf can be placed at your desirable position.

■ Crisper

May be used for fruit and vegetable storage. Both the crisper and its cover shelf are removable for easy cleaning. Simply slide forward to remove.

■ Egg Pocket

Egg supporter in this pocket can be turned upside down. May be used for small size goods.

■ No Frost

No frost in freezing-room.

■ Convertible Function

This refrigerator is designed to convert the function. Refrigerator can be converted to refrigerator of “function off”.

CAUTION: 1. Be sure to check with your voltage, before inserting the power supply cord into the socket.

2.Contact the earthing conductor to this unit with an attachment earthing screw.

3.Don’t make it spill to this unit.

4.Don’t work with flammable spray, such as painting, near this unit.

5.Don’t put ignitable materials, such as either, benzine, L .P . Gas, alcohol, etc., into this unit.

6.Be careful of the leakage of any gas equipment near this unit.

7.Be sure not to hold to the door of this unit by children.

8.Be sure not to reinsert the power supply cord within 5 minutes after release it from socket. If not, a trouble may be occured to compressor.

1

2

HOW TO INSTALL

Location

Install refrigerator in a convenient location away from extreme heat and cold. Allow sufficient clearance between the refrigerator and side wall so the door will open for a fully usable interior. Refrigerator is not designed for recessed installation.

Leveling

Level refrigerator so it rests solidly on the floor, without rocking. There are two leveling glides, one at each front corner. Turn to the left to raise a corner, to

the right to lower it. Use shims under rear corners, if necessary.

■If you want, the refrigerator door to close when not held open, adjust glides so that the front of the refrigerator is raised. However, front corners must be level with each other, and rear corners with each other.

■If you want the refrigerator door to remain motionless when open, adjust the leveling glides so that all four corners are level with each other.

NOTE :Make sure all packing material is removed. If the shipping tape has left a residue on the door, touch the residue lightly with the adhesive side of

tape of with isopropyl alcohol (most rubbing alcohol is this type).

Do not use a solvent, such as lighter or cleaning fluid, nor an abrasive cleanser.

HOW TO CLEAN

WARNING

BEFORE CLEANNING THE REFRIGERATOR FOR YOUR SAFETY, PLEASE DISCONNECT THE POWER PLUG FROM THE POWER SOURCES.

Cleaners : The cleaners noted below are available. Never use harsh, abrasive cleaners, heavy-duty cleaners, or solvents on any surface.

Exterior : Wipe with damp, suday cloth, rinse and dry. For stubborn stains and for periodic waxing, use sillicon wax.

Refrigeration Section :Wash shelves, drawers and other removable parts in warm sudsy water, rinse and dry. Wash interior with baking soda solution (3 table spoons to one quart of water) or warm sudsy water.

Magnetic Door Seals	: Wash with warm sudsy water.
The finishing touch	: Replace all parts, and return TEMPERATURE
	CONTROL to desired temperature.

METHODS OF SAFE INSTALLATION

1. SAFE INSTALLATION PLACE FOR YOUR REFRIGERATOR

• Place the refrigerator	• Place your refrigerator
on hard and level	where there is no heat
floor.	source nearby.
	High surrounding
	temperature will lower
	cooling efficiency and
	increases your electricity
	bill.

NO

• Avoid places that are	• For good ventilation
exposed to smoke.	place refrigerator with
The discoloring can	the spaced specified on
occur to the	the figure.
refrigerator.	This helps cooling
	efficiency and lowers the
	electricity bill.
					m
					c
				0
			3
		t
	s
	a
	le
	t
	A

At	least		m
			t
			c
		6cm	6
			a
			s
			le
			t
			A

•Place the refrigerator in an area with low moisture.

Splashing water or a high moisture area may cause a short circuit and make rusting easier.

NO

•Placing the refrigerator on the carpet may cause heat to develop and discolor the appliance. In such a case put a hard wooden board or a rubber mat between the refrigerator and the carpet.

Carpet

Wooden Board,

Rubber Mat
