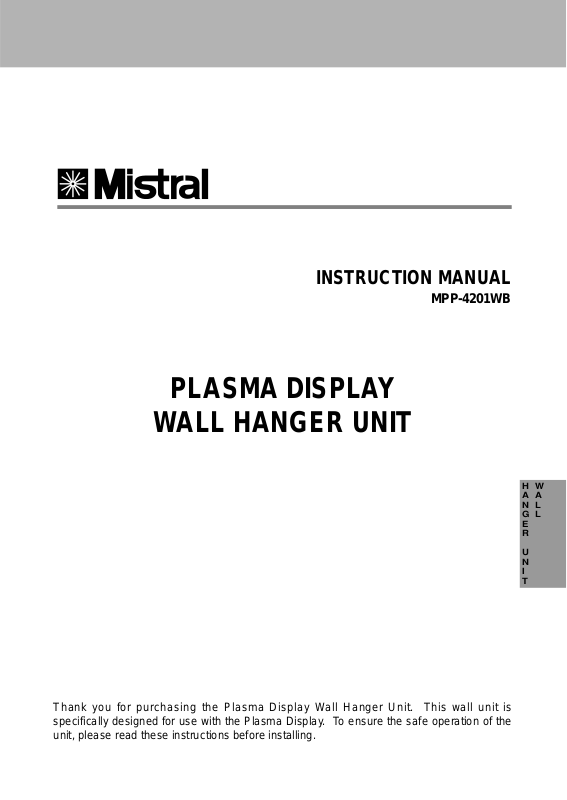

PLASMA DISPLAY

WALL HANGER UNIT

INSTRUCTION MANUAL

MPP-4201WB

Thank you for purchasing the Plasma Display Wall Hanger Unit. This wall unit is
specifically designed for use with the Plasma Display. To ensure the safe operation of the
unit, please read these instructions before installing.

1

TABLE OF CONTENTS

1. Check for enclosed parts

..............................

2

2. Important Safety Instructions

........................

3

3. Assembly Instructions

...................................

6

4. Adjusting angles after installation

................

12

*

To install the wall hanger unit, Please
consult an Authorized service center first.

PLASMA DISPLAY HANGER UNIT

2

HW
AA
NL
GL
E
R

U
N
I
T

1. PLEASE CHECK THE ITEMS SHOWN BELOW

(2)

FRAME SET A FRAME SET B

CONNECTING FRAME CONCRETE WALL ANCHOR

M5 SCREWS (20 MM) WALL SCREWS

PAPER PATTERN PLAN M5 SCREWS (30MM)

(2)

(1) (8)

(8) (8)

(1) (2)

Paper pattern plan

3

2. IMPORTANT SAFETY INSTRUCTIONS

WARNING : Disregarding these instructions can result in serious injury.

CAUTION : Disregarding these instructions will result in the mistreatment of

the unit and can result in injury or damage to the unit.

PLEASE KEEP THESE INSTRUCTIONS FOR YOUR SAFETY AND TO PREVENT ANY DAMAGE TO THIS UNIT.

PLEASE FOLLOW THESE INSTRUCTIONS FOR YOUR SAFETY

(Failing to do so may cause the unit to fall and break) (Failing to do so may cause the unit to fall and break)

(Failing to do so may cause the unit to fall and break) (Failing to do so may cause the unit to vibrate and to fall)

(Failing to do so may cause the unit to fall and break) (Failing to do so may cause the unit to fall and break)

To install the wall hanger unit, please consult
an Authorized service center first.

The wall hanger unit needs to be installed
securely enough to handle earthquakes or
lengthy periods of vibration.

When assembling, do not use any parts other
than those enclosed and secure all parts tightly.

Do not leave out any part when assembling.
Please install all parts to where indicated.

Do not alter or modify any parts Do not use the wall hanger unit with other products. This

wall hanger unit is specifically designed to fit the Plasma
Display.

*

PLEASE CONSUL T AN AUTHORIZED SERVICE CENTER T O INST ALL THE W ALL HANGER UNIT

WARNING

CAUTION
