Daewoo MON712B Service Manual

Service Manual

XGA COLOR MONITOR
Model : 712B

DAEWOO ELECTRONICS CO., LTD
OVERSEAS SERVICE DEPT.

CONTENTS

SAFETY PRECAUTIONS 1
GENERAL SAFETY INFORMATION 2
SERVICING PRECAUTIONS 3
TECHNICAL INFORMATION 6
GENERAL INFORMATION 7
PIN CONNECTOR 8
CAUTIONS FOR ADJUSTMENT AND REPAIR 8
OPERATION AND ADJUSTMENT 9
ALIGNMENT PROCEDURE 13
TROUBLESHOOTING HINTS 15
BLOCK DIAGRAM 31
PCB LAYOUT 32

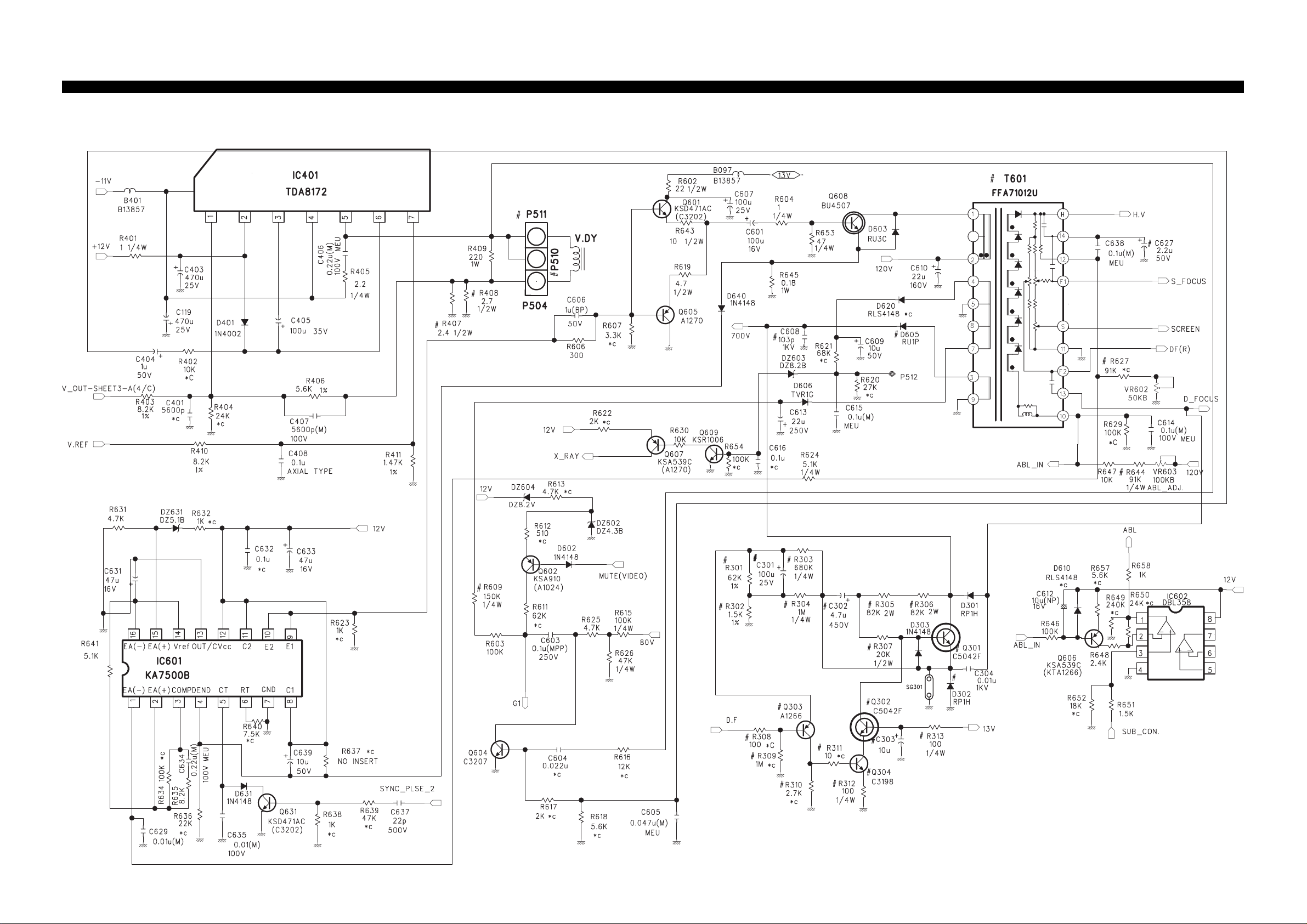

SCHEMATIC DIAGRAM 36
EXPLODED VIEW & MECHANICAL PARTS LIST 39
INFORMATION OF PART DESCRIPTION 40
ELECTRICAL PARTS LIST 41

1

SAFETY PRECAUTIONS

◆ Safety Check

Care should be taken while servicing this analog color display because of the high voltages used in the deflection circuits.
These voltages are exposed in such areas as the associated flyback and yoke circuits.

◆ Fire & Shock Hazard

• Insert an isolation transformer between the analog color display and AC power line before servicing the
chassis.

• When servicing, pay close attention to the original lead dress especially in the high voltage circuit area; if a
short circuit is found, replace all parts which have been overheated as a result of the short circuit.

• All the protective devices must be reinstalled per original design.

• Soldering must be inspected for possible cold solder points, frayed leads, damaged insulation, solder splashes
or sharp solder points. Be certain to remove all foreign materials.

◆ Implosion Protection

Picture tube in this monitor employs intergral implosion protection system, but care should be taken to
avoid damage and scratching during installation.
Only use same type replacement picture tubes.

◆ X-Ray

IMPORTANT SAFETY NOTICE: There are special components used in this analog color display, which

are important for safety . These parts are shaded on the schematic
diagram and on the replacement parts list. It is essential that these
critical parts should be replaced with manufacturer’s specified parts to
prevent X-Ray , shock, fire or other hazards. Do not modify the original
design without getting written permission from DAEWOO
ELECTRONICS CO. or this will void the original parts and labor
warranty .

CAUTION: No modifications of any circuits should be attempted. Service work should be performed only

after you are thoroughly familiar with all of the following safety checks and servicing
guidelines.

WARNING: The only potential source of X-Ray is the picture tube. However when the high voltage

circuitry is operating properly, there is no possibility of an X-Ray problem. The basic
precaution which must be exercised is to keep the high voltage at the following factory
recommended level.

NOTE: It is important to use an accurate, periodically, calibrated high voltage meter.

• To measure the high voltage, use a high-impedance high-voltage meter.
Connect(-) to chassis and (+) to the CRT anode button.

• Turn the Contrast & Brightness Control fully counterclockwise.

• Measure the high voltage. The high voltage meter should indicate the following factory

recommended levels.

• If the upper meter indication exceeds the maximum level, immediate service is required to

prevent the possibility of premature component failure.

• To prevent X-Ray possibility, it is essential to use the specified picture tube.

• The normal high voltage is 25.5KV or below and must not exceed 29KV at zero beam current

at rated voltage.

2

Warning:This product includes critical mechanical and electrical parts which are essential for x ray

protection. For continued safety, replace critical components that are indicated in the service
manual with exact replacement parts given in the parts list.

Operating high voltage with this product is 29Kv at minimum brightness. Refer to service manual
for measurement procedures and proper service adjustments.

GENERAL SAFETY INFORMATION

◆ Terms in the manual

CAUTION Statements identify conditions or practices that could result in damage to the equipment or

other property.

WARNING Statements identify conditions or practices that could result in personal injury or loss of

life.

◆ Terms as marked on equipment

CAUTION Statements indicate a personal injury hazard not immediately accessible as one reads the

marking or a hazard which is properly included on the equipment itself.

WARNING Statements are clearly concerning indicated personal injury hazards.

◆ Symbols in the manual

The symbols indicate where applicable cautionary or other information is to be found.

◆ Symbols as marked on equipment

Protective GROUND terminal

◆ High Voltage Warning And Critical Component Warning Label

The following warning label is on the CRT PWB shield case inside the unit.

3

SERVICING PRECAUTIONS

◆ General Servicing Precautions

1. Always unplug the AC power cord from the AC power source before:
a. Removing or reinstalling any component, circuit board, module, or any other instrument assembly.

b. Disconnecting or reconnecting any electrical plug or other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic capacitor in the instrument.

d. Discharging the picture tube anode.

2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage
measuring device (DVM, FETVOM. etc.) equipped with a suitable high voltage probe. Do not test high
voltage by “drawing an arc”.

3. Discharge the picture tube anode only by: (a) first connecting one end of an insulated clip lead to the
degaussing or line grounding system shield at the point where the picture tube socket ground lead is
connected, and then (b) touching the other end of the insulated clip lead to the picture tube anode
button, using an insulating handle to avoid personal contact with high voltage.

4. Do not any spray chemicals on or near this instrument, or any of its assemblies.

5. Unless otherwise specified in this service manual, only clean electrical contacts by applying the
following mixture to the contacts with a pipe cleaner, cotton-tipped stick, or comparable nonabrasive
applicator: 10% (by volume) Aceton and 90% (by volume) isopropyl alchohol (90%-99% strength).

6. Do not damage any plug/socket B+ voltage interlocks with which instruments covered by this service
manual might be equipped.

7. Do not apply AC power to this instrument and/or any other of its electrical assemblies unless all the
solid-state device heat sinks are correctly installed.

8. Always connect the test instrument ground lead to the appropriate instrument chassis ground before
connecting the test instrument positive lead. Always remove the test instrument ground lead last.

9. Only use the test fixtures specified in this service manual with this instrument.

CAUTION: Before servicing instruments covered by this service manual, its supplements, and addendum,

please read and follow the SAFETY PRECAUTIONS of this manual.

NOTE: If unforeseen circumstances create conflict between the following servicing precautions and any of

the safety precautions on page 1 of this manual, always follow the safety precautions.

Remember: Safety First.

CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors

may result in a explosion.

CAUTION: This is a flammable mixture. Unless specified in this service manual, lubrication of contacts is not

required.

CAUTION: Do not connect the test fixture ground strap to any heatsink in this instrument.

4

◆ Electrostatically Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity.
Such components are commonly called Electrostatically Sensitive (ES) Devices.
The typical examples of ES devices are integrated circuits, some field-effect transistors, and
semiconductor “chip” components. The following techniques should be used to help reduce the incidence
of component damage caused by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly,
wipe off any electrostatic charge on your body by touching any known earth ground. Alternatively,
obtain and wear a commercially available discharging wrist strap device which should be removed for
potential shock reasons prior to applying power to the unit under testing conditions.

2. After removing the electrical assembly equipped with ES devices, place the assembly on a conductive
surface such as aluminum foil to prevent electrostatic charge buildup or exposure to the assembly.

3. Only use a grounded-tip soldering iron to solder or unsolder ES devices.

4. Only use an anti-static type solder removal device. Some solder removal devices not classified as “anti­static” can generate enough electrical charges to damage ES devices.

5.

Do not use freon-propelled chemicals. These can generate enough electrical charges to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are
ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together
by conductive foam, aluminum foil, or comparable conductive material).

7. Immediately before removing the protective material from the leads of replacement ES devices, touch
the protective material to the chassis or circuit assembly into which the device will be installed.

8. Minimize bodily movements when handling unpackaged replacement ES devices. (Otherwise harmful
motion such as the brushing together clothes fabric or the lifting your foot from a carpeted floor can
generate enough static electricity to damage ES devices).

◆ General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron with appropriate tip size and shape that will maintain
tip temperature between a 550°F-660°F (288°C-316°C) range.

2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean.

4. Throughly clean the surface to be soldered. Use a small wire-bristle (0.5 inch or 1.25cm) brush with a
metal handle. Do not use freon-propelled spray-on cleaners.

5. Use the following soldering technique:
a. Allow the soldering iron tip to reach normal temperature (550°F to 660°F or 288°C to 316°C)
b. Hold the soldering iron tip and solder strand against the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the component lead and the printed circuit foil,

and hold it there until the solder flows onto and around both the component lead and the foil.

d.

Closely inspect the solder area and remove any excess or splashed solder with a small wire-bristle brush.

CAUTION:

Be sure that no power is applied to the chassis or circuit, and observe all other safety
precautions.

CAUTION: Work quickly to avoid overheating the circuit board printed foil.

5

FIGURE 1. USE SOLDERING IRON TO PRY LEADS

◆ IC Removal/Replacement

Some utilized chassis circuit boards have slotted (oblong) holes through which the IC leads are inserted
and then bent flat against the circuit foil. When holes are slotted, the following technique should be used
to remove and replace the IC. When working with boards using the familiar round hole, use the standard
technique as outlined in paragraphs 5 on the page under the title of general soldering guidelines.

◆ Removal

1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the
soldering iron tip as the solder melts.

2. Draw away the melted solder with an anti-static suction-type solder removal device (or with
desoldering braid before removing the IC.

◆ Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and solder it.

3. Clean the soldered areas with a small wire-bristle brush. (lt is not necessary to reapply acrylic coating
to the area).

◆ “Small-Signal” Discrete Transistor Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as possible to the component body.

2. Bend the ends of each of three leads remaining on the circuit board into a “U” shape.

3. Bend the replacement transistor leads into a “U” shape.

4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board
and crimp the “U” with long nose pliers to ensure metal-to-metal contact, then solder each connection.

6

◆ Power IC, Transistor or Devices Removal/Replacement

1. Heat and remove all solders from the device leads.

2. Remove the heatsink mounting screw (if applicable).

3. Carefully remove the device from the circuit board.

4. Insert new device in circuit board.

5. Solder each device lead and then clip off excess lead.

6. Replace heatsink.

◆ Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as possible to diode body.

2. Bend the two remaining leads perpendicularly to the circuit board.

3. Observing diode polarity, wrap each lead out of the new diode around the corresponding lead on the
circuit board.

4. Securely crimp each connection and solder it.

5. Inspect the solder joints of the two “original” leads on the circuit board copper side. If they are not
shiny, reheat them and apply additional solder if necessary.

TECHNICAL INFORMATION

CDT Size 17-inch
Diagonal visible image area 16.2-inch
Dot Pitch 0.28 mm
Synchronization Horizontal 30 - 70 KHz

Vertical 50 - 160 Hz
Plug and Play DDC1/2B/CI
Power Saving EPA, VESA DPMS, Nutek Compliant
Power Source 100-240 Vac, 50/60Hz (Free Voltage)
Power Consumption 100W
Dimension-W x H x D 420 x 440 x 440mm
(set with stand)
Weight-unpacked(lbs/Kg) 41.1/16.2
Operating Temperature 10 ~ 40°C /50 ~ 104°F

ADJ Adjustment
AFC Automatic Frequency Control
CRT Cathode Ray Tube
Def Deflection
D.Y Deflection Yoke
FBT Flyback Transformer
H.SYNC Horizontal Synchronization
OSC Oscillator
P.S.U Power Supply Unit
PWA Printed Circuit Board Wiring Assembly
R.G.B Red, Green, Blue
V.Sync Vertical Synchronization

7

GENERAL INFORMATION

This color monitor automatically scans all horizontal frequencies from 30KHz to 70KHz, and all vertical
frequencies from 50Hz to 160Hz. This color monitor supports IBM PC, PC/XT, PC/AT, personal
System/2 (PS/2), Apple Macintosh, and compatible users crisp text and vivid color graphics display when
using the following graphics adapters : (VGA, 8514/A, Super VGA, VESA and XGA and Apple
Macintosh Video Card). And so, this color monitor has a maximum horizontal resolution of 1280 dots and
a maximum vertical resolution of 1024 lines for superior clarity of display.
By accepting analog signal inputs which level is zero to 0.7 Volts. This color monitor can display and
unlimited palette of colors depending on the graphics adapter and software being used.

◆ Abbreviations

Pin Signal

1 Red
2 Green
3 Blue
4 GND
5 GND
6 GND - Red
7 GND - Green
8 GND - Blue
9 +5Vdc
10 GND - H.Sync
11 GND - V.Sync
12 Bi-directional Data (SDA)
13 Horizontal Sync
14 Vertical Sync (VCLK)
15 Data Clock (SCL)

8

• Degaussing is always required when adjusting purity or convergence.

• The white balance adjustment has been done by a color analyzer in factroy. The adjustment procedure,
described in the service manual is made by a visual check.

• Allow 20 minutes warm-up time for the display before checking or adjusting only electrical
specification or function.

• Reform the leadwire after any repair work.

◆ Caution For Servicing

• In case of servicing or replacing CR T, high voltage sometimes remains in the anode of the CRT. Completely discharge

high voltage before servicing or replacing CRT to prevent a shock to the serviceman.

Arrangement of 15-pin D-sub connector

PIN CONNECTOR

CAUTIONS FOR ADJUSTMENT AND REP AIR

1

6

15

10

9

OPERATION AND ADJUSTMENT

Control Panel

• Move cursor to the right window on the OSD window.

• Increase the value of any selected function.

• Move cursor to the left window on the OSD window.

• Decrease the value of any selected function.

• Launch OSD(On-Screen Display) MENU window.

• Move cursor to the high window on the OSD window.

• Increase the value of V.size or V.center.

• Move cursor to the low window on the OSD window.

• Decrease the value of V.size or V.center.

10

Key Process

•

When you choose the icon on the OSD window, you can exit the OSD screen.

Hot Key

BRIGHTNESS CONTRAST

MENU

Start

11

OSD Functions

Adjust the parallelogram when the screen is leaning left or right.

Adjust the rotation when the screen is tilted left or right (optional).

Adjust the left and right margins of the each corner.

ROTATION

PIN CORNER

PARALLELOGRAM

Adjust the trapezoid of the screen by moving the lines inward or outward.

Adjust the side balance when the sides of the screen are bowed towards left or right.

PIN BALANCE

TRAPEZOID

Degauss the display and restore image quality.

DEGAUSS

Display horizontal & vertical frequency and polarity.

STATUS

ICON CONTROL FUNCTIONS

Adjust the left and right margins for more convex or more concave margins.PINCUSHION

Adjust the position of the display horizontally(left or right) and vertically (up or down).

H. CENTER &

V. CENTER

Choose different preset color temperatures or set your own customized color parameters.

Adjust the red gain.

Adjust the green gain.

Adjust the blue gain.

COLOR TEMP

RED GAIN

GREEN GAIN

BLUE GAIN

Adjust the width (horizontal size) and the height (vertical size) of the display.

H. SIZE &

V. SIZE

12

Select language for OSD (5 languages).

LANGUAGE

ICON CONTROL FUNCTIONS

Reset the screen to the Factory Preset Display Settings.

RECALL

Adjust the vertical picture moire cancellation.

V. MOIRE

Adjust the horizontal picture moire cancellation.

H. MOIRE

13

◆

Standard Adjustment Conditions

1. Power source voltage : AC 120V, 60Hz/AC 220V, 50Hz.

2. Aging : Take at least 20 minutes warm-up time.

3. Signals.

Video : Analog 0.7Vpp 75Ω terminal positive polarity
Synchronizing : TTL Level Negative/Positive Separate/Composite
Deflection frequency

Horizontal Frequency : 30KHz - 70KHz
Vertical Frequency : 50Hz - 160Hz

◆ Pre-Adjustment

1. High Voltage Adjustment
Adjust 26K Vdc between Anode cap and ground at a cross hatch pattern of 31.5KHz by using VR 602.

2. H.Size Adjustment

(a) Receive a cross hatch pattern of 60KHz
(b) Set the H-Size control to the maximum on OSD menu.
(c) Adjust H-Size to oversize by using VR501.

◆ Method to launch the factory mode

Step 1. Push the menu button.
Step 2. Push the menu button and contrast plus control button ( ) for 5 times in same time.

◆ Main Adjustment

1. Setting the Controls

Set the value of items as following.

Contrast : Max. (OSD value up to 100)
Brightness : Center (Set the OSD value to 50)

2. H.size, V.size, H.phase, V.position, Pincushion, Trapezoid
Receive the cross hatch pattern of Factory preset mode.

H.size, V.size, H.phase, V.position, Pincushion, Trapezoid are adjusted at each mode.
In Factory, Auto Alignment was done at each mode. Therefore, Factory preset mode has it’s own value
according to each control.

3. Focus
(a) Set brightness control to center and contrast control to MAX.
(b) Receive all “H” character pattern of 60KHz mode signal.
(c) Adjust the Focus control of FBT to obtain best Focus (static focus and Dynamic focus).

4. Geometric Distortion Adjustment
(a) Receive the cross hatch pattern of VGA mode signal by using the signal generator.
(b) Pin balance, Parallelogram are adjusted the best geometric status.
(c) Repeat the adjustment at each mode.

5. White Balance Adjustment

(a) Receive a full white pattern of 60KHz mode.
(b) Set the bright control and contrast control to the maximum and receive the all black pattern.
(c) Adjust the FBT screen VR to get the screen luminosity to 0.8 Ft/L.
(d) Select the R, G, B Bias on the OSD menu and adjust the ADJUST +/– key to get the color coordinates in

X=0.281, Y=0.311.

(e) If the screen luminosity is changed, adjust the sub brightness control to get the 0.8 Ft/L screen luminosity.

ALIGNMENT PROCEDURE

14

(f) Set the brightness control to the center and contrast control to the maximum.
(g) Receive a full white pattern.
(h) Select the R, G, B gain on the OSD menu and adjust the ADJUST +/– key to get the color coordinates in

X=0.281±0.02, Y=0.311±0.02.

(i) Adjust the sub contrast control to get the screen luminosity to 34 Ft/L.

6. Static Convergence Adjustment
(a) Apply a magenta cross hatch pattern on display.
(b) Adjust the focus from the best over all focus on the display.

Also adjust the brightness to the desired condition.

(c) Vertical red and blue lines are converged by varying the angles between the two tabs of the 4-pole

magnets.

(d) Horizontal red and blue lines are converged by varying the tabs together keeping the angle between

them constant.
(e) Apply a yellow cross hatch pattern on the display.
(f) Vertical green and red lines are converged by varying the angle between the two tabs of the 6-pole

magnets.

(g) Horizontal green and red lines are converged by varying the tabs together and keeping the angle

between them constant.

15

TROUBLESHOOTING HINTS

1. No Character

Are the

Contrast &

Brightness Controls

maximum

Change the Contrast &
Brightness control to
maximum

No Raster

Refer to
No Raster

Check the peripheral circuit
of CRT Board

Check the video output
circuit and IC802 (pin 1, 3, 5)
and their ambient circuit

Trouble in 12Vdc line
of the Main PWB

Check the clamping pulse
circuit

Check the signal cable

No Character

Is whole

screen bright?

Yes

Yes

Yes

Yes

Yes

No

No

No

No

No

Yes

Yes

Rk, Gk, Bk

About 45Vpp

No

No

Is CRT

Cathode (Rk, Gk, Bk)

signal level

normal?

Is the

output signal of the

(pin 21, 24, 26) pre-amp

(IC801, KA2500)

normal?

Is clamping

pulse (pin 18 of IC801)

normal?

Is 12Vdc line

normal?

Is input signal

normal?

Trouble in IC801 and

its ambient circuit

16

2. No Raster

Trouble in
power supply
circuit

Trouble in power
supply circuit

Trouble in G1
line of Main PWB

Trouble in FBT

High Voltage
trouble in FBT

Trouble in 80Vdc
line of power
supply unit

Refer to trouble
in P.S.U

Refer to trouble in
power supply unit.

Is CRT

heater red-hot?

No

No

No

No

No

No

No

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Is Heater

Voltage (CRT PWB)

about 6V?

Turn the Brightness

& Contrast control

to set Maximum

No Raster

Is whole

screen bright?

Check

G1 voltage about

-30V?

Is 80Vdc

line normal?

Does

turning the Brightness

control counterclockwise

make screen

bright?

Is CRT

G2 (screen) voltage

about 500V?

Trouble in
CRT

Trouble in FBT

17

3. A Missing Color

Is input signal

normal?

One color is

missing

CRT

Cathode (Rk, Gk, Bk)

is normal?

Is video

output IC803 waveform

normal?

Each grid (G1, G2)

voltage normal?

Is the

output of pre-amp

(IC801, KA2500)
pin 21, 24, 26 all

normal?

Check video signal
cable or video card.

Trouble in IC801 or its
ambient circuit

Trouble in
video output
circuit, IC803
or ambient

Trouble in 80Vdc line

Trouble in 80Vdc line

Replace CRT

No

No

No No

No

Yes

Yes Yes

Yes

Yes

RK, GK, BK

About 40V p-p

0.7Vpp

18

4. Abnormal OSD Font

Is menu

key selected?

Is OSD Font

exist?

* If menu key selected.

Is Heater

Voltage (CRT PWB)

about 6V?

Abnormal OSD Font

Is the
output of IC204
(pin 13, 14, 15)

normal?

Trouble in
Heater voltage
line.

Refer to trouble in P.S.U

Troubie in
IC204or its
ambient circuit

Trouble in IC204
and its ambient
circuit

One color is
missing

Refer to Missing Color

No

No

Yes

Yes

Yes

Yes

No

19

5. Horizontal Output Circuit

Is the

B+line voltage

over 180V?

Is the H-out

waveform of IC501

normal?

Trouble in B+ Booster Circuit
(Check the B+section of IC501,
Check Q546 and its ambient
circuit).

Trouble in IC501

Trouble in Horizontal

output circuit

(No Raster

Yes

No

Is the Collector

wave form of

Q541 or Q542

normal?

Yes

Yes

Yes

Trouble in Q543 and its
ambient circuit.

Trouble in Q541, Q542

No

No

No

Trouble in Q547 and

its ambient circuit.

10V

0V

11V

0V

66V

Is the Collector

waveform of

Q543 normal?

20

6. Unstable Picture

6-1. Horizontal

Unstable


Is H.Sync

input pin of IC501

correct?

Check H.Sync Out of
Micom or its ambient
circuits.

Is the

pin 1 of IC501

5V?

Check the value of

C514, R516

Yes

Yes

No

No

Trouble in IC501

21

6-2. Vertical

Unstable or

Abnormal picture

Is

± 13V DC line

correct?

Check PWR ± 13V
ambient circuit.

No

Yes

Is

the output

waveform of IC401

(pin 6) normal?

Trouble in V.Sync line

or IC501 failure.

Yes

No

45Vp-p

Is the

output pulse

of IC501 (pin 23)

normal?

Yes

No

Check V.DY
and ambient circuit.

Check the IC401
or ambient circuit.

22

7. Focus

Monitor remains

unfocused

Check

Focus VR in

FBT

Is

focus

acceptable?

Trouble in Focus

circuit (FBT)

Yes

OK

No

23

7-1. Dynamic Focus

Focus is poor

Is the

waveform of the

DF pin in FBT

correct?

ORION : 300V 120V
SAMSUNG : 300V 120V

1. Check the CRT socket
or connector wire

2. Trouble in FBT or CRT

1. Check the waveform of
the pin 3 of FBT.

2. Check D605

1. Check the 12V DC line.

2. Check Q303, Q302

* Check after adjusting the static focus
finely by VR in FBT

DF

waveform

FVH

FVH FVV

FVV

No

Is the

base voltage of

the Q303 about

2.6V?

Yes

Yes

Yes

Is the

waveform of

the pin 10 in IC501

correct?

Yes

No

No

Trouble in Q303, Q304,
Q302,Q301

Trouble in IC501 or C508

No

DF

waveform

4.5V

2V
0V

0.8V

Is the

cathode voltage

of the D605

about 700V?

24

8. Convergence

Is

convergence

on the center area

bad?

Is

convergence on the

fringe area bad?

Adjust static
convergence

Refer to
Adjustment
procedure of
convergence

Yes

Adjust D.Y
Location

Yes

No

Poor convergence

25

9. Abnormal Picture

9-1. Horizontal Size

When

the VR501 is

changed, is the H.size

changed?

No

Yes

Check pin 15 of IC501
and its ambient circuit
(D547, R552, R553, C553)

It isn't out of order.

Is the

H.Size overscan at 60KHz

and Max. H.Size

in OSD Menu?

No

Yes

1.Check B+ section of TDA9111
and its ambient circuit.

2.Check Q546 and its ambient
circuit.

Abnormal

H.Size

26

9-2. Vertical Size

Is

changeable the

DC voltage of

IC401 pin 1?

Check the IC401
and its
ambient circuit

Check the IC501 and
its ambient circuit

No

No

Trouble V.OSC/
Deflection Circuit

Refer to V.OSC/Deflection circuit

Yes

Is

the 3.5Vdc of pin

23 of the IC501?

Yes

Abnormal

V.Size

27

10. High Voltage Output Circuit

Trouble in Q608 or FBT

Is Q608

base waveform

normal?

Yes

Yes

Trouble in Q601, Q605
12V Line

Is Q601

collector waveform

normal?

Yes

No

Trouble in IC601

Is IC601

pin 10

normal?

Yes

No

No

Trouble in H.V circuit

(No Raster)

Trouble in IC601
ambient circuit.

Is the

IC601 pin5 H.trigger

correct?

Yes

No

Trouble in H.trigger

Trouble in power
supply circuit

Is

B+(120V) line

voltage normal?

No

28

1 1. Side-Pincushion Cir cuit

Side-Pincusion distortion

is excessive or barrel

O.K

Select the

side-pincushion

icon on OSD menu,

and adjust acceptable

position.

Yes

Check IC501 or
their ambient circuit
(pin 14, 15, 16)

Is the pin 24

waveform of IC501

correct

Yes

No

Check IC501 or
it's ambient circuit.

Trouble in H.V Sync

Is the

waveform of IC501

pin 1, 2

Yes

No

No

29

12. Power Supply Unit (P.S.U)

Trouble in P.S.U

Is

power switch

on?

Switch on

No

Yes

Yes

Is

fuse F001

O.K?

Check the power cord outlet
and diode D001, D002,
D003, D004

No

Is

voltage of C104

80Vdc?

Trouble in D102 or
Video Part

No

Is

voltage of C108

120Vdc?

Trouble in D107 or
High Voltage Part

No

Is

voltage of T001

pin 9 130V

(370V)?

Trouble in D001, D002,
D003, D004, C004 and
TH001.

No

Is the

waveform of IC001

pin 3 correct?

400Vpp (620Vpp)

Trouble in T001, IC001,
IC101, IC002 and D007 etc.

No

Yes

Yes

Yes

Yes

Is

voltage of C111

180Vdc?

Trouble in D105 or
B+ Part

No

A

30

Is voltage

of C107

6.3Vdc?

Trouble in D104

No

Is voltage

of C114 13Vdc?

No

Yes

Yes

Yes

Is

voltage of C121

-13Vdc?

Trouble in D103 or vertical
Part.

P.S.U O.K

Trouble in D108, IC102 or
horizontal Part.

No

A

31

BLOCK DIAGRAM

R

G

B

H

V

OSD IC

DWOSD07

MICOM

ST7275

EEPROM

24C08

TILT IC

LM358

V.DRV AMP

TDA8172

V.DY

KA2500

VIDEO

PREAMP

VIDEO OUTPUT

LM2407T

BIAS CONTROL

FBT

FFA71012U)

H.VTG

B+

CONTROL

KA7500B

H.DY

B+ CONTROL

TDA9111

H.OSC

&

V.DRV

SMPS

TRANS

POWER

IC

FILTER

SCL

SDA

SCL,SDA

OSD

(R,G,B)

SCL,SDA

H,V SYNC.

SDA

SCL

175V,100V,80,12V

-11V,HEATER

H.VTG

H.DRV

SCREEN,

FOCUS

(R,G,B)

BIAS(R,G,B)

L

N

GND

STR-F6654A

TILT IC

LM358

32

PCB LAYOUT

Main PCB Component Side

33

Main PCB Solder Side

34

CRT PCB Component Side

35

CRT PCB Solder Side

36

SCHEMATIC DIAGRAM

Power Section

37

Micro-controller/OSD/Vertical Section

38

Horizontal Section-A

39

Horizontal Section-B

40

Video Section

41

EXPLODED VIEW & MECHANICAL P A RTS LIST

RESISTOR Description

Example:

CAP ACITOR Description

Example:

Fig &

Part No Description

Index

Capacitors
C102 CCXF1H104Z Ceramic 50V 0.1µF Z
C402 CCXB1H331K Ceramic 50V 22PF K
C105 CMXM 2A224J MYLAR 100V 0.22µF J

Allowance
C ± 0.25pF
D ± 0.5%
F ± 1pF
J±5%
K ± 10%
P ± 100% ~ 0%
Z ± 80% ~ –

Fig &

Part No Description

Index
R101

Resistors

RE-42820J Carbon: 82J

R102 RD-4Z201J Carbon1/4W-200J

Allowance
F±1%
J±5%
K ± 10%
M ±20%
G±2%

42

INFORMATION OF PART DESCRIPTION

Important Safety Notice

Components identified with the International Symbol have special characteristics important for safety.
When replacing any components, use only manufacturer’s specified parts.

Abbreviation of Description

C209 HCQK220JCA C CHIP CERA 50V CH 22PF J 2012
C210 HCQK101JCA C CHIP CERA 50V CH 100PF J 2012
C211 HCQK101JCA C CHIP CERA 50V CH 100PF J 2012
C212 HCQK221JCA C CHIP CERA 50V CH 220PF J 2012
C213 HCQK221JCA C CHIP CERA 50V CH 220PF J 2012
C214 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
C215 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
C216 HCQK220JCA C CHIP CERA 50V CH 22PF J 2012
C217 HCQK102JCA C CHIP CERA 50V CH 1000PF J 2012
C219 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
C221 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
C301 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C302 CEXF2W479V C ELECTRO 450V RSS 4.7MF(10X20) TP
C303 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
C401 HCBK562KCA C CHIP CERA 50V X7R 5600PF K 2012
C403 CEXF1E471V C ELECTRO 25V RSS 470MF (10X16) TP
C404 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
C405 CEXF1V101V C ELECTRO 35V RSS 100MF (8X11.5) TP
C406 CMXL2A224J C MYLAR 100V MEU 0.22MF J
C407 CMXM2A562J C MYLAR 100V 5600PF J (TP)
C408 CCZF1H104Z C CERA 50V HIKF 0.1MF Z
C503 HCBK222KCA C CHIP CERA 50V X7R 2200PF K 2012
C504 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C505 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
C506 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
C507 HCQK221JCA C CHIP CERA 50V CH 220PF J 2012
C508 HCQK681JCA C CHIP CERA 50V CH 680PF J 2012
C509 HCFK224ZCA C CHIP CERA Y5V 50V 0.22MF Z 2012
C510 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
C511 CMXM2A183J C MYLAR 100V 0.018MF J (TP)
C512 HCQK681JCA C CHIP CERA 50V CH 680PF J 2012
C513 CMXM2A223J C MYLAR 100V 0.022MF J TP
C514 HCQK101JCA C CHIP CERA 50V CH 100PF J 2012
C515 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
C516 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
C519 CEXF1C221V C ELECTRO 16V RSS 220MF (8X11.5) TP
C520 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
C521 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
C522 CMXL2A474J C MYLAR MEU 100V 0.47MF J
C523 CMXL2A154J C MYLAR MEU 100V 0.15MF J
C524 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
C525 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
C526 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
C527 CEXD1H109F C ELECTRO 50V RND 1MF (5X11) TP
C529 HCBK152KCA C CHIP CERA 50V X7R 1500PF K 2012
C533 CMXF2D474J C MYLAR MPP 200V 0.47MF J
C534 CMXF2D104J C MYLAR MPP 200V 0.1MF J
C535 CMXF2D224J C MYLAR MPP 200V 0.22MF J
C537 CMXF2D704J C MYLAR MPP 200V 0.7MF J
C538 CMXF2G184J C MYLAR MPP 400V 0.18MF J
C539 CMXF2G184J C MYLAR MPP 400V 0.18MF J
C541 CEXD1H109F C ELECTRO 50V RND 1MF (5X11) TP

00001 9979800488 PCB MAIN T1.6*330*246
00001 9979800489 PCB VIDEO T1.6*136*105
00150 9970K00012 CORE FERRITE RING-23
B002 5PB13857-- COIL BEAD BI3857(AXIAL)
B003 5PB13857-- COIL BEAD BI3857(AXIAL)
B045 5PB13857-- COIL BEAD BI3857(AXIAL)
B046 5PB13857-- COIL BEAD BI3857(AXIAL)
B086 5PB13857-- COIL BEAD BI3857(AXIAL)
B087 5PB13857-- COIL BEAD BI3857(AXIAL)
B097 5PB13857-- COIL BEAD BI3857(AXIAL)
B102 5PB13857-- COIL BEAD BI3857(AXIAL)
B202 5PB13857-- COIL BEAD BI3857(AXIAL)
B401 5PB13857-- COIL BEAD BI3857(AXIAL)
B501 5PB13857-- COIL BEAD BI3857(AXIAL)
B588 5PB13857-- COIL BEAD BI3857(AXIAL)
B802 5PB13857-- COIL BEAD BI3857(AXIAL)
B805 5PB13857-- COIL BEAD BI3857(AXIAL)
B807 5PB13857-- COIL BEAD BI3857(AXIAL)
B810 5PB13857-- COIL BEAD BI3857(AXIAL)
B820 5PB13857-- COIL BEAD BI3857(AXIAL)
C001 CL1UC3474M C LINE ACROSS 0.47MF 1J(UCVSNDF/SV)+Q/O
C002 CEYP2G221Z C ELECTRO 400V SMH 220MF (25.4*40)
C003 CCYB3A103K C CERA 1KV B 0.01MF K
C004 CCXB3A101K C CERA 1KV B 100PF K
C007 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C008 HCQK102JCA C CHIP CERA 50V CH 1000PF J 2012
C009 HCQK102JCA C CHIP CERA 50V CH 1000PF J 2012
C010 CCXF1H104Z C CERA 50V F 0.1MF Z
C011 CH1FDF222M C CERA AC 2.5KV 2200PF M AC250V
C102 CCXB3A101K C CERA 1KV B 100PF K
C104 CEXF2A470V C ELECTRO 100V RSS 47MF (10X16) TP
C105 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
C107 CEXF1C221V C ELECTRO 16V RSS 220MF (8X11.5) TP
C108 CEXF2A470V C ELECTRO 100V RSS 47MF (10X16) TP
C109 CCXB3A101K C CERA 1KV B 100PF K
C110 CCXB3A101K C CERA 1KV B 100PF K
C111 CEXF2C470V C ELECTRO 160V RSS 47MF (13X25) TP
C112 CMXL2A104J C MYLAR MEU 100V 0.1MF J
C114 CEXF1C471V C ELECTRO 16V RSS 470MF (10X12.5)TP
C115 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
C116 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
C117 CCXB2H221K C CERA 500V B 220PF K (TAPPING)
C118 CEXF1C471V C ELECTRO 16V RSS 470MF (10X12.5)TP
C119 CEXF1E471V C ELECTRO 25V RSS 470MF (10X16) TP
C120 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
C121 CEXF1E221V C ELECTRO 25V RSS 220MF (8X11.5) TP
C202 HCQK181JCA C CHIP CERA 50V CH 180PF J 2012
C203 CEXF1C471V C ELECTRO 16V RSS 470MF (10X12.5)TP
C204 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
C205 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
C207 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
C208 HCQK220JCA C CHIP CERA 50V CH 22PF J 2012

43

The components identified by mark ! have special characteristics important for safety and x-ray radiation.

These should be replaced only with the types specified in the parts list.

LOC PART-CODE PART-NAME PART-DESC

LOC PART-CODE PART-NAME PART-DESC

!
!

!
!

!

ELECTRICAL P ARTS LIST

C821 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
C823 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
C825 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
C840 CCXF1H104Z C CERA 50V F 0.1MF Z
C841 CEXD2A109F C ELECTRO 100V RND 1MF(5*11) TP
C843 CEXD2A109F C ELECTRO 100V RND 1MF(5*11) TP
C845 CEXD2A109F C ELECTRO 100V RND 1MF(5*11) TP
C846 CCXF1H104Z C CERA 50V F 0.1MF Z
C852 CEXF2A470V C ELECTRO 100V RSS 47MF (10X16) TP
C855 HCBN104MEA C CHIP CERA 100V X7R 0.1MF M 1206
C856 CEXF2A470V C ELECTRO 100V RSS 47MF (10X16) TP
C857 CEXF2A100C C ELECTRO RUS 100V 10MF 5*11
C858 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
C860 CCXF1H104Z C CERA 50V F 0.1MF Z
C863 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
C864 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C870 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
C875 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
C877 HCBN104MEA C CHIP CERA 100V X7R 0.1MF M 1206
C884 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
C885 CCXF1H104Z C CERA 50V F 0.1MF Z
C886 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C887 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
C889 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
C890 CMXL2A104J C MYLAR MEU 100V 0.1MF J
C891 CMXL2A104J C MYLAR MEU 100V 0.1MF J
C892 CCXF1H104Z C CERA 50V F 0.1MF Z
C893 CMXL2A104J C MYLAR MEU 100V 0.1MF J
C894 CCXF1H104Z C CERA 50V F 0.1MF Z
C895 CCXF1H104Z C CERA 50V F 0.1MF Z
C896 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
C897 CCXE3D103P C CERA HIKE 2KV 0.01MF P
C899 CCXB2H102K C CERA 500V B 1000PF K (TAPPING)
CA203 99707A0019 CONN AS SMH250-10+51088-11=180
CA204 9970770022 CONN AS SMH250-07+51088-08=210
CA801 9970710206 CONN AS 35068-9812+4.3PIE=110
CGND 9970710196 CRT GND AS 0.12*5*24+BL102NG=730
CS800 9979300008 SOCKET CRT 033 0 7700 44
CW201485923272S CONN WAFER 5267-06A STICK TYPE
CW8019979220021 CONN WAFER SMAW250-06 (ANGLE)
CW8029979220025 CONN WAFER SMAW250-10 (ANGLE)
CW8039979220023 CONN WAFER SMAW250-08 (ANGLE)
D001 D2A05----- DIODE 2A05
D002 D2A05----- DIODE 2A05
D003 D2A05----- DIODE 2A05
D004 D2A05----- DIODE 2A05
D005 DRU1P----- DIODE RU 1P (TAPPING)
D007 DRGP10D--- DIODE RGP 10-D (TAPPING)
D008 DZN4148--- DIODE 1N4148 AUTO 52MM
D101 DZN4148--- DIODE 1N4148 AUTO 52MM
D102 DS2L60---R DIODE S2L60
D103 DEG1Z----- DIODE EG1Z
D104 DD1NL20U-- DIODE D1NL20U
D105 DRG4C----- DIODE RG4C LF-L1
D107 DRG2------ DIODE RG2 (VERY HIGH SPEED)
D108 DS3L20U--- DIODE S3L20U

C542 CMXL2A104J C MYLAR MEU 100V 0.1MF J
C544 CEXF2A220V C ELECTRO 100V RSS 22MF (8*11.5) TP
C545 CMXL2A104J C MYLAR MEU 100V 0.1MF J
C547 CEXF2E100V C ELECTRO 250V RSS 10MF (10X20) TP
C548 CMXE2J223J C MYLAR 630V PU 0.022MF J (TP)
C550 CMYH3D532J C MYLAR BUP 2KV 5300PF J BULK
C551 CEXF1C470V C ELECTRO 16V RSS 47MF (5X11) TP
C552 CMXE2D222J C MYLAR PL 200V 2200PF J
C553 CMXL2A683J C MYLAR MEU 100V 0.068MF J (TP)
C554 CMXL2A104J C MYLAR MEU 100V 0.1MF J
C555 CCXB2H102K C CERA 500V B 1000PF K (TAPPING)
C557 CMXL2A154J C MYLAR MEU 100V 0.15MF J
C562 CCXB3D331K C CERA 2KV B 330PF K (TAPPING)
C563 CMXM2A562J C MYLAR 100V 5600PF J (TP)
C585 CMXL2A104J C MYLAR MEU 100V 0.1MF J
C601 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
C603 CMXL2E104J C MYLAR MEU 250V 0.1MF J
C604 HCFK223ZCA C CHIP CERA 50V Y5V 0.022MF Z 2012
C605 CMXL2A473J C MYLAR MEU 100V 0.047MF J (TP)
C606 CEXD1H109F C ELECTRO 50V RND 1MF (5X11) TP
C607 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C608 CCYB3A103K C CERA 1KV B 0.01MF K
C609 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
C610 CEXF2C220V C ELECTRO 160V RSS 22MF (10X20) TP
C612 CEXD1C100F C ELECTRO 16V RND 10MF(5X11)
C613 CEXF2E220V C ELECTRO 250V RSS 22MF (13X20) TP
C614 CMXL2A104J C MYLAR MEU 100V 0.1MF J
C615 CMXL2A104J C MYLAR MEU 100V 0.1MF J
C616 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
C627 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
C629 CMXL2A103J C MYLAR MEU 100V 0.01MF J
C631 CEXF1C470V C ELECTRO 16V RSS 47MF (5X11) TP
C632 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
C633 CEXF1C470V C ELECTRO 16V RSS 47MF (5X11) TP
C634 CMXL2A224J C MYLAR 100V MEU 0.22MF J
C635 CMXM2A103J C MYLAR 100V 0.01MF J (TP)
C637 CXCH2H220J C CERA 500V CH 22PF J (TAPPING)
C638 CMXL2A104J C MYLAR MEU 100V 0.1MF J
C639 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
C701 HCQK331JCA C CHIP CERA 50V CH 330PF J 2012
C702 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
C703 CEXF1C221V C ELECTRO 16V RSS 220MF (8X11.5) TP
C704 HCFK103ZCA C CHIP CERA 50V Y5V 0.01MF Z 2012
C707 HCQK391JCA C CHIP CERA 50V CH 390PF J 2012
C708 HCQK391JCA C CHIP CERA 50V CH 390PF J 2012
C709 CEXF1C221V C ELECTRO 16V RSS 220MF (8X11.5) TP
C711 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
C712 HCBK332KCA C CHIP CERA 50V X7R 3300PF K 2012
C713 HCQK102JCA C CHIP CERA 50V CH 1000PF J 2012
C716 HCFK103ZCA C CHIP CERA 50V Y5V 0.01MF Z 2012
C801 CEXE1H100C C ELECTRO 50V RU 10MF (5X11) TP
C803 CEXE1H100C C ELECTRO 50V RU 10MF (5X11) TP
C805 CEXE1H100C C ELECTRO 50V RU 10MF (5X11) TP
C808 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C809 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
C817 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP

44

LOC PART-CODE PART-NAME PART-DESCLOC PART-CODE PART-NAME PART-DESC

!

IC102 1KA78R12-- IC REGULATOR KA78R12
IC103 1K1A7805P1 IC REGULATOR KIA7805API
IC201 1DWM250--- IC MICOM ST7275
IC202 124C08---- IC EEPROM 24C08
IC203 1KA7542--- IC VOTAGE DETECTOR KA7542
IC204 1DW0SD07-- IC OSD DWE0SD07
IC401 1TDA8172-- IC V-OUT TDA8172
IC501 1TDA9111-- IC H/V OSC TDA9111
IC505 1DBL358--- IC DBL358 DUAL OP-AMP
IC601 1KA7500B-- IC KA7500B
IC602 1DBL358--- IC DBL358 DUAL OP-AMP
IC801 1KA2500--- IC KA2500
IC802 1LM2407T-- IC VIDEO OUTPUT LM2407T
L501 5MH0000069 COIL H-LINEARITY TRL-149A
L801 5CPZ128K03 COIL PEAKING 0.12UH K(AXIAL 7MM)
L803 5CPZ278K03 COIL PEAKING 0.27UH K(AXIAL 7MM)
L805 5CPZ278K03 COIL PEAKING 0.27UH K(AXIAL 7MM)
P001 W1173D831- CORD POWER SP30+IS14(I)
P002 9977410800 TERMINAL PIN BSP1(SN) L=15MM
P003 9977410800 TERMINAL PIN BSP1(SN) L=15MM
P501 9977410800 TERMINAL PIN BSP1(SN) L=15MM
P502 9977410800 TERMINAL PIN BSP1(SN) L=15MM
P503 9977410800 TERMINAL PIN BSP1(SN) L=15MM
P504 9977410800 TERMINAL PIN BSP1(SN) L=15MM
P510 9977410800 TERMINAL PIN BSP1(SN) L=15MM
P511 9977410800 TERMINAL PIN BSP1(SN) L=15MM
P512 9977410800 TERMINAL PIN BSP1(SN) L=15MM
P801 9977410800 TERMINAL PIN BSP1(SN) L=15MM
P802 4859242220 CONN WAFER YFW800-02
PA001 9979500016 RECEPTACLE 02MP1/FILTER EMI
PR001 DPJ502140M POSISTOR J502P53D140M290
Q101 TKSD471ACY TR KSD471ACY
Q102 TKTA1273Y- TR KTA1273-Y
Q103 TZSR1009-- TR KSR1009
Q104 TKTA1273Y- TR KTA1273-Y
Q105 TZSR1009-- TR KSR1009
Q202 TKSD471ACY TR KSD471ACY
Q203 TKSD471ACY TR KSD471ACY
Q204 TKSA539CY- TR KSA539CY
Q205 TKSA539CY- TR KSA539CY
Q301 TKSC5042F- TR KSC5042F
Q302 TKSC5042F- TR KSC5042F
Q303 TZTA1266Y- TR KTA1266Y- (AUTO)(1015Y)
Q304 TZTC3198Y- TR KTC3198Y-(1815Y) (AUTO)
Q501 TKSA539CY- TR KSA539CY
Q502 TZSR1006-- TR KSR1006 (AUTO)
Q503 T1RF640--- FET IRF640
Q504 T1RF630A-- FET IRF630A
Q506 T1RF630A-- FET IRF630A
Q507 TZSR1006-- TR KSR1006 (AUTO)
Q508 TZSR1006-- TR KSR1006 (AUTO)
Q509 TZSR1006-- TR KSR1006 (AUTO)
Q510 T1RF630A-- FET IRF630A
Q541 TKSD471ACY TR KSD471ACY
Q542 TKSA539CY- TR KSA539CY
Q543 TKSC3502E- TR KSC3502E

D201 DZN4148--- DIODE 1N4148 AUTO 52MM
D202 DZN4148--- DIODE 1N4148 AUTO 52MM
D301 DRP1H----- DIODE RP1H
D302 DRP1H----- DIODE RP1H
D303 DZN4148--- DIODE 1N4148 AUTO 52MM
D401 D1N4002A-- DIODE 1N4002
D501 DRLS4148-- DIODE CHIP RLS4148
D541 DZN4148--- DIODE 1N4148 AUTO 52MM
D543 DRU3C----- DIODE RU 3C
D544 DTVR1G---- DIODE TVR1G TPA1
D545 DDTV32F--- DIODE DTV32F
D547 DZN4148--- DIODE 1N4148 AUTO 52MM
D580 D2A05----- DIODE 2A05
D602 DZN4148--- DIODE 1N4148 AUTO 52MM
D603 DRU3C----- DIODE RU 3C
D605 DRU1P----- DIODE RU 1P (TAPPING)
D606 DTVR1G---- DIODE TVR1G TPA1
D610 DRLS4148-- DIODE CHIP RLS4148
D620 DRLS4148-- DIODE CHIP RLS4148
D631 DZN4148--- DIODE 1N4148 AUTO 52MM
D640 DZN4148--- DIODE 1N4148 AUTO 52MM
D801 DZN4148--- DIODE 1N4148 AUTO 52MM
D802 DZN4148--- DIODE 1N4148 AUTO 52MM
D803 DZN4148--- DIODE 1N4148 AUTO 52MM
D804 DZN4148--- DIODE 1N4148 AUTO 52MM
D805 DZN4148--- DIODE 1N4148 AUTO 52MM
D806 DZN4148--- DIODE 1N4148 AUTO 52MM
D811 DZN4148--- DIODE 1N4148 AUTO 52MM
D812 DZN4148--- DIODE 1N4148 AUTO 52MM
D813 DZN4148--- DIODE 1N4148 AUTO 52MM
D814 DZN4148--- DIODE 1N4148 AUTO 52MM
D815 DZN4148--- DIODE 1N4148 AUTO 52MM
D816 DZN4148--- DIODE 1N4148 AUTO 52MM
D820 DZN4148--- DIODE 1N4148 AUTO 52MM
D821 DZN4148--- DIODE 1N4148 AUTO 52MM
D822 DZN4148--- DIODE 1N4148 AUTO 52MM
DG001 5MG0000062 COIL DEGAUSSING DG-710B
DL001 DSD50GYW-- LED SD50GYW(GREEN/AMBER)
DZ201 DDZ5R1B--- DIODE ZENER DZ-5.1B
DZ202 DDZ5R1B--- DIODE ZENER DZ-5.1B
DZ203 DDZ5R1B--- DIODE ZENER DZ-5.1B
DZ204 DDZ5R1B--- DIODE ZENER DZ-5.1B
DZ541 DUZ18BM--- DIODE ZENER UZ-18BM
DZ602 DDZ4R3BM-- DIODE ZENER DZ4.3BM
DZ603 DDZ8R2BM-- DIODE ZENER DZ8.2BM
DZ604 DDZ8R2BM-- DIODE ZENER DZ8.2BM
DZ631 DDZ5R1B--- DIODE ZENER DZ-5.1B
EF801 5PF1BA470M FILTER LC CFI-06-B-2A-470M
EF803 5PF1BA470M FILTER LC CFI-06-B-2A-470M
EF805 5PF1BA470M FILTER LC CFI-06-B-2A-470M
F001 5F3CB3122L FUSE CERA SEMKO TL 3.15AH 250V MF51
F001A 9977410900 FUSE CLIP BSP3-H T0.4 SN 5.2
F001B 9977410900 FUSE CLIP BSP3-H T0.4 SN 5.2
IC001 1STRF6654A IC POWER STR-F6654A LF1351
IC002 1TLP721GR- IC PHOTO COUPLER TLP721D4GR
IC101 1KA431ZTA- IC SHUNT KA431ZTA

45

LOC PART-CODE PART-NAME PART-DESCLOC PART-CODE PART-NAME PART-DESC

!

!

!

!

!

!

!
!

R218 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R219 HRFT203JCA R CHIP 1/10 20K OHM J 2012
R220 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R222 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
R223 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
R224 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
R225 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
R226 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
R227 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
R228 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R229 HRFT105JCA R CHIP 1/10 1M OHM J 2012
R230 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J
R231 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J
R232 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J
R233 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J
R234 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R235 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R237 HRFT101JCA R CHIP 1/10 100 OHM J 2012
R238 HRFT101JCA R CHIP 1/10 100 OHM J 2012
R239 RD-AZ750J- R CARBON FILM 1/6 75 OHM J
R241 HRFT000JCA R CHIP 1/10 0 OHM J 2012
R2430 HRFT333JCA R CHIP 1/10 33K OHM J 2012
R244 HRFT202JCA R CHIP 1/10 2K OHM J 2012
R245 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J
R247 RD-AZ560J- R CARBON FILM 1/6 56 OHM J
R248 RD-AZ560J- R CARBON FILM 1/6 56 OHM J
R249 HRFT000JCA R CHIP 1/10 0 OHM J 2012
R255 HRFT000JCA R CHIP 1/10 0 OHM J 2012
R256 HRFT000JCA R CHIP 1/10 0 OHM J 2012
R257 HRFT103JCA R CHIP 1/10 10K OHM J 2012
R258 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R301 RN-AZ6202F R METAL FILM 1/6 62.0K OHM F
R302 RN-AZ1501F R METAL FILM 1/6 1.5K OHM F
R303 RD-4Z684J- R CARBON FILM 1/4 680K OHM J
R304 RD-4Z105J- R CARBON FILM 1/4 1M OHM J
R305 RS02Z823J- R M-OXIDE FILM 2W 82K OHM J (TAPPING)
R306 RS02Z823J- R M-OXIDE FILM 2W 82K OHM J (TAPPING)
R307 RD-2Z203J- R CARBON FILM 1/2 20K OHM J
R308 HRFT101JCA R CHIP 1/10 100 OHM J 2012
R309 HRFT105JCA R CHIP 1/10 1M OHM J 2012
R310 HRFT272JCA R CHIP 1/10 2.7K OHM J 2012
R311 HRFT100JCA R CHIP 1/10 10 OHM J 2012
R312 RD-4Z101J- R CARBON FILM 1/4 100 OHM J
R313 RD-4Z101J- R CARBON FILM 1/4 100 OHM J
R314 RC-2Z330J- R CARBON COMP 1/2 33 OHM J
R401 RD-4Z109J- R CARBON FILM 1/4 1 OHM J
R402 HRFT103JCA R CHIP 1/10 10K OHM J 2012
R403 RN-AZ8201F R METAL FILM 1/6 8.2K OHM F
R404 HRFT243JCA R CHIP 1/10 24K OHM J 2012
R405 RD-4Z229J- R CARBON FILM 1/4 2.2 OHM J
R406 RN-AZ5601F R METAL FILM 1/6 5.6K OHM F
R407 RD-2Z249J- R CARBON FILM 1/2 2.4 OHM J
R408 RD-2Z279J- R CARBON FILM 1/2 2.7 OHM J
R409 RS01Z221J- R M-OXIDE FILM 1W 220 OHM J (TAPPING)
R410 RN-AZ8201F R METAL FILM 1/6 8.2K OHM F
R411 RN-AZ1471F R METAL FILM 1/6 1.47K OHM F

Q544 TKSD471ACY TR KSD471ACY
Q545 TKSA539CY- TR KSA539CY
Q546 T2SJ449--- TR 2SJ449
Q547 TBU4525AX- TR BU4525AX
Q548 TKSC2383Y- TR KSC 2383-Y
Q549 TZTA1270Y- TR KTA1270Y(AUTO)(562Y)
Q551 TZSR1006-- TR KSR1006 (AUTO)
Q552 TZSR1006-- TR KSR1006 (AUTO)
Q601 TKSD471ACY TR KSD471ACY
Q602 TZTA1024Y- TR KTA1024Y (949Y)
Q604 TZTC3207-- TR KTC3207 (AUTO)
Q605 TZTA1270Y- TR KTA1270Y(AUTO)(562Y)
Q606 TKSA539CY- TR KSA539CY
Q607 TKSA539CY- TR KSA539CY
Q608 TBU4507AX- TR BU4507AX
Q609 TZSR1006-- TR KSR1006 (AUTO)
Q631 TKSD471ACY TR KSD471ACY
Q702 TZSR1009-- TR KSR1009
Q704 TZSC945CY- TR KSC945C-Y (AUTO)
Q801 TZTC3207-- TR KTC3207 (AUTO)
Q802 TZTC3207-- TR KTC3207 (AUTO)
Q803 TZTC3207-- TR KTC3207 (AUTO)
Q804 TZTA1024Y- TR KTA1024Y (949Y)
Q805 TZTA1024Y- TR KTA1024Y (949Y)
Q806 TZTA1024Y- TR KTA1024Y (949Y)
R001 RD-2Z684J- R CARBON FILM 1/2 680K OHM J
R002 RS01Z913J- R M-OXIDE FILM 1W 91K OHM J (TAPPING)
R003 RS02Z333J- R M-OXIDE FILM 2W 33K OHM J
R007 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R008 HRFT102JCA R CHIP 1/10 1K OHM J 2012
R009 RW01Z128JN R WIRE WOUND 1W 0.12 OHM J NON-INDUCT
R010 HRFT511JCA R CHIP 1/10 510 OHM J 2012
R102 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R103 RD-AZ751J- R CARBON FILM 1/6 750 OHM J
R104 HRFT202JCA R CHIP 1/10 2K OHM J 2012
R117 HRFT102JCA R CHIP 1/10 1K OHM J 2012
R118 HRFT102JCA R CHIP 1/10 1K OHM J 2012
R119 RN-AZ3481F R METAL FILM 1/6 3.48K OHM F
R120 RN-4Z2493F R METAL FILM 1/4 249K OHM F
R121 HRFT104JCA R CHIP 1/10 100K OHM J 2012
R201 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R202 HRFT333JCA R CHIP 1/10 33K OHM J 2012
R203 RD-AZ122J- R CARBON FILM 1/6 1.2K OHM J
R204 HRFT911JCA R CHIP 1/10 910 OHM J 2012
R205 HRFT623JCA R CHIP 1/10 62K OHM J 2012
R206 HRFT912JCA R CHIP 1/10 9.1K OHM J 2012
R207 HRFT242JCA R CHIP 1/10 2.4K OHM J 2012
R208 HRFT203JCA R CHIP 1/10 20K OHM J 2012
R209 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
R210 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R211 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R213 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R214 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R215 RD-4Z151J- R CARBON FILM 1/4 150 OHM J
R216 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R217 RD-4Z201J- R CARBON FILM 1/4 200 OHM J

46

LOC PART-CODE PART-NAME PART-DESCLOC PART-CODE PART-NAME PART-DESC

!

!

!
!

R582 HRFT562JCA R CHIP 1/10 5.6K OHM J 2012
R583 RD-4Z101J- R CARBON FILM 1/4 100 OHM J
R585 RD-4Z473J- R CARBON FILM 1/4 47K OHM J
R590 HRFT201JCA R CHIP 1/10 200 OHM J 2012
R591 HRFT201JCA R CHIP 1/10 200 OHM J 2012
R602 RD-2Z220J- R CARBON FILM 1/2 22 OHM J
R603 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R604 RD-4Z109J- R CARBON FILM 1/4 1 OHM J
R606 RD-AZ301J- R CARBON FILM 1/6 300 OHM J
R607 HRFT332JCA R CHIP 1/10 3.3K OHM J 2012
R609 RD-4Z154J- R CARBON FILM 1/4 150K OHM J
R611 HRFT623JCA R CHIP 1/10 62K OHM J 2012
R612 HRFT511JCA R CHIP 1/10 510 OHM J 2012
R613 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
R615 RD-4Z104J- R CARBON FILM 1/4 100K OHM J
R616 HRFT123JCA R CHIP 1/10 12K OHM J 2012
R617 HRFT202JCA R CHIP 1/10 2K OHM J 2012
R618 HRFT562JCA R CHIP 1/10 5.6K OHM J 2012
R619 RD-2Z479J- R CARBON FILM 1/2 4.7 OHM J
R620 HRFT273JCA R CHIP 1/10 27K OHM J 2012
R621 HRFT683JCA R CHIP 1/10 68K OHM J 2012
R622 HRFT122JCA R CHIP 1/10 1.2K OHM J 2012
R623 HRFT102JCA R CHIP 1/10 1K OHM J 2012
R624 RD-4Z512J- R CARBON FILM 1/4 5.1K OHM J
R625 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R626 RD-4Z473J- R CARBON FILM 1/4 47K OHM J
R627 HRFT913JCA R CHIP 1/10 91K OHM J 2012
R629 HRFT104JCA R CHIP 1/10 100K OHM J 2012
R630 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R631 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R632 HRFT102JCA R CHIP 1/10 1K OHM J 2012
R634 HRFT104JCA R CHIP 1/10 100K OHM J 2012
R635 RD-AZ822J- R CARBON FILM 1/6 8.2K OHM J
R636 HRFT223JCA R CHIP 1/10 22K OHM J 2012
R638 HRFT102JCA R CHIP 1/10 1K OHM J 2012
R639 HRFT473JCA R CHIP 1/10 47K OHM J 2012
R640 HRFT752JCA R CHIP 1/10 7.5K OHM J 2012
R641 RD-AZ512J- R CARBON FILM 1/6 5.1K OHM J
R643 RD-2Z100J- R CARBON FILM 1/2 10 OHM J
R644 RD-4Z913J- R CARBON FILM 1/4 91K OHM J
R645 RW01Z188JN R WIRE WOUND 1W 0.18 OHM J NON-INDUCT
R646 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R647 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R648 RD-AZ242J- R CARBON FILM 1/6 2.4K OHM J
R649 HRFT244JCA R CHIP 1/10 240K OHM J 2012
R650 HRFT243JCA R CHIP 1/10 24K OHM J 2012
R651 RD-AZ152J- R CARBON FILM 1/6 1.5K OHM J
R652 HRFT183JCA R CHIP 1/10 18K OHM J 2012
R653 RD-4Z470J- R CARBON FILM 1/4 47 OHM J
R654 HRFT104JCA R CHIP 1/10 100K OHM J 2012
R657 HRFT562JCA R CHIP 1/10 5.6K OHM J 2012
R658 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R701 RD-AZ151J- R CARBON FILM 1/6 150 OHM J
R703 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R704 HRFT123JCA R CHIP 1/10 12K OHM J 2012
R705 HRFT562JCA R CHIP 1/10 5.6K OHM J 2012

R501 RD-AZ361J- R CARBON FILM 1/6 360 OHM J
R504 HRFT824JCA R CHIP 1/10 820K OHM J 2012
R507 HRFT473JCA R CHIP 1/10 47K OHM J 2012
R508 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
R509 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J
R511 HRFT432JCA R CHIP 1/10 4.3K OHM J 2012
R512 RD-AZ182J- R CARBON FILM 1/6 1.8K OHM J
R513 HRFT682JCA R CHIP 1/10 6.8K OHM J 2012
R514 HRFT102JCA R CHIP 1/10 1K OHM J 2012
R515 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R516 HRFT102JCA R CHIP 1/10 1K OHM J 2012
R517 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
R518 HRFT153JCA R CHIP 1/10 15K OHM J 2012
R519 HRFT222JCA R CHIP 1/10 2.2K OHM J 2012
R520 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R521 HRFT153JCA R CHIP 1/10 15K OHM J 2012
R522 HRFT103JCA R CHIP 1/10 10K OHM J 2012
R523 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R524 HRFT123JCA R CHIP 1/10 12K OHM J 2012
R525 RN-AZ1502F R METAL FILM 1/6 15K OHM F
R526 HRFT203JCA R CHIP 1/10 20K OHM J 2012
R527 RN-AZ1502F R METAL FILM 1/6 15K OHM F
R528 HRFT103JCA R CHIP 1/10 10K OHM J 2012
R529 HRFT519JCA R CHIP 1/10 5.1 OHM J 2012
R530 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R531 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R532 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R533 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R534 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R535 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R536 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R537 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R540 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R541 HRFT105JCA R CHIP 1/10 1M OHM J 2012
R543 HRFT473JCA R CHIP 1/10 47K OHM J 2012
R544 RS02Z391J- R M-OXIDE FILM 2W 390 OHM J (TAPPING)
R545 RS02Z361J- R M-OXIDE FILM 2W 360 OHM J (TAPPING)
R547 RD-AZ822J- R CARBON FILM 1/6 8.2K OHM J
R548 RS02Z129J- R M-OXIDE FILM 2W 1.2 OHM J (TAPPING)
R549 RD-4Z100J- R CARBON FILM 1/4 10 OHM J
R550 HRFT562JCA R CHIP 1/10 5.6K OHM J 2012
R551 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R552 HRFT203JCA R CHIP 1/10 20K OHM J 2012
R553 RD-AZ512J- R CARBON FILM 1/6 5.1K OHM J
R554 RS02Z820J- R M-OXIDE FILM 2W 82 OHM J (TAPPING)
R555 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J
R556 RS01Z201J- R M-OXIDE FILM 1W 200 OHM J (TAPPING)
R557 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R558 RW02Z918JN R WIRE WOUND 2W 0.91 OHM J NON-INDUCT
R559 RD-4Z101J- R CARBON FILM 1/4 100 OHM J
R563 RS02Z129J- R M-OXIDE FILM 2W 1.2 OHM J (TAPPING)
R567 HRFT473JCA R CHIP 1/10 47K OHM J 2012
R568 RD-2Z821J- R CARBON FILM 1/2 820 OHM J
R579 RD-4Z100J- R CARBON FILM 1/4 10 OHM J
R580 RD-4Z309J- R CARBON FILM 1/4 3 OHM J
R581 HRFT562JCA R CHIP 1/10 5.6K OHM J 2012

47

LOC PART-CODE PART-NAME PART-DESCLOC PART-CODE PART-NAME PART-DESC

R873 RD-4Z104J- R CARBON FILM 1/4 100K OHM J
R874 HRFT101JCA R CHIP 1/10 100 OHM J 2012
R875 RD-4Z683J- R CARBON FILM 1/4 68K OHM J
R876 RD-4Z222J- R CARBON FILM 1/4 2.2K OHM J
R877 RD-4Z104J- R CARBON FILM 1/4 100K OHM J
R878 HRFT101JCA R CHIP 1/10 100 OHM J 2012
R879 RD-4Z683J- R CARBON FILM 1/4 68K OHM J
R880 RD-4Z222J- R CARBON FILM 1/4 2.2K OHM J
R881 RD-4Z683J- R CARBON FILM 1/4 68K OHM J
R882 HRFT201JCA R CHIP 1/10 200 OHM J 2012
R883 HRFT201JCA R CHIP 1/10 200 OHM J 2012
R885 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J
R892 RD-2Z562J- R CARBON FILM 1/2 5.6K OHM J
R893 RD-2Z564J- R CARBON FILM 1/2 560K OHM J
R895 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J
RL001 5SC0101005 SW RELAY HR-CR313 DC12V 1C-1P
S001 9970800023 CABLE SIGNAL AS 15P+4C/DDC=1.5M(GY275A)
SG301 4SG0D00104 SPARK GAP S-23 1.5KV
SG801 DWSP201M-- SURGE ABSORBER WSP-201M
SG803 DWSP201M-- SURGE ABSORBER WSP-201M
SG805 DWSP201M-- SURGE ABSORBER WSP-201M
SG807 ZEW295804A SPARK GAP S-23 1KV (LEAD 4.5M/M)
SG809 ZEW295804A SPARK GAP S-23 1KV (LEAD 4.5M/M)
SW271 5S50101Z01 SW TACT KPT-1115VM 1C-1P
SW272 5S50101Z01 SW TACT KPT-1115VM 1C-1P
SW273 5S50101Z01 SW TACT KPT-1115VM 1C-1P
SW274 5S50101Z01 SW TACT KPT-1115VM 1C-1P
SW275 5S50101Z01 SW TACT KPT-1115VM 1C-1P
SW276 5S50101Z01 SW TACT KPT-1115VM 1C-1P
T001 5RM0000093 TRANS SMPS DMT-712B
T002 5RY0000002 TRANS SYNC DST-603
T501 5RD0000040 TRANS DRIVE DDT-712B
T502 5RF0000005 TRANS DUMMY DYT-523B
T601 5RH0000110 FBT FFA71012U
TH001 DTP8D13--- THERMISTOR TP8D13
V001 9979617016 CDT M41KXU100XX521 (MPR)
VR501 RV6421102P R SEMI FIXED CCT 065AT 1K OHM B TAP
VR602 RV6421503P R SEMI FIXED CCT 065AT 50K OHM B TAP
VR603 RV6421104P R SEMI FIXED CCT 065AT 100K OHM B TAP
X201 5XE24R000E CRYSTAL QUARTZ HC-49/U 24.00000MHZ 30PPM

R706 HRFT105JCA R CHIP 1/10 1M OHM J 2012
R707 HRFT562JCA R CHIP 1/10 5.6K OHM J 2012
R708 HRFT201JCA R CHIP 1/10 200 OHM J 2012
R709 HRFT201JCA R CHIP 1/10 200 OHM J 2012
R719 HRFT122JCA R CHIP 1/10 1.2K OHM J 2012
R720 HRFT821JCA R CHIP 1/10 820 OHM J 2012
R721 HRFT182JCA R CHIP 1/10 1.8K OHM J 2012
R723 HRFT103JCA R CHIP 1/10 10K OHM J 2012
R725 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R729 RD-AZ100J- R CARBON FILM 1/6 10 OHM J
R731 HRFT471JCA R CHIP 1/10 470 OHM J 2012
R732 HRFT102JCA R CHIP 1/10 1K OHM J 2012
R801 HRFT750JCA R CHIP 1/10 75 OHM J 2012
R803 HRFT750JCA R CHIP 1/10 75 OHM J 2012
R805 HRFT750JCA R CHIP 1/10 75 OHM J 2012
R811 HRFT121JCA R CHIP 1/10 120 OHM J 2012
R812 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R813 HRFT121JCA R CHIP 1/10 120 OHM J 2012
R814 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R815 HRFT121JCA R CHIP 1/10 120 OHM J 2012
R816 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R828 RD-2Z563J- R CARBON FILM 1/2 56K OHM J
R831 RD-4Z391J- R CARBON FILM 1/4 390 OHM J
R832 RD-4Z560J- R CARBON FILM 1/4 56 OHM J
R833 RD-4Z391J- R CARBON FILM 1/4 390 OHM J
R834 RD-4Z560J- R CARBON FILM 1/4 56 OHM J
R835 RD-4Z391J- R CARBON FILM 1/4 390 OHM J
R836 RD-4Z560J- R CARBON FILM 1/4 56 OHM J
R841 RD-4Z910J- R CARBON FILM 1/4 91 OHM J
R843 RD-4Z910J- R CARBON FILM 1/4 91 OHM J
R845 RD-4Z910J- R CARBON FILM 1/4 91 OHM J
R851 RC-2Z470J- R CARBON COMP 1/2 47 OHM J
R853 RC-2Z470J- R CARBON COMP 1/2 47 OHM J
R855 RC-2Z470J- R CARBON COMP 1/2 47 OHM J
R867 HRFT101JCA R CHIP 1/10 100 OHM J 2012
R868 HRFT101JCA R CHIP 1/10 100 OHM J 2012
R869 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R870 HRFT101JCA R CHIP 1/10 100 OHM J 2012
R871 RD-4Z753J- R CARBON FILM 1/4 75K OHM J
R872 RD-4Z222J- R CARBON FILM 1/4 2.2K OHM J

48

LOC PART-CODE PART-NAME PART-DESCLOC PART-CODE PART-NAME PART-DESC

!

!

!

!

!

!

Serv ce Manual

DAEWOO ELECTRONICS CO., LTD

OVERSEAS SERVICE DEPT.

DAEWOO ELECTRONICS CO., LTD

686, AHYEON-DONG MAPOGU,
SEOUL, KOREA.
C.P.O. BOX 8003 SEOUL KOREA
TELEX: DWELEC K28177-8
CABLE: "DAEWOOELEC"
FAX: [phone]
TEL: [phone]-6151~5
http://www.dwe.daewoo.co.kr

PRINTED DA TE: SEPT.1999
