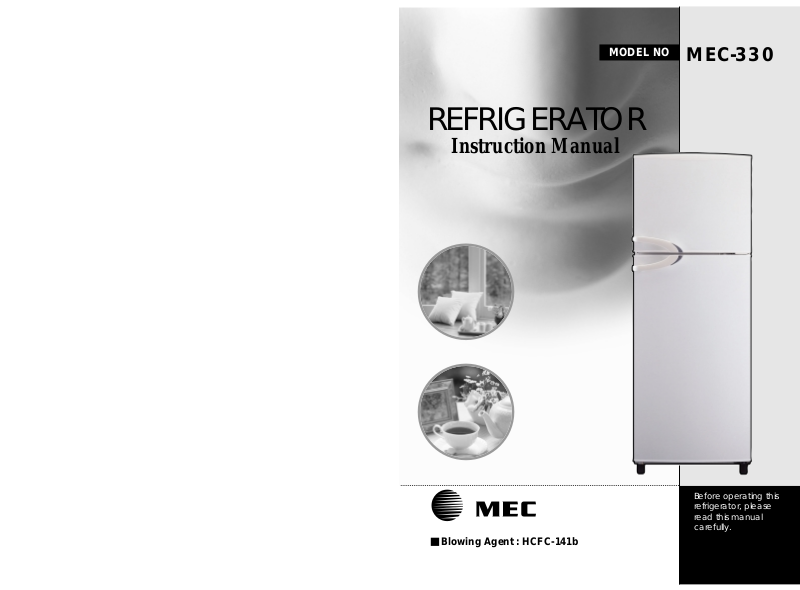

MODEL NO MEC-330
REFRIGERATOR
Instruction Manual
Before operating this refrigerator, please read this manual carefully.
Blowing Agent : HCFC-141b
FEATURE CHART
1 |
|
2 |
12 |
|
|
3 |
|
4 |
13 |
5 |
|
6 |
14 |
7 |
15 |
|
|
8 |
16 |
9 |
17 |
|
|
10 |
|
|
18 |
11 |
|
!FREEZER |
*R SHELF |
TEMPERATURE |
(CRISPER COVER |
CONTROL KNOB |
)CRISPER |
@ICE TRAY |
1ADJUSTABLE FOOT |
#F SHELF |
2F POCKET (SM) |
$ICE BOX |
3F POCKET (SM) |
%CHILLED CORNER |
4EGG CASE |
^LAMP COVER |
5EGG POCKET |
&REFRIGERATOR |
6R POCKET (SM) |
TEMPERATURE |
7R POCKET (MEDIUM) |
CONTROL SWITCH |
8R POCKET (BG) |
HERE ARE THE FEATURES OF YOUR NEW REFRIGERATOR
Take a moment to know all the features and convenience. Numbers match those in the illustration on page 1.
■Ice Tray
Fill tray 3/4 full to allow expansion of water during freezing. Place tray in freezer chest. To release cubes, twist lid slightly.
■Removable Shelf
Both shelves can be removed by pulling forward.
■Crisper
Use for fruit and vegetable storage. Both the crisper and its cover shelf are removable for easy cleaning. Simply slide forward to remove.
■Egg Pocket
Egg supporter in this pocket can be turned upside down. Use for small size goods.
■No Frost
No frost in freezing-room.
CAUTION
1.Be sure to check with your voltage, before inserting the power supply cord into the socket.
2.Contact the earthing conductor to this unit with an attachment earthing screws.
3.Don’t spill to this unit.
4.Don’t work with flammable spray, such as painting, near this unit.
5.Don’t put ignitable materials, such as benzine, L .P . Gas, alcohol, etc., into this unit.
6.Be careful of the leakage of any gas equipment near this unit.
7.Be sure not to hold to the door of this unit by children.
8.Be sure not to reinsert the power supply, cord with 5 minutes after releasing it from socket. If not, a trouble may be occurred to compressor.
