Daewoo L520B, L520BM, L521B, L520BAV, L521BM Service Manual

Download

Page 1

D AEW OO ELECTR ONICS CO., LTD.

http : //svc.dwe .co.kr

Service Manual

XGA COLOR MONITOR

Model : L520B/L520BM L521B/L521BM

L520BAV

October, 2002

Page 2

CONTENTS

SAFETY PRECAUTIONS 1 GENERAL SAFETY INFORMATION 2 SERVICING PRECAUTIONS 3 TECHNICAL INFORMATION 6 GENERAL INFORMATION 7 PIN CONNECTOR 8 CAUTIONS FOR ADJUSTMENT AND REPAIR 8 OPERATION & ADJUSTMENT 9 ALIGNMENT PROCEDURE 21 TROUBLESHOOTING HINTS (L520B/L520BM/L521B/L521BM) 22 TROUBLESHOOTING HINTS (L520BAV) 29 BLOCK DIAGRAM 39 SCHEMATIC DIAGRAM 40 EXPLODED VIEW & MECHANICAL PARTS LIST 49 INFORMATION OF PART DESCRIPTION 50 ELECTRICAL PARTS LIST (L520B/L520BM/L521B/L521BM) 51 ELECTRICAL PARTS LIST (L520BAV) 60

Page 3

SAFETY PRECAUTIONS

◆ Safety Check

Care should be taken while servicing the inverter that generates the high voltage to lighten CCFL of the LCD panel.

◆ Fire & Shock Hazard

• Insert an isolation transformer between the analog color display and AC power line before servicing the chassis.

• When servicing, pay close attention to the original lead dress especially in the high voltage circuit area; if a short circuit is found, replace all parts which have been overheated as a result of the short circuit.

• All the protective devices must be reinstalled per original design.

• Soldering must be inspected for possible cold solder points, frayed leads, damaged insulation, solder splashes or sharp solder points. Be certain to remove all foreign materials.

CAUTION: No modifications of any circuits should be attempted. Service work should be performed

only after you are thoroughly familiar with all of the following safety checks and servicing guidelines.

Page 4

GENERAL SAFETY INFORMATION

◆ Terms in the manual

CAUTION Statements identify conditions or practices that could result in damage to the equipment or

other property.

WARNING Statements identify conditions or practices that could result in personal injury or loss of

life.

◆ Terms as marked on equipment

CAUTION Statements indicate a personal injury hazard not immediately accessible as one reads the

marking or a hazard which is properly included on the equipment itself.

WARNING Statements are clearly concerning indicated personal injury hazards.

◆ Symbols in the manual

The symbols indicate where applicable cautionary or other information is to be found.

◆ Symbols as marked on equipment

Protective GROUND terminal

◆ High Voltage Warning And Critical Component Warning Label

The following warning label is on the inverter isolation case.

Page 5

SERVICING PRECAUTIONS

◆ General Servicing Precautions

1. Always unplug the AC power cord from the AC power source before: a. Removing or reinstalling any component, circuit board, module, or any other instrument assembly.

b. Disconnecting or reconnecting any electrical plug or other electrical connection. c. Connecting a test substitute in parallel with an electrolytic capacitor in the instrument.

2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage

measuring device (DVM, FETVOM. etc.) equipped with a suitable high voltage probe. Do not test high voltage by “drawing an arc”.

3. Do not any spray chemicals on or near this instrument, or any of its assemblies.

4. Unless otherwise specified in this service manual, only clean electrical contacts by applying the

following mixture to the contacts with a pipe cleaner, cotton-tipped stick, or comparable nonabrasive applicator: 10% (by volume) Aceton and 90% (by volume) isopropyl alchohol (90%-99% strength).

5. Do not apply AC power to this instrument and/or any other of its electrical assemblies unless all the

solid-state device heat sinks are correctly installed.

6. Always connect the test instrument ground lead to the appropriate instrument chassis ground before

connecting the test instrument positive lead. Always remove the test instrument ground lead last.

7. Only use the test fixtures specified in this service manual with this instrument.

CAUTION: Before servicing instruments covered by this service manual, its supplements, and

addendum, please read and follow the SAFETY PRECAUTIONS of this manual.

NOTE: If unforeseen circumstances create conflict between the following servicing precautions and any

of the safety precautions on page 1 of this manual, always follow the safety precautions.

Remember: Safety First.

CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors

may result in a explosion.

CAUTION: This is a flammable mixture. Unless specified in this service manual, lubrication of

contacts is not required.

Page 6

◆ Electrostatically Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components are commonly called Electrostatically Sensitive (ES) Devices. The typical examples of ES devices are integrated circuits, some field-effect transistors, and semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component damage caused by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, wipe off any electrostatic charge on your body by touching any known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device which should be removed for potential shock reasons prior to applying power to the unit under testing conditions.

2. After removing the electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil to prevent electrostatic charge buildup or exposure to the assembly.

3. Only use a grounded-tip soldering iron to solder or unsolder ES devices.

4. Only use an anti-static type solder removal device. Some solder removal devices not classified as “antistatic” can generate enough electrical charges to damage ES devices.

Do not use freon-propelled chemicals. These can generate enough electrical charges to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil, or comparable conductive material).

7. Immediately before removing the protective material from the leads of replacement ES devices, touch the protective material to the chassis or circuit assembly into which the device will be installed.

8. Minimize bodily movements when handling unpackaged replacement ES devices. (Otherwise harmful motion such as the brushing together clothes fabric or the lifting your foot from a carpeted floor can generate enough static electricity to damage ES devices).

◆ General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron with appropriate tip size and shape that will maintain tip temperature between a 550°F-660°F (288°C-316°C) range.

2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean.

4. Throughly clean the surface to be soldered. Use a small wire-bristle (0.5 inch or 1.25cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners.

5. Use the following soldering technique: a. Allow the soldering iron tip to reach normal temperature (550°F to 660°F or 288°C to 316°C) b. Hold the soldering iron tip and solder strand against the component lead until the solder melts. c. Quickly move the soldering iron tip to the junction of the component lead and the printed circuit foil,

and hold it there until the solder flows onto and around both the component lead and the foil.

Closely inspect the solder area and remove any excess or splashed solder with a small wire-bristle brush.

CAUTION:

Be sure that no power is applied to the chassis or circuit, and observe all other safety precautions.

CAUTION: Work quickly to avoid overheating the circuit board printed foil.

Page 7

FIGURE 1. USE SOLDERING IRON TO PRY LEADS

◆ IC Removal/Replacement

Some utilized chassis circuit boards have slotted (oblong) holes through which the IC leads are inserted and then bent flat against the circuit foil. When holes are slotted, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 on the page under the title of general soldering guidelines.

◆ Removal

1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.

2. Draw away the melted solder with an anti-static suction-type solder removal device (or with desoldering braid before removing the IC.

◆ Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and solder it.

3. Clean the soldered areas with a small wire-bristle brush. (lt is not necessary to reapply acrylic coating to the area).

◆ “Small-Signal” Discrete Transistor Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as possible to the component body.

2. Bend the ends of each of three leads remaining on the circuit board into a “U” shape.

3. Bend the replacement transistor leads into a “U” shape.

4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the “U” with long nose pliers to ensure metal-to-metal contact, then solder each connection.

◆ Power IC, Transistor or Devices Removal/Replacement

1. Heat and remove all solders from the device leads.

2. Remove the heatsink mounting screw (if applicable).

3. Carefully remove the device from the circuit board.

4. Insert new device in circuit board.

5. Solder each device lead and then clip off excess lead.

6. Replace heatsink.

Page 8

◆ Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as possible to diode body.

2. Bend the two remaining leads perpendicularly to the circuit board.

3. Observing diode polarity, wrap each lead out of the new diode around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect the solder joints of the two “original” leads on the circuit board copper side. If they are not shiny, reheat them and apply additional solder if necessary.

TECHNICAL INFORMATION

Panel Size 15-inch (38cm) diagonal

Pixel Pitch 0.297 x 0.297 mm Viewing Angle 60°(Right/Left)

40°(up), 60°(down) Contrast Ratio 350:1 contrast ratio (typ) Brightness 250cd/m

brightness(typ)

Color Filter RGB vertical stripe

Synchronization Horizontal 30 - 62 KHz

Vertical 50 - 75 Hz

Video Bandwidth 80 MHz Max Resolution 1024 x 768 75Hz Optimal Resolution 1024 x 768 60Hz Colors 6bit (16.7M Colors) Display Area 304.1 mm x 228.1 mm PC Input Signal Sync H/V separate (TTL)

Video 15 pin mini D-sub(Analog RGB)

DVI-D(Option)

AV Input Signal Video CVBS(RCA), S-Video(Mini-DIN) (L520BAV only) Audio RCA Left+Right Input

Stereo Mini Jack Input & Output

TV Receiving Signal TV Tuner NTSC, PAL (Option) External Speaker Output 4W(Left 2W+Right 2W) (L520BM/L521BM/L520BAV only) Plug and Play VESA DDC Compatible Power Source 100-240Vac, 50/60Hz (Free Voltage) Power Consumption 26 W(without speaker) Dimension-W x H x D 370 x 352 x 205 mm(with stand) (without speaker) 370 x 312 x 60 mm(without stand) Weight-net/gross 4.2 / 5.5 Kg (9.2 / 12.1 lbs) Power Saving EPA, VESA DPMS, Nutek Compliant Tilt Range 5° forward, 30° backward Operating Temperature 10 ~ 40°C /50 ~ 104°F

Page 9

This TFT LCD monitor automatically scans all horizontal frequencies from 30KHz to 62KHz, and all vertical frequencies from 50Hz to 75Hz. This TFT LCD monitor supports IBM PC, PC/XT, PC/AT, personal System/2 (PS/2), Apple Macintosh, and compatible users crisp text and vivid color graphics display when using the following graphics adapters : (VGA, Super VGA, VESA and XGA and Apple Macintosh Video Card). And so, this TFT LCD monitor has a maximum horizontal resolution of 1024 dots and a maximum vertical resolution of 768 lines for superior clarity of display.

By accepting analog signal inputs which level is zero to 0.7 Volts. This TFT LCD monitor can display and 262, 144 colors depending on the graphics adapter and software being used. (available used to 8 bit panel is

16.7M colors)

◆ Abbreviations

ADJ Adjustment AFC Automatic Frequency Control TFT-LCD Thin Film Transistor Liquid Crystal Diplay CCFL Cold Cathode Fluorescent Lamp H.SYNC Horizontal Synchronization OSC Oscillator P.S.U Power Supply Unit PWA Printed Circuit Board Wiring Assembly R.G.B Red, Green, Blue V.Sync Vertical Synchronization ADC Analog Digital Converter

GENERAL INFORMATION

Page 10

Arrangement of 15-pin D-sub connector

Pin Signal

1 Red 2 Green 3 Blue 4 GND 5 GND 6 GND - Red 7 GND - Green 8 GND - Blue 9

+5Vdc

10 GND - H.Sync 11 GND - V.Sync 12 Bi-directional Data (SDA) 13 Horizontal Sync 14 Vertical Sync (VCLK) 15 Data Clock (SCL)

610

PIN CONNECTOR

• The white balance adjustment has been done by a color analyzer in factroy. The adjustment procedure, described in the service manual is made by a visual check.

• Allow 20 minutes warm-up time for the display before checking or adjusting only electrical specification or function.

• Reform the leadwire after any repair work.

◆ Caution For Servicing

•

In case of servicing or replacing inverter, high voltage sometimes remains in the output of the inverter. Completely discharge high voltage before servicing or replacing inverter to prevent a shock to the serviceman.

CAUTIONS FOR ADJUSTMENT AND REPAIR

Page 11

Control Panel

<< L520B/L520BM >>

OPERATION AND ADJUSTMENT

moves cursor to the right or low window in the OSD window and increases the value of any selected function.

EXIT

AUTO

swithes the monitor on and off.

shows both normal operation and power management status with power indicator light.

POWER Indicator

POWER

moves cursor to the left or high window in the OSD window and decreases value of any selected function.

turns the OSD window on and moves from top menu to sub menu in the OSD window.

turns the OSD (On-Screen Display) window off and moves from sub menu to top menu in the OSD window.

launches the AUTO TRACKING function directly.

( )

: Hot Key

Page 12

Key Process

HOT KEY

OSD OFF

EXIT

OSD

SHARPNESS

UT L TY

1024X768 60K 75

MENU MENU

AUTO TRACKING

BRIGHTNESS

When there is no OSD, if you press this AUTO button, you can use the best display performance fit for a current mode.

When there is no OSD, if you press this BRIGHTNESS button, you can adjust the brightness directly.

: decreases brightness : increases brightness

Page 13

AUTO

EXIT MENU BRIGHTNESS

76 453

Control Panel

<< L521B/L521BM >>

moves cursor to the right or low window in the OSD window and increases the value of any selected function.

EXIT

AUTO

swithes the monitor on and off.

shows both normal operation and power management status with power indicator light.

POWER Indicator

POWER

moves cursor to the left or high window in the OSD window and decreases value of any selected function.

turns the OSD window on and moves from top menu to sub menu in the OSD window.

turns the OSD (On-Screen Display) window off and moves from sub menu to top menu in the OSD window.

launches the AUTO TRACKING function directly.

( )

: Hot Key

Page 14

OSD OFF

OSD

SHARPNESS

UT L TY

1024X768 60K 75

EXIT

When there is no OSD, if you press this AUTO button, you can use the best display performance fit for a current mode.

When there is no OSD, if you press this BRIGHTNESS button, you can adjust the brightness directly.

: decreases brightness : increases brightness

AUTO TRACKING

AUTO

BRIGHTNESS

Key Process

HOT KEY

Page 15

Control Panel

<< L520BAV >>

swithes the monitor on and off.

shows both normal operation and power management status with power indicator light.

POWER Indicator

POWER

34567

moves cursor to the right or low window in the OSD window and increases the value of any selected function.

moves cursor to the left or high window in the OSD window and decreases value of any selected function.

turns the OSD window on and moves from top menu to sub menu in the OSD window.

EXIT

AUTO

launches the AUTO TRACKING function directly.

turns the OSD (On-Screen Display) window off and moves from sub menu to top menu in the OSD window.

( )

: Hot Key

SOURCE

selects input signal (PC/SVIDEO/VIDEO/SOUND).

Page 16

When there is no OSD, if you press this AUTO button, you can use the best display performance fit for a current mode.

When there is no OSD, if you press this BRIGHTNESS button, you can adjust the brightness directly.

: decreases brightness : increases brightness

Key Process

HOT KEY

AUTO TRACKING

AUTO

BRIGHTNESS

OSD OFF

EXIT

OSD

SHARPNESS

UT L TY

1024X768 60K 75

MENU MENU

Page 17

Adjustment Procedure

Adjust the CLOCK

control.

Perform the

AUTO

POSITION.

Is the H.Size

proper?

Is the

noise displayed on

the screen?

Perform the

AUTO

TRACKING.

Is the

noise displayed on

the screen yet?

Is the

noise displayed on

the screen yet?

Adjust the

CLOCK FINE

until the screen is

cleared.

Yes

End

Page 18

Display horizontal & vertical frequency and polarity.

STATUS

Reset the screen to the Factory Preset Display Settings.

RECALL

AUTO POSITION

Choose automatically the proper horizontal position and vertical position & size of the screen image.

CONTRAST

Adjust the contrast of image, the difference between light and dark areas on the screen.

Adjust the display OSD Menu.

OSD TIME OUT

AUTO TRACKING

Adjust the horizontal & vertical picture image quality and size.

Select language for OSD (6 languages).

LANGUAGE

Adjust the position of the display horizontally(left or right) and vertically (up or down).

H. CENTER &

V. CENTER

Choose different preset color temperatures or set your own customized color parameters.

Adjust the width (horizontal size) of the screen image.

Sharpen the focus by aligning the illuminated pixels and adjust until the screen image looks focused, crisp and sharp. Adjusting the

CLOCK

FINE after the CLOCK adjustment will produce a clear screen.

Adjust the red color.

COLOR TEMPERATURE

CLOCK

CLOCK FINE

RED CONTROL

Adjust the green color.

Adjust the blue color.

GREEN CONTROL

BLUE CONTROL

ICON CONTROL FUNCTIONS

Adjust the display image quality (if the screen proceed to scaling up).

SHARPNESS

Adjust the OSD position horizontally (left or right) and vertically (up or down).

OSD POSITION

OSD

OSD Functions (L520B/L520BM/L521B/L521BM)

Page 19

Adjust the red color.

CLOCK

Increase or decrease audio volume.

VOLUME

Balance audio sound.

BALANCE

Adjust high frequency response.

Adjust low frequency response.

TREBLE

BASS

AUTO TRACKING

Adjust the horizontal & vertical picture image quality and size.

Adjust the width (horizontal size) of the screen image.

CLOCK

Sharpen the focus by aligning the illuminated pixels and adjust until the screen image looks focused, crisp and sharp. Adjusting the CLOCK FINE after the

CLOCK adjustment will produce a clear screen.

Adjust the green color.

CLOCK FINE

RED CONTROL

GREEN CONTROL

COLOR

;

OSD Functions (L520BAV)

<< OSD FUNCTIONS WITH USING PC >>

INPUT

Select PC mode.

Select S-VIDEO mode.

SVIDEO

Select Video(CVBS) mode.

VIDEO

Adjust sound.

SOUND

Page 20

CONTRAST

Adjust the display image quality (if the screen proceed to scaling up).

SHARPNESS

Select language for OSD (6 languages).

LANGUAGE

Adjust the OSD position horizontally (left or right) and vertically (up or down).

OSD POSITION

OSD

Reset the screen to the Factory Preset Display Settings.

RECALL

Choose automatically the proper horizontal position and vertical position & size of the screen image.

AUTO POSITION

Display horizontal & vertical frequency and polarity.

STATUS

OSD TIME OUT

Adjust the display OSD Menu.

UTILITY

Adjust the contrast of image, the difference between light and dark areas on the screen.

CONTRAST

Adjust the blue color.

Choose different preset color temperatures or set your own customized color parameters.

COLOR TEMPERATURE

Adjust the position of the display horizontally (left or right) and vertically (up or down).

BLUE CONTROL

H. CENTER &

V. CENTER

CENTER

Page 21

Balance audio sound.

COLOR

VOLUME

BRIGHTNESS

CONTRAST

Adjust the contrast of image.

Adjust the brightness of image.

Increase or decrease audio volume.

<< OSD FUNCTIONS WITH USING VIDEO >>

SOUND

Adjust saturation of image.

SATURATION

Adjust the hues of image.

HUE

Adjust the display image quality (if the screen proceed to scaling up).

SHARPNESS

Adjust high frequency response.

TREBLE

Adjust low frequency response.

BASS

BALANCE

Page 22

Self Diagnosis

If there is no image, the Self Diagnosis screen will be displayed. Self Diagnosis function checks if the status of the monitor screen is “No Signal”, “Out of range”, “None support” or “Check Cable”.

“No Signal” screen is displayed when the D-Sub signal connector is connected and the status of the monitor is on DPMS mode.

“Out of Range” screen is displayed when the applied frequency is under or over normal range.

Normal range

(Non-interlaced mode only) H : 30 - 62 KHz V : 50 - 75 Hz

“Check Cable” screen is displayed when the D-Sub signal connector is not connected.

“None support” screen is displayed when the applied frequency is under or over factory preset timings.

Page 23

Standard Check point

1. Power source : 100 - 240Vac, 50/60Hz.

2. Aging : Take at least 20 minutes warm-up time.

3. Signal

Video input : Analog 0.7Vpp 75Ωterminal positive polarity

Synchronizing : acceptable negative or positive at TTL level Max. Resolution : 1280 x 1024 75Hz Frequency

Horizontal : 30KHz - 80KHz Vertical : 56Hz - 77Hz (available only non interlace mode)

Adjustment

1. Sharpness set to 53%

2. Contrast set to 92%

3. Brightness set to 50%

4. Switching to factory alignment mode Press power key with Brightness left key at the power off status.

5. Video level adjustment Receive stair pattern of 16 step (doesn’t care any mode). Readjust coarse R, G, B in AD9884A menu before saturaton point.

(SG9884A : L700CAV)

6. Set up the tracking See the user’s manual at page 8th.

7. Switching to user’s mode If turn-off and turn-on then switched to user’s mode.

All of adjusted data stores by fade out of OSD.

ALIGNMENT PROCEDURE

Page 24

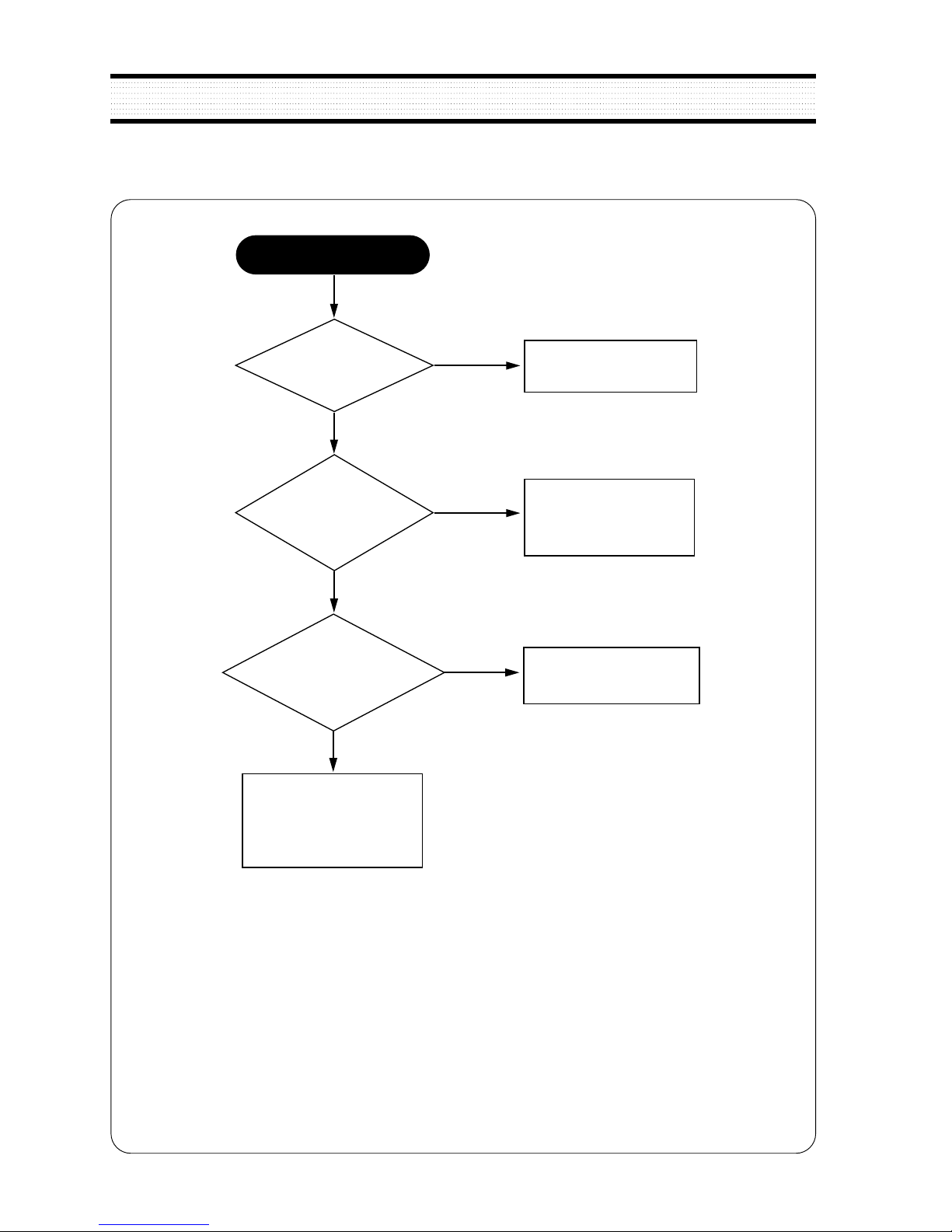

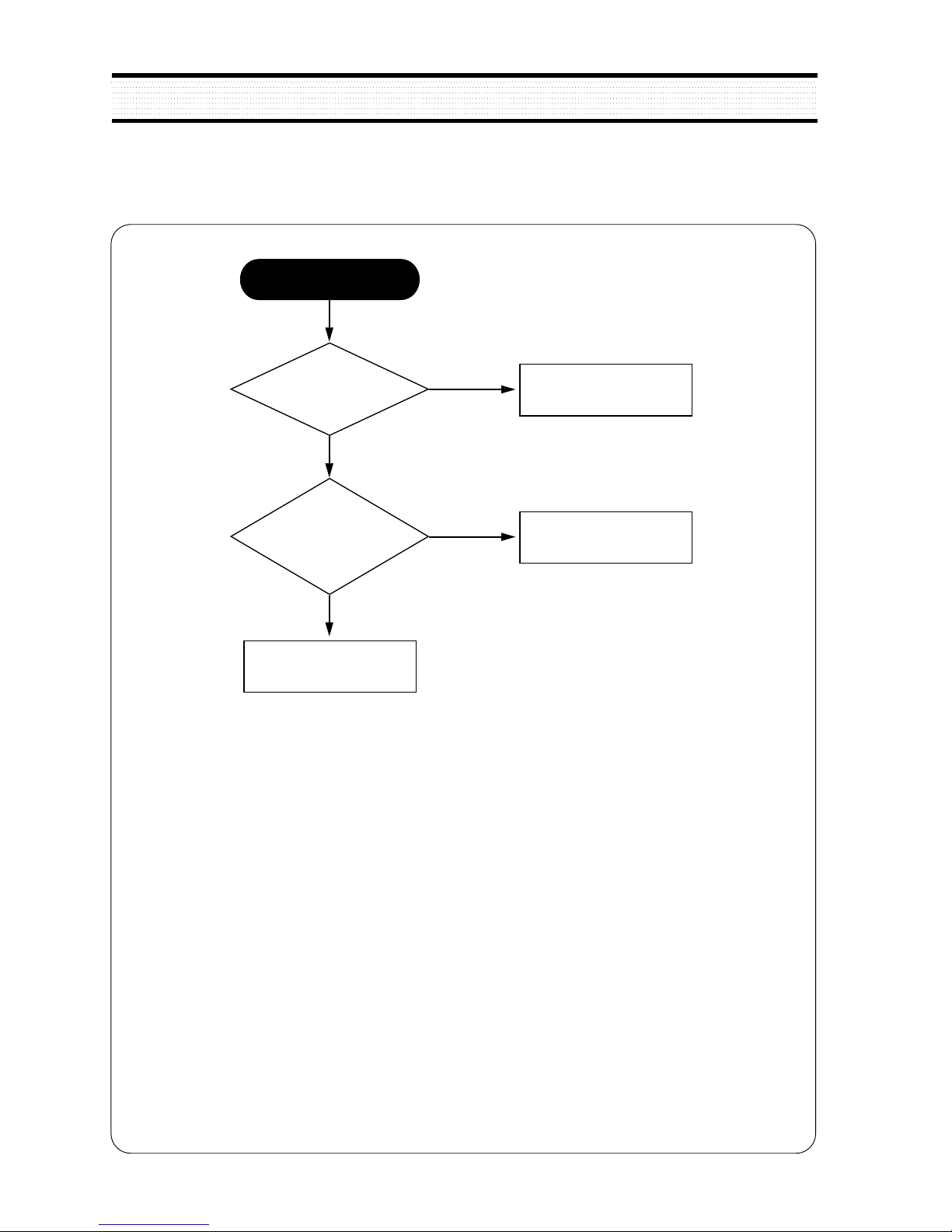

1. Abnormal mode detect

Is a input

H-sync of ADC(pin 90,

U12) correct?

Abnormal mode

detect

Yes

Is waveform

of pin 81 of ADC(U12)

correct?

Trouble in the H-sync

input circuit.

Trouble

in ADC.

Trouble

in Scaler(U9).

Yes

TROUBLESHOOTING HINTS (L520B/L520BM/L521B/L521BM)

Page 25

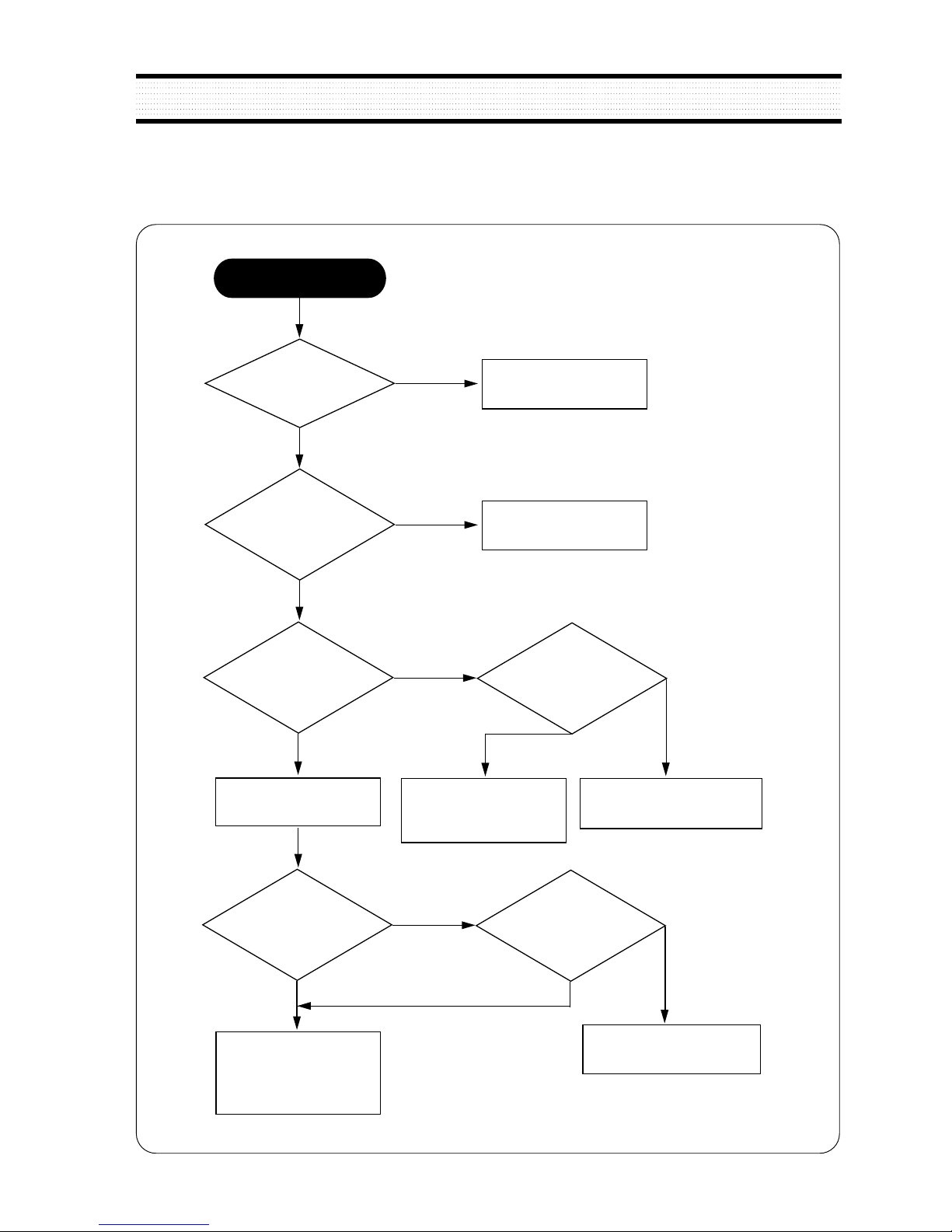

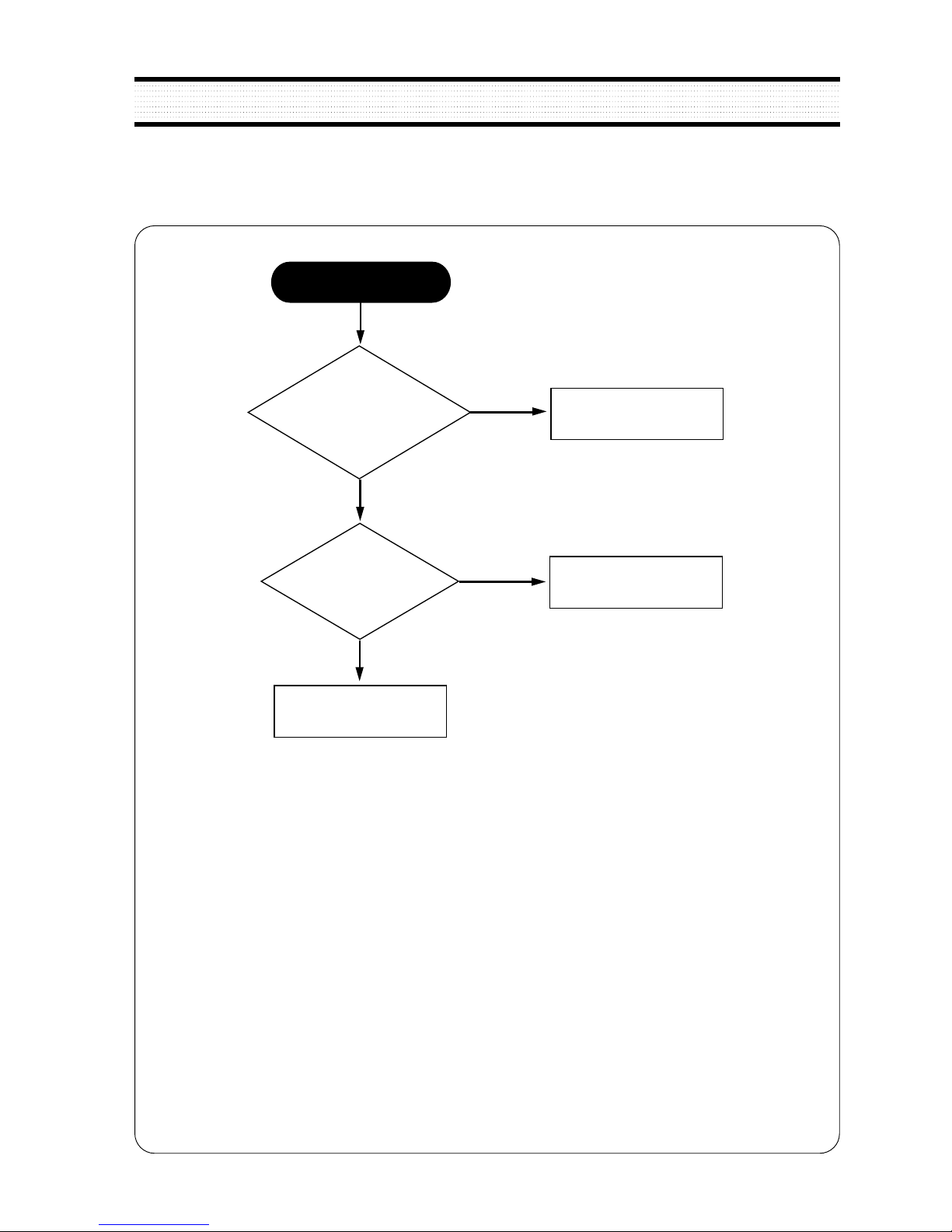

2. Trouble in Power on

Yes

Is 5VS line

normal(pin 8 of J3)?

Trouble in U7 & Q3

and its ambient circuit.

Check the power board

(5VS of CN2A).

Check on Scaler(U9).

Is the

Power LED toggled

between on and

off?

Off

Yes

Is the power

cord well

connected?

Refer to No video

or No raster.

Check if the power switch

is on position and

Connect the power

cord correctly.

Check the

waveform of pin 7

of -com.

Trouble in

Power on

Yes

Page 26

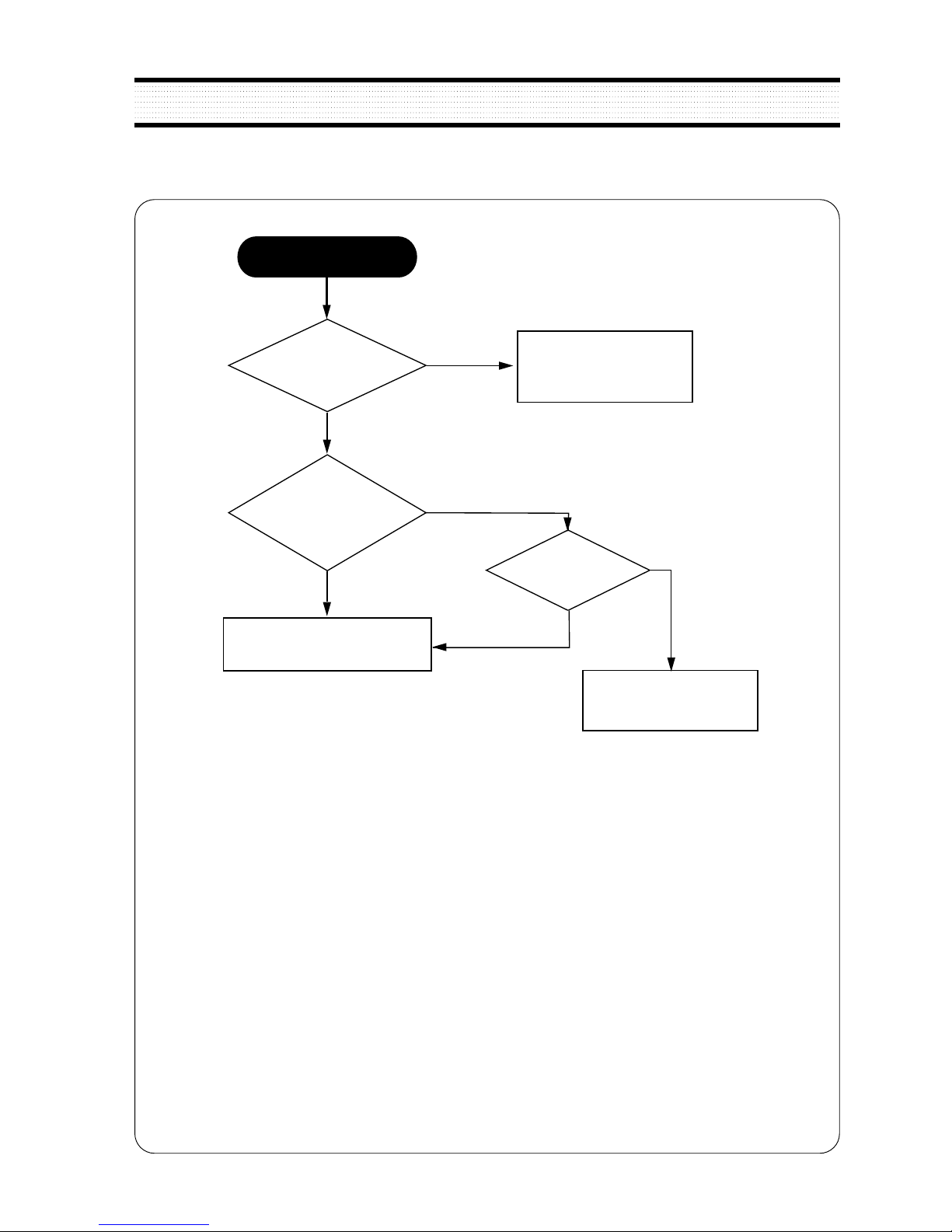

3. No Raster

Is 12V plugged in pin 1 of CN4A(power

board)?

Yes

Is the output of

inverter correct?

Check the output

of D811(power board).

Replace the inverter.

Replace a LCD panal.

< 2.5

> 2.5

Check the

output of Q2 or

pin 42 of U6.

Trouble in pin 42

of -com.

No Raster

Yes

Page 27

4. One color is missing

Is the OSD color

normal?

One color is missing

Yes

Check the output

signal of Scaler.

Yes

Is the input

signal normal?

Check the video signal

cable or R,G,B

con-ass’y.

Trouble in the soldering

of R,G,B data lines

from output of ADC

to Scaler(U9).

Yes

Are the

R,G,B Digital values

(every eight bits) correct

on ADC output

stage?

Check the ambient

circuit of ADC.

Page 28

5. No Video

Has display image

only white?

Yes

Next page.

Yes

Connection trouble.

Check the output of scalier

(pin 71, 72, 73, 74, 75)

and soldering of CN5.

Yes

Is pin 1

of Q5 3.3V?

Check Q5, its ambient

circuit and pin 42 of -com.

Check if the CN5 wafer is well connected at

the LCD panel.

No Video

Yes

Page 29

Is OSD normal?

Black

Yes

Is the contrast

at its maximum?

3. No raster

Set the contrast

up to Max.

Next Page.

Yes

Is the output of

ADC correct?

Yes

Is the input of

ADC correct?

Check the video

input signal.

Replace the main board

(or replace ADC).

Yes

Check If the CN5 wafer is well connected at

the LCD panel.

Yes

Is the output

of Scaler correct?

Yes

Is the input of

Scaler correct?

Replace the main board

(or replace ADC).

5-1. No Video

Page 30

Yes

Check 5VS, 5VD,

5VA, 6V, 3.3V

of CN2A.

Check the main board.

Is the power

cord well

connected?

Check if the power

cord is correctly

connected.

the output of

D812 6.2V?

Yes

Check ambient

circuit of IC801.

Power problem

Yes

6. Power Problem

Page 31

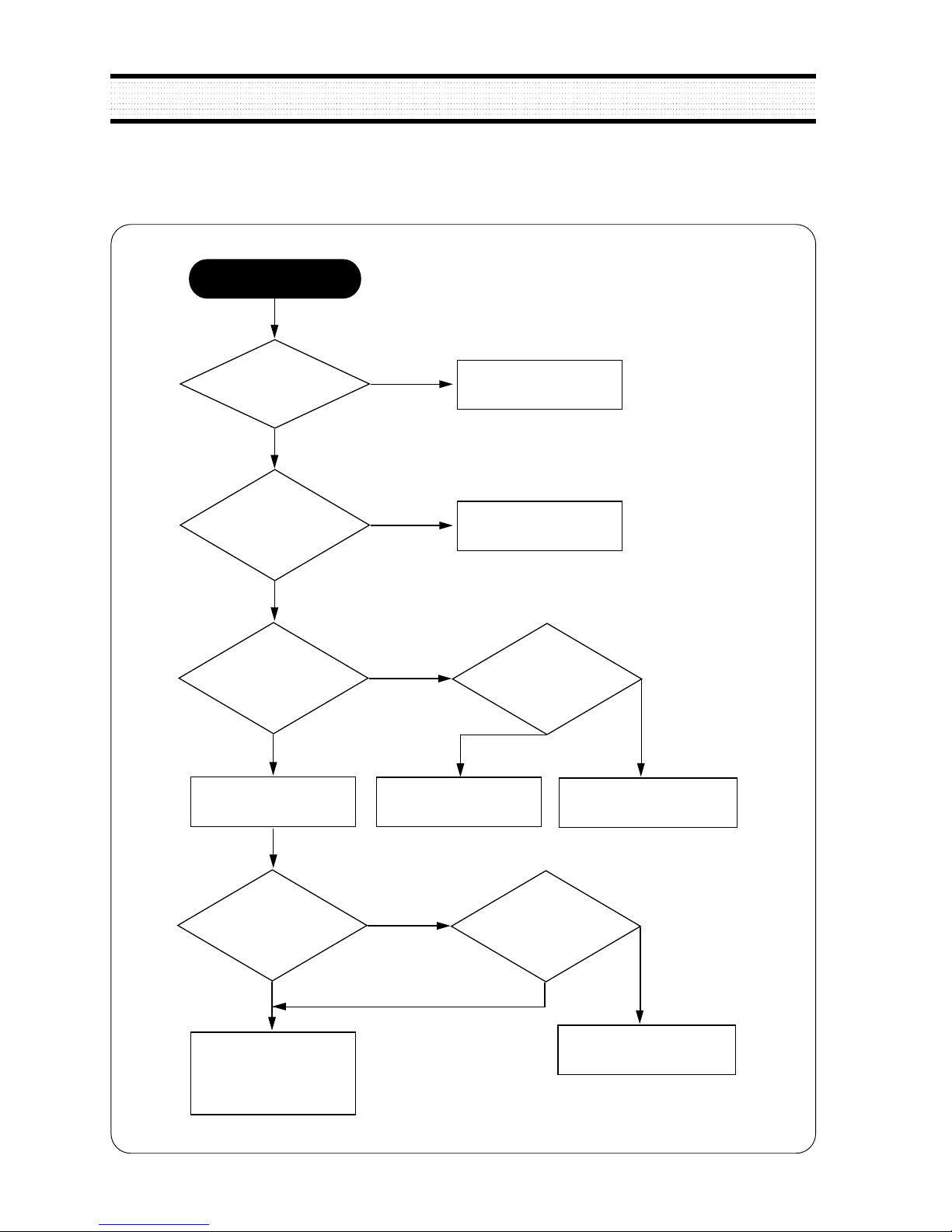

1. Abnormal mode detect 1-1.

Abnormal mode detect for PC Source

Is a input

H-sync of ADC(pin 90,

U12) correct?

Abnormal mode

detect

Yes

Is waveform

of clock of ADC(pin 49,

U12) correct?

Trouble in the H-sync

input circuit.

Trouble in ADC.

Trouble

in Scaler(U9).

Yes

TROUBLESHOOTING HINTS (L520BAV)

Page 32

1. Abnormal mode detect 1-2.

Abnormal mode detect for AV Source

Is a input

signal of Decoder

(pin 10 at CVBS or

pin 14, 18 at S-

Video of U5)?

Abnormal mode

detect

Yes

Is clock of

Decoder (pin 94, U5)

27MHz?

Check J5.

Trouble in

decoder(U5).

Trouble

in Scaler(U9).

Yes

Page 33

2. Trouble in Power on

Yes

Is 5VS line

normal(pin 8

of J3)?

Trouble in U7 & Q3

and its ambient circuit.

Check the power board

(5VS of J3).

Check on Scaler(U9).

Is the

Power LED toggled

between on and

off?

Off

Yes

Is the power

cord well

connected?

Refer to No video

or No raster.

Check if the power switch

is on position and

Connect the power

cord correctly.

Check the

waveform of pin 8

of -com(U6).

Trouble in

Power on

Yes

Page 34

3. No Raster

Is 12V plugged in pin 1 of CN4A(power

board)?

Yes

Is the output of

inverter correct?

Check the output

of D811(power board).

Replace the inverter.

Replace a LCD panal.

< 2.5

> 2.5

Check the

output of Q4 or

pin 41 of U6.

Trouble in Q5 or pin 41 of -com.

No Raster

Yes

Page 35

4. One color is missing for PC Source

Is the OSD color

normal?

One color is missing

Yes

Check the output

signal of Scaler.

Yes

Is the input

signal normal?

Check the video signal

cable or R,G,B

con-ass’y.

Trouble in the soldering

of R,G,B data lines

from output of ADC

to Scaler(U9).

Yes

Are the

R,G,B Digital values

(every eight bits) correct

on ADC output

stage?

Check the ambient

circuit of ADC.

Page 36

5. No Video

Page 37

Is OSD normal?

Black

Yes

Is the contrast

at its maximum?

3. No raster

Set the contrast

up to Max.

Next Page.

Yes

Is the output of

ADC correct?

Yes

Is the input of

ADC correct?

Check the video

input signal.

Replace the main board

(or replace ADC).

Yes

Check If

the CON 5 wafer is

well connected at

the LCD panel.

Yes

Is the output

of Scaler correct?

Yes

Is the input of

Scaler correct?

Replace the main board

(or replace ADC).

5. No Video 5-1.

No video for PC Source

Page 38

5. No Video 5-2.

No video for AV Source

Is OSD normal?

Black

Yes

Is the contrast

at its maximum?

3. No raster

Set the contrast

up to Max.

Next Page.

Yes

Is the output of

Decoder(U5)

correct?

Yes

Is the input of

Decoder(U5)

correct?

Check the video

input signal (or

check the J5).

Replace the main board

(or replace Decoder(U5)).

Yes

Check If

the CON 5 wafer is

well connected at

the LCD panel.

Yes

Is the output

of Scaler correct?

Yes

Is the input of

Scaler correct?

Replace the main board

(or replace Decoder).

Page 39

Yes

Check 5VS, 5VD,

5VA 3.3V

of CN2A.

Check the main board.

Is the power

cord well

connected?

Check if the power

cord is correctly

connected.

the output of

D812 6.2V on power

board?

Yes

Check ambient circuit of IC801 on power board.

Power problem

Yes

6. Power Problem

Page 40

Audio-in OK?

(pin 10, 14 at PC Source

and pin 9, 13 at AV

Source

No Sound

Yes

Is VDD(pin2)

of Audio IC(IC 601)

9V?

Check Audio-in

jack(CN 11).

Check speaker.

Yes

Is Audio-out

OK?

Is input of

9V regulator(IC 602)

12V?

Change 9V Regulator

(IC 602).

Check power board

Are SCL(pin 28),

SDA (pin 27)

OK?

Yes

Change Audio IC(IC601).

Yes

Check CA 602.

7. Sound Problem

Page 41

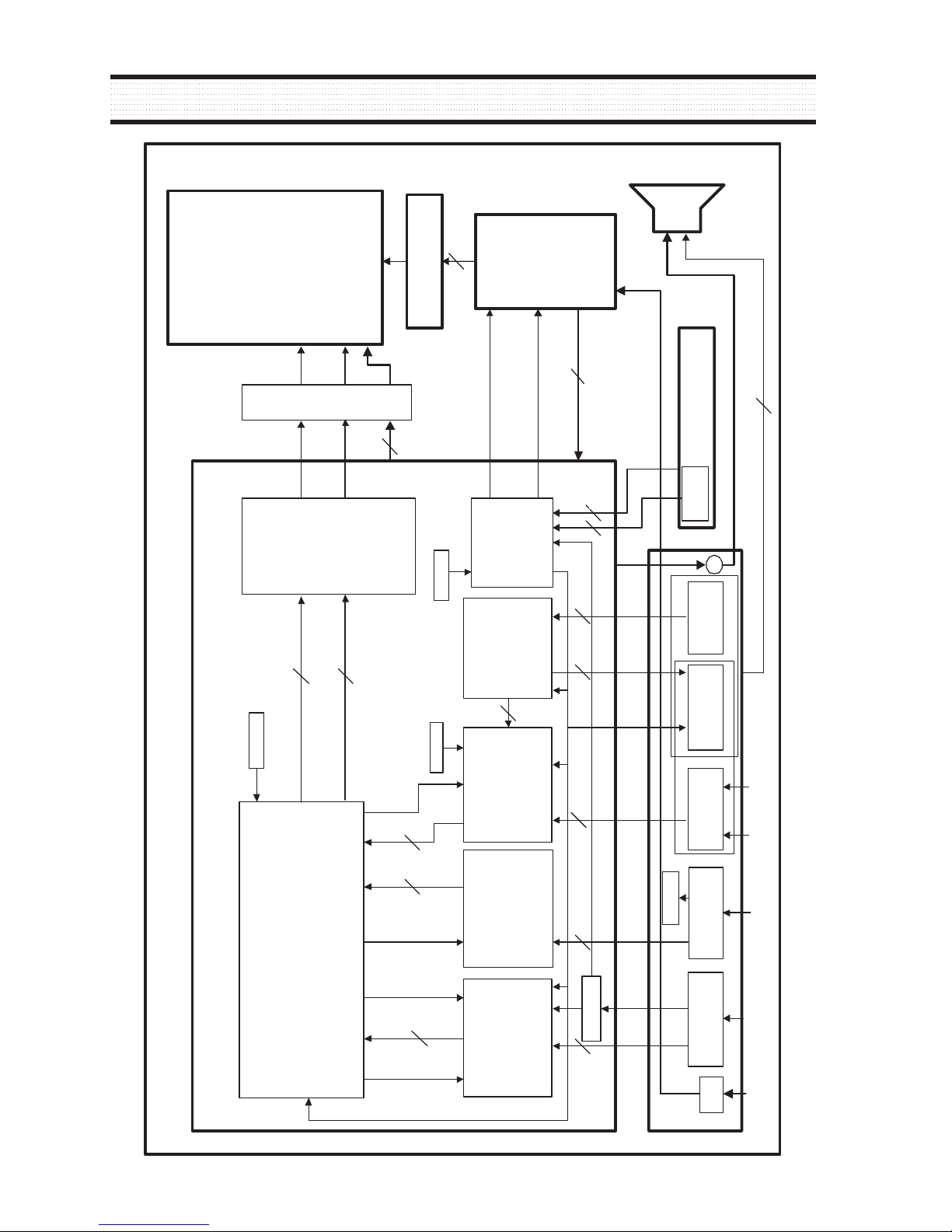

CML-520BM

CML-520BAV

CML-520BTV

12V

3.3V

12V, 5Vs, 5VD, 5VA, 3.3VD

R,L

AUDIO OUT

AC INLET

100 ~240V

50/60Hz

CVBS / S-

VIDEO

DOT

CLOCK

TMDS

ON/OFF

VIDEO

SIGNA

DIGITAL

SIGNAL

H/V

SYNC.

RGB

SIGNAL

POWER ON/OFF

DIMMING CONTROL

INVERTER ON/OFF

R,G,B Dual 6bit

Scaler

ASI310

ADC

TDA8752

TMDS

Sil143

(Option)

CML-520BDV

Decoder

SAA7114

(Option)

CML-520BAV

CML-520BTV

Output Video Rate

-H:48~62KHz. V:60~75Hz

-Resolution:only 1024*768

-Dot clock: 65~80MHz

LCD Panel

L150X2

Key Control PCB

U-Com

MTV312MV64

Power

PCB

Inverter

Speaker(L/R)

I/O PCB

MAIN PCB

D-SUB

DVI

CML-520BDVI

VIDEO

CML-520BAV

R(8),G(8)

,B(8)

AUDIO

PROCESSOR

I2C

H/V SYNC. / DOT CLOCK /Out Enable

AC IN

ADC

ON/OFF

DECODE

R ON/OFF

74ACT14

SYNC. BUFFER

H/V SYNC.

TMDS

SIGNAL

H/V SYNC.

24C21

Input Viedo Rate

-H:30~62KHz. V: 56~75Hz

-Resolution: Up to 1024*768

DIGITAL

SIGNAL

CVBS

/ S-VHS

12V

TV TUNER

DTI-FNF05A

(Option)

CML-520BTV

KEY CONTROL

CML-520BTV

Audio

R,L

24.576MHz

14.318MHz

12.00MHz

FX8-80P-SV

Connector wafer

BLOCK DIAGRAM

Page 42

TDA 8752 Section

SCHEMATIC DIAGRAM

Page 43

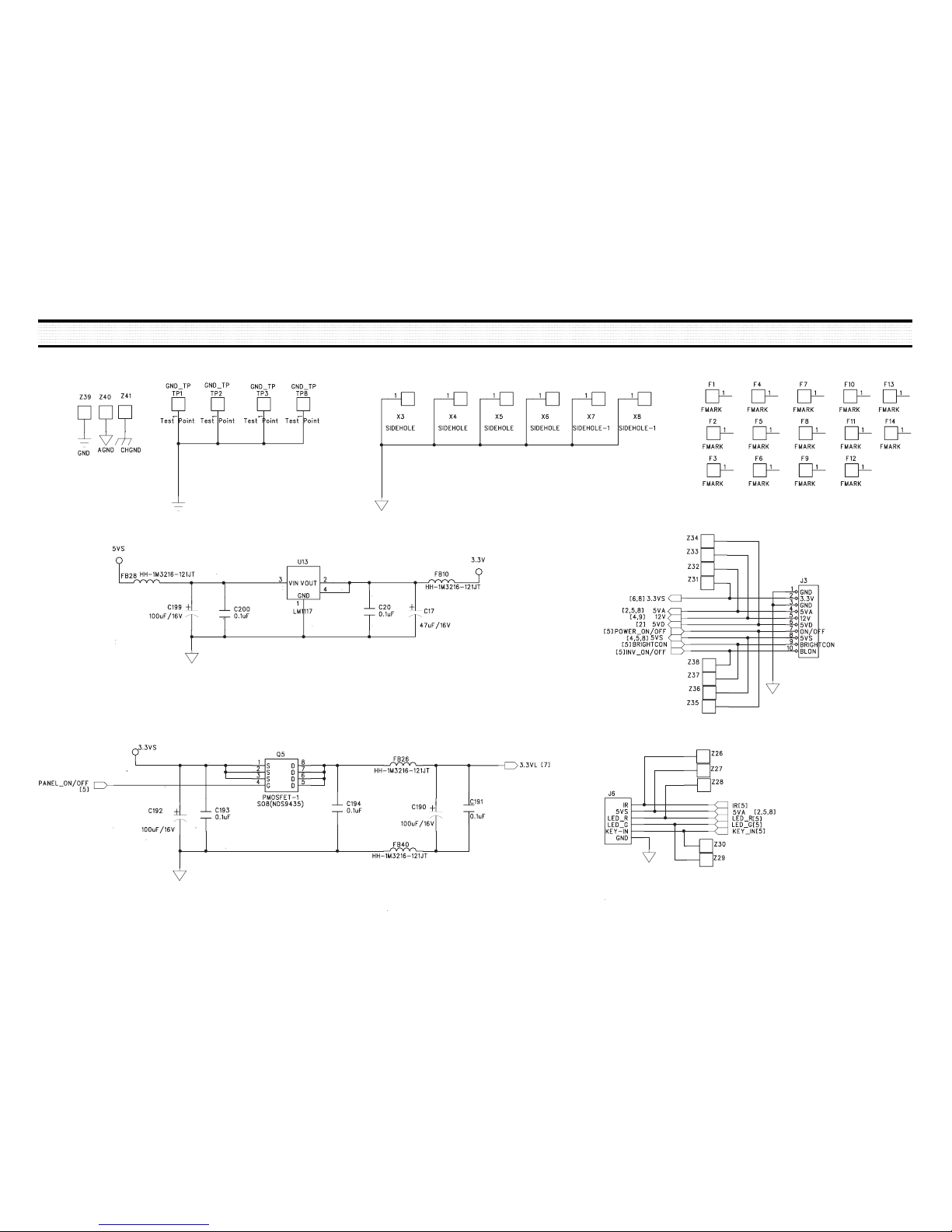

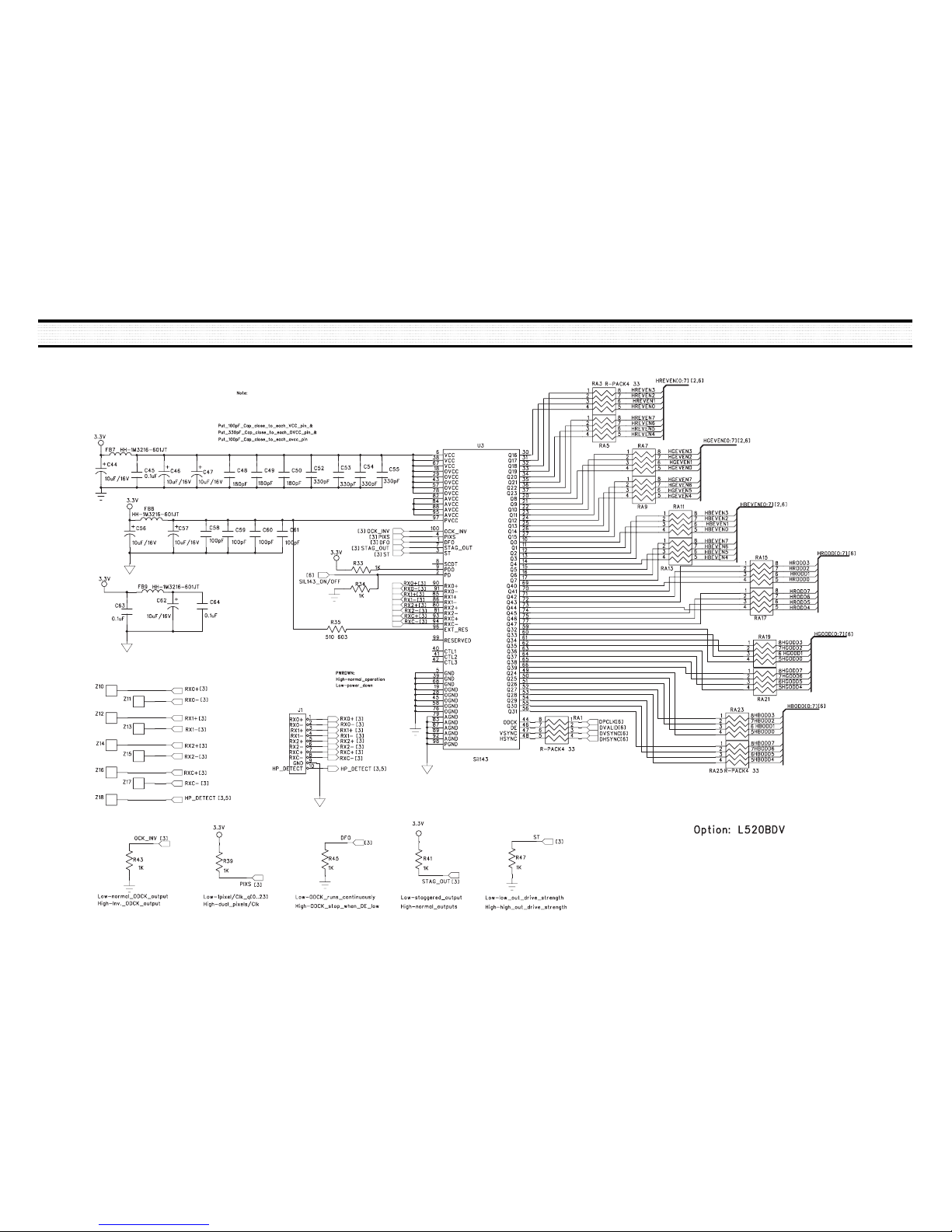

DVI Receiver Section

Page 44

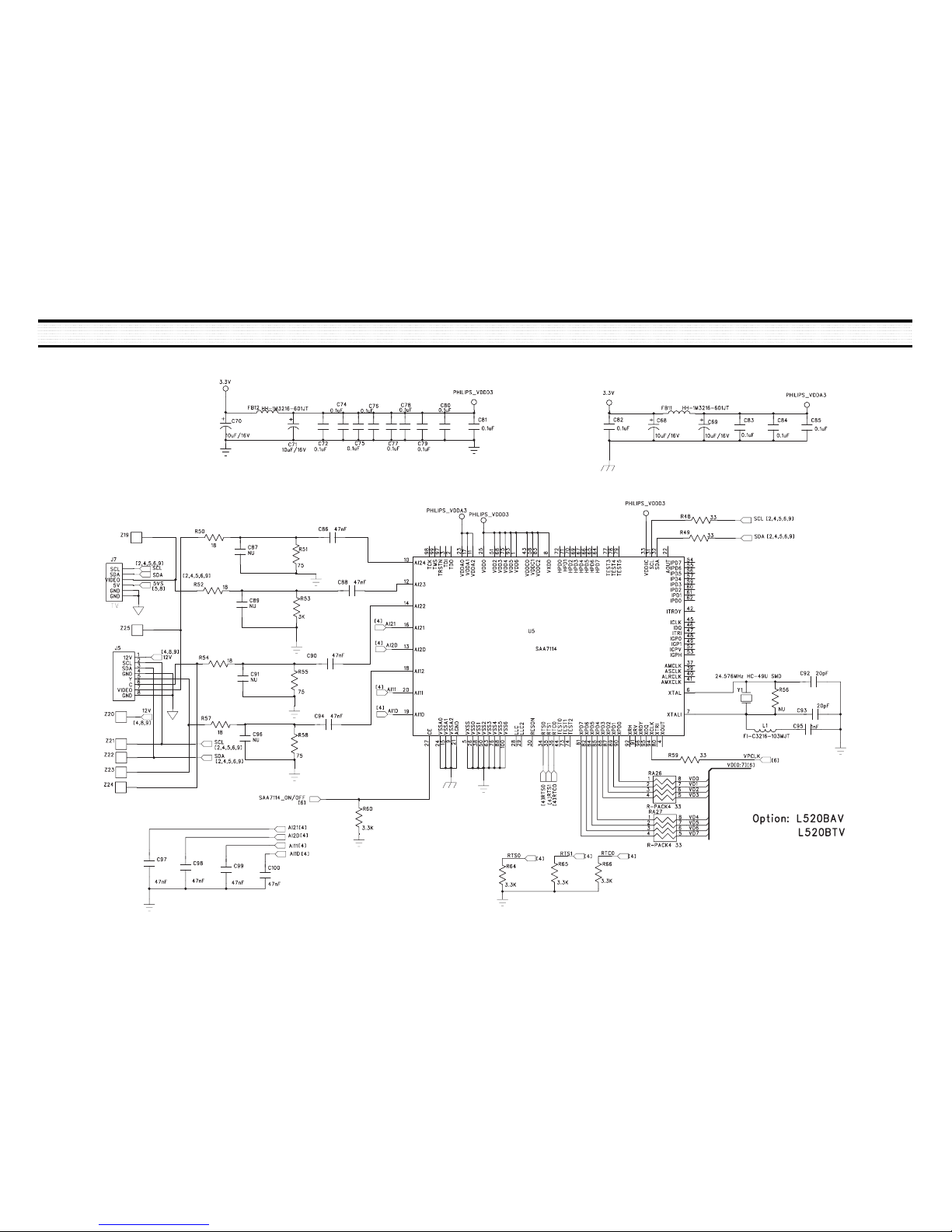

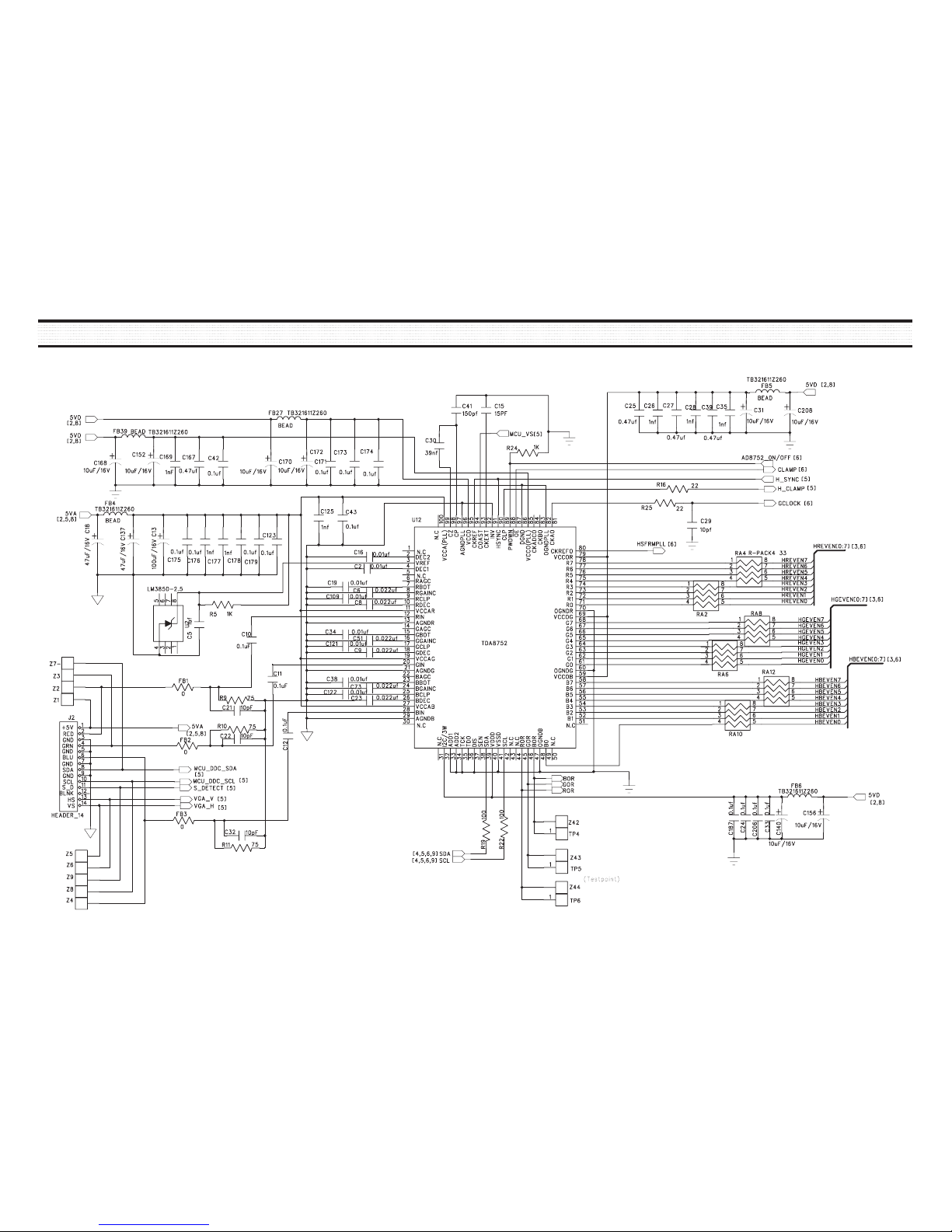

Video Decoder Section

Page 45

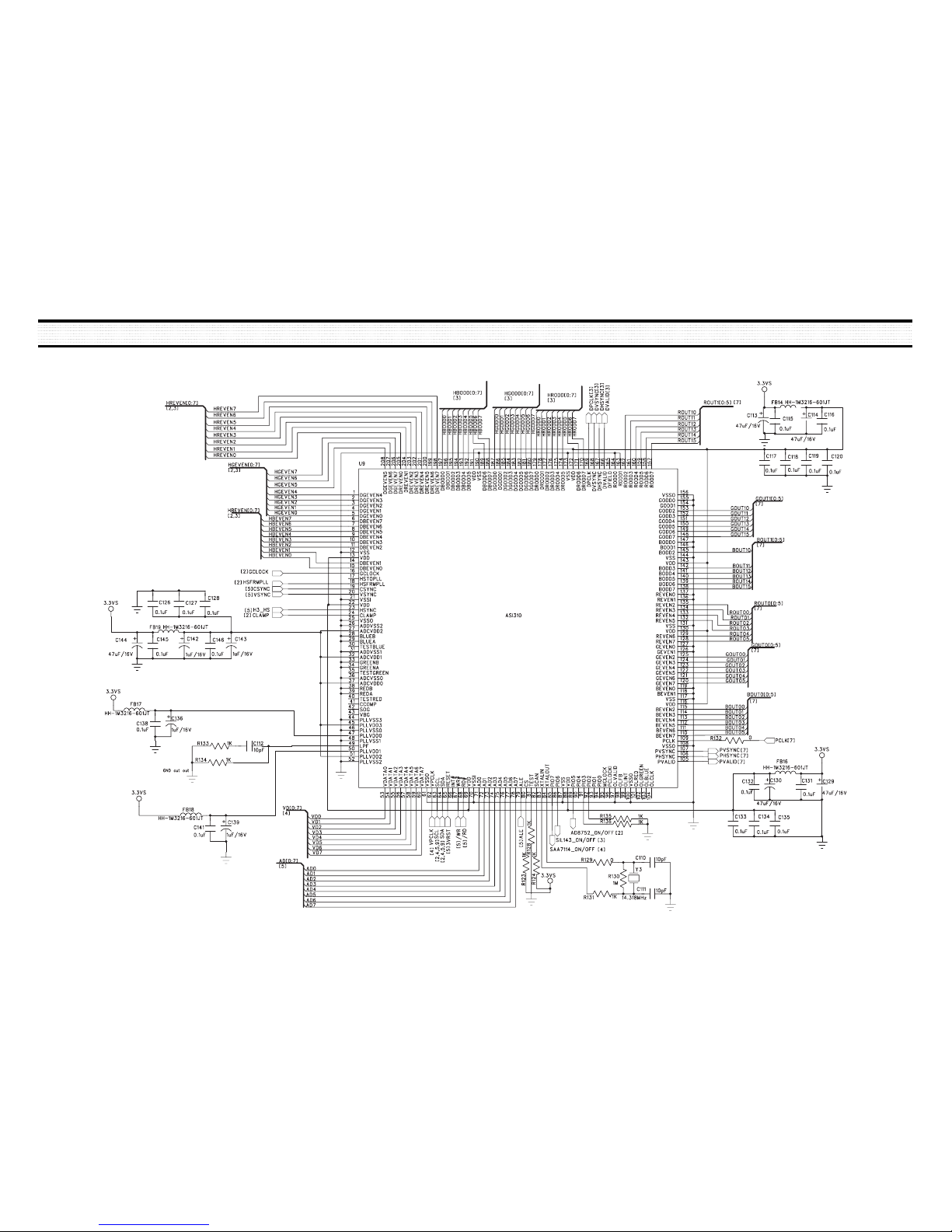

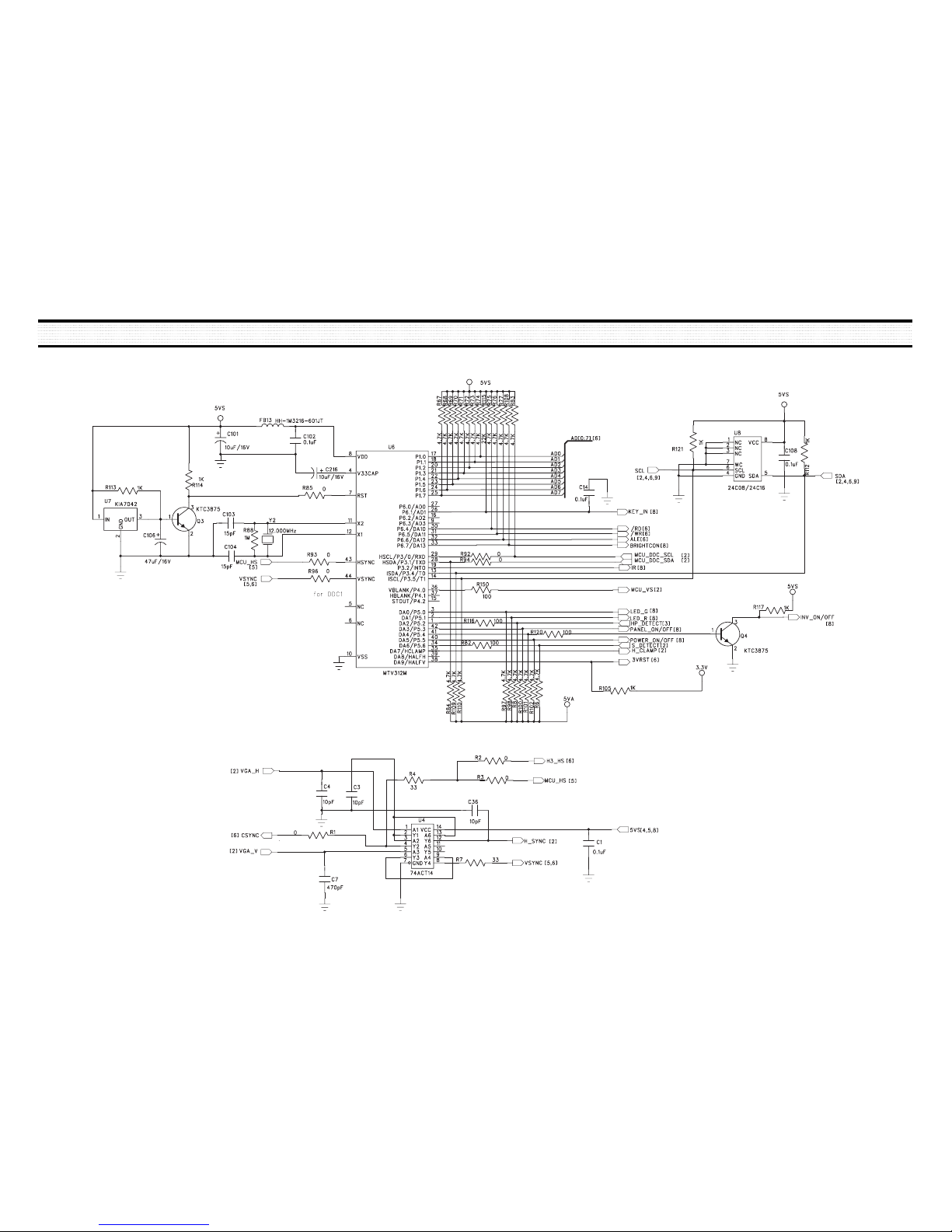

Micro Controller Section

Page 46

ASI 310 Section

Page 47

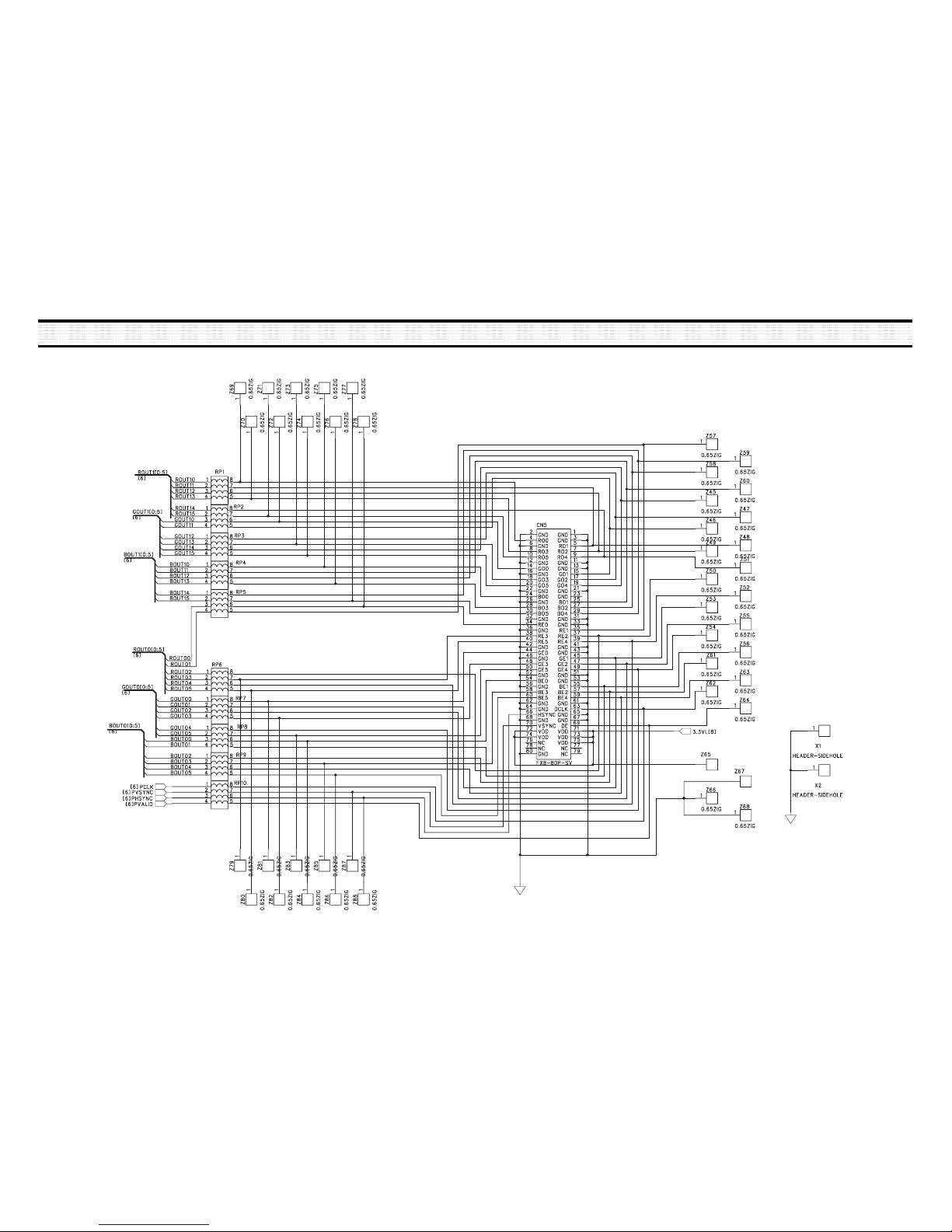

LCD Panel Interface Section

Page 48

Power Distribution Section

Page 49

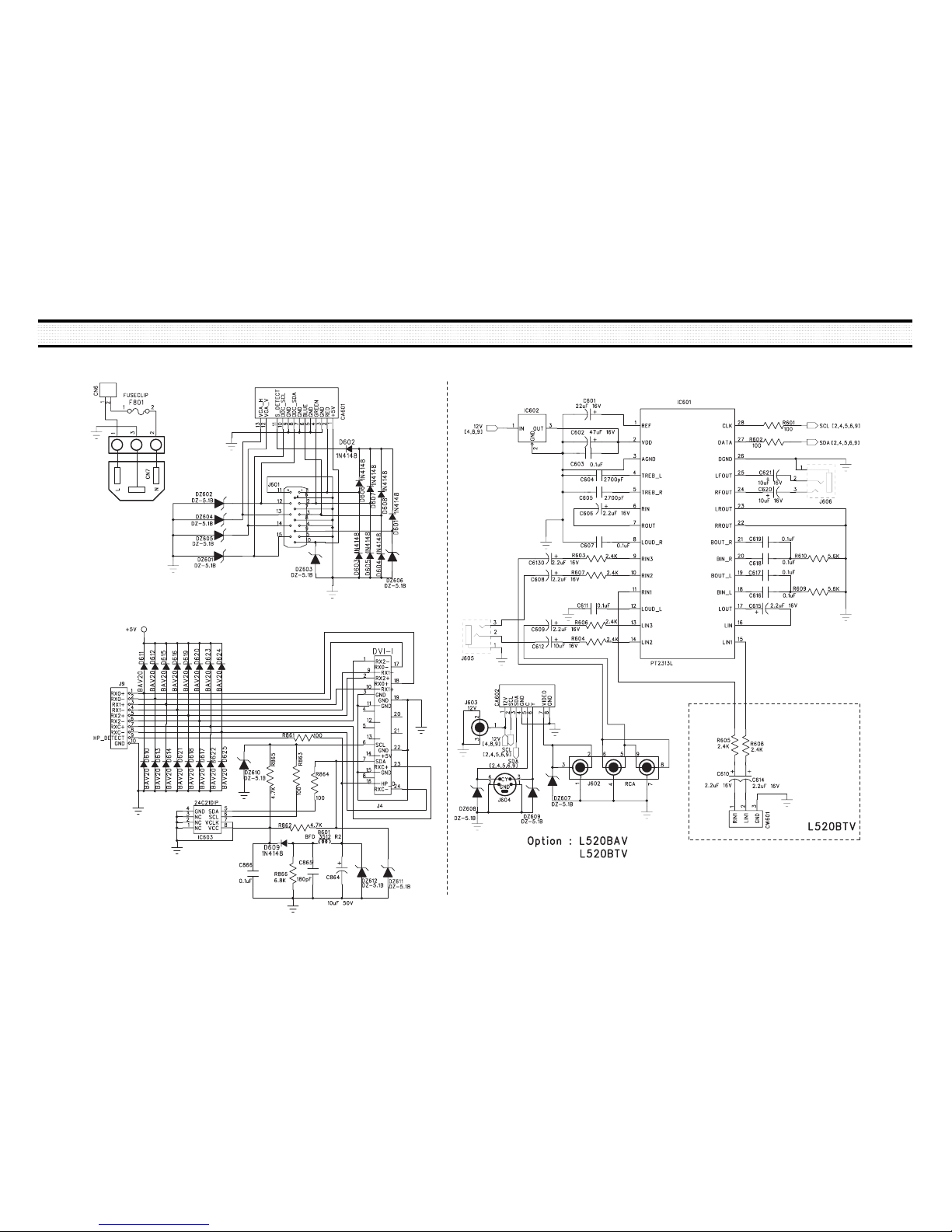

Jack PCB Section

Page 50

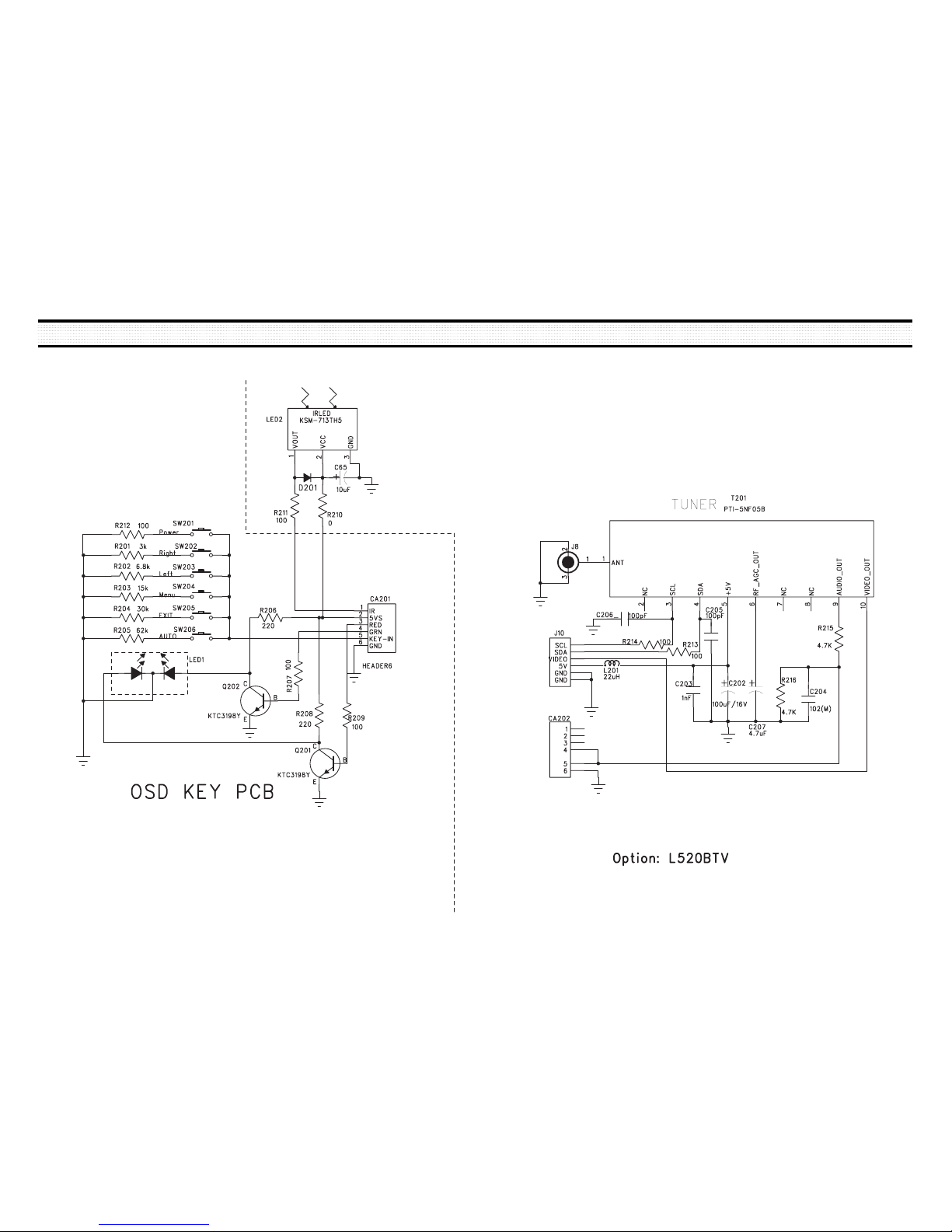

Key and TV Tuner Section

Page 51

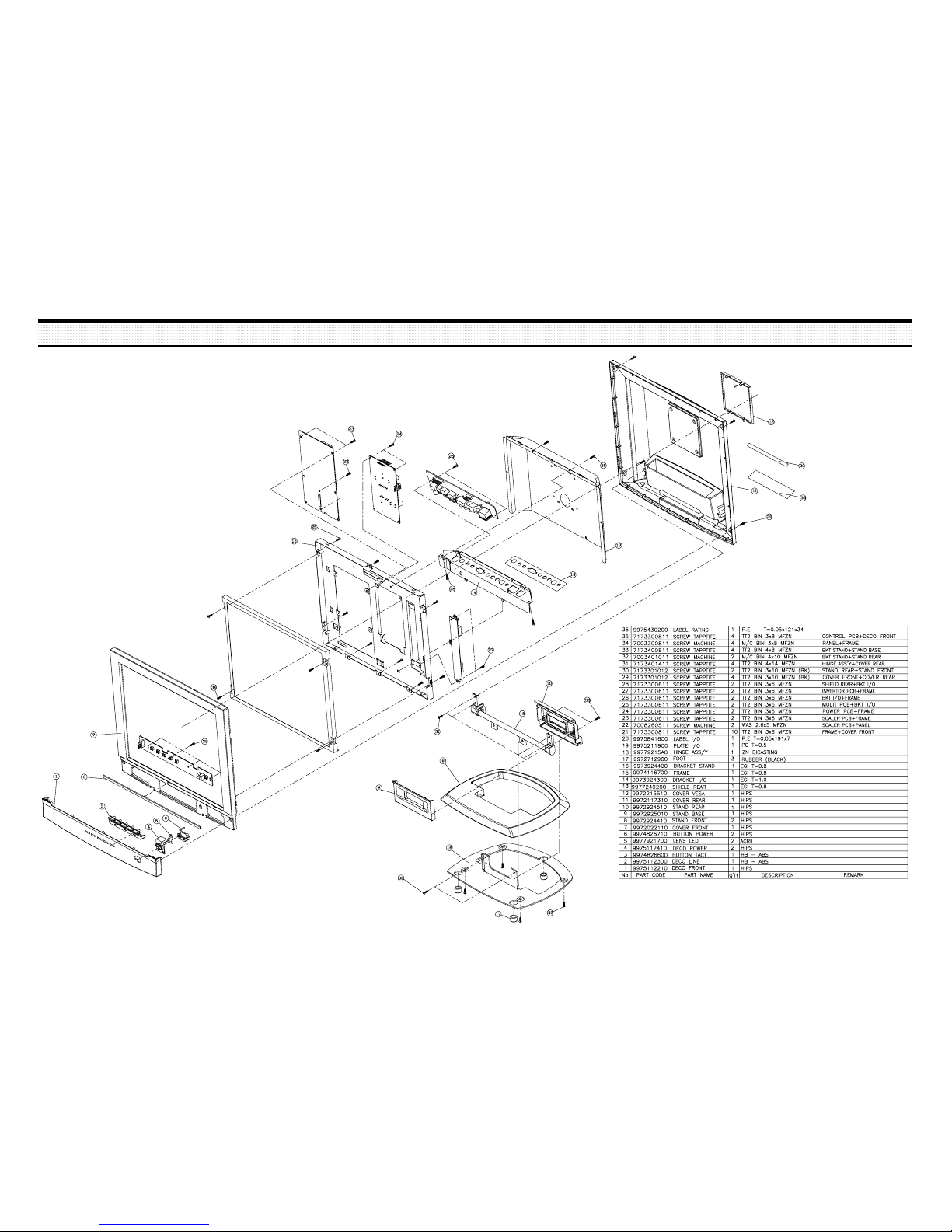

EXPLODED VIEW & MECHANICAL PARTS LIST

Page 52

RESISTOR Description

Example:

CAPACITOR Description

Example:

Fig &

Part No Description

Index

Capacitors C28 HCFK104ZBA Chip Cera 50V Z C63 HCBK393KBA Chip Cera 50V K C44 HCQK102JBA Chip Cera 50V J

Tolerance C ± 0.25pF D ±0.5% F ± 1pF J±5% K ±10% P ± 100% ~ 0% Z ± 80% ~ –

Fig &

Part No Description

Index R101

Resistors

RD-4Z820J Carbon : 82J

R30 HRFS472JBA Chip 4.7K OHM J

Tolerance F±1% J±5% K ± 10% M ± 20% G±2%

Important Safety Notice

Components identified with the International Symbol have special characteristics important for safety. When replacing any components, use only manufacturer’s specified parts.

Abbreviation of Description

INFORMATION OF PART DESCRIPTION

Page 53

1 Z1010

PCFMCAG161(162)

COVER FRONT AS CML-520B(L520BM)

2 LCD 9979615042 LCD PANEL L150X2M 2 YF010 99720221A1 COVER FRONT AS CML-520B C/FRONT AS 2 YF020 9977249200 SHIELD REAR E.G.I T=0.8 2 YF030 7003300811 SCREW MACHINE BIN 3X8 MFZN 2 YF040 7173300811 SCREW TAPPTITE TT2 BIN 3X8 MFZN 2 YF050 7173300611 SCREW TAPPTITE TT2 BIN 3X6 MFZN 2 YF060 7008260511 SCREW MACHINE WAS 2.6X5 MFZN 2 YF070 7173300611 SCREW TAPPTITE TT2 BIN 3X6 MFZN 2 YF080 7173300611 SCREW TAPPTITE TT2 BIN 3X6 MFZN 2 YF090 DDM1520B-- LCD INVERTER DMI-520B 2 Z2020

PCMPM1G161(162)

PCB MAIN MANUAL AS CML-520B(L520BM)

3 CN5 9979220148 CONN WAFER FX8-80P-SV 3 J2 9979220153 CONN WAFER YDW200-14 3 J3 9979220118 CONN WAFER YDW200-10 3J5

9979220151 CONN WAFER YDW200-08 L520BM/L521BM Only

3 U6 1MTV312MV- IC MICOM MTV312MV64 3 Z3030 PCMPJ1G161 PCB SMD AS CML-520B 4 C1 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C10 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C101 HCEKF100MC C CHIP ELECTRO MV 16V 10MF D4.0XH5.2 4 C102 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C103 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608 4 C104 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608 4 C106 HCEDC470MC C CHIP ELECTRO MV 6.3V 47MF 5DX5.2H 4 C108 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C109 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 4 C11 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C110 HCQK100JBA C CHIP CERA 50V CH 10PF J 1608 4 C111 HCQK100JBA C CHIP CERA 50V CH 10PF J 1608 4 C112 HCQK100JBA C CHIP CERA 50V CH 10PF J 1608 4 C113 HCEDC470MC C CHIP ELECTRO MV 6.3V 47MF 5DX5.2H 4 C114 HCEDC470MC C CHIP ELECTRO MV 6.3V 47MF 5DX5.2H 4 C115 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C116 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C117 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C118 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C119 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C12 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C120 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C121 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 4 C122 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 4 C123 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C125 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 4 C126 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C127 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C128 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C129 HCEDC470MC C CHIP ELECTRO MV 6.3V 47MF 5DX5.2H 4 C13 HCEEF101MD C CHIP ELECTRO MV 16V 100MF M 6.3DX5.7H

The components identified by mark have special characteristics important for safety and x-ray radiation. These should be replaced only with the types specified in the parts list.

ELECTRICAL PARTS LIST (L520B/L520BM/L521B/L521BM)

LEVEL LOC PART-CODE PART-NAME PART-DESC NOTE

Page 54

4 C130 HCEDC470MC C CHIP ELECTRO MV 6.3V 47MF 5DX5.2H 4 C131 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C132 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C133 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C134 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C135 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C136 HCEKK109MC C CHIP ELECTRO MV 50V 1MF D4.0XH5.2 4 C137 HCEDC470MC C CHIP ELECTRO MV 6.3V 47MF 5DX5.2H 4 C138 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C139 HCEKK109MC C CHIP ELECTRO MV 50V 1MF D4.0XH5.2 4 C14 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C140 HCEKF100MC C CHIP ELECTRO MV 16V 10MF D4.0XH5.2 4 C141 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C142 HCEKK109MC C CHIP ELECTRO MV 50V 1MF D4.0XH5.2 4 C143 HCEKK109MC C CHIP ELECTRO MV 50V 1MF D4.0XH5.2 4 C144 HCEDC470MC C CHIP ELECTRO MV 6.3V 47MF 5DX5.2H 4 C145 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C146 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C15 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608 4 C152 HCEKF100MC C CHIP ELECTRO MV 16V 10MF D4.0XH5.2 4 C156 HCEKF100MC C CHIP ELECTRO MV 16V 10MF D4.0XH5.2 4 C16 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 4 C167 HCFF474ZBA C CHIP CERA Y5V 16V 0.47MF Z 1608 4 C168 HCEKF100MC C CHIP ELECTRO MV 16V 10MF D4.0XH5.2 4 C169 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 4 C17 HCEDC470MC C CHIP ELECTRO MV 6.3V 47MF 5DX5.2H 4 C170 HCEKF100MC C CHIP ELECTRO MV 16V 10MF D4.0XH5.2 4 C171 HCEKF100MC C CHIP ELECTRO MV 16V 10MF D4.0XH5.2 4 C172 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C173 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C174 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C175 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C176 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C177 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 4 C178 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 4 C179 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C18 HCEDC470MC C CHIP ELECTRO MV 6.3V 47MF 5DX5.2H 4 C187 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C19 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 4 C190 HCEEF101MD C CHIP ELECTRO MV 16V 100MF M 6.3DX5.7H 4 C191 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C192 HCEEF101MD C CHIP ELECTRO MV 16V 100MF M 6.3DX5.7H 4 C193 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C194 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C199 HCEEF101MD C CHIP ELECTRO MV 16V 100MF M 6.3DX5.7H 4 C2 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 4 C20 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C200 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C206 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C208 HCEKF100MC C CHIP ELECTRO MV 16V 10MF D4.0XH5.2 4 C21 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608

LEVEL LOC PART-CODE PART-NAME PART-DESC NOTE

Page 55

4 C216 HCEKF100MC C CHIP ELECTRO MV 16V 10MF D4.0XH5.2 4 C22 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608 4 C23 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608 4 C24 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C25 HCFF474ZBA C CHIP CERA Y5V 16V 0.47MF Z 1608 4 C26 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 4 C27 HCFF474ZBA C CHIP CERA Y5V 16V 0.47MF Z 1608 4 C28 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 4 C29 HCQK100JBA C CHIP CERA 50V CH 10PF J 1608 4 C3 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608 4 C30 HCBK393KBA C CHIP CERA 50V X7R 0.039MF K 1608 4 C31 HCEKF100MC C CHIP ELECTRO MV 16V 10MF D4.0XH5.2 4 C32 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608 4 C33 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C34 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 4 C35 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 4 C36 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608 4 C37 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 4 C38 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 4 C39 HCFF474ZBA C CHIP CERA Y5V 16V 0.47MF Z 1608 4 C4 HCQK100JBA C CHIP CERA 50V CH 10PF J 1608 4 C41 HCQK151JBA C CHIP CERA 50V CH 150PF J 1608 4 C42 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C43 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C5 HCFD105ZBA C CHIP CERA Y5V 10V 1MF Z 1608 4 C51 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608 4 C6 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608 4 C7 HCQK471JBA C CHIP CERA 50V CH 470PF J 1608 4 C73 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608 4 C8 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608 4 C9 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608 4 FB1 HRFT000JCA R CHIP 1/10 0 OHM J 2012 4 FB10 HFFHH1M121 COIL CHIP BEAD HH-1M3216-121JT 4 FB13 HFFHH1M601 COIL CHIP BEAD HH-1M3216-601JT 4 FB14 HFFHH1M601 COIL CHIP BEAD HH-1M3216-601JT 4 FB16 HFFHH1M601 COIL CHIP BEAD HH-1M3216-601JT 4 FB17 HFFHH1M601 COIL CHIP BEAD HH-1M3216-601JT 4 FB18 HFFHH1M601 COIL CHIP BEAD HH-1M3216-601JT 4 FB19 HFFHH1M601 COIL CHIP BEAD HH-1M3216-601JT 4 FB2 HRFT000JCA R CHIP 1/10 0 OHM J 2012 4 FB26 HFFHH1M121 COIL CHIP BEAD HH-1M3216-121JT 4 FB27 HFFTB2601B COIL CHIP BEAD TB321611Z260 4 FB28 HFFHH1M121 COIL CHIP BEAD HH-1M3216-121JT 4 FB3 HRFT000JCA R CHIP 1/10 0 OHM J 2012 4 FB39 HFFTB2601B COIL CHIP BEAD TB321611Z260 4 FB4 HFFTB2601B COIL CHIP BEAD TB321611Z260 4 FB40 HFFHH1M121 COIL CHIP BEAD HH-1M3216-121JT 4 FB5 HFFTB2601B COIL CHIP BEAD TB321611Z260 4 FB6 HFFTB2601B COIL CHIP BEAD TB321611Z260 4 J6 9979220087 CONN WAFER SMAW200-06/68163-0610 4 PCB 9979800579 PCB MAIN T=1.6*110*180

LEVEL LOC PART-CODE PART-NAME PART-DESC NOTE

Page 56

4 Q3 TKTC3875SY TR CHIP KTC3875SY(RTK) 4 Q4 TKTC3875SY TR CHIP KTC3875SY(RTK) 4 Q5 TFDS4435A- FET FDS4435A 4 R1 HRFS000JBA R CHIP 1/16 0 OHM J 1608 4 R10 HRFS750JBA R CHIP 1/16 75 OHM J 1608 4 R100 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R101 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R102 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R105 HRFS102JBA R CHIP 1/16 1K OHM J 1608 4 R108 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R109 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R11 HRFS750JBA R CHIP 1/16 75 OHM J 1608 4 R110 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R112 HRFS102JBA R CHIP 1/16 1K OHM J 1608 4 R113 HRFS102JBA R CHIP 1/16 1K OHM J 1608 4 R114 HRFS102JBA R CHIP 1/16 1K OHM J 1608 4 R115 HRFS223JBA R CHIP 1/16 22K OHM J 1608 4 R117 HRFS102JBA R CHIP 1/16 1K OHM J 1608 4 R120 HRFS101JBA R CHIP 1/16 100 OHM J 1608 4 R121 HRFS102JBA R CHIP 1/16 1K OHM J 1608 4 R123 HRFS102JBA R CHIP 1/16 1K OHM J 1608 4 R124 HRFS102JBA R CHIP 1/16 1K OHM J 1608 4 R128 HRFS102JBA R CHIP 1/16 1K OHM J 1608 4 R129 HRFS000JBA R CHIP 1/16 0 OHM J 1608 4 R130 HRFS105JBA R CHIP 1/16 1M OHM J 1608 4 R131 HRFS102JBA R CHIP 1/16 1K OHM J 1608 4 R132 HRFS000JBA R CHIP 1/16 0 OHM J 1608 4 R133 HRFS102JBA R CHIP 1/16 1K OHM J 1608 4 R134 HRFS102JBA R CHIP 1/16 1K OHM J 1608 4 R135 HRFS102JBA R CHIP 1/16 1K OHM J 1608 4 R136 HRFS102JBA R CHIP 1/16 1K OHM J 1608 4 R150 HRFS101JBA R CHIP 1/16 100 OHM J 1608 4 R16 HRFS220JBA R CHIP 1/16W 22 OHM J 1608 4 R19 HRFS101JBA R CHIP 1/16 100 OHM J 1608 4 R2 HRFS000JBA R CHIP 1/16 0 OHM J 1608 4 R22 HRFS101JBA R CHIP 1/16 100 OHM J 1608 4 R24 HRFS102JBA R CHIP 1/16 1K OHM J 1608 4 R25 HRFS220JBA R CHIP 1/16W 22 OHM J 1608 4 R3 HRFS000JBA R CHIP 1/16 0 OHM J 1608 4 R4 HRFS330JBA R CHIP 1/16 33 OHM J 1608 4 R5 HRFS102JBA R CHIP 1/16 1K OHM J 1608 4 R6 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R67 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R68 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R69 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R7 HRFS330JBA R CHIP 1/16 33 OHM J 1608 4 R70 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R71 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R72 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R73 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R74 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608

LEVEL LOC PART-CODE PART-NAME PART-DESC NOTE

Page 57

4 R75 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R76 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R77 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R82 HRFS101JBA R CHIP 1/16 100 OHM J 1608 4 R83 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R84 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R85 HRFS000JBA R CHIP 1/16 0 OHM J 1608 4 R88 HRFS105JBA R CHIP 1/16 1M OHM J 1608 4 R9 HRFS750JBA R CHIP 1/16 75 OHM J 1608 4 R92 HRFS000JBA R CHIP 1/16 0 OHM J 1608 4 R93 HRFS000JBA R CHIP 1/16 0 OHM J 1608 4 R94 HRFS000JBA R CHIP 1/16 0 OHM J 1608 4 R96 HRFS000JBA R CHIP 1/16 0 OHM J 1608 4 R97 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R98 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 RA10 HRTS8E330J R CHIP ARRAY 1/16 8P 33 OHM 3216 4 RA12 HRTS8E330J R CHIP ARRAY 1/16 8P 33 OHM 3216 4 RA2 HRTS8E330J R CHIP ARRAY 1/16 8P 33 OHM 3216 4 RA4 HRTS8E330J R CHIP ARRAY 1/16 8P 33 OHM 3216 4 RA6 HRTS8E330J R CHIP ARRAY 1/16 8P 33 OHM 3216 4 RA8 HRTS8E330J R CHIP ARRAY 1/16 8P 33 OHM 3216 4 RP1 HFFH4M301E COIL CHIP BEAD HB-4M3216-301JT 4 RP10 HFFH4M301E COIL CHIP BEAD HB-4M3216-301JT 4 RP2 HFFH4M301E COIL CHIP BEAD HB-4M3216-301JT 4 RP3 HFFH4M301E COIL CHIP BEAD HB-4M3216-301JT 4 RP4 HFFH4M301E COIL CHIP BEAD HB-4M3216-301JT 4 RP5 HFFH4M301E COIL CHIP BEAD HB-4M3216-301JT 4 RP6 HFFH4M301E COIL CHIP BEAD HB-4M3216-301JT 4 RP7 HFFH4M301E COIL CHIP BEAD HB-4M3216-301JT 4 RP8 HFFH4M301E COIL CHIP BEAD HB-4M3216-301JT 4 RP9 HFFH4M301E COIL CHIP BEAD HB-4M3216-301JT 4 U12 1TDA8752BH IC ADC TDA8752BH/8 4 U13 1RC1117S3C IC CHIP LDO-3.3 RC1117S33T 4 U2 1LM385M25-

IC VOLTAGE REFERENCE

LM385M25 4 U4 174ACT14SC IC INVERTER 74ACT14SCX 4 U6S 9979300502 SOCKET IC PLCC 1.27PT 44PIN(22*22) 4 U7 1K1A7042AF IC RESET KIA7042AF 4 U8 1CAT24WC08 IC EEPROM CAT24WC08 J 4 U9 1AS1310--- IC LCD CONTROLLER AS1310 4 Y2 5XS12R000E CRYSTAL QUARTZ HC-49/SM5H 12MHZ 11PF 4 Y3 5XS14R318F CRYSTAL QUARTZ

HC-49/SM5H 14.318MHZ 18PF 2 Z2030 PCPLSWG158 PCB CONTROL AS CML-520BAV 3 CA201 9970760051 CONN AS SMH200+YBNH200+1007=150 3 LED1 DSD50GYW-- LED SD50GYW(GREEN/AMBER) 3 Z3040 PCPLJRG158 PCB CONTROL RAD.AS CML-520BAV 4 Q201 TZTC3198Y- TRANSISTOR KTC3198Y-(1815Y) (AUTO) 4 Q202 TZTC3198Y- TRANSISTOR KTC3198Y-(1815Y) (AUTO) 4 SW201 5S50101Z10 SW TACT KPT-1115AM 4 SW202 5S50101Z10 SW TACT KPT-1115AM 4 SW203 5S50101Z10 SW TACT KPT-1115AM 4

SW204

5S50101Z10 SW TACT KPT-1115AM

LEVEL LOC PART-CODE PART-NAME PART-DESC NOTE

Page 58

4 SW205 5S50101Z10 SW TACT KPT-1115AM 4 SW206 5S50101Z10 SW TACT KPT-1115AM 4 Z4040 PCPLJAG158

PCB CONTROL AXIAL AS

CML-520BAV 5 PCB 9979800580 PCB CONTROL T=1.6*235*28 5 R201 RD-AZ302J- R CARBON FILM 1/6 3K OHM J 5 R202 RD-AZ682J- R CARBON FILM 1/6 6.8K OHM J 5 R203 RD-AZ153J- R CARBON FILM 1/6 15K OHM J 5 R204 RD-AZ303J- R CARBON FILM 1/6 30K OHM J 5 R205 RD-AZ623J- R CARBON FILM 1/6 62K OHM J 5 R206 RD-AZ221J- R CARBON FILM 1/6 220 OHM J 5 R207 RD-AZ101J- R CARBON FILM 1/6 100 OHM J 5 R208 RD-AZ221J- R CARBON FILM 1/6 220 OHM J 5 R209 RD-AZ101J- R CARBON FILM 1/6 100 OHM J 5 R212 RD-AZ101J- R CARBON FILM 1/6 100 OHM J 2 Z2040 PCSMSWG158 POWER PCB AS CML-520BAV 3 C801 CL1GB3334M C LINE ACROSS U/C/V/S/N/D/E/SV 250V 3 C802 CEYP2G680Z C ELECTRO 400V SLT 68MF (25*20) 3 C807 CCYB3A103K C CERA 1KV B 0.01MF K 3 C824 CH1FDF103M C CERA AC 2.5KV 0.01MF M AC250V 3 CN2A 99707A0024 CONN AS 35164+YDH200+2464#24=150 3 CN4A 9970750037 CONN AS 5264+35164+2464#24=135 3 CN6A 9970720090 CONN AS

YH396-03V+35404-9002+1617#22=70 3 D801 DD3SBA60-- DIODE D3SBA60 3 D811 PCHASWG158 HEAT SINK A AS CML-520B 4 00010 9977028308 HEAT SINK 283 A1050P-H24 H=21.5 4 00020 9976012700 SCREW SPECIAL TT2 BIN 3*8 MFZN PW(D0.7) 4 D811 DFMLG22S-- DIODE FML-G22S 3 D812 DFMLG22S-- DIODE FML-G22S 3 D813 DFMBG19L-- DIODE FMB-G19L 3 IC802 1KA78R05-- IC REGULATOR KA78R05 3 IC803 1KA278R33- IC REGULATOR KA278R33 3 IC804 1TLP721GR- IC PHOTO COUPLER TLP721D4GR 3 IC806 PCHBSWG158 HEAT SINK B AS CML-520B 4 00010 9977028308 HEAT SINK 283 A1050P-H24 H=21.5 4 00020 9976012700 SCREW SPECIAL TT2 BIN 3*8 MFZN PW(D0.7) 4 IC806 1KA78R12-- IC REGULATOR KA78R12 3 IC811 1KA78R05-- IC REGULATOR KA78R05 3 L801 5PDLF2323- FILTER LINE DLF-2323 3 L811 5MC0000006 COIL CHOKE HC-202K (2MH) 3 Q801 PCHCSWG158 HEAT SINK C AS CML-520B 4 00010 9977031700 HEAT SINK 317 AL T=1.0 4 00020 9976012700 SCREW SPECIAL TT2 BIN 3*8 MFZN PW(D0.7) 4 Q801 TSSS6N70A- FET SSS6N70A 3 T801 5RM0000114 TRANS SMPS DMT-510BA 3 TH801 DTP8D13--- THERMISTOR TP8D13 3 YFR10 9974116700 FRAME E.G.I T=0.8 3 YFR20 7173300611 SCREW TAPPTITE TT2 BIN 3X6 MFZN 3 YFR30 4856812200 WIRE SADALE NYLON66 3 YFR40 2224050039 HOT MELT PL-809L 3 Z4010 PCSMJ0G158 POWER ODD AS CML-520BAV 4 C835 CEXF1E102D C ELECTRO 25V RMU 1000MF (10*20)

LEVEL LOC PART-CODE PART-NAME PART-DESC NOTE

Page 59

4 C838 CEXF1C471C C ELECTRO 16V RUS 470MF (10X12.5)TP 4 C845 CEXF1C102C C ELECTRO 16V RUS 1000MF (10X20) TP 4 C850 CEXF1C471C C ELECTRO 16V RUS 470MF (10X12.5)TP 4 C851 CEXF1C471C C ELECTRO 16V RUS 470MF (10X12.5)TP 4 C855 CEXF1C471C C ELECTRO 16V RUS 470MF (10X12.5)TP 4 C860 CEXF1E471C C ELECTRO 25V RUS 470MF (10X16) TP 4 IC801 1KA3842B-- IC POWER KA3842B 4 Z5010 PCSMJRG158 PCB POWER RADIAL AS CML-520BAV 5 C803 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP 5 C805 CEXF1H330V C ELECTRO 50V RSS 33MF (6.3X11) TP 5 C808 CCXF1H104Z C CERA 50V F 0.1MF Z 5 C809 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP 5 C811 CMXM2A103J C MYLAR 100V 0.01MF J (TP) 5 C812 CXSL3A470K C CERA 1KV SL 47PF K (TP) 5 C813 CCXB1H681K C CERA 50V B 680PF K (TAPPING) 5 C843 CCXF1H104Z C CERA 50V F 0.1MF Z 5 C844 CCXF1H104Z C CERA 50V F 0.1MF Z 5 C848 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP 5 C861 CEXF1E221C C ELECTRO 25V RUS 220MF (8X11.5) TP 5 IC805 1KA431ZTA- IC SHUNT KA431ZTA 5 Q802 TZTC3198Y- TRANSISTOR KTC3198Y-(1815Y) (AUTO) 5 Q810 TZTC3202Y- TR KTC3202Y (AUTO)(1959Y) 5 Z6010 PCSMJAG158 PCB POWER AXIAL AS CML-520BAV 6 D802 DUG2D----- DIODE UG2D 200V 2A 6 D805 DZN4148--- DIODE 1N4148 AUTO 52MM 6 D807 DUF4007--- DIODE UF4007 6 D809 DUG2D----- DIODE UG2D 200V 2A 6 DZ803 DDZ22BM--- DIODE ZENER DZ22BM 6 DZ806 DGDZJ18C-- DIODE ZENER GDZJ 18C 6 J807 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING 6 J808 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING 6 J811 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING 6 J814 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING 6 J819 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING 6 J823 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING 6 J828 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING 6 J829 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING 6 J836 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING 6 J838 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING 6 J844 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING 6 PCB1 9979800577 PCB POWER T=1.6*135*85 6 R801 RD-2Z684J- R CARBON FILM 1/2 680K OHM J 6 R803 RS01Z513J- R M-OXIDE FILM 1W 51K OHM J 6 R804 RS01Z513J- R M-OXIDE FILM 1W 51K OHM J 6 R805 RD-AZ102J- R CARBON FILM 1/6 1K OHM J 6 R806 RD-AZ333J- R CARBON FILM 1/6 33K OHM J 6 R807 RN-AZ2001F R METAL FILM 1/6 2.0K OHM F 6 R809 RS01Z683J- R M-OXIDE FILM 1W 68K OHM J (TAPPING) 6 R812 RD-AZ470J- R CARBON FILM 1/6 47 OHM J 6 R813 RD-AZ223J- R CARBON FILM 1/6 22K OHM J 6 R814 RD-AZ102J- R CARBON FILM 1/6 1K OHM J

LEVEL LOC PART-CODE PART-NAME PART-DESC NOTE

Page 60

6 R815 RW01Z758JN R WIRE WOUND 1W 0.75 OHM J NON-INDUCT 6 R820 RD-AZ180J- R CARBON FILM 1/6 18 OHM J 6 R822 RD-AZ681J- R CARBON FILM 1/6 680 OHM J 6 R825 RD-AZ479J- R CARBON FILM 1/6 4.7 OHM J 6 R826 RD-AZ333J- R CARBON FILM 1/6 33K OHM J 6 R827 RD-AZ151J- R CARBON FILM 1/6 150 OHM J 6 R832 RD-AZ102J- R CARBON FILM 1/6 1K OHM J 6 R837 RD-AZ102J- R CARBON FILM 1/6 1K OHM J 6 R839 RN-AZ1002F R METAL FILM 1/6 10K OHM F 6 R840 RN-AZ6491F R METAL FILM 1/6W 6.49K OHM F (TP) 6 R841 RD-AZ102J- R CARBON FILM 1/6 1K OHM J 6 R854 RD-AZ102J- R CARBON FILM 1/6 1K OHM J 6 R855 RD-4Z512J- R CARBON FILM 1/4 5.1K OHM J 2 Z2050

PCDSSWG161(162)

PCB D-SUB AS CML-520B(L520BM)

3 CA601 99707E0007 CONN AS YDH200+YBNH200+2990=175 3

CA602 9970780035 CONN AS YDH200+YBNH200+1007=130 L520BM/L521BM Only 3 CN6 9979220039 CONN WAFER YAW396-03AV(ANGLE) 3 CN7 9979200317 SOCKET AC INLET ST-03B-BP 3 F801 5F3CB3122L FUSE CERA

SEMKO TL 3.15AH 250V MF51

3 J601 9979200207 D-SUB 15P ANGLE

15P DDC BLUE W/OUT SCREW 3 J603 9979100015 JACK DC 6.5PIE 14.5*9*11 L520BM/L521BM Only 3 YSB10 7173300611 SCREW TAPPTITE TT2 BIN 3X6 MFZN 3 YSB20 9973924301 BKT I/O E.G.I. T=1.0 3 YSB30 9975211901 PLATE I/O P.C T=0.5 (L520BM) 3 Z4020

PCDSJRG161(162)

PCB D-SUB RAD AS CML-520B(L520BM)

C622 CCXF1H104Z C CERA 50V F 0.1MF Z L520BM/L521BM Only 4 F801A 9977410900 FUSE CLIP BSP3-H T0.4 SN 5.2 4 F801B 9977410900 FUSE CLIP BSP3-H T0.4 SN 5.2 4 Z5020

PCDSJAG161(162)

PCB D-SUB AXL AS CML-520B(L520BM) 5 D601 DZN4148--- DIODE 1N4148 AUTO 52MM 5 D602 DZN4148--- DIODE 1N4148 AUTO 52MM 5 D603 DZN4148--- DIODE 1N4148 AUTO 52MM 5 D604 DZN4148--- DIODE 1N4148 AUTO 52MM 5 D605 DZN4148--- DIODE 1N4148 AUTO 52MM 5 D606 DZN4148--- DIODE 1N4148 AUTO 52MM 5 D607 DZN4148--- DIODE 1N4148 AUTO 52MM 5 D608 DZN4148--- DIODE 1N4148 AUTO 52MM 5 DZ601 DDZ5R1B--- DIODE ZENER DZ-5.1B 5 DZ602 DDZ5R1B--- DIODE ZENER DZ-5.1B 5 DZ603 DDZ5R1B--- DIODE ZENER DZ-5.1B 5 DZ604 DDZ5R1B--- DIODE ZENER DZ-5.1B 5 DZ605 DDZ5R1B--- DIODE ZENER DZ-5.1B 5 DZ606 DDZ5R1B--- DIODE ZENER DZ-5.1B 5 PCB 9979800578 PCB JACK RGB T=1.6*222*45

1 Z1020

PCBCCPG161(162)

COVER REAR AS CML-520B(L520BM)

2 YR010 99721173A1 COVER REAR AS CML-520B C/REAR AS 2 YR020 9975430100 LABEL RATING L520BM (DW) 2 YR030 9975841601 LABEL I/O P.E T=0.1*191*7 (L520BM) 2 YR040 7173301212 SCREW TAPPTITE TT2 BIN 3X12 MFZN BK 2 YR050 9972924410 STAND FRONT HIPS SPRAY 2 YR060 9972924510 STAND REAR HIPS SPRAY

LEVEL LOC PART-CODE PART-NAME PART-DESC NOTE

Page 61

2 YR070 99729250A1 STAND AS CML-520B STAND AS 2 YR080 7173301012 SCREW TAPTITE TT2 BIN 3X10 MFZN BK 2 YR090 7S103B4081 SCREW SPECIAL M/C BIN 4*8 MFZN

1 Z1030

PCPKCPG161(162)

PACKING AS CML-520B(L520BM)

2 YP010 9978047300 BOX CARTON DW-3 (DW) 2 YP020 9978136300 CUSHION E.P.S 2 YP030 9978215300 BAG POLY PEHD T=0.5*550*700 2 YP040 2TP00075CL TAPE OPP 50X75 CLEAR 2 YP050 9975828800 LABEL BARCODE ART PAPER 2 YP060 99786321A0 PMA ASSY W/W,DAEW00 2

YP070 99722158A0 SPEAKER AS CML-520BAV SPEAKER L520BM/L521BM Only

LEVEL LOC PART-CODE PART-NAME PART-DESC NOTE

Page 62

ELECTRICAL PARTS LIST (L520BAV)

1 Z1010 PCFMCAG158 COVER FRONT AS CML-520BAV

PCB MAIN MANUAL AS

CML-520BAV 3 CN5 9979220148 CONN WAFER FX8-80P-SV 3 J2 9979220153 CONN WAFER YDW200-14 3 J3 9979220118 CONN WAFER YDW200-10 3 J5 9979220151 CONN WAFER YDW200-08 3 U6 1MTV312MV- IC MICOM MTV312MV64 3 Z3030 PCMPJ1G158 PCB SMD AS CML-520BAV 4 C1 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C10 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C100 HCFH473ZBA C CHIP CERA 25V Y5V 0.047MF Z 1608 4 C101 HCEKF100MC C CHIP ELECTRO MV 16V 10MF D4.0XH5.2 4 C102 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C103 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608 4 C104 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608 4 C106 HCEDC470MC C CHIP ELECTRO MV 6.3V 47MF 5DX5.2H 4 C108 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C109 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 4 C11 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C110 HCQK100JBA C CHIP CERA 50V CH 10PF J 1608 4 C111 HCQK100JBA C CHIP CERA 50V CH 10PF J 1608 4 C112 HCQK100JBA C CHIP CERA 50V CH 10PF J 1608 4 C113 HCEDC470MC C CHIP ELECTRO MV 6.3V 47MF 5DX5.2H 4 C114 HCEDC470MC C CHIP ELECTRO MV 6.3V 47MF 5DX5.2H 4 C115 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C116 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C117 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C118 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C119 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C12 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C120 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C121 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 4 C122 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 4 C123 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C125 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 4 C126 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C127 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C128 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C129 HCEDC470MC C CHIP ELECTRO MV 6.3V 47MF 5DX5.2H

LEVEL LOC PART-CODE PART-NAME PART-DESC

The components identified by mark have special characteristics important for safety and x-ray radiation. These should be replaced only with the types specified in the parts list.

Page 63

4 C13 HCEEF101MD C CHIP ELECTRO MV 16V 100MF M 6.3DX5.7H 4 C130 HCEDC470MC C CHIP ELECTRO MV 6.3V 47MF 5DX5.2H 4 C131 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C132 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C133 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C134 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C135 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C136 HCEKK109MC C CHIP ELECTRO MV 50V 1MF D4.0XH5.2 4 C137 HCEDC470MC C CHIP ELECTRO MV 6.3V 47MF 5DX5.2H 4 C138 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C139 HCEKK109MC C CHIP ELECTRO MV 50V 1MF D4.0XH5.2 4 C14 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C140 HCEKF100MC C CHIP ELECTRO MV 16V 10MF D4.0XH5.2 4 C141 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C142 HCEKK109MC C CHIP ELECTRO MV 50V 1MF D4.0XH5.2 4 C143 HCEKK109MC C CHIP ELECTRO MV 50V 1MF D4.0XH5.2 4 C144 HCEDC470MC C CHIP ELECTRO MV 6.3V 47MF 5DX5.2H 4 C145 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C146 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C15 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608 4 C152 HCEKF100MC C CHIP ELECTRO MV 16V 10MF D4.0XH5.2 4 C156 HCEKF100MC C CHIP ELECTRO MV 16V 10MF D4.0XH5.2 4 C16 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 4 C167 HCFF474ZBA C CHIP CERA Y5V 16V 0.47MF Z 1608 4 C168 HCEKF100MC C CHIP ELECTRO MV 16V 10MF D4.0XH5.2 4 C169 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 4 C17 HCEDC470MC C CHIP ELECTRO MV 6.3V 47MF 5DX5.2H 4 C170 HCEKF100MC C CHIP ELECTRO MV 16V 10MF D4.0XH5.2 4 C171 HCEKF100MC C CHIP ELECTRO MV 16V 10MF D4.0XH5.2 4 C172 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C173 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C174 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C175 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C176 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C177 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 4 C178 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 4 C179 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C18 HCEDC470MC C CHIP ELECTRO MV 6.3V 47MF 5DX5.2H 4 C187 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C19 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 4 C190 HCEEF101MD C CHIP ELECTRO MV 16V 100MF M 6.3DX5.7H 4 C191 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C192 HCEEF101MD C CHIP ELECTRO MV 16V 100MF M 6.3DX5.7H 4 C193 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C194 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C199 HCEEF101MD C CHIP ELECTRO MV 16V 100MF M 6.3DX5.7H 4 C2 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 4 C20 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C200 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C206 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C208 HCEKF100MC C CHIP ELECTRO MV 16V 10MF D4.0XH5.2

LEVEL LOC PART-CODE PART-NAME PART-DESC

Page 64

4 C21 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608 4 C216 HCEKF100MC C CHIP ELECTRO MV 16V 10MF D4.0XH5.2 4 C22 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608 4 C23 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608 4 C24 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C25 HCFF474ZBA C CHIP CERA Y5V 16V 0.47MF Z 1608 4 C26 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 4 C27 HCFF474ZBA C CHIP CERA Y5V 16V 0.47MF Z 1608 4 C28 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 4 C29 HCQK100JBA C CHIP CERA 50V CH 10PF J 1608 4 C30 HCBK393KBA C CHIP CERA 50V X7R 0.039MF K 1608 4 C31 HCEKF100MC C CHIP ELECTRO MV 16V 10MF D4.0XH5.2 4 C32 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608 4 C33 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C34 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 4 C35 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 4 C36 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608 4 C37 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 4 C38 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 4 C39 HCFF474ZBA C CHIP CERA Y5V 16V 0.47MF Z 1608 4 C4 HCQK100JBA C CHIP CERA 50V CH 10PF J 1608 4 C41 HCQK151JBA C CHIP CERA 50V CH 150PF J 1608 4 C42 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C43 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C5 HCFD105ZBA C CHIP CERA Y5V 10V 1MF Z 1608 4 C51 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608 4 C6 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608 4 C68 HCEKF100MC C CHIP ELECTRO MV 16V 10MF D4.0XH5.2 4 C69 HCEKF100MC C CHIP ELECTRO MV 16V 10MF D4.0XH5.2 4 C7 HCQK471JBA C CHIP CERA 50V CH 470PF J 1608 4 C70 HCEKF100MC C CHIP ELECTRO MV 16V 10MF D4.0XH5.2 4 C71 HCEKF100MC C CHIP ELECTRO MV 16V 10MF D4.0XH5.2 4 C72 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C73 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608 4 C74 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C75 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C76 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C77 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C78 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C79 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C8 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608 4 C80 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C81 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C82 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C83 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C84 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C85 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 4 C86 HCFH473ZBA C CHIP CERA 25V Y5V 0.047MF Z 1608 4 C9 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608 4 C90 HCFH473ZBA C CHIP CERA 25V Y5V 0.047MF Z 1608 4 C92 HCQK200JBA C CHIP CERA 50V CH 20PF J 1608

LEVEL LOC PART-CODE PART-NAME PART-DESC

Page 65

4 C93 HCQK200JBA C CHIP CERA 50V CH 20PF J 1608 4 C94 HCFH473ZBA C CHIP CERA 25V Y5V 0.047MF Z 1608 4 C97 HCFH473ZBA C CHIP CERA 25V Y5V 0.047MF Z 1608 4 C98 HCFH473ZBA C CHIP CERA 25V Y5V 0.047MF Z 1608 4 C99 HCFH473ZBA C CHIP CERA 25V Y5V 0.047MF Z 1608 4 FB1 HRFT000JCA R CHIP 1/10 0 OHM J 2012 4 FB10 HFFHH1M121 COIL CHIP BEAD HH-1M3216-121JT 4 FB11 HFFHH1M601 COIL CHIP BEAD HH-1M3216-601JT 4 FB12 HFFHH1M601 COIL CHIP BEAD HH-1M3216-601JT 4 FB13 HFFHH1M601 COIL CHIP BEAD HH-1M3216-601JT 4 FB14 HFFHH1M601 COIL CHIP BEAD HH-1M3216-601JT 4 FB16 HFFHH1M601 COIL CHIP BEAD HH-1M3216-601JT 4 FB17 HFFHH1M601 COIL CHIP BEAD HH-1M3216-601JT 4 FB18 HFFHH1M601 COIL CHIP BEAD HH-1M3216-601JT 4 FB19 HFFHH1M601 COIL CHIP BEAD HH-1M3216-601JT 4 FB2 HRFT000JCA R CHIP 1/10 0 OHM J 2012 4 FB26 HFFHH1M121 COIL CHIP BEAD HH-1M3216-121JT 4 FB27 HFFTB2601B COIL CHIP BEAD TB321611Z260 4 FB28 HFFHH1M121 COIL CHIP BEAD HH-1M3216-121JT 4 FB3 HRFT000JCA R CHIP 1/10 0 OHM J 2012 4 FB39 HFFTB2601B COIL CHIP BEAD TB321611Z260 4 FB4 HFFTB2601B COIL CHIP BEAD TB321611Z260 4 FB40 HFFHH1M121 COIL CHIP BEAD HH-1M3216-121JT 4 FB5 HFFTB2601B COIL CHIP BEAD TB321611Z260 4 FB6 HFFTB2601B COIL CHIP BEAD TB321611Z260 4 J6 9979220087 CONN WAFER SMAW200-06/68163-0610 4 PCB 9979800579 PCB MAIN T=1.6*110*180 4 Q3 TKTC3875SY TR CHIP KTC3875SY(RTK) 4 Q4 TKTC3875SY TR CHIP KTC3875SY(RTK) 4 Q5 TFDS4435A- FET FDS4435A 4 R1 HRFS000JBA R CHIP 1/16 0 OHM J 1608 4 R10 HRFS750JBA R CHIP 1/16 75 OHM J 1608 4 R100 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R101 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R102 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R105 HRFS102JBA R CHIP 1/16 1K OHM J 1608 4 R108 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R109 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R11 HRFS750JBA R CHIP 1/16 75 OHM J 1608 4 R110 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R112 HRFS102JBA R CHIP 1/16 1K OHM J 1608 4 R113 HRFS102JBA R CHIP 1/16 1K OHM J 1608 4 R114 HRFS102JBA R CHIP 1/16 1K OHM J 1608 4 R115 HRFS223JBA R CHIP 1/16 22K OHM J 1608 4 R117 HRFS102JBA R CHIP 1/16 1K OHM J 1608 4 R120 HRFS101JBA R CHIP 1/16 100 OHM J 1608 4 R121 HRFS102JBA R CHIP 1/16 1K OHM J 1608 4 R123 HRFS102JBA R CHIP 1/16 1K OHM J 1608 4 R124 HRFS102JBA R CHIP 1/16 1K OHM J 1608 4 R128 HRFS102JBA R CHIP 1/16 1K OHM J 1608 4 R129 HRFS000JBA R CHIP 1/16 0 OHM J 1608

LEVEL LOC PART-CODE PART-NAME PART-DESC

Page 66

4 R130 HRFS105JBA R CHIP 1/16 1M OHM J 1608 4 R131 HRFS102JBA R CHIP 1/16 1K OHM J 1608 4 R132 HRFS330JBA R CHIP 1/16 33 OHM J 1608 4 R133 HRFS102JBA R CHIP 1/16 1K OHM J 1608 4 R134 HRFS102JBA R CHIP 1/16 1K OHM J 1608 4 R135 HRFS102JBA R CHIP 1/16 1K OHM J 1608 4 R136 HRFS102JBA R CHIP 1/16 1K OHM J 1608 4 R150 HRFS101JBA R CHIP 1/16 100 OHM J 1608 4 R16 HRFS220JBA R CHIP 1/16W 22 OHM J 1608 4 R19 HRFS101JBA R CHIP 1/16 100 OHM J 1608 4 R2 HRFS000JBA R CHIP 1/16 0 OHM J 1608 4 R22 HRFS101JBA R CHIP 1/16 100 OHM J 1608 4 R24 HRFS102JBA R CHIP 1/16 1K OHM J 1608 4 R25 HRFS220JBA R CHIP 1/16W 22 OHM J 1608 4 R3 HRFS000JBA R CHIP 1/16 0 OHM J 1608 4 R4 HRFS330JBA R CHIP 1/16 33 OHM J 1608 4 R48 HRFS330JBA R CHIP 1/16 33 OHM J 1608 4 R49 HRFS330JBA R CHIP 1/16 33 OHM J 1608 4 R5 HRFS102JBA R CHIP 1/16 1K OHM J 1608 4 R50 HRFS180JBA R CHIP 1/16 18 OHM J 1608 4 R51 HRFS750JBA R CHIP 1/16 75 OHM J 1608 4 R54 HRFS180JBA R CHIP 1/16 18 OHM J 1608 4 R55 HRFS750JBA R CHIP 1/16 75 OHM J 1608 4 R57 HRFS180JBA R CHIP 1/16 18 OHM J 1608 4 R58 HRFS750JBA R CHIP 1/16 75 OHM J 1608 4 R59 HRFS330JBA R CHIP 1/16 33 OHM J 1608 4 R6 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R60 HRFS332JBA R CHIP 1/16 3.3K OHM J 1608 4 R64 HRFS332JBA R CHIP 1/16 3.3K OHM J 1608 4 R65 HRFS332JBA R CHIP 1/16 3.3K OHM J 1608 4 R66 HRFS332JBA R CHIP 1/16 3.3K OHM J 1608 4 R67 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R68 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R69 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R7 HRFS330JBA R CHIP 1/16 33 OHM J 1608 4 R70 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R71 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R72 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R73 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R74 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R75 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R76 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R77 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R82 HRFS101JBA R CHIP 1/16 100 OHM J 1608 4 R83 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R84 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R85 HRFS000JBA R CHIP 1/16 0 OHM J 1608 4 R88 HRFS105JBA R CHIP 1/16 1M OHM J 1608 4 R9 HRFS750JBA R CHIP 1/16 75 OHM J 1608 4 R92 HRFS000JBA R CHIP 1/16 0 OHM J 1608 4 R93 HRFS000JBA R CHIP 1/16 0 OHM J 1608

LEVEL LOC PART-CODE PART-NAME PART-DESC

Page 67

4 R94 HRFS000JBA R CHIP 1/16 0 OHM J 1608 4 R96 HRFS000JBA R CHIP 1/16 0 OHM J 1608 4 R97 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 R98 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 4 RA10 HRTS8E330J R CHIP ARRAY 1/16 8P 33 OHM 3216 4 RA12 HRTS8E330J R CHIP ARRAY 1/16 8P 33 OHM 3216 4 RA2 HRTS8E330J R CHIP ARRAY 1/16 8P 33 OHM 3216 4 RA26 HRTS8E330J R CHIP ARRAY 1/16 8P 33 OHM 3216 4 RA27 HRTS8E330J R CHIP ARRAY 1/16 8P 33 OHM 3216 4 RA4 HRTS8E330J R CHIP ARRAY 1/16 8P 33 OHM 3216 4 RA6 HRTS8E330J R CHIP ARRAY 1/16 8P 33 OHM 3216 4 RA8 HRTS8E330J R CHIP ARRAY 1/16 8P 33 OHM 3216 4 RP1 HFFH4M301E COIL CHIP BEAD HB-4M3216-301JT 4 RP10 HFFH4M301E COIL CHIP BEAD HB-4M3216-301JT 4 RP2 HFFH4M301E COIL CHIP BEAD HB-4M3216-301JT 4 RP3 HFFH4M301E COIL CHIP BEAD HB-4M3216-301JT 4 RP4 HFFH4M301E COIL CHIP BEAD HB-4M3216-301JT 4 RP5 HFFH4M301E COIL CHIP BEAD HB-4M3216-301JT 4 RP6 HFFH4M301E COIL CHIP BEAD HB-4M3216-301JT 4 RP7 HFFH4M301E COIL CHIP BEAD HB-4M3216-301JT 4 RP8 HFFH4M301E COIL CHIP BEAD HB-4M3216-301JT 4 RP9 HFFH4M301E COIL CHIP BEAD HB-4M3216-301JT 4 U12 1TDA8752BH IC ADC TDA8752BH/8 4 U13 1RC1117S3C IC CHIP LDO-3.3 RC1117S33T 4 U2 1LM385M25-

IC VOLTAGE REFERENCE

LM385M25 4 U4 174ACT14SC IC INVERTER 74ACT14SCX 4 U5 1SAA7114H- IC DECODER SAA7114H 4 U6S 9979300502 SOCKET IC PLCC 1.27PT 44PIN(22*22) 4 U7 1K1A7042AF IC RESET KIA7042AF 4 U8 1CAT24WC08 IC EEPROM CAT24WC08 J 4 U9 1AS1310--- IC LCD CONTROLLER AS1310 4 Y1 5XS24R576E CRYSTAL QUARTZ HC-49/SMD 24.576MHZ 20PF 4 Y2 5XS12R000E CRYSTAL QUARTZ HC-49/SM5H 12MHZ 11PF 4 Y3 5XS14R318F CRYSTAL QUARTZ HC-49/SM5H 14.318MHZ 18PF 2 Z2030 PCPLSWG158 PCB CONTROL AS CML-520BAV 3 CA201 9970760051 CONN AS SMH200+YBNH200+1007=150 3 LED1 DSD50GYW-- LED SD50GYW(GREEN/AMBER) 3 Z3040 PCPLJRG158 PCB CONTROL RAD.AS CML-520BAV 4 Q201 TZTC3198Y- TRANSISTOR KTC3198Y-(1815Y) (AUTO) 4 Q202 TZTC3198Y- TRANSISTOR KTC3198Y-(1815Y) (AUTO) 4 SW201 5S50101Z10 SW TACT KPT-1115AM 4 SW202 5S50101Z10 SW TACT KPT-1115AM 4 SW203 5S50101Z10 SW TACT KPT-1115AM 4 SW204 5S50101Z10 SW TACT KPT-1115AM 4 SW205 5S50101Z10 SW TACT KPT-1115AM 4 SW206 5S50101Z10 SW TACT KPT-1115AM 4 Z4040 PCPLJAG158

PCB CONTROL AXIAL AS

CML-520BAV 5 PCB 9979800580 PCB CONTROL T=1.6*235*28 5 R201 RD-AZ302J- R CARBON FILM 1/6 3K OHM J 5 R202 RD-AZ682J- R CARBON FILM 1/6 6.8K OHM J 5 R203 RD-AZ153J- R CARBON FILM 1/6 15K OHM J

LEVEL LOC PART-CODE PART-NAME PART-DESC

Page 68

5 R204 RD-AZ303J- R CARBON FILM 1/6 30K OHM J 5 R205 RD-AZ623J- R CARBON FILM 1/6 62K OHM J 5 R206 RD-AZ221J- R CARBON FILM 1/6 220 OHM J 5 R207 RD-AZ101J- R CARBON FILM 1/6 100 OHM J 5 R208 RD-AZ221J- R CARBON FILM 1/6 220 OHM J 5 R209 RD-AZ101J- R CARBON FILM 1/6 100 OHM J 5 R212 RD-AZ101J- R CARBON FILM 1/6 100 OHM J 2 Z2040 PCSMSWG158 POWER PCB AS CML-520BAV 3 C801 CL1GB3334M C LINE ACROSS U/C/V/S/N/D/E/SV 250V 3 C802 CEYP2G680Z C ELECTRO 400V SLT 68MF (25*20) 3 C807 CCYB3A103K C CERA 1KV B 0.01MF K 3 C824 CH1FDF103M C CERA AC 2.5KV 0.01MF M AC250V 3 CN2A 99707A0024 CONN AS 35164+YDH200+2464#24=150 3 CN4A 9970750037 CONN AS 5264+35164+2464#24=135 3 CN6A 9970720090 CONN AS YH396-03V+35404-9002+1617#22=70 3 D801 DD3SBA60-- DIODE D3SBA60 3 D811 PCHASWG158 HEAT SINK A AS CML-520B 4 00010 9977028308 HEAT SINK 283 A1050P-H24 H=21.5 4 00020 9976012700 SCREW SPECIAL TT2 BIN 3*8 MFZN PW(D0.7) 4 00030 9976411600 SHAFT SWRM PIE2.5X9 SN PLATE 4 D811 DFMLG22S-- DIODE FML-G22S 3 D812 DFMLG22S-- DIODE FML-G22S 3 D813 DFMBG19L-- DIODE FMB-G19L 3 IC802 1KA78R05-- IC REGULATOR KA78R05 3 IC803 1KA278R33- IC REGULATOR KA278R33 3 IC804 1TLP721GR- IC PHOTO COUPLER TLP721D4GR 3 IC806 PCHBSWG158 HEAT SINK B AS CML-520B 4 00010 9977028308 HEAT SINK 283 A1050P-H24 H=21.5 4 00020 9976012700 SCREW SPECIAL TT2 BIN 3*8 MFZN PW(D0.7) 4 00030 9976411600 SHAFT SWRM PIE2.5X9 SN PLATE 4 IC806 1KA78R12-- IC REGULATOR KA78R12 3 IC811 1KA78R05-- IC REGULATOR KA78R05 3 L801 5PDLF2323- FILTER LINE DLF-2323 3 L811 5MC0000006 COIL CHOKE HC-202K (2MH) 3 Q801 PCHCSWG158 HEAT SINK C AS CML-520B 4 00010 9977031700 HEAT SINK 317 AL T=1.0 4 00020 9976012700 SCREW SPECIAL TT2 BIN 3*8 MFZN PW(D0.7) 4 Q801 TSSS6N70A- FET SSS6N70A 3 T801 5RM0000114 TRANS SMPS DMT-510BA 3 TH801 DTP8D13--- THERMISTOR TP8D13 3 YFR10 9974116700 FRAME E.G.I T=0.8 3 YFR20 7173300611 SCREW TAPPTITE TT2 BIN 3X6 MFZN 3 YFR30 4856812200 WIRE SADALE NYLON66 3 YFR40 2224050039 HOT MELT PL-809L 3 Z4010 PCSMJ0G158 POWER ODD AS CML-520BAV 4 C835 CEXF1E102D C ELECTRO 25V RMU 1000MF (10*20) 4 C838 CEXF1C471C C ELECTRO 16V RUS 470MF (10X12.5)TP 4 C845 CEXF1C102C C ELECTRO 16V RUS 1000MF (10X20) TP 4 C850 CEXF1C471C C ELECTRO 16V RUS 470MF (10X12.5)TP 4 C851 CEXF1C471C C ELECTRO 16V RUS 470MF (10X12.5)TP 4 C855 CEXF1C471C C ELECTRO 16V RUS 470MF (10X12.5)TP

LEVEL LOC PART-CODE PART-NAME PART-DESC

Page 69

4 C860 CEXF1E471C C ELECTRO 25V RUS 470MF (10X16) TP 4 IC801 1KA3842B-- IC POWER KA3842B 4 Z5010 PCSMJRG158

PCB POWER RADIAL AS

CML-520BAV 5 C803 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP 5 C805 CEXF1H330V C ELECTRO 50V RSS 33MF (6.3X11) TP 5 C808 CCXF1H104Z C CERA 50V F 0.1MF Z 5 C809 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP 5 C811 CMXM2A103J C MYLAR 100V 0.01MF J (TP) 5 C812 CXSL3A470K C CERA 1KV SL 47PF K (TP) 5 C813 CCXB1H681K C CERA 50V B 680PF K (TAPPING) 5 C843 CCXF1H104Z C CERA 50V F 0.1MF Z 5 C844 CCXF1H104Z C CERA 50V F 0.1MF Z 5 C848 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP 5 C861 CEXF1E221C C ELECTRO 25V RUS 220MF (8X11.5) TP 5 IC805 1KA431ZTA- IC SHUNT KA431ZTA 5 Q802 TZTC3198Y- TRANSISTOR KTC3198Y-(1815Y) (AUTO) 5 Q810 TZTC3202Y- TR KTC3202Y (AUTO)(1959Y) 5 Z6010 PCSMJAG158 PCB POWER AXIAL AS CML-520BAV 6 D802 DUG2D----- DIODE UG2D 200V 2A 6 D805 DZN4148--- DIODE 1N4148 AUTO 52MM 6 D807 DUF4007--- DIODE UF4007 6 D809 DUG2D----- DIODE UG2D 200V 2A 6 DZ803 DDZ22BM--- DIODE ZENER DZ22BM 6 DZ806 DGDZJ18C-- DIODE ZENER GDZJ 18C 6 J807 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING 6 J808 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING 6 J811 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING 6 J814 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING 6 J819 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING 6 J823 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING 6 J828 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING 6 J829 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING 6 J836 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING 6 J838 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING 6 J844 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING 6 PCB1 9979800577 PCB POWER T=1.6*135*85 6 R801 RD-2Z684J- R CARBON FILM 1/2 680K OHM J 6 R803 RS01Z513J- R M-OXIDE FILM 1W 51K OHM J 6 R804 RS01Z513J- R M-OXIDE FILM 1W 51K OHM J 6 R805 RD-AZ102J- R CARBON FILM 1/6 1K OHM J 6 R806 RD-AZ333J- R CARBON FILM 1/6 33K OHM J 6 R807 RN-AZ2001F R METAL FILM 1/6 2.0K OHM F 6 R809 RS01Z683J- R M-OXIDE FILM 1W 68K OHM J (TAPPING) 6 R812 RD-AZ470J- R CARBON FILM 1/6 47 OHM J 6 R813 RD-AZ223J- R CARBON FILM 1/6 22K OHM J 6 R814 RD-AZ102J- R CARBON FILM 1/6 1K OHM J 6 R815 RW01Z758JN R WIRE WOUND 1W 0.75 OHM J NON-INDUCT 6 R820 RD-AZ180J- R CARBON FILM 1/6 18 OHM J 6 R822 RD-AZ681J- R CARBON FILM 1/6 680 OHM J 6 R825 RD-AZ479J- R CARBON FILM 1/6 4.7 OHM J 6 R826 RD-AZ333J- R CARBON FILM 1/6 33K OHM J

LEVEL LOC PART-CODE PART-NAME PART-DESC

Page 70

6 R827 RD-AZ151J- R CARBON FILM 1/6 150 OHM J 6 R832 RD-AZ102J- R CARBON FILM 1/6 1K OHM J 6 R837 RD-AZ102J- R CARBON FILM 1/6 1K OHM J 6 R839 RN-AZ1002F R METAL FILM 1/6 10K OHM F 6 R840 RN-AZ6491F R METAL FILM 1/6W 6.49K OHM F (TP) 6 R841 RD-AZ102J- R CARBON FILM 1/6 1K OHM J 6 R854 RD-AZ102J- R CARBON FILM 1/6 1K OHM J 6 R855 RD-4Z512J- R CARBON FILM 1/4 5.1K OHM J 2 Z2050 PCDSSWG158 PCB D-SUB AS CML-520BAV 3 CA601 99707E0007 CONN AS YDH200+YBNH200+2990=175 3 CA602 9970780035 CONN AS YDH200+YBNH200+1007=130 3 CN6 9979220039 CONN WAFER YAW396-03AV(ANGLE) 3 CN7 9979200317 SOCKET AC INLET ST-03B-BP 3 F801 5F3CB3122L FUSE CERA SEMKO TL 3.15AH 250V MF51 3 IC601 1PT2313LD- IC AUDIO PT2313L-D 3 IC602 1KA78L09AZ IC REGULATOR KA78L09AZ 3 J601 9979200207 D-SUB 15P ANGLE 15P DDC BLUE W/OUT SCREW 3 J602 9979100016 JACK RCA RS-309D-03 3 J603 9979100015 JACK DC 6.5PIE 14.5*9*11 3 J604 9979100013 JACK MINI DIN MD-104D-4P 3 J605 9979100017 JACK AUDIO STEREO 3.5PIE GREEN 3 J606 9979100014 JACK PHONE “STEREO 3.5P, ST-029B-03BU” 3 YSB10 7173300611 SCREW TAPPTITE TT2 BIN 3X6 MFZN 3 YSB20 9973924301 BKT I/O E.G.I. T=1.0 3 YSB30 9975211903 PLATE I/O P.C T=0.5 (L520BAV) 3 Z4020 PCDSJRG158 PCB D-SUB RAD AS CML-520BAV 4 C601 CEXF1C220V C ELECTRO RSS 16V 22MF 5*11 4 C602 CEXF1C470V C ELECTRO 16V RSS 47MF (5X11) TP 4 C603 CCXF1H104Z C CERA 50V F 0.1MF Z 4 C604 CCXB1H222K C CERA 50V B 2200PF K (TAPPING) 4 C605 CCXB1H222K C CERA 50V B 2200PF K (TAPPING) 4 C606 CEXD1H229F C ELECTRO 50V RND 2.2MF (5X11) TP 4 C607 CCXF1H104Z C CERA 50V F 0.1MF Z 4 C608 CEXD1H229F C ELECTRO 50V RND 2.2MF (5X11) TP 4 C609 CEXD1H229F C ELECTRO 50V RND 2.2MF (5X11) TP 4 C611 CCXF1H104Z C CERA 50V F 0.1MF Z 4 C612 CEXD1H229F C ELECTRO 50V RND 2.2MF (5X11) TP 4 C613 CEXD1H229F C ELECTRO 50V RND 2.2MF (5X11) TP 4 C615 CEXD1H229F C ELECTRO 50V RND 2.2MF (5X11) TP 4 C616 CCXF1H104Z C CERA 50V F 0.1MF Z 4 C617 CCXF1H104Z C CERA 50V F 0.1MF Z 4 C618 CCXF1H104Z C CERA 50V F 0.1MF Z 4 C619 CCXF1H104Z C CERA 50V F 0.1MF Z 4 C620 CEXD1H229F C ELECTRO 50V RND 2.2MF (5X11) TP 4 C621 CEXD1H229F C ELECTRO 50V RND 2.2MF (5X11) TP 4 C622 CCXF1H104Z C CERA 50V F 0.1MF Z 4 F801A 9977410900 FUSE CLIP BSP3-H T0.4 SN 5.2 4 F801B 9977410900 FUSE CLIP BSP3-H T0.4 SN 5.2 4 Z5020 PCDSJAG158 PCB D-SUB AXL AS CML-520BAV 5 D601 DZN4148--- DIODE 1N4148 AUTO 52MM 5 D602 DZN4148--- DIODE 1N4148 AUTO 52MM

LEVEL LOC PART-CODE PART-NAME PART-DESC

Page 71

5 D603 DZN4148--- DIODE 1N4148 AUTO 52MM 5 D604 DZN4148--- DIODE 1N4148 AUTO 52MM 5 D605 DZN4148--- DIODE 1N4148 AUTO 52MM 5 D606 DZN4148--- DIODE 1N4148 AUTO 52MM 5 D607 DZN4148--- DIODE 1N4148 AUTO 52MM 5 D608 DZN4148--- DIODE 1N4148 AUTO 52MM 5 DZ601 DDZ5R1B--- DIODE ZENER DZ-5.1B 5 DZ602 DDZ5R1B--- DIODE ZENER DZ-5.1B 5 DZ603 DDZ5R1B--- DIODE ZENER DZ-5.1B 5 DZ604 DDZ5R1B--- DIODE ZENER DZ-5.1B 5 DZ605 DDZ5R1B--- DIODE ZENER DZ-5.1B 5 DZ606 DDZ5R1B--- DIODE ZENER DZ-5.1B 5 DZ607 DDZ5R1B--- DIODE ZENER DZ-5.1B 5 DZ608 DDZ5R1B--- DIODE ZENER DZ-5.1B 5 DZ609 DDZ5R1B--- DIODE ZENER DZ-5.1B 5 PCB 9979800578 PCB JACK RGB T=1.6*222*45 5 R601 RD-AZ101J- R CARBON FILM 1/6 100 OHM J 5 R602 RD-AZ101J- R CARBON FILM 1/6 100 OHM J 5 R603 RD-AZ242J- R CARBON FILM 1/6 2.4K OHM J 5 R604 RD-AZ242J- R CARBON FILM 1/6 2.4K OHM J 5 R606 RD-AZ242J- R CARBON FILM 1/6 2.4K OHM J 5 R607 RD-AZ242J- R CARBON FILM 1/6 2.4K OHM J 5 R609 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J 5 R610 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J

1 Z1020 PCBCCPG158 COVER REAR AS CML-520BAV

2 YR010 99721173A1 COVER REAR AS CML-520B C/REAR AS 2 YR020 9975430200 LABEL RATING L520BAV (DW) 2 YR030 9975841603 LABEL I/O P.E T=0.1*191*7 (L520BAV) 2 YR040 7173301212 SCREW TAPPTITE TT2 BIN 3X12 MFZN BK 2 YR070 99729250A1 STAND AS CML-520B STAND AS 2 YR080 7173301012 SCREW TAPTITE TT2 BIN 3X10 MFZN BK 2 YR090 7S103B4081 SCREW SPECIAL M/C BIN 4*8 MFZN

1 Z1030 PCPKCPG158 PACKING AS CML-520BAV

2 YP010 9978047200 BOX CARTON DW-3 (DW) 2 YP020 9978136300 CUSHION E.P.S 2 YP030 9978215300 BAG POLY PEHD T=0.5*550*700 2 YP040 2TP00075CL TAPE OPP 50X75 CLEAR 2 YP050 9975828800 LABEL BARCODE ART PAPER 2 YP060 99786322A0 PMA ASSY “W/W,DAEW00” 2 YP070 99722158A0 SPEAKER AS CML-520BAV SPEAKER

LEVEL LOC PART-CODE PART-NAME PART-DESC

Page 72
