PLASMA DISPLAY

USER’S MANUAL

GV-P42V

Proper use guarantees

product life.

Before using the product, be advised that you read this owner’s manual well and try to operate it.

This Owner’s Manual presents safety precautions and how to use the product. After reading it thoroughly, use the product safely. Keep this manual where the user can see it easily.

Failure to comply with warnings and cautions for the safe use of electric appliances may cause ﬁre or human injury.

• VGA wide Plasma Panel

• DVD Direct Connection / Outstanding Picture Quality Digital Broadcasts Receive

DVD can be directly connected to the unit so that you can view clear digital images. You can enjoy even higher quality images by connecting digital broadcasting receiver with which digital broadcasts can be viewed.

•

PC Direct Connection

PC can be connected to the PDP without a separate device and can be used as a monitor making it ideal for presentation, various events and exhibitions.

•

160º Wide-Angle Viewing Area

•

Flat Panel with No Distortion and Color Blurring

Since Plasma Monitor has no problems such as distortion, blurring, ﬂickering unlike existing CRT type displays you can enjoy Home Theater with super speaker.

•

Various Video Control

- 11 Languages OSD - 20 Step screen zooming function - Full-screen still function

- Various aspect ratio (16:9, Panorama, Normal, Enlarge LB, Enlarge LBS)

•

Worldwide : NTSC, PAL, SECAM / Free Volt (100-240V~, 50/60Hz)

•

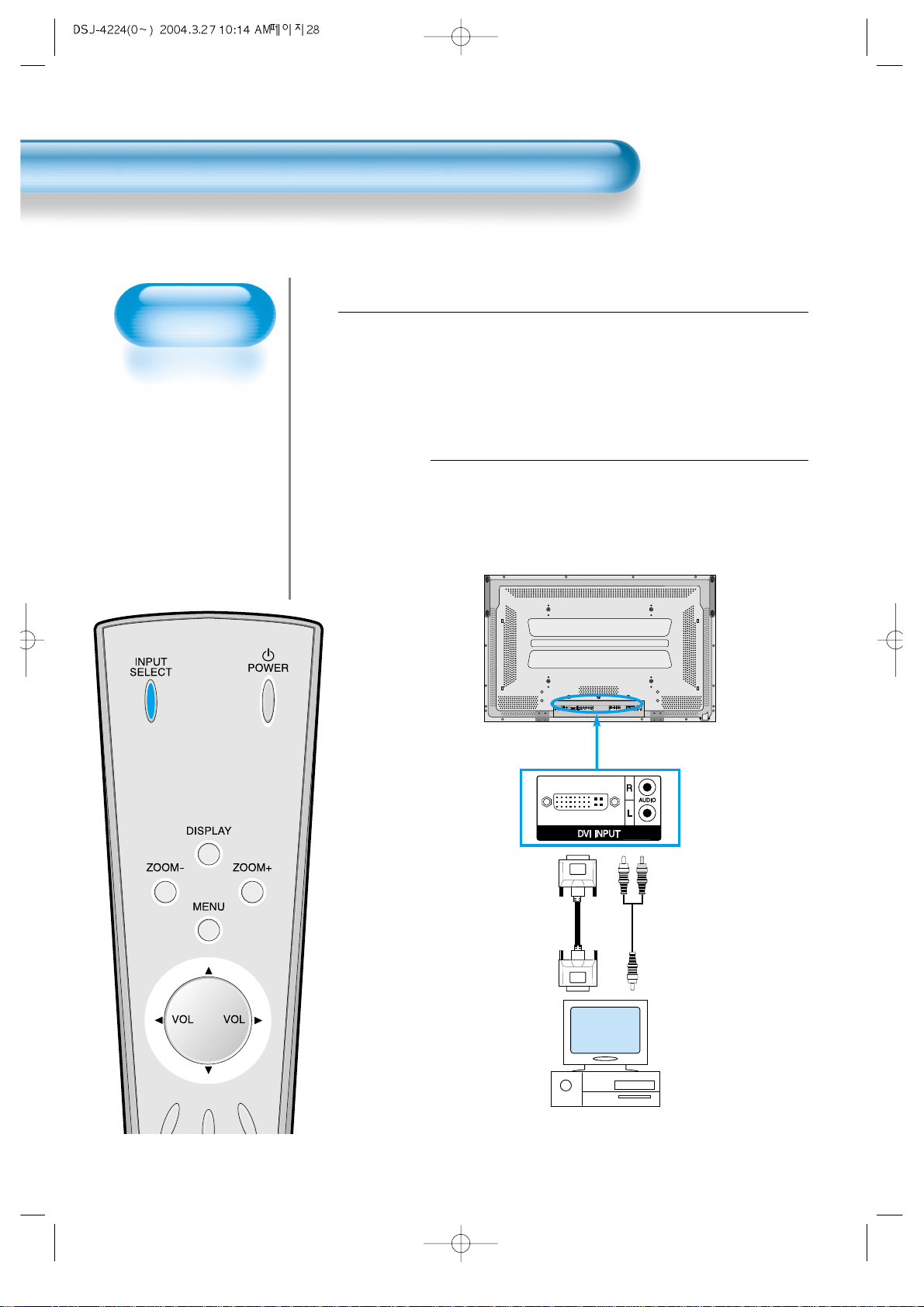

DVI (Digital Visual Interface) Connection

When connection to PC, you can receive DVI digital signal as well as former analog signal by using DVI input and D-Sub input. Furthermore, using the DVI Input, you can receive directly a digital signal of the computer. Consequently, pictures on the screen is much more clear and fresh.

Features

FCC RF INTERFERENCE ST

FCC RF INTERFERENCE STAA

TEMENT

NOTE :

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult authorized service centers for help.

- Only shielded interface cable should be used.

Finally, any changes or modifications to the equipment by the user not expressly approved by the grantee or manufacturer could void the users authority to operate such equipment,

Always obey all

safety messages.

•All the safety and operating instructions should be read before the product is operated. If anything strange happens, unplug this product from the wall outlet.

•Do not disassemble or replace any parts of the monitor. Refer to a qualiﬁed service personnel for repair.

Safety Precautions

W ARNING

You can be dead or seriously injured if you do not follow instructions.

During a lightning storm, or when it is left unattended and unused for a long period of time, unplug it from the wall outlet.

It can result in ﬁre.

When unplugging your monitor, always grip plug ﬁrmly and pull straight out from the receptacle.

It can result in ﬁre or electric shock due to damaged power cord.

This product must be properly grounded.

• Improper grounding may cause malfunction or electric shock.

• When proper grounding is not possible, install circuit breaker.

• Do not ground to gas pipe, water pipe, lightning rod, or telephone line.

During a lightning storm, unplug the monitor from the wall outlet, and do not touch the antenna.

It can cause ﬁre or electric shock.

Power

Installation

Do not use this product in the neighborhood of a bath or shower.

It can result in electric shock or ﬁre.

Do not place this monitor on an unstable cart, stand, or table

It may cause the product and cart to overturn, damaging equipment or causing possible injury.

While Using Monitor

Do not open cover (or back) because high voltage is present within the monitor’s enclosure.

It may cause electric shock.

Never push any kind of objects into this product through openings at the back of monitor.

It may cause ﬁre or electric shock.

No objects ﬁlled with liquids, such as vases, shall be placed on the monitor.

Spilled liquids may cause electric shock or ﬁre.

Do not allow children to play or hang on the monitor.

These actions may tip it over, causing personal injury.

Do not place candle or lighted cigarette on the monitor.

If these fall into the inside of the monitor, it may cause ﬁre or explosion.

Do not disassemble batteries, and do not allow children to swallow them.

Heavy metal may contaminate environment, and can be harmful or detrimental to human health. (When children swallow the batteries, go to hospital and consult with a doctor.)

Do not spray water to the monitor or wipe with damp cloth.

It may cause electric shock or ﬁre.

Unplug the monitor from the wall outlet when smoke or strange smell occurs, then refer servicing to a service personnel.

In the case of continuous use, it may cause ﬁre or electric shock.

Always obey all

safety messages.

• All the safety and operating instructions should be read before the product is operated.

Safety Precautions

Power

Installation

CAUTION

You can be injured, or this product or any other your property can be damaged if you don’t follow instructions.

When moving your monitor, remove the power plug, antenna, and cables, and be sure to move it by more than two people..

Failure to follow this instruction can result in electric shock or personal injury.

Do not touch the power plug with wet hands when plugging or unplugging.

It can result in a risk of electric shock.

Do not install the product where it will be exposed to the direct sunlight, and the product should not be near heat sources such as radiators, stoves, etc.

It may cause malfunction.

Do not install where there is oil, smog, moist, or dust

It may cause malfunction.

For proper ventilation, separate the product from the wall, and keep a distance of more than 10cm (4”).

Due to the increase of temperature inside the Monitor, it may cause ﬁre.

Do not place the monitor where ventilation is not ensured.

Due to the increase of temperature inside the Monitor, it may cause ﬁre.

If you wish to install this product on the wall or ceiling, refer to the professional.

Failure to do so may cause damage to product and injury to human.

When using an outside antenna system, do not install it in the vicinity of overhead power lines.

When antenna touches such power lines, it may cause electric shock.

During Use

Do not wipe the monitor using a cloth damped with chemicals (benzene, thinner, etc.).

Monitor appearance may be marred. (Unplug the power plug and wipe with soft cloth.)

Do not place any object or cover on the monitor.

In an event of improper ventilation, the monitor will be overheated causing ﬁre.

Do not place heavy objects or heat sources on the power cord.

It may damage the power cord, causing ﬁre or electric shock.

When watching the TV, the distance between the Monitor screen and your eye should be as 5~7 times as the diagonal distance of the Monitor.

Watching the TV for a long time may hurt your eye sight.

When cleaning of the inside of the monitor is required, consult to the qualiﬁed service personnel.

When the monitor is not cleaned for a long period of time, dust in it may cause ﬁre or malfunction.

When the monitor is placed on a cart or table, the front side of the Monitor should not project outward.

Unbalance may cause the monitor to drop, resulting in personal injury or equipment malfunction and damage.

Do not grip speakers when moving the monitor attached with speakers.

When moving the monitor while gripping speakers, speakers may be fallen away from the monitor due to its weight, causing personal injury.

Do not allow a still picture to be displayed for an extended period, as this can cause a permanent ghost image to remain on the Wide Plasma Display.

Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.

Warranty does not cover any damage caused by image retention.

The plasma display panel consists of ﬁne cells. Although the panels are produced with more than 99.9 percent active cells, there may be some cells that do not produce light or remain lit.

Remote Control

1 UNIT

Audio Cable

1UNIT

PC(15pin) Cable

1 UNIT

A/V Cable

2 UNITS

Note

Check to be sure that the following items are packed with your Plasma pannel.

Checking Accessories

Supplied Accessories

AC Cable 1 UNIT

Note

The following items are optional accessories. Refer purchasing optional accessories from Gold

vision Electronics Local retailer or the retailer from where you purchased the unit.

Optional Accessories

Table Top Stand

Speakers

GV-S42P

- Speaker Main Unit Dimension : 100(W) x 628(H) x 88.5(D) mm

3.94(W) x 24.72(H) x 3.48(D) inch

- Including Speaker Stand Dimension : 210(W) x 704(H) x 210(D) mm

8.27(W) x 27.72(H) x 8.27(D) inch

- Audio Ampliﬁer : 10W + 10W

- Impedance : 8Ω

- Weight : 3.5kg(7.73 Lbs)

GV-S42T

- Dimension : 720(W) x 215(H) x 310(D) mm

28.35(W) x 8.45(H) x 12.2(D) inch

- Weight : 4.5kg(9.93 Lbs)

Wall Mounting Unit

GV-H42G

Variable Angles : 0o, 10o, 15o, 20

Dimension

601(W) x 592(H) x 35(D) mm

23.66(W) x 23.31(H) x 1.9(D) inch

Weight

: 4.5kg(10 Lbs)

4 • Safety Precautions 12 • Panel Controls 13 • Remote control

PREPARATION

CONNECTION

14 • Watching Digital Broadcasts 16 • Watching Cable Broadcasts 18 • Watching Satellite Broadcasts 20 • Watching a DVD Image 22 • Watching a VCR Image 24 • Watching a Camcorder/Game Console Image 26 • Connecting PC(15pin D-sub) 28 • Connecting PC(DVI)

APPLICATION

31 • Selecting Picture Mode 32 • Customizing Picture 34 •

Adjusting Screen Size 36 • Adjusting Screen Position and Size 38 • Enlarging Screen Size 40 • Watching a Still Image 41 • Adjusting Auto Sound Mode 42 • Customizing Sound Mode 44 • Selecting INPUT SIGNAL 46 • Checking the Current Input Signal 47 •

Selecting MENU Background Screen and Languages 49 • Select Image Sticking Minimization 51 • Setting Sleep Timer

MISC.

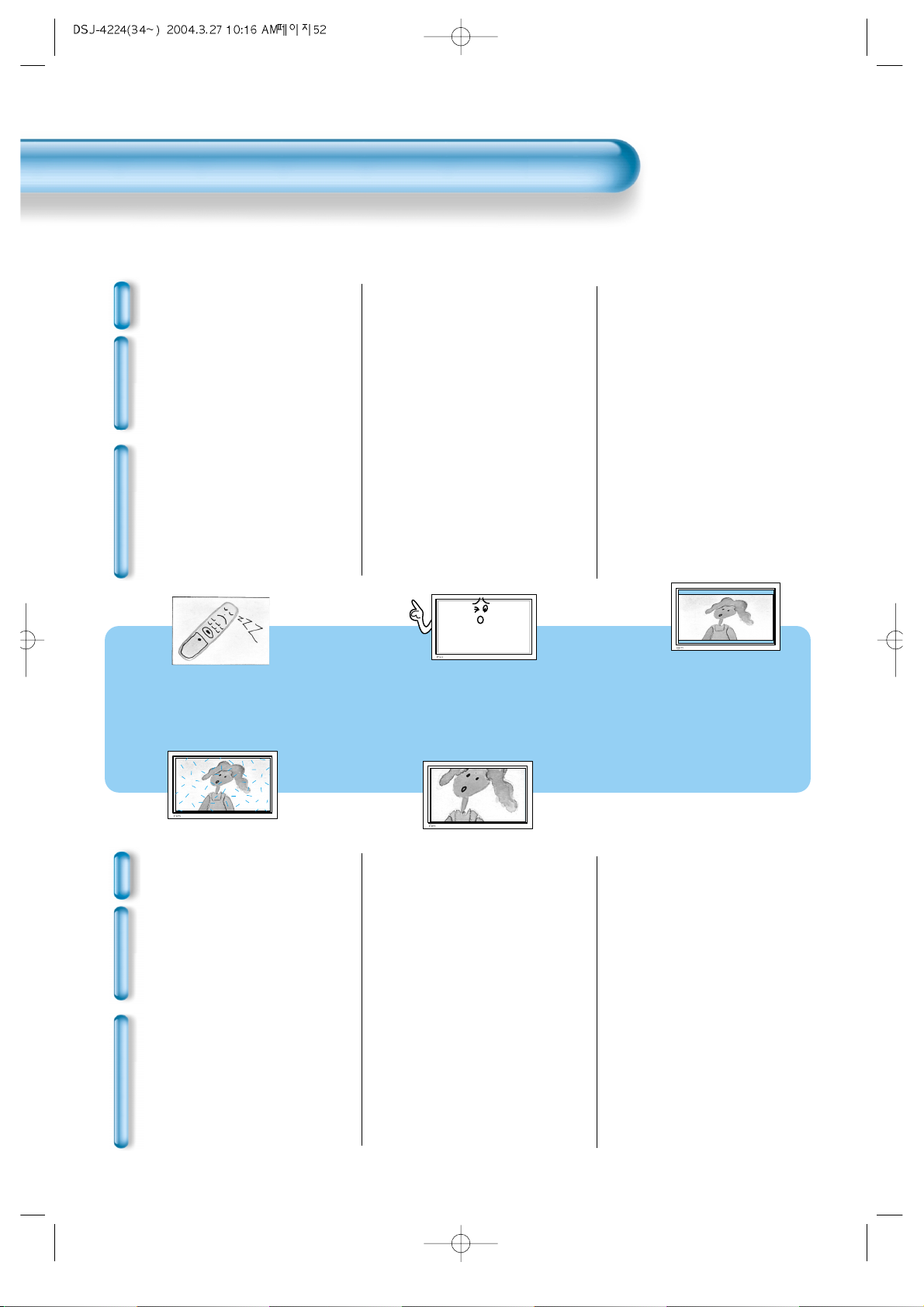

52 • Before Requesting Service 53 • SPECIFICATIONS

CONTENTS

Panel Controls

Front Panel, Back Panel, Remote Control

Items having same names on Plasma display and the remote control would function in exactly the same way.

Front

Rear

Power

•

Power control sensor

•

Power Standby: Red - Standby

Green - ON

•

Power button

Select when adjusting volume or select/adjust “MENU.”

Press when moving “MENU.”

STAND BY/OPERATE

Used when manufacturing(For manufacturer use only)

PC INPUT(15 pin D-sub)

DVI-D INPUT

COMPONENT A/V jacks (DTV/DVD INPUT jacks)

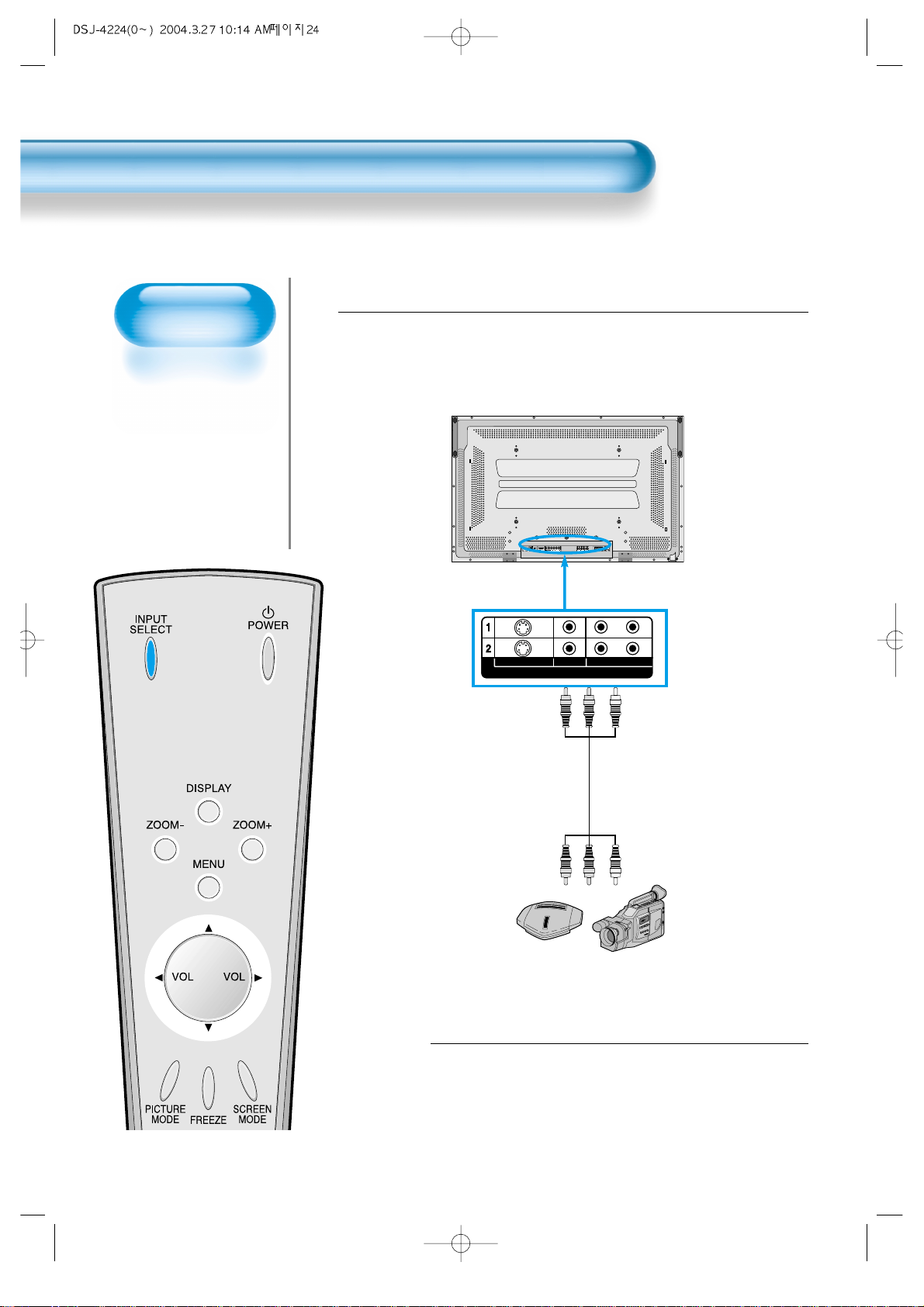

S-VIDEO, A/V INPUT, Cable Receiver INPUT jacks

External Speaker

Power

Remote Control

When Using Remote Control:

•

Be sure not to allow the Remote Control to drop or to become wet.

•

Keep it away from hot or moist locations.

Installing the Batteries in your Remote Control:

•

To remove the cover, slide it outwards while pressing it down.

•

Place two batteries in the remote control by properly orienting them, then close the cover.

•

Batteries could explode if aligned incorrectly.

•

Align the batteries according to the (+) and (-) indication inside the case.

INPUT

SELECT

POWER

DISPLAY

ZOOM


MODE

SCREEN

MODE

FREEZE

MUTESOUND

MODE

SLEEP

ZOOM+

VOL VOL

Input Select button

Used to select a desired input.

Every press of the button cycles

through the ﬁve different modes:

Video 1 -->Video 2 -->PC -->DVI -->

Component 1 -->Component 2

Used to zoom the screen. To enlarge,

press the (+) button, and to return to the

previous condition, press the (-) button.

(ZOOM Mode: Zoom 0~20)

Select Menu by pressing (Up),

(Down), (Left), (Right) buttons.

Every press of the button cycles through the four

different modes: Normal -->Dynamic -->Cinema

- - > User.

Every press of the button cycles through

the ﬁve different modes: Normal --> Movie

--> Music --> News --> User.

Mutes sound.

Pressing the Power button of the Monitor allows the Display to be standby. (Red light is shown in the Remote Control Sensor.) At this time, if you press the Power button of the Remote Control, the Display is turned ON (Green light in the Sensor).

Indicates the current state and resolution.

Used to display a desired menu.

Adjusts the volume.

Adjusts the size of the screen (Normal, 16:9, etc.)

Used to view a still picture during watching moving images. (Sound can be heard.)

Each time you press this button, a different input mode appears. The sequence is as follows:

15 Min. -->30 Min. --> 60 Min. -->90 Min. -->120 Min. -->OFF

After the time is selected, it automatically becomes stand-by state.

Menu Select button

Screen Select button

Sound Mode button

Mute button

Aspect Ratio

Still

Sleep Timer

Power button

Display button

ZOOM button

Menu button

Volume button

Note

• Use two “AAA” batteries.

• Be sure to use replacement batteries of the

same type as the original ones.

• The life of a battery depends on how much it has been used.

The number in

()

indicates the page in which

the function of each button is explained in detail.

Watching Digital

Broadcasts

• To watch digital broadcasts:

- Purchase a separate

digital Broadcasting Receiver(SET-TOP BOX)

- Connect the PDP to a

Digital Broadcasting Receiver as shown below.

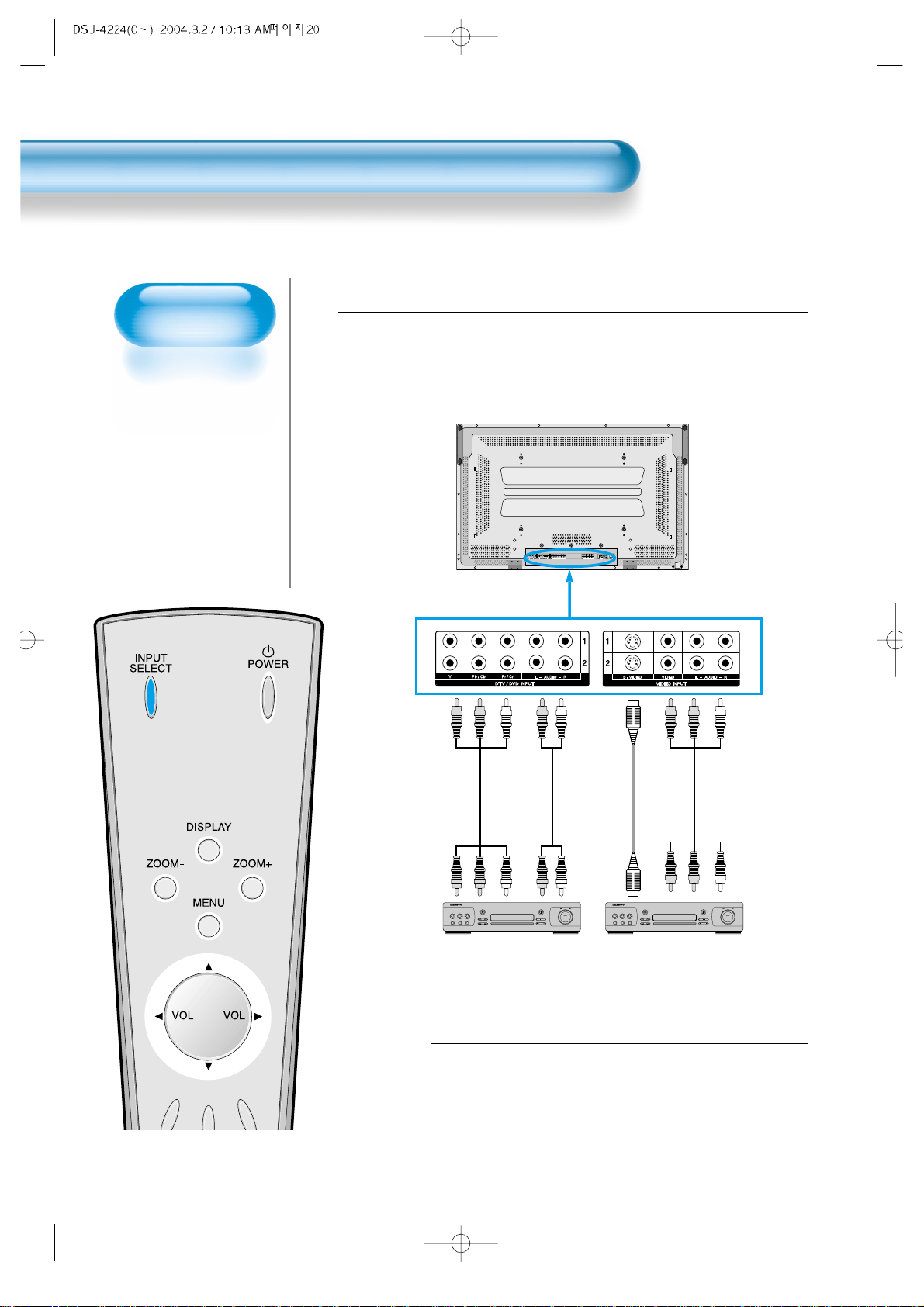

Watching Digital Broadcasts

Press the Power Buttons

• T urn the PDP and the Receiver ON.

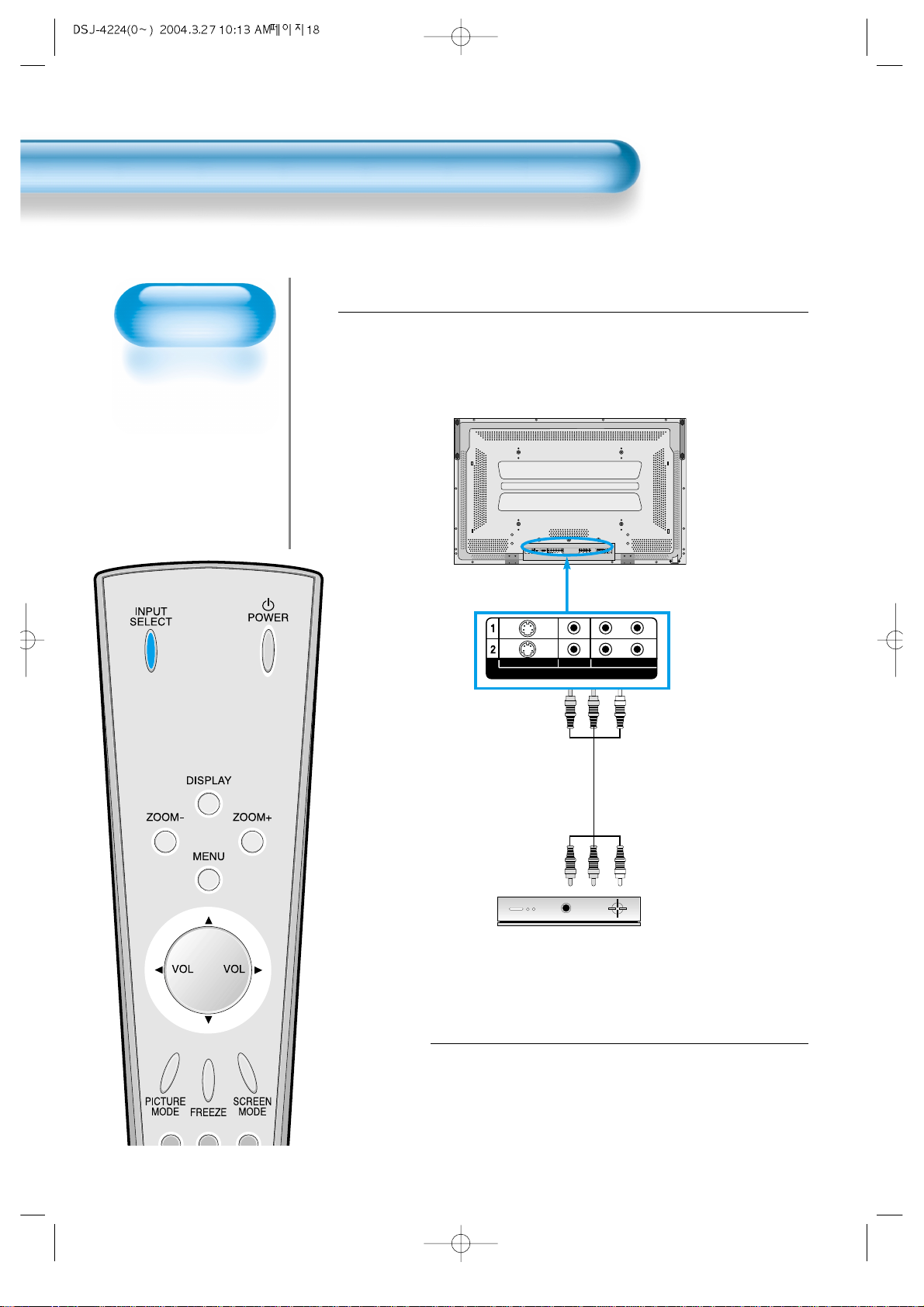

Connect a Digital Broadcasting Receiver to the PDP

• Prepare A/V Cables supplied.

• Connect the cables from the Digital TV Receiver output terminal to the

PDP(Component 1, 2) input terminal.

• When connecting the cables, be sure to match the cable colors.

Video

Digital Broadcasting Receiver

(Set-T op Box)

Audio

Input Select

INPUT

SELECT

• Select [Component 1 or Component 2] by pressing the INPUT SELECT button of the Remote Control or the PDP unit.

• Each time you press the INPUT SELECT button, different input modes appear. The sequence is as follows:

Select a Desired Channel and Function

• Select a desired channel and function by using the Remote Control of Digital Broadcasting Receiver.

NOTES:

1) You can select INPUT SELECT while you are using OSD(Menu). Sequence: [Menu] -->[Input] -->[Component 1 or 2 (DTV/DVD)]

2) Digital Broadcasting signals available: 1080i, 720p, 480p.

3) Antenna Connection: Apartment : Check if community antenna receives digital broadcasts. Private Houses: Set the indoor/outdoor UHF antenna to the direction of the digital broadcasting transmitting company.

4) For detailed connection method, refer to the Owner’s Manual of Digital Broadcasting Receiver.

5) What is a component : Signals with which brightness and color are separated, producing a sharp picture.

6) If the Digital Broadcasting Receiver has PC Output terminal or DVI Output terminal, connect to ‘PC INPUT’ or ‘DVI INPUT’ at the back panel of the PDP. When watching the PDP by PC or DVI Input, some undesired signals may be seen at the top and bottom area of the screen. In this case, select [Menu] -->[Screen] -->[Vertical Size] to adjust.

Component1

DVI

Component2

Video1

Video2

Watching Cable

Broadcasts

• To watch cable broadcasts, subscribe to your local Cable TV Broadcasting, and then connect a cable Broadcasting Receiver TV to the PDP as shown below.

Watching Cable Broadcasts

Press the Power Buttons

• T urn the PDP and the Receiver ON.

Connect a Cable Broadcasting Receiver to the PDP.

• Prepare the A/V cable.

• Connect the receiver(Output) to PDP(V ideo Input) as shown below .

• When connecting to an external AV source, be sure to match the colors.

VIDEO INPUT

L- AUDIO -RVIDEO

S-VIDEO

Video/Audio

Cable Broadcasting Receiver

+ 37 hidden pages

Daewoo GV-P42V User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
