Page 1

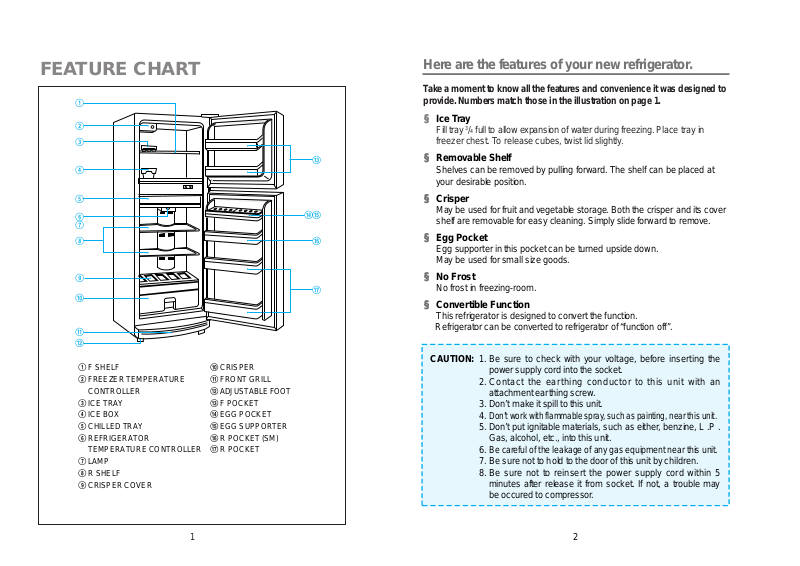

T ake a moment to know all the features and con venience it was designed to
provide. Numbers match those in the illustration on page 1.
§§
ö
Ice T ra y
Fill tray 3/4 full to allow expansion of water during freezing. Place tra y in
freezer chest. To release cubes, twist lid slightly.
§§
ö
Removable Shelf
Shelves can be remov ed by pulling f orw ard. The shelf can be placed at
your desirable position.
§§
ö
Crisper
May be used for fruit and v egetable stor age. Both the crisper and its cov er
shelf are removable f or easy cleaning. Simply slide forward to remove.
§§
ö
Egg Poc ket
Egg supporter in this pocket can be turned upside down.
May be used for small siz e goods.
§§
ö
No Frost
No frost in freezing-room.
§§
ö
Convertible Function
This refrigerator is designed to convert the function.
Refrigerator can be converted to refrigerator of “function off”.
Here are the features of your ne w refrigerator .
CAUTION: 1. Be sure to check with your voltage, before inser ting the
power supply cord into the sock et.
2. Contact the earthing conductor to this unit with an
attachment earthing screw.
3. Don’t make it spill to this unit.
4.
Don’t work with flammable spray, such as painting, near this unit.
5. Don’t put ignitable materials, such as either, benzine, L .P .
Gas, alcohol, etc., into this unit.
6.
Be careful of the leakage of any gas equipment near this unit.
7. Be sure not to hold to the door of this unit by children.
8. Be sure not to reinsert the power supply cord within 5
minutes after release it from socket. If not, a trouble may
be occured to compressor.
2
!
3
6
7
45
@
#
$
%
^
&
*
(
)
1
2
1
FEATURE CHART
! F SHELF
@ FREEZER TEMPERATURE
CONTROLLER
# ICE TRAY
$ ICE BOX
% CHILLED TRAY
^ REFRIGERATOR
TEMPERATURE CONTROLLER
& LAMP
* R SHELF
( CRISPER COVER
) CRISPER
1 FRONT GRILL
2 ADJUSTABLE FOOT
3 F POCKET
4 EGG POCKET
5 EGG SUPPORTER
6 R POCKET (SM)
7 R POCKET
Page 2
43
NOTE :
Make sure all packing material is remov ed. If the shipping tape has left a
residue on the door, touch the residue lightly with the adhesiv e side of
tape of with isopropyl alcohol (most rubbing alcohol is this type).
Do not use a solvent, such as lighter or cleaning fluid, nor an
abrasive cleanser .
HOW TO INSTALL
HOW TO CLEAN
Install refrigerator in a convenient location aw a y from e xtreme heat and cold.
Allow sufficient clearance between the refrigerator and side wall so the door
will open for a fully usable interior . Refrigerator is not designed f or recessed
installation.
Level refrigerator so it rests solidly on the floor, without rocking. There are two
leveling glides , one at each front corner . Turn to the left to raise a corner, to
the right to lower it. Use shims under rear corners, if necessary .
§ If you want, the refrigerator door to close when not held open, adjust glides
so that the front of the refrigerator is raised. Howev er, front corners must
be level with each other, and rear corners with each other.
§ If you want the refrigerator door to remain motionless when open, adjust
the leveling glides so that all f our corners are le vel with each other.
BEFORE CLEANNING THE REFRIGERATOR FOR YOUR SAFETY, PLEASE
DISCONNECT THE POWER PLUG FROM THE PO WER SOURCES.
Cleaners: The cleaners noted below are av ailab le . Ne ver use harsh, abr asiv e
cleaners, heavy-duty cleaners, or solv ents on an y surf ace.
Exterior: Wipe with damp, suda y cloth, rinse and dry. For stubborn stains and
for periodic waxing, use sillicon wax.
Refrigeration Section:
Wash shelv es, dra wers and other remo v ab le parts in warm
sudsy water, rinse and dry. Wash interior with baking soda solution (3 table
spoons to one quart of water) or warm sudsy water.
Magnetic Door Seals: Wash with w arm sudsy water .
The finishing touch: Replace all parts, and return TEMPERA TURE
CONTROL to desired temperature.
Leveling
Location
WARNING
METHODS OF SAFE INSTALLATION
1. SAFE INST ALLATION PLA CE FOR YOUR REFRIGERA T OR
¥
Place the refrigerator
on hard and level
floor.
¥ Place your refrigerator
where there is no heat
source nearby.
High surrounding
temperature will lower
cooling efficiency and
increases your electricity
bill.
¥ Place the refrigerator in
an area with low
moisture.
Splashing water or a
high moisture area may
cause a short circuit
and make rusting
easier.
¥
Avoid places that are
exposed to smoke.
The discoloring can
occur to the
refrigerator.
¥ For good ventilation
place refrigerator with
the spaced specified on
the figure.
This helps cooling
efficiency and lowers the
electricity bill.
NO
NO
At least 30cm
At least 6cm
At least 2cm
Carpet
Wooden Board,
Rubber Mat
¥ Placing the refrigerator
on the carpet may
cause heat to develop
and discolor the
appliance. In such a
case put a hard wooden
board or a rubber mat
between the refrigerator
and the carpet.
Page 3
65
2.

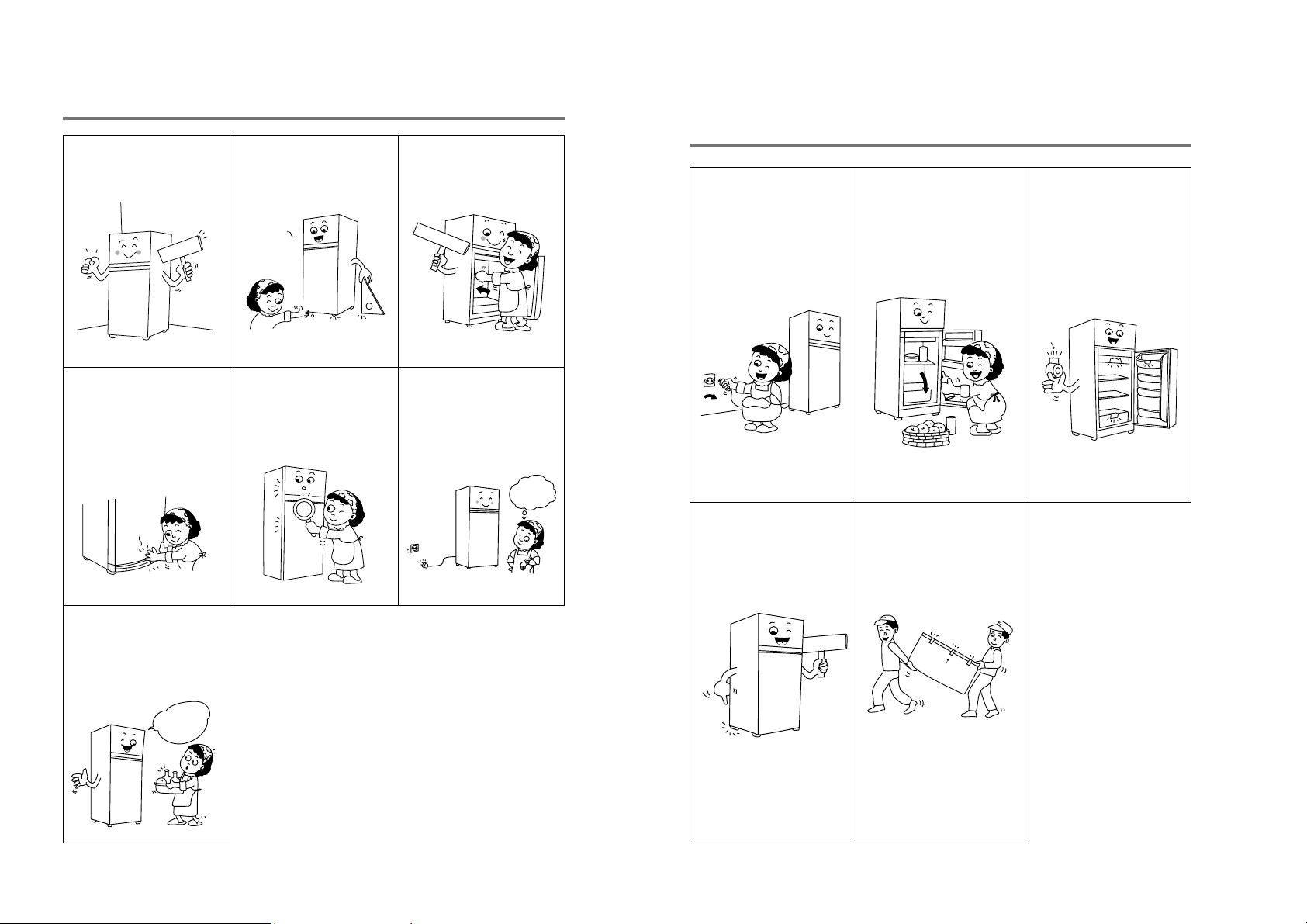

INSTALLATION STEPS
3.
THINGS TO KNOW BEFORE MOVING OR
RELOCATING THE REFRIGERATOR!
¥ Select a safe place to
install your refrigerator.
¥ Level the refrigerator b y
using the adjustable foot.
¥ Install the parts to their
own place.
¥ Check if the doors are
completely shut.
Safe installation
place
Put food after
2 ~ 3 hours
Maintain
Level
Components to their
original places
Click
Check
Plug in after
about hour
Check
¥ Check the voltage and
wait about an hour
before plugging the
power cord into an
outlet.
¥
Unplug the power
cord.
¥ Take food out of the
refrigerator
compartments.
¥ Fasten the interior
components with tape.
¥
For relocating indoors
use the wheels.
¥ When moving hav e two
people carry the
refrigerator for safety.
¥ Fasten the doors with
tape while moving to
prevent them from
opening.
Adhesive Tape
Relocating
Indoors
Adhesive Tape
¥
After running the
refrigerator for 2 ~ 3
Hours put food in the
refrigerator.
¥
Insert the front grill
into the fastening
holes and press it in
until a locking sound
is heard.
Page 4
Temperature is controlled automatically. The TEMPERA TURE CONTR OL at
the In side of the refrigerator and freezer sectioncontrol the degree of cooling
of each compartment.
§§
ö
‘ECONOMIC’ FREEZING
When you have small foods to stuff or the stuffed foods is already frozen
enough, use this function, in the case of using this function, you’ll sav e the
electric power consurnption.
§§
ö
‘OFF’ FUNCTION
When you want to use FREEZER COMPARTMENT Only, set the
‘REFRIGERATOR TEMPERATURE CONTROL’ dial ‘OFF’.
1. Please clean up each compartment of your refrigerator again.
2. Please place the accessories in place.
3. And then connect the power plug to power source .
4. Run 2 or 3 hours till the Temp. of each compartment cools down enough,
and you can load it with food.
Freezer temperature control Refrigerator temperature control
8
7
HOW TO OPERATE
1. TEMPERA TURE CONTR OL
2. PREPERA TIONS FOR USING YOUR REFRIGERATOR
The temp. control dial of the freezing f ood compartment has ranging from
“economic” to “MAX”.
Please set the position “MED” for “MED” use.
The refrigerator temp. control dial has ranging from “MIN” to “MAX ” and “off” position.
You can use this compartment as a refrigerator or off the function when you don’t need
such a large volumem as a refrigerator-in case of having too small food to stuff .
3. LET THE REFRIGERATOR-FREEZER RUN AT LEAST
TWO HOURS BEFORE LOADING IT WITH FOOD
4.

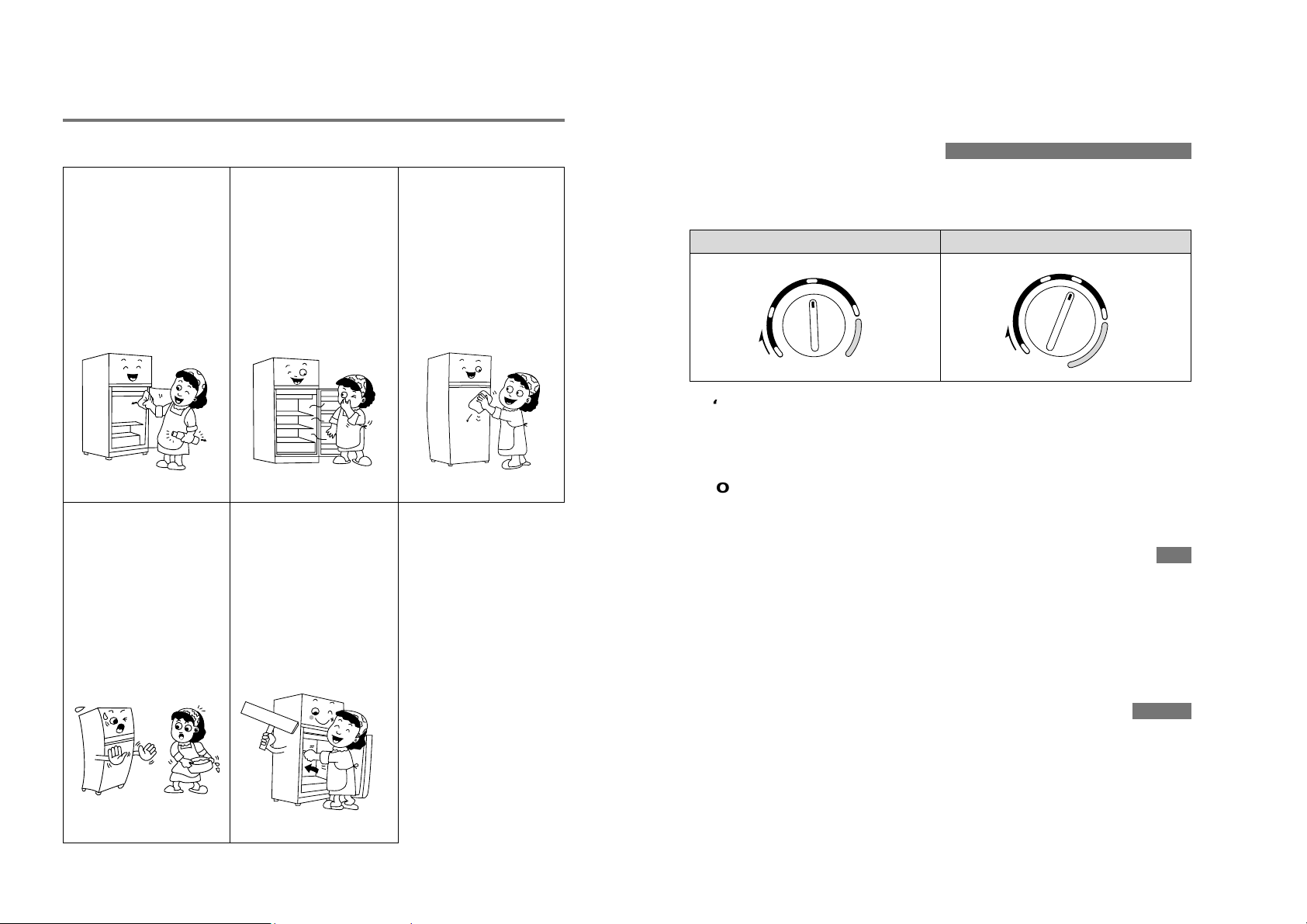

CLEANING Y OUR REFRIGERATOR
¥
When cleaning your
refrigerator, unplug
the power cord and
use a soft cloth and
dishwashing liquid to
clean.
¥
The refrigerator can
smell on its initial
operation, but the
odour will be awa y
when the refrigerator
is cooled sufficiently.
¥
Use a soft cloth for
cleaning the interior
and exterior of the
refrigerator.
¥
Do not splash water
directly on the
refrtgerator itself.
¥ Put the parts back to
their original position.
Soft cloth
Soft cloth
Water
Components to their
original places
MED.
MIN.
MED.
MIN.
ECONOMIC
MAX.
MAX.
OFF
Page 5
9 10
WHAT TO DO...
USE OF EACH COMP ARTMENT CONTROL
When out of operating for a long time
§ Remove the power supply cord.
§ Dry your refrigerator, opening the door f or 2-3 da ys.
When you get ready to move.
§
Securely fasten remov able interior parts (or move and pac kage them separately).
§ Do not lay your refrigerator horizontally, or compressor may be damaged.
When you need service: Before y ou calling f or service
check a few things noted belo w f or yourself first.
If refrigerator is not operating:
§ Is the power supply cord unplugged?
§ Is home fuse blown or circuit breaker off?
If refrigerator is warmer than usual:
§ Has the door been open frequently or for a long period?
§ Is refrigerator overcrowded pre v enting good air circulation?
§ Is the hot thing stored without cooling?
§ Is the clearance between side and rear plate of the refrigerator and the
wall allowed sufficiently?
If these are unusual sounds:
§ Is refrigerator placed on the level?
§ Are foreign objects behind the refrigerator?
§ Are dishes on refrigerator shelves vibrating?
If so, rearrange the dishes .
If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a simmilary qualified
person in order to avoid a hazard.

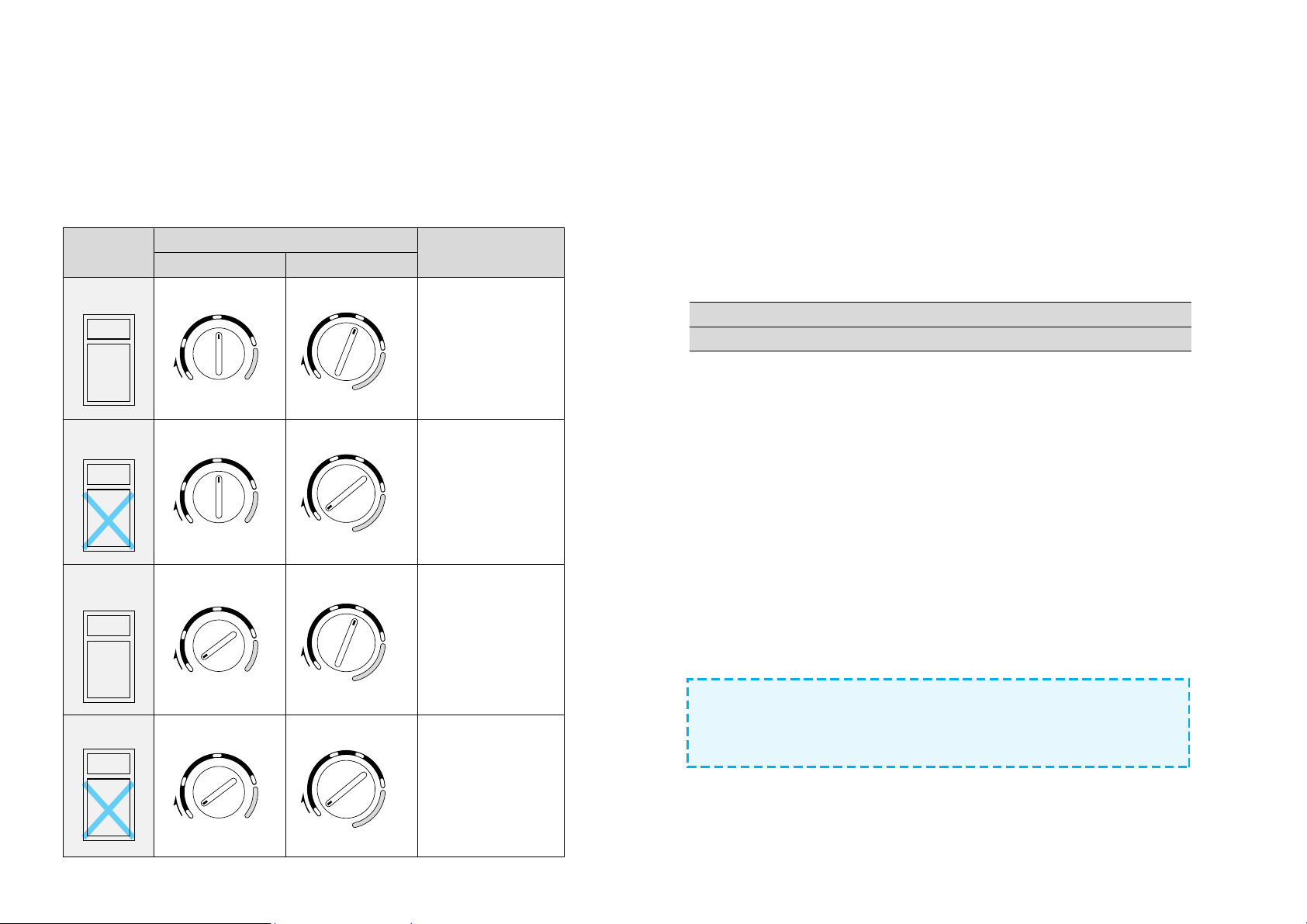

Each function is decided by setting the control knobs located in each compartment,
And each function has the ranges represented as a word on the control dial.
If the temperature of each compartment is MIN or if you want to MAX down the
temperature of compartment, turn the control knob right to next.
F: FREEZER
R: REFRIGERATOR
!
@
#
$
•
For MED use.
•
Don’t set the
“REFRIGERATOR
TEMP. CONTROL
DIAL” between the
position “MIN” and
the position “OFF”.
•
F: MED use.
•
R: Function ‘OFF’
•
Don’t stuff foods in
refrigerator
•
F: Economic freezing.
• R: MED use.
•
F: Economic freezing
• R: Function ‘OFF’
Function
OFF
Freezing
Economic
Freezing
Refrigerating
Function
OFF
Economic
Freezing
ECONOMIC
MIN.
MED.
MAX.
OFF
MIN.
MED.
MAX.
OFF
MIN.
MED.
MAX.
OFF
MIN.
MED.
MAX.
OFF
MIN.
MED.
MAX.
ECONOMIC
MIN.
MED.
MAX.
ECONOMIC
MIN.
MED.
MAX.
ECONOMIC
MIN.
MED.
MAX.
FUNCTION REMARK
OPERA TING METHOD
FREEZER REFRIGERA TOR
Freezing
Refrigerating
Page 6
