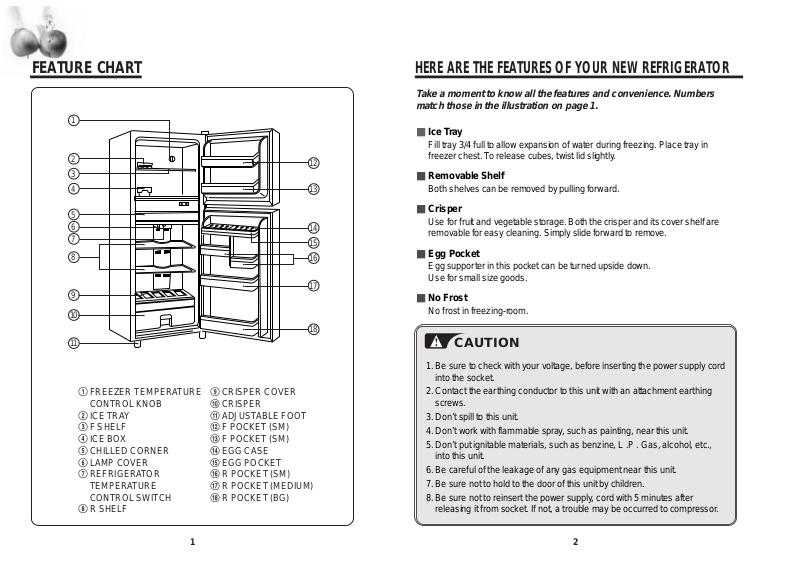

HERE ARE THE FEATURES OF YOUR NEW REFRIGERATOR

FEATURE CHART

7 8

15 16

! FREEZER TEMPERATURE

CONTROL KNOB

@ ICE TRAY # F SHELF $ ICE BOX % CHILLED CORNER ^ LAMP COVER & REFRIGERATOR

TEMPERATURE CONTROL SWITCH

* R SHELF

( CRISPER COVER ) CRISPER 1 ADJUSTABLE FOOT 2 F POCKET (SM) 3 F POCKET (SM) 4 EGG CASE 5 EGG POCKET 6 R POCKET (SM) 7 R POCKET (MEDIUM) 8 R POCKET (BG)

T ake a moment to know all the f eatures and con venience. Numbers match those in the illustration on page 1.

■ Ice T ra y

Fill tray 3/4 full to allow e xpansion of w ater during freezing. Place tra y in freezer chest. To release cubes, twist lid slightly.

■ Removable Shelf

Both shelves can be remov ed by pulling f orw ard.

■ Crisper

Use for fruit and vegetable stor age. Both the crisper and its cov er shelf are removable f or easy cleaning. Simply slide forward to remove.

■ Egg Poc ket

Egg supporter in this pocket can be turned upside down. Use for small size goods.

■ No Frost

No frost in freezing-room.

CAUTION

1. Be sure to check with your v oltage, bef ore inserting the power supply cord into the socket.

2. Contact the earthing conductor to this unit with an attachment earthing screws.

3. Don’t spill to this unit.

4. Don’t work with flammable spray, such as painting, near this unit.

5. Don’t put ignitable materials, such as benzine, L .P . Gas, alcohol, etc., into this unit.

6. Be careful of the leakage of any gas equipment near this unit.

7. Be sure not to hold to the door of this unit by children.

8. Be sure not to reinsert the power supply , cord with 5 min utes after releasing it from socket. If not, a trouble may be occurred to compressor.

Page 2

METHODS OF SAFE INSTALLATION

1. SAFE INSTALLATION PLACE FOR YOUR REFRIGERATOR

¥ Place the refrigerator on

hard and level floor.

¥ Place your refrigerator

where there is no heat source nearby. High surrounding temperature will lower cooling efficiency and increases your electricity bill.

¥ Place the refrigerator in

an area with low moisture. Splashing water or a high moisture area may cause a short circuit and make rusting easier.

¥ Avoid places that are

exposed to smoke. The discoloring can occur to the refrigerator.

At least 15cm

At least 30cm

Carpet

Wooden Board, Rubber Mat

¥ For good ventilation

place refrigerator with the spaced specified on the figure. This helps cooling efficiency and lowers the electricity bill.

¥ Placing the refrigerator

on the carpet may cause heat to develop and discolor the appliance. In such a case put a hard wooden board or a rubber mat between the refrigerator and the carpet.

HOW TO OPERATE

1. TEMPERATURE CONTROL

Temperature is contr olled b y thermostat automaticall y. The Temperature Contr ol inside the refrigerator contr ols the degree of cooling for each compartment.

Freezer Temperature Contr ol

The control has four settings form MIN to WINTER. The WINTER mode is available only if atmosphere temperature is below 10°C.

Refrigerator Temperature Contr ol

The control has the four settings from MIN to WINTER. The WINTER mode is available only if atmosphere temperature is below 10°C.

WINTER

MAX

MED

MIN

TEMP. CONTROL

WINTER

MAX

MED

MIN

TEMP. CONTROL

Starting your new refrigerator

To control temperature

Many factors may influence the internal temperature of the refrigerator and freezer compartments.

■The temperature and humidity of the surrounding environment.

■The opening frequency of the doors and the amount of warm food placed in

the refrigerator.

■

The combination of food and containers stored in the refrigerator. For these reasons, you ma y w ant to adjust the control to suit the season and your needs .

1. Clean the refrigerator thoroughly. Wipe the outside with a dry cloth, and the inside with a damp cloth.

2. Set the temperature control knob at normal position.

3. Connect the power supply cord.

Page 3

Check

¥ Check if the doors are

completely shut.

¥ Unplug the power cord.

Adhesive Tape

¥ Fasten the interior

components with tape.

¥ Take food out of the

refrigerator compartments.

¥ For relocating indoors

use the wheels.

Relocating Indoors

Adhesive Tape

¥ When moving have two

people carry the refrigerator for safety

¥ Fasten the doors with

tape while moving to prevent them from opening.

2. INSTALLATION STEPS

Safe installation

place

Maintain ~ Level

Components to their

original places

Check

Plug in after

about hour

Put food after

2~3 hours

¥ Level the refrigerator by

using the adjustable foot.

¥ Install the parts to their

own place.

THINGS TO KNOW BEFORE MO VING OR RELOCATING THE REFRIGERAT OR!

¥ Select a safe place to

install your refrigerator.

¥ After running the

refrigerator for 2 ~ 3 Hours put food in the refrigerator.

¥ Check the voltage and

wait about an hour before plugging the power cord into an outlet.

Page 4

4. CLEANING Y OUR REFRIGERAT OR

¥ When cleaning your

refrigerator, unplug the power cord and use a soft cloth and dishwashing liquid to clean.

Soft cloth

¥ The refrigerator can

smell on its initial operation, but the odor will be away when the refrigerator is cooled sufficiently.

¥ Use a soft cloth for

cleaning the interior and exterior of the refrigerator.

¥ Do not splash water

directly on the refrigerator itself.

Water

Components to their

original places

¥ Put the parts back to

their original position.

■Turn the temperature control in the refrigerator and freez er compartment

toward WINTER for colder temper ature and tow ard MIN f or w armer temperature.

■Allow approximately 12 hours or overnight for the temperature to stabiliz e,

Then check to see if further adjustments are necessary.

To turn off the refrigerator

Disconnect the power supply cord. Remove ice tra y and food. Lea ve doors ajar for air circulation and dehumidification of both sections.

DEFROSTING THE REFRIGERAT OR

It is defrosted automatically in the refrigerator .

To Avoid The Risk of Electrical Shock or Death unplug the power cord before replacing a burned out light bulb or cleaning.

Cleaning

Remove all food from the freezer and refrigerator sections.

Exterior : Wash with warm, soap y water, rinse and dry.

Use appliance polish or wax periodically to keep the exterior looking like new.

Door gasket : Clean at least twice a year with mild soap and water. Rinse and dry.

Apply a light film of petroleum jelly to the gaskets to keep them soft.

Interior : Wash the liner with w arm, soapy water, rinse and dry.

Interior and Exterior

1. DO NOT USE abrasiv e, hea vy-duty Powders, etc. These can scratch and dull the surface, depending on their abr asiv eness and the cleaning pressure applied. Avoid metal pads and abr asiv e impregnated plastic, n ylon and cloth pads , etc.

2. DO NOT USE concentrated liquid dishw ashing detergent (dissiov e in warm water before using.), abrasiv e cleaners, solv ents or polishing agents on plastic parts. These cleaners may cause cracking or discoloring.

CAUTION

Page 5

HOW TO INSTALL

WHAT TO DO...

When out of operating for a long time

■Remove the power supply cord.

■Dry your refrigerator, opening the door f or 2-3 da ys .

When you get ready to move

■Securely fasten removable interior parts (or move and package them

separately).

■Do not lay your refrigerator horizontally, or compressor may be damaged.

If refrigerator is not operating:

■Is the power supply cord unplugged?

■Is home fuse blown or circuit breaker off?

If refrigerator is warmer than usual:

■Has the door been open frequently or for a long period?

■If refrigerator overcro wded pre v enting good air circulation?

■Is the hot thing stored without cooling?

■Is the clearance between side and rear plate of the refrigerator and the wall

allowed sufficiently?

If these are unusual sounds:

■Is refrigerator placed on the lev el?

■Are foreign objects behind the refrigerator?

■Are dishes on refrigerator shelves vibrating?

If so, rearrange the dishes .

Before you calling f or service chec k a fe w things as below f or y ourself fir st.

Location

Install refrigerator in a convenient location away fr om extreme heat and cold. Allow sufficient clearance about 15 cm between the refrigerator and rear wall so it is easy for refrigerator to radiate heat.

Leveling

Level refrigerator so it rests solidly on the floor without rocking.

Make sure all packing material is remov ed. If the shipping tape has left a residue on the door, clean it with isoprop yl alcohol (most rubbing alcohol is this type).

If the supply cord is damaged, it must be replaced by the manuf acturer or its service agent or a simmilary qualified person in order to avoid a hazard.

■The electrical plug must be accessible without moving the set.

■Changing the internal light bulb.

Disconnect the refrigerator from the main supply by removing the plug. Replace the bulb with one of the correct type and size (15W att SES E14 Base).

Page 6

MODEL NO

Before operating this refrigerator, please read this manual carefully.

REFRIGERATOR

Instruction Manual

FRDW-335

CFC-FREE

§§

Blowing Agent : HCFC-141b
