Daewoo FRAQ19DC Operating Instructions Manual
Code : Q501-5
FRAQ19DC..
Disposal of Used Electrical &
Electronic Equipment
The meaning of the symbol on the product,
its accessory or packaging indicates that this
product shall not be treated as household
waste. Please, dispose of this equipment at
your applicable collection point for the recycling
of electrical & electronic equipments waste.
In the European Union and Other European countries
there are separate collection systems for used electrical
and electronic product. By ensuring the correct disposal
of this product, you will help prevent potential hazards
to the environment and to human health, which could
otherwise be caused by unsuitable waste handling
of this product. The recycling of materials will help
conserve natural resources.
Please do not therefore dispose of your old electrical
and electronic equipment with your household waste.
For more detailed information about recycling of this
product, please contact your local city office, your
household waste disposal service or the shop where you
purchased the product.
SAFETY WARNING
This appliance contains a certain amount of
isobutane refrigerant (R600a) a natural gas
with high environmental compatibility that is,
however, also combustible.
When transporting and installing the appliance,
care should be taken to ensure that no parts of the
refrigerating circuit are damaged.
Refrigerant squirting out of the pipes could ignite
or cause eye injury. If a leak is detected, avoid any
naked flames or potential sources of ignition and air
the room in which appliance is standing for several
minutes.
Ⱂ
In order to avoid the creation of a flammable gas-air
mixture if a leak in the refrigerating circuit occurs, the
size of the room in which the appliance may be sited
depends on the amount of refrigerant used.
The room must be 1 m³ in size for every 8g of
R600a refrigrant inside the appliance. The amount of
refrigerant is shown on the identification plate inside
the appliance.
Ⱂ
Never start up an appliance showing any signs of
damage. lf in doubt, consult your dealer.
RoHS(Directive 2011/65/EU) Compliant
This product is environmentally sound and
sustainable free from Pb, Cd, Cr+6, Hg, PBBs
and PBDEs restricted in accordance with the
Directive.
Refrigerant Information
Refrigerant R-600a
Charge 0.064kg
Blowing Agent C-pentane
Observe Ambient Temperature
This refrigerator is designed to operate in ambient
temperature specified by its category, which is marked
on the rating plate
Climatic category Ambient temperature from...to
SN + 10°C to + 32°C
N + 16°C to + 32°C
ST + 16°C to + 38°C
T + 16°C to + 43°C
NOTE
Internal temperature may be affected by such factors as
the location of the refrigerator, ambient temperature and
frequency of the door opening.
Contents
Be sure to keep for safety! ······································ 1~2
Installation guide ························································· 3
Installation preparation ··············································· 4
Door removal/replacement ···································· 5~6

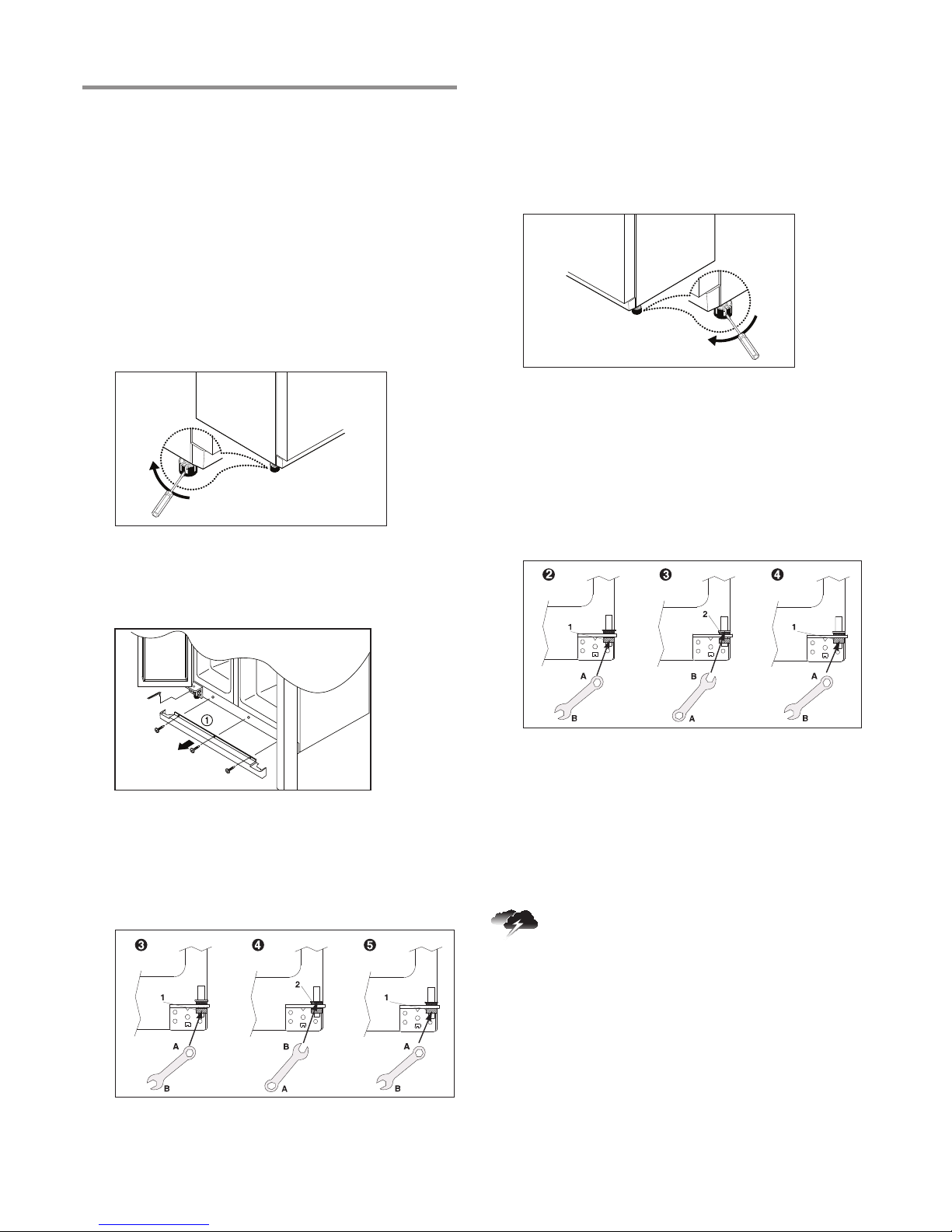

Refrigerator Leveling & Door Adjustment
(If needed) ································································· 7

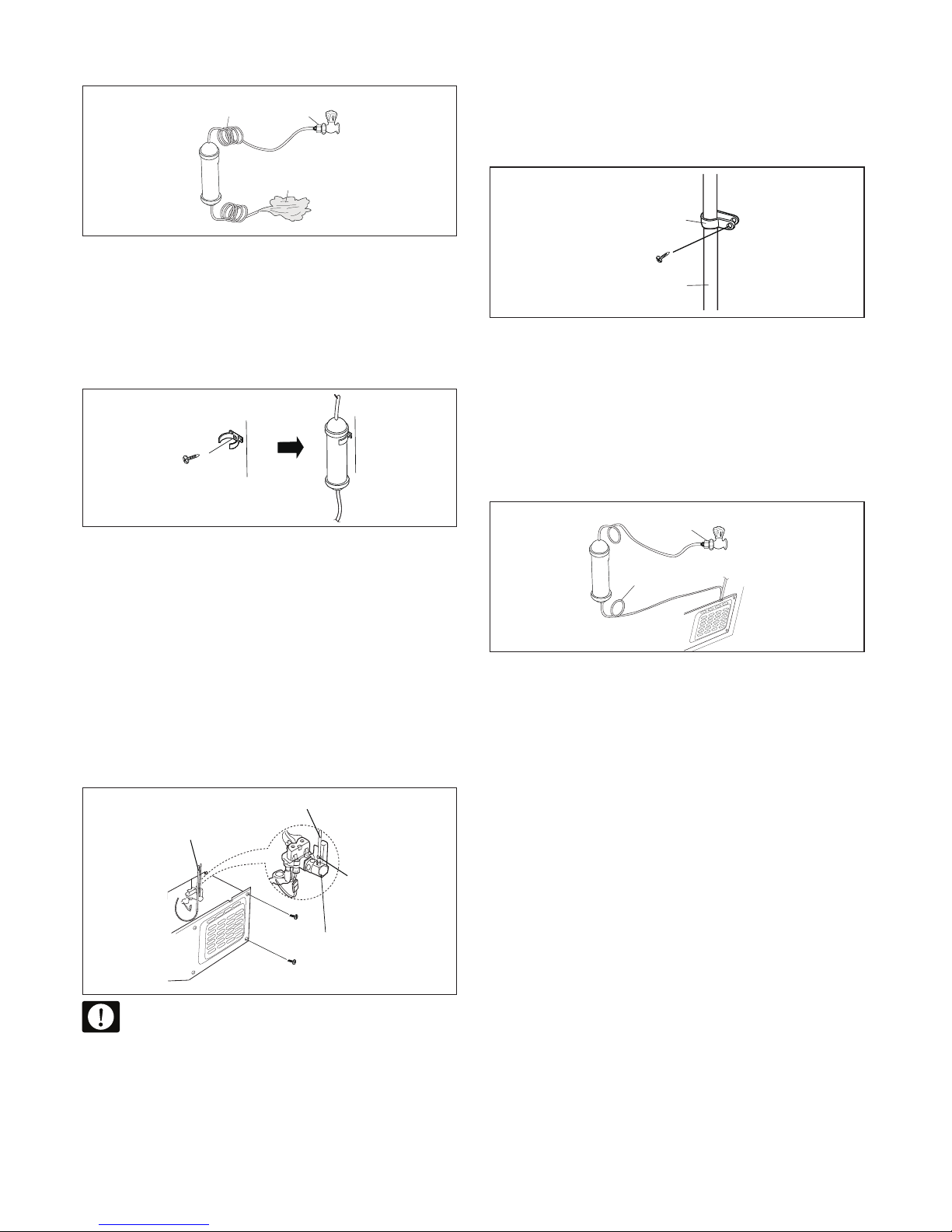

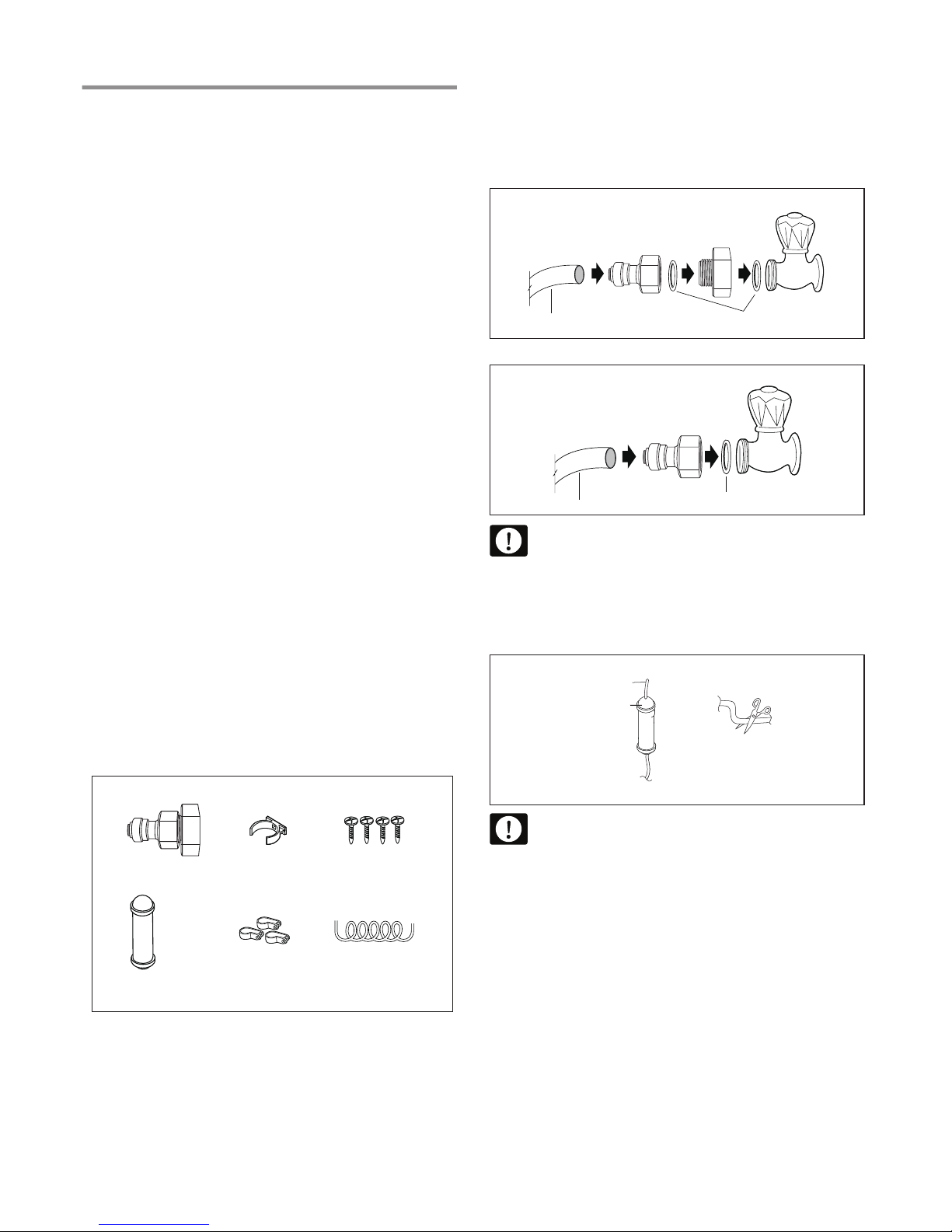

How to install Water Line ········································ 8~9

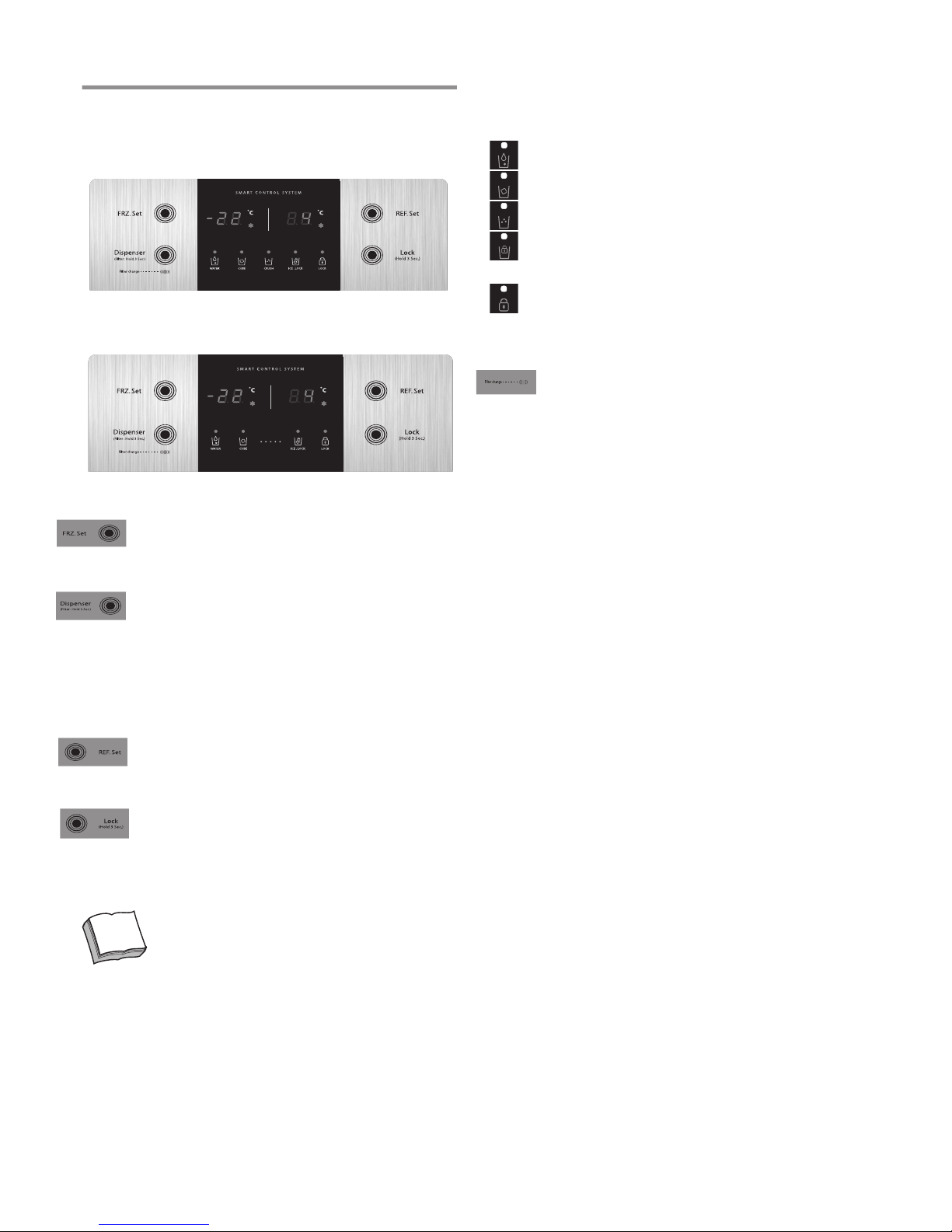

Control panel ····························································· 10

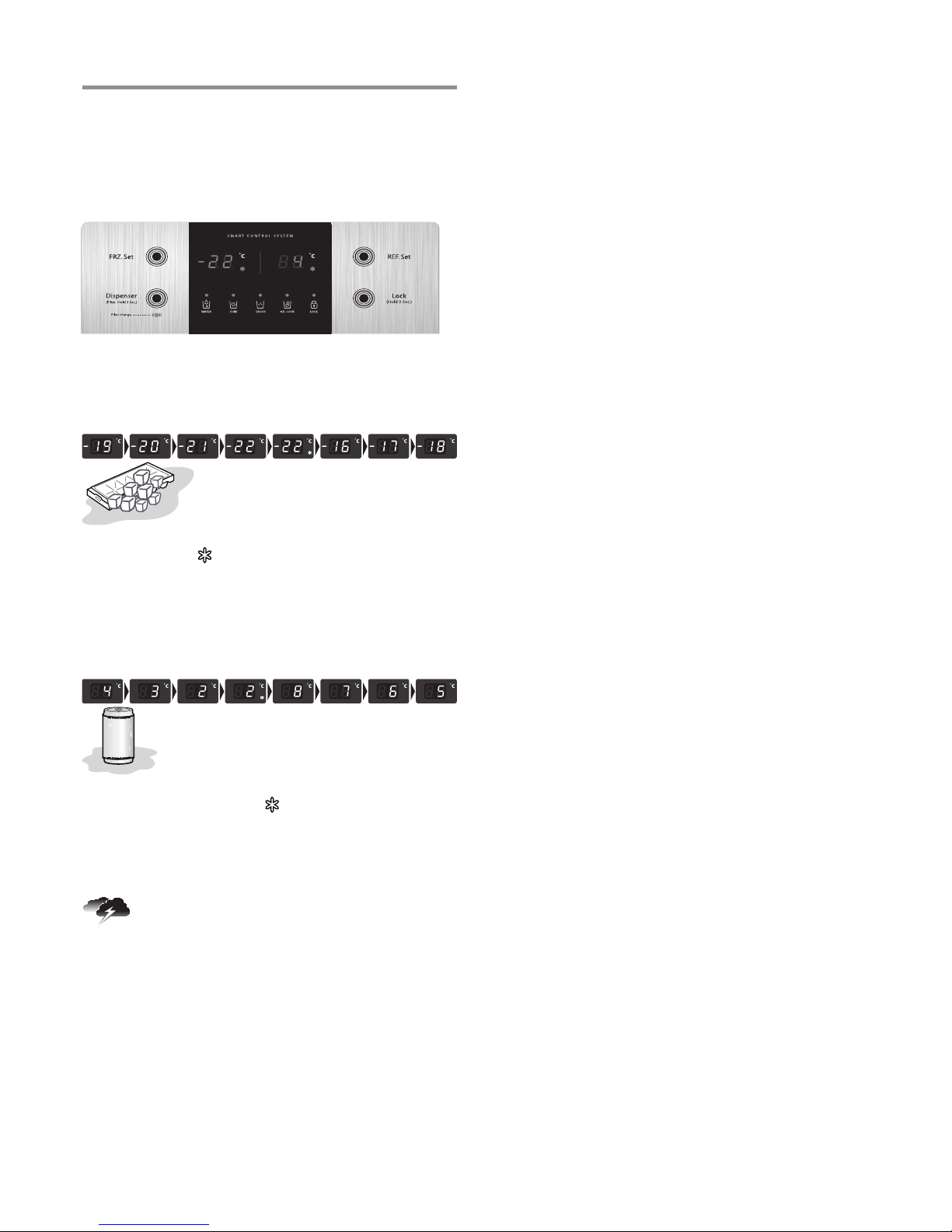

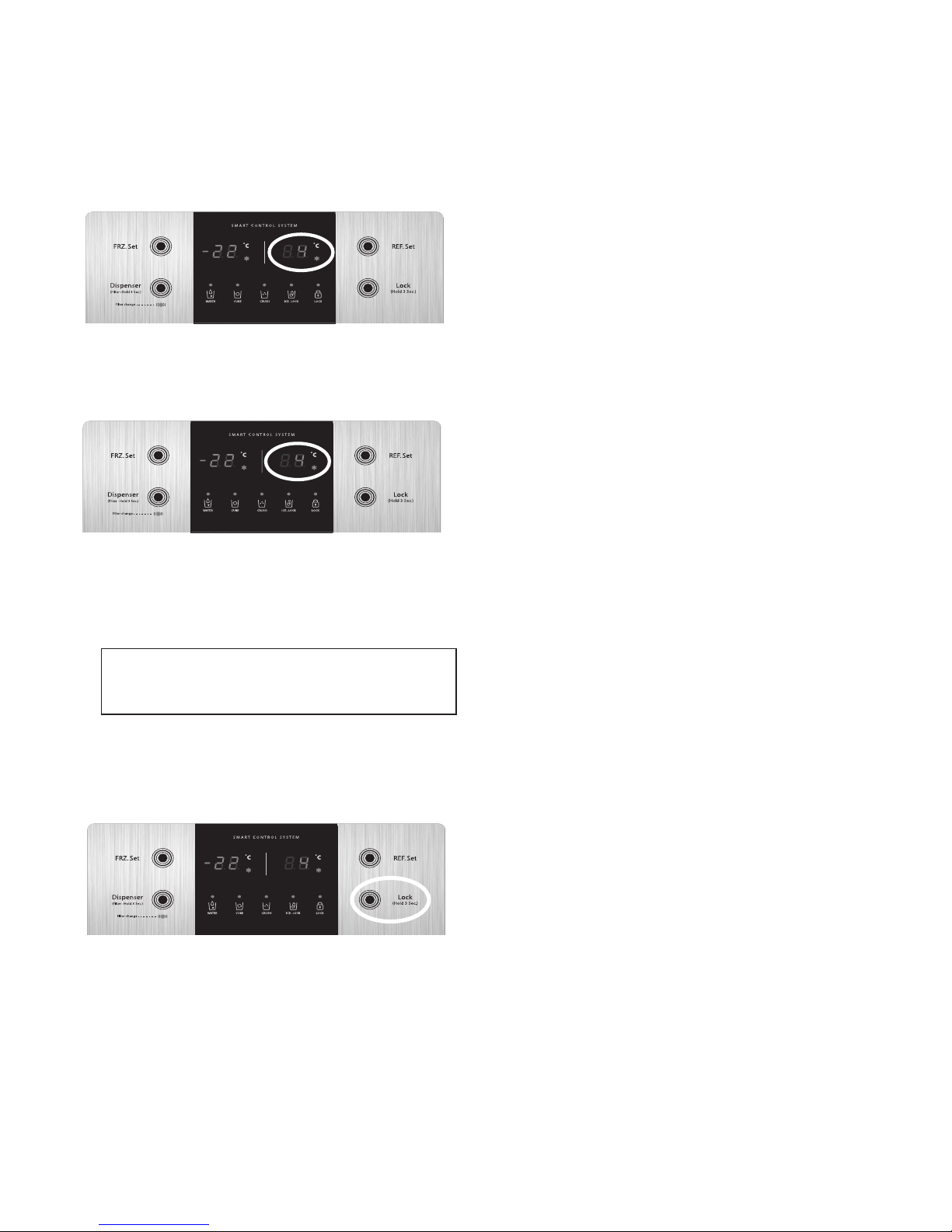

Temperature control ·················································· 11

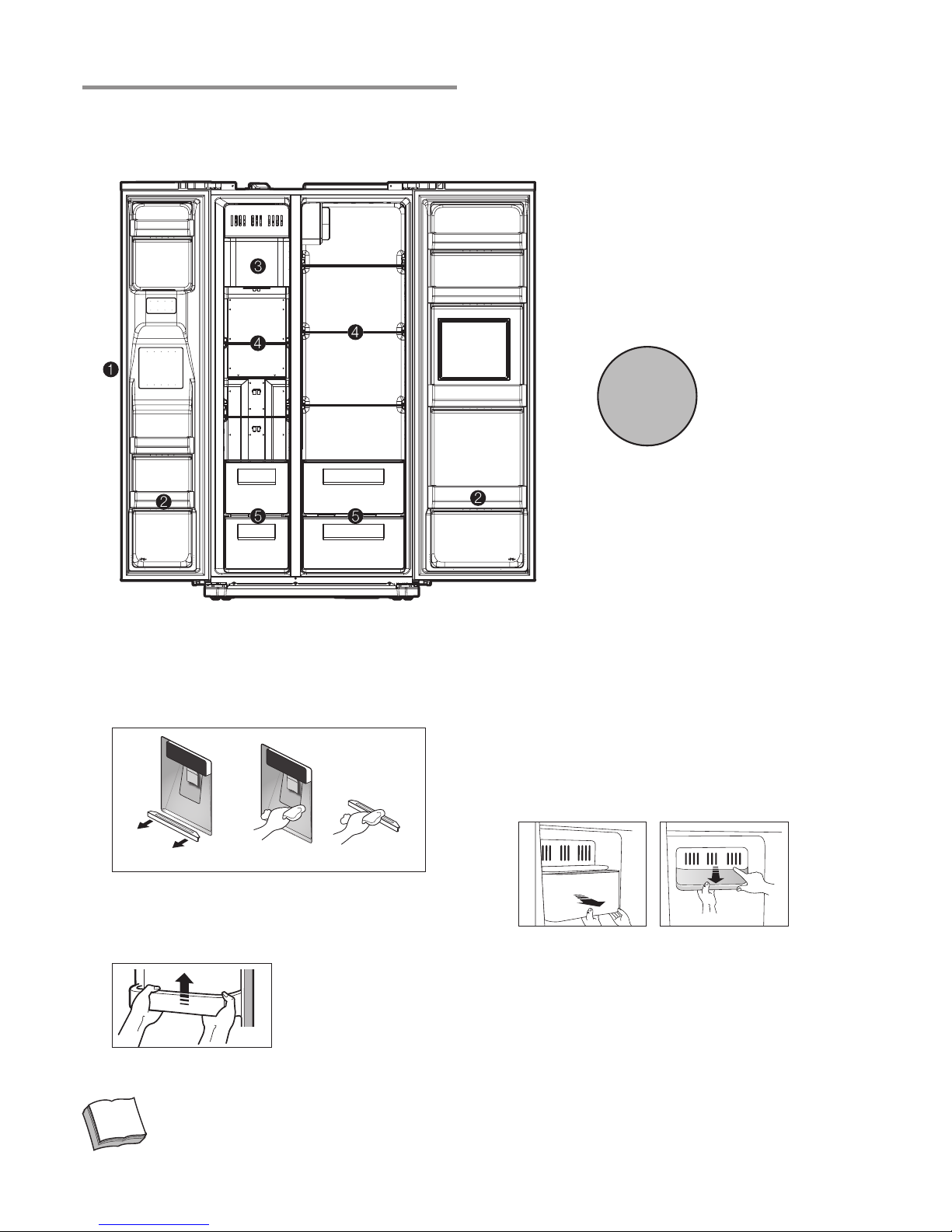

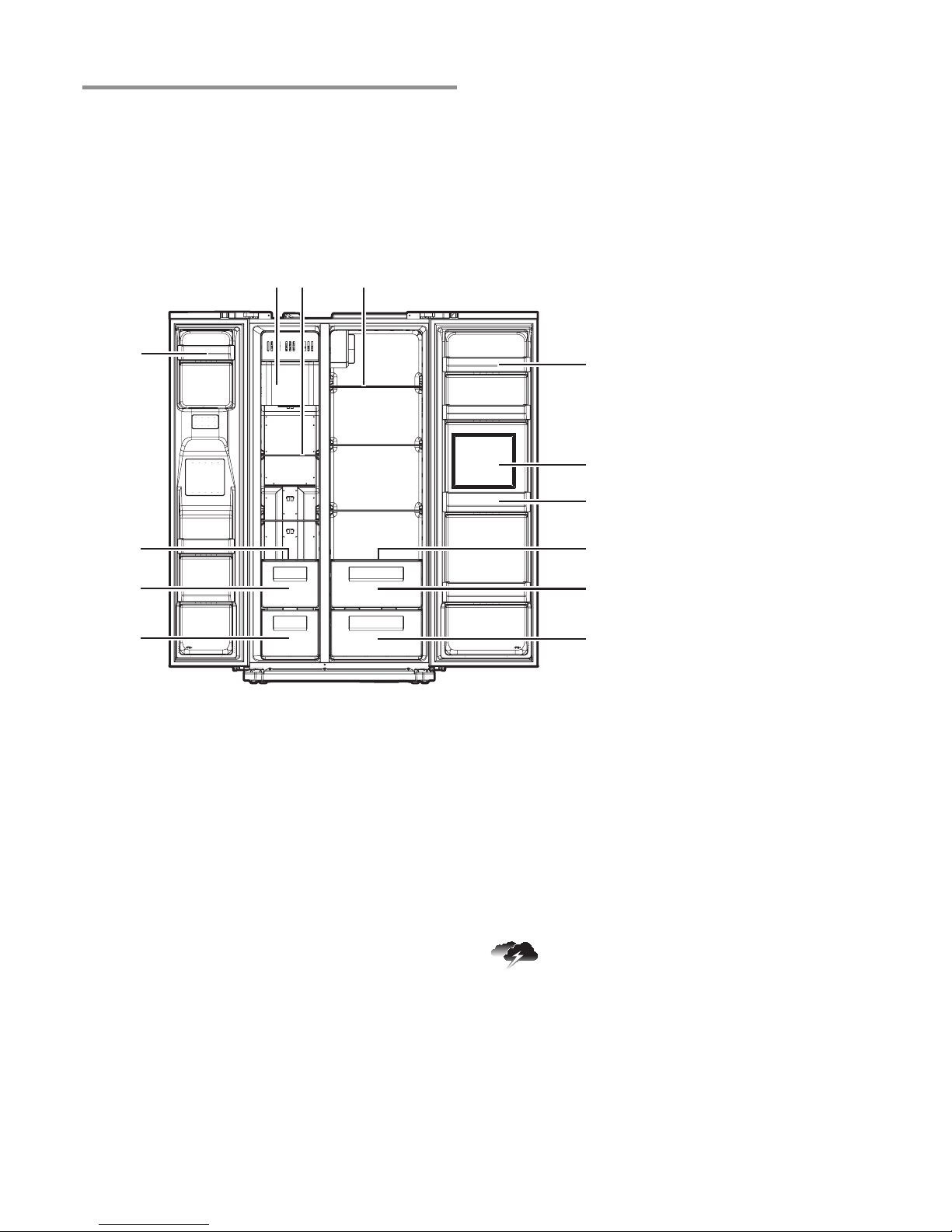

How to use the interior parts ······························· 12~13

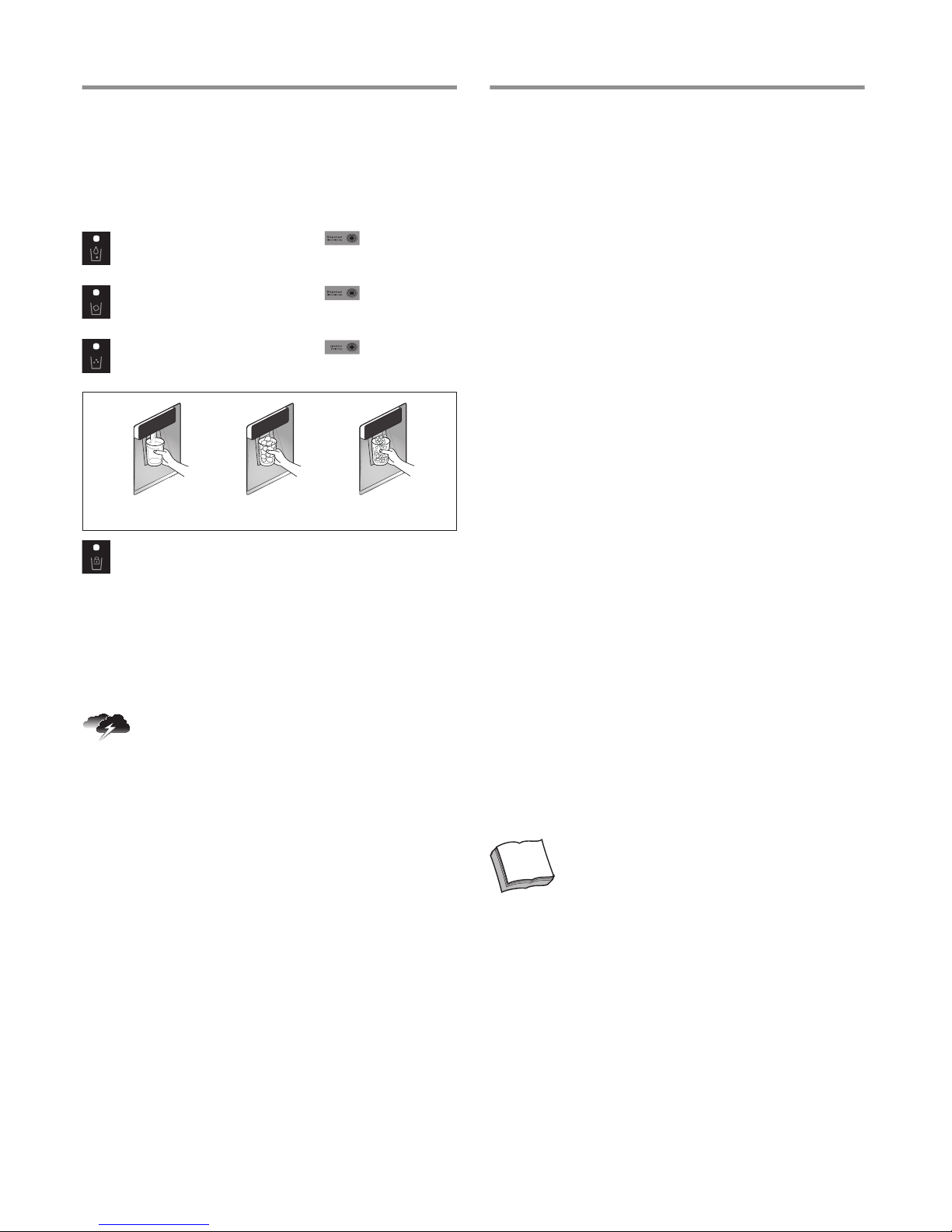

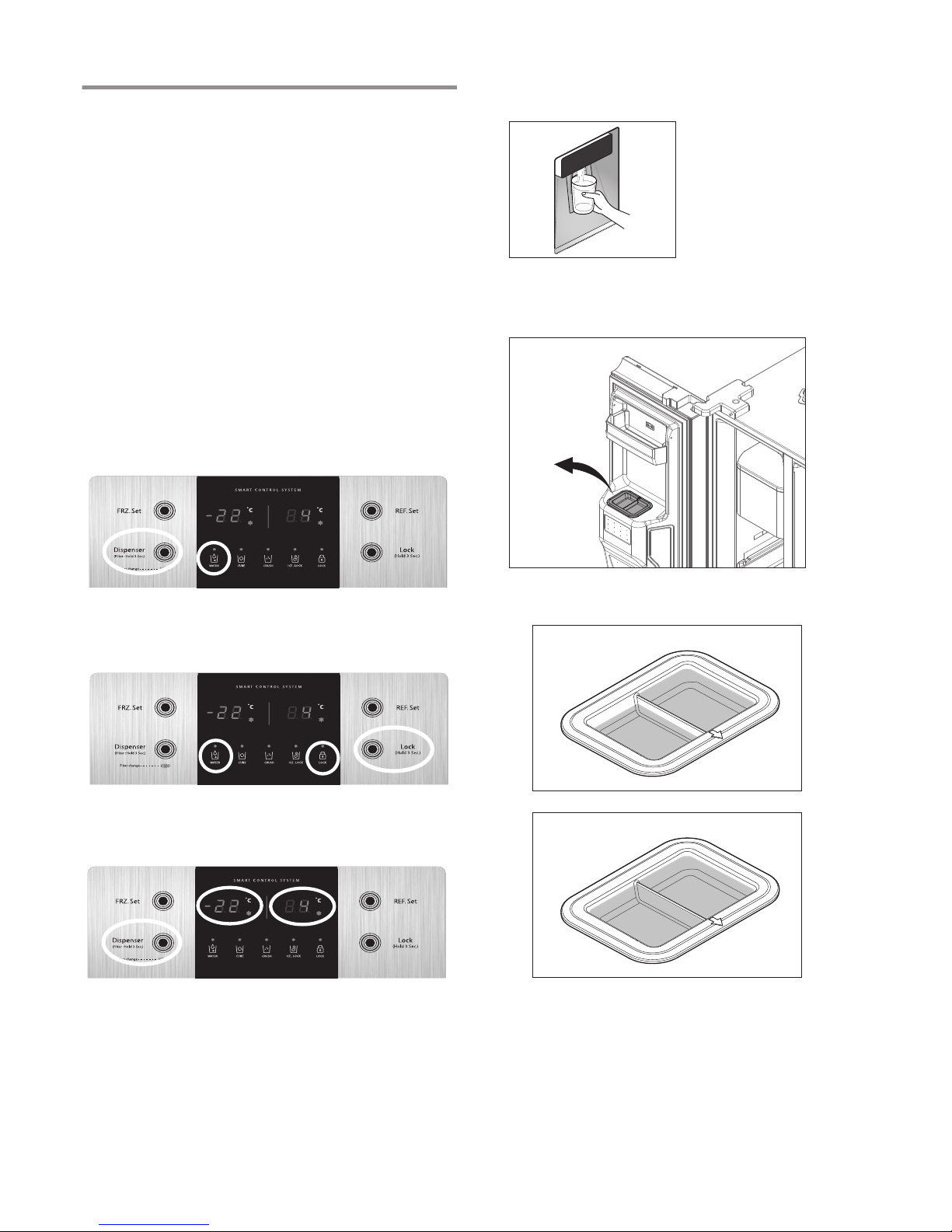

How to use the dispenser ········································· 14
How to use the automatic ice maker ························· 14
How to adjust the automatic ice maker
water supply ························································ 15~16
Refreshment compartment ······································· 16

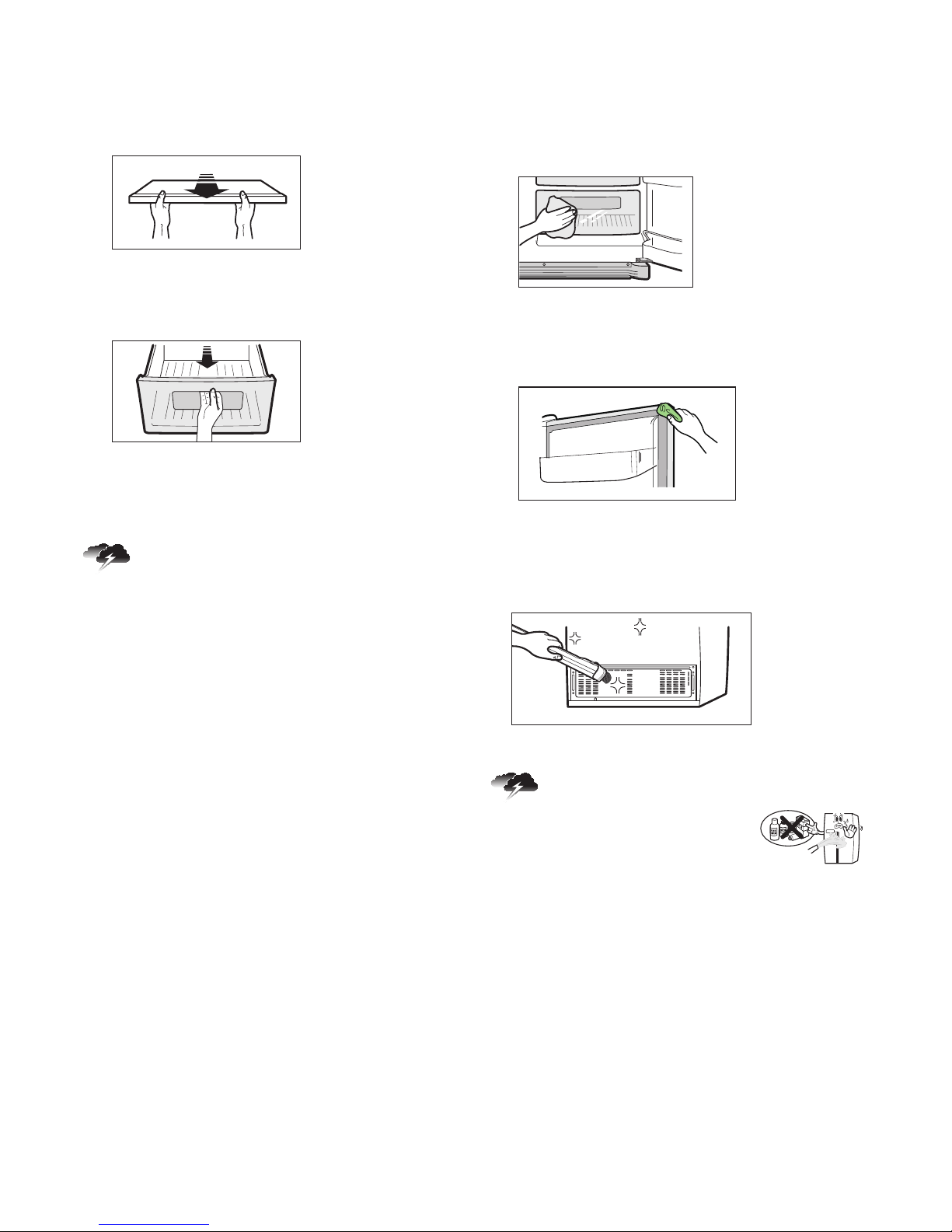

Care & cleaning ·················································· 17~18
Before you call for service.. ······································ 19
Something strange?
Don’t worry. Here is the answer. ······························· 20
1
Be sure to keep for safety!
Read these safety instructions thoroughly and
↜
carefully before using. Please keep this user guide on
hand for future reference.
Indicates the possibility of danger of
death or serious injury.
Indicates the possibility of risk of personal
injury or material damage.
Other Signs
DO NOT remove or disassemble!
Be sure to unplug from outlet/mains!
NO. DO NOT...
Be sure to keep and follow!
Caution
If the supply cord becomes damaged, it 1.
must be replaced by a qualified person in order to
avoid a hazard.
This appliance is not intended for use by persons 2.
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
WARNING
WARNING
CAUTION
Never let the power cord be crushed by the
refrigerator itself or other (heavy) objects.
Never bend power cord excessively.
If the cord is damaged or peeled, it can be a
cause of fire and electric shock.
Do not plug several appliances into the same
wall outlet.
It can be a cause of overheating and/or fire.
Use an exclusive grounding receptacle for the
refrigerator.
Never hold the power cord or plug with wet
hands.
There is a risk of electric shock.
Never use a damaged power cord or plug, or
loose main socket.
There is a risk of fire, electric shock or serious
injury.
Be sure to ground. Check if your wall outlet is
grounded (earthed).
There is a risk of electric shock hazards.
Never unplug by pulling only the power cord
wire. Always grip the plug firmly.
Let the cord from the plug outlet be directed
downwards.
If it is directed up, the cord near the plug is
bent and can be damaged, which can cause
an electric shock or fire.
Do not install the refrigerator on a wet floor
or in a place with excessive humidity and
moisture.
Electric insulation gets weakened, resulting in
a risk of electric shock hazards.
Never let the power cord touch or pass over
heating appliances.
Power cord can be damaged, resulting in a risk
of electric shock hazards.
Check if plug is loose from the wall outlet.
Electric insulation gets weakened, resulting in
a risk of electric shock hazards.
Never pour or spray water into the refrigerator
(both interior and exterior).
Electric insulation gets weakened, resulting in
a risk of electric shock hazards.
Do not place containers with water or liquid
on top of refrigerator.
Water can spill into the refrigerator and can
cause electric shock hazards or damage.
Do not move or remove compartment shelves/
pockets while foods and containers are on
them.
Hard containers (of glass, metal etc.) can fall to
hurt you and can break glass shelf and interior
parts.
Never repair or disassemble or amend the
refrigerator on your own.
There is a risk of personal injury or damage
to the refrigerator. It is recommended that any
service be carried out by a qualified person.
2
Never store any flammable gas or liquid in the
refrigerator.
Never use flammable gas, benzene, thinners,
gasoline, spray etc. near the refrigerator.
There is a risk of fire, explosion and personal
injury or damage.
If a gas leak is found near the refrigerator or
in the kitchen, ventilate it immediately without
touching the power plug or refrigerator.
Do not store medicine or academic research
samples which require strict temperature
control in the refrigerator.
Never insert fingers or hands into the bottom
of the refrigerator, especially into the bottom
at the back.
You can be hurt by sharp metal edges or can
receive an electric shock.
Do not change fuse or LED light on your own.
Call the service agent to change them.
When you find the power cord damaged or
cut, call the service agent immediately.
When you get rid of your old refrigerator, be
sure to remove the doors first.
Children can be entrapped and suffocated in
an abandoned refrigerator.
Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of
obstruction.
Do not use mechanical devices or other
means to accelerate the defrosting process,
other than those recommended by the
manufacturer.
Do not use electrical appliances inside the
food storage compartments of the appliance.
Do not damage the refrigerant circuit.
To avoid a hazard due to instability of the
appliance, it must be fixed in accordance with
the instructions.
The ice-maker in the freezer can be only
replaced by the manufacturer or the service
agent.
When the freezer door is open, do not press
the dispenser lever.
Connect to portable water supply only.
Do not let children step on the cabinet shelves
or vegetable cases.
Keep Children away from packaging or
packaging parts.
There is a risk of suffocation from cardboard
boxes and plastic films.
Do not let children hang on the refrigerator
doors.
Refrigerator can fall and harm them.
Be sure to unplug the refrigerator when it is
not going to be used for a long time.
Never touch foods and containers especially
of metal with wet hands in the freezer
compartment.
You can be hurt by chilblains or cold burns.
Never eat any decayed or deteriorated food at
all.
Foods stored too long in the refrigerator can
deteriorate and become decayed.
Never place bottles and containers of glass in
the freezer compartment.
Glass containers and bottles can break and
can hurt you.
When moving the refrigerator (horizontally or
tilted), more than 2 people are required to hold
it. (One to hold top back handles, the other to
hold the bottom holder.)
If other parts are held instead, it is very
dangerous and likely to slip.
Be sure to turn up the wheel first before
moving the refrigerator.
The wheels can damage or scratch the floor.
If you are moving it for a long distance, never
forget to fasten the interior parts tightly with
tapes. Otherwise, the parts can collide and
break each other.
CAUTION
Hinge will bend and door may fall.
3
Installation Guide
Read these safety instructions carefully before use
↜
and follow precautions for your safety.
Precautions in installation and
power connection
¥
To prevent fire, electric shock or leakage.
⇡
Never install the refrigerator on a wet, watery floor
or where water can gather easily.
⇢
Check the following before power connection.
Connect power plug only to a grounded wall socket
(an earthed mains).
Do not plug refrigerator power together with other
appliances to the same socket.
⇣
Do not use an adapter plug or an extension cord.
⇤
Do not let the power cord be crushed by other
(heavy) objects.
If you hear a strange noise, strong chemical odour
or find smoke etc. from the refrigerator after the
power is plugged in, pull out the plug immediately
and call a service agent.
Wait about 5 minutes before you plug-in again in
order to prevent any damage to the compressor
and electrical devices of the refrigerator.
Wait 2~3 hours until the inside gets cold enough
after the first power plug-in, then store foods inside.
(There can be some smell of plastic parts on initial
operation of the refrigerator after plugging in. The
smell fades away as the refrigerator works and
doors are opened and closed.)
Precautions in use
¥
To prevent personal injury, fire, electric shock etc.
read this user guide carefully before use and keep it at
hand for reference.
¥
Accessories
Egg tray
Filter Box
User guide
Water supply Kit
Dispenser Models Only
Ensure all packaging is removed, checking the ice
shute in the door.
Use the water and ice function dispense water for
1-2 minutes to ensure water tank is filled and system
flushed out.
Also press ice buttons for 30 seconds to start the
ice making functions.
4
Installation Preparation
Check if the refrigerator can pass a
doorway or enter a door first.
Dimensions (including Door Handles)
(Width*Depth*Height)
912mm x 741.3mm x 1771mm
Find a suitable place to install
Ensure sufficient space from the back of refrigerator to
the wall for free air ventilation.
Observe minimum lateral distances in order to utilize the
full door opening angle.
1031 mm
1090 mm
316 mm
145°
1650 mm
145°
1116 mm
1227 mm
429 mm
Avoid direct sunlight.
Once the installation place is ready, follow
the installation instructions.
If the surrounding temperature of the
refrigerator is low (below 5°C), foods can
be frozen or the refrigerator can function
abnormally.
Note
More than 5cm
More than 10cm
More than 5cm
5
Door removal/Replacement
If the refrigerator can not pass
through a door during installation,
follow these steps.
(This guide refers to several models. The real features
are model dependent.)
Removing Refrigerator Door
Remove front bottom cover first, if it is attached.
↜
1
Unscrew top hinge cover with a screwdriver. Insert
a thin screwdriver into the side groove of the cover
to remove.
2
Turn top hinge fastener counterclockwise
3~4 times. Disconnect harness wires (model
dependent).
3
Lift up the front of hinge to remove. (After the hinge
is removed the door can fall down forward. Be
careful !)
4
Lift the door straight up to remove.
Removing Freezer Door
1
Pull out bending tube guide and the left water tube.
(Dispenser Models Only)
2
Unscrew top hinge cover with a screw driver.
3
Turn top hinge fastener counterclockwise 3~4
times. Disconnect the harness wires.
4
Lift up the front of hinge to remove. (After the hinge
is removed the door can fall down forward. Be
careful!)
5
Be careful not to damage the water line when
removing the door.
6
Replacing Refrigerator Door
1
Insert the bottom hole of the refrigerator door
straight into the bottom hinge pin.
2
Let the top of the door close and insert the top
hinge pin to the top hole of the refrigerator door.
(Insert the back of hinge to the groove of protrusion
first, then front to the top hole of door.)
3
Turn the hinge fastener tightly to the end. Connect
harness wirings (model dependent) and screw
down the ground wire. Click and screw the top
hinge cover.
Replacing Freezer Door
1
Insert the water tube into the hole of the bottom
hinge pin first(Dispenser Models Only). Insert the
bottom of freezer door into the bottom hinge pin.
2
Let the top of the door close and insert the top
hinge pin to the top hole of the freezer door. (Insert
the back of hinge to the groove of protrusion first,
then front to the top hole of door.)
3
Turn the hinge fastener tightly to the end. Connect
harness wirings and screw ground wire.
4
Click and screw the top hinge cover
5
Fasten the bending tube guide and insert the water
tube far into the coupling. (Dispenser Models Only)
Loading...
