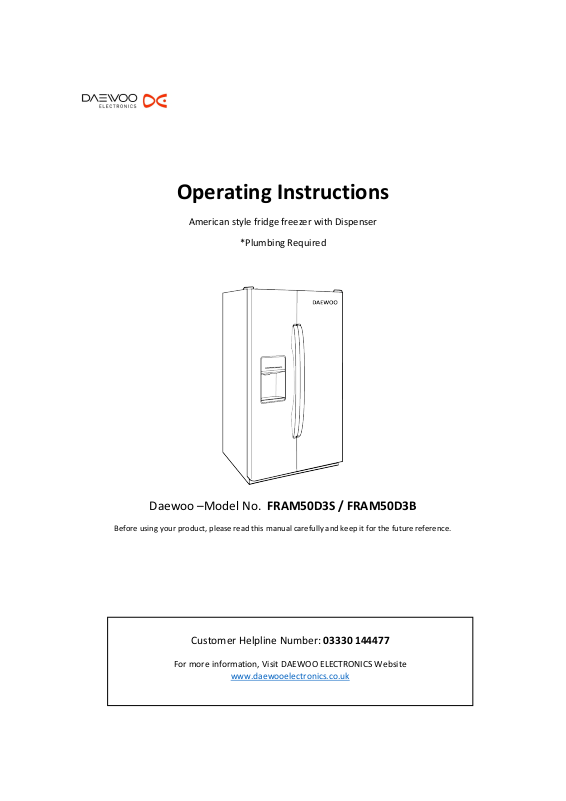

Operating Instructions
American style fridge freezer with Dispenser
*Plumbing Required
Daewoo –Model No. FRAM50D3S / FRAM50D3B
Before using your product, please read this manual carefully and keep it for the future reference.
Customer Helpline Number: 03330 144477
For more information, Visit DAEWOO ELECTRONICS Website
www.daewooelectronics.co.uk
Plumbed fridge freezer (with water and ice DISPENSER)
1) How to install your SBS (levelling / removing doors)
http://youtu.be/BFv_RdLiNFU
“This video is for demonstration purposes only.
The model shown may differ from the one purchased.”
Disposal
The meaning of the symbol on the
product, its accessory or packaging
indicates that this product shall not be
treated as household waste. Please,
dispose of this equipment at your
applicable collection point for the
recycling of electrical & electronic equipment waste.
In the European Union and Other European countries
there are separate collection systems for used electrical
and electronic product. By ensuring the correct disposal
of this product, you will help prevent potential hazards
to the environment and to human health, which could
otherwise be caused by unsuitable waste handling of
this product. The recycling of materials will help
conserve natural resources.
Please do not therefore dispose of your old electrical
and electronic equipment with your household waste.
For more detailed information about recycling of this
product, please contact your local city office, your
household waste disposal service or the shop where you
purchased the product.
RoHS (Directive 2011/65/EU) Compliant
This product is environmentally sound and
sustainable free from Pb, Cd, Cr+6, Hg,
PBBs and PBDEs restricted in accordance
with the Directive.
SAFETY WARNING
This appliance contains a certain amount of
isobutane refrigerant (R600a) a natural gas
with high environmental compatibility that
is, however, also combustible.
When transporting and installing the appliance, care
should be taken to ensure that no parts of the
refrigerating circuit are damaged. Refrigerant squirting
out of the pipes could ignite or cause an eye injury. If a
leak is detected, avoid any naked flames or potential
sources of ignition and air the room in which appliance
is standing for several minutes.
• Never start up an appliance showing any signs of
damage. lf in doubt, consult your dealer.
Be sure to keep for safety!
Read these safety instructions thoroughly and carefully
before using. Please keep this user guide on hand for
future reference.
• Indicates the possibility of danger of
death or serious injury.
• Indicates the possibility of risk of
personal injury or material damage.
Other Signs
Do not remove or disassemble!
Be sure to unplug from outlet/mains!
NO. DO NOT…
Be sure to keep and follow!
Caution
1. If the supply cord becomes damaged, it must
be replaced by the manufacturer or its service
agent or a similarity qualified person in order
to avoid a hazard.
2. This appliance is not intended for use by
person (including children) with reduced
physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
WARNING
Never let the power cord be crushed by the
refrigerator itself or other (heavy) objects.
Never bend power cord excessively.
● If the cord is damaged or peeled, it can be a
cause of fire and electric shock.
Do not plug several appliances into the same
wall outlet.
●It can be a cause of overheating and/or fire.
Never hold the power cord or plug with wet
hands.
● There is a risk of electric shock.
Be sure to ground. Check if your wall outlet is
grounded(earthed).
● There is a risk of electric shock hazards.
Never unplug by pulling only the power cord
wire. Always grip the plug firmly.
Let the cord from the plug outlet be directed
downwards.
● If it is directed up, the cord near the plug is
bent and can be damaged, which can cause
an electric shock or fire.
Do not install the refrigerator on a wet
floor or in a place with excessive humidity
and moisture.
●Electric insulation gets weakened,resulting in
a risk of electric shockhazards.
Never let the power cord touch or pass over
heating appliances.
●Power cord can be damaged, resulting in a
risk of electric shock hazards.
Check if plug is loose from the wall outlet.
●Electric insulation gets weakened,
resulting in a risk of electric shock
hazards.
Never pour or spray water into the
refrigerator (both interior and exterior).
●Electric insulation gets weakened, resulting
in a risk of electric shock hazards.
Do not place containers with water or
liquid on top of refrigerator.
●Water can spill into the refrigerator
and can cause electric shock hazards or
damage.
Do not let children hang on the refrigerator
doors.
●The refrigerator may be tipped over to hurt
children. Always keep children well away from
the appliance while it is operating.
Do not move or remove compartment
shelves/pockets while foods and
containers are on them.
●Hard containers (of glass, metal etc.) can
fall to hurt you and can break glass shelf
and interior parts.
Never repair or disassemble or amend the
refrigerator on your own.
●There is a risk of personal injury or damage
to the refrigerator. It is recommended that
any service be carried out by a qualified
person.
Never store any flammable gas or liquid in
the refrigerator.
Never use flammable gas, benzene, thinners,
gasoline, spray etc. near the refrigerator.
●There is a risk of fire, explosion and
personal injury or damage.
If a gas leak is found near the refrigerator
or in the kitchen, ventilate it immediately
without touching the power plug or
refrigerator.
Do not store medicine or academic research
samples which require strict temperature
control in the refrigerator.
Never insert fingers or hands into the bottom
of the refrigerator, especially into the
bottom at the back.
●You can be hurt by sharp metal edges or can
receive an electric shock.
Do not change fuse or LED lamp on your own.
Call the service agent to change them.
When you find the power cord damaged or
cut, call the service agent immediately.
When you get rid of your old refrigerator, be
sure to remove the door packings first.
●Children can be entrapped and suffocated in
an abandoned refrigerator.
Keep ventilation openings, in the appliance
enclosure or in the built-in structure,
clear of obstruction.
Do not use mechanical devices or other
means to accelerate the defrosting process.
Do not use electrical appliances inside the
food storage compartments of the appliance.
The ice-maker in the freezer can be only
replaced by the manufacturer or the service
agent.
When the freezer door is open, do not press
the dispenser lever.
Connect to drinkable water supply only.
CAUTION
Be sure to unplug the refrigerator when it is
not going to be used for a long time.
Never touch foods and containers
especially of metal with wet hands in the
freezer compartment.
●You can be hurt by chilblains or cold burns.
Never eat any decayed or deteriorated food.
●Foods stored too long in the refrigerator can
deteriorate and become decayed.
Never place bottles and containers of glass
in the freezer compartment.
●Glass containers and bottles can break and
can hurt you.
When moving the refrigerator (horizontally
or tilted), more than 2 people are required
to hold it.
(One to hold top back handles, the other to
hold the bottom holder.)
If other parts are held instead, it is very
dangerous and likely to slip.
Be sure to turn up the wheel first before
moving the refrigerator.
●The wheels can damage or scratch the floor.
If you are moving it for a long distance, never
forget to fasten the interior parts tightly with
tapes.
●Otherwise, the parts can collide and break
each other.
Installation guide
✽ Read these safety instructions carefully before use and follow precautions for your safety.
✽ This appliance is designed for DOMESTIC USE only.
Precautions in installation and power
connection
▪ To prevent fire, electronics shock or leakage.
①. Never install the refrigerator on a wek, watery
floor or where water can gather easily.
②. Check the following before power connection.
● Connect power plug only to a grounded wall
socket(an EARTHED mains)
③. Do not use an adapter plug or an extension cord.
④. Do not let the power cord be damaged by
other(heavy) objects.
⑤. Do not use the damaged power cord.
※If you hear a strange noise, strong chemical
odour or find smoke etc. from the refrigerator after
the power is plugged in, pull out the plug
immediately and call the service agent.
**General installation tips**
Leave the appliance to stand for 2 - 4 hours at least before switching on to allow the gases to settle.
Wait 2-3 hours until the inside gets cold enough after the first power plug-in, then store foods inside.
There can be some smell on initial operation of the refrigerator after plugging in. The smell fades away as the refrigerator
works and doors are opened and closed.
The appliance can be noisy for first 7-10 days whilst the gases settle.
The door seals may seem very tight for the first few days. This is normal and does not indicate a fault.\
Precaution in use
▪ To prevent personal injury, fire, electric shock etc. read
this user guide carefully before use and keep it at hand
for any reference.
Installation preparation
The picture below is for demonstration purposes only. The model shown may differ from the one purchased
✽ Check if the refrigerator can pass a
doorway or enter a door first.
Dimension ( including door handles)
(Width*Depth*Height) 906mm×735mm×1770mm
✽Find a suitable place to install
Sufficient space from the back of refrigerator to the wall
for free air ventilation.
✽Keep away from heat and Avoid direct sunlight.
1. Ventilation
Do not block air vents. If they are blocked during operation, the
product may overheat and eventually cause a failure. For
proper ventilation, allow above 20cm of space between fridge
freezer sides, rear and the minimum height of free space
necessary above the top surface of the freezer is 30cm.
2. Steady, flat location
This appliance should be set on a steady, flat surface. This
fridge freezer is designed for domestic use only.
3. Leave space behind and side
All air vents should be kept a clearance. If all vents are covered
during operation, the appliance may overheat and, eventually,
failure.
4. Away from heating appliance and water taps
Keep the product away from hot air, steam or Splash when
choosing a place to position it, or the insulation might be
adversely affected and breakdowns occur.
The appliance should be installed well away from sources of
heat such as radiators, boilers, direct sunlight etc. Ensure that
air can circulate freely around the back of the cabinet. To
ensure best performance if the appliance is positioned below
an overhanging wall unit the minimum distance between the
top of the cabinet and the wall unit must be at least 20 cm
ideally. However the appliance should not be positioned below
overhanging wall units. Accurate levelling is ensured by one or
more adjustable feet at the base of the cabinet.
5. Power supply
• Check your local power source. This appliance requires a
current of approximately 220-240V 50Hz.
• Power supply cord is about 1.6 meters long.
• The voltage used must be the same as specified on this
appliance. Using a higher voltage may result in a fire or other
accident causing the damage. Using low voltage will cause
failure of operation. We are not responsible for damage
resulting from use of this appliance with a voltage of ampere
fuse other than those specified.
• If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person
in order to avoid a hazard.
Once the installation place is ready follow
the installation instructions.
If the surrounding temperature of
refrigerator is low (below 5⁰c), foods can
be frozen or the refrigerator can function abnormally.
Refrigerator Leveling &
Door Adjustment (If needed)
✽Before operation of accessories, it shall be ensured
that the refrigerator is disconnected from the power.
✽Before adjusting the levelling feet, precausions shall
be taken to prevent any personal injury
✽The refrigerator must be level in order to maintain
optimal performance and desirable front appearance.
(If the floor beneath the refrigerator is uneven, the
freezer and refrigerator doors may look unbalanced.)
[Levelling Feet]
a) Turn the feet clockwise to raise the refrigerator.
b) Turn the feet anticlockwise to lower the
refrigerator.
c) Adjust the right and left feet based on the
procedure above to a horizontal level.
Front Cover
After installation and/or door leveling, fasten front
cover with screws. (Remove the screws on the front
bottom panel first. Click and screw the cover.)
[Levelling Door]
• When the fridge door is lower than freezer door,
Open the door, use the wrench to loosen the
‘Locking nut’ and to rotate the ‘Adjusting nut’ and
anticlockwise to raise the height of the door. Once
the doors are aligned, then tighten the’Locking nut’
by rotating it anticlockwise.
• When the fridge door is higher than freezer door
Open the door, use the wrench to rotate the
‘Adjusting nut’ clockwise to lower the height of the
door. Once the doors are aligned, then tighten
the’Locking nut’ by rotating it anticlockwise.
Caution
The front of the refrigerator needs to be just a little
higher than the back for easy door closing, but if the
wheel is raised too much for door balance, i.e. the front
of refrigerator is much higher than the back, it can be
difficult to open the door.
How to use the interior parts
Caution
• Do not touch or hold with wet hands foods (food container) in the freezer compartment.
☞There is a risk of cold burns.
• Do not store medicine, academic research samples etc. in the refrigerator. The appliance is designed for domestic use
only.
• Do not store too much food in the appliance. When you open the door, an item may fall out and cause personal injury
or material damage.
• Do not remove any internal interior parts. It can be the risk of poor performance.
How to install the water line
You will require the following component and be able to
find it in water supply kit.
• Water inlet hose x 1 ( 6m)
• Water filter x 1
• Snap ring x 2
• Screws x 2
• Wall plug x 2
• Filter connector x 2
• Filter holder x 2
• Filter hose x 1 (4m)
● The water pressure should be 1.44 ~8.27
Bar or more to run the automatic ice maker.
Checkup your tap water pressure; if a cup of
180cc is full within 10 seconds, the pressure is OK.
● When installing the water hose, ensure they are not
close to any hot surfaces.
● The water filter only filters water; it does not
eliminate any bacteria or microbes.
● If your water pressure exceeds 8.27 bar a pressure
reducing valve must be installed.
● Ensure connectors and hoses are securely attached
with no kinks.
The water hose should be connected to your cold water
supply.
[Get ready to install the water filter]
1) Remove the cap from both side of the water filer.
2) Connect the hose to the filter as the image shows.
There are two side of the filter and there will be the
arrow in the label onthe water filter in order to clarify
the side.
*‘side A’ should be linked to the pipe in
refrigerator. ‘side B’ should be connected to the
water tap.
<side A>
<side B>
3) Once all done, it should be like the below.
[Installation procedure]
1) Join Connector to the tap water line
2) Remove the pipe cap from the pipe.
3) Then connect the pipe(from refrigerator) to the
filter connector which is already connected to filter
hose. Then fasten the snap ring on the hose.
4) It will be ready to operate to your appliance.
Please check wheather it is correctly connected
like below.
[How to attach the filter box]
1) Screw and fasten the filter holder to the left/right
side of the back of refrigerator.
✻✻ In case the holder is not fastened well,
remove the back paper of the tape on the
filter holder and attach it.
2) Insert the filter box into the holder.
[After installation of water supply system]
1) Plug in the refrigerator, press the [Dispenser]
button to choose water option on the control panel
and get the water on the glass to remove any air
(bubble) in the pipes and drain out the initial water.
Then, Switch to ice mode, press [Dispenser] to start
this function.
2) Check for the water leaks again through the water
supply system (tubes, connectors and pipes)
Rearrange the tubes again and do not move the
refrigerator.
[Information concerning the water filter]
After use, the water system is subject to low
pressure. Proceed with caution when removing the
filter.
Flush the water system if the appliance has not
been in use for a long period of time, or if the
ice/water has an unpleasant taste or smell. To do
this, dispense water through the water dispenser
for several minutes.
If the unpleasant taste or smell remains, replace
the filter.
If pressure surges could occur in the water pipe, do
not install the water filter without a suitable surge
eliminator.
After installing a new filter:
Discard any ice produced in the first 24 hours after
switching on.
If no ice has been removed for a long period of
time,empty the ice box and discard any ice
produced over the next
Control panel
[Display]
The first time when the power is on, all lights on the
screen for the functions(① to ⑪ in below list) will be
turned on for 3 seconds. Meanwhile, the alarm will go
off then it turns into the normal mode.
*Preset temperature is +5⁰C for the fridge and -18⁰C for
the freezer respectively.
①. Freezer compartment temperature
Preset temperature is -18⁰C. In order to set the
temperature, press Freezer Temp. button, then it
will be changed by 1⁰C between -16⁰C and -24⁰C.
②. Quick REF.( Fast chill mode)
Press Mode button to enter the quick cooling,
When light is on ,fast chill function will be
started.
③. Quick FRZ ( Fast freeze mode)
Press Mode button to enter the quick freezing,
Light will be on the control panel and fast
freezing will be started
④. Fridge compartment temperature
Preset temperature is +5⁰C. In order to set the
temperature, press Fridge Temp. button, then it
will be changed by 1⁰C between +2⁰C and +8⁰C.
⑤. Holiday mode
Press Mode button to enter the holiday mode.
When light is on Holiday mode will be started.
If you press either Freezer Temp. or Fridge Temp.
button, the Holiday mode will be off.
⑥. Water Filter
The filter light will be on or flashed when the
appliance is operated approximately more than 150
days. However it is only for the general notification.
Either you change the filter or you press Dispenser
button for 3 seconds, the light will be off again. We
recommend you to change the filter every 6months.
⑦. Ice off mode
When light is on, Ice Off mode is on.
In order to release, press the Ice Off. button.
⑧-⑩ Dispenser
⑧ Ice cubes
⑨ Crushed ice
⑩ Water
Press the Dispenser button[E] to enter the
ice/water selection, you can choose ice cubes,
crushed ice/ water/none. The corresponding LED
will be on. *Further details for the dispenser,
please refer to the next page
⑪ Lock / Unlock
In unlocked state, press the Child Lock[F] button for
3 seconds. Then the control panel will be locked and
light will be on.
*All functions must be operated when the panel is
unlocked.
[Touch Button operation]
A. Freezer compartment temperature adjustment
B. Fridge compartment temperature adjustment
C. Mode setting
D. Ice OFF/ON
E. Dispenser(ice or water) and Filter reset
F. Child lock : Lock/unlock controls
How to use the water/ice dispenser
[Water]
Keep pressing button until the indicator
turns on. Then, hold an appropriate glass / cup or jug
under the ice and water dispenser and push the lever
smoothly with your glass / cup or jug until the desired
amount of water is received.
[Crushed ice]
Keep pressing button until the indicator
turns on. Then, hold an appropriate glass / cup or jug
under the ice and water dispenser and push the lever
smoothly with your glass / cup or jug until the desired
amount of ice is received.
[Ice cubes]
Keep pressing button until the indicator
turns on. Then, hold an appropriate glass / cup or jug
under the ice and water dispenser and push the lever
smoothly with your glass / cup or jug until the desired
amount of ice is received.
[Lock the ice making function]
If you are planning to use the ice dispenser for a long
time, you can lock the internal ice making machine.
Press the Ice Off button for 3 seconds, then it is lock and
LED is on. In order to release it, press the Ice off
button again.
How to use the Automatic Icemaker
• About 10 ice cubes (14~15 times a day) are made at
one time. Once the ice storage case is full, ice
making stops.
• It is normal for the icemaker to make banging
sounds when the ice cubes are falling into the ice
storage case.
• To prevent bad odours or smells, regularly clean
the ice cubes storage case.
• If the amount of ice in the storage case is not
sufficient, the ice may not be dispensed. Wait a day
or so to make more ice.
• If the ice does not dispense easily, ensure the
dispenser outlet is not blocked.
In case the icemaker doesn’t work
If the ice cubes get stuck and not dispensed
• Pull out the ice storage case and separate any ice
cubes that may have stuck together.
• If the amount of water which is supplied to the
icemaker needs adjusting, call for the service agent.
In case of power failure
• The ice cubes in the case may melt to flow down to
the freezer room.
• If many hours of power failure is predicted, pull out
the case, remove the ice cubes in it and replace it
back when power resumes.
• Avoid using thin fragile cups or crystal glasses
• Never insert your fingers or other tools into the
• If you find discoloured ice,clear out ice and flush
Caution
when taking icecubes.
water/ice dispenser outlet.
through with clean and clear water.
①
①
②
Be sure to
Care and Cleaning
[Door pocket]
①. Hold both ends to push it the tray and
②. Lift the pockets upwards.
[Ice container]
①. Press the Ice Off button to lock the ice maker.
Hold up the components of ice storage box by both
hands and pull them out upwards and outwards
horizontally.
②. Take out the ice container cover and clean
UNPLUG
first!
[Glass shelves]
● Open the doors fully,
then pull the shelves
forward to remove.
Caution
• Use soft cloth with water and mild detergent
to clean.
Never use petrol, benzene, thinners,
boiling water, alkaline items.and so one….
The appliance can be damaged.
• For the back of appliance, remove dust on grill
on the bottom with a vacuum cleaner at least
once a year.
• Do not use abrasive cleaners or scourers as
there can also damage the surfaces.
Before you call the service
✻ Please check the following troubleshooting tips
before you call for service!
Problem
It never gets cold inside
freezing & refrigerating is not
very good
Checkup point
①. Is the refrigerator unplugged?
②. Is the temperature set to [Low Mode]?
③. Is the refrigerator under direct sunlight or is a heat
appliance placed near it?
④. Is the space between the refrigerator back and the
wall too close?
⑤. Have you accidentally activated 'Holiday mode'?
Action
①. Plug in the refrigerator.
②. Set the temperature mode to Middle or High.
③. Move to a place where there is no direct sunlight,
no heat appliances around.
④. Keep sufficient space between the back of the
refrigerator and the wall.
⑤. Press either Freezer Temp. or Fridge Temp. button,
then Holiday mode will be off.
Problem
Foods in the refrigerator
get frozen
Checkup point
①. Is temperature set to [High]?
②. Is the room temperature too low?
③. Is food with moisture stored close to the cold air
spout ?
Action
①. Set the temperature to [Middle] or [Low].
②. Foods can be frozen if ambient temperature is
below 5°C. Move to a place where the temperature
is over 5°C.
③. Place foods with moisture on the shelves close to
the doors.
Problem
Strange sounds from the
refrigerator
Checkup point
①. Is the floor beneath the refrigerator uneven?
②. Is the space between the refrigerator back and the
wall too close?
③. Does any object touch the refrigerator?
Action
①. Move the refrigerator to a level and even floor.
②. Keep sufficient space.
③. Remove any object which touches the refrigerator.
Checkup point
①. Is the food stored uncovered or unwrapped?
②. Are the shelves and pockets stained with food
stuff?
③. Is the food stored too long?
④. Has there been an unnoticed spillage?
Action
①. Be sure to cover and wrap the foods.
②. Clean them regularly. Once smell gets soaked into
those parts, it is not easy to remove.
③. Do not store foods for too long. A refrigerator is
neither a perfect nor a permanent food keeper.
④. Check and clean thoroughly.
Problem
Odour or unpleasant
smell from the inside.
Door opening
appliance.
Something strange? Don’t worry. Here is the answer.
Case Explanation
Heat
Door
is
sticky
Strange
Sound
Frost
& Dew
Front and side of refrigerator feels
warm or hot.
Doors do not open easily.
It sounds like water is flowing from
the refrigerator.
Cracking or clicking sounds.
Humming or buzzing sounds.
Dew or frost on the wall and/or food
container surface in the freezer and
refrigerator compartment.
● Pipes (refrigerant vessel) are placed beneath the
surface to prevent moisture forming on it.
The side will be warm when the appliance is working
to reach required temperature
● When you close the door and then open again
immediately, the door is not easy to open. Warm air
rushes into the inside to create the pressure
difference.
In this case wait for a minute, then it will open easily.
● When the compressor starts to run or stops,
refrigerant which makes the inside cold flowing in the
pipes can make such a sound.
● Defrosted water can also make such a sound. (This
refrigerator adopts an automatic defrosting system.)
● Inside parts shrink and/or expand due to temperature
change --- When the inside gets cold or when the
door is open, such sounds can be made.
● Compressor or fans for cold air circulation can make
such working sound. (If the refrigerator is not level,
the sound can be louder.)
Frost and/or dew can be made in the following cases;
● High temperature and/or high humidity around the
refrigerator.
● When doors are open too long.
● Foods with much moisture are stored uncovered or
unwrapped.
※You can see the same appearance when cold water
is poured in a glass cup and dew is forming on the
surface of it.
alarm
Error code
on
the
control
panel
Dew on the cabinet surface.
Door alarm rings.
Error code will be shown if there is any faults on the
● If it is highly humid around the refrigerator, moisture
in the air sticks to the surface to form dew.
● In case either the freezer or refrigerator door is left
open for more than two minute, door alarm rings
1 minute intervals until the door is closed.
● When the error code appeared, please contact to
Daewoo service centre.
E0: ice maker error
E1 : Temperature sensor detection circuit error in
fridge
E2 : Temperature sensor detection circuit error in
freezer
E5 : Freezing defrost sensor detection circuit error
E6 : Internal communication error
E7 : Circulation of temperature sensor detection
circuit error
EE : Ice maker sensor circuit error
EH : Moisture sensor
Repairs _ after sales service
Your fridge freezer comes with a free two year warranty. If it is not working correctly, consult the trouble shooting guide
within this instruction manual. If a fault occurs which you cannot resolve through following the advice and information
contained within this user guide, the next step is to contact our service centre.
When you contact service centre you will need to give the following details;
• Your name , address and post code
• Your telephone number
• Clear and concise details of fault
• The purchase date as found on your receipt.
• The model and serial number of the fridge freezer. so that you always have these numbers at hand.
• we recommend you make a note of them here.
- Model number : _____________________________
- Serial number : ______________________________
*Note : If you call out an engineer to a fault or to repair a fault caused by incorrect use or installation, a charge could be
made even if the fridge freezer is under guarantee.
**Model number and serial numbers are on the label on the right hand wall in fridge.
Loading...
