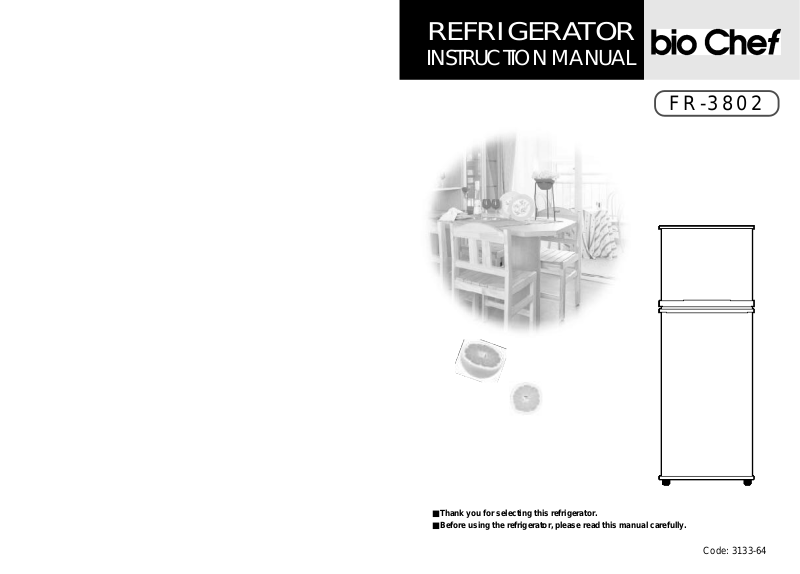

REFRIGERATOR

INSTRUCTION MANUAL

FR-3802

■ Thank you for selecting this refrigerator.

■ Before using the refrigerator, please read this manual carefully.

Code: 3133-64

FEATURE CHART

SHELF F (MOVA B L E ) ICE HOLDER ASSEMBY ICE CASE FRAME

A S S E M B LY ICE BOX CHILLED CASE DOOR CHILLED CASE R E F R I G E R ATO R

T E M P E R AT U R E CONTROL SWITCH

R SHELF (MOVA B L E ) LAMP COVER V E G E TABLE CASE COVER V E G E TABLE CASE

FREEZER POCKET(SMALL) F R E E Z E R

P O C K E T ( M I D D L E ) EGG CASE U T I L I T Y

P O C K E T ( S M A L L / S M A L L ) U T I L I T Y

P O C K E T ( S M A L L / M I D D L E ) B O T T L E

P O C K E T ( L A R G E / L A R G E ) B O T T L E

P O C K E T ( M I D D L E / L A R G E )

Here are the features of your new refrigerator.

Take a moment to know all the features designed for the convenience of the user.

■ Movable refrigerator and freezer shelves

Storage shelves should be adjusted depending on the height of the food stored. To do this, pull the shelves slightly forward.

■ Defrost-drain Ve s s e l

Since dust accumulated on the drain case decreases the evaporation e ff i c i e n c y, you should clean the drain case at regular intervals.

■ Ice Case Frame Assembly

1) Fill the ice case with water upto the water level line and insert it into the designated space in the ice holder.

1) After the water is completely frozen, twist the ice case handle clockwise and let the ice fall into the ice box below. When all ice has been cleared from the ice case, let go of the handle which will return to its original position by a return spring installed.

AT A RTING POINT OF TWISTING

■ Lamp cover

To remove the lamp cover

1. Push up the bottom end of lamp cover gently, then pull out.

2. Reverse procedure to join together.

■ Vegetable case

May be used for fruit and vegetable storage. Both the vegetable case and its cover shelf are removable for easy cleaning. Simply slide forward to remove.

■ Utility Pocket (To p )

The Egg Case in this pocket can be turned upside down for the storage of small size goods.

■ For lock installed refrigerators only.

When you put or take out food from the refrigerator, be careful not to hit your head on the lock as there is a protrusion on the door of your r e f r i g e r a t o r.

1. Check your voltage before inserting the power supply cord into the socket.

2. Contact the earthing conductor to this unit with an attachment earthing s c r e w.

3. Do not spill liquid on this unit.

4. Do not use flammable spray, such as painting, near this unit.

5. Do not place ignitable material, such as benzine, L.P. gas, alcohol etc., into this unit.

6. Take precautions against leakage of any gas equipment near this unit.

7. Keep children from hanging on the door of this unit.

8. Do not reinsert the power supply cord within 5 minutes after releasing it from

the socket. If not, there may be problems with the compressor.
