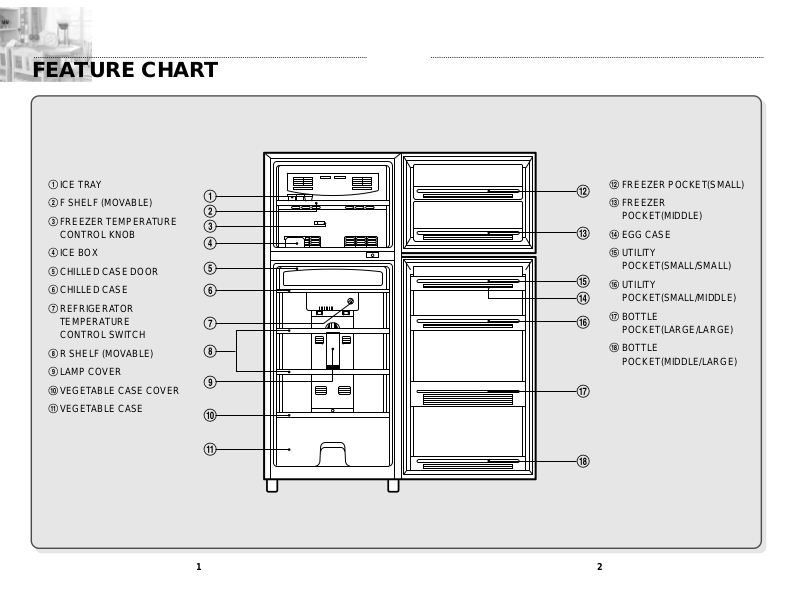

FEATURE CHART
!
#
@
$
^
&
*
(
)
1
8
7
6
3
5
4
2
%
! ICE TRA Y
@ F SHELF (MOV ABLE)
# FREEZER TEMPERA TURE
CONTROL KNOB
$ ICE BOX
% CHILLED CASE DOOR
^ CHILLED CASE
& REFRIGERA T OR
TEMPERA TURE
CONTROL SWITCH
* R SHELF (MOV ABLE)
( LAMP COVER
) VEGET ABLE CASE COVER
1 VEGET ABLE CASE
2 FREEZER POCKET(SMALL)
3 FREEZER
POCKET(MIDDLE)
4 EGG CASE
5 UTILITY
POCKET(SMALL/SMALL)
6 UTILITY
POCKET(SMALL/MIDDLE)
7 BOTTLE
POCKET(LARGE/LARGE)
8 BOTTLE
POCKET(MIDDLE/LARGE)
43
Here are the features of your new refrigerator.
Take a moment to know all the features designed for the convenience
of the user.
■ Ice Tray
Fill 3/4 of the ice tray with water, as the volume expands when the water is
frozen. Place the tray in the freezer compartment. To release ice cubes, twist
the ice tray slightly. Ice cubes will be easier to remove if it is held for a short
while under running water.
■ Movable refrigerator and freezer shelves
Storage shelves should be adjusted depending on the height of the food
stored. To do this, pull the shelves slightly forward.
■ Defrost-drain Vessel
Since dust accumulated on the drain case decreases the evaporation
efficiency , you should clean the drain case at regular intervals.
■ Lamp cover
To remove the lamp cover
1. Push up the bottom end of lamp cover gently ,
then pull out.
2. Reverse procedure to join together .
■ Vegetable case
May be used for fruit and vegetable storage. Both
the vegetable case and its cover shelf are
removable for easy cleaning. Simply slide forward
to remove.
■ Utility Pocket (T op)
The Egg Case in this pocket can be turned upside down for the storage of
small size goods.
■ For lock installed refrigerators only.
CAUTION
When you put or take out food from the refrigerator, be careful not to
hit your head on the lock as there is a protrusion on the door of your
refrigerator.
1. Check your voltage before inserting the power supply cord into the socket.
2. Contact the earthing conductor to this unit with an attachment earthing
screw.
3. Do not spill liquid on this unit.
4. Do not use flammable spray, such as painting, near this unit.
5. Do not place ignitable material, such as benzine, L.P. gas, alcohol etc.,
into this unit.
6. Take precautions against leakage of any gas equipment near this unit.
7. Keep children from hanging on the door of this unit.
8.
Do not reinsert the power supply cord within 5 minutes after releasing it from
the socket. If not, there may be problems with the compressor.
65
METHODS OF SAFE INSTALLATION
1.
SAFE INSTALLA TION PLACE FOR YOUR REFRIGERATOR
¥ Place the refrigerator on
a strong and level floor.
Unstable installation can
produce noise and
vibration.
NO
NO
¥Place your refrigerator
where there is no heat
source nearby.
High atmosphere
temperature will lower
cooling efficiency and
increase your electricity
bill.
¥Place the refrigerator in
an area where the
humidity level is low.
Splashing water on the
refrigerator or installing
the unit in a humid area
may cause short circuit
and rust.
¥Avoid places that are
exposed to coal gas or
smoke, or discoloring
may occur on the
refrigerator.
At least 6cm
A
t least 6cm
At least 30cm
Carpet
Wooden Board,
Rubber Mat
¥For good ventilation,
keep enough space
between the sidewalls
and your.
This helps to cool
efficiently and lowers the
electricity bill.
¥Putting the refrigerator
on the carpet may cause
temperature rise and
result in the discoloring
of the carpet due to the
compressor heat.
In such a case, place a
hard wooden board or a
rubber mat between the
carpet and the unit.
2. INST ALLATION STEPS
¥Select a safe place to
install your refrigerator.
Safe installation
place
Maintain ~
Level
Components to their
original places
¥Level the refrigerator by
using the adjustable feet.
¥Install the parts in their
own place.
¥Check if the doors are
completely closed.
Check
Check
Plug in after
about hour
Put food after
2~3 hours
¥Check the voltage.
Then wait about an hour
before plugging the
power cord into the
outlet.
¥Put food in the
refrigerator after running
the refrigerator for 2~3
hours.
