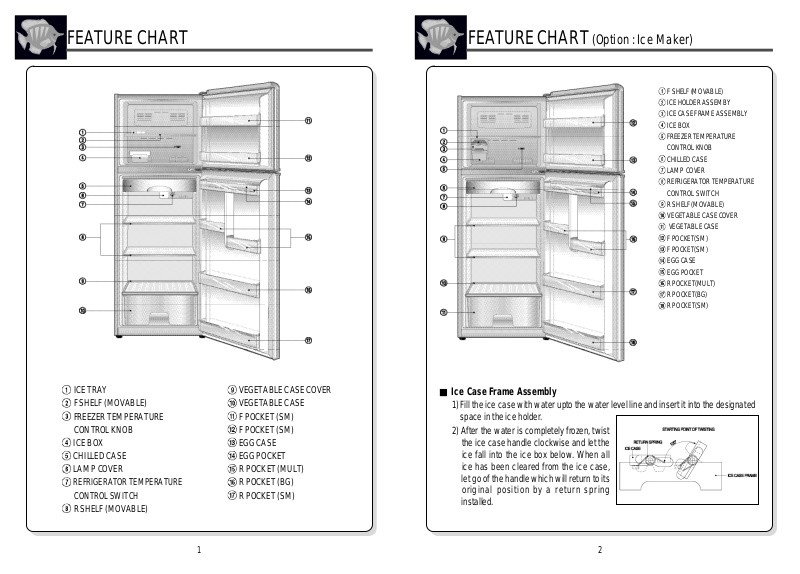

F E ATURE CHART F E ATURE CHART (Option : Ice Maker)

F SHELF (MOVABLE)
ICE HOLDER ASSEMBY
ICE CASE FRAME ASSEMBLY
ICE BOX
FREEZER TEMPERATURE
CONTROL KNOB
CHILLED CASE
LAMP COVER
REFRIGERATOR TEMPERATURE
CONTROL SWITCH
R SHELF (MOVABLE)
VEGETABLE CASE COVER

VEGETABLE CASE
F POCKET(SM)
F POCKET(SM)
EGG CASE
EGG POCKET
R POCKET(MULT)
R POCKET(BG)
R POCKET(SM)

ICE TRAY
F SHELF (MOVABLE)
FREEZER TEMPERATURE
CONTROL KNOB
ICE BOX
CHILLED CASE
LAMP COVER
REFRIGERATOR TEMPERATURE
CONTROL SWITCH
R SHELF (MOVABLE)

VEGETABLE CASE COVER
VEGETABLE CASE
F POCKET (SM)
F POCKET (SM)
EGG CASE
EGG POCKET
R POCKET (MULT)
R POCKET (BG)
R POCKET (SM)

■ Ice Case Frame Assembly

1) Fill the ice case with water upto the water level line and insert it into the designated
space in the ice holder.

2) After the water is completely frozen, twist

the ice case handle clockwise and let the
ice fall into the ice box below. When all
ice has been cleared from the ice case,
let go of the handle which will re t u rn to its
original position by a re t u rn spring
i n s t a l l e d .

21

Here are the features of your new refrigerator.

HOW TO OPERAT E

Take a moment to know all the features designed for the convenience of the user.

■ Ice tray

Fill 3/4 of the ice tray with water, as the volume expands when the water is frozen. Place
the tray in the freezer compartment. To release ice cubes, twist the ice tray slightly. Ice
cubes will be easier to remove if it is held for a short while under running water.

■ Movable refrigerator and freezer shelves

Storage shelves should be adjusted depending on the height of the food stored. To do this,
pull the shelves slightly forw a rd .

■ D e f rost-drain Ve s s e l

Since dust accumulated on the drain case decreases the evaporation eff i c i e n c y, you
should clean the drain case at regular interv a l s .

■ Vegetable case

May be used for fruit and vegetable storage. Both the vegetable case and its cover shelf
a re removable for easy cleaning. Simply slide forw a rd to re m o v e .

■ Utility Pocket (To p )

The Egg Case in this pocket can be turned upside down for the use of small size goods.

CAUTION: 1. Check your voltage before inserting the power supply cord into the socket.

2. Contact the earthing conductor to this unit with an attachment earthing screw.

3. Do not spill liquid on this unit.

4. Do not use flammable spray, such as painting, near this unit.

5. Do not place ignitable material, such as benzine, L.P. gas, alcohol etc., into this unit.

6. Take precautions against leakage of any gas equipment near this unit.

7. Keep chidren from hanging on the door of this unit.

8. Do not reinsert the power supply cord within 5 minutes after releasing it from the
socket. If not, there may be problems with the compressor.

9. Put food in the refrigerator after running the refrigerator for 2~3 hours.

1. TEMPERATURE CONTROL

Te m p e r a t u re is controlled by thermostat automatically. The Te m p e r a t u re Control inside the
refrigerator controls the degree of cooling for each compart m e n t .

F reezer Te m p e r a t u re Contro l

TEMP. CONTROL

The control has four settings from MIN to
WINTER. The WINTER mode is available only if
atmosphere temperature is below 10°C

Refrigerator Te m p e r a t u re Contro l

TEMP. CONTROL

The control has the four settings from MIN to
WINTER. The WINTER mode is available only if
atmosphere temperature is below 10°C

Starting your new refrigerator

1. Clean the refrigerator thoro u g h l y. Wipe the outside with a dry cloth, and the inside with
a damp cloth.

2. Set the temperature control knob at normal position.

3. Connect the power supply cord .

To turn off the re f r i g e r a t o r

Disconnect the power supply cord. Remove icing case and food. Leave doors ajar for
ventilation and dehumidification of both compartments.

2. RADIANT HEAT

HOW TO INSTA L L

Location

Install the refrigerator in a convenient location away from extreme heat and cold. Allow
at least 6cm clearance between the refrigerator and side wall so that the door may open
for a fully usable interior and the refrigerator may have good air circulation. The
refrigerator is not designed for recessed installation.

■ Select a strong and level floor.

■ Keep 6cm of space between the refrigerator and the walls.

3

With the Refrigerating System in operation, it is likely that the cabinet will feel warm at the fro n t
edges and sides. This does not indicate tro u b l e .
It is due to the hot-line used in this type of Refrigerating System which consists of piping hot gas
f rom the (motor-driven) compressor along the front edges, the sides of the cabinet and the center
p a rtition to prevent dewing. This has nothing to do with the storage temperature inside.
(The thick line indicates the hot-line)

N O T E :During spells of hot, humid weather and in rainy season, moisture

may develop on the cabinet, just as water condenses around a cold
glass of water. It is not an abnormal condition; wipe off the moisture
with a dry cloth. This can also happen when the refrigerator is not
installed in an appropriate place.

4
