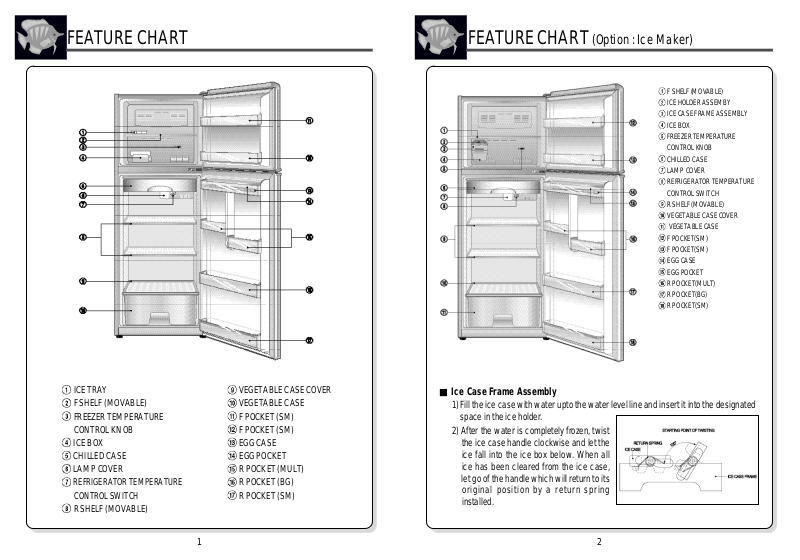

FEATURE CHART

ICE TRAY	VEGETABLE CASE COVER
F SHELF (MOVABLE)	VEGETABLE CASE
FREEZER TEMPERATURE	F POCKET (SM)
CONTROL KNOB	F POCKET (SM)
ICE BOX	EGG CASE
CHILLED CASE	EGG POCKET
LAMP COVER	R POCKET (MULT)
REFRIGERATOR TEMPERATURE	R POCKET (BG)
CONTROL SWITCH	R POCKET (SM)
R SHELF (MOVABLE)

FEATURE CHART (Option : Ice Maker)

F SHELF (MOVABLE)

ICE HOLDER ASSEMBY

ICE CASE FRAME ASSEMBLY

ICE BOX

FREEZER TEMPERATURE

CONTROL KNOB

CHILLED CASE

LAMP COVER

REFRIGERATOR TEMPERATURE

CONTROL SWITCH

R SHELF (MOVABLE)

VEGETABLE CASE COVER

VEGETABLE CASE

F POCKET(SM)

EGG CASE

EGG POCKET

R POCKET(MULT)

R POCKET(BG)

R POCKET(SM)

■Ice Case Frame Assembly

1)Fill the ice case with water upto the water level line and insert it into the designated space in the ice holder.

2)After the water is completely frozen, twist

the ice case handle clockwise and let the ice fall into the ice box below. When all ice has been cleared from the ice case, let go of the handle which will return to its original position by a return spring installed.

Here are the features of your new refrigerator.

Take a moment to know all the features designed for the convenience of the user.

■Ice tray

Fill 3/4 of the ice tray with water, as the volume expands when the water is frozen. Place the tray in the freezer compartment. To release ice cubes, twist the ice tray slightly. Ice cubes will be easier to remove if it is held for a short while under running water.

■Movable refrigerator and freezer shelves

Storage shelves should be adjusted depending on the height of the food stored. To do this, pull the shelves slightly forward.

■Defrost-drain Vessel

Since dust accumulated on the drain case decreases the evaporation efficiency, you should clean the drain case at regular intervals.

■Vegetable case

May be used for fruit and vegetable storage. Both the vegetable case and its cover shelf are removable for easy cleaning. Simply slide forward to remove.

■Utility Pocket (Top)

The Egg Case in this pocket can be turned upside down for the use of small size goods.

CAUTION: 1. Check your voltage before inserting the power supply cord into the socket.

2.Contact the earthing conductor to this unit with an attachment earthing screw.

3.Do not spill liquid on this unit.

4.Do not use flammable spray, such as painting, near this unit.

5.Do not place ignitable material, such as benzine, L.P. gas, alcohol etc., into this unit.

6.Take precautions against leakage of any gas equipment near this unit.

7.Keep chidren from hanging on the door of this unit.

8.Do not reinsert the power supply cord within 5 minutes after releasing it from the socket. If not, there may be problems with the compressor.

9.Put food in the refrigerator after running the refrigerator for 2~3 hours.

HOW TO INSTALL

Location

Install the refrigerator in a convenient location away from extreme heat and cold. Allow at least 6cm clearance between the refrigerator and side wall so that the door may open for a fully usable interior and the refrigerator may have good air circulation. The refrigerator is not designed for recessed installation.

■Select a strong and level floor.

■Keep 6cm of space between the refrigerator and the walls.

■The electrical plug must be occessible without moving the set.

HOW TO OPERATE

1. TEMPERATURE CONTROL

Temperature is controlled by thermostat automatically. The Temperature Control inside the refrigerator controls the degree of cooling for each compartment.

Freezer Temperature Control

TEMP. CONTROL

The control has four settings from MIN to WINTER. The WINTER mode is available only if atmosphere temperature is below 10°C

Refrigerator Temperature Control

TEMP. CONTROL

The control has the four settings from MIN to WINTER. The WINTER mode is available only if atmosphere temperature is below 10°C

Starting your new refrigerator

1.Clean the refrigerator thoroughly. Wipe the outside with a dry cloth, and the inside with a damp cloth.

2.Set the temperature control knob at normal position.

3.Connect the power supply cord.

To turn off the refrigerator

Disconnect the power supply cord. Remove icing case and food. Leave doors ajar for ventilation and dehumidification of both compartments.

2. RADIANT HEAT

With the Refrigerating System in operation, it is likely that the cabinet will feel warm at the front edges and sides. This does not indicate trouble.

It is due to the hot-line used in this type of Refrigerating System which consists of piping hot gas from the (motor-driven) compressor along the front edges, the sides of the cabinet and the center partition to prevent dewing. This has nothing to do with the storage temperature inside.

(The thick line indicates the hot-line)

NOTE: During spells of hot, humid weather and in rainy season, moisture may develop on the cabinet, just as water condenses around a cold glass of water. It is not an abnormal condition; wipe off the moisture with a dry cloth. This can also happen when the refrigerator is not installed in an appropriate place.
