HOW TO OPERATE
1. Clean the refrigerator thoroughly. Wipe the outside with a soft dry cloth, the inside with a
damp cloth.
2. Keep the door open and insert the power supply cord into the socket.
3. Turn the thermostat dial to “7”. Close the door and let the refrigerator operate for 15-20
minutes.
The freezer should then show some traces of frost.
You can control the inside temperature by turning
the thermostat dial. Higher numbers mean greater
cooling power, smaller numbers mean less cooling
power. To make ice cubes in the freezer
compartment, set the dial to “7”. The dial does not
have to be set exactly on the numbers, but can be
any place in between.
Defrost the refrigerator when the frost accumulated on the evaporator is about 5mm(1/5inch)
thick.
Set the thermostat dial to “OFF”. Remove foods. Keep drip tray in place. Defrosting usually takes a
few hours. To defrost quickly remove all foods from the refrigerator and leave door open. Never
use a knife or other metal instrument to remove ice/frost from the evaporator. After defrosting
empty water from drip tray, return the thermostat dial to the desired position to start refrigerating
again.
6
7
5
4
3
2
1
OFF
C
O
L
D
E
R
TEMPERATURE
CONTROL
NOTE : Wait 3 to 5 minutes before restarting if you unplug the machine. Unit may
fail to operate properly if restarted too quickly.
Temperature control
Starting your new Refrigerator
How to defrost
1
1. EVAPORATOR
The heart of the refrigerator.
It evaporates the refrigerant fluid and thereby absorbs heat from the surrounding. Made of pure
aluminum.
2. DRAIN PAN (Use of Defrost Only)
Discards the water that drips of the evaporator when defrosting.
3. CONTROL BOX :
Regulates the operation of the motor and controls the inside temperature of the refrigerator.
4. SHELF
Has full width and can slide out.
5. RACK For butter, eggs, and small size goods.
6. MAGNETIC DOOR SEALS
Keeps the refrigerator virtually airtight all along the edge, but is nevertheless easy to open.
7. ICE CUBE TRAY Ice cubes are easy to remove from the tray.
8. USABLE RACK for cans or jars.
9. BOTTLE RACK for bottles, cans or jars.

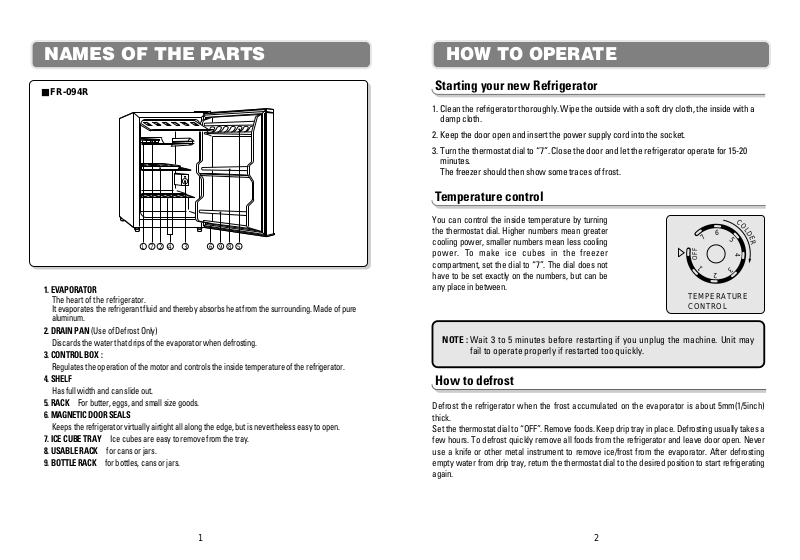

NAMES OF THE PARTS
7 2 4 3 5689
1
■FR-094R
4
WHAT TO DO...
1. When out of operating for a long time:
•Remove the power supply cord.
•Dry your refrigerator opening the door for 2-3 days.
2. When you get ready to move:
•Securely fasten removable interior parts (or move and package them separately)
•Do not lay your refrigerator horizontally, or compressor may be damaged.
When you need service: Before you call for service make sure you
need it, check a few things noted below for yourself first.
If refrigerator is not operating:
•Is the power supply cord unplugged?
•Is home fuse blown or circuit breaker off?
If refrigerator is warmer than usual:
•Has the door been open frequently or for a long period?
•Is refrigerator overcrowded-preventing good air circulation?
•Is the hot thing stored without cooling?
•Is the clearance between refrigerator’s side and the wall allowed sufficiently?
If there are unusual sounds:
•Is refrigerator placed on the level?
•Are foreign objects behind the refrigerator?
•Are dishes on refrigerator shelves vibrating?
If so, rearrange the dishes.
3
Cleaners: The cleaners noted below are available. Never use harsh, abrasive cleaners, heavyduty cleaners, or solvents on any surface.
Exterior: Wipe with damp, sudsy cloth, rinse and dry. For stubborn stains and for periodic
waxing, use silicon wax.
Evaporator: When refrigerator needs defrosting turn thermostat dial to “OFF”. Do not use sharp
instruments.
Refrigeration Section: Wash shelves and other removable parts in warm sudsy water, rinse and
dry. Wash interior with baking soda solution (3 table spoons to one quart of water) or warm
sudsy water, rinse and dry.
Magnetic Door Seals: Wash with warm sudsy water.
The Finishing Touch: Replace all parts and return thermostat dial to desired setting.
▶Install refrigerator in a convenient location away from extreme heat and cold. Allow
sufficient clearance between the refrigerator and side wall so the door will open for a fully
usable interior. Refrigerator is not designed for recessed installation.
▶Select a place with strong level floor.
▶Allow 5 inches of space between the
refrigerator’s side and the wall.
HOW TO CLEAN
HOW TO INSTALL
5
inches
6
7. Insert the bottom hinge at the left side using
the two screws previously removed in step 6.
NOTE:Do not tighten screws.
8. Stand the cabinet.
9. Replace the door making sure the bottom
socket enters the bottom hinge pin.
Be sure washer is in place.
10. While holding the door in the closed position,
secure the top hinge at the left side using the
two screws previously removed at the
beginning in step 2.
Do not tighten the screws until the top of the
door is leveled with the top cabinet.
11. Replace the hinge cover.
12. Tools required:
-8MM & 10MM socket-ratchet.
-Putty knife or thin-blade screwdriver.
5
This refrigerator has been built with the door hinges on the right.
If you wish to change the opening direction, follow the instruction below:
• Unplug the refrigerator from its electrical outlet.
• Empty everything in the refrigerator, including shelves, food, etc.
1. Remove the hinge cover on the right top of the
cabinet.
2. Remove the two screws (using a ratchet tool
with a 8MM socket) that hold the top hinge to
the cabinet. Keep these screws for later use.
3. Lift the top hinge straight up to free the pin
from the socket on the top of the door.
4. Lift the door and place it on a padded surface
to prevent scratching it.
5. Remove the plug buttons from the upper left
holes as illustrated and transfer them to the
uncovered holes at the right side. Be sure to
press the plug buttons firmly into the holes.
6. Lay the cabinet on its side down on the floor.
Remove the two screws that hold the bottom
hinge to the cabinet using a 10MM socket.
Keep these screws and washer for later use.
Top hinge
Hinge cover
Plug button
Bottom hinge
CHANGING THE REVERSIBLE DOOR
