Daewoo FR-093R, FR-153R User Manual

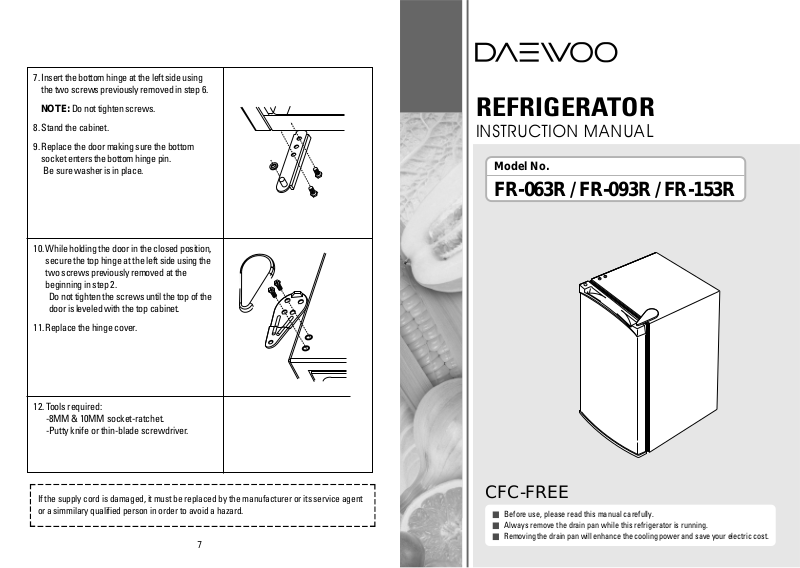

7.Insert the bottom hinge at the left side using the two screws previously removed in step 6.
NOTE: Do not tighten screws.
8.Stand the cabinet.
9.Replace the door making sure the bottom
socket enters the bottom hinge pin. Be sure washer is in place.
10.While holding the door in the closed position, secure the top hinge at the left side using the two screws previously removed at the
beginning in step 2.
Do not tighten the screws until the top of the door is leveled with the top cabinet.
11. Replace the hinge cover.
12.Tools required:
-8MM & 10MM socket-ratchet. -Putty knife or thin-blade screwdriver.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a simmilary qualified person in order to avoid a hazard.
7
REFRIGERATOR
INSTRUCTION MANUAL
Model No.
FR-063R / FR-093R / FR-153R
■Before use, please read this manual carefully.
■Always remove the drain pan while this refrigerator is running.
■Removing the drain pan will enhance the cooling power and save your electric cost.
NAMES OF THE PARTS
■FR-063R
■FR-093R
1 |
7 |
2 |
4 |
3 |
6 |
9 |
8 |
5 |
■FR-153R
4 |
10 |
11 |
2 |
1 |
7 |
3 |
5 |
8 |
9 |
6 |
1. EVAPORATOR
The heart of the refrigerator.
It evaporates the refrigerant fluid and thereby absorbs heat from the surrounding. Made of pure aluminum.
2. DRAIN PAN (Use of Defrost Only)
Discards the water that drips of the evaporator when defrosting.
3. CONTROL BOX :
Regulates the operation of the motor and controls the inside temperature of the refrigerator.
4. SHELF
Has full width and can slide out.
5.RACK For butter, eggs, and small size goods.
6.MAGNETIC DOOR SEALS
Keeps the refrigerator virtually airtight all along the edge, but is nevertheless easy to open. 7. ICE CUBE TRAY Ice cubes are easy to remove from the tray.
8. USABLE RACK for cans or jars.
9.BOTTLE RACK for bottles, cans or jars.
10.CRISPER for vegetables and fruits.
11.SLIDE OUT CRISPER COVER.
