Service Manual
Washing Machine
Model: DW-X700C / DW-X710C
DAEWOO ELECTRONICS CORP.
S/M No. : D¾Æ¾ÓW¤¼X700C001
http : //svc.dwe.co.kr Nov. 2006
✔ Caution
: In this Manual, some parts can be changed for improving,
their performance without notice in the parts list. So, if you
need the latest parts information, please refer to PPL(Parts
Price List) in Service Information Center (http://svc.dwe.co.kr).
WASHING MACHINE
CCoonntteennttss
1. SPECIFICATIONS
2. EXTERNAL VIEW
3. TROUBLESHOOTING GUIDE
4. EXPLODED VIEW AND PARTS LIST
5. WIRING DIAGRAM
NO.
1 POWER VOLTAGE AC 110V AC 220V
SOURCE FREQUENCY 60Hz 50Hz
2 WASH 350 330
RATED INPUT
POWER
ITEM
SPIN 175 160
SPECIFICATION
3 DIMENSION
4 MACHINE PUMP
WEIGHT NON PUMP
5 WASHING COURSE
6 WATER LEVEL
7 TIMER WASH
SPIN
9 WASHER TYPE
10 WATER SUPPLY
NET : 758 X 445 X 905 (mm, WXDXH)
-
NET: 27kg
STRONG, NORMAL
LOW (35ℓ), MID (42ℓ), HIGH (49ℓ)
MAX. 15 min, MANUAL OPERATION
MAX. 5 min, MANUAL OPERATION
PULSATOR TYPE
MANUAL
DW-X700C
DW-X710C

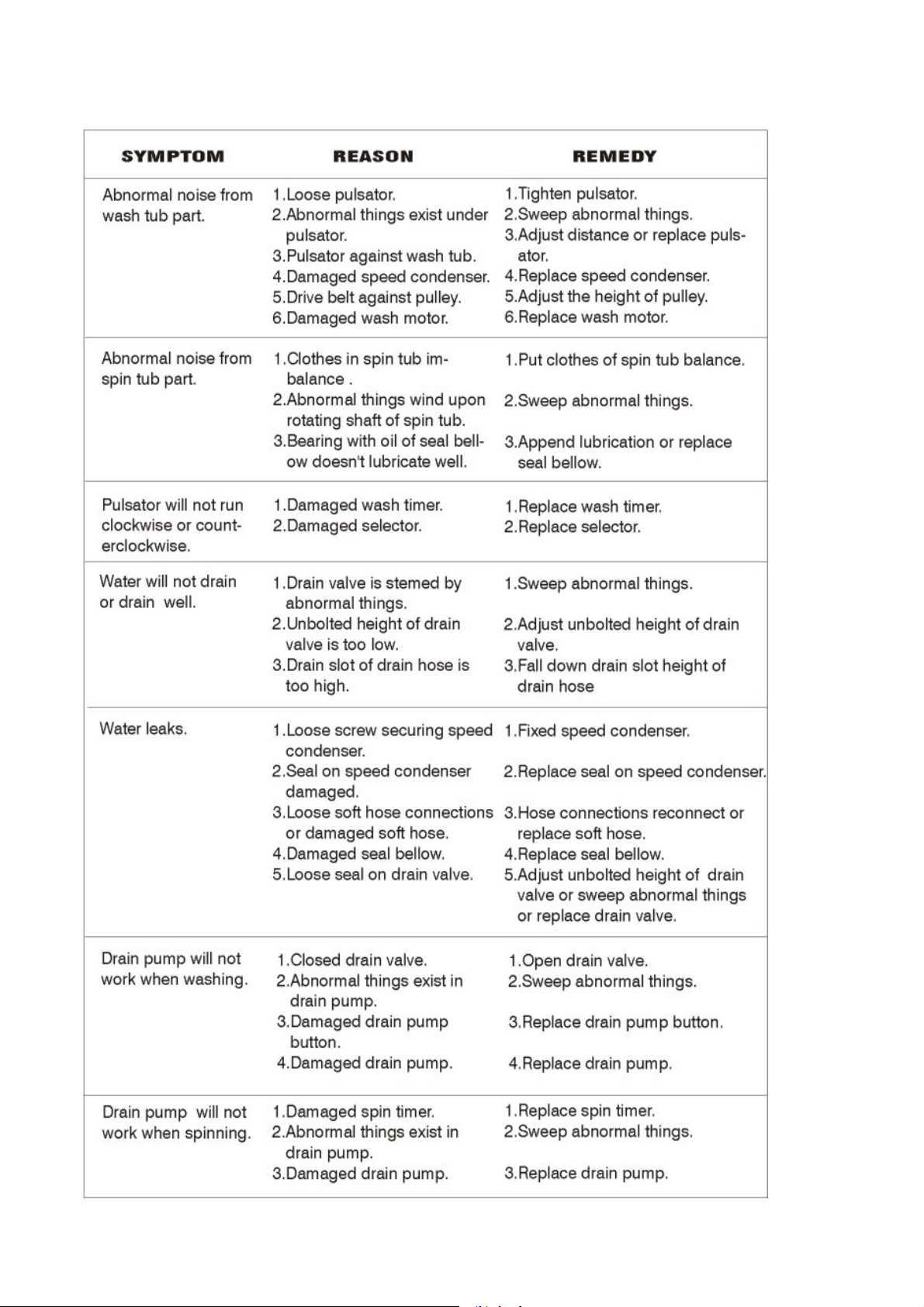

Symptom & Remedy

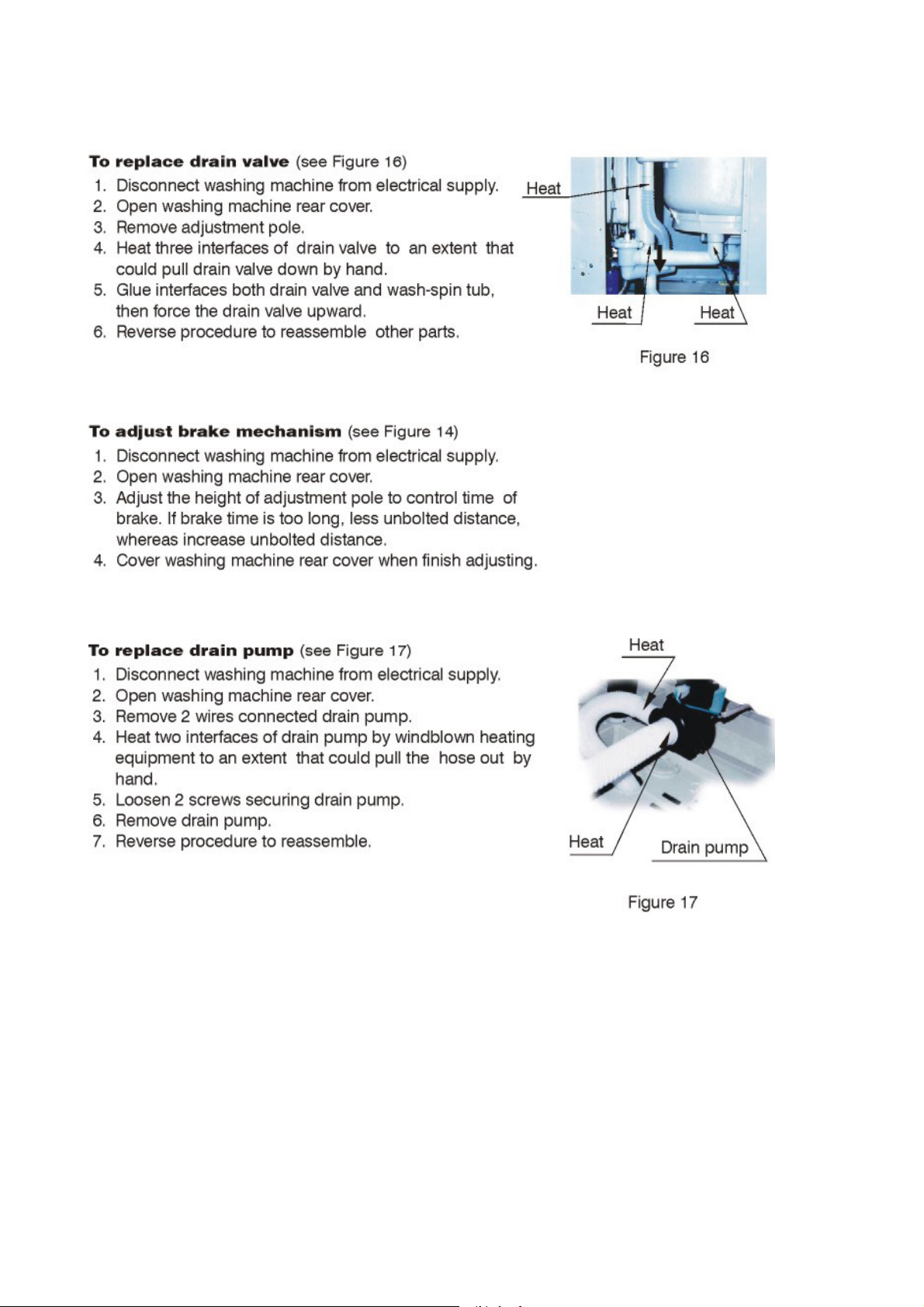

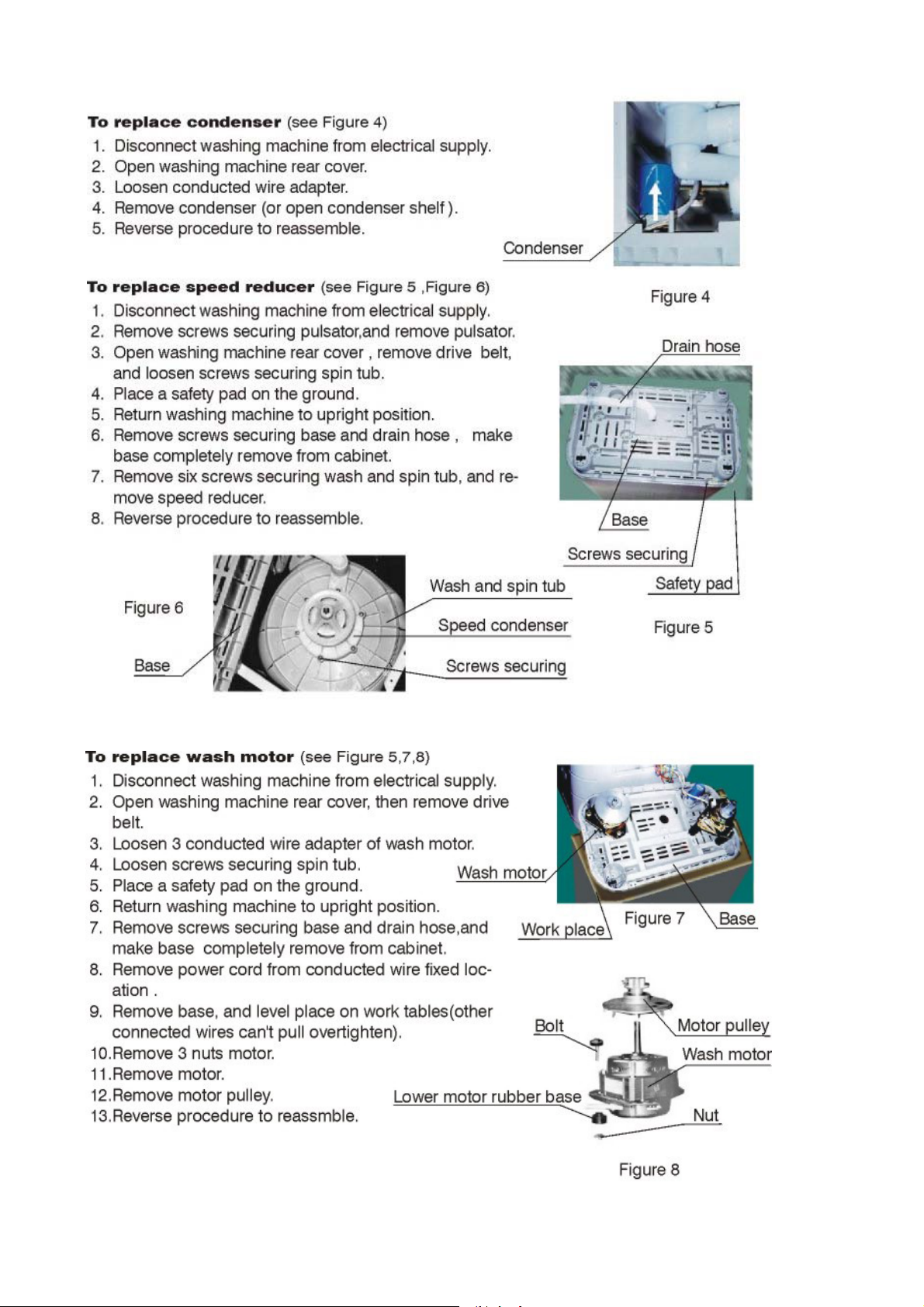

Maintenance

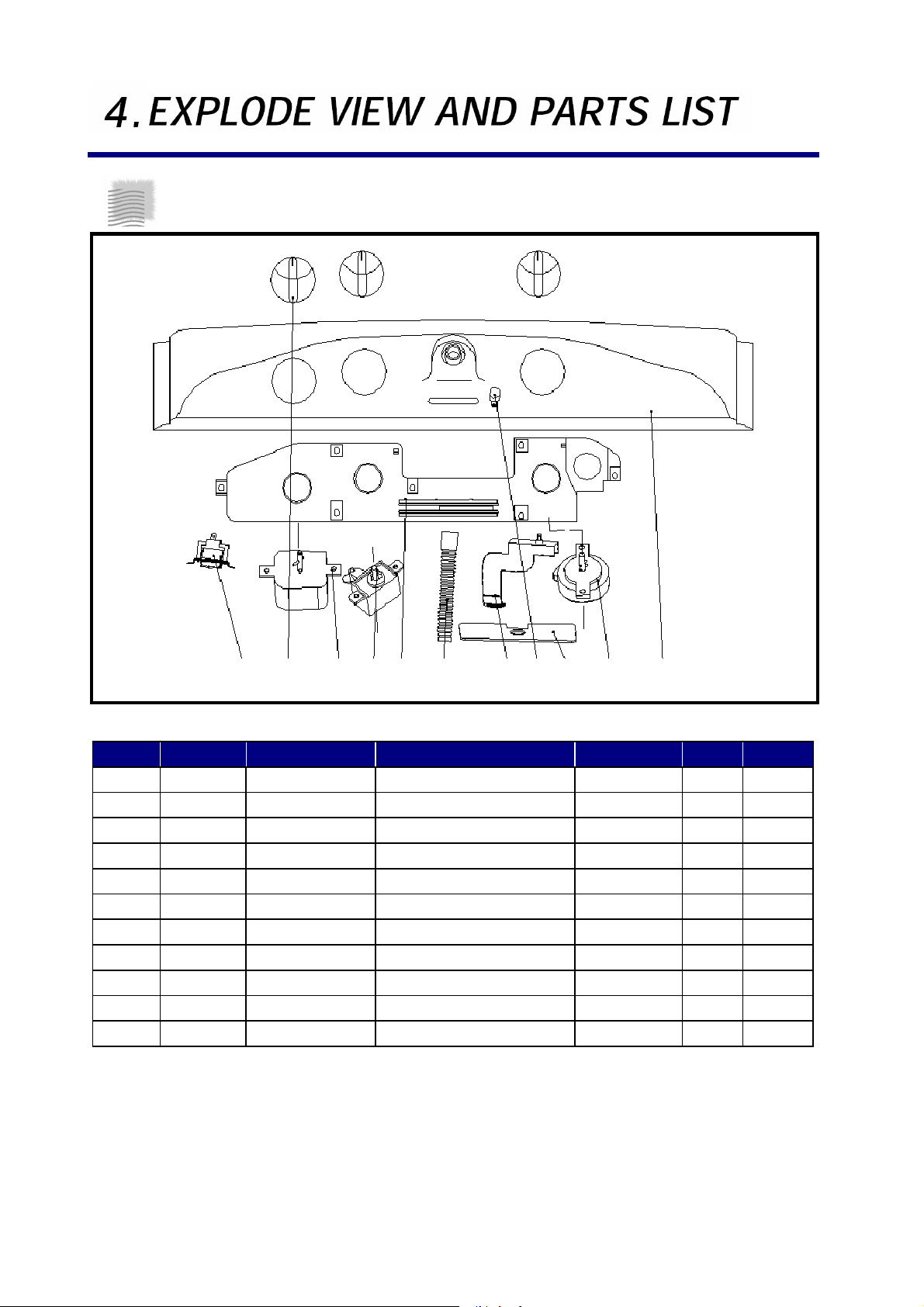

1) PANEL AS
1-1 1-2 1-3 1-4 1-5 1-6 1-7 1-8 1-9 1-10 1-11
SVC NO. LEVEL PART CODE PART NAME SPECIFICATION QTY Remark
1-1 1.1.11 T.59 BUZZER 1
1-2 1.1.1 S622021-2-3 KNOB ABS 3
1-3 1.1.2 T58 WASH TIMER 1
1-4 1.1.3 S4528-2.6 SELECTOR S/W 1
1-5 1.1.4 S622021-2-2 BRACKET PANEL ABS 1
1-6 1.1.5 S622021-2-6 WATER INLET HOSE EVA 1
1-7 1.1.6 S622021-2-4 WATER SUPPLY INLET PP 1
1-8 1.1.7 S622021-2-5 SELECTOR KNOB PP 1
1-9 1.1.8 S622021-2-7 PLATE VALVE CONNECT PP 1
1-10 1.1.9 T.22B SPIN TIMER 1
1-11 1.1.10 S622021-2-1 PANEL B ABS 1
2) TUB COVER AS
0-25 0-24 0-23 0-22 0-21
0-20
0-19
0-18
0-17
0-16
0-15
0-4
0-5
0-6
0-7
0-8
0-9
0-10
0-11
0-12
0-13
0-14
0-3 0-2 0-1
SVC NO. LEVEL PART CODE PART NAME SPECIFICATION QTY Remark
-2.1 Tub Cover As Assembly 1
0-1 2.1.2 S562003-0-1 DOOR WASH ABS 1
0-2 2.1.3 COVER S/W 1
0-3 2.1.4 S562003-0-2 DOOR SP IN ABS 1
0-4 2.1.5 S582003-0-3 DOOR SP RING f 1.6 1
0-5 2.1.6 S562003-5-2 COVER INNER PP 1
0-6 2.1.1 S562003-5-1 TO P PLATE PP 1
0-7 3.3 S4528-0-3 SAFETY COVER LDPE 1
- 3.5 S562003.B-4 SPIN BASKET CUSHIO N EPS 1
- 3.6 S622021-0-1 RATING LABEL 1
- 3.7 WIRING LABEL 1
0-8 2.1.9 COVER TUB 1
0-9 3.2 S562003-5-3 SPIN BASKET ASS’Y Assembly 1
- 2.1.7 BASE WATER S UP PLY 1
0-10 2.1.8
0-11 2.1.8.1
0-12 4.2 S562003-0-4 V-BELT 1
0-13 3.8 S562003-3-2 DRAIN HOSE O LDPE 1
0-14 4.1 S562003-4 BASE UNDER ASS’Y Assembly 1
0-15 4.3 PO WER CO RD 1
0-16 4.4 S562003-0-6 BACK COVER PP 1
0-17 4.5 SCREW
0-18 4.6 S258-0-7 CEC 8
0-19 4.7 T.29 PE BAG PE 2
0-20 4.8 S562003-1 BASE PP 1
0-21 1.1.12
0-22 1.1.12.1
0-23 3.1 S562003-3 TUB AS Assembly 1
0-25 1.1 S622021-2 PAN EL ASS’Y Assembly 1
S562003-0-5 AssemblyLINK BRAKE 1
S258-6 LINK VALVE Asse mbly 1
3) TUB AS (WASH & SPIN TUB AS)
2-5 2-4 2-3 2-2 2-1
2-18
2-19
2-6
2-7
2-8
2-9
2-10
2-11
2-12
2-17
2-16
2-15
2-14
2-13
SVC NO. LEVEL PART CODE PART NAME SPECIFICATION QTY Remark
2-1 3.1.1 S622021-3.1 OVERFLOW FILTER PP ( assembly ) 1
2-2 3.1.2 S2510-5-3 PULSATOR SCREW 1Cr13 1
2-3 3.1.3 S562003-3-2A PULSATOR ASS’Y PP 1
2-4 3.1.4 S4528-3-7 WASHER 1
2-5 3.1.5 S562003-3-1 TUB PP 1
2-6 3.1.6 S40228-3-8 GASKET NBR 1
2-7 3.1.7 S562003-3-5B GEAR HOUSING ASS’Y Assembly 1
2-8 3.1.8 S562003-3-5.1 SPECIAL WASHER 45 1
2-9 3.1.9 S562003-3-6 P-PULLEY PP 30% 1
2-10 3.1.10 SPECIAL WASHER 1
2-11 3.1.11 SPRING WASHER 1
2-12 3.1.12 NUT 1
2-13 3.1.13 T.35 DRAIN VALVE ASS’Y Assembly 1
- 3.1.14 T.37 BELLOW AS Assembly 1
2-14 3.1.14.1 BELLOW 1
2-15 3.1.14.2 S3012-3-16 PACKING BELLOW PP 1
2-16 3.1.15 S3012-3-17 GASKET VALVE NR 1
2-17 3.1.16 S5028-3-10 OVER FLOW HOSE EVA 1
2-18 3.1.17 S562003-0-10 FILTER GUIDE f 1.6 1
2-19 3.1.18 S4528-3-6 OVER FLOW HOSE ( INNER ) LDPE 1
4) BASE UNDER AS(BASE AS)
3-1
3-2
3-3
3-4
3-5
3-6
3-7
3-8
3-9
3-10
3-18
3-17
3-16
3-15
3-14
3-13
3-12
SVC NO. LEVEL PART CODE PART NAME SPECIFICATION QTY Remark
3-1 4.1.2.2 SCREW
3-2 4.1.2.3 S3518-4.4 DRUM COUPLING ASS’Y Assembly 1
3-3 4.1.2.4 GB9074.4-88 SCREW 4 X 8 35 3
3-4 4.1.2.5 S3518-4.3A BRAKE FIXING PLATE ASS’Y Assembly 1
3-5 4.1.2.1 T.18 SPIN MOTOR 1
3-6 4.1.3 S3518-3-1 SCREW 5 X 15 5 X 15 6
3-7 4.1.4 S3012-4.2 SPIN MOTOR CUSHION ASS’Y Assembly 3
3-8 4.1.5 S4528-4-2 CAPACITOR 4uF+10uF 1
3-9 4.1.1 S562003-4-1 BASE UNDER PP 1
- 4.1.2 SPIN MOTOR AS 1
3-10 4.1.7 S3518-3-1 SCREW 5 X 15 5 X 15 6
- 4.1.8 WASH MOTOR AS 1
3-12 4.1.9 T.27-2A DRAIN HOSE GUIDE PP 1
3-13 4.1.10 S3012-4-8 NUT A3 3
3-14 4.1.11 S3012-4-7 WASH MOTOR CUSHION Assembly 3
3-15 4.1.8.1 T.20 WASH MOTOR XD-120 1
3-16 4.1.12 S3012-4-6 CUSHION UPPER 3
3-17 4.1.13 S3012-4-5 SPECIAL BOLT ( MOTOR ) Q235-A 3
3-18 4.1.8.2 S562003-4-2 MOTOR PULLEY ASS’Y ADC12 1
5) PACKING MATERIAL
SVC NO. LEVEL PART CODE PART NAME SPECIFICATION QTY Remark
- 5.1 S562003.B-1 PACKING BOX DW 1
- 5.2 S4528.B-8 PACKING COVER PE 0.012 1
- 5.3 S562003.B-2 TOP CUSHION EPS 1
- 5.4 S562003.B-3 BOTTOM CUSHION EPS 1
-5.5T.15A HOSE INLET E/VAC 1
- 5.6 S622021.SY MANUAL OWNER Printing 1
