Page 1
1

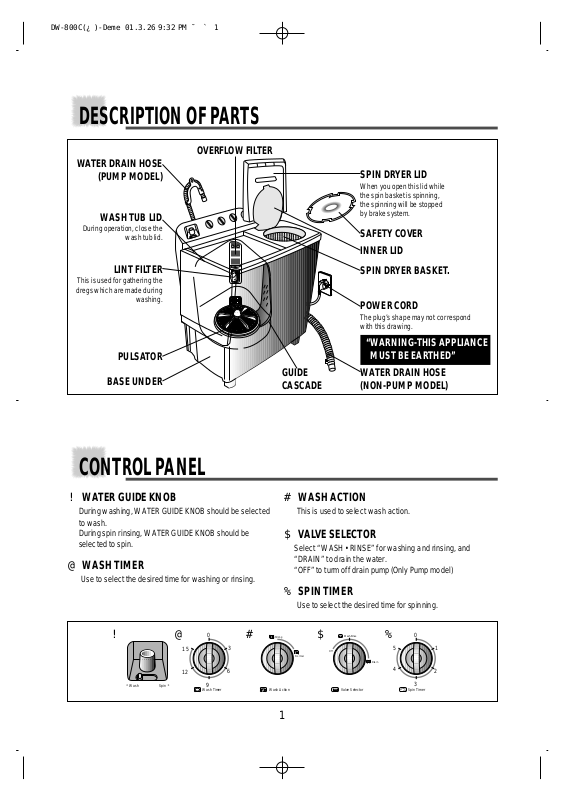

DESCRIPTION OF PARTS
! W ATER GUIDE KNOB
During washing, WATER GUIDE KNOB should be selected
to wash.
During spin rinsing, WATER GUIDE KNOB should be
selected to spin.
@ W ASH TIMER
Use to select the desired time for washing or rinsing.
# W ASH ACTION
This is used to select wash action.
$ VALVE SELECTOR
Select “WASH • RINSE” for washing and rinsing, and
“DRAIN” to drain the water.
“OFF” to turm off drain pump (Only Pump model)
% SPIN TIMER
Use to select the desired time for spinning.
CONTROL PANEL
Wash Spin
Wash Timer
15
12
9
6
3
0
Wash Action
Strong
Normal
Spin Timer
5
4
3
2
1
0
Off
Wash-Rinse
Valve Selector
Drain
WATER DRAIN HOSE
(PUMP MODEL)
PULSATOR
BASE UNDER
OVERFLOW FILTER
SPIN DRYER LID
When you open this lid while
the spin basket is spinning,
the spinning will be stopped
by brake system.
LINT FILTER
This is used for gathering the
dregs which are made during
washing.
WASH TUB LID
During operation, close the
wash tub lid.
POWER CORD
The plug’s shape may not correspond
with this drawing.
“WARNING-THIS APPLIANCE
MUST BE EARTHED”
SAFETY COVER
INNER LID
SPIN DRYER BASKET.
WATER DRAIN HOSE
(NON-PUMP MODEL)
GUIDE
CASCADE
!#@$%
DW-800C(¿ )-Deme 01.3.26 9:32 PM ˘`1
Page 2
2
■ TO WASH
! Before starting washing, check followings.
Lay the drain hose down toward a sink hole.
(In case no drain pump model)
Place the drain hose in sink or bath.
(In case drain pump model)
Connect the water supply hose and open the water tap.
Connect the power cord to the power supply outlet.
@
Set theWASH ACTION SELECTOR to the desired mode.
#
Set theVALVE SELECTOR to“WASH • RINSE”.
(In case drain pump model “WASH • RINSE” OR “OFF”)
■ TO RINSE
! Set the VALVE SELECTOR to “WASH • RINSE”.
(In case drain pump model “WASH • RINSE” or “OFF”)
@
Supply the proper amount of water.
#
Set theWASH TIMER 2~3 minutes.
■ TO OVER FLOW RINSE
! Set the VALVE SELECTOR to “WASH • RINSE”.
(In case drain pump model “WASH • RINSE” or “OFF”)
@
Keep suppling water. (Adjust water pressure to ensure
that the amount of supplied dose not exceed the
amount of drain.)
#
Set theWASH TIMER 6~8 minutes.
■ TO SPIN RINSE(ADDITIONAL COURSE)
After rinsing you can select this course for more effective rinse.
! Load the laundry evenly into the spin basket.
@
Cover the laundry with safety cover and close the inner lid.
#
Close the spin dryer lid.
$
Set theWATER GUIDE KNOB to “SPIN”.
■ TO SPIN DRY
!
Transfer the landry into the spin basket and arrange it evenly.
@
Be sure to put the safety cover and close the inner lid.
#
Close the spin dryer lid.
$
Set the SPIN TIMER1~5 minutes.
■ TO WASH
$
Set theWATER GUIDE KNOB to“WASH”.
%
Fill water in the wash tub up to the indicated water
level and add detergent.(See page 5)
^
Load laundryin the wash tub.
&
Put the wash tub lid.
*
Set theWASH TIMER 1~15 minutes.
(
After washing,set the VALVE SELECTORto “DRAIN”
for drain.
$ Drain the water.
Set the VALVE SELECTOR to “DRAIN”.
%
Repeat this cycle until drain water is clean.
(2~3 cycles)
$ As soon as the WASH TIMER shuts off or the rinsing
water became clear, turn off the water tap.
% Drain the water.
Set the VALVE SELECTOR to “DRAIN”.
% Supply water for about 1 minute.
Adjust the water flow not to overflow to the side of the
wash tub.
^
After water supply, Set the SPIN TIMER 1~2 minutes.
&
Repeat % ~^ , if you want.
WASHING PROCEDURE
DW-800C(¿ )-Deme 01.3.26 9:32 PM ˘`2
Page 3
3
■ Be sure that the washer is grounded.
To avoid electrical shock, use a metal pipe for the ground
connection.
But, do not ground the washer with gas pipes or telephone
lines to avoid dangers of explosion or lightning strike.
■ Do not put your hands into the spin dryer
basket when it is spinning.
Your fingers can be caught by spinning laundry and
damaged.
■ Never allow children to operate or play
with the washer.
Children playing with the washer may accidentally fall into
the washing tub.
■ Disconnect the power cord from the power
supply when not in use.
■ Ventilation
openings must not be obstructed by
carpeting when the washing machine is installed on a
carpeted floor.
■ Turn off the SPIN Timer immediatelywhen the
spin dryer makes noise and vibration excessively during
spinning.
■
Put the wash tub lid on washing machine when
you wash laundries. It is possible to over flow if
wash tub lid is not put on wash machine.
CAUTIONS
■ Don’t use excessively hot water.
(Below 50°C)
Plastic parts may be deformed or damaged.
Also, clothing may be deformed or decolored.
■ Before washing, check all pockets.
If nails or pins remain in pockets, they may damage the
washer or clothes.
■ Close the water tap a little if the water
pressure is too high.
■ Be sure to cover with the safety cover on
laundry before spinning.
This prevents laundry from being tossed out and damaged.
■ To avoid water splashes, close the wash
tub lid.
■ Maintain water pressure under 1kg/cm
2
during water feeding and spinning. It is
possible to overflow under high pressure.
■ Do not use overflow rinse when the laundry
weight more than 3kg, because the water
may flow over the wash tub.
PRECAUTIONS WHEN OPERATING
■ Make sure that electric connector is set for your
available voltage before operating the washing machine.
■ This unit is set for 220V. (~240V)
■ If you want to change the voltage, remove the back cover
and reset the connector as figures.
ELECTRIC CONNECTION
(ONLY FOR DUAL VOLTAGE MODEL)
DW-800C(¿ )-Deme 01.3.26 9:32 PM ˘`3
Page 4
4

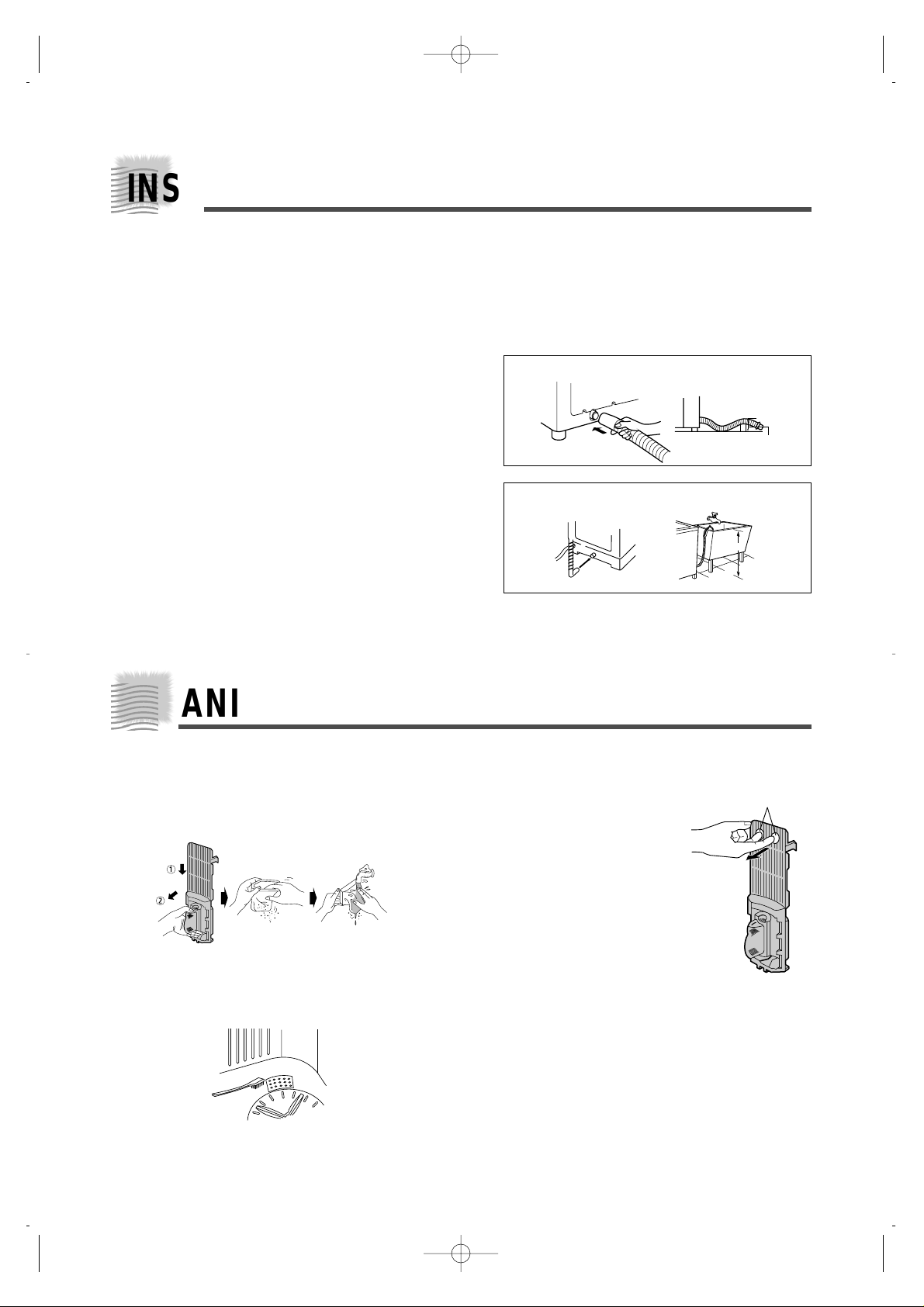

INSTALLA TION
■
LOCA TION & ENVIRONMENT
Leave some space.
Space at least 10cm between the washer and the wall.
Place washer on a sturdy and flat surface.
If the washer is placed on an uneven or weak surface,
noise or vibration may be occurred.
(Allowable inclination is max. 2°)
Never install the washer near water.
Do not place the washer in steamy rooms or where the
washer is directly exposed to rain.
Moisture may destroy the electrical insulation and cause
an electric shock hazard.
Avoid direct sunlight or heating devices.
As plastic and electrical components are affected by direct
heat, never place the washer near heater, boilers, etc..
Do not place it under direct sunlight.
Avoid cold place.
Do not place or store the washer below 0°C(32°F) to avoid
any damage from freezing.
■
INLET HOSE SETTING
Attach the water inlet hose to the water inlet located near
WATER GUIDE KNOB.
■
DRAIN HOSE SETTING
! Connect the drain hose to the drain outlet at the rear
side of your washer.
@ The other end of drain hose setting toward the bath
or sinkhole.
# Install the drain hose under 85cm from the ground.
(In case DRAIN PUMPmodel)
85Cm
(NO DRAIN PUMP)
(PUMP)
CLEANING & MAINTENANCE
■
CLEANING THE LINT FIL TER
If the dregs are piled up in the lint filter after finishing the
wash, push down and pull it out as shown in figure.
■
CLEANING THE DRAIN FIL TER
In case of incomplete drain, remove the lint from the drain
filter with soft brush.
■
CLEANING THE OVER FLOW FIL TER
Insert your fingers into the hole “A”
and then full the overflow filter
in the direction of arrow as shown
in the figure.
■
CLEANING THE WASH TUB
Fill water in the wash tub to “L” level,
then drain water from the wash tub
simultaneously with operating wash
cycle for 1~2 minutes.
Close the wash tub lid.
■
CLEANING THE WASHER BODY
Wipe of stains on the base and the control panel with soft
cloth.
Do not use benzene, thinner, cleanser or wax.
(Painted surface or plastic parts will be damaged.)
Proper care of your washer can extend its life.
A
DW-800C(¿ )-Deme 01.3.26 9:32 PM ˘ `4
Less than 10cm
Page 5
5
DIMENSIONS(WxDxH,mm) 810mmx475mmx950mm(WxDxH)
WEIGHT 24 Kg (NON-PUMP MODEL) 25 Kg (PUMP MODEL)
WATER PRESSURE 0.2kg/cm
2
~3.0kg/cm2(2N/cm2~30N/cm2)
WATER CONSUMPTION LOW(44l), MID(52l), HIGH(60l)
POWER SOURCE REFER TO SPECIFICATION LABEL
RATING TIME Washing Continuous Spinning 15 minutes
BEFORE YOU CALL FOR SERVICE
SPECIFICATIONS
LAUNDRY GUIDE
■
WASHING TIME & WASH ACTION TABLE
■
WHEN YOU PUT THE LAUNDRY INTO THE
SPIN BASKET
Press the laundry evenly and put the safety cover into the
spin basket drum as shown in figures.
The amount of detergent is average.
Follow the instructions printed on the package of detergent for
amount of detergent.
Choose the amount of detergent depending on the fabric type.
When you fill the water up in the wash tub,
refer the upper line of each marksd on the
overflow filter.
KIND OF CLOTHING
WASHING TIME WASH ACTION
Extremely soiled heavy fabric 10~15 minutes
STRONG
Linen, cotton, etc. 8~10 minutes
Ordinary clothes (underwear, etc.)
7 minutes
Slightly soiled synthetic fabric 2~5 minutes
100% wool, mixed wool knitting,
NORMAL
thin synthetic fabric with tags 2~5 minutes
indicating hand washing
■
SPIN DRY TIME
TIME TYPE OF LAUNDRY
1 min. thin (synthetic fabric)
1~2 min. wool
3~5 min. cotton
5 min. thick (cotton)
■
WATER LEVEL & DETERGENT
AMOUNT OF DET. WATER LEVEL
44g LOW(44l)
52g MID(52l)
60g HIGH(60l)
TROUBLE CHECK POINT
The washer
Check the power cord is connected
does not work.
to a power outlet well.
Power stoppage?
Clothes will not
Is the laundry overloaded?
move freely.
Incomplete spinning Is the laundry arranged evenly?
TROUBLE CHECK POINT
Is the drain filter clogged with lint?
Incomplete draining
Power stoppage?
The spin dryer Is the spin dryer lid closed
basket will not run. completely?
H
¢”
M
¢”
L
¢”
* Design and specifications are subject to change without notice.
DW-800C(¿ )-Deme 01.3.26 9:33 PM ˘ `5
Page 6
WARNING
■ Against humidity
Don’t install your washer at the place of
extremely high humidity.
■ Never splash water on the control panel.
■ If your washer is installed in the area
subject to freeze, ensure that it is
completely drained after use.
WELCOME!
THANK YOU FOR PURCHASING THIS
WASHING MACHINE
SOME FEATURES ARE:
■ Big Pulsator (eccentrically shaped) that lets
the laundry rotate up and down easily.
Especially blanket, long skirt and blue jean.
■ Spin rinse function that helps rinsing.
■ Under base that is partitioned effectively, so
prevents rats and noise.
■ Lint filter that seperates lint from the
laundry.
WASHING MACHINE
INSTRUCTION MANUAL
Model : DW-800C
DW-800C(¿ )-Deme 01.3.26 9:33 PM ˘ `6
