Page 1
S/M No. : DW2500SE03
Service Manual
Washing Machine
Model: DW-2500 / 2510 / 2520
DW-2530 / 2540 (P)
✔
Caution
: In this Manual, some parts can be changed for improving, their
performance without notice in the parts list. So, if you need the
latest parts information,please refer to PPL(Parts Price List) in
Service Information Center (http://svc.dwe.co.kr).
DAEWOO ELECTRONICS CO., LTD.
http : //svc.dwe.co.kr Nov. 2000

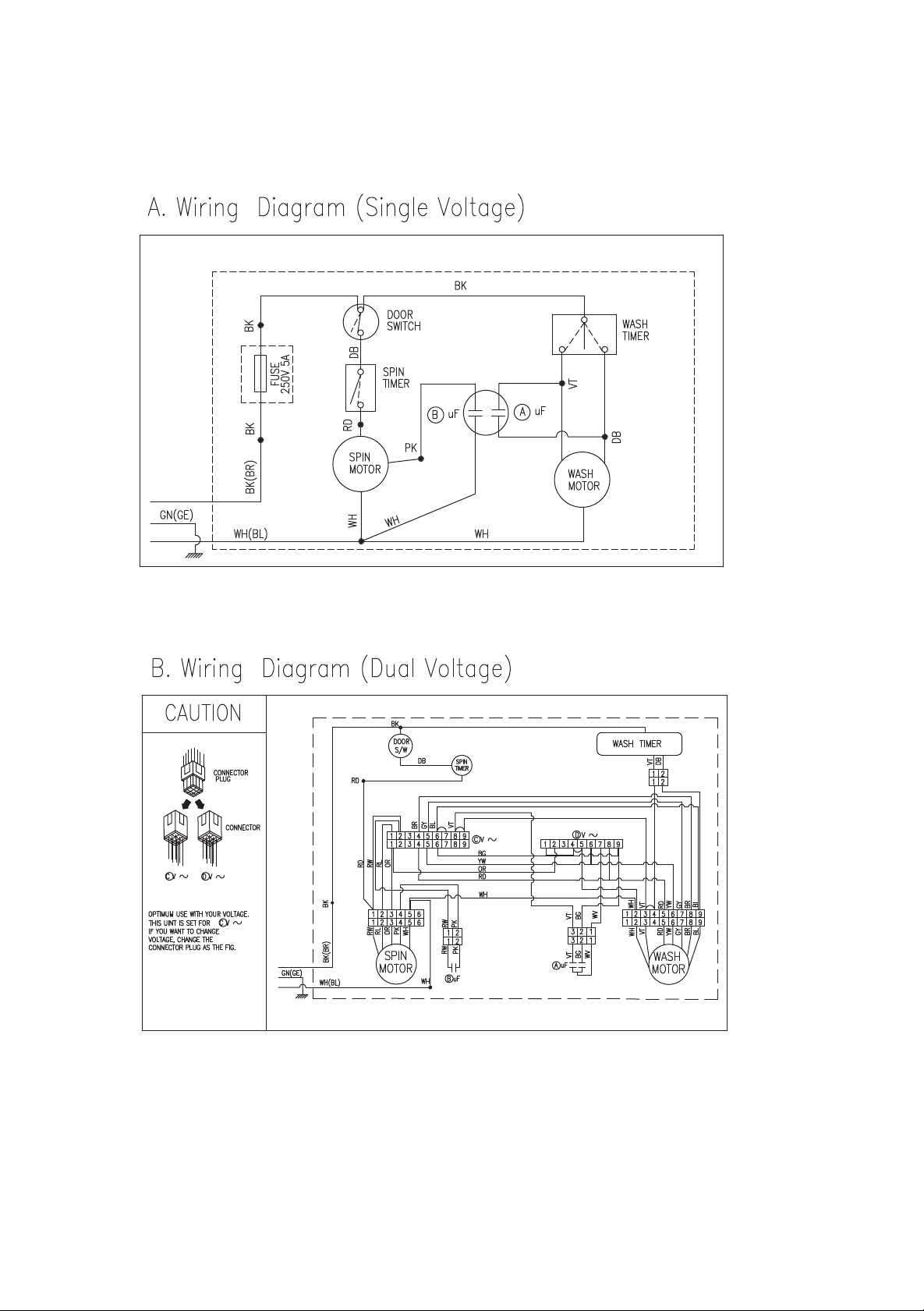

Page 2
Page 3
PANEL ASSY
✔ Caution :
NO PART CODE PART NAME Q'TY MATERIAL REMARKS
1 3611602801 DECORATOR 1 PET FILM 0.188T DWM-2520
2 3613400502 KNOB 3 ABS "DWM-2520,2530,2540"
3 7122401411 SCREW TAPPING 3 T2S TRS 4*14 MFZN
4 3610065010 PANEL 1 PP DWM-2530
5 3619900101 TIMER WASH 1 "SAN,S-K51A" "DWM-2530,2520,2510"
6 7122401411 SCREW TAPPING 2 T2S TRS 4*14 MFZN
7 4509A07050 SPRING PLATE 1 8 3613700300 LEVERCONTROL 1 POM "DWM-2530,2520"
9 3617802000 LINK VALVE 1 "PP,620MM" "DWM-2500,2540"
10 7341500811 TIMER SPIN 1 "SAN,S-2510A" "DWM-2530,2520,2510"
11 7122401411 SCREW TAPPING 2 T2S TRS 4*14 MFZN
In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list.
So, if you need the latest parts information, please refer to PPL (Parts Price List) in Service Information Center
(http://svc.dwe.co.kr)
3611604901 DWM-2530
450BA23002 "DWM-2500,2510"
3614209900 HIPS DWM-2540
3614202700 DWM-2520
3614200800 DWM-2510
3614201000 DWM-2500
3619900110 "PC,S-K51C"
450BA47001 "SAN,S-K25A" "DWM-2500,2540"
45OBA47031 "PC,S-K25C"
3613700900 "DWM-2510,2500,2540"
3617802100 "PP,644MM" DWM-2510
3617802200 "PP,636MM" "DWM-2520,2530"
3619400901 "PC,S-251B"
3619400300 "SAN,S-2500A" "DW-2500,2540"
3616000703 "PC,S-2500B"
Page 4
TUB ASSY
✔ Caution :
In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list.
So, if you need the latest parts information, please refer to PPL (Parts Price List) in Service Information Center
(http://svc.dwe.co.kr)
NO PART CODE PART NAME MATERIAL REMARKS Q'TY
1 3611406600 COVER WASH PP "DWM-2530,2540" 1
3611702900 HIPS DWM-2520
450BA35010 "DWM-2500,2510"
2 3616002901 SPECIAL SCREW SUS304 - 1
3 450AA32003 PULSATOR AS PP(INSERT) "DWM-2500,2510,2520,2530,2540" 1
4 450M705030 DRAIN STRAINER PP 1
5 3610301800 BASE WATER SUPPLY PP "DWM-2530,2540" 1
450BA66010 "DWM-2500,2510,2520"
6 450BA40010 FILTER PP "DWM-2530,2540" 1
3611902900 "DWM-2500,2510,2520"
7 3616401200 BELLOWS NBR 1
8 3612005000 FIXTURE BELLOWS PP 1
9 7122401411 SCREW TAPPING T2S TRS 4*14 1
10 3619000400 SWITCH SAFETY AS "15A,250VAC" 1
3619044900 LIP TYPE
11 3610909400 CAP VALVE PP 1
12 71224016114 SCREW T2 TRS 4X16 "DWM-2530,2540" 4
13 3618801400 TUB PP "DWM-2530,2540" 1
450BA05010 "DWM-2500,2510,2520"
14 3611103000 CASE AS - 1
15 3612300500 GASKET NBR 1
16 3616000300 SPECIAL NUT FRPP 1
17 36184015000 PULLEY PULSATOR FRPP "DWM-2500,2510,2520,2530,2540" 1
18 3616008300 SPECIAL BOLT SM18C+SILOCK 1
19 7392050611 NUT PULLEY 6N-2-6 1
20 3610909400 CAP VALVE PP 1
21 3615406700 VALVE ROD PP 1
22 4505C06022 SPRING VALVE SWC WR 1.0D 1
23 4509A06043 BELLOWS NR 1
24 4509A06072 TUB DRAIN HOSE PE 1
25 450BA06050 JOINT PP 1
26 3611417000 SAFETY COVER LDPE "DWM-2500,2510,2520,2530,2540" 1
27 3614602100 RING BASKET PP 1
28 7122401211 SCREW TAPPING T2 TRS 4*12 1
29 3619102900 SPIN BASKET PP 1
30 3614515401 PLATE SHAFT AS "AL+SUS304,108MM" 1
31 3613800910 LINK BRAKE "PP, 5*0.7*392MM" "DWM-2500,2510,2520" 1
3617803000 PP "DWM-2530,2540"
32 450BA01040 SPRING COVER HSW3 1
Page 5
✔ Caution :
NO PART CODE PART NAME MATERIAL REMARKS Q'TY
33 3611704700 DOOR SPIN PP "DWM-2530,2540" 1
34 3611704000 COVER INNER PP 1
35 3614507100 PLATE TOP PP "DWM-2530,2540" 1
36 3613208801 DRAIN HOSE "PE, L=620" "DWM-2530,2540" 1
37 3610004203 ASSY BRAKE WIRE "SWC,L=252" "DWM-2500,2510,2520,2530,2540" 1
In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list.
So, if you need the latest parts information, please refer to PPL (Parts Price List) in Service Information Center
(http://svc.dwe.co.kr)
3611703000 HIPS DWM-2520
450BA35010 "DWM-2500,2510"
450BA33010 "DWM-2500,2510,2520"
4506A56001 "PE, L=755" "DWM-2500,2510,2520"
Page 6
BASE ASSY
✔ Caution :
NO PART CODE PART NAME MATERIAL REMARKS Q'TY
1 450M700020 V-BELT M-32 1
2 7392800011 NUT HEX M8-P1.25 1
3 7401008011 WASHER SPRING SW-8 MFZN 1
4 7400108411 WASHER PLAN "PW-1-8.4, MFZN" 1
5 3618431800 PULLEY MOTOR 50HZ "2.5KG(NE,ME,DE)" 1
6 3616017010 SPECIAL SCREW T2 TRS 4*35 MFZN 3
7 3964310940 MOTOR WASH "220V,50/60HZ" 1
8 450M712020 CUSHION MOTOR-WA NR 3
9 450M712010 CUSH SUPPORT PLT PP 1
10 3618431800 SCREW T2 PAN 4X14 "DWM-2500,2510,2520" 6
11 3610301700 BASE PP "DWM-2530,2540" 1
12 3618957140 UNIT CAPACITOR AS 6.5/2.6UF "220V,50/60HZ, 240V/50HZ" 1
13 450E411050 CAPATOR SPIN 12.4UF "100V,50/60HZ, 100/220V,50HZ" 1
14 3611701000 LEG PP "DWM-2530,2540" 4
15 7122401411 SCREW TAPPING T2 TRS 4*14 4
16 7393600011 NUT HEX 6N-3-6 MFZN 2
17 7342602011 BOLT HEX 6B-2 6*20 2
18 3619400300 DRUM COUPLING AL 1
19 7341500811 BOLT HEX 6B-1-5*8 MFZN 3
20 3615109000 SPRING BRAKE "SWC ZN8-C, D1.0" 1
21 3613701100 LEVER BRAKE SPG 1
22 3614515700 FIX PLT BRAKE GA 1
23 7122401611 SCREW T2 TRS 4*16 3
24 3964310802 MOTOR SPIN "220V,50/60HZ" 1
In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list.
So, if you need the latest parts information, please refer to PPL (Parts Price List) in Service Information Center
(http://svc.dwe.co.kr)
3618431700 60HZ "2.5KG(LE,SE)"
450AC40012 "240V,50HZ"
450AF40011 "110/220V,50HZ"
450AB40012 "127/220V,60HZ"
3964130401 "100V,50/60HZ"
450AD40012 "110V, 60HZ"
450BA34010 "DWM-2500,2510,2520"
3618942210 24.8/9UF 110V/60HZ 1
450E411080 CAPATOR WASH 16*2UF "110/220V,50HZ" 1
450E411110 10.4*2UF "127/220V,60HZ"
450AJ11010 20.8*2UF "100,50/60HZ"
4505411090 7.6UF "127/220V,60HZ" 1
450BA34020 "DWM-2500,2510,2520"
450AC41003 "240V,50HZ"
450AF41002 "110/220,50HZ"
450AB41002 "127/220V,60HZ"
3964130501 "100V,50/60HZ"
450AD41003 "110V,60HZ"
Page 7
✔ Caution :
In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list.
So, if you need the latest parts information, please refer to PPL (Parts Price List) in Service Information Center
(http://svc.dwe.co.kr)
NO PART CODE PART NAME MATERIAL REMARKS Q'TY
25 3964130501 STOPPER TOP PP 1
26 3615100101 SPRING CUSHION PP(JI-360) 1
27 3610106400 ABSORBER SBS 1
28 450M714040 STOPPER UNDER PP 1
29 3611407100 BACK COVER PP(J-380A) "DWM-2530,2540" 1
450BA00010 "DWM-2500,2510,2520"
30 7122401411 SCREW TAPPING T2 TRS 4*14 MFZN 1
31 7272400811 SCREW TAPPTITE TT3 TRS 4*8 MFZN 1
32 3612701011 HARNESS "GR/YE, L=650MM" 1
33 WUK43K763- POWER CORD CP-2PIN 1
W-V15N763- 3CORE
3611335400 EP-3PIN
WPK43K763- BS-1363
3613224210 SOUTH AFRICA
3611335900 PLAT 2PIN
3611301710 EU-2PIN
WWK43K763- INDIA 3PIN
