Page 1
Television-VCR Combo
(Revision-1)
CHASSIS : CP-420
Subject : Tuner change & New model
Printed date : APR. 1999
DAEWOO ELECTRONICS CO., LTD
Please file and use this Revision-1
for the CP-420 chassis with the
basic service manual.
ADDED MODEL
: DVT-21F1LA/PA/FA
DVT-21F2LA/PA/FA
Service Manual
S/M No:CP420P-011-R1
Page 2
1
Distinguishing method between New Tuner and Old one
If this frame is gray color (old : black),
then the New Tuner (S/N:4859719730) is used.
- 2 Tuners (Old:4859717030, New:4859719730) are not interchangable.
Each tuner should be replaced with the same one.
- But Main PCB Assy ( Old & New ) are interchangable by itself.
CAUTION
Page 3
2

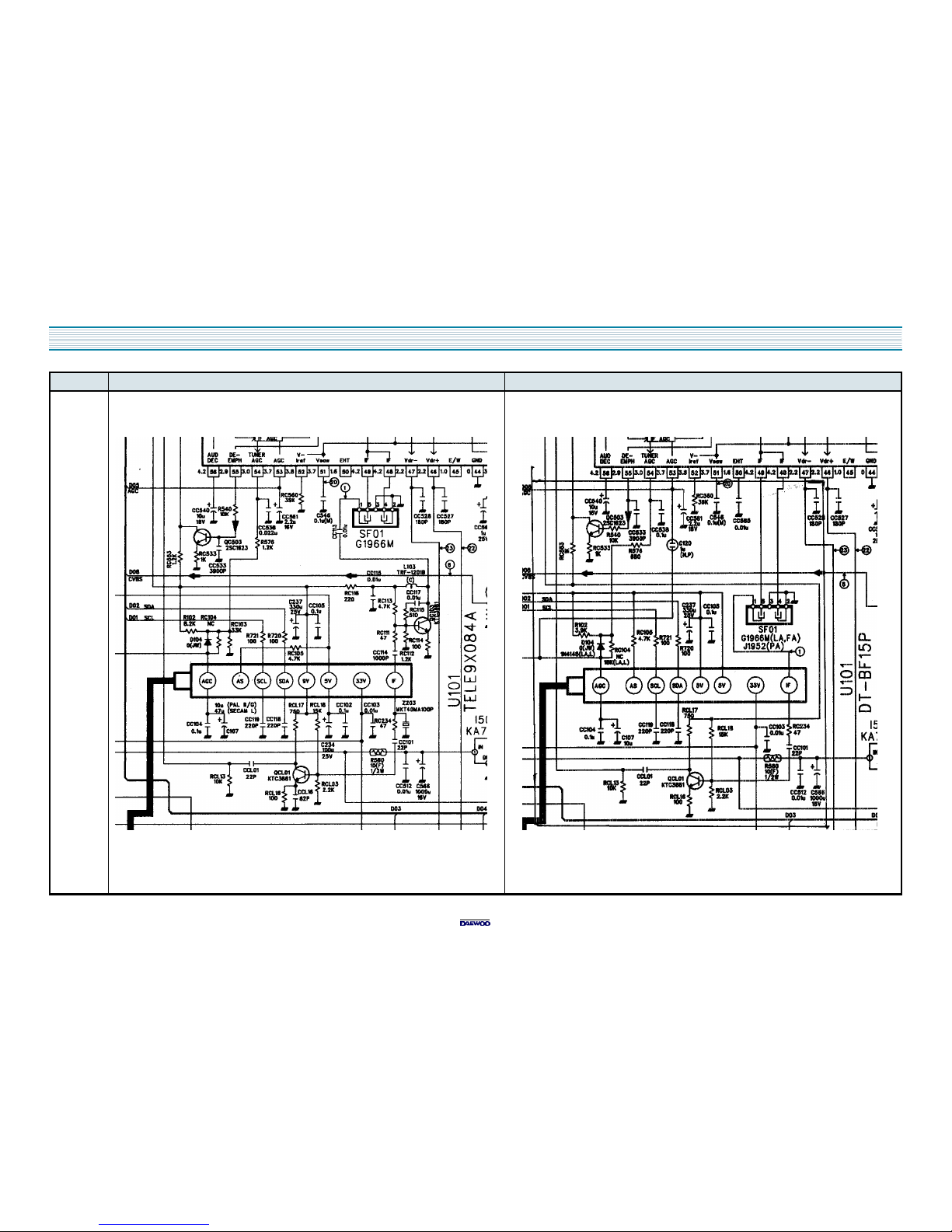

Main PCB Assy Circuit Diagram
SECTION BEFORE AFTER
MAIN
TUNER
Page 4
3
SECTION BEFORE AFTER
SUB
TUNER
Page 5
4
CP-420 Different Parts List for Tuner Change
* CAUTION : 2 TUNERS(4859717030 & 4859719730) ARE NOT INTERCHANGABLE!
99-04-09
NO LOC PART NAME
JAPAN ALPS 9V TUNER(BEFORE) DECC 5V TUNER(AFTER)
REMARK
S/N PART DESC. S/N PART DESC.
1 A001 PCB MAIN 4859801593 330X246 D1B 4859802993 330X246 D1B PCB VERSION CHANGE
2 U101 TUNER VARACT 4859717030 TELE9-084A 4859719730 DT5-BF15P MAIN TUNER
3 U102 TUNER VARACT 4859717030 TELE9-084A 4859719730 DT5-BF15P SUB TUNER
4 C234 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X X X MAIN TUNER(U101) AREA
5 C580 C CERA X X CBZR1C472M 16V Y5V 4700PF M (AX EMC IMPROVE
6 C582 C CERA CCZB1H102K 50V B 1000PF K (AXIA X X EMC IMPROVE
7 C711 C CERA X X CCZF1E103Z 25V F 0.01MF Z (AXIA TIMER(I701) AREA
8 C822 C ELECTRO CEXF1C471C 16V RUS 470MF (10X12 CEXF1C102C 16V RUS 1000MF (10X2 POWER ASSY 5V LINE
9 C832 C ELECTRO CEXF1C471V 16V RSS 470MF (10X12 CEXF1C102C 16V RUS 1000MF (10X2 POWER ASSY 5V LINE
10 C835 C MYLAR CMXE2J222J 630V PU 2200PF J (TP CCXR3D102K HIRK 2KV 1000PF K 12 POWER ASSY SMPS IMPROVE
11 CC102 C CHIP CERA HCFK104ZCA 50V Y5V 0.1MF Z 2012 X X MAIN TUNER(U101) AREA
12 CC108 C CHIP CERA HCBK102KCA 50V X7R 1000PF K 20 X X SUB TUNER(U102) AREA
13 CC110 C CHIP CERA HCBK103KCA 50V X7R 0.01MF K 20 X X SUB TUNER(U102) AREA
14 CC111 C CHIP CERA HCBK103KCA 50V X7R 0.01MF K 20 X X SUB TUNER(U102) AREA
15 CC112 C CHIP CERA HCBK103KCA 50V X7R 0.01MF K 20 X X SUB TUNER(U102) AREA
16 CC113 C CHIP CERA HCBK103KCA 50V X7R 0.01MF K 20 X X MAIN TUNER(U101) AREA
17 CC114 C CHIP CERA HCBK102KCA 50V X7R 1000PF K 20 X X MAIN TUNER(U101) AREA
18 CC115 C CHIP CERA HCBK103KCA 50V X7R 0.01MF K 20 X X MAIN TUNER(U101) AREA
19 CC116 C CHIP CERA HCQK101JCA 50V CH 100PF J 2012 X X MAIN TUNER(U101) AREA
20 CC117 C CHIP CERA HCBK103KCA 50V X7R 0.01MF K 20 X X MAIN TUNER(U101) AREA
21 CC207 C CHIP CERA HCFK104ZCA 50V Y5V 0.1MF Z 2012 X X SUB TUNER(U102) AREA
22 CC211 C CHIP CERA HCQK820JCA 50V CH 82PF J 2012 X X SUB TUNER(U102) AREA
23 CC519 C CHIP CERA HCBK102KCA 50V X7R 1000PF K 20 X X EMC IMPROVE
24 CC521 C CHIP CERA HCBK102KCA 50V X7R 1000PF K 20 X X EMC IMPROVE
25 CC532 C CHIP CERA HCQK680JCA 50V CH 68PF J 2012 HCQK220JCA 50V CH 22PF J 2012 SIF IN(I701#1) AREA
26 CC580 C CHIP CERA HCBK102KCA 50V X7R 1000PF K 20 X X EMC IMPROVE
27 CC582 C CHIP CERA X X HCBK102KCA 50V X7R 1000PF K 20 EMC IMPROVE
28 CC585 C CHIP CERA X X HCBK103KCA 50V X7R 0.01MF K 20 EMC IMPROVE
29 CC586 C CHIP CERA X X HCBK103KCA 50V X7R 0.01MF K 20 EMC IMPROVE
30 CC587 C CHIP CERA X X HCBK103KCA 50V X7R 0.01MF K 20 EMC IMPROVE
31 CCL16 C CHIP CERA HCQK820JCA 50V CH 82PF J 2012 X X MAIN TUNER(U101) AREA
32 CCL32 C CHIP CERA X X HCBK103KCA 50V X7R 0.01MF K 20 EMC IMPROVE
33 CCY10 C CHIP CERA X X HCQK221JCA 50V CH 220PF J 2012 A/V ONE CHIP(IY01) AREA
34 CCY38 C CHIP CERA HCBK472KCA 50V X7R 4700PF K 20 X X A/V ONE CHIP(IY01) AREA
35 CCY40 C CHIP CERA HCBK122KCA 50V X7R 1200PF K 20 X X A/V ONE CHIP(IY01) AREA
36 CCY41 C CHIP CERA HCBK222KCA 50V X7R 2200PF K 20 X X A/V ONE CHIP(IY01) AREA
37 CCY53 C CHIP CERA HCBK122KCA 50V X7R 1200PF K 20 X X A/V ONE CHIP(IY01) AREA
38 CCY59 C CHIP CERA HCBK473KCA 50V X7R 0.047MF K 2 X X A/V ONE CHIP(IY01) AREA
Page 6
5
39 CCY61 C CHIP TANTAL X X HCTAH109MB 25V 1MF M 3216 A/V ONE CHIP(IY01) AREA
40 CCY96 C CHIP CERA HCBK103KCA 50V X7R 0.01MF K 20 X X A/V ONE CHIP(IY01) AREA
41 CCY97 C CHIP CERA HCBK103KCA 50V X7R 0.01MF K 20 X X A/V ONE CHIP(IY01) AREA
42 CX10 C CERA CCZB1H221K 50V B 220PF K (AXIA X X A/V ONE CHIP(IY01) AREA
43 CY38 C MYLAR X X CMXM2A472J 100V 4700PF J (TP) A/V ONE CHIP(IY01) AREA
44 CY40 C MYLAR X X CMXM2A122J 100V 1200PF J (TP) A/V ONE CHIP(IY01) AREA
45 CY41 C MYLAR X X CMXM2A222J 100V 2200PF J (TP) A/V ONE CHIP(IY01) AREA
46 CY53 C MYLAR X X CMXM2A122J 100V 1200PF J (TP) A/V ONE CHIP(IY01) AREA
47 CY59 C MYLAR X X CMXM2A473J 100V 0.047MF J (TP) A/V ONE CHIP(IY01) AREA
48 CY61 C ELECTRO CEXF1H109A 50V RSM 1MF (4X7) TP X X A/V ONE CHIP(IY01) AREA
49 CY95 C CERA CBZR1C562M 16V Y5R 5600PF M (AX CMXM2A104J 100V 0.1MF J (TP) A/V ONE CHIP(IY01) AREA
50 CY96 C MYLAR X X CMXM2A103J 100V 0.01MF J (TP) A/V ONE CHIP(IY01) AREA
51 CY97 C MYLAR X X CMXM2A273J 100V 0.027MF J (TP) A/V ONE CHIP(IY01) AREA
52 D112 DIODE ZENER DUZ9R1BM-- UZ-9.1BM 9.1V X X MAIN TUNER(U101) AREA
53 D515 DIODE ZENER X X DUZ6R2BM-- UZ-6.2BM 6.2V PB VIDEO LINE
54 D707 DIODE ZENER DUZ9R1BM-- UZ-9.1BM 9.1V X X
SUB TUNER(U102) AREA
FA,PA,DA.HA,F,P,D,H ONLY
55 J040 WIRE COPPER 85801065GY AWG22 1/0.65 TIN CO X X MAIN TUNER(U101) AREA
56 J129 WIRE COPPER X X 85801065GY AWG22 1/0.65 TIN CO MAIN TUNER(U101) AREA
57 J155 WIRE COPPER X X 85801065GY AWG22 1/0.65 TIN CO MAIN TUNER(U101) AREA
58 J224 WIRE COPPER X X 85801065GY AWG22 1/0.65 TIN CO SUB TUNER(U102) AREA
59 J248 WIRE COPPER 85801065GY AWG22 1/0.65 TIN CO X X A/V ONE CHIP(IY01) AREA
60 J281 WIRE COPPER 85801065GY AWG22 1/0.65 TIN CO X X MAIN TUNER(U101) AREA
61 J283 WIRE COPPER 85801065GY AWG22 1/0.65 TIN CO X X MAIN TUNER(U101) AREA
62 J302 WIRE COPPER X X 85801065GY AWG22 1/0.65 TIN CO MAIN TUNER(U101) AREA
63 J303 WIRE COPPER X X 85801065GY AWG22 1/0.65 TIN CO MAIN TUNER(U101) AREA
64 J304 WIRE COPPER X X 85801065GY AWG22 1/0.65 TIN CO TIMER(I701) AREA
65 J305 WIRE COPPER X X 85801065GY AWG22 1/0.65 TIN CO MAIN TUNER(U101) AREA
66 L101 COIL CHOKE 58C9780027 TRF-1201B (0.97 UH) X X MAIN TUNER(U101) AREA
67 L103 COIL CHOKE 58C9780027 TRF-1201B (0.97 UH) X X MAIN TUNER(U101) AREA
68 L505 COIL PEAKING 5CPZ829K02 8.2UH K (AXIAL 3.5MM 5CPZ220K02 22UH K (AXIAL 3.5MM) SIF IN(I701#1) AREA
69 M391 BRKT EARTH 4853948400 C5212P-1/2M T0.15 X X DECK GND ASSY
70 M392 BRKT EARTH X X 4853948400 C5212P-1/2M T0.15 DECK GND ASSY
71 Q601 TR X X TKRC102M-- KRC 102-M (TAPPING) SOUND AMP IC(I601) AREA
72 QC101 TR CHIP TKTC3881-B KTC3881 X X SUB TUNER(U102) AREA
73 QC103 TR CHIP TKTC3881-B KTC3881 X X MAIN TUNER(U101) AREA
74 QC601 TR CHIP T2SC1623T2 2SC1623-L6/T2B X X SOUND AMP IC(I601) AREA
75 QCN05 TR CHIP T2SC1623T2 2SC1623-L6/T2B X X SYSCON(IN01) AREA
76 R102 R CARBON FILM RD-AZ822J- 1/6 8.2K OHM J RD-AZ392J- 1/6 3.9K OHM J MAIN TUNER(U101) AREA
77 R112 R CARBON FILM RD-AZ122J- 1/6 1.2K OHM J RD-AZ681J- 1/6 680 OHM J SUB TUNER(U102) AREA
78 R122 R CARBON FILM RD-AZ221J- 1/6 220 OHM J X X SUB TUNER(U102) AREA
79 R123 R M-OXIDE FI RS02Z330JS 2W 33 OHM J SMALL X X MAIN TUNER(U101) AREA
NO LOC PART NAME
JAPAN ALPS 9V TUNER(BEFORE) DECC 5V TUNER(AFTER)
REMARK
S/N PART DESC. S/N PART DESC.
Page 7
6
80 R219 R CARBON FILM RD-AZ822J- 1/6 8.2K OHM J RD-AZ392J- 1/6 3.9K OHM J SUB TUNER(U102) AREA
81 R242 R CARBON FILM 85801065GY AWG22 1/0.65 TIN COT RD-AZ512J- 1/6 5.1K OHM J SUB TUNER(U102) AREA
82 R304 R CARBON FILM RD-4Z109J- 1/4 1 OHM J RD-2Z109J- 1/2 1 OHM J
POWER ASSY VER. IC(I301)
AREA
83 R576 R CARBON FILM RD-AZ122J- 1/6 1.2K OHM J RD-AZ681J- 1/6 680 OHM J MAIN TUNER(U101) AREA
84 R738 R M-OXIDE FI RS02Z330JS 2W 33 OHM J SMALL X X
SUB TUNER(U102) AREA
FA,PA,DA.HA,F,P,D,H ONLY
85 R738 R M-OXIDE FI RS02Z270JS 2W 27 OHM J SMALL RS02Z101JS 2W 100 OHM J SMALL
SUB TUNER(U102) AREA LA,L
ONLY
86 RC103 R CHIP HRFT333JCA 1/10 33K OHM J 2012 X X MAIN TUNER(U101) AREA
87 RC106 R CHIP HRFT470JCA 1/10 47 OHM J 2012 X X SUB TUNER(U102) AREA
88 RC107 R CHIP HRFT122JCA 1/10 1.2K OHM J 2012 X X SUB TUNER(U102) AREA
89 RC108 R CHIP HRFT472JCA 1/10 4.7K OHM J 2012 X X SUB TUNER(U102) AREA
90 RC109 R CHIP HRFT470JCA 1/10 47 OHM J 2012 X X SUB TUNER(U102) AREA
91 RC110 R CHIP HRFT122JCA 1/10 1.2K OHM J 2012 X X SUB TUNER(U102) AREA
92 RC111 R CHIP HRFT470JCA 1/10 47 OHM J 2012 X X MAIN TUNER(U101) AREA
93 RC112 R CHIP HRFT122JCA 1/10 1.2K OHM J 2012 X X MAIN TUNER(U101) AREA
94 RC113 R CHIP HRFT472JCA 1/10 4.7K OHM J 2012 X X MAIN TUNER(U101) AREA
95 RC114 R CHIP HRFT470JCA 1/10 47 OHM J 2012 X X MAIN TUNER(U101) AREA
96 RC115 R CHIP HRFT511JCA 1/10 510 OHM J 2012 X X MAIN TUNER(U101) AREA
97 RC116 R CHIP HRFT221JCA 1/10 220 OHM J 2012 X X MAIN TUNER(U101) AREA
98 RC221 R CHIP HRFT333JCA 1/10 33K OHM J 2012 X X SUB TUNER(U102) AREA
99 RC241 R CHIP HRFT000-CA 1/10 0 OHM J 2012 X X SUB TUNER(U102) AREA
100 RC566 R CHIP HRFT561JCA 1/10 560 OHM J 2012 HRFT101JCA 1/10 100 OHM J 2012 SIF IN(I701#1) AREA
101 RC784 R CHIP X X HRFT000-CA 1/10 0 OHM 2012 MAIN TUNER(U101) AREA
102 RCJ16 R CHIP HRFT000-CA 1/10 0 OHM J 2012 X X MAIN TUNER(U101) AREA
103 RCJ45 R CHIP HRFT000-CA 1/10 0 OHM J 2012 X X MAIN TUNER(U101) AREA
104 RCL07 R CHIP HRFT333JCA 1/10 33K OHM J 2012 X X MAIN TUNER(U101) AREA
105 RCN62 R CHIP HRFT103JCA 1/10 10K OHM J 2012 X X SYSCON(IN01) AREA
106 RCY15 R CHIP HRFT681JCA 1/10 680 OHM J 2012 HRFT271JCA 1/10 270 OHM J 2012 A/V ONE CHIP(IY01) AREA
107 RCY18 R CHIP HRFT103JCA 1/10 10K OHM J 2012 HRFT182JCA 1/10 1.8K OHM J 2012 A/V ONE CHIP(IY01) AREA
108 RCY29 R CHIP HRFT303JCA 1/10 30K OHM J 2012 X X A/V ONE CHIP(IY01) AREA
109 RL07 R CARBON FILM X X RD-AZ333J- 1/6 33K OHM J MAIN TUNER(U101) AREA
110 RY27 R CARBON FILM RD-AZ473J- 1/6 47K OHM J RD-AZ333J- 1/6 33K OHM J A/V ONE CHIP(IY01) AREA
111 RY29 R CARBON FILM X X RD-AZ303J- 1/6 30K OHM J A/V ONE CHIP(IY01) AREA
112 WA01 WIRE LEAD 100 X X WP-0BK8017 AWG22 7/0.26 BK 10- EMC IMPROVE
113 Z203 FILTER CERA 5PMKT40MA- MKT40MA100P X X MAIN TUNER(U101) AREA
114 Z205 FILTER CERA 5PMKT41MA- MKT40MA100P X X SUB TUNER(U102) AREA
NO LOC PART NAME
JAPAN ALPS 9V TUNER(BEFORE) DECC 5V TUNER(AFTER)
REMARK
S/N PART DESC. S/N PART DESC.
Page 8
7

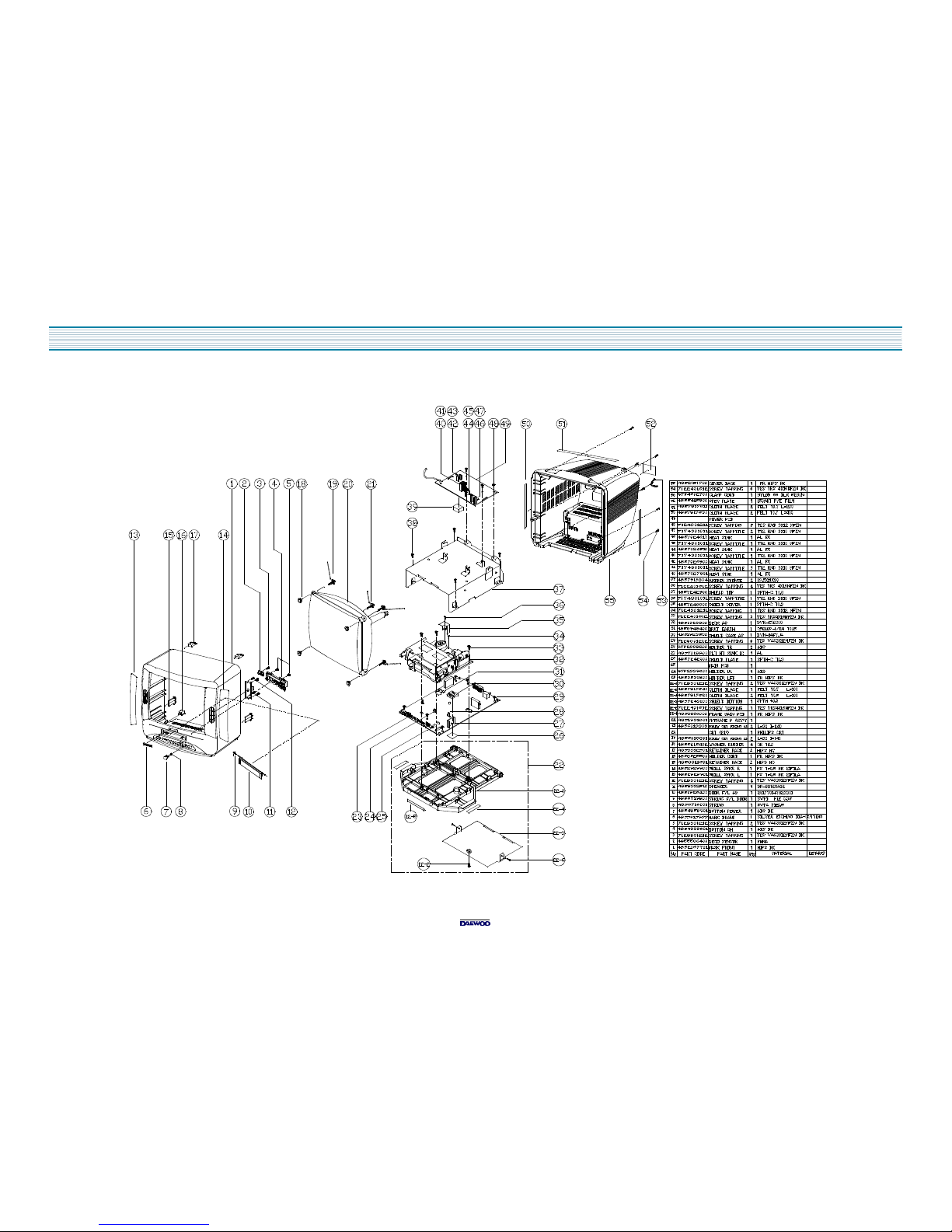

Exploded View ( DVT-21F1 model)
Page 9
8

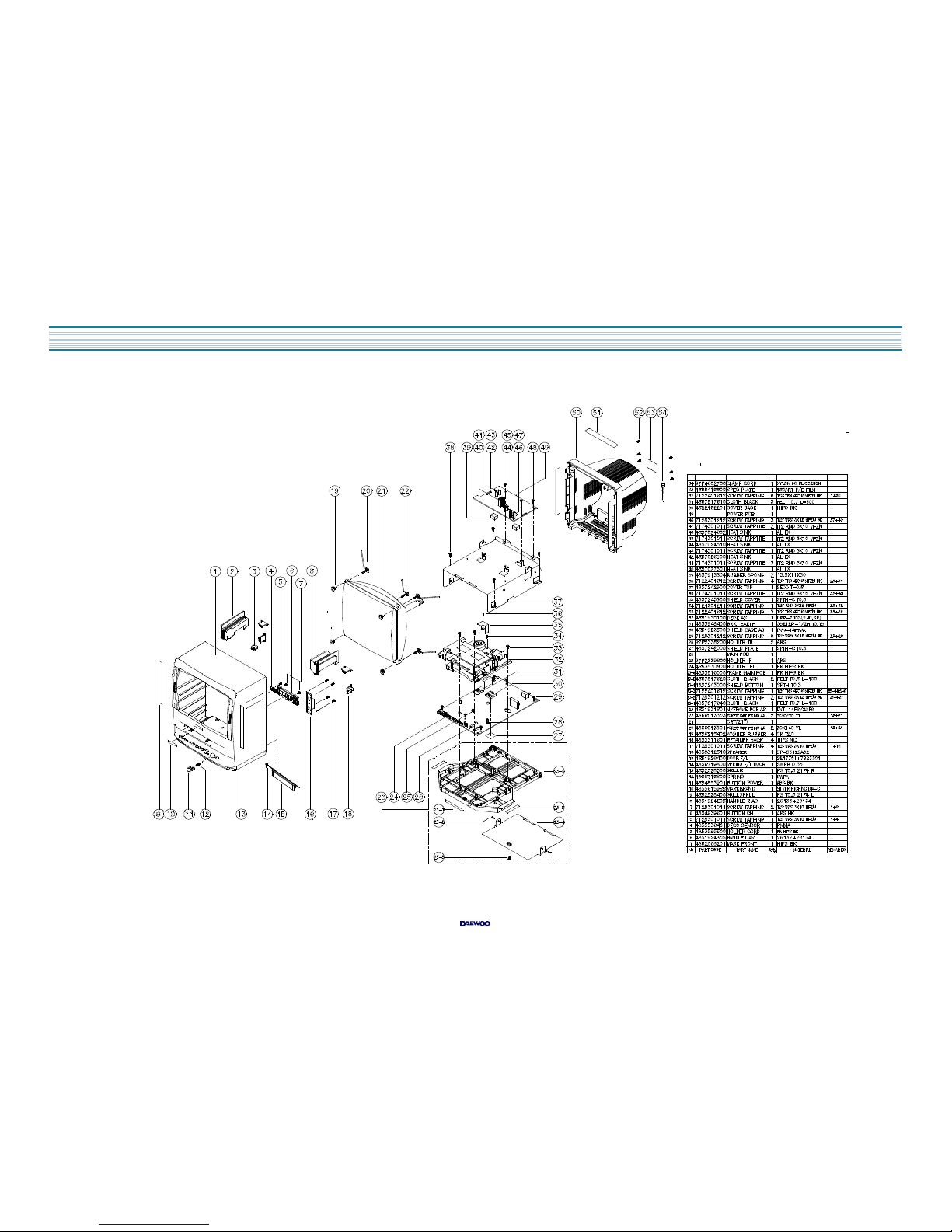

Exploded View ( DVT-21F2 model)
