Daewoo DTW-3300ST Schematic

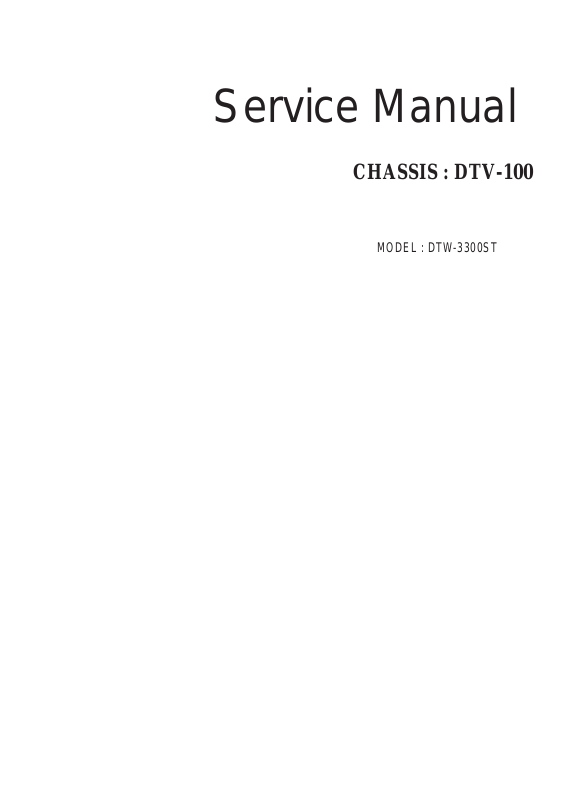

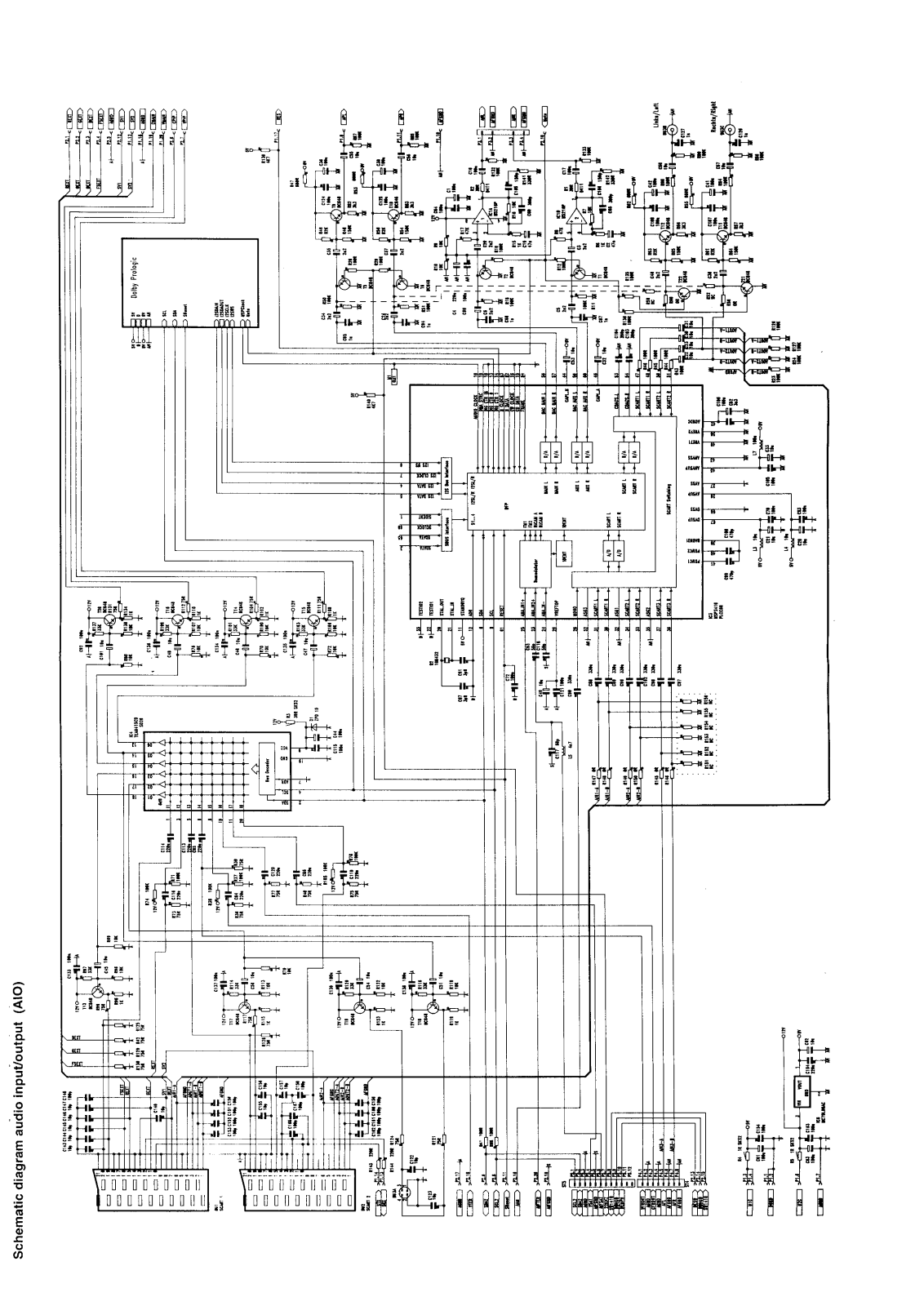

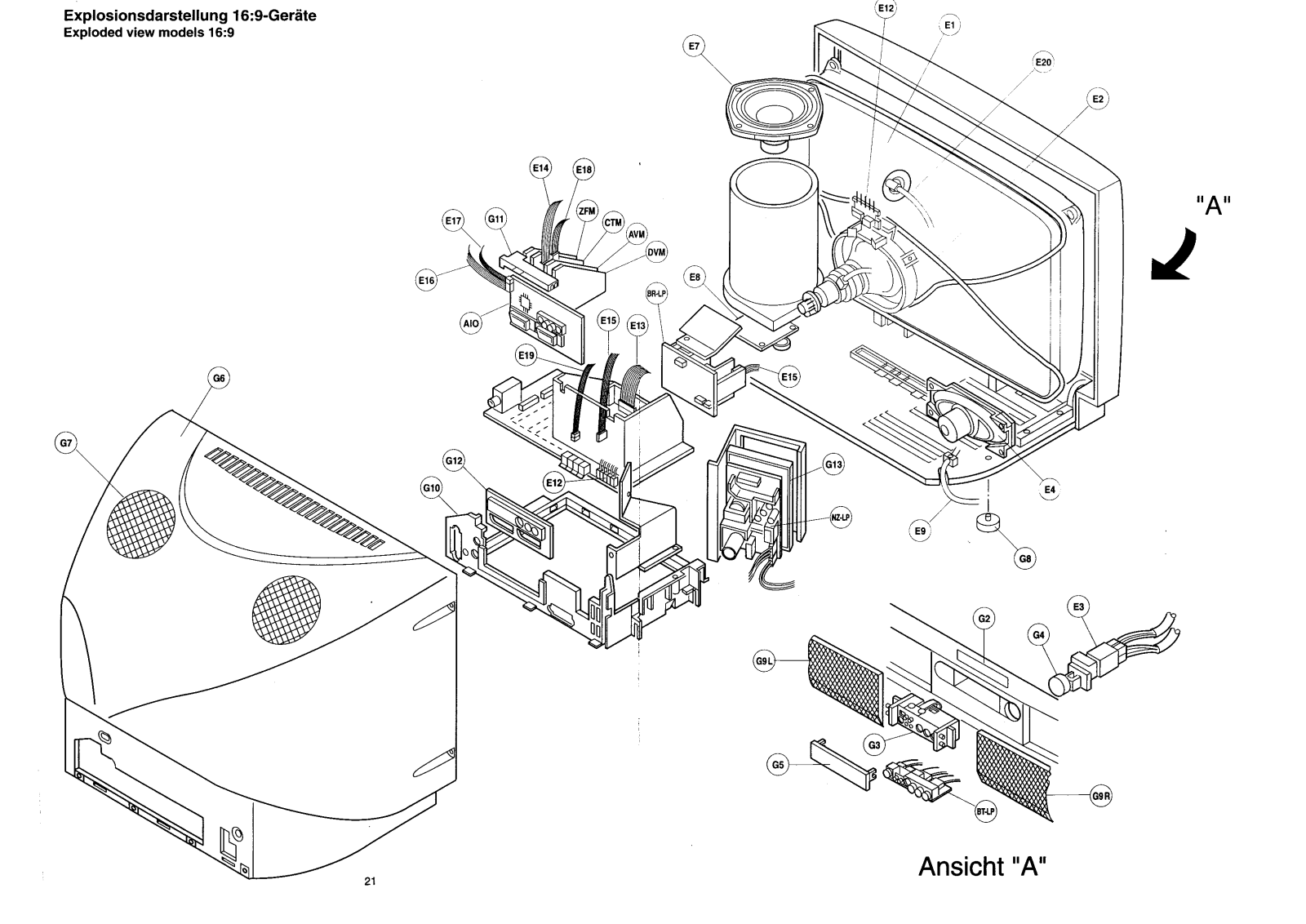

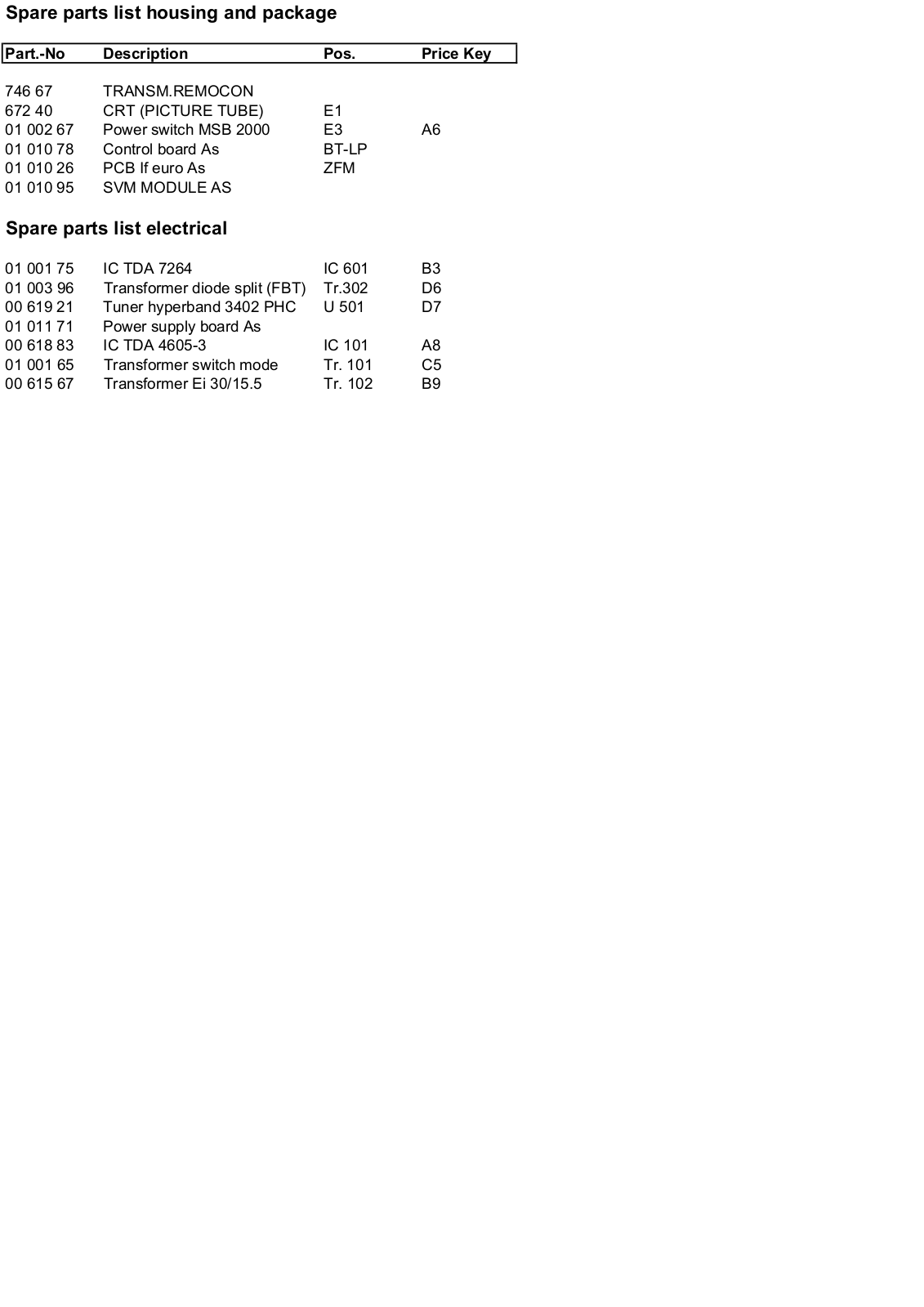

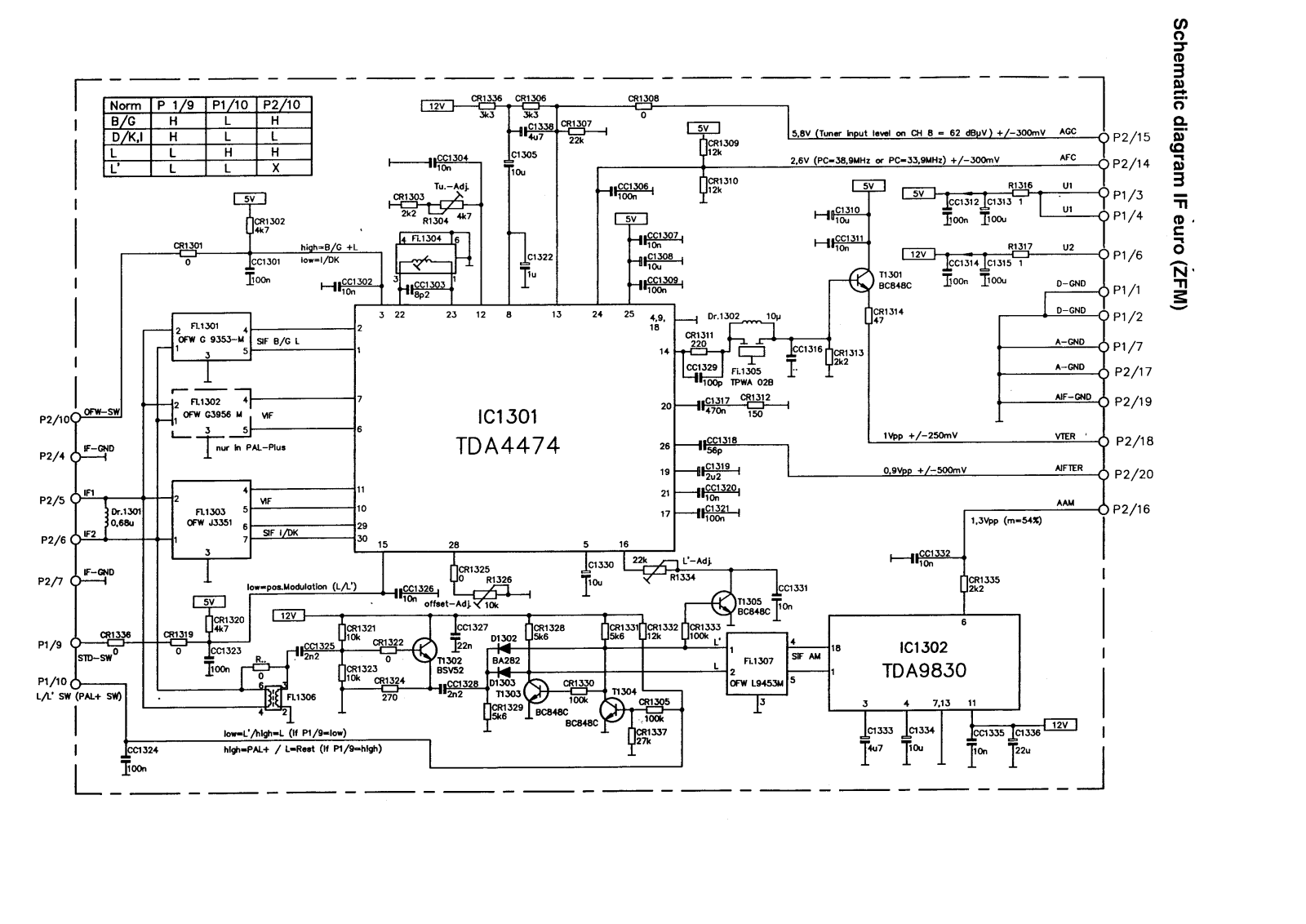

Service Manual
CHASSIS : DTV-100
MODEL : DTW-3300ST
Schematic diagram picture board for 16:9/32" |
Picture board 16:9/32" |

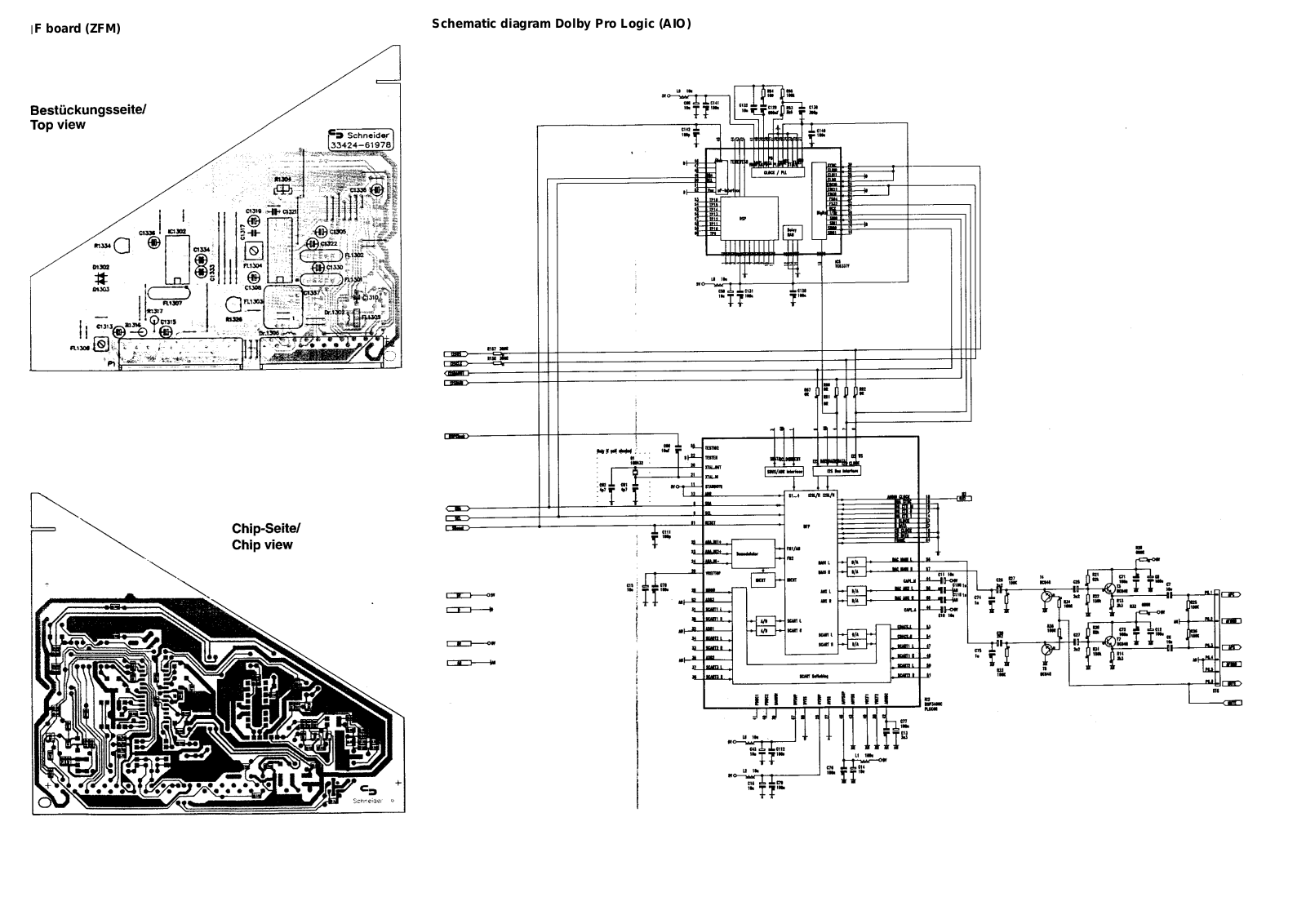

Chip-Seite/Chip view
SVM-Platine
SVMboard
Chip-Seite/Chip view
X-43b CH1 2V/div |
200ns/div |
|
X-45 CH1 |
10V/div |
200ns/div |
30V |
X-44 CH2 2V/div |
200ns/div |
4,62V |
X-46 CH2 |
20V/div |
200ns/div |
|
Schematic diagram controler teletext (CTM)
