DAEWOO DTH-21S7STF, DTH-21S7STFB, DTH-21S8STF, DTH-21S8STFB, DTQ-21S7STF Service Manual

Caution

: In this Manual, some parts can be changed for improving. their
performance without notice in the parts list. So, if you need the
latest parts information, please refer to PPL(Parts Price List)in
Service Information Center.

Service Manual

Color Television

S/M No : TCM111S001

May. 2008

CHSSIS MODEL

DTH-21S7STF
DTH-21S7STFB

CM-111S

DTH-21S8STF
DTH-21S8STFB

DTQ-21S7STF

CN-111S DTQ-21S7STFB

DTQ-21S8STF
DTQ-21S8STFB

-1-

SAFETY PRECAUTIONS 2
SPECIFICATIONS 3
CIRCUIT BLOCK DIAGRAM 4
ALIGNMENT INSTRUCTIONS 5

YOUR REMOTE CONTROL 5
SERVICE MODE ADJUSTMENT 6
ASSEMBLY ADJUSTMENT 8

IC DESCRIPTION 11

UOC-TOP-80 11
LA78040-TV VERTICAL OUTPUT 16
STC403 EW Driver 18
24WC16-16 KB EEPROM 21
LA42072N 22

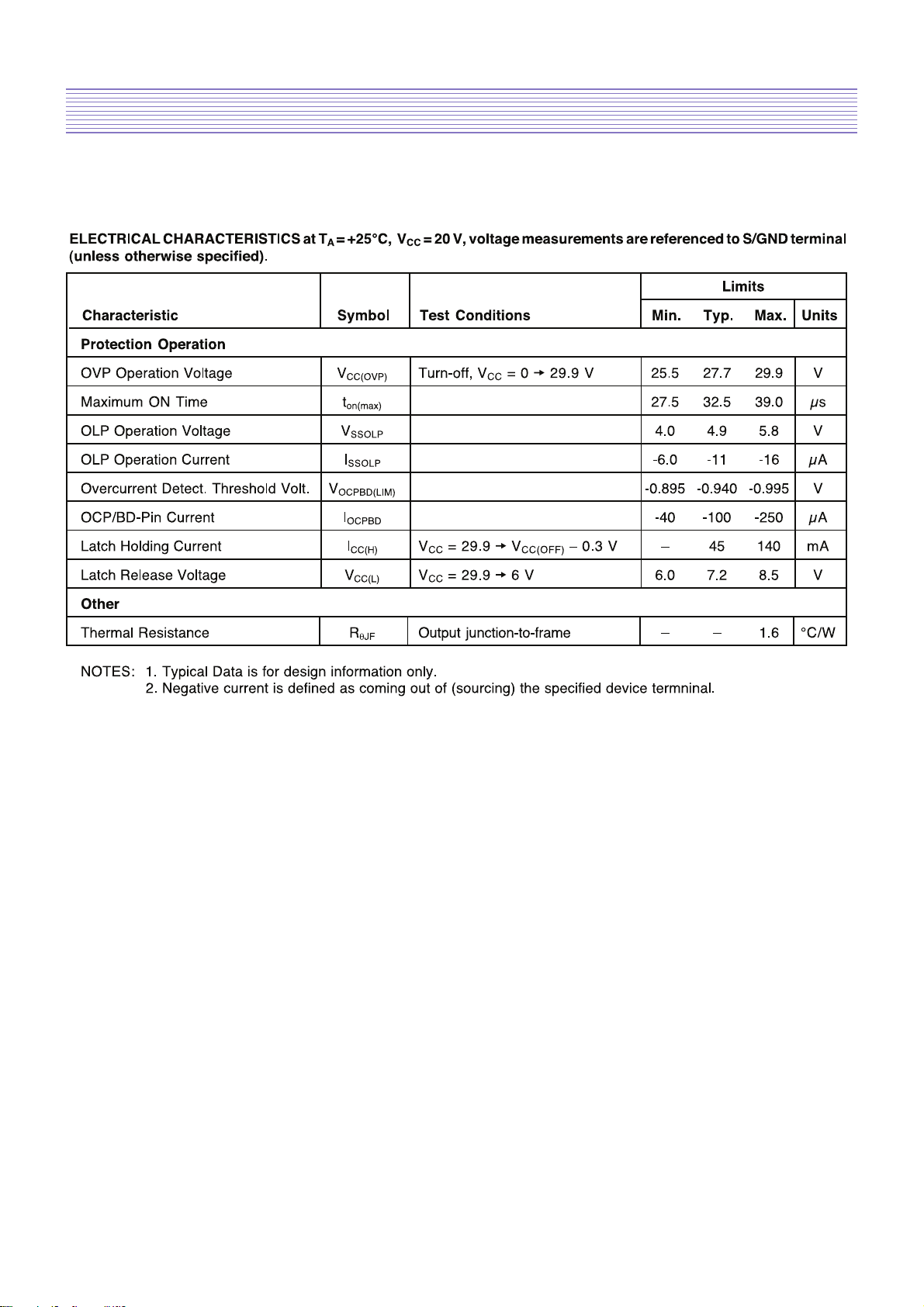

STR-6754 25
WAVEFORMS 28
TROUBLE SHOOTING GUIDE 29

NO POWER 29

NO PICTURE 30

NO SOUND 31

CH DON’T MEMORY or SKIP 32

NO COLOR 33

NO VERTICAL DEFLECTION OR PINCUSHION BADNESS 33

REMOTE CONTROL DOESNOT OPERATE 34
ELECTRICAL PARTS LIST 35
PRINTED CIRCUIT BOARD 52
SCHEMATIC DIAGRAM 54
EXPLODE VIEW 55

TABLE OF CONTENTS

APPENDIX(Appendix is provide only by internet[http://svc.dwe.co.kr])

-2-

SAFETY PRECAUTIONS

CAUTION : DO NOT ATTEMPT TO MODIFY THIS PRODUCT IN ANY WAY.
NEVER PERFORM CUSTOMIZED INSTALLATIONS WITHOUT MANUFAC­TURER'S APPROVAL. UNAUTHORIZED MODIFICATIONS WILL NOT ONLY VOID
THE WARRANTY, BUT MAY LEAD TO YOUR BEING LIABLE FOR ANT RESULT­ING PROPERTY DAMAGE OR USER INJURY.
SERVICE WORK SHOULD BE PERFORMED ONLY AFTER YOU ARE THOR­OUGHLY FAMILIAR WITH ALL OF THE FOLLOWING SAFETY CHECKS AND
SERVICING GUIDELINES. TO DO OTHERWISE, INCREASES THE RISK OF
POTENTIAL HAZARDS AND INJURY TO THE USER.
WHILE SERVICING, USE AN ISOLATION TRANSFORMER FOR PROTECTION
FROM A.C. LINE SHOCK.

SAFETY CHECKS

AFTER THE ORIGINAL SERVICE PROBLEM HAS BEEN CORRECTED, A CHECK
SHOULD BE MADE OF THE FOLLOWING:

SUBJECT:FIRE & SHOCK HAZARD

1. BE SURE THAT ALL COMPONENTS ARE POSITIONED IN SUCH A WAY AS
TO AVOID POSSIBILITY OF ADJACENT COMPONENT SHORTS. THIS IS
ESPECIALLY IMPORTANT ON THOSE MODULES WHICH ARE TRANS­PORTED TO AND FROM THE REPAIR SHOP.

2. NEVER RELEASE A REPAIR UNLESS ALL PROTECTIVE DEVICES SUCH AS
INSULATORS, BARRIERS, COVERS, SHIELDS, STRAIN RELIEFS, POWER
SUPPLY CORDS, AND OTHER HARDWARE HAVE BEEN REINSTALLED PER
ORIGINAL DESIGN. BE SURE, THAT THE SAFETY PURPOSE OF THE
POLARIZED LINE PLUG HAS NOT BEEN DEFEATED.

3. SOLDERING MUST BE INSPECTED TO DISCOVER POSSIBLE COLD SOL­DER JOINTS, SOLDER SPLASHES OF SHARP SOLDER POINTS. BE CER­TAIN TO REMOVE ALL LOOSE FOREIGN PARTICLES.

4. CHECK FOR PHYSICAL EVIDENCE OF DAMAGE OR DETERIORATION TO
PARTS AND COMPONENTS, FOR FRAYED LEADS, DAMAGED INSULATION
(INCLUDING A.C. CORD), AND REPLACE IF NECESSARY. FOLLOW ORIGI­NAL LAYOUT, LEAD LENGTH AND DRESS.

5. NO LEAD OR COMPONENT SHOULD TOUCH A RECEIVING TUBE OR A
RESISTOR RATED AT 1 WATT OR MORE. LEAD TENSION AROUND PRO­TRUDING METAL SURFACES MUST BE AVOIDED.

6. ALL CRITICAL COMPONENTS SUCH AS FUSES, FLAMEPROOF RESISTOR,
CAPACITORS, ETC. MUST BE REPLACED WITH EXACT FACTORY TYPES.
DO NOT USE REPLACEMENT COMPONENTS OTHER THAN THOSE SPECI­FIED OR MAKE UNRECOMMENDED CIRCUIT MODIFICATIONS.

7. AFTER RE-ASSEMBLY OF THE STE ALWAYS PERFORM AN A.C. LEAKAGE
TEST ON ALL EXPOSED METALLIC PARTS OF THE CABINET. (THE CHAN­NEL SELECTOR KNOB, ANTENNA TERMINALS, HANDLE AND SCREWS) TO
BE SURE THE SET IS SAFE TO OPERATE WITHOUT DANGER OF ELECTRI­CAL SHOCK. DO NOT USE A LINE ISOLATION TRANSFORMER DURING THIS
TEST USE AN A.C. VOLTMETER, HAVING 5000 OHMS PER VOLT OR MORE
SENSITIVITY, IN THE FOLLOWING MANNER : CONNECT A 1500 OHM 10
WATT RESISTOR, PARALLELED BY A .15 MFD. 150V A.C. TYPE CAPACI­TOR BETWEEN A KNOWN GOOD EARTH GROUND (WATER POPE, CON­DUIT, ETC.) AND THE EXPOSED METALLIC PARTS, ONE AT A TIME.
MEASURE THE A.C. VOLTAGE ACROSS THE COMBINATION OF 1500 OHM
RESISTOR AND .15 MFD CAPACITOR. REVERSE THE A.C. PLUG AND
REPEAT A.C. VOLTAGE MEASUREMENTS FOR EACH EXPOSED METALLIC
PART. VOLTAGE MEASURED MUST NOT EXCEED .75 VOLTS R.M.S THIS
CORRESPONDS TO 0.5 MILLIAMP A.C. NAY VALUE EXCEEDING THIS LIMIT
CONSTITUTES A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED
IMMEDIATELY.

SUBJECT : X-RADIATION

1. BE SURE PROCEDURES AND INSTRUCTIONS TO ALL SERVICE PERSON­NEL COVER THE SUBJECT OF X-RADIATION. THE ONLY POTENTIAL
SOURCE OF X-RAYS IN CURRENT T.V. RECEIVERS IS THE PICTURE TUBE.
HOWEVER, THIS TUBE DOES NOT EMIT X-RAYS WHEN THE HIGH VOLT­AGEISATTHEFACTORYSPECIFIEDLEVEL.THEPROPERVALUEISGIVEN
IN THE APPLICABLE SCHEMATIC. OPERATION AT HIGHER VOLT-AGES MAY
CAUSE A FAILURE OF THE PICTURE TUBE OR HIGH VOLTAGE SUPPLY
AND UNDER CERTAIN CIRCUMSTANCES, AMY PRODUCE RADIA-TION IN
EXCESS OF DESIRABLE LEVELS.

2. ONLY FACTORY SPECIFIED C.R.T ANODE CONNECTORS MUST BE
USED.DEGAUSSING SHIELDS ALSO SERVE AS X-RAY SHIELD IN COLOR
SETS. ALWAYS RE-INSTALL THEM.

3. IT IS ESSENTIAL THAT SERVICE PERSONNEL HAVE AVAILABLE AN ACCU­RATE AND RELIABLE HIGH VOLTAGE METER. THE CALIBRATION OF THE
METER SHOULD BE CHECKED PERIODICALLY AGAINST A REFERENCE
STANDARD. SUCH AS THE ONE AVAILABLE AT YOUR DISTRIBUTOR.

4. WHEN THE HIGH VOLTAGE CIRCUITRY IS OPERATING PROPERLY THERE
IS NO POSSIBILITY OF AN X-RADIATION PROBLEM. EVERY TIME A COLOR
CHASSIS IS SERVICED, THE BRIGHTNESS SHOULD BE RUN UP AND DOWN
WHILE MONITORING THE HIGH VOLTAGE WITH A METER TO BE CERTAIN
THAT THE HIGH VOLTAGE DOES NOT EXCEED THE SPECIFIED VALUE AND
THAT IT IS REGULATING CORRECTLY. WE SUGGEST THAT YOU AND YOUR
SERVICE ORGANIZATION REVIEW TEST PROCEDURES SO THAT VOLTAGE
REGULATION IS ALWAYS CHECKED AS A STANDARD SERVICING
PROCEDURE, AND THAT THE HIGH VOLTAGE READING BE RECORDED ON
EACH CUSTOMER’S INVOICE.

5. WHEN TROUBLESHOOTING AND MAKING TEST MEASUREMENTS IN A
PRODUCT WITH A PROBLEM OF EXCESSIVE HIGH VOLTAGE, AVOID BEING
UNNECESSARILY CLOSE TO THE PICTURE TUBE AND THE HIGH VOLTAGE
SUPPLY. DO NOT OPERATE THE PRODUCT LONGER THAN IS NECESSARY
TO LOCATE THE CAUSE OF EXCESSIVE VOLTAGE.

6.REFER TO HV, B+ AND SHUTDOWN ADJUSTMENT PROCEDURES
DESCRIBED IN THE APPROPRIATE SCHEMATIC AND DIAGRAMS (WHERE
USED).

SUBJECT : IMPLOSION

1. ALL DIRECT VIEWED PICTURE TUBES ARE EQUIPPED WITH AN INTEGRA
IMPLOSION PROTECTION SYSTEM. BUT CARE SHOULD BE TAKEN TO
AVOID DAMAGE DURING INSTALLATION. AVOID SCRATCHING THE TUBE.
OF SCRATCHED REPLACE IT.

2. USE ONLY RECOMMENDED FACTORY REPLACEMENT TUBES.

SUBJECT : TIPS ON PROPER INSTALLATION

1. NEVER INSTALL ANY PRODUCT IN A CLOSED-IN RECESS, CUBBYHOLE OR
CLOSELY FITTING SHELF SPACE, OVER OR CLOSE TO HEAT DUCT, OR IN
THE PATH OF HEATED AIR FLOW.

2. AVOID CONDITIONS OF HIGH HUMIDITY SUCH AS: OUTDOOR PATIO
INSTALLATIONS WHERE DEW IS A FACTOR, NEAR STEAM RADIATORS
WHERESTEAMLEAKAGEISAFACTOR,ETC.

3. AVOID PLACEMENT WHERE DRAPERIES MAY OBSTRUCT REAR VENTING.
THE CUSTOMER SHOULD ALSO AVOID THE USE OF DECORATIVE
SCARVES OR OTHER COVERINGS WHICH MIGHT OBSTRUCT VENTILA­TION.

4. WALL AND SHELF MOUNTED INSTALLATIONS USING A COMMERCIAL
MOUNTING KIT, MUST FOLLOW THE FACTORY APPROVED MOUNTING
INSTRUCTIONS. A PRODUCT MOUNTED TO A SHELF OR PLATFORM MUST
RETAIN ITS ORIGINAL FEET (OR THE EQUIVALENT THICKNESS IN SPAC­ERS)TO PROVIDE ADEQUATE AIR FLOW ACROSS THE BOTTOM, BOLTS OR
SCREWS USED FOR FASTENERS MUST NOT TOUCH ANY PARTS OR
WIRING. PERFORM LEAKAGE TEST ON CUSTOMIZED INSTALLATIONS.

5. CAUTION CUSTOMERS AGAINST THE MOUNTING OF A PRODUCT ON
SLOPING SHELF OR A TILTED POSITION, UNLESS THE PRODUCT IS
PROPERLY SECURED.

6. A PRODUCT ON A ROLL-ABOUT CART SHOULD BE STABLE ON ITS MOUNT­ING TO THE CART. CAUTION THE CUSTOMER ON THE HAZARDS OF TRY­ING TO ROLL A CART WITH SMALL CASTERS ACROSS THRESHOLDS OR
DEEP PILE CARPETS.

7. CAUTION CUSTOMERS AGAINST THE USE OF A CART OR STAND WHICH
HAS NOT BEEN LISTED BY UNDERWRITERS LABORATORIES. INC. FOR
USE WITH THEIR SPECIFIC MODEL OF TELEVISION RECEIVER OR
GENERICALLY APPROVED FOR USE WITH T.V.S OF THE SAME OR LARGER
SCREEN SIZE.

8. CAUTION CUSTOMERS AGAINST THE USE OF EXTENSION CORDS,
EXPLAIN THAT A FOREST OF EXTENSIONS SPROUTING FROM A SINGLE
OUTLET CAN LEAD TO DISASTROUS CONSEQUENCES TO HOME AND
FAMILY.

THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL,
WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO
ALERT THE SERVICE PERSONNEL TO THE PRES-ENCE
OF UNINSULATED “DANGEROUS VOLTAGE”
THAT MAY BE OF SUFFICIENT MAGNITUDE TO CON­STITUTE A RISK OF ELECTRIC SHOCK.

THE EXCLAMATION POINT WITHIN AN EQUILATERAL
TRIANGLE IS INTENDED TO ALERT THE SERVICE
PERSONNEL TO THE PRESENCE OF IMPORTANT
SAFETY INFORMATION ON SERVICE LITERATURE.

SUBJECT : GRAPHIC SYMBOLS

10WATT

GOOD EARTH GROUND

SUCH AS THE WATER
PIPE, CONDUIT, ETC.

1500 OHM

A.C. VOLTMETER

PLACE THIS PROBE
ON EACH EXPOSED
METAL PART

0.15 uF

-3-

SPECIFICTION

Model

DTH-21S7STF / 21S7STFB / 21S8STF / 21S8STFB

Item

DTQ-21S7STF / 21S7STFB / 21S8STF / 21S8STFB

CHASSIS CM-111S
TV Standard NTSC-M(CN-111S), NTSC-M / PAL-M / PAL-N(CM-111S)
Power Input AC 110V ~ 220V, 50/60 Hz
Power Consumption 85W
Tuning System Frequency Synthesizer(FS) Tuning System
Tuning Ranges TV VHF(L) : CH2 - CH6

UHF(H) : CH7 - CH13
UHF : CH14 - CH69

CATV VHF(L) : 5A, A,B,A-5-A-1,CH2-CH6

VHF(H) : C-W+11,CH7 - CH13

UHF : W+12-W+84
Sound Output 5W + 5W
Speaker 8 ohm 5W x 2EA
Antenna Input Impedance 75 ohm Unbalanced
Auxiliary Input Terminal Side: Video, Audio(L,R) - AV2, Headphone

Rear : Video, Audio(L,R) - AV1

Y, Cb, Cr, Audio(L,R) - CVI
Intermediate Frequencies Picture IF Carrier Frequency : 45.75MHz

Sound IF Carrier Frequency : 41.25MHz
Color Sub-Carrier Frequency :
NTSC-M : 3.579545 Mhz
PAL-N : 3.582056 Mhz

PAL-M : 3.575611 Mhz
Remote Control R-48C04(AAA)
Special Function 1) Closed Caption

2) Channel Label

-4-

CIRCUIT BLOCK DIAGRAM

BSC29

CM-111S / CN-111S

Micro Processor

CVBS / Y Switching

Sound Control

Chroma / Video Decoding

Deflection

#12,14

#45,46

#42

#76,77

#4,5,62,75 #80 #47,48 #49 #20 #11,18,35,55 #10 #21 #6,7,8

#29 #28,30 #31

#32,33

#25,26

I701 UOC-TOP

EW.TR

Q403

STC403

+15V

+15V

-15V

-15V

-5-

ALIGNMENT INSTRUCTION

Your Remote Control(R-48C04)

1. POWER

Use this button to turn your TV on or off.

2. MUTE

Use to turn the TV’s sound on and off.

3. WCHV

Use these buttons to change channels on your
TV, or select items in the menu system.

4. C

VOL

B

Use these buttons to change your TV's vol­ume, to activate selections in the menu sys­tem, or to change audio and video settings.

5. MENU

Use this button to turn the TV’s menu system
on and off.

6. DISPLAY

Use this button to display the present status.

7. INPUT

Use this button to select the TV’s signal source.

8. VIDEO

Use this button to display video adjustment
items.

9. 0-9

Use these buttons to change channels.

10. SLEEP

Use this button to program the TV to turn off
after a certain time.

11. PREVIOUS

Use this button to return to the previous chan­nel you were watching.

-6-

ALIGNMENT INSTRUCTION

1. SERVICE MODE ADJUSTMENTS
Follow the steps below whenever service adjustment is required.
See Table- A and Table- B to determine if service adjustments are required.

1) How to enter the service mode using the user remote control.

- Turn the set on.

- Direct the remote control to the reception window of TV.

- Push buttons of remote control in sequence as follows.

1 MUTE DISPLAY MUTE

- Then, the screen will appear as follows.

SERVICE 72
SERVICE 02
SERVICE 03
SERVICE 04
SERVICE 05
SERVICE 06
SERVICE 07
SERVICE 08
SERVICE 09
SERVICE 10
SERVICE 11
SERVICE 12

VWSELECT CBADJUST L EXIT

- Using the channel up or channel down button, select the item you wish to adjust.
(The color of selected item turns into the blue.)

-

Press the volume up or down button to enter in the service mode you wish to adjust.

2) How to memorize the adjusted values in the service mode.

-Don t have to press any button the state which the screen is displaying each of
service menus after all adjustments are completed each of all service menu.

Table-A : Adjust the values of service mode when a part is replaced.

PART ADJUSTMENT

NOTES

REPLACED NECESSARY UNNECESSARY

IC701 O Data is stored in I702.

(U-COM)

Initial setting values are written from IC701.

I702 ADJUSTING ITEMS

(EEPROM) O S6 : Geometry adjustmrnt

S8 : White balance
S9 : Subbrightness

Adjust items related to picture tube only.

CRT O (White Balance adjustment)

CRT OPTION (Screen Option adjustment)

-7-

ALIGNMENT INSTRUCTION

MODE NAME CM/N-111S REMARK

S1 HEAT RUN

ON OFF

S2 SCREEN ADJUST 650V (6AE:EA)

S5

ACC AUTO Off

ACC LEVEL 24

IF OFF 37

QSS 1

DSG 1

Fine Tunning

ISP-Mode Off

S6

V-SLOPE 34

V.CENTER 34

V.SIZE 25

H.CENTER 45

H.SIZE 57

V.LINEARITY 27

S_CORRECTION 25

H.PARALLEL 25

H-BOW 29

PARABOLA 44

EW TRAPEZ 38

CORNER TOP 47

CONET BOTTOM 46

50Hz.HC +9

50Hz.HS +1

50Hz.VC +7

50Hz.VS 0

HBL 1

WBF 5

WBR 10

S7-1

CFCLF 0

YD TV 7

DTR 0

BPYD 1

TC12X 0

PF 3

TRF 1

NRR 0

WS 3

BLS 0

DSK 0

AAS 0

BSD 0

BKS 1

DSA 1

RPO 2

RPA 2

MODE NAME CM/N-111S REMARK

S7-2

SOC 3

PWLDAC 3

CL 10

GAM 0

ACL 0

BPS 0

CHSE 0

CBPS 0

CB 0

S8

R-GAIN 32

G-GAIN 32

B-GAIN 45

R-BIAS 32

G-BIAS 32

B-BIAS 32

SCR R-BIAS 0

SCR G-BIAS 0

SCR B-BIAS 0

CVI R-BIAS -6

CVI G-BIAS 8

CVI B-BIAS 10

DP-Brightness 17

DP-Contrst 17

DP-Color 5

DP-Sharpnes 17

OPTION 1 1111 0001

OPTION 2 0110 0011

OPTION 3 0000 0011

FACTORY SET

MODE NAME Address DATA

SCREEN Bright BAE

LG-DA

AGC_S SF5 ~ SF8 19 (hex)

AGC_Stop SF2 26 (hex)

Bright 668 12 (hex)

Color 66A 16 (hex)

Sharpness 66B 27 (hex)

Tint 66C 1F (hex)

MODE NAME DATA

AIR / CABLE AIR

VOLUME CENTER (32)

MEMORY CH

AIR : 3,4,5,7,8,10,11,13,32,48

CATV : 36,96

Language English

Power Restore ON

Close Caption C1

Blue Back OFF

Table-B : CM/N-111S(DTH/Q-21S7STF) EEPROM DATA

-8-

ALIGNMENT INSTRUCTION

2. ASSEMBLY ADJUSTMENTS

1) SCREEN ADJUSTMENT (S2)
Enter the service mode and select service adjustment S2.

You can see the one horizontal line on the screen.
Adjust the Screen Control Volume (located on FBT) so that the horizontal line

onscreen may be disappeared.

Press S2 button to exit in the screen adjustment mode.

2) FOCUS ADJUSTMENT
Turn in a local station and adjust the Focus Control knob (located on FBT) for best

picture details at high light condition.

3) AGC ADJUSTMENT
Adjust the antenna signal level at 60 dBuV

Tune a colour bar pattern.
Find the

"AGC"

item in service mode.

(it’s two way to entering the

"AGC"

item in service mode)

- Enter the service mode and select service adjustment S5 and select AUTO-AGC.

- Enter the service mode and select service adjustment S3.

Wait until AGC level stabilise to the optimum value.

Alternatively,

Enter the service mode and select service adjustment S5 and select AGC LEVEL.
Use "Vol Up/Dwn" keys to adjust manually to the desired Tuner Take Over Point.

4) GEOMETRIC ADJUSTMENTS (S6)
Select service adjustment S6

You can see the OSD as shown in below.

V,SLIPE 37 EW TR 40
V,CENTER 38 COR, TOP 51
V,SIZE 26 COR, BOT 48
H,CENTER 35 50Hz_HC +5
H,SIZE 62 50Hz_HS +1
V,LIN 24 50Hz_VC 0
S,CORR 27 50Hz_VS 0
H,PARA 29 HBL 01
H,BOW 35 WBF 05
PARA 34 WBR 10

VWSELECT CBADJUST L EXIT

-9-

ALIGNMENT INSTRUCTION

4-2) Vertical Position Adjustment.

- Select V.SLOPE item, adjust V.SLOPE data value till the horizontal line in the centre of the
video signal is just at the position where the blanking stars.

- Select V.CENTER item, adjust V.CENTER data value to center the raster properly on the screen.

4-3) Vertical Size Adjustment

- Select V.SIZE item, adjust V.SIZE data value to proper vertical size as follows.

4-4) Horizontal Position Adjustment

- Select H.CENTER item, adjust H.CENTER data value to obtain proper horizontal centering of
the internal cross pattern at the left and right of the screen.

4-5). H.BOW, PARABOLA Adjustment

- Adjust the H.BOW, PARABOLA to compensate for geometrical distortion.

- You can not adjust the H.PARALLEL, H.SIZE, EW TRAPEZ,
CORNER TOP and CORNER BOTTOM.

H.PARALLEL

4-6) 50Hz_Horizontal & Vertical Size, Center Adjusstment

Adjust PAL M System’s Picture Geometric whth This Mode.
After Adjusting, you must turn off to save the setting values.

-10-

ALIGNMENT INSTRUCTION

5) WHITE BALANCE ADJUSTMENT(S8)
Receive a good local channel.

Enter the service mode and select service adjustment S8.
You can see the OSD as shown in below.

R-GAIN 32 SRC R-BIAS 32

G-GAIN 32 SRC G-BIAS 32

B-GAIN 40 SRC B-BIAS 00

CVI R-BIAS -8

R-BIAS 32

CVI G-BIAS

CVI B-BIAS

10

+10

G-BIAS 32

B-BIAS 32

Using volume up or volume down, adjust service adjustment data of R-GAIN/G-GAIN/B-GAIN and

R-BIAS/G-BIAS until a good gray scale with normal whites is obtained.ALIGNMENT INSTRUCTIONS

6) DIGITAL PRESET(D.P) ADJUSTMENTS(S9)

SUBBRIGHTNESS ADJUSTMENT

Receive a good local channel.
Enter the service mode and select service adjustment S9.
You can see the OSD as shown in below.

s

05

DP-Contrast 17

DP-Color 5

s

17

Select DP-Brightness item, adjust DP-Brightness data value to obtain normal

brightness level.

DP-Contrast

Fixed value = 17

DP-Color

Fixed value = 5

DP-Sharpness

Fixed value = 17

7) FACTORY OUTGOING MODE (S12 : FACT)
If you select the S12, then the set becomes factory outgoing status.

You can see the OSD

"SHIPPING OFF"

SELECT ADJUST EXIT

SELECT ADJUST EXIT

DP-Brightnes

DP-Sharpnes

-11-

IC DESCRIPTION

1. UOC-TOP-80

Versatile signal processor for CRT TV applications

General description

The UOC-TOP-80 series is a very flexible concept which offers attractive solutions for 1fH TV
receivers with CRTs. This new concept offers a complete range of products with the right price level
to cover TV receivers from basic mono 14 inch sets up to the best featured large and/or wide screen
stereo TV sets. The UOC-TOP-80 concept can also be used as front-end for 2fH and LCD TV
receivers.
The UOC-TOP-80 concept is mounted in a QFP80 package and is split up in the following ranges:

. Stereo concept. It contains a video processor with many features (more details are given in the

feature list in Section 2) and a micro controller with extensive OSD possibilities
(UOCTOP_10PTXTST version). Optional functions are a Teletext- / Closed Caption decoder,
a digital stereo decoder, an audio DSP. The block diagram is given in Figure 2

. AV-110 (AV-stereo) concept. The features of the analog video processor are comparable with

those of the Stereo concept, but it has an analog audio control circuit with balance, treble, bass
and loudness control. Two different micro processor are available for this concept, one with OSD
and Closed Captioning or Teletext and Closed Captioning features (UOCTOP_1PTXT version),
the other with (extended) OSD features (UOCTOP_OSD version). The block diagram is given in
Figure 1.

. AV-90 concept. This concept is nearly identical to the AV-110 concept. The only difference that it

does not contain an East-West and Scan Velocity Modulation (SVM) output. This concept is
intended for 90° picture tubes.

. Mono-110 concept. The functional content of this concept is comparable with that of the AV

stereo concept, however, it has just a stereo input switch and no audio tone control circuit. The
block diagram is given in Figure 1.

. Mono-90 concept. This concept is intended for 90° picture tubes. The circuit has an audio switch

for mono signals but the mono inputs can also be used as a stereo input. In this range most of
the video and audio processing features have been omitted. Also this concept can be supplied
with one of the two micro processors (UOCTOP_1PTXT or UOCTOP_OSD version). The block

diagram is given in Figure 3.
The most important features of the complete IC series are given in the following feature lists.
All packages are according to the ROHS legislation, which also means that these packages are
lead-free. The ICs have supply voltages of 8V (only AV and Mono versions), 5V and 3.3V. For the
Stereo concept an 1.8V supply is needed, but this can be simply derived by adding an emitter
follower at a reference voltage from the device. UOC-TOP-80 is supported by a comprehensive
Global TV Software Development kit to enable easy programming and fast time-to-market (see also
Section 21.4 “Licenses”).

-12-

IC DESCRIPTION

Quick reference data

-13-

IC DESCRIPTION

Block Diagram

-14-

IC DESCRIPTION

Pinning information

-15-

IC DESCRIPTION

-16-

IC DESCRIPTION

2. LA78040_Vertical Output

Overview

The LA78040N is a vertical deflection output IC for high image quality TV and CRT displays that
supports the use of a bus control system signal-processing IC. The sawtooth waveform from the
bus control system signal-processing IC can directly drive the deflection yoke (including the DC
component). Color TV vertical deflection system adjustment functions can be controlled over a
bus system by connecting the LA78040N to a Sanyo LA768X series or LA769XX series bus
control system signal-processing IC.
Since the LA78040N provides a maximum deflection current of 1.7Ap-p, it is optimal for small and
medium size CRTs.

Functions

Built-in pump-up circuit for low power dissipation.
Vertical output circuit.
Thermal protection circuit.

Specifications

Maximum Ratings at Ta = 25
Operating Conditions at Ta = 25

Parameter Symbol Conditions Ratings Unit

Pump-up block supply voltage +B2 max 34 V
Output block supply voltage +B6 max 70 V
Allowable power dissipation Pd max Mounted on an arbitrarily large heat sink. 9 W
Deflection output current I5 max -1.4 to +1.4 Ap-o
Thermal resistance

j-c

3

/W
Operating temperature Topr -20 to +85

Storage temperature Tstg -40 to +150

Parameter Symbol Conditions Ratings Unit

Recommended supply voltage +B2 24 V
Operating supply voltage range +B2op 16 to 33 V

Deflection output current I5p-p To 1.8 Ap-p

Parameter Symbol Conditions

Ratings

min typ max

Deflection output saturation voltage (lower) Vsat5-4 I5 = 0.9A 1.3
Deflection output saturation voltage (upper) Vsat6-5 I5 = -0.9A 3.2
Pump-up charge saturation voltage Vsat3-4 I3 = 20mA 1.8
Pump-up discharge saturation voltage Vsat2-3 I3 = 0.9A 3.0
Idling current Idl 20 50

Midpoint voltage Vmid 11.0 13.0

-17-

IC DESCRIPTION

Package Dimensions

unit:mm
3286

Application Circuit Example 1 (Single power supply)

Block Diagram

5V

+VCC(24V)

IN

10k

Ω

33k

Ω

10k

Ω

11k

Ω

4.7

μ

F

1000

μ

F

1.0

Ω

330

Ω

1.0

Ω

0.1

μ

F

100

μ

F

100

μ

F

10k

Ω

10k

Ω

1

μ

F

LA78040N

1 2 3 4 5 6 7

-18-

IC DESCRIPTION

3. STC403 EW Driver

Features

• Power Transistor General Purpose application

• Low saturation voltage
:VCE(SAT)

=0.4V Typ.

• High Voltage : VCEO=60V Min.

Ordering Information

Type NO. Marking Package Code

STC403 STC403 TO-220F

Outline Dimensions unit : mm

PIN Connections

1. Base

2. Collector

3. Emitter

-19-

IC DESCRIPTION

Absolute maximum ratings

Electrical Characteristics

* hFE rank : 200~400 Only

Characteristic Symbol Ratings Unit

Collector-Base voltage VCBO 80 V

Collector-Emitter voltage VCEO 60 V

Emitter-base voltage VEBO 5 V

Collector current IC 3 A

Collector dissipation (Tc=25°C) PC 15 W

Junction temperature Tj 150 °C

Storage temperature Tstg -55~150 °C

Characteristic Symbol Test Condition Min. Typ. Max. Unit

Collector-Emitter breakdown voltage BVCEO IC=50mA, IB=0 60 - - V

Collector cut-off current ICBO VCB=60V, IE=0 - - 50

A

Emitter cut-off current IEBO VEB

=5V, I

C=0

- - 50

A

DC current gain

hFE*

VCE=5V, IC=0.5A 200 - 400 -

Base-Emitter on voltage VBE(ON) VCE=5V, IC=0.5A - 0.7 1 V

Collector-Emitter saturation voltage VCE(sat) IC=2A, IB=0.2A - 0.4 1 V

Transition frequency fT VCB=5V, IC=0.5A - 30 - MH

Collector output capacitance Cob VCB=10V, IE=0, f=1MHz - 20 - pF

Switching

Time

Ton - 0.65 -

s

T

stg

- 1.3 -

Tf - 0.65 -

-20-

IC DESCRIPTION

Electrical Characteristic Curves

Fig. 1 P

c-Ta

Fig. 2 V

CE(sat) -IC

Fig. 3 hFE-IC Fig. 4 -IC -VCE

-21-

IC DESCRIPTION

4. 24WC16 - 16 KB EEPROM

-22-

IC DESCRIPTION

5. LA42072N

-23-

IC DESCRIPTION

-24-

IC DESCRIPTION

-25-

IC DESCRIPTION

6. STR-6754

-26-

IC DESCRIPTION

-27-

IC DESCRIPTION

-28-

IC DESCRIPTION

WAVEFORMS

TUO.ROH )TBF(204T.)21NIP 108I.)1

3).T402(FBT) 192V(D406) 4).IC701 PIN73 HOUT

5).IC701 (X-TAL)

-29-

TROUBLESHOOTING GUIDE

1. NO POWER

-30-

TROUBLESHOOTING GUIDE

IC701

#76, 77
#11,18,55,62

#1,68

#20

#6,7,8

#11,18,55,62

#4,5,62,75

IC701

-31-

TROUBLESHOOTING GUIDE

#76,77

#11,18,55,62

#42

IC701

-32-

TROUBLESHOOTING GUIDE

IC701

#76,77

#69

#11,18,55,62

#45,46 #42

-33-

TROUBLESHOOTING GUIDE

IC701

#11,18,55,62

#6,7,8

VERTICAL

IC701

#49

#48

#7 #1

I301
LA78040

-15

+15

STC403

#2
#5
#4

EW COIL

-34-

TROUBLESHOOTING GUIDE

IC701

#11,18,55,62

#4,5,62,75

-35-

ELECTRICAL PARTS LIST

Caution

:In this Manual, some parts can be changed for improving. their performance without notice in the

parts list. So, if you need the latest parts information, please refer to PPL(Parts Price List)in Service
Information Center(http://svc.dwe.co.kr)

The Differential Part Lists by Models.

** This is based on DTH-21S7STF

MODEL LOC PARTS CODE PARTS NAME PART DESCRIPTION

DTH-21S7STF

IC701

1TDA2140H1 IC MICOM FLASH TDA12140H1/N2

DTH-21S7STFB

DTH-21S8STF

DTH-21S8STFB

DTQ-21S7STF

1TDA2100H1 IC MICOM FLASH TDA12100H1/N2

DTQ-21S7STFB

DTQ-21S8STF

DTQ-21S8STFB

1 ZZ100 48B6259A01 TRANSMITTER REMOCON R-59A01 (AAA)
2 ZZ110 PTACPWK210 ACCESSORY AS DTH-21S7SSF
3 00010 4850A04110 ANT ROD SHA-004AR
4 00030 4850Q00910 BATTERY R03/NN
5 00040 4850A00650 TRANS ANT MATCHING YSC-T-07 BR
6 10000 48586054K1 MANUAL INSTRUCTION DTM-2082CW
7 AD001 4859000240 ADAPTER 2P15A 300V(D=4.0)
8 M351 4853534301 HOLDER ANT HIPS BK
9 M821 4858213803 BAG INSTRUCTION L.D.P.E TO.05X250X400(+20)
10 ZZ120 PTBCSHK201 COVER BACK AS DTQ-21S7
11 M211 4852179501 COVER BACK HIPS BK
12 M781 4857817630 CLOTH BLACK FELT 400X20X0.7
13 M782 4857817611 CLOTH BLACK FELT 200X20X0.7
14 M783 4857817610 CLOTH BLACK FELT 300X20X0.7
15 ZZ130 PTPKCPK201 PACKING AS DTQ-21S7
16 10 6520000365 STAPLE PIN AUTO W65 ROHS(E ZN)
17 M801 4858072900 BOX CARTON DW-3 21S7
18 M811 485819DG00 PAD EPS
19 M821 4858215001 BAG P.E PE FOAM t0.5x1200x1150
20 ZZ131 48519A8610 CRT GROUND NET 2104S-1015-1P
21 ZZ132 58G0000177 COIL DEGAUSSING DC-21SF AL
22 ZZ140 PTCACAK219 CABINET AS DTH-21S7STF

NO LOC PARTS CODE PARTS NAME PART DESCRIPTION REMARK

-36-

ELECTRICAL PARTS LIST

23 40 2TF01612CL TAPE FILAMENT T0.15XW12MMXL50M CLEAR
24 M201A 4856017703 SCREW CRT FIX 5X30 L80 BK 3CR
25 M201B 4856017710 SCREW CRT FIX 5X30 L190 BK 3CR
26 M201C 4856219502 WASHER RUBBER CR T2.0 BLACK
27 M211A 7172401452 SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR
28 M211B 7178301252 SCREW TAPPTITE TT2 WAS 3X12 MFZN BK 3CR
29 M541 4855419800 SPEC PLATE ART 150
30 M686 4856812001 TIE CABLE NYLON66 DA100
31 M831 7178301051 SCREW TAPPTITE TT2 WAS 3X10 MFZN 3CR
32 SP01A 7178301051 SCREW TAPPTITE TT2 WAS 3X10 MFZN 3CR
33 SP02A 7178301051 SCREW TAPPTITE TT2 WAS 3X10 MFZN 3CR
34 V901 4859600563 CRT A51QGT420X39 M20
35 ZZ200 PTFMSJK201 MASK FRONT AS DTQ-21S7
36 M191 4851957900 DECO SENSOR AS 3569111+5557500
37 M191A 7178301252 SCREW TAPPTITE TT2 WAS 3X12 MFZN BK 3CR
38 M201 4852095611 MASK FRONT HIPS GY
39 M481 4854872511 BUTTON POWER ABS GY
40 M481A 4856716000 SPRING SWPA PIE0.5
41 M561 48556152SD MARK BRAND SILVER DIA-CUTTING
42 M781 4857821103 CLOTH BLACK FELT 180X10X1.5
43 ZZ210 PTSPPWK201 SPEAKER AS DTQ-21S7
44 P601A 4850704S31 CONNECTOR YH025-04+YRT205+ULW800400
45 SP01A 4858318910 SPEAKER SP-50110F05C
46 SP02A 4858318910 SPEAKER SP-50110F05C
47 ZZ290 PTMPMSK219 PCB MAIN MANUAL AS DTH-21S7STF
48 100 2193110032 SOLDER WIRE SPOO1 PHI 3.0MM (LFCO-W3.0)
49 200 2193011612 SOLDER WIRE LFC-107(1.6MM)
50 300 2291050623 FLUX SOLDER LF SV-PBF-304P(0.823)
51 400 2291050312 FLUX SOLVENT S-3000
52 C401 CEYD1H689W C ELECTRO 50V RHD 6.8MF (16X35.5)
53 C406 CMYF2G224J C MYLAR 400V MPP 0.22MF J
54 C407 CMYH3C822J C MYLAR 1.6KV BUP 8200PF J
55 C408 CMYH3C562J C MYLAR 1.6KV BUP 5600PF J
56 C424 CMYE2G104J C MYLAR 400V PU 0.1MF J
57 C425 CMYE2G473J C MYLAR 400V PU 0.047MF J
58 C801 CL1UC3474M C LINE ACROSS 0.47MF 1J(UCVSNDF/SV)+Q/O
59 C806 CEYD2G221D C ELECTRO 400V FHS 220MF (25X40)
60 C807 CBYB3D102K C CERA SEMI 2KV BL(N) 1000PF K
61 C816 CEYF2C221V C ELECTRO 160V RSS 220MF (18X35.5)
62 C819 CEYF1E332V C ELECTRO 25V RSS 3300MF (16X31.5)
63 CS803 CH1BFE222M C CERA AC U/C/V AC400V 2200PF
64 CS804 CH1BFE222M C CERA AC U/C/V AC400V 2200PF
65 D402 DDGP30L--- DIODE DGP30L
66 D403 DRGP30JP-- DIODE RGP-30JP

NO LOC PARTS CODE PARTS NAME PART DESCRIPTION REMARK

-37-

ELECTRICAL PARTS LIST

67 D809 DRGP30JP-- DIODE RGP-30JP
68 D812 DSR306E20- DIODE SR306E20
69 D813 DRGP30JP-- DIODE RGP-30JP
70 DL701 DLH2PR04-- LED BLOCK LH-2P-R-04
71 I301 PTD2SW7923 HEAT SINK ASS`Y DTH-21S7STF
72 00001 1LA78040-- IC VERTICAL LA78040
73 0000A 4857027923 HEAT SINK AL EX
74 0000B 7174301051 SCREW TAPPTITE TT2 RND 3X10 MFZN 3CR
75 I601 PTP2SW8210 HEAT SINK ASS`Y 1LA42072N- + 7174300851
76 00001 1LA42072N- IC AUDIO AMP LA42072N-E
77 0000A 4857028210 HEAT SINK AL EX
78 0000B 7174300851 SCREW TAPPTITE TT2 RND 3X8 MFZN 3CR
79 I702 124LC16B1B IC MEMORY 24LC16B1B
80 I801 PTA2SW4428 HEAT SINK ASS`Y 1STRW6754- + 7174300851
81 00001 1STRW6754- IC POWER STR-W6754
82 0000A 4857024428 HEAT SINK AL EX NON-ANODIZING
83 0000B 7174300851 SCREW TAPPTITE TT2 RND 3X8 MFZN 3CR
84 I802 1EL817C--- IC PHOTO COUPLER EL817C
85 I803 PTPBSW6900 HEAT SINK ASS'Y 1A1117P133 + 7174300851
86 00001 1A1117P133 IC REGULATOR KIA1117PI33 3.3V TO-220IS
87 0000A 4857026900 HEAT SINK AL EX
88 0000B 7174300851 SCREW TAPPTITE TT2 RND 3X8 MFZN 3CR
89 I805 1K78R05--- IC REGULATOR KIA78R05API
90 IF01 1346VF6--- IC PREAMP 346VF6
91 JP01 4859105240 JACK PHONE LGT1516-0100
92 JP02 4859111650 JACK PIN PH-JB-9514
93 JP03 4859112850 JACK PIN DPSS-0173(3P ST)
94 L401 58C7070085 COIL CHOKE TLN-3062A
95 L402 58H0000108 COIL H-LINEARITY TRL-440D
96 L403 58C0000172 COIL CHOKE CH-232B
97 L404 58C0000173 COIL CHOKE CH-481GA
98 L801 5PDLF3055L FILTER LINE DLF-3055L
99 L807 58C0000090 COIL CHOKE L-45S
100 M231 4852332511 PANEL CTRL ABS GY
101 M231A 7178301051 SCREW TAPPTITE TT2 WAS 3X10 MFZN 3CR
102 M491 4854963311 BUTTON CH ABS GY + AL COATING
103 P901B 4850705N18 CONNECTOR YBNH250-05+YBNH250+ULW400
104 P902B 4850704N16 CONNECTOR YBNH250-04+YBNT250+ULW400
105 PA10A 4859235320 CONN WAFER YW025-10
106 PA10B 4850710S19 CONNECTOR YH025-10+YBNH250-10+ULW=400
107 PK01A 4850703S08 CONNECTOR YH025-03+YBH250-03+ULW=300
108 PWC1 48599NL001 CORD POWER AS EU LP-21+YH396-43V=2.0M
109 PWC1A 4859289320 CONN WAFER YW396-43V
110 Q401 TKTC3229-- TR KTC3229

NO LOC PARTS CODE PARTS NAME PART DESCRIPTION REMARK

-38-

ELECTRICAL PARTS LIST

111 Q402 PTK2SW7201 HEAT SINK ASS`Y TTT2190YB + 7174300851
112 00001 TTT2190YB- TR HORI TT2190LS-YB11
113 0000A 4857027201 HEAT SINK AL T1.0
114 0000B 7174300851 SCREW TAPPTITE TT2 RND 3X8 MFZN 3CR
115 Q403 PTS2SW4903 HEAT SINK ASS`Y DTH-21S7STF
116 00001 TSTC403--- TR STC403
117 0000A 4857024903 HEAT SINK AL EX
118 0000B 7174300851 SCREW TAPPTITE TT2 RND 3X8 MFZN 3CR
119 Q901 TKTC3229-- TR KTC3229
120 Q902 TKTC3229-- TR KTC3229
121 Q903 TKTC3229-- TR KTC3229
122 R617 RF02Y338K- R FUSIBLE 2W 0.33 OHM K
123 R801 RX07B229JP R CEMENT 7W 2.2 OHM J BEN 15MM 4P
124 RY801 DTC7R0M270 POSISTOR PDC7R0MP6B7Z81C
125 SCT01 4859304130 SOCKET CRT ISHG93S
126 SW801 5S40101143 SW POWER PUSH PS3-22SP (P.C.B)
127 T401 5TD0000018 TRANS DRIVE THD-120
128 T402 50H0000334 FBT BSC25-0218M
129 T801 50M4042B6- TRANS SMPS TSM-4042B6
130 TU101 4859726730 TUNER VARACTOR TAEC-H012F(A)
131 X701 5XJ24R576E CRYSTAL QUARTZ HC-49/S 24.576MHZ 30PPM
132 Y801 5SC0101339 SW RELAY SDT-S-105LMR
133 Z101 5PTSB6221C FILTER SAW TSB6221C
134 Z801 DSVC471D14 VARISTOR SVC471D14A (BULK)
135 ZZ200 PTMPJ2K219 PCB MAIN CHIP B AS DTH-21S7STF
136 CC103 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
137 CC105 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
138 CC109 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
139 CC119 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
140 CC129 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
141 CC131 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
142 CC612 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
143 CC702 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
144 CC703 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
145 CC705 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
146 CC706 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
147 CC712 HCBK561KBA C CHIP CERA 50V X7R 560PF K 1608
148 CC714 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
149 CC715 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
150 CC717 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
151 CC720 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
152 CC726 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
153 CC728 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
154 CC736 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608

NO LOC PARTS CODE PARTS NAME PART DESCRIPTION REMARK

-39-

ELECTRICAL PARTS LIST

155 CC738 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
156 CC739 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
157 CC834 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
158 CCA03 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
159 CCA05 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
160 CCA06 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
161 IC701 1TDA2140H1 IC MICOM FLASH TDA12140H1/N2
162 RC101 HRFT101JBA R CHIP 1/10 100 OHM J 1608
163 RC102 HRFT101JBA R CHIP 1/10 100 OHM J 1608
164 RC103 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
165 RC104 HRFT100JBA R CHIP 1/10 10 OHM J 1608
166 RC105 HRFT473JBA R CHIP 1/10 47K OHM J 1608
167 RC108 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
168 RC111 HRFT181JBA R CHIP 1/10 180 OHM J 1608
169 RC114 HRFT102JBA R CHIP 1/10 1K OHM J 1608
170 RC121 HRFT183JBA R CHIP 1/10 18K OHM J 1608
171 RC301 HRFT202JBA R CHIP 1/10 2K OHM J 1608
172 RC306 HRFT202JBA R CHIP 1/10 2K OHM J 1608
173 RC461 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
174 RC462 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
175 RC463 HRFT182JBA R CHIP 1/10 1.8K OHM J 1608
176 RC464 HRFT103JBA R CHIP 1/10 10K OHM J 1608
177 RC610 HRFT223JBA R CHIP 1/10 22K OHM J 1608
178 RC623 HRFT103JBA R CHIP 1/10 10K OHM J 1608
179 RC626 HRFT103JBA R CHIP 1/10 10K OHM J 1608
180 RC632 HRFT103JBA R CHIP 1/10 10K OHM J 1608
181 RC701 HRFT101JBA R CHIP 1/10 100 OHM J 1608
182 RC702 HRFT101JBA R CHIP 1/10 100 OHM J 1608
183 RC703 HRFT101JBA R CHIP 1/10 100 OHM J 1608
184 RC705 HRFT102JBA R CHIP 1/10 1K OHM J 1608
185 RC709 HRFT823JBA R CHIP 1/10 82K OHM J 1608
186 RC713 HRFT470JBA R CHIP 1/10 47 OHM J 1608
187 RC714 HRFT123JBA R CHIP 1/10 12K OHM J 1608
188 RC720 HRFT562JBA R CHIP 1/10 5.6K OHM J 1608
189 RC722 HRFT100JBA R CHIP 1/10 10 OHM J 1608
190 RC727 HRFT102JBA R CHIP 1/10 1K OHM J 1608
191 RC736 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
192 RC737 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
193 RC769 HRFT102JBA R CHIP 1/10 1K OHM J 1608
194 RC773 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
195 RC775 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
196 RC778 HRFT101JBA R CHIP 1/10 100 OHM J 1608
197 RC779 HRFT101JBA R CHIP 1/10 100 OHM J 1608
198 RC782 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608

NO LOC PARTS CODE PARTS NAME PART DESCRIPTION REMARK

-40-

ELECTRICAL PARTS LIST

199 RC824 HRFT333JBA R CHIP 1/10 33K OHM J 1608
200 RC827 HRFT511JBA R CHIP 1/10 510 OHM J 1608
201 RC830 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
202 RC832 HRFT752JBA R CHIP 1/10 7.5K OHM J 1608
203 RC835 HRFT103JBA R CHIP 1/10 10K OHM J 1608
204 RC873 HRFT391JBA R CHIP 1/10 390 OHM J 1608
205 RCA05 HRFT224JBA R CHIP 1/10 220K OHM J 1608
206 RCA06 HRFT224JBA R CHIP 1/10 220K OHM J 1608
207 RCV02 HRFT750JBA R CHIP 1/10 75 OHM J 1608
208 RCV03 HRFT750JBA R CHIP 1/10 75 OHM J 1608
209 RCV04 HRFT750JBA R CHIP 1/10 75 OHM J 1608
210 ZZ200 PTMPJ0K219 PCB MAIN (RHU) AS DTH-21S7STF
211 C402 CEXF2A101C C ELECTRO 100V RUS 100MF 13*20 TP
212 C404 CEXA2D229E C ELECTRO 200V RUL 2.2MF (10X16) TP
213 C409 CMXE2G333J C MYLAR 400V PU 0.033MF J (TP)
214 C411 CEXF2E100V C ELECTRO 250V RSS 10MF (10X20) TP
215 C416 CCXB2H102K C CERA 500V B 1000PF K (TAPPING)
216 C417 CEXF1E331V C ELECTRO 25V RSS 330MF (10X12.5)TP
217 C419 CEXF1E331V C ELECTRO 25V RSS 330MF (10X12.5)TP
218 C613 CEXF1E102C C ELECTRO 25V RUS 1000MF (13X20) TP
219 C814 CCXB3D221K C CERA 2KV B 220PF K (TAPPING)
220 C817 CEXF2A470C C ELECTRO 100V RUS 47MF (10X16) TP
221 C820 CEXF2C101V C ELECTRO 160V RSS 100MF (16X25) TP
222 C835 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X20) TP
223 C852 CEXF1E102V C ELECTRO 25V RSS 1000MF (13X20) TP
224 L808 58CX430599 COIL CHOKE AZ-9004Y 940K TP
225 ZZ200 PTMPJBK219 PCB MAIN M-10 AS DTH-21S7STF
226 500 2TM18006BE TAPE MASKING 6.2X500
227 E001 4856310300 EYE LET BSR T0.2 (R1.6)
228 E002 4856310300 EYE LET BSR T0.2 (R1.6)
229 E003 4856310300 EYE LET BSR T0.2 (R1.6)
230 E004 4856310300 EYE LET BSR T0.2 (R1.6)
231 E006 4856310300 EYE LET BSR T0.2 (R1.6)
232 E007 4856310300 EYE LET BSR T0.2 (R1.6)
233 E008 4856310300 EYE LET BSR T0.2 (R1.6)
234 E009 4856310300 EYE LET BSR T0.2 (R1.6)
235 E010 4856310600 EYE LET BSR T0.2 (R2.3)
236 E011 4856310600 EYE LET BSR T0.2 (R2.3)
237 E012 4856310600 EYE LET BSR T0.2 (R2.3)
238 E013 4856310300 EYE LET BSR T0.2 (R1.6)
239 E014 4856310300 EYE LET BSR T0.2 (R1.6)
240 E015 4856310300 EYE LET BSR T0.2 (R1.6)
241 E016 4856310600 EYE LET BSR T0.2 (R2.3)
242 E017 4856310300 EYE LET BSR T0.2 (R1.6)

NO LOC PARTS CODE PARTS NAME PART DESCRIPTION REMARK

-41-

ELECTRICAL PARTS LIST

243 E018 4856310300 EYE LET BSR T0.2 (R1.6)
244 E019 4856310300 EYE LET BSR T0.2 (R1.6)
245 E020 4856310600 EYE LET BSR T0.2 (R2.3)
246 E021 4856310600 EYE LET BSR T0.2 (R2.3)
247 E022 4856310300 EYE LET BSR T0.2 (R1.6)
248 E023 4856310300 EYE LET BSR T0.2 (R1.6)
249 E024 4856310600 EYE LET BSR T0.2 (R2.3)
250 E025 4856310600 EYE LET BSR T0.2 (R2.3)
251 E026 4856310600 EYE LET BSR T0.2 (R2.3)
252 E027 4856310600 EYE LET BSR T0.2 (R2.3)
253 E028 4856310600 EYE LET BSR T0.2 (R2.3)
254 E029 4856310600 EYE LET BSR T0.2 (R2.3)
255 E030 4856310300 EYE LET BSR T0.2 (R1.6)
256 E031 4856310300 EYE LET BSR T0.2 (R1.6)
257 E032 4856310300 EYE LET BSR T0.2 (R1.6)
258 E033 4856310300 EYE LET BSR T0.2 (R1.6)
259 E034 4856310300 EYE LET BSR T0.2 (R1.6)
260 E036 4856310600 EYE LET BSR T0.2 (R2.3)
261 E037 4856310600 EYE LET BSR T0.2 (R2.3)
262 E040 4856310300 EYE LET BSR T0.2 (R1.6)
263 E041 4856310300 EYE LET BSR T0.2 (R1.6)
264 E042 4856310300 EYE LET BSR T0.2 (R1.6)
265 E043 4856310600 EYE LET BSR T0.2 (R2.3)
266 E044 4856310600 EYE LET BSR T0.2 (R2.3)
267 E045 4856310300 EYE LET BSR T0.2 (R1.6)
268 E046 4856310300 EYE LET BSR T0.2 (R1.6)
269 E047 4856310300 EYE LET BSR T0.2 (R1.6)
270 E048 4856310300 EYE LET BSR T0.2 (R1.6)
271 E049 4856310600 EYE LET BSR T0.2 (R2.3)
272 E050 4856310600 EYE LET BSR T0.2 (R2.3)
273 E051 4856310600 EYE LET BSR T0.2 (R2.3)
274 E052 4856310600 EYE LET BSR T0.2 (R2.3)
275 E053 4856310600 EYE LET BSR T0.2 (R2.3)
276 E056 4856310300 EYE LET BSR T0.2 (R1.6)
277 E057 4856310300 EYE LET BSR T0.2 (R1.6)
278 E058 4856310300 EYE LET BSR T0.2 (R1.6)
279 E059 4856310300 EYE LET BSR T0.2 (R1.6)
280 E060 4856310300 EYE LET BSR T0.2 (R1.6)
281 E061 4856310300 EYE LET BSR T0.2 (R1.6)
282 E062 4856310300 EYE LET BSR T0.2 (R1.6)
283 E065 4856310300 EYE LET BSR T0.2 (R1.6)
284 E066 4856310300 EYE LET BSR T0.2 (R1.6)
285 E067 4856310300 EYE LET BSR T0.2 (R1.6)
286 E068 4856310300 EYE LET BSR T0.2 (R1.6)

NO LOC PARTS CODE PARTS NAME PART DESCRIPTION REMARK

-42-

ELECTRICAL PARTS LIST

287 E073 4856310300 EYE LET BSR T0.2 (R1.6)
288 N004 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN)
289 N005 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN)
290 N006 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN)
291 N007 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN)
292 N008 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN)
293 N009 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN)
294 P601 485923172S CONN WAFER YW025-04 (STICK)
295 P705 485923172S CONN WAFER YW025-04 (STICK)
296 PK01B 485923162S CONN WAFER YW025-03 (STICK)
297 R106 RS02Z472JS R M-OXIDE FILM 2W 4.7K OHM J SMALL
298 R401 RS02Z100JS R M-OXIDE FILM 2W 10 OHM J SMALL
299 R407 RS02Z163JS R M-OXIDE FILM 2W 16K OHM J SMALL
300 R414 RS02Z249JS R M-OXIDE FILM 2W 2.4 OHM J SMALL
301 R416 RF01Z338K- R FUSIBLE 1W 0.33 OHM K (TAPPING)
302 R417 RF01Z338K- R FUSIBLE 1W 0.33 OHM K (TAPPING)
303 R431 RS02Z100JS R M-OXIDE FILM 2W 10 OHM J SMALL
304 R802 RS02Z913JS R M-OXIDE FILM 2W 91K OHM J SMALL
305 R829 RS02Z229JS R M-OXIDE FILM 2W 2.2 OHM J SMALL
306 R836 RS02Z109JS R M-OXIDE FILM 2W 1 OHM J SMALL
307 R837 RS02Z228JS R M-OXIDE FILM 2W 0.22 OHM J SMALL
308 R920 RS02Z189JS R M-OXIDE FILM 2W 1.8 0HM J SMALL
309 ZZ200 PTMPJRK219 PCB MAIN RADIAL AS DTH-21S7STF
310 C101 CCXF1H103Z C CERA 50V F 0.01MF Z (TAPPING)
311 C102 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
312 C104 CEXF1C221V C ELECTRO 16V RSS 220MF (8X11.5) TP
313 C106 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
314 C112 CMXM2A682J C MYLAR 100V 6800PF J (TP)
315 C114 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
316 C115 CMXL1J224J C MYLAR 63V MEU 0.22MF J (TP)
317 C117 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
318 C118 CMXL1J154J C MYLAR 63V MEU 0.15MF J
319 C124 CMXM2A473J C MYLAR 100V 0.047MF J (TP)
320 C125 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
321 C128 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
322 C130 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
323 C201 CMXL1J103J C MYLAR 63V MEU 0.01MF J
324 C202 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
325 C204 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
326 C206 CCXB1H472K C CERA 50V B 4700PF K (TAPPING)
327 C302 CEXF1H101V C ELECTRO 50V RSS 100MF (8X11.5) TP
328 C303 CCXF1H473Z C CERA 50V F 0.047MF Z (TAPPING)
329 C307 CCXB1H472K C CERA 50V B 4700PF K (TAPPING)
330 C312 CMXM2A104J C MYLAR 100V 0.1MF J (TP)

NO LOC PARTS CODE PARTS NAME PART DESCRIPTION REMARK

-43-

ELECTRICAL PARTS LIST

331 C403 CCXB2H102K C CERA 500V B 1000PF K (TAPPING)
332 C405 CCXB2H561K C CERA 500V B 560PF K (TAPPING)
333 C410 CXSL2H470J C CERA 500V SL 47PF J (TAPPING)
334 C413 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP
335 C422 CMXM2A473J C MYLAR 100V 0.047MF J (TP)
336 C423 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
337 C430 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
338 C462 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
339 C601 CEXF1E470C C ELECTRO 25V RUS 47MF (5X11) TP
340 C602 CMXL1J224J C MYLAR 63V MEU 0.22MF J (TP)
341 C603 CMXL1J224J C MYLAR 63V MEU 0.22MF J (TP)
342 C604 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
343 C605 CMXM2A682J C MYLAR 100V 6800PF J (TP)
344 C606 CMXM2A682J C MYLAR 100V 6800PF J (TP)
345 C607 CCXF1H104Z C CERA 50V F 0.1MF Z
346 C608 CCXF1H104Z C CERA 50V F 0.1MF Z
347 C609 CCXF1H104Z C CERA 50V F 0.1MF Z
348 C610 CCXF1H104Z C CERA 50V F 0.1MF Z
349 C614 CEXF1C470V C ELECTRO 16V RSS 47MF (5X11) TP
350 C622 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP
351 C623 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP
352 C624 CMXL1J104J C MYLAR 63V MEU 0.1MF J
353 C625 CMXL1J104J C MYLAR 63V MEU 0.1MF J
354 C626 CMXL1J104J C MYLAR 63V MEU 0.1MF J
355 C627 CMXL1J104J C MYLAR 63V MEU 0.1MF J
356 C628 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP
357 C629 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP
358 C701 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
359 C704 CEXF1E470V C ELECTRO RSS 25V 47MF 5X11 P5.0 TA
360 C707 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
361 C713 CEXF1C470V C ELECTRO 16V RSS 47MF (5X11) TP
362 C716 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
363 C721 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
364 C722 CMXL1J224J C MYLAR 63V MEU 0.22MF J (TP)
365 C723 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
366 C727 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
367 C729 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
368 C730 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
369 C731 CEXF1E470V C ELECTRO RSS 25V 47MF 5X11 P5.0 TA
370 C734 CMXL1J224J C MYLAR 63V MEU 0.22MF J (TP)
371 C735 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
372 C740 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
373 C804 CCXF3A472Z C CERA 1KV F 4700PF Z (T)
374 C805 CCXF3A472Z C CERA 1KV F 4700PF Z (T)

NO LOC PARTS CODE PARTS NAME PART DESCRIPTION REMARK

-44-

ELECTRICAL PARTS LIST

375 C809 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
376 C810 CCXF1H223Z C CERA 50V F 0.022MF Z (TAPPING)
377 C811 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
378 C812 CCXB1H821K C CERA 50V B 820PF K (TAPPING)
379 C821 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
380 C824 CMXL1J154J C MYLAR 63V MEU 0.15MF J
381 C826 CEXF1E221V C ELECTRO 25V RSS 220MF (8X11.5) TP
382 C827 CEXF1C331V C ELECTRO 16V RSS 330MF (8X11.5) TP
383 C828 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
384 C829 CMXL2E104K C MYLAR 250V MEU 0.1MF K
385 C836 CEXF1C221V C ELECTRO 16V RSS 220MF (8X11.5) TP
386 C837 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP
387 C842 CCXB3A471K C CERA 1KV B 470PF K (T)
388 C904 CCXB3A271K C CERA 1KV B 270PF K (TAPPING)
389 CS03 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP
390 CS05 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP
391 F801 5FWPS4022L FUSE WIDE TL 250V 4A CASE
392 I804 1K1A431B-- IC REGULATOR(SHUNT) KIA431B 2.495V 0.5% TO-92
393 L901 5CPX181J-- COIL PEAKING 180UH J (RADIAL)
394 Q101 TKTC3198Y- TR KTC3198Y
395 Q201 TKTA1266Y- TR KTA1266Y (TP)
396 Q404 T2SA1980Y- TR 2SA1980(N)Y
397 Q405 T2SA1980Y- TR 2SA1980(N)Y
398 Q602 TKTA1266Y- TR KTA1266Y (TP)
399 Q704 TKTC3198Y- TR KTC3198Y
400 Q705 TKTA1270Y- TR KTA1270Y (TP)
401 Q706 TKTC3198Y- TR KTC3198Y
402 Q707 TKTA1270Y- TR KTA1270Y (TP)
403 Q708 TKTC3198Y- TR KTC3198Y
404 Q801 TKTC3203Y- TR KTC3203-Y
405 Q804 TKTC3198Y- TR KTC3198Y
406 Q805 TKTC3198Y- TR KTC3198Y
407 Q904 TBF420---- TR BF420
408 Q905 TBF420---- TR BF420
409 Q906 TBF420---- TR BF420
410 Q907 TBF421---- TR BF421
411 Q908 TBF421---- TR BF421
412 Q909 TBF421---- TR BF421
413 R302 RN02B271JS R METAL FILM 2W 270 OHM J SMALL
414 R305 RN02B109JS R METAL FILM 2W 1 OHM J SMALL
415 R402 RN02B201JS R METAL FILM 2W 200 OHM J SMALL
416 R403 RN01B472JS R METAL FILM 1W 4.7K OHM J SMALL
417 R408 RN02B102JS R METAL FILM 2W 1K OHM J SMALL
418 R411 RN02B109JS R METAL FILM 2W 1 OHM J SMALL

NO LOC PARTS CODE PARTS NAME PART DESCRIPTION REMARK

-45-

ELECTRICAL PARTS LIST

419 R904 RN02B153JS R METAL FILM 2W 15K OHM J SMALL
420 R905 RN02B153JS R METAL FILM 2W 15K OHM J SMALL
421 R906 RN02B153JS R METAL FILM 2W 15K OHM J SMALL
422 RS04 RN01B221JS R METAL FILM 1W 220 OHM J SMALL
423 RS05 RN01B221JS R METAL FILM 1W 220 OHM J SMALL
424 SW01 5S50101Z90 SW TACT THVV502GDA
425 SW02 5S50101Z90 SW TACT THVV502GDA
426 SW03 5S50101Z90 SW TACT THVV502GDA
427 SW04 5S50101Z90 SW TACT THVV502GDA
428 SW05 5S50101Z90 SW TACT THVV502GDA
429 SW06 5S50101Z90 SW TACT THVV502GDA
430 ZZ200 PTMPJAK219 PCB MAIN AXIAL AS DTH-21S7STF
431 510 2TM14006LB TAPE MASKING 3M #232 6.0X2000M
432 520 2TM10006LB TAPE MASKING 3M #232-MAP-C 6.2X2000M
433 A001 4859819192 PCB MAIN 330X246 D1B
434 C110 CCZL1H222K C CERA 50V B 2200PF K AXL(1608)
435 C116 CCZJ1H223Z C CERA 50V F 0.022MF Z AXL(1608)
436 C203 CCZJ1H104Z C CERA 50V F 0.1MF Z AXL(1608)
437 C205 CCZJ1H104Z C CERA 50V F 0.1MF Z AXL(1608)
438 C719 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)
439 C732 CCZJ1H104Z C CERA 50V F 0.1MF Z AXL(1608)
440 C733 CCZJ1H104Z C CERA 50V F 0.1MF Z AXL(1608)
441 C737 CCZJ1H104Z C CERA 50V F 0.1MF Z AXL(1608)
442 C813 CCZB1H471K C CERA 50V B 470PF K (AXIAL)
443 C901 CCZB1H331K C CERA 50V B 330PF K (AXIAL)
444 C902 CCZB1H331K C CERA 50V B 330PF K (AXIAL)
445 C903 CCZB1H331K C CERA 50V B 330PF K (AXIAL)
446 CA04 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)
447 CS01 CCZL1H222K C CERA 50V B 2200PF K AXL(1608)
448 CS02 CCZL1H222K C CERA 50V B 2200PF K AXL(1608)
449 CS04 CCZL1H222K C CERA 50V B 2200PF K AXL(1608)
450 CS06 CCZL1H222K C CERA 50V B 2200PF K AXL(1608)
451 CV13 CCZJ1H104Z C CERA 50V F 0.1MF Z AXL(1608)
452 CV14 CCZJ1H104Z C CERA 50V F 0.1MF Z AXL(1608)
453 CV15 CCZJ1H104Z C CERA 50V F 0.1MF Z AXL(1608)
454 D101 DUZ33B---- DIODE ZENER UZ-33B
455 D301 D1N4004S-- DIODE 1N4004S
456 D401 D1N4937G-- DIODE 1N4937G (TAPPING)
457 D404 DUZ9R1BM-- DIODE ZENER UZ-9.1BM
458 D405 D1N4937G-- DIODE 1N4937G (TAPPING)
459 D406 D1N4937G-- DIODE 1N4937G (TAPPING)
460 D407 DRGP15JP-- DIODE RGP-15JP
461 D408 DRGP15JP-- DIODE RGP-15JP
462 D430 DUZ12BM--- DIODE ZENER UZ-12BM (UNIZON)

NO LOC PARTS CODE PARTS NAME PART DESCRIPTION REMARK

-46-

ELECTRICAL PARTS LIST

463 D602 D1N4148--- DIODE 1N4148 (TAPPING)
464 D701 DUZ3R9B--- DIODE ZENER UZ-3.9B
465 D702 D1N4148--- DIODE 1N4148 (TAPPING)
466 D703 D1N4148--- DIODE 1N4148 (TAPPING)
467 D706 DUZ3R3B--- DIODE ZENER UZ-3.3B
468 D707 DUZ6R2BM-- DIODE ZENER UZ-6.2BM
469 D708 DUZ6R2BM-- DIODE ZENER UZ-6.2BM
470 D709 DUZ6R2BM-- DIODE ZENER UZ-6.2BM
471 D801 DLT2A05G-- DIODE LT2A05G (TP)
472 D802 DLT2A05G-- DIODE LT2A05G (TP)
473 D803 DLT2A05G-- DIODE LT2A05G (TP)
474 D804 DLT2A05G-- DIODE LT2A05G (TP)
475 D805 D1N4937G-- DIODE 1N4937G (TAPPING)
476 D806 D1N4937G-- DIODE 1N4937G (TAPPING)
477 D807 D1N4148--- DIODE 1N4148 (TAPPING)
478 D808 DUZ6R2BM-- DIODE ZENER UZ-6.2BM
479 D810 D1N4937G-- DIODE 1N4937G (TAPPING)
480 D814 DUZ5R1B--- DIODE ZENER UZ-5.1B
481 D815 D1N4148--- DIODE 1N4148 (TAPPING)
482 D902 D1N4148--- DIODE 1N4148 (TAPPING)
483 DS01 DUZ5R6BM-- DIODE ZENER UZ-5.6BM
484 J001 85801050GY WIRE COPPER 1/0.5 TIN COATING
485 J002 85801050GY WIRE COPPER 1/0.5 TIN COATING
486 J003 85801050GY WIRE COPPER 1/0.5 TIN COATING
487 J004 85801050GY WIRE COPPER 1/0.5 TIN COATING
488 J006 85801050GY WIRE COPPER 1/0.5 TIN COATING
489 J007 85801050GY WIRE COPPER 1/0.5 TIN COATING
490 J008 85801050GY WIRE COPPER 1/0.5 TIN COATING
491 J011 85801050GY WIRE COPPER 1/0.5 TIN COATING
492 J012 85801050GY WIRE COPPER 1/0.5 TIN COATING
493 J013 5MC0000100 COIL BEAD HC-3550
494 J014 85801050GY WIRE COPPER 1/0.5 TIN COATING
495 J017 85801050GY WIRE COPPER 1/0.5 TIN COATING
496 J021 85801050GY WIRE COPPER 1/0.5 TIN COATING
497 J024 85801050GY WIRE COPPER 1/0.5 TIN COATING
498 J025 85801050GY WIRE COPPER 1/0.5 TIN COATING
499 J026 85801050GY WIRE COPPER 1/0.5 TIN COATING
500 J027 85801050GY WIRE COPPER 1/0.5 TIN COATING
501 J028 85801050GY WIRE COPPER 1/0.5 TIN COATING
502 J029 85801050GY WIRE COPPER 1/0.5 TIN COATING
503 J031 85801050GY WIRE COPPER 1/0.5 TIN COATING
504 J032 85801050GY WIRE COPPER 1/0.5 TIN COATING
505 J033 85801050GY WIRE COPPER 1/0.5 TIN COATING
506 J034 85801050GY WIRE COPPER 1/0.5 TIN COATING

NO LOC PARTS CODE PARTS NAME PART DESCRIPTION REMARK

-47-

ELECTRICAL PARTS LIST

507 J037 85801050GY WIRE COPPER 1/0.5 TIN COATING
508 J040 85801050GY WIRE COPPER 1/0.5 TIN COATING
509 J041 85801050GY WIRE COPPER 1/0.5 TIN COATING
510 J042 85801050GY WIRE COPPER 1/0.5 TIN COATING
511 J043 85801050GY WIRE COPPER 1/0.5 TIN COATING
512 J044 85801050GY WIRE COPPER 1/0.5 TIN COATING
513 J045 85801050GY WIRE COPPER 1/0.5 TIN COATING
514 J046 85801050GY WIRE COPPER 1/0.5 TIN COATING
515 J047 85801050GY WIRE COPPER 1/0.5 TIN COATING
516 J048 85801050GY WIRE COPPER 1/0.5 TIN COATING
517 J049 85801050GY WIRE COPPER 1/0.5 TIN COATING
518 J050 85801050GY WIRE COPPER 1/0.5 TIN COATING
519 J051 85801050GY WIRE COPPER 1/0.5 TIN COATING
520 J052 85801050GY WIRE COPPER 1/0.5 TIN COATING
521 J053 85801050GY WIRE COPPER 1/0.5 TIN COATING
522 J056 85801050GY WIRE COPPER 1/0.5 TIN COATING
523 J060 85801050GY WIRE COPPER 1/0.5 TIN COATING
524 J061 85801050GY WIRE COPPER 1/0.5 TIN COATING
525 J062 85801050GY WIRE COPPER 1/0.5 TIN COATING
526 J063 85801050GY WIRE COPPER 1/0.5 TIN COATING
527 J064 85801050GY WIRE COPPER 1/0.5 TIN COATING
528 J065 85801050GY WIRE COPPER 1/0.5 TIN COATING
529 J067 85801050GY WIRE COPPER 1/0.5 TIN COATING
530 J069 85801050GY WIRE COPPER 1/0.5 TIN COATING
531 J070 85801050GY WIRE COPPER 1/0.5 TIN COATING
532 J071 85801050GY WIRE COPPER 1/0.5 TIN COATING
533 J072 85801050GY WIRE COPPER 1/0.5 TIN COATING
534 J073 85801050GY WIRE COPPER 1/0.5 TIN COATING
535 J074 85801050GY WIRE COPPER 1/0.5 TIN COATING
536 J075 85801050GY WIRE COPPER 1/0.5 TIN COATING
537 J076 85801050GY WIRE COPPER 1/0.5 TIN COATING
538 J077 85801050GY WIRE COPPER 1/0.5 TIN COATING
539 J082 85801050GY WIRE COPPER 1/0.5 TIN COATING
540 J083 85801050GY WIRE COPPER 1/0.5 TIN COATING
541 J084 85801050GY WIRE COPPER 1/0.5 TIN COATING
542 J087 85801050GY WIRE COPPER 1/0.5 TIN COATING
543 J088 85801050GY WIRE COPPER 1/0.5 TIN COATING
544 J089 85801050GY WIRE COPPER 1/0.5 TIN COATING
545 J091 85801050GY WIRE COPPER 1/0.5 TIN COATING
546 J092 85801050GY WIRE COPPER 1/0.5 TIN COATING
547 J097 RD-AZ152J- R CARBON FILM 1/6 1.5K OHM J
548 J098 85801050GY WIRE COPPER 1/0.5 TIN COATING
549 J124 85801050GY WIRE COPPER 1/0.5 TIN COATING
550 J125 85801050GY WIRE COPPER 1/0.5 TIN COATING

NO LOC PARTS CODE PARTS NAME PART DESCRIPTION REMARK

-48-

ELECTRICAL PARTS LIST

551 J128 85801050GY WIRE COPPER 1/0.5 TIN COATING
552 J129 85801050GY WIRE COPPER 1/0.5 TIN COATING
553 J131 85801050GY WIRE COPPER 1/0.5 TIN COATING
554 J132 85801050GY WIRE COPPER 1/0.5 TIN COATING
555 J133 85801050GY WIRE COPPER 1/0.5 TIN COATING
556 J134 85801050GY WIRE COPPER 1/0.5 TIN COATING
557 J140 85801050GY WIRE COPPER 1/0.5 TIN COATING
558 J141 85801050GY WIRE COPPER 1/0.5 TIN COATING
559 J142 85801050GY WIRE COPPER 1/0.5 TIN COATING
560 J143 85801050GY WIRE COPPER 1/0.5 TIN COATING
561 J145 85801050GY WIRE COPPER 1/0.5 TIN COATING
562 J146 85801050GY WIRE COPPER 1/0.5 TIN COATING
563 J147 85801050GY WIRE COPPER 1/0.5 TIN COATING
564 J148 85801050GY WIRE COPPER 1/0.5 TIN COATING
565 J150 85801050GY WIRE COPPER 1/0.5 TIN COATING
566 J151 85801050GY WIRE COPPER 1/0.5 TIN COATING
567 J152 85801050GY WIRE COPPER 1/0.5 TIN COATING
568 J153 85801050GY WIRE COPPER 1/0.5 TIN COATING
569 J154 85801050GY WIRE COPPER 1/0.5 TIN COATING
570 J155 85801050GY WIRE COPPER 1/0.5 TIN COATING
571 J156 85801050GY WIRE COPPER 1/0.5 TIN COATING
572 J164 85801050GY WIRE COPPER 1/0.5 TIN COATING
573 J165 85801050GY WIRE COPPER 1/0.5 TIN COATING
574 J167 85801050GY WIRE COPPER 1/0.5 TIN COATING
575 J168 85801050GY WIRE COPPER 1/0.5 TIN COATING
576 J169 85801050GY WIRE COPPER 1/0.5 TIN COATING
577 J170 85801050GY WIRE COPPER 1/0.5 TIN COATING
578 J171 85801050GY WIRE COPPER 1/0.5 TIN COATING
579 J172 85801050GY WIRE COPPER 1/0.5 TIN COATING
580 J173 85801050GY WIRE COPPER 1/0.5 TIN COATING
581 J174 85801050GY WIRE COPPER 1/0.5 TIN COATING
582 J175 85801050GY WIRE COPPER 1/0.5 TIN COATING
583 J176 85801050GY WIRE COPPER 1/0.5 TIN COATING
584 J901 85801050GY WIRE COPPER 1/0.5 TIN COATING
585 J903 85801050GY WIRE COPPER 1/0.5 TIN COATING
586 J904 85801050GY WIRE COPPER 1/0.5 TIN COATING
587 JS01 85801050GY WIRE COPPER 1/0.5 TIN COATING
588 JS02 85801050GY WIRE COPPER 1/0.5 TIN COATING
589 JS03 85801050GY WIRE COPPER 1/0.5 TIN COATING
590 JS04 85801050GY WIRE COPPER 1/0.5 TIN COATING
591 JS05 85801050GY WIRE COPPER 1/0.5 TIN COATING
592 JS06 85801050GY WIRE COPPER 1/0.5 TIN COATING
593 JS07 85801050GY WIRE COPPER 1/0.5 TIN COATING
594 JS08 85801050GY WIRE COPPER 1/0.5 TIN COATING

NO LOC PARTS CODE PARTS NAME PART DESCRIPTION REMARK

-49-

ELECTRICAL PARTS LIST

595 L101 5CPZ470K04 COIL PEAKING 47UH 10.5MM K (LAL04TB)
596 L104 5CPZ479K04 COIL PEAKING 4.7UH K (AXIAL 10.5MM)
597 L201 5CPZ479K02 COIL PEAKING 4.7UH K (AXIAL 3.5MM)
598 L301 5MC0000100 COIL BEAD HC-3550
599 L302 85801050GY WIRE COPPER 1/0.5 TIN COATING
600 L701 5CPZ479K04 COIL PEAKING 4.7UH K (AXIAL 10.5MM)
601 L702 5CPZ479K02 COIL PEAKING 4.7UH K (AXIAL 3.5MM)
602 L703 5CPZ479K02 COIL PEAKING 4.7UH K (AXIAL 3.5MM)
603 L704 5CPZ479K02 COIL PEAKING 4.7UH K (AXIAL 3.5MM)
604 L705 5CPZ479K02 COIL PEAKING 4.7UH K (AXIAL 3.5MM)
605 L706 5CPZ479K02 COIL PEAKING 4.7UH K (AXIAL 3.5MM)
606 L707 5CPZ479K04 COIL PEAKING 4.7UH K (AXIAL 10.5MM)
607 L709 5CPZ479K02 COIL PEAKING 4.7UH K (AXIAL 3.5MM)
608 L714 5CPZ479K02 COIL PEAKING 4.7UH K (AXIAL 3.5MM)
609 L803 5MC0000100 COIL BEAD HC-3550
610 L804 5MC0000100 COIL BEAD HC-3550
611 L805 5MC0000100 COIL BEAD HC-3550
612 R107 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
613 R109 85801050GY WIRE COPPER 1/0.5 TIN COATING
614 R119 RN-AZ3902F R METAL FILM 1/6 39K OHM F
615 R201 RD-AZ224J- R CARBON FILM 1/6 220K OHM J
616 R203 RN-AZ1801F R METAL FILM 1/6 1.8K OHM F
617 R204 RD-4Z332J- R CARBON FILM 1/4 3.3K OHM J
618 R213 RD-AZ750J- R CARBON FILM 1/6 75 OHM J
619 R303 RD-AZ471J- R CARBON FILM 1/6 470 OHM J
620 R304 RN-4Z2401F R METAL FILM 1/4 2.40K OHM F
621 R308 RN-4Z2401F R METAL FILM 1/4 2.40K OHM F
622 R310 RD-AZ334J- R CARBON FILM 1/6 330K OHM J
623 R313 85801050GY WIRE COPPER 1/0.5 TIN COATING
624 R314 85801050GY WIRE COPPER 1/0.5 TIN COATING
625 R404 RD-AZ122J- R CARBON FILM 1/6 1.2K OHM J
626 R405 RD-AZ471J- R CARBON FILM 1/6 470 OHM J
627 R406 RD-4Z220J- R CARBON FILM 1/4 22 OHM J
628 R410 RN-AZ9101F R METAL FILM 1/6 9.1K OHM F
629 R412 RN-AZ1302F R METAL FILM 1/6 13K OHM F
630 R413 RD-4Z470J- R CARBON FILM 1/4 47 OHM J
631 R418 RD-4Z102J- R CARBON FILM 1/4 1K OHM J
632 R419 RD-4Z333J- R CARBON FILM 1/4 33K OHM J
633 R420 RD-4Z123J- R CARBON FILM 1/4 12K OHM J
634 R430 RD-4Z331J- R CARBON FILM 1/4 330 OHM J
635 R465 RD-4Z753J- R CARBON FILM 1/4 75K OHM J
636 R601 RD-AZ622J- R CARBON FILM 1/6 6.2K OHM J
637 R602 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
638 R604 RD-AZ622J- R CARBON FILM 1/6 6.2K OHM J

NO LOC PARTS CODE PARTS NAME PART DESCRIPTION REMARK

-50-

ELECTRICAL PARTS LIST

639 R605 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
640 R606 RD-AZ622J- R CARBON FILM 1/6 6.2K OHM J
641 R607 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
642 R609 RD-AZ202J- R CARBON FILM 1/6 2K OHM J
643 R612 85801050GY WIRE COPPER 1/0.5 TIN COATING
644 R613 RD-4Z229J- R CARBON FILM 1/4 2.2 OHM J
645 R614 RD-4Z229J- R CARBON FILM 1/4 2.2 OHM J
646 R615 RD-4Z229J- R CARBON FILM 1/4 2.2 OHM J
647 R616 RD-4Z229J- R CARBON FILM 1/4 2.2 OHM J
648 R624 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J
649 R625 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J
650 R627 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
651 R628 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J
652 R629 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J
653 R630 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
654 R633 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J
655 R634 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J
656 R635 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
657 R704 85801050GY WIRE COPPER 1/0.5 TIN COATING
658 R707 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
659 R708 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
660 R710 RD-AZ563J- R CARBON FILM 1/6 56K OHM J
661 R712 RD-4Z222J- R CARBON FILM 1/4 2.2K OHM J
662 R717 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J
663 R719 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
664 R723 RD-AZ122J- R CARBON FILM 1/6 1.2K OHM J
665 R725 RD-AZ273J- R CARBON FILM 1/6 27K OHM J
666 R726 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
667 R729 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
668 R730 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
669 R732 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
670 R733 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
671 R735 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
672 R742 RD-AZ181J- R CARBON FILM 1/6 180 OHM J
673 R772 RD-4Z473J- R CARBON FILM 1/4 47K OHM J
674 R774 RD-4Z473J- R CARBON FILM 1/4 47K OHM J
675 R776 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J
676 R777 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J
677 R780 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
678 R782 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J
679 R803 RD-4Z100J- R CARBON FILM 1/4 10 OHM J
680 R804 RD-4Z152J- R CARBON FILM 1/4 1.5K OHM J
681 R805 RD-4Z100J- R CARBON FILM 1/4 10 OHM J
682 R806 RD-4Z331J- R CARBON FILM 1/4 330 OHM J

NO LOC PARTS CODE PARTS NAME PART DESCRIPTION REMARK

-51-

ELECTRICAL PARTS LIST

683 R807 RD-4Z102J- R CARBON FILM 1/4 1K OHM J
684 R809 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
685 R819 RN-2Z1003F R METAL FILM 1/2 100K OHM F
686 R820 RN-4Z1602F R METAL FILM 1/4 16.0K OHM F
687 R823 85801050GY WIRE COPPER 1/0.5 TIN COATING
688 R826 RN-AZ2201F R METAL FILM 1/6 2.2K OHM F
689 R833 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
690 R834 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
691 R840 RC-2Z565KP R CARBON COMP 1/2 5.6M OHM K
692 R901 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
693 R902 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
694 R903 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
695 R907 RD-AZ301J- R CARBON FILM 1/6 300 OHM J
696 R908 RD-AZ301J- R CARBON FILM 1/6 300 OHM J
697 R909 RD-AZ301J- R CARBON FILM 1/6 300 OHM J
698 R910 RD-2Z680J- R CARBON FILM 1/2 68 OHM J
699 R911 RD-4Z102J- R CARBON FILM 1/4 1K OHM J
700 R912 RD-2Z202J- R CARBON FILM 1/2 2K OHM J
701 R913 RD-2Z202J- R CARBON FILM 1/2 2K OHM J
702 R914 RD-2Z202J- R CARBON FILM 1/2 2K OHM J
703 R915 RD-2Z100J- R CARBON FILM 1/2 10 OHM J
704 RA03 RD-AZ224J- R CARBON FILM 1/6 220K OHM J
705 RA04 RD-AZ224J- R CARBON FILM 1/6 220K OHM J
706 RK01 RD-AZ132J- R CARBON FILM 1/6 1.3K OHM J
707 RK02 RD-AZ331J- R CARBON FILM 1/6 330 OHM J
708 RK03 RD-AZ151J- R CARBON FILM 1/6 150 OHM J
709 RK04 RD-AZ911J- R CARBON FILM 1/6 910 OHM J
710 RK05 RD-AZ561J- R CARBON FILM 1/6 560 OHM J
711 RK06 85801050GY WIRE COPPER 1/0.5 TIN COATING
712 RS01 RD-AZ750J- R CARBON FILM 1/6 75 OHM J
713 RS02 RD-AZ224J- R CARBON FILM 1/6 220K OHM J
714 RS03 RD-AZ224J- R CARBON FILM 1/6 220K OHM J
715 RS801 RC-2Z225KP R CARBON COMP 1/2 2.2M OHM K
716 RV09 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
717 RV10 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
718 RV15 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
719 RV16 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
720 RV17 RD-AZ101J- R CARBON FILM 1/6 100 OHM J

NO LOC PARTS CODE PARTS NAME PART DESCRIPTION REMARK

-52-

-53-

-54-

-55-

DAEWOO ELECTRONICS CORP.

PRINTED DATE :

686, AHYEON-DONG, MAPO-GU,
SEOUL, KOREA.
C.P.O. BOX 8003 SEOUL KOREA

May. 2008
