Daewoo DTB-14D9 User's Guide

Colour Television

Instruction Manual

P/N : 48586185E215-R3

MODEL No.

DTA- 14V1 / 20V1 / 21V1

14V1T / 20V1T / 21V1T 14V3 / 20V3 / 21V3 14V3T / 20V3T / 21V3T 14U1 / 20U1 / 21U1 14U1T / 20U1T / 21U1T 14U3 / 20U3 / 21U3 14U3T / 20U3T / 21U3T

DTB- 14D2 / 20D2 / 21D2

14D2T / 20D2T / 21D2T 14D3 / 20D3 / 21D3 14D3T / 20D3T / 21D3T 14D4 / 20D4 / 21D4 14D4T / 20D4T / 21D4T 14D6T / 20D6T / 21D6T 14D7 / 20D7 / 21D7 14D7T / 20D7T / 21D7T 14D9 / 20D9 / 21D9 14D9T / 20D9T / 21D9T 21U6 / 21U6T / 21U8 / 21U8T 21T1 / 2132 / 2132T

Contents

Important safeguards 1 Before Operation 2 Connecting external equipment 3 Identification of Controls 5 Daily use 6 Menus 8 Teletext (Option) 14 Quran function 15 Specifications 16 Troubleshooting 17

Important safeguards

WATER AND MOISTURE

Never install the set in the following places : In a wet basement, bathroom. Do not place any container with liquid on the set. The apparatus shall not be exposed to dripping or splashing water and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

HEAT

Never place the set near heat sources. Never put a naked flame, such as a candle, on the top of TV set.

VENTILATION

Do not cover the ventilation openings in the cabinet and never place the set in a confined space such as a bookcase or built-in unless proper ventilation is provided. Leave a minimum 10cm gap all around the unit.

OBJECT ENTRY

Do not insert foreign objects, such as needles and coins, in the ventilation openings.

LIGHTNING STRIKING

You should disconnect the set from the mains and the aerial system during thunderstorms.

CLEANING

Unplug the set from the mains during cleaning.

AFTER MOVING THE SET

If the set is moved in a different direction, the MAIN POWER button must be switched off for at least 15 minutes in order to take out a colour strain on the screen.

Before Operation

INSERTING BATTERIES INTO THE REMOTE CONTROL UNIT.(OPTION)

Insert the batteries (two 1.5V, type AAA or AA)

MAINS CONNECTION

Plug the mains cable into the power socket with 100V-250V, 50/60Hz AC.

AERIAL CONNECTION

When using an outdoor aerial, it is usually connected to the set by means of 75 ohm.

SWITCHING ON AND OFF

Switching on

Switch the set on with the MAIN POWER button(ON/OFF), and then PR UP button on the front of the set.

Or button or the PR UP button or one of the NUMBER buttons on the remote control.

Switching off

Press button, on the remote control to return the set to its stand by mode. If you don't use the set for an extended period of time, turn it off with MAIN POWER button on the set.

Battery options

TV AND A

TV AND AVV

RCA JACK A

V (BACK)

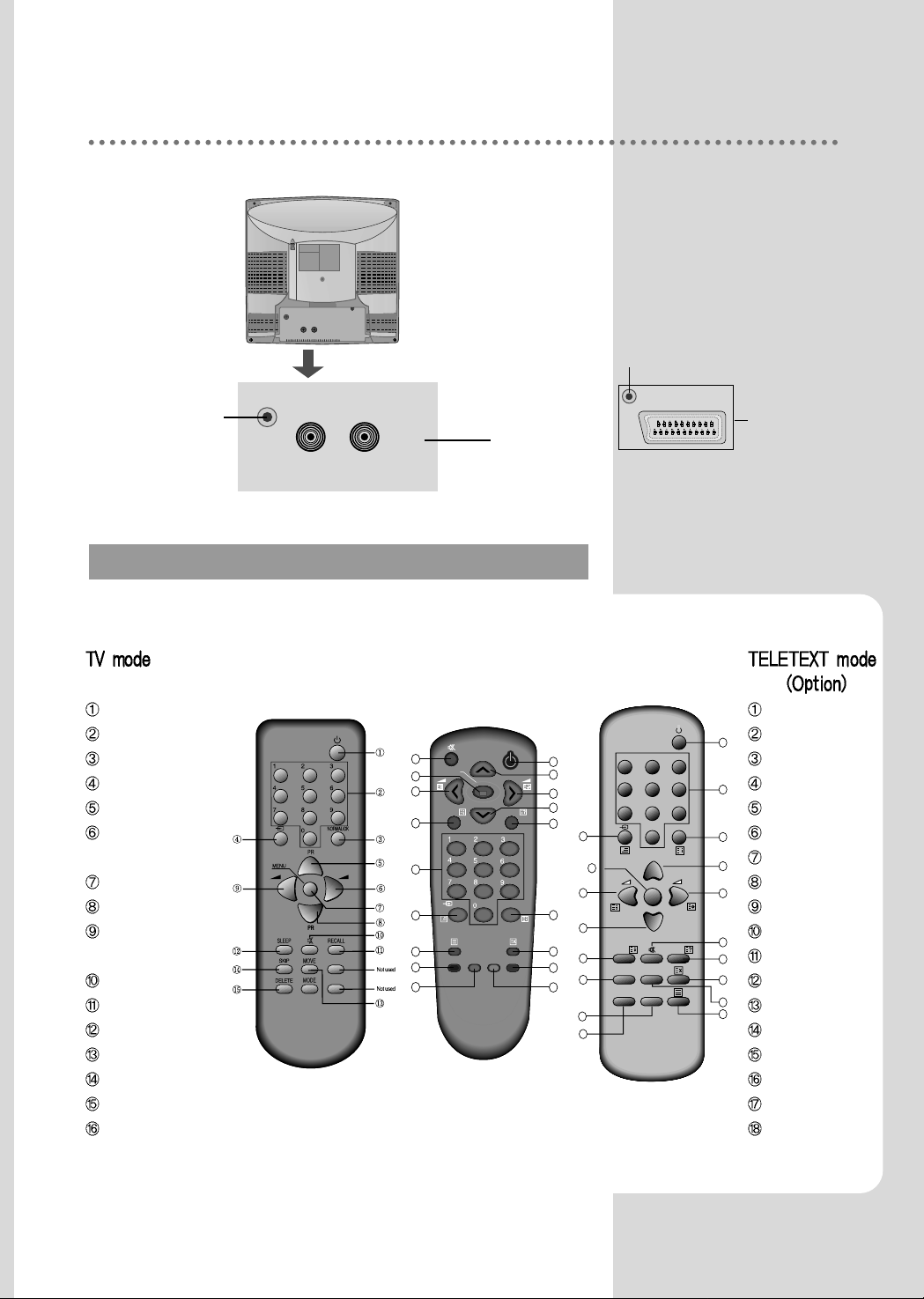

Connecting external equipment

Use the TV/AV( ) button on the remote control or on the front of the set to select one of the three options. Whenever the TV/AV

( ) button is pressed, the on-screen display will be changed as shown: AV TV ( S-VHS is Russia only )

This is used to connect a VCR, a Camcorder, a S-VHS VCR, a PERI-TV decoder or a video game console. In most cases, the set changes automatically to AV when the VCR connected is in display mode. If not, press the TV/AV

()

button on the remote control unit or on the front of the set. You must turn the external equipment off or press the TV/AV button to return to the TV mode.

SCART (OPTION)

CAMCORDER

VIDEO GAME

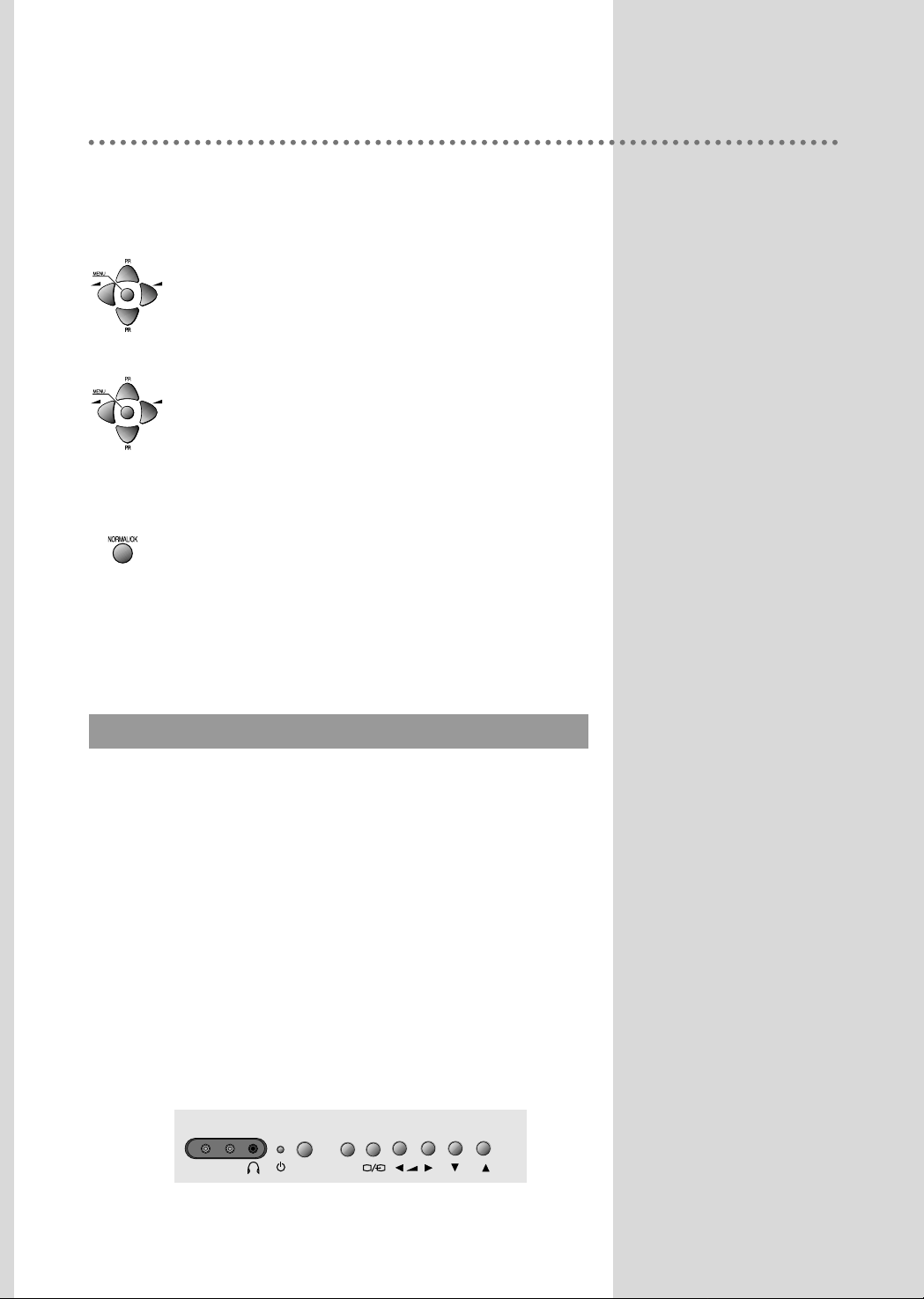

LOCAL CONTROL

RCA JACK A

V (FRONT)

Front

MAIN

POWER

BUTTON

VIDEO AUDIO

HEAD

PHONE

STAND-BY

INDICATOR

REMOTE SENSOR

MENU BUTTON

VOLUME UP/DOWN BUTTONS

PROGRAMME

UP/DOWN BUTTONS

TV/VIDEO

AUDIOVIDEO

Connect the AV (Audio/Video) socket with an appropriate cable to the corresponding socket of the external equipment. Select AV mode by

pressing the TV/AV( ) button. Press the TV/AV( ) button to return to

the TV mode.

HEADPHONE JACK

Insert the headphone plug(3,5mm) into the headphone socket. The sound from the speaker will be cut off.

NOTE:

NOTE: If two apparatus are connected,

one to the front AV Jack and the other to the rear SCART Jack, you can play only one apparatus. one of the them must be switched off.

or ON/OFF
