S/M No. : VDCB83PET
Service Manual
MODEL: DC-G84D1D
DC-G8GD1S
DC-G8GD1D
DC-G8HD1P
DC-G8GD1P
DC-G8GD1D
DC-B84D1P
SG-7200
SG-7500
SG-9500P
SG-9200P
SG-9300
SG-9200S
SG-9300P
SG-9500S
MAY. 2006
1
SPECIFICATIONS...............................................................................................................2
ADVANTAGES OF THIS PRODUCT....................................................................................3
TROUBLE SHOOTING....................................................................................................................5
WAVEFORMS................................................................................................................................23

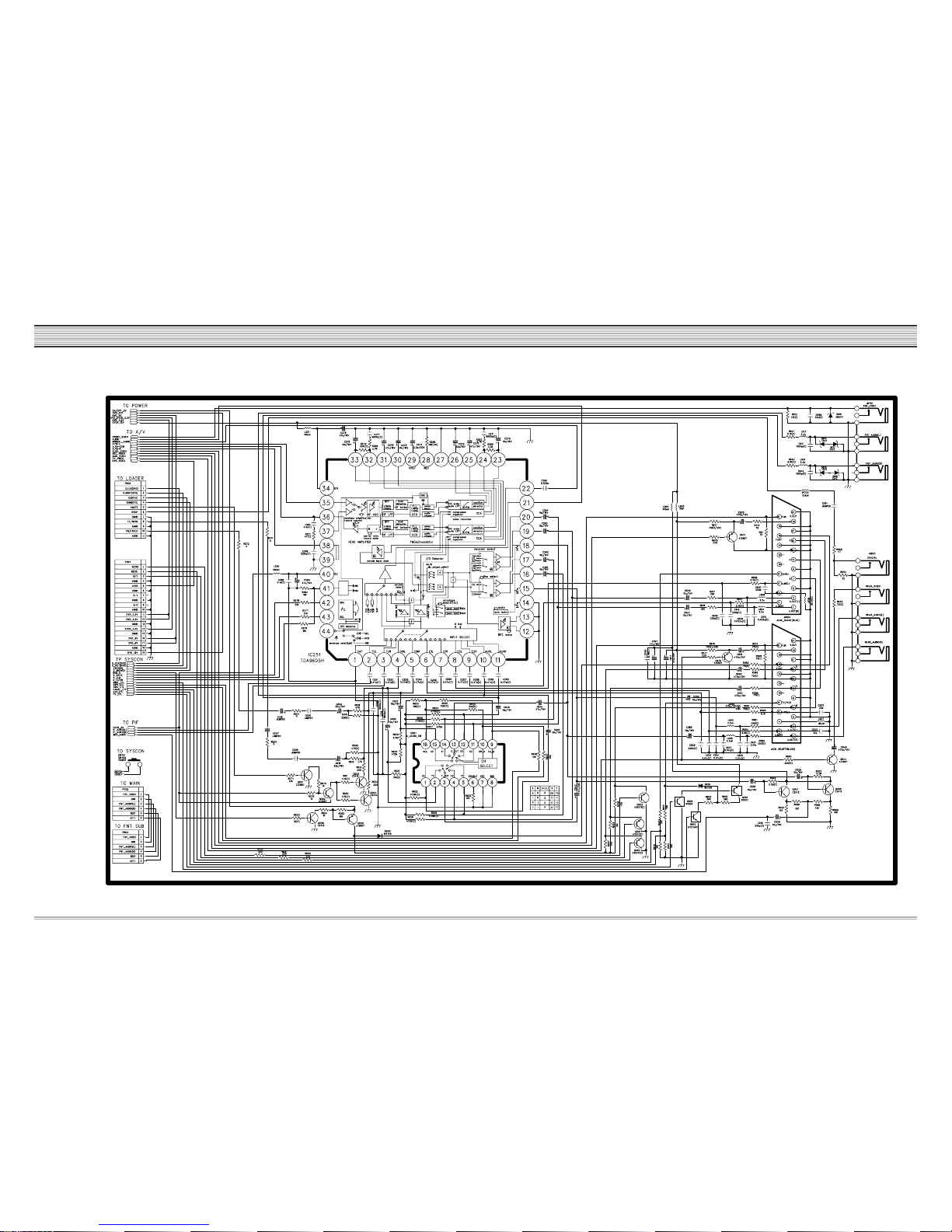

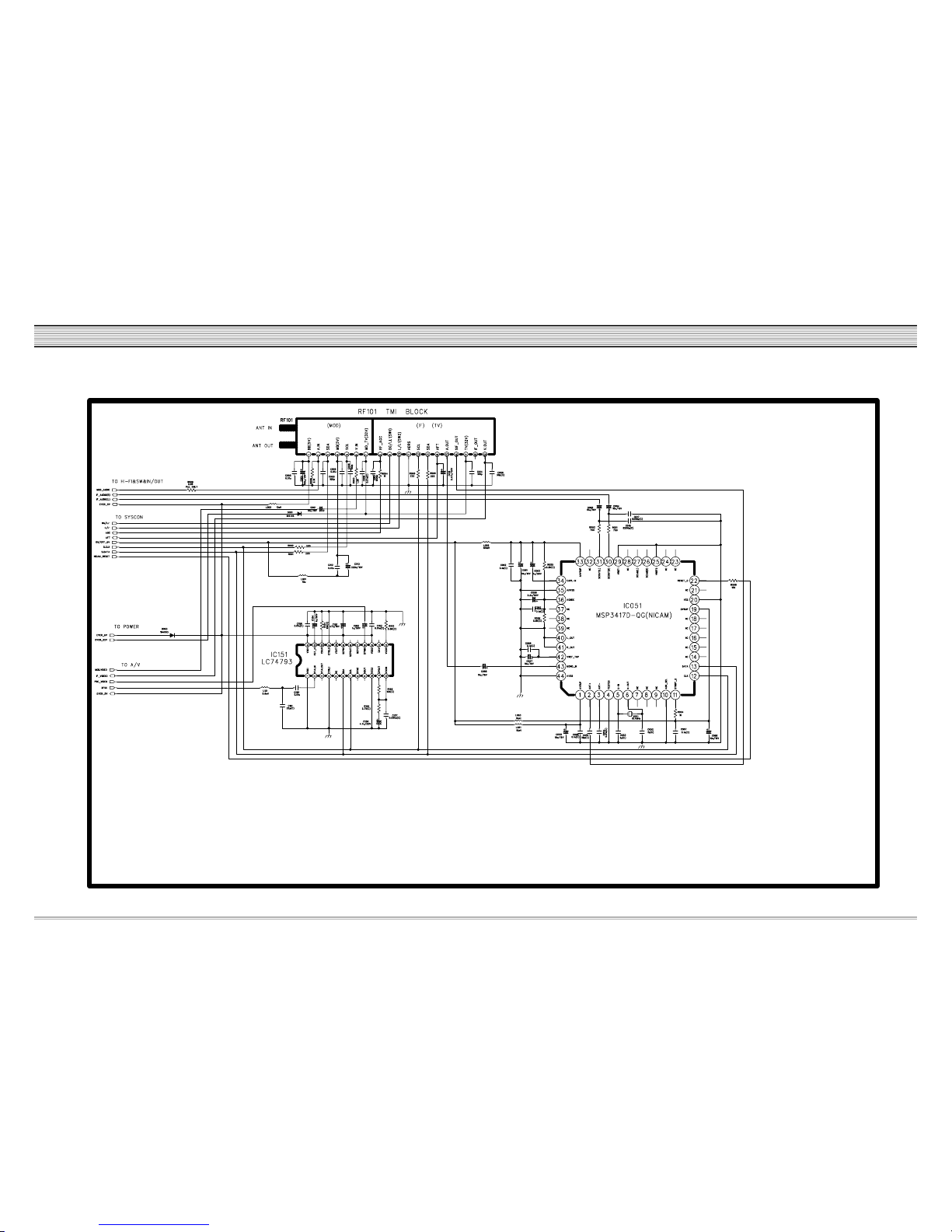

CIRCUIT DIAGRAM.......................................................................................................................26
PCB CIRCUIT BOARD..................................................................................................................36
INSTRUMENT DISASSEMBLY.....................................................................................................39
ELECTRICAL PARTSLIST............................................................................................................45
CONTENTS
2
SPECIFICATIONS
Disc type
DVD VIDEO-CD CD
Analogue Audio output 48/96KHz sampling 44.1KHz sampling 44.1KHz sampling
Digital Audio output 48KHz sampling 44.1KHz sampling 44.1KHz sampling
Output
Power 200-240V~, 50/60Hz
Consumed electricity 20W
Weight 4.6kg
Dimension (W x H x D) 435mmx93mmx255mm
Operative temperature +5°C~40°C
Installation condition Horizontal / Relative humidity under 80%
Laser output 5mW(DVD), 7mW(CD) (Continuous wave max.)
Wave length 657nm(DVD), 783nm(CD)
Signal type PAL COLOR
Antenna Input/output U/V-mixed: 75Ωunbalanced
VIDEO input 1.0Vp-p (unbalanced, RCA JACK)
AUDIO input -8.8dBm, RCA JACK
VIDEO output
(common use of DVD and VCR)
VIDEO output terminal, 1.0 Vp-p unbalanced, RCA JACK, SCART JACK
VIDEO output (DVD only) RGB output (75ΩIn load R: 0.7Vp-p, G:0.7Vp-p, B:0.7Vp-p)
AUDIO output
(common use of DVD and VCR) Audio output terminal (2 kinds): -5.8dBm(VCR), 2Vrms(DVD), RCA JACK
AUDIO output (DVD only) Analogue AUDIO output : 2.0Vrms
Digital audio output (COAXIAL)
Playable tape Very high dense tapes with VHS marks
Playable disc DVD, VIDEO-CD, CD (12cm), CD (8cm), MP3, CD-R, CD-RW
Tape speed SP: 23.39mm/s, LP: 11.70mm/s
Playtime SP: 3hrs, LP: 6hrs (use of E180tape)
Clock display 24 hrs
Time Recording 8 programs a month
Persistence in power failure 1min
VIDEO S/N (VCR) Over 43dB(Standard recording)
Resolution VCR Over 240 lines (Standard recording)
DVD Over 400 lines (Playback DVD)
AUDIO (VCR) Over 65dB
AUDIO (DVD) 90dB
AUDIO dynamic range 90dB
DVD Audio output standards
ADVANTAGES OF THIS PRODUCT
3
• DVD, VCD, CD, CD-R(MP3), CD-RW, VHS
• Watching DVD for recording broadcast
• Integrated remote control (VCR, DVD)
• VISS function
• Multiplex sound playback/record
• High Sound Quality of 6 head Hi-Fi
• Simple record function
• MP3 file playback function (CD-R disc having records of MP3 files)
• GUI (Graphical User Interface) through OSD (On Screen Display)
By using the [DISPLAY] button on the remote control, information on the DVD/VCD/CD player and disc, can be
displayed on the TV screen.
• Screensaver function (DVD)
• 3D sound (3D sound effect using 2 speakers)
• High bit / High sampling with 27MHz / 10bit video encoder
• High bit / High sampling with 96MHz / 24bit Audio D/A Converter
• Coaxial digital Audio output (PCM, Dolby Digital, dts)
You can enjoy high-level digital audio by connecting with amp embedded with Dolby Digital / dts decoder.
• Built-in Dolby Digital decoder (DVD)
• Analog audio 2-channels output for DOWNMIX (x1)
• Composite video output (x1)
• Slow Forward / Reverse playback (DVD)
• Fast Forward / Reverse playback
• Search of title, chapter, and time in DVD disc, and search of time and track time in VCD.
• Various TV aspect (DVD)
4:3 for Pan and Scan, 4:3 for Letter Box, and 16:9 for Wide
• Repeat playback (title, chapter, and part for DVD/ track, disc, and part for VCD/CD)
• Selective Play (DVD/VCD/CD)
You can select and play the desired title / chapter of DVD and track of Video CD/CD in PLAY mode.
• Parental Lock function (DVD)
This function can prevent playback of software that may be unsuitable for children.
• Multi Audio function (DVD)
The audio soundtrack can be heard in up to 8 languages. In the case of SVCD or VCD, it depends on the disc. (The
number of audio languages depends on the software.)
4
ADVANTAGES OF THIS PRODUCT
• Multi Subtitle function (DVD)
The subtitle can be seem in up to 32 languages. In the case of SVCD or VCD, it depends on the disc. (The number of
subtitle languages depends on the software.)
• Multi Angle function (DVD)
This function allows you to choose the viewing angle of scenes which were shot from a number of different angles.
(The number of angles depends on the software.)
• Screen zoom function (DVD/VCD)
5
TROUBLESHOOTING
1. POWER CIRCUIT
✓ CAUTION
You must use insulated transformer during the first part test of POWER circuit.
Check IC501, IC701
No power
POWER cord is ok?
Is 400V~200V voltage
obtained at C804 +?
Output voltage of 2
nd
parts is normal?
Check
rectifier diode of 2ndparts ;
D821, D822, D823, D824,
D825, D826, D827
Switching
pulse of Q801 collector is
normal?
OK
Exchange POWER CORD
Check F801.
Exchange rectifier diode of 2
nd
parts ; D821, D822, D823, D824,
D825, D826, D827.
Check Q801.
NO
YES
YES
YES
YES
YES
NO
NO
NO
NO
2. SYSTEM CIRCUIT
6
TROUBLESHOOTING
No LED display.
Is 5V obtained at IC701
pin #9, 25?
Oscillation at IC701pin #1?
Specific GRID/SEG doesnt function.
Check R588, D857, L503, L860
Exchange IC701.
Check IC 701 pin #22~24, 27,
28, 30, 31.
Check IC 701 pin #10~12, 14~21.
NO
YES
YES
NO
NO
GRID output at PORT of IC701?
YES
SEGoutput at PORT of IC701?
Exchange IC701.
YES
A. LED DISPLAY
NO
7
TROUBLESHOOTING
Noise appears on the
playback screen.
Is noise diminished by tracking
adjustment.
Noise band is trembled up and
down?
Re-adjust PATH.
Is the height of CTL HEAD normal?
No dust?
Is there problem in CTL Input
circuit and amplifier.
YES
NO
NO
NO
Is there CTL pulse at IC501
pin#97?
Check IC501.
Noise appears on the screen even
though changing tape.
Re-adjust the height of AC HEAD.
Remove the dust.
Check C510,R545~R547
IC 501 pin #91, 92, 98.
NO
Re-adjust PATH.
B-1. Bad playback quality (1)
YES
YES
YES
YES
Noise appears on the Full
playback screen.
Are SW pulse and HA SW normal?
Recheck step B-1
(Bad playback quallty (1)).
Check HEAD AMP connector
and HEAD.
YES
YES
NO
NO
ENVE Wave at PT01 pin #4?
Check VIDEO circuit.
Are there SW, HA SW pulse at
IC501 pin #16, 18?
Check PCB Pattern.
Check IC501.
B-2. Bad playback quality (2)
YES
NO
YES
8
TROUBLESHOOTING
No broadcasting signal
received
Is the output at IC501 pin# 61(CLK),
60 (DATA) normal?
Is SIF,Video output at TMI(RF101)
pin#16,19 normal?
Check IC 501.
Check IC301.
Check IC501.
YES
YES
NO
NO
NO
Is Video Signal input at IC501
pin#50?
Is there Video output at IC501
pin#52?
Check TMI (RF101) Block.
NO
Check Video Buffer Q670, Q671
C. No broadcasting signal received
YES
YES
YES
9
TROUBLESHOOTING
Cassette tape isn’t inserted.
Is 5V voltage obtained at Loading
parts IC501 pin#2?
Is 14V voltage obtained at
Capstan Motor P501 pin#2?
Check at EVER 14V
Check Q850.
Connect Capstan and Loading Motor.
Check connector and Capstan Motor.
YES
NO
NO
NO
Is 13V voltage obtained at Each
parts of Loading Motor?
Replace Loading Motor.
Check D851 and POWER circuit.
D. No CASSETTE Loading
YES
YES
E. AUTO STOP in Playback mode
VCR stops automatically in
playback mode.
Check R544,C516 and P501
pin#11.
Check S501, S502 REEL Sensor.
Is D.PG/FG pulse at IC501
pin#90 normal ?
Is C. FG pulse at IC501 pin#87
normal ?
Is there REEL Pulse at IC501
pin#79, 80?
Check and replace IC501.
NO
YES
YES
YES
NO
Check C.FG(R543,C517) and
P501 pin#1.
NO
10
TROUBLESHOOTING
F. DRUM Motor stops
G. CAPSTAN doesn’t rotate
CAPSTAN doesn’t rotate.
Is EVER 14V voltage obtained
at P501 pin#2?
YES
NO
NO
NO
YES
YES
Is Capstan PWM fit to
IC501 pin#77?
Is 3.2V voltage obtained
at P501 pin#5?
Is 2.7V voltage obtained
at P501 pin#9?
Check P501 Connector and
Capstan Motor.
Check EVER 14V.
(Q850)
Check Capstan FG
(IC 501 pin# 87).
Check
R541,R540,R539,R538,C518
Check R537,R536,C521
DRUM Motor stops.
Is 14V voltage obtained at P501
pin#8?
YES
NO
NO
NO
YES
YES
Is DRUM PWM fit to IC 501
pin#76?
Is 2.6V voltage obtained at
P501 pin#12?
Check Capstan Motor and
DRUM Motor.
Check EVER 14V
(Q850).
Check DRUM PG/FG
(IC 501 pin# 90).
Check R534,R535,C519,C520.
NO
11
TROUBLESHOOTING
3. VIDEO circuit
A. EE screen doesn’t appear
EE MODE Picture NG
Is Video signal input at
IC301 pin#48,50,52,54?
Is 5V supplied at
pin#42,55,72,91of IC301?
Is C.S, DATA, CLOCK signal
input pin#67,68,69 of IC301?
Check IF and LINE IN JACK.
Check POWER circuit.
Check IC501
pin #58,71,72.
NO
YES
YES
NO
NO
YES
Is signal output from pin#65 of
IC301?
YES
NO
Check IC301
pin#62 Q-V Sync.
Is signal input into pin#50
of IC501?
YES
NO
Check PCB Pattern.
Is signal output from
pin#52 of IC501?
YES
NO
Is 5V supplied to pin#53, 98,
99 of IC501?
Is signal output at IC301
pin#61?
YES
NO
Check PCB Pattern
Q309, Q310.
Check IC 501
YES
Check POWER circuit.
NO
Is signal input at IC301
pin#56?
Check RF Output.
Check PCB Pattern & LINE
out.
YES
YES
Check IC301.
NO
12
TROUBLESHOOTING
B. Playback picture doesn’t appear
YES
YES
Is Y SIGNAL output at IC301
pin#46?
Is VIDEO SIGNAL output at IC301
pin#65?
Check and Replace IC301.
PB video signal missing.
Is Envelope output from IC301
pin#79?
NO
NO
Same as EE MODE check.
Is 5V supplied at IC301 pin#91?
Is SW Pulse input at IC301
pin#70?
Is 5V obtained at IC301 pin#24,
42,55,72,91?
Check POWER 5V.
Check IC501 pin#18.
Clean head or Replace head.
Check POWER 5V.
NO
NO
Check PATTERN
NO
YES
YES
YES
YES
YES
YES
NO
Does X301(4.43MHz)
oscillate?
Is Y SIGNAL input at IC301
pin#43?
NO
Check PATTERN
YES
NO
Replace X301.
NO
Check and replace IC301.
13
TROUBLESHOOTING
Is +5V supplied at IC301 pin#91?
NO
NO
YES
YES
Is VIDEO SW Pulse input at IC301
pin#70?
Is REC signal output from IC301
pin#94,95,89,90?
LP MODE: 89,90 Pin
SP MODE: 94,95Pin
Check video HEAD and Connector.
Is signal input into IC301
pin# 48,50,52,54,56?
Check POWER circuit.
Check IC501 pin#18.
Record video signal poor.
Check EE MODE.
YES
Is luminance and color signal
output from IC301 pin#78?
Replace IC301.
NO
NO
YES
C. No recording
YES
Is IC301 pin#80 REC(H) HIGH?
Check IC501 pin#45.
NO
14
TROUBLESHOOTING
NO
Is Video signal input at IC501
pin#50?
Check POWER circuit.
No OSD appears.
Is 5V obtained at IC501 pin# 53,
98, 99?
Is Video signal output at IC501
pin#52?
NO
Replace IC501.
D. No OSD(On Screen Display) appears
YES
YES
NO
Check IC 501.
Check IC 501.
NO
Check PCB Pattern
Check FFC CABLE & DVD
Module
DVD Composite signal doesn’t
appear
Is signal output at PD01
pin# 5?
Is signal at IC301 pin#56?
NO
E. No DVD Video
YES
YES
Remark previous 3-A
Is signal at IC301 pin#61?
Check IC301
NO
Check RF output.
YES
YES
Check Line output
15
TROUBLESHOOTING
4. AUDIO (Hi-Fi MODEL)
No sound in RF E-E mode
Is Audio signal output at IC601 pin
#3, 13?
A. No sound in E-E mode
a. RF E-E
Check IC501.
Is Audio signal output at IC251
pin#16,17?
Are CLK and DATA obtained at
IC251 pin#42,43?
NO
Is 5V obtained at IC251 pin#40?
Replace IC251.
YES
YES
Is 12V obtained at IC251 pin#34?
NO
YES
Check POWER circuit.
YES
Replace IC601.
Is 5V obtained at IC051 pin#1?
Check Power circuit.
NO
Is there SIF signal at IC051 pin#2
in RF mode?
Check RF101.
NO
YES
Is there SIF signal out at IC051
pin#30, 31?
Check IC051.
NO
YES
YES
Comparing with switching table, are SWA, B CTL SIGNAL
right at IC601 pin #9,10?
NO
Check Output JACK.
YES
YES
NO
16
TROUBLESHOOTING
b. AV1 E-E
No sound in AV1 E-E mode.
NO
Check Input AV1 JACK
Is Audio signal at IC251 pin#6, 7?
Is Audio signal output at IC601 pin
#3, 13?
Check IC501.
Is Audio signal output at IC251
pin#16,17?
Are CLK and DATA obtained at
IC251 pin#42,43?
NO
Is 5V obtained at IC251 pin#40?
Replace IC251.
YES
YES
Is 12V obtained at IC251 pin#34?
NO
YES
Check POWER circuit.
YES
Replace IC601.
YES
Comparing with switching table, are SWA, B CTL SIGNAL
right at IC601 pin #9,10?
NO
Check Output JACK.
YES
YES
NO
17
TROUBLESHOOTING
c. AV2 E-E
No sound in AV2 E-E mode.
NO
Check Input AV2 JACK
Is Audio signal at IC251 pin#8, 9?
Is Audio signal output at IC601 pin
#3, 13?
Check IC501.
Is Audio signal output at IC251
pin#19, 20?
Are CLK and DATA obtained at
IC251 pin#42,43?
NO
Is 5V obtained at IC251 pin#40?
Replace IC251.
YES
YES
Is 12V obtained at IC251 pin#34?
NO
YES
Check POWER circuit.
YES
Replace IC601.
YES
Comparing with switching table, are SWA, B CTL SIGNAL
right at IC601 pin #9,10?
NO
Check Output JACK.
YES
YES
NO
18
TROUBLESHOOTING
d. DVD E-E
No sound in DVD
E-E mode.
Check FFC(19P or 11P)
Fix the FFC(19P or 11P)
NO
Is Audio signal output at IC601 pin
#3, 13?
Check IC501.
YES
Replace IC601.
Comparing with switching table, are SWA, B CTL SIGNAL
right at IC601 pin #9,10?
NO
Check Output JACK.
YES
YES
NO
19
TROUBLESHOOTING
Is Audio signal at IC601 pin#1,
12?
Check Input Front JACK.
NO
Is Audio signal output at IC601 pin
#3, 13?
Check IC501.
YES
Replace IC601.
Comparing with switching table, are SWA, B CTL SIGNAL
right at IC601 pin #9,10?
NO
Check Output JACK.
YES
YES
NO
e. FRONT E-E
No sound in Front
E-E mode.
20
B. No Hi-Fi Playback audio(PLAY MODE)
NO
Check A.SW at IC501
pin#19.
Is Audio signal at IC251 pin#41?
Is Audio signal output at IC601 pin
#3, 13?
Check IC501.
Is Audio signal output at IC251
pin#16,17?
Are CLK and DATA obtained at
IC251 pin#42,43?
NO
Is 5V obtained at IC251 pin#40?
Replace IC251.
YES
YES
Is 12V obtained at IC251 pin#34?
NO
YES
Check POWER circuit.
YES
Replace IC601.
Comparing with switching table, are SWA, B CTL SIGNAL
right at IC601 pin #9,10?
NO
Check Output JACK.
YES
YES
NO
21
C. No Hi-Fi playback in record/playback mode (REC MODE)
Are there Audio signal
at IC251 pin#4~9?
Is FM OSC signal at IC251
pin#36?
Check input LINE1 JACK.
Check input LINE2 JACK.
Check ICD03(DVD).
Replace DRUM.
YES
NO
NO
NO
Is FM OSC signal at P401 pin#2?
Replace IC251
YES
HEAD CLEANING.
YES
D. No NORMAL AUDIO playback (PLAY MODE)
Is Playback Audio signal at
IC301 pin#11?
Replace IC251.
YES
NO
NO
Is there Playback Normal Audio
signal at IC251 pin #17,18?
Check A/C HEAD and IC301
YES
Check Output JACK.
YES
Is there normal Audio signal at
IC251 pin#17, 18?
NO
Check power circuit.
NO
Voltage at IC251 pin#34 is 12V?
Voltage at IC251 pin#40 and at
IC301 pin#18 is 5V?
22
TROUBLESHOOTING
E. No NORMAL AUDIO playback in record/playback mode(Check in REC mode)
No Normal Audio playback in
record/playback mode
Are there Audio signal at IC251
pin#4~9?
Is there recording signal at
IC251 pin#21?
Check Input LINE1 JACK.
Check Input LINE2 JACK.
Check ICD03(DVD).
Check signal flow circuit.
YES
NO
NO
NO
Signal at IC251 pin#21 is transferred to
IC301 pin#13,15,17?
Collect signal at C222 is about
70Vp-p at 70KHz?
Check IC251.
YES
YES
Check Q203.
NO
Check P201 pin#2, 4, 8 and A/C
HEAD.
YES
REC (H) BASE voltage at Q206
is 5V?
Check IC501 pin#45.
NO
YES
23
WAVEFORMS
1. VIDEO
!
(IC301-70) 5Vp-p
1V/2msec/cm
REC
!
(IC301-70)5Vp-p
1V/2msec/cm
PLAY
@
(IC301-46) 520mVp-p
200mV/5usec/cm
REC
@
(IC301-46) 520mVp-p
200mV/5usec/cm
PLAY
#
(IC301-43) 520mVp-p
100mV/5usec
REC
#
(IC301-43) 520mVp-p
100mV/5usec
PLAY
$
(IC301-21) 600mVp-p
200mV/2msec/cm
PLAY(SP) VIDEO SW TRIG
$
(IC301-21) 350mVp-p
200mV/2msec/cm
PLAY(EP) VIDEO SW TRIG
%
(IC301-67) 4.6Vp-p
2V/10usec/cm
REC/PLAY
%
(IC301-67) 4.6Vp-p
2V/10usec/cm
PICTURE SEARCH
^
(IC301-65) 2.2Vp-p
500mV/5usec/cm
REC
^
(IC301-65) 2.2Vp-p
500mV/5usec/cm
PLAY
&
(IC301-28) 450mVp-p
200mV/0.1usec/cm
24
WAVEFORMS
2. AUDIO
2-1 AUDIO(Normal)
2-2 AUDIO(Hi-Fi)
*
(IC301-15) 100mVp-p
20mV/0.5msec/cm
REC
(
(IC301-11) 1.5Vp-p
0.5V/0.5msec/cm
REC
)
(IC301-100) 2.3Vp-p
0.5V/0.5msec/cm
REC
1
(IC301-8) 120mVp-p
50mV/0.5msec/cm
PLAY
2
(P202-2) 75Vp-p
10V/20µsec/cm
REC
3
(IC251-2) 80mVp-p
20mV/0.5msec
EE/REC/PLAY
4
(IC251-24) 200mVp-p
50mV/0.5msec
EE/REC
5
(IC251-34) 1.4Vp-p
0.5V/1msec
REC
6
(IC251-32) 200mVp-p
50mV/0.5msec
EE/REC
7
(IC251-16) 1.4Vp-p
0.5V/0.5msec
EE/REC
25
WAVEFORMS
3. SERVO/SYSCON
8
(IC501-18) 5Vp-p
2V/5msec/cm
REC/PLAY
9
(IC501-77) 5Vp-p
2V/5µsec/cm
REC/PLAY
0
(IC501-76) 5Vp-p
2V/5µsec/cm
REC/PLAY
“
(IC501-94) 3Vp-p
1V/5msec/cm
REC
‘
(IC501-97) 4.4Vp-p
1V/5msec/cm
PLAY
+
(IC501-90)25Vp-p&5Vp-p
1V/5msec/cm
REC/PLAY
=
(IC501-87) 2.5Vp-p
1V/0.2msec/cm
REC/PLAY
Q
(IC501-38) 2.6Vp-p
0.5V/0.1µsec/cm
REC/PLAY
26
CIRCUIT DIAGRAM
1. POWER SUPPLY CIRCUIT DIAGRAM
27
CIRCUIT DIAGRAM
2. SERVO & SYSCON CIRCUIT DIAGRAM
28
CIRCUIT DIAGRAM
3. A/V CIRCUIT DIAGRAM
29
4. HiFi & SW & INPUT CIRCUIT DIAGRAM
CIRCUIT DIAGRAM
30
CIRCUIT DIAGRAM
5. Hi-Fi & PIF & INOUT CIRCUIT DIAGRAM
31
CIRCUIT DIAGRAM
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
VIDEO INTERFACE
MEMORY
IIC
AUDIO INTERFACE
INTERFACE I/O
FLASH
V1.7
RS-232
RESET & POWER
Pins For 64Mbit SDRAM
& Pull-Down Resistor
For Address MA11
External
VIDEO Level
Control R
URST#
V18
DV33
PLLVDD3
SDA
CS#
DQ[0..15]
IR
AR
CS
SCL
PWR#
PRD#
MUTE_DAC
DQM[0..1]
WE#
DCLK
AD[0..7]
BA0
ASPDIF
VSCK
CAS#
VSTB
RAS#
AL
MA[0..11]
VSDA
PCE#
DCKE
A[0..19]
TRSO
XI
XI
FOSO
RFO
XO
XO
TROUT
TRIN
FMSO
DACVDD3
RFV18
RFVDD3
ADACVDD3
V1P4
APLLVDD3
RFVDD3
CS
TxD
FS
RxD
A
D
AD4
DQ15
MA10
DCKE
TRCLOSE
SCL
AD0
CS
OP-OP-
FEO
MUTE_DAC
CS#
MA6
VSDA
AD1
DQM[0..1]
MA11
B
APLLVDD3
RFV18
PLLVDD3
MA0
AD5
FMO
CAS#
SDA
TROPEN
TRO
DQM[0..1]
V18
DQ7
DQ3
IR
PRD#
E
MA[0..11]
C
DACVDD3
JITFO
DQ12
DQ10
DQ8
WE#
VSTB
AD2
PWR#
V2P8
DQ[0..15]
DQ4
DQ14
DQ11
BA0
MA4
MA[0..11]
MDI2
DACVDD3
XTALI
MA5
TEO
RFVDD3
V2P8
RFVDD3
JITFN
DQ5
DQ1
RAS#
MA2
MA7
RXD
LDO1
VREF
AR
AD3
ALRCK
DQ6
DQM1
MA8
ACLK
VSCK
OPOOPO
RFON
DQ9
MA3
PCE#
OP+OP+
MA1
URST#
DQ[0..15]
MDI1
DACVDD3
DQM0
DQ13
MA9
IOA
DMO
AD[0..7]
AL
DCLK
TXD
RFVDD3
FOO
TEZISLV
DQ2
ABCK
AD7 ADACVDD3
DQ0
AD6
LDO2
F
ASPDIF
TXD_1
ADIN
TEST
TEST
A1
A18
A14A0A15
A4
A10
A5
A7
A12
A2
A17
A9
A8
A6
A[0..19]
A13
A3
A[0..19]
A16
A19
A11
V20
V20
V1P4
V1P4
V1P4
V1P4
STBY
Y6
Y[3..6]
Y[3..6]
Y3
Y5
Y4
URST# [1]
V18 [1,5]
DV33 [1,3,5]
PLLVDD3 [1]
SDA [4]
VSTB [5]
DCLK [4]
PRD# [4]
CS [5 ]
DQ[0..15] [4]
DCKE [4]
VSCK [5]
AL [5]
MUTE_DAC [5]
WE# [4]
RAS# [4]
BA0 [4]
ASPDIF [1,5]
PCE# [4]
CS# [4]
DQM[0..1] [4]
AR [5]
A[0..19] [4]
CAS# [4]
AD[0..7] [4]
IR [5]
PWR# [4]
SCL [4]
VSDA [5]
MA[0..11] [4]
LDO1
[3]
FMSO[3]
OP+[3]
OPO[3]
B
[3]
TROPEN[3]
RFO[3]
STBY[3]
TROUT [3]
IOA[3]
E[3]
TRCLOSE[3]
MDI1
[3]
C
[3]
TRSO
[3]
LDO2[3]
DMSO[3]
FOSO[3]
OP-[3]
TRIN [3]
F
[3]
RFVDD3 [1]
ADACVDD3 [1]
RFV18 [1]
DACVDD3 [1,5]
V1P4 [3]
APLLVDD3 [1]
D
[3]
A
[3]
ADIN[3]
TEST [2]
Y[3..6] [5]
V18
DV33
V1
DV33
DV33
DV33
DV33
V18
DV33
V18
DV33
POWER_S/W
DV33
CA45 0.1uF
CA37 (0.47uF)
CA40
33p
CP39
0.1uF
CA22
C
CA14 1uF
RB43
10K
RA58
0
CP43
0.1uF
CA25
0.047uF
CP31
0.1uF
RA36 0
RA51
1K
CP32
0.1uF
CP41
0.1uF
CA11 1uF
CA12
1uF
TP28
RA56 0
CP36
0.1uF
CA47
1000pF
CP45
0.1uF
RA54
560
CP30
0.1uF
CA26
0.01uF
RA35 10K
YA11 C27MHz
1 2
CA48
0.1uF
CA35
1500pF
+
CE28
47uF/16V
CP29
0.1uF
CA18
0.1uF
+
CE32
10uF/16V
RA64
4.7K
TP24
RA59
0
RA68
(4.7K)
RA28
R
CA42
1000pF
RB30
(33)
+
CE29
47uF/16V
CP38
0.1uF
RA30 18K
CA39
33p
CP42
0.1uF
CA15 1uF
CA23
330pF
CP34
0.1uF
+
CE41
(100uF/16V)
CA16 C
RM20
(4.7K)
RA53 0
TP16
RA33 15K
CA17
0.1uF
RA63 15k
RA55
0
CA49 0.033uF
CP35
0.1uF
RA32 27K
CP40
0.1uF
CA34
0.1uF
CA13 1uF
CA44 0.047uF
CP44
0.1uF
RA62 100k
MT1389D
IC11
MT1389D
LQFP216/SMD
2
210
3
4
5
1
212
213
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
216
28
27
30
29
32
31
43
26
25
33
34
35
36
42
41
45
39
40
46
38
37
65646261605958
52
81777655747372
71
63
83
53
54
70
57
82
75666880695667
8485868788899091929394
95
106
96
97
204
205
9899100
101
102
103
104
105
107
108
162
161
160
159
158
157
156
155
154
153
152
151
150
149
148
147
146
145
144
143
142
141
140
139
137
138
136
135
134
133
132
131
130
129
128
126
127
125
124
123
122
121
120
118
119
117
116
115
114
113
111
112
110
109
209
21524214
191
190
198
197
208
207
196
211
206
203
201
202
200
199
194
195
192
184
185
182
181
180
179
186
178
177
175
173
174
164
171
170
169
168
172
167
166
165
163
193
44
47
48
49
50
51
78
79
176
183
188
189
187
DVDA
CRTPLP
DVDB
DVDC
DVDD
AGND
OSP
OSN
DVDRFIP
DVDRFIN
MA
MB
MC
MD
SA
SB
SC
SD
CDFON
CDFOP
TNI
TPI
MDI1
MDI2
LDO2
LDO1
AVDD3
V2REFO
SGND
VREFO
V20
TEO
FEO
FG/ADIN1
RFLVL/RFON
CSO/RFOP
TEZISLV
OP_OUT
OP_INN
OP_INP
FOO
TRO
GPIO1
TROPENPWM
PWMOUT1/ADIN0
GPIO2
FMO
DMO
HIGHA4
HIGHA5
HIGHA7
DVDD3
A16
IOWR#
DVDD3
IOA6
AD6
AD2
AD1
IOA18
DVSS
IOOE#
IOA1
DVSS
HIGHA6
ALE
IOA7
HIGHA0
IOCS#
IOA19
IOA21
AD0
HIGHA3
HIGHA1
AD5
IOA20
DVSS
HIGHA2
DVDD18
AD7
A17
DVDD3
IOA0
UWR#
URD#
UP1_2
UP1_3
GPIO6
UP1_4
UP1_5IRUP1_6
DVSS
ADCVDD3
ADCVSS
UP1_7
UP3_0
UP3_1
UP3_4
UP3_5
GPIO7
ICE
PRST#
INT0#
DVDD3
ACLK
ABCK
DVSS
GPIO5
GPIO4
GPIO3
DVDD18
RA4
RA5
RA6
RA7
DVDD3
RA8
RA9
RA11
CKE
RCLK
DVSS
RA3
DVSS
RA2
RA1
RA0
RA10
BA1
DVDD3
BA0
RCS#
RAS#
DVDD18
CAS#
RWE#
DVSS
DQM1
RD8
RD10
RD9
RD11
RD12
DVDD3
RD13
RD14
DVSS
RD0
RD15
RD1
RD2
DVSS
RD3
RD4
RD6
RD5
RD7
DQM0
HRFZC
IREF
SVDD3
RFGC
RFGND18
ADACGND
IDACEXLP
PLLVSS
RFRPAC
RFRPDC
JITFN
RFGND
RFVDD3
LPFOP
LPFIP
LPFIN
LPFON
PLLVDD3
XTALI
JITFO
RFVDD18
APLLCAP
APLLVSS
R
B
DACVSSA
G
ADACVDD3
DACVDDA
DACVSSB
CVBS
FS
DACVSSC
ASDATA0
DACVDDC
SPDIF
MC_DATA
DVDD3
VREF
ASDATA3
ASDATA2
ASDATA1
ALRCK
XTALO
GPIO0
IOA2
DVDD18
IOA3
IOA4
IOA5
AD3
AD4
DACVDDB
APLLVDD3
VCM
AL
AR
RA52 0
TP31
CA52
0.1uF
CA36
0.1uF(10uF/16V)
RA31 27K
RA67
(10K)
CP33
0.1uF
CA46
20pF
CA51 0.1uF
CA43 0.047uF
+
CE27
47uF/16V
RA61 750K
TP29
(CN15)
4x1W/HOUSING
1
2
3
4
RA57 100K
TP30
CP37
0.1uF
CA24
220pF
CA50 0.1uF
32
CIRCUIT DIAGRAM
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
VIDEO INTERFACE
MEMORY
IIC
AUDIO INTERFACE
INTERFACE I/O
FLASH
V1.7
RS-232
RESET & POWER
Pins For 64Mbit SDRAM
& Pull-Down Resistor
For Address MA11
External
VIDEO Level
Control R
URST#
V18
DV33
PLLVDD3
SDA
CS#
DQ[0..15]
IR
AR
CS
SCL
PWR#
PRD#
MUTE_DAC
DQM[0..1]
WE#
DCLK
AD[0..7]
BA0
ASPDIF
VSCK
CAS#
VSTB
RAS#
AL
MA[0..11]
VSDA
PCE#
DCKE
A[0..19]
TRSO
XI
XI
FOSO
RFO
XO
XO
TROUT
TRIN
FMSO
DACVDD3
RFV18
RFVDD3
ADACVDD3
V1P4
APLLVDD3
RFVDD3
CS
TxD
FS
RxD
A
D
AD4
DQ15
MA10
DCKE
TRCLOSE
SCL
AD0
CS
OP-OP-
FEO
MUTE_DAC
CS#
MA6
VSDA
AD1
DQM[0..1]
MA11
B
APLLVDD3
RFV18
PLLVDD3
MA0
AD5
FMO
CAS#
SDA
TROPEN
TRO
DQM[0..1]
V18
DQ7
DQ3
IR
PRD#
E
MA[0..11]
C
DACVDD3
JITFO
DQ12
DQ10
DQ8
WE#
VSTB
AD2
PWR#
V2P8
DQ[0..15]
DQ4
DQ14
DQ11
BA0
MA4
MA[0..11]
MDI2
DACVDD3
XTALI
MA5
TEO
RFVDD3
V2P8
RFVDD3
JITFN
DQ5
DQ1
RAS#
MA2
MA7
RXD
LDO1
VREF
AR
AD3
ALRCK
DQ6
DQM1
MA8
ACLK
VSCK
OPOOPO
RFON
DQ9
MA3
PCE#
OP+OP+
MA1
URST#
DQ[0..15]
MDI1
DACVDD3
DQM0
DQ13
MA9
IOA
DMO
AD[0..7]
AL
DCLK
TXD
RFVDD3
FOO
TEZISLV
DQ2
ABCK
AD7 ADACVDD3
DQ0
AD6
LDO2
F
ASPDIF
TXD_1
ADIN
TEST
TEST
A1
A18
A14A0A15
A4
A10
A5
A7
A12
A2
A17
A9
A8
A6
A[0..19]
A13
A3
A[0..19]
A16
A19
A11
V20
V20
V1P4
V1P4
V1P4
V1P4
STBY
Y6
Y[3..6]
Y[3..6]
Y3
Y5
Y4
URST# [1]
V18 [1,5]
DV33 [1,3,5]
PLLVDD3 [1]
SDA [4]
VSTB [5]
DCLK [4]
PRD# [4]
CS [5 ]
DQ[0..15] [4]
DCKE [4]
VSCK [5]
AL [5]
MUTE_DAC [5]
WE# [4]
RAS# [4]
BA0 [4]
ASPDIF [1,5]
PCE# [4]
CS# [4]
DQM[0..1] [4]
AR [5]
A[0..19] [ 4]
CAS# [4]
AD[0..7] [4]
IR [5]
PWR# [4]
SCL [4]
VSDA [5]
MA[0..11] [4]
LDO1
[3]
FMSO[3]
OP+[3]
OPO[3]
B
[3]
TROPEN[3]
RFO[3]
STBY[3]
TROUT [3]
IOA[3]
E[3]
TRCLOSE[3]
MDI1
[3]
C
[3]
TRSO
[3]
LDO2[3]
DMSO[3]
FOSO[3]
OP-[3]
TRIN [3]
F
[3]
RFVDD3 [1]
ADACVDD3 [1]
RFV18 [1]
DACVDD3 [1,5]
V1P4 [3]
APLLVDD3 [1]
D
[3]
A
[3]
ADIN[3]
TEST [2]
Y[3..6] [5]
V18
DV33
V18
DV33
DV33
DV33
DV33
V18
DV33
V18
DV33
POWER_S/W
DV33
CA45 0.1uF
CA37 (0.47uF)
CA40
33p
CP39
0.1uF
CA22
C
CA14 1uF
RB43
10K
RA58
0
CP43
0.1uF
CA25
0.047uF
CP31
0.1uF
RA36 0
RA51
1K
CP32
0.1uF
CP41
0.1uF
CA11 1uF
CA12
1uF
TP28
RA56 0
CP36
0.1uF
CA47
1000pF
CP45
0.1uF
RA54
560
CP30
0.1uF
CA26
0.01uF
RA35 10K
YA11 C27MHz
1 2
CA48
0.1uF
CA35
1500pF
+
CE28
47uF/16V
CP29
0.1uF
CA18
0.1uF
+
CE32
10uF/16V
RA64
4.7K
TP24
RA59
0
RA68
(4.7K)
RA28
R
CA42
1000pF
RB30
(33)
+
CE29
47uF/16V
CP38
0.1uF
RA30 18K
CA39
33p
CP42
0.1uF
CA15 1uF
CA23
330pF
CP34
0.1uF
+
CE41
(100uF/16V)
CA16 C
RM20
(4.7K)
RA53 0
TP16
RA33 15K
CA17
0.1uF
RA63 15k
RA55
0
CA49 0.033uF
CP35
0.1uF
RA32 27K
CP40
0.1uF
CA34
0.1uF
CA13 1uF
CA44 0.047uF
CP44
0.1uF
RA62 100k
MT1389D
IC11
MT1389D
LQFP216/SMD
2
210
3
4
5
1
212
213
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
216
28
27
30
29
32
31
43
26
25
33
34
35
36
42
41
45
39
40
46
38
37
65646261605958
52
81777655747372
71
63
83
53
54
70
57
82
75666880695667
8485868788899091929394
95
106
96
97
204
205
9899100
101
102
103
104
105
107
108
162
161
160
159
158
157
156
155
154
153
152
151
150
149
148
147
146
145
144
143
142
141
140
139
137
138
136
135
134
133
132
131
130
129
128
126
127
125
124
123
122
121
120
118
119
117
116
115
114
113
111
112
110
109
209
21524214
191
190
198
197
208
207
196
211
206
203
201
202
200
199
194
195
192
184
185
182
181
180
179
186
178
177
175
173
174
164
171
170
169
168
172
167
166
165
163
193
44
47
48
49
50
51
78
79
176
183
188
189
187
DVDA
CRTPLP
DVDB
DVDC
DVDD
AGND
OSP
OSN
DVDRFIP
DVDRFIN
MA
MB
MC
MD
SA
SB
SC
SD
CDFON
CDFOP
TNI
TPI
MDI1
MDI2
LDO2
LDO1
AVDD3
V2REFO
SGND
VREFO
V20
TEO
FEO
FG/ADIN1
RFLVL/RFON
CSO/RFOP
TEZISLV
OP_OUT
OP_INN
OP_INP
FOO
TRO
GPIO1
TROPENPWM
PWMOUT1/ADIN0
GPIO2
FMO
DMO
HIGHA4
HIGHA5
HIGHA7
DVDD3
A16
IOWR#
DVDD3
IOA6
AD6
AD2
AD1
IOA18
DVSS
IOOE#
IOA1
DVSS
HIGHA6
ALE
IOA7
HIGHA0
IOCS#
IOA19
IOA21
AD0
HIGHA3
HIGHA1
AD5
IOA20
DVSS
HIGHA2
DVDD18
AD7
A17
DVDD3
IOA0
UWR#
URD#
UP1_2
UP1_3
GPIO6
UP1_4
UP1_5IRUP1_6
DVSS
ADCVDD3
ADCVSS
UP1_7
UP3_0
UP3_1
UP3_4
UP3_5
GPIO7
ICE
PRST#
INT0#
DVDD3
ACLK
ABCK
DVSS
GPIO5
GPIO4
GPIO3
DVDD18
RA4
RA5
RA6
RA7
DVDD3
RA8
RA9
RA11
CKE
RCLK
DVSS
RA3
DVSS
RA2
RA1
RA0
RA10
BA1
DVDD3
BA0
RCS#
RAS#
DVDD18
CAS#
RWE#
DVSS
DQM1
RD8
RD10
RD9
RD11
RD12
DVDD3
RD13
RD14
DVSS
RD0
RD15
RD1
RD2
DVSS
RD3
RD4
RD6
RD5
RD7
DQM0
HRFZC
IREF
SVDD3
RFGC
RFGND18
ADACGND
IDACEXLP
PLLVSS
RFRPAC
RFRPDC
JITFN
RFGND
RFVDD3
LPFOP
LPFIP
LPFIN
LPFON
PLLVDD3
XTALI
JITFO
RFVDD18
APLLCAP
APLLVSS
R
B
DACVSSA
G
ADACVDD3
DACVDDA
DACVSSB
CVBS
FS
DACVSSC
ASDATA0
DACVDDC
SPDIF
MC_DATA
DVDD3
VREF
ASDATA3
ASDATA2
ASDATA1
ALRCK
XTALO
GPIO0
IOA2
DVDD18
IOA3
IOA4
IOA5
AD3
AD4
DACVDDB
APLLVDD3
VCM
AL
AR
RA52 0
TP31
CA52
0.1uF
CA36
0.1uF(10uF/16V)
RA31 27K
RA67
(10K)
CP33
0.1uF
CA46
20pF
CA51 0.1uF
CA43 0.047uF
+
CE27
47uF/16V
RA61 750K
TP29
(CN15)
4x1W/HOUSING
1
2
3
4
RA57 100K
TP30
CP37
0.1uF
CA24
220pF
CA50 0.1uF
33
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
POWER
3
S
2
C
GE
2N7002MTF
D
1
2
B
1
3
KTC3875S
P/UP CONNECTION
P/UP MPEG
A
B
C
D
D
A
B
C
132
EBC
KTA1271
TOP
(PNP,DIP)
1
BC
C
2
3
E
2SB1132
AVCC1
MO_VCC
DV33
LDO_AV33
AVCC
OPO
SP+
SP-
SPP-
VIP4
SL-
SL+
V1P4
SL-
F+
MPD
V20
DVD-LD
CD-VR
TR-
DVD-VR
SW
RF
C
FO-
D
F
T+
A
B
E
CD-LD
FO+
LOAD-
SP+
LOAD-
LOAD+
SP-
IOA
TR+
F-
T-
LDO1
LDO2
LOAD+
TRIN
TROUT
GND
SL+
AVCC
[1]
AVCC1
[1]
LDO_AV33[1]
MO_VCC[1]
DV33
[1,2,5]
ADIN[2]
OP-
[2]
MDI1[2]
OP+[2]
TROUT
[2]
TRIN
[2]
IOA
[2]
TRCLOSE[2]
TRSO [2]
TROPEN[2]
FOSO [2]
STBY [2]
FMSO[2]
DMSO[2]
URST# [2]
F
[2]
E[2]
RFOUT
[2]
D
[2]
A
[2]
B
[2]
C
[2]
LDO2
[2]
LDO1
[2]
LDO_AV33
AVCC1
MO_VCC1
DV33
AVCC
V18
MO_VCC1
V30
MO_VCC1
DV33
MO_VCC1
+
CE25
47uF/16V
CA27
0.1uF
RA17
10K
RF35
470
CF23
(0.1uF)
TP4
CA33
0.1uF
RF41
200
CF20 (0.1uF)
RA16
100K
RA23
150K
CF25
(0.1uF)
QA16
KTA1271Y
3
12
CA20
(0.1uF)
QA11
2SB1132
1
32
IC12 IP9009
1
9
10
12
3
2
15
7
14
13
21
19
20
24
27
6
4
5
28
8
11
17
18
16
23
22
25
26
29 30
FWD
VOL-
VOL+
VO2+
CTL
REV
VO4+
SVCC
VO1+
VO1-
MUTE
GND
PVCC2
VDET
REB
IN2
PS
IN1
BIAS
PVCC1
VO2-
VO3+
VO3-
VO4-
IN4
IN3
RESET
REO
PGND1 PGND2
RF38
(1K)
LA11
10uH
RF40
(1K)
CA21
2200pF
RF42
10K
RA18
10K
CA30
0.1uF
LA12
10uH
+
CE26
47uF/16V
TP3
QA13
2N7002MTF
2
13
RA25
NC
+
CE39
(220uF/6.3V)
CF18 (0.1uF)
RF32 10K
CN12
DIP_9PINA
1
2
3
4
5
6
7
8
9
SPINDLE-
SPINDLE+
SLED-
SLED+
INS/W
GND
OUTS/W
LOADING-
LOADING+
RF34
(1K)
QA14
2N7002MTF
2
13
+
CE42
(10uF/16V)
RA14
91
CF21
(0.1uF)
RA27
680k
+
CE43
47uF/16V
DP12
(RLS4148)
CF19
(0.1uF)
RA12 4.7
RA49 10K
RA19
100K
RA22
0
RA13
NC
CF15
0.1uF
RA15
91
RF43
4.7K
RA11
4.7
RA26
1
CF16
(0.1uF)
RF39 (1K)
TOP
CN11
SPU3162/SOH-DL3EOPU
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
GND(LD)
LD(DVD)
NC1
Vcc(HFM)
MPD
LD(CD)
VR(DVD)
VR(CD)
NC2
E
Vcc
Vc
GND
F
B
A
RF
SW
D
C
T-
T+
F+
F-
RA50 10K
RF37
(1K)
RA21
680k
RF31
8.2K
RA24
150K
+
CE31
10uF/16V
CF17
(0.1uF)
RF44
4.7K
CP46
0.1uF
TP5
QA12
2SB1132
1
3 2
CA19 2200pF
CF22 (0.1uF)
CF24 (0.1uF)
RF33
(1K)
QC16
KTC3875S
1
2 3
CIRCUIT DIAGRAM
34
CIRCUIT DIAGRAM
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
8Mbit FLASH
TSOP 48 PIN
FLASH
SDRAM
IIC
POWER
TSOP(II) 50 PIN
16Mbit SDRAM
AD2
A18
A1
AD7
AD6
AD4A5
A6
A8
A17
A0A16
AD0
AD5
AD3
A7
A15
A4
A2 AD1
A12
A14
A11
PCE#
PRD#
A3
A10
A13
A9
SD33
V33
PCE#
SDA
SDA
SCL
PRD#
PWR#
SCL
A[0..19]
PWR#
FLASH_VCC
AD[0..7]
A19
DCLK
BA0
MA[0..11]
RAS#
WE#
DCKE
CS#
DQM[0..1]
CAS#
DQ[0..15]
MA2
DCAS#
DQ12
DQ9
DCS#
BA0
RAS#
DQM1
MA8
MA7
DQM0
MA1 DQ6
DQ7
CS#
DQ0
DQ3
SDCKE
MA3
CAS#
MA6
DQ8
MA4
MA10
DBA0
DCLK
DQ10
DQ4
SDCLK
DQ1
DQ2
DQ5
DCKE
WE#
DQ14
DQ11
DRAS#
DQ13
MA5
MA0
DWE#
DQ15
MA9
PRD#[2]
A[0..19][2]
AD[0..7]
[2]
PCE#[2]
SD33 [1]
PWR#[2]
SCL
[2]
V33 [1]
FLASH_VCC [1]
SDA
[2]
CAS#[2]
DCLK[2]
DQ[0..15][2]
DQM[0..1][2]
DCKE[2]
WE#[2]
MA[0..11]
[2]
BA0[2]
CS#[2]
RAS#[2]
FLASH_VCC
FLASH_VCC
SD33
FLASH_VCC
V33
V33
SD33
SD33
RM17
680
CM19
0.1uF
EF11 0(C-MEM2012W)
CM13
0.1uF
RM14
33
RM18
680
CM18
0.1uF
RM16 (10K)
CM12
0.1uF
RM11
33x4
1 2
3 4
5 6
7 8
+
CE33
220uF/6.3V
CM16
0.1uF
IC17
EEPROM 24C08
SOP8
1
2
3
4 5
6
7
8
NC
NC
NC
GND SDA
SCL
WP
VCC
CM11
0.1uF
CM20
22pF
CM17
0.1uF
CM15
0.1uF
IC15
ESMT M12L16161A-7
1
2
3
4
5
6
7
8
9
10
11
12
1314
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
VCC
DQ0
DQ1
VSSQ
DQ2
DQ3
VCCQ
DQ4
DQ5
VSSQ
DQ6
DQ7
VCCQDQML
WE
CAS
RAS
CS
BA/A11
A10
A0
A1
A2
A3
VCC
VSS
A4
A5
A6
A7
A8
A9
NC
CKE
CLK
DQMHNCVCCQ
DQ8
DQ9
VSSQ
DQ10
DQ11
VCCQ
DQ12
DQ13
VSSQ
DQ14
DQ15
VSS
IC16
MX29LV400
25
24
23
22
21
20
19
18
8
10
28
47
16
29
31
33
35
7
26
38
40
42
44
30
32
14
36
39
41
43
45
37
27
11
9
34
46
6
4
5
3
2
1
48
17
12
A0
A1
A2
A3
A4
A5
A6
A7
A8
A20
OE
BYTE
A18
D0
D1
D2
D3
A9
CE
D4
D5
D6
D7
D8
D9
WP/ACC
D11
D12
D13
D14
D15
VCC
GND1
WE
A19
D10
GND2
A10
A12
A11
A13
A14
A15
A16
A17
RESET
RM15
10K
CM14
0.1uF
RM13 33
RM12 33
35
CIRCUIT DIAGRAM
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
VIDEO OUTPUT
VCR INTERFACE
POWER PART
AUDIO INTERFACE
VSDA
VSTB
VSCK
IR
CS
Y[3..6]
Y6
Y3
PR
PB
S_Y
Y
Y5
Y4
S_C
CVBS
GND
OPREF
AL FL
FR
OPREF
AR
+12V
GND
GND
VSTB
TCLK
MUTE_DAC
GND
CSS
VSCK
SIN
SOUT
CS
GND
FRR
FLL
AR
MUTE_DAC
PV33
V60
ASPDIF
+P12V
DV33
+12V
+12V
V30
ASPDIF
AL
ASPDIF
DV33
V30
6V(REG)
+P12V
VSDA
GND
GND
IR
VSDA [2]
Y[3..6] [2]
VSCK [2]
CS [2]
IR [2]
VSTB [2]
V30 [1,2]
+12V [1]
V60 [1]
DV33 [1,2,3]
MUTE_DAC[2]
AR [2]
PV33 [1]
+P12V [1]
ASPDIF[1,2]
AL [2]
DV33
+12V
OPREF
DV33
V30
6V(REG)
+P12V
RB19
(10K)
RB14
(33)
RB32
(75,1%)
CB11
100pF
RB36
27K
RB11
33
RB27
0
RB40
27K
+
CE34
10uF/16V
RB12 33
RB50
(0)
+
CE35
220uF/6.3V
CB13
1500pF
RB13
33
RB42
5.1K
RB37
(0)
CN14
19 PIN CONN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Cb/B
Cr/R
Y/G
VGND
CVBS
VGND
S-Y
VGND
S-C
VGND
3.3VA
3.3V(REG)
DGND
3.0V(REG)
DGND
6V(REG1)
6V(REG2)
AGND
12VA
RB23
0
RB31
75,1%
CB14
0.1uF
CB18
220pF
RB15
33
RB35
4.7K
+
-
IC20A
OPA4558
3
2
1
84
CB16
1500pF
RB34
75,1%
RB16
(10K)
RB25
0
CB19
220pF
RB38
5.1K
RB39
4.7K
RB41
10K
RB17
(10K)
+
CE36
10uF/16V
RB33
75,1%
RB21
0
CB12
100pF
RB18
(10K)
+
-
IC20B
OPA4558
5
6
7
84
RB37
10K
CN13
11 PIN CONN
1
2
3
4
5
6
7
8
9
10
11
CLK
VSDA/SOUT
VSTB/CS
IR/SIN
DMUTE
SPDIF
DGND
FL/SER0
AGND/BCLK
FR/LRCLK
AGND/DASCLK
CB15
100pF
36
PCB CIRCUIT BOARD
1-1 . VCR (MAIN)
37
PCB CIRCUIT BOARD
1-2. POWER
38
PCB CIRCUIT BOARD
1-3. DVD (MAIN)
INSTRUMENT DISASSEMBLY
1. DECK DISASSEMBLY
Perform all disassembly procedures in the order presented.
When reassembling, use the reverse procedure.
Make sure that all leads/ wiring are routed correctly when reassembling.
FIG. 1
A. TOP COVER REMOVAL
@ Remove a screws
! Remove three screws
# Remove a screws
39
40
B. PANEL FRONT DISASSEMBLY
C. LOGIC PCB DISASSEMBLY
FIG.2
FIG.3
! Remove 3
Hooks at
bottom
@ Remove 2 Hooks at left and right sides,
Simultaneously, remove panel.
Remove 2
screws, then
remove Logic
INSTRUMENT DISASSEMBLY
41
INSTRUMENT DISASSEMBLY
FIG. 4
D. DECK AND MAIN PARTS DISASSEMBLY
! Remove 6 screws, then remove DECK
@ Remove 4 screws, then remove LOADER
# Remove 3 screws, then remove
POWER PCB
42
INSTRUMENT DISASSEMBLY
FIG. 5
E. MAIN PCB DISASSEMBLY
@ Remove 2 screws, then remove MAIN PCB
! Remove 2 screws
43
INSTRUMENT DISASSEMBLY
F. MAIN CHASSIS DISASSEMBLY
FIG. 6
! Remove 4 screws, then remove MAIN
44
INSTRUMENT DISASSEMBLY
G. Explode view
45
ELECTRICAL PARTSLIST
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
03 PVMCASS202 CHASSIS MAIN AS DC-B87D1S-NA
D100 97P1RA2BA0 REMOCON HANDSET AS VR-FA2BA0 GY3301A(AAA)
DP08 97P882TF12 CABLE SCART SCART-SCART 21P 1.2M
SECAM ONLY
M01 97PP340000 PANEL FRONT AS DC-B87D1D-NB
M1000 PVDKARSC60 DECK VCR AS(T60) DRS-C610R NON
SECAM ONLY
M1000 PVDKARPB66 DECK VCR AS(T50,F/L) DRP-B610R NON PAL ONLY
M200 PVLDASBD00 DVD MECHA AS
COMBO,SANKYO (97Q6010200),V3.0
PD01A 97P88FBF19 CABLE FFC 1.0 R 15P 190MM
PD02A 97P88FBK20 CABLE FFC 1.0 R 19P 200MM
PW01 97P69DB90B CORD POWER EU KKP-419C YFH800 1.7M
Z001 PVMPMSS202 PCB MAIN MANUAL AS DC-B87D1S-NA
E001 97P0993100 PLATE EARTH C5210(PBS) T0.15(1/2H)
G701 DEB83D1N LED DISPLAY EB83D1N-F425-2SRVYWB
H501 10RC356VF4 IC UNIT R/RECE1VER ORC-356VF4(38KHZ)
IC502 14CAT2416P IC EEPROM CAT24WC16P(16K DIP)
JK601 97P6313300 JACK DOUBLE SCART DSAM-0302 2 LAYER
JK603 97P6318230 JACK PIN DPAM-0286
JK606 97P0S03000 JACK SENSOR OPTIC VST5B-12M
JK701 97P6316900 JACK PIN DPSE-9946
M401 97P0478200 CASE SHI PREAMP ET T0.4
P201 97P62Y1318 CONN WAFER DVW250 PLUG 2.5MM 8P
P202 97P62T14B2 CONN HOUSING TMC-EX-B1 RECEP 2.0MM 2P
P401 97P62G06DA CONN FFC GF120-10S-TS 10P ST
P501 97P62J012C CONN B/B JE612 PLUG 2.0 12P
P604 97P62M06A6 CONN B/B 35337 PLUG 2.5MM 6P
P701 97P62A24B5 CONN WAFER 440055-5 RA PLUG 5P
P702 97P62M05A6 CONN B/B 35238 RECEP 2.5MM 6P
P804 97P62Y17AA CONN WAFER YW025-10 ST PLUG 2.5MM
PD01 97P62K04EK CONN FFC SCB-2119-M-2 19P ST
PD02 97P62K04EF CONN FFC SCB-2115-M-2 15P ST
PJ501 97P885X226 CONN AS 5H-5S 150MM
PT01 97P6269000 CONN WAFER 00-8283-0612-00000
RF101 97P7618700 TUNER 3 IN 1 SSTBI-SLQ2
SECAM ONLY
RF101 97P7615500 TUNER 3 IN 1 SSTMI-GKIQ1 PAL ONLY
S501 97P0S02700 SENSOR REEL KPI-261D
S502 97P0S02700 SENSOR REEL KPI-261D
SW501 5S10104200 SW MODE MMS01010ZMB0
SW601 5SD0101100 SW DETE MXS00921MPC0
T201 560202L692 COIL OSC DEO-006
X051 5XJ18R4LAE CRYSTAL QUARTZ HC-49/S 18.43200MHZ 30PP
X501 5XJ17R7LAD CRYSTAL QUARTZ HC-49/S 17.73447MHZ 25PPM
Z0011 PVMPJ1S202 MAIN CHIP MOUNT A AS DC-B87D1S-NA
C008 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C009 HCQK300JBA C CHIP CERA 50V CH 30PF J 1608
C012 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C015 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608
C017 HCBK822KBA C CHIP CERA 50V X7R 8200PF K 1608
C018 HCBK822KBA C CHIP CERA 50V X7R 8200PF K 1608
C028 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
C051 HCQK390JBA C CHIP CERA 50V CH 39PF J 1608
C052 HCQK209CBA C CHIP CERA 50V CH 2PF C 1608
C053 HCQK209CBA C CHIP CERA 50V CH 2PF C 1608
C054 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C056 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
C058 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
C060 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
C062 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
C067 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
C153 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C157 HCBK563KBA C CHIP CERA 50V X7R 0.056MF K 1608
C159 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C161 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608
C202 HCBK152KBA C CHIP CERA 50V X7R 1500PF K 1608
C203 HCBK122KBA C CHIP CERA 50V X7R 1200PF K 1608
C206 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C212 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C218 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C220 HCBK333KBA C CHIP CERA 50V X7R 0.033MF K 1608
C251 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608
C252 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608
C253 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608
C254 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608
C255A HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608
C256A HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608
C257 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608
C258 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608
C259 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608
C260 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608
C269 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608
C271 HCBK682KBA C CHIP CERA 50V X7R 6800PF K 1608
C277 HCBK682KBA C CHIP CERA 50V X7R 6800PF K 1608
C281 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
C282 HCBK122KBA C CHIP CERA 50V X7R 1200PF K 1608
C286 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
C301 HCBK473KBA C CHIP CERA 50V X7R 0.047MF K 1608
C303 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608
C306 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C307 HCBK473KBA C CHIP CERA 50V X7R 0.047MF K 1608
C308 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608
C310 HCBK473KBA C CHIP CERA 50V X7R 0.047MF K 1608
C311 HCBF224KCA C CHIP CERA 16V X7R 0.22MF K 2012
C312 HCBK822KBA C CHIP CERA 50V X7R 8200PF K 1608
C314 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C315 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
C316 HCQK561JBA C CHIP CERA 50V CH 560PF J 1608
C317 HCQK131JBA C CHIP CERA 50V CH 130PF J 1608
C318 HCFF105ZBA C CHIP CERA 16V Y5V 1MF Z 1608
C319 HCFF105ZBA C CHIP CERA 16V Y5V 1MF Z 1608
C325 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608
C328 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C330 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608
C333 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
C335 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C339 HCQK131JBA C CHIP CERA 50V CH 130PF J 1608
C340 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608
C362 HCFF105ZBA C CHIP CERA 16V Y5V 1MF Z 1608
SECAM ONLY
C363 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
SECAM ONLY
C365 HCFF105ZBA C CHIP CERA 16V Y5V 1MF Z 1608
SECAM ONLY
C368 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
SECAM ONLY
C369 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
SECAM ONLY
✔ Caution:In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts
information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr)
46
ELECTRICAL PARTSLIST
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
C370 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608
SECAM ONLY
C371 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608
SECAM ONLY
C372 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
SECAM ONLY
C373 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608
SECAM ONLY
C379 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
SECAM ONLY
C384 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
SECAM ONLY
C401 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
C404 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C505 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C506 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C507 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C509 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C510 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
C514 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
C515 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
C516 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
C518 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C519 HCBK272KBA C CHIP CERA 50V X7R 2700PF K 1608
C520 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608
C521 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608
C523 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C525 HCQK201JBA C CHIP CERA 50V CH 200PF J 1608
C527 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C528 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C529 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
C531 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608
C532 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608
C536 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C537 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C596 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608
C597 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608
C598 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608
C599 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608
C613 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
C614 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608
C615A HCQK331JBA C CHIP CERA 50V CH 330PF J 1608
C616 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608
C625A HCQK331JBA C CHIP CERA 50V CH 330PF J 1608
C626 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608
C627 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
C628 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608
C630 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
C631 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
C632 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608
C633 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608
C636 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608
C640 HCQK201JBA C CHIP CERA 50V CH 200PF J 1608
C641 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
C642 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
C698 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608
C699 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608
C888 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608
CD06 HCQK561JBA C CHIP CERA 50V CH 560PF J 1608
CD14 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CD18 HCBK182KBA C CHIP CERA X7R 50V 1800PF K 1608
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
CD20 HCQK561JBA C CHIP CERA 50V CH 560PF J 1608
CD26 HCBK182KBA C CHIP CERA X7R 50V 1800PF K 1608
CD53 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CD73 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CD75 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
IC051 1MSP3417G3 IC NICAM MSP3417G-V3
IC151 1LC74793 IC CHIP VPS LC74793JM
IC251 1TDA9605H- IC HI-FI TDA9605H
IC301 1LA71750M- IC A/V 1 CHIP LA71750M
IC361 1LA70100M- IC SECAM-L LA70100M
SECAM ONLY
IC501 168KT88KTS IC MICOM M3776AMCA-1B6GP
IC601 1HEF4052BD IC CHIP SW HEF4052B
IC701 1PT6961 - IC DRIVER P76961 32P.M SOP
ICD01 1PCM1754DD IC CHIP DAC PCM1754DBQ 16PIN SSOP REEL
ICD03 1KA4558D IC OP AMP KA4558D(8 SOP)
L607 HLX1210001 BEAD CHIP TB201209Z121
L608 HLX1210001 BEAD CHIP TB201209Z121
L688 HLX1210001 BEAD CHIP TB201209Z121
L689 HLX1210001 BEAD CHIP TB201209Z121
Q006 T2SC2412KB TR CHIP 2SC2412K-T146-BR
Q007 T2SC2412KB TR CHIP 2SC2412K-T146-BR
Q301 T2SC2412KB TR CHIP 2SC2412K-T146-BR
SECAM ONLY
Q302 T2SC2412KB TR CHIP 2SC2412K-T146-BR
Q303 T2SA1037KB TR CHIP 2SA1037AKT146-R
Q304 T2SC2412KB TR CHIP 2SC2412K-T146-BR
Q305 T2SC2412KB TR CHIP 2SC2412K-T146-BR
Q306 T2SC2412KB TR CHIP 2SC2412K-T146-BR
Q307 T2SA1037KB TR CHIP 2SA1037AKT146-R
Q308 T2SC2412KB TR CHIP 2SC2412K-T146-BR
Q309 T2SC2412KB TR CHIP 2SC2412K-T146-BR
Q310 T2SC2412KB TR CHIP 2SC2412K-T146-BR
Q311 T2SC2412KB TR CHIP 2SC2412K-T146-BR
Q333 T2SA1037KB TR CHIP 2SA1037AKT146-R
QD03 T2SC2412KB TR CHIP 2SC2412K-T146-BR
QD04 T2SC2412KB TR CHIP 2SC2412K-T146-BR
QD50 T2SA1037KB TR CHIP 2SA1037AKT146-R
QD51 T2SA1037KB TR CHIP 2SA1037AKT146-R
QD52 T2SA1037KB TR CHIP 2SA1037AKT146-R
QD55 T2SA1037KB TR CHIP 2SA1037AKT146-R
QD56 T2SC2412KB TR CHIP 2SC2412K-T146-BR
R007 HRFS225JBA R CHIP 1/16 2.2M OHM J 1608
R022 HRFS225JBA R CHIP 1/16 2.2M OHM J 1608
R023 HRFS153JBA R CHIP 1/16 15K OHM J 1608
R055 HRFS562JBA R CHIP 1/16 5.6K OHM J 1608
R056 HRFS562JBA R CHIP 1/16 5.6K OHM J 1608
R088 HRFS153JBA R CHIP 1/16 15K OHM J 1608
R098 HRFS133JBA R CHIP 1/16 13K OHM J 1608
R099 HRFS133JBA R CHIP 1/16 13K OHM J 1608
R152 HRFS103JBA R CHIP 1/16 10K OHM J 1608
R153 HRFS562JBA R CHIP 1/16 5.6K OHM J 1608
R154 HRFS103JBA R CHIP 1/16 10K OHM J 1608
R155 HRFS272JBA R CHIP 1/16 2.7K OHM J 1608
R201 HRFS273JBA R CHIP 1/16 27K OHM J 1608
R202 HRFS334JBA R CHIP 1/16 330K OHM J 1608
R203 HRFS181JBA R CHIP 1/16 180 OHM J 1608
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
R205 HRFS752JBA R CHIP 1/16 7.5K OHM J 1608
R206 HRFS273JBA R CHIP 1/16 27K OHM J 1608
R208 HRFS512JBA R CHIP 1/16 5.1K OHM J 1608
R209 HRFS123JBA R CHIP 1/16 12K OHM J 1608
R216 HRFS103JBA R CHIP 1/16 10K OHM J 1608
R225 HRFS229JBA R CHIP 1/16 2.2 OHM J 1608
R226 HRFS229JBA R CHIP 1/16 2.2 OHM J 1608
R227 HRFS182JBA R CHIP 1/16 1.8K OHM J 1608
R228 HRFS470JBA R CHIP 1/16 47 OHM J 1608
R229 HRFS561JBA R CHIP 1/16 560 OHM J 1608
R231 HRFS103JBA R CHIP 1/16 10K OHM J 1608
R233 HRFS102JBA R CHIP 1/16 1K OHM J 1608
R234 HRFS202JBA R CHIP 1/16 2K OHM J 1608
R264 HRFS103JBA R CHIP 1/16 10K OHM J 1608
R270 HRFS333JBA R CHIP 1/16 33K OHM J 1608
R271 HRFS470JBA R CHIP 1/16 47 OHM J 1608
R301 HRFS122JBA R CHIP 1/16 1.2K OHM J 1608
R302 HRFS822JBA R CHIP 1/16 8.2K OHM J 1608
R304 HRFS202JBA R CHIP 1/16 2K OHM J 1608
SECAM ONLY
R307 HRFS392JBA R CHIP 1/16 3.9K OHM J 1608
R308 HRFS102JBA R CHIP 1/16 1K OHM J 1608
R309 HRFS155JBA R CHIP 1/16 1.5M OHM J 1608
R310 HRFS155JBA R CHIP 1/16 1.5M OHM J 1608
R312 HRFS152JBA R CHIP 1/16 1.5K OHM J 1608
R313 HRFS152JBA R CHIP 1/16 1.5K OHM J 1608
R314 HRFS103JBA R CHIP 1/16 10K OHM J 1608
R315 HRFS183JBA R CHIP 1/16 18K OHM J 1608
R317 HRFS221JBA R CHIP 1/16 220 OHM J 1608
R318 HRFS102JBA R CHIP 1/16 1K OHM J 1608
R319 HRFS105JBA R CHIP 1/16 1M OHM J 1608
R320 HRFS471JBA R CHIP 1/16 470 OHM J 1608
R324 HRFS202JBA R CHIP 1/16 2K OHM J 1608
R326 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
R327 HRFS332JBA R CHIP 1/16 3.3K OHM J 1608
R328 HRFS104JBA R CHIP 1/16 100K OHM J 1608
R333 HRFS102JBA R CHIP 1/16 1K OHM J 1608
R347 HRFS101JBA R CHIP 1/16 100 OHM J 1608
R349 HRFS102JBA R CHIP 1/16 1K OHM J 1608
R352 HRFS820JBA R CHIP 1/16 82 OHM J 1608
R353 HRFS101JBA R CHIP 1/16 100 OHM J 1608
R354 HRFS101JBA R CHIP 1/16 100 OHM J 1608
R355 HRFS221JBA R CHIP 1/16 220 OHM J 1608
R356 HRFS151JBA R CHIP 1/16 150 OHM J 1608
R362 HRFS102JBA R CHIP 1/16 1K OHM J 1608
SECAM ONLY
R366 HRFS103JBA R CHIP 1/16 10K OHM J 1608
SECAM ONLY
R377 HRFS154JBA R CHIP 1/16 150K OHM J 1608
SECAM ONLY
R380 HRFS103JBA R CHIP 1/16 10K OHM J 1608
SECAM ONLY
R401 HRFS473JBA R CHIP 1/16 47K OHM J 1608
R505 HRFS103JBA R CHIP 1/16 10K OHM J 1608
R506 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
R509 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
R510 HRFS103JBA R CHIP 1/16 10K OHM J 1608
R511 HRFS103JBA R CHIP 1/16 10K OHM J 1608
R512 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
R515 HRFS222JBA R CHIP 1/16 2.2K OHM J 1608
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
R516 HRFS103JBA R CHIP 1/16 10K OHM J 1608
R517 HRFS102JBA R CHIP 1/16 1K OHM J 1608
R518 HRFS182JBA R CHIP 1/16 1.8K OHM J 1608
R520 HRFS561JBA R CHIP 1/16 560 OHM J 1608
R521 HRFS561JBA R CHIP 1/16 560 OHM J 1608
R523 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
R524 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
R526 HRFS273JBA R CHIP 1/16 27K OHM J 1608
R527 HRFS273JBA R CHIP 1/16 27K OHM J 1608
R528 HRFS201JBA R CHIP 1/16 200 OHM J 1608
R529 HRFS201JBA R CHIP 1/16 200 OHM J 1608
R530 HRFS244JBA R CHIP 1/16W 240K OHM J 1608
R531 HRFS244JBA R CHIP 1/16W 240K OHM J 1608
R532 HRFS244JBA R CHIP 1/16W 240K OHM J 1608
R533 HRFS244JBA R CHIP 1/16W 240K OHM J 1608
R534 HRFS103JBA R CHIP 1/16 10K OHM J 1608
R536 HRFS103JBA R CHIP 1/16 10K OHM J 1608
R538 HRFS912JBA R CHIP 1/16 9.1K OHM J 1608
R539 HRFS431JBA R CHIP 1/16 430 OHM J 1608
R543 HRFS103JBA R CHIP 1/16 10K OHM J 1608
R544 HRFS102JBA R CHIP 1/16 1K OHM J 1608
R547 HRFS332JBA R CHIP 1/16 3.3K OHM J 1608
R549 HRFS474JBA R CHIP 1/16 470K OHM J 1608
R554 HRFS513JBA R CHIP 1/16 51K OHM J 1608
R601 HRFS153JBA R CHIP 1/16 15K OHM J 1608
R604A HRFS512JBA R CHIP 1/16 5.1K OHM J 1608
R605A HRFS512JBA R CHIP 1/16 5.1K OHM J 1608
R606A HRFS750JBA R CHIP 1/16 75 OHM J 1608
R607 HRFS512JBA R CHIP 1/16 5.1K OHM J 1608
R608 HRFS512JBA R CHIP 1/16 5.1K OHM J 1608
R611A HRFS750JBA R CHIP 1/16 75 OHM J 1608
R613 HRFS750JBA R CHIP 1/16 75 OHM J 1608
R614 HRFS750JBA R CHIP 1/16 75 OHM J 1608
R615 HRFS750JBA R CHIP 1/16 75 OHM J 1608
R621 HRFS103JBA R CHIP 1/16 10K OHM J 1608
R622 HRFS474JBA R CHIP 1/16 470K OHM J 1608
R623 HRFS474JBA R CHIP 1/16 470K OHM J 1608
R624 HRFS103JBA R CHIP 1/16 10K OHM J 1608
R629 HRFS474JBA R CHIP 1/16 470K OHM J 1608
R630 HRFS474JBA R CHIP 1/16 470K OHM J 1608
R632 HRFS000-BA R CHIP 1/16 0 OHM 1608
R640 HRFS512JBA R CHIP 1/16 5.1K OHM J 1608
R641 HRFS512JBA R CHIP 1/16 5.1K OHM J 1608
R645 HRFS750JBA R CHIP 1/16 75 OHM J 1608
R653 HRFS103JBA R CHIP 1/16 10K OHM J 1608
R677 HRFS221JBA R CHIP 1/16 220 OHM J 1608
R680 HRFS301JBA R CHIP 1/16 300 OHM J 1608
R681 HRFS301JBA R CHIP 1/16 300 OHM J 1608
R688 HRFS221JBA R CHIP 1/16 220 OHM J 1608
R852 HRFS180JBA R CHIP 1/16 18 OHM J 1608
RD05 HRFS113JBA R CHIP 1/16 11K OHM J 1608
RD06 HRFS132JBA R CHIP 1/16 1.3K OHM J 1608
RD07 HRFS561JBA R CHIP 1/16 560 OHM J 1608
RD09 HRFS223JBA R CHIP 1/16 22K OHM J 1608
RD11 HRFS471JBA R CHIP 1/16 470 OHM J 1608
47
ELECTRICAL PARTSLIST
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
RD15 HRFS113JBA R CHIP 1/16 11K OHM J 1608
RD16 HRFS561JBA R CHIP 1/16 560 OHM J 1608
RD17 HRFS132JBA R CHIP 1/16 1.3K OHM J 1608
RD18 HRFS223JBA R CHIP 1/16 22K OHM J 1608
RD20 HRFS471JBA R CHIP 1/16 470 OHM J 1608
RD33 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RD53 HRFS102JBA R CHIP 1/16 1K OHM J 1608
RD55 HRFS680JBA R CHIP 1/16 68 OHM J 1608
RD59 HRFS750JBA R CHIP 1/16 75 OHM J 1608
RD60 HRFS750JBA R CHIP 1/16 75 OHM J 1608
RD62 HRFS750JBA R CHIP 1/16 75 OHM J 1608
RD63 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RJ001 HRF8000-EA R CHIP 1/8 0 OHM 3216
RJ002 HRF8000-EA R CHIP 1/8 0 OHM 3216
RJ003 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ004 HRF8000-EA R CHIP 1/8 0 OHM 3216
RJ005 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ007 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ008 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ009 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ010 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ011 HRF8000-EA R CHIP 1/8 0 OHM 3216
RJ012 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ013 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ018 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ019 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ01A HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ022 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ023 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ026 HRF8000-EA R CHIP 1/8 0 OHM 3216
RJ02A HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ031 HRF8000-EA R CHIP 1/8 0 OHM 3216
RJ032 HRF8000-EA R CHIP 1/8 0 OHM 3216
RJ033 HRF8000-EA R CHIP 1/8 0 OHM 3216
RJ034 HRF8000-EA R CHIP 1/8 0 OHM 3216
RJ03A HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ04A HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ05A HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ103 HRF8000-EA R CHIP 1/8 0 OHM 3216
RJ104 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ201 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ300 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ313 HRF8000-EA R CHIP 1/8 0 OHM 3216
RJ400 HRFS102JBA R CHIP 1/16 1K OHM J 1608
RJ402 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ403 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ405 HRFS102JBA R CHIP 1/16 1K OHM J 1608
RJ444 HRF8000-EA R CHIP 1/8 0 OHM 3216
RJ601 HRF8000-EA R CHIP 1/8 0 OHM 3216
RJ602 HRF8000-EA R CHIP 1/8 0 OHM 3216
RJ666 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ701 HRF8000-EA R CHIP 1/8 0 OHM 3216
RJ702 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ703 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ812 HRFS000-BA R CHIP 1/16 0 OHM 1608
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
Z0012 PVMPJRS202 PCB MAIN RADIAL AS DC-B87D1S-NA
C001 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 PAL ONLY
C004 CEXF1A101A C ELECTRO 10V RSM 100MF 6.3X7
C013 CEXE1A221E C ELECTRO 10V RM 220MF 5X11
C016 CEXF1H478A C ELECTRO 50V RSM 0.47MF 4X7
C025 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C026 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C027 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C029 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C055 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C057 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C059 CEXF1H339A C ELECTRO 50V RSM 3.3MF 4X7
C061 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C063 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP
C064 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C065 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C066 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C068 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C151 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C152 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP
C154 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP
C158 CEXF1H479A C ELECTRO 50V RSM 4.7MF 4X7
C201 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C204 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7)
C205 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C208 CEXF1H479A C ELECTRO 50V RSM 4.7MF 4X7
C210 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7)
C213 CEXF1H478A C ELECTRO 50V RSM 0.47MF 4X7
C214 CEXF1C330A C ELECTRO 16V RSM 33MF (6.3X7) TP
C219 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C221 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C222 CMXM2A243J C MYLAR 100V 0.024MF J (TP)
C223 CEXF1H479A C ELECTRO 50V RSM 4.7MF 4X7
C225 CMXM2A333J C MYLAR 100V 0.033MF J (TP)
C261 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C262 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C263 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C264 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C270 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C272 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C273 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C274 CEXF1H229A C ELECTRO 50V RSM 2.2MF (4X7) TP
C275 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C276 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C278 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C279 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C283 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C292 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C302 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP
C304 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP
C305 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C309 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP
C313 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP
C320 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C322 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
48
ELECTRICAL PARTSLIST
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
C327 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C331 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C332 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C334 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C336 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C338 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP
C375 CMXM2A222J C MYLAR 100V 2200PF J (TP)
SECAM ONLY
C376 CMXM2A222J C MYLAR 100V 2200PF J (TP)
SECAM ONLY
C377 CEXF1H229A C ELECTRO 50V RSM 2.2MF (4X7) TP
SECAM ONLY
C378 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
SECAM ONLY
C389 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C402 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP
C403 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C501 CEXF1A471V C ELECTRO 10V RSS 470MF (8X11.5) TP
C504 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C508 CEXF1E221V C ELECTRO 25V RSS 220MF (8X11.5) TP
C512 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C513 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C522 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C524 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C526 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP
C530 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C535 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C617 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C618 CEXF1A471V C ELECTRO 10V RSS 470MF (8X11.5) TP
C620 CEXF1A471V C ELECTRO 10V RSS 470MF (8X11.5) TP
C635 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C637 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C643 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C644 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C645 CEXF1A471V C ELECTRO 10V RSS 470MF (8X11.5) TP
C647 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C648 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C649 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C650 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C852 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C856 CEXF1E221V C ELECTRO 25V RSS 220MF (8X11.5) TP
C857 CEXF1E221V C ELECTRO 25V RSS 220MF (8X11.5) TP
C858 CEXF1E221V C ELECTRO 25V RSS 220MF (8X11.5) TP
C859 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C860 CEXF1E221V C ELECTRO 25V RSS 220MF (8X11.5) TP
C861 CEXF1A471V C ELECTRO 10V RSS 470MF (8X11.5) TP
C862 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C864 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C865 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C866 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C867 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
CD07 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7)
CD15 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
CD16 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7)
CD19 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7)
CD24 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7)
CD50 CEXF1A471V C ELECTRO 10V RSS 470MF (8X11.5) TP
CD51 CEXF1A471V C ELECTRO 10V RSS 470MF (8X11.5) TP
CD52 CEXF1A471V C ELECTRO 10V RSS 470MF (8X11.5) TP
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
CD62 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
CD72 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
CD74 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
L001 5CPX100J2T COIL PEAKING 10UH(BRN-BLK)
L002 5CPX100J2T COIL PEAKING 10UH(BRN-BLK)
L004 5CPX101J2T COIL PEAKING 100UH(BRN-BRN)
L051 5CPX100J2T COIL PEAKING 10UH(BRN-BLK)
L052 5CPX101J2T COIL PEAKING 100UH(BRN-BRN)
L053 5CPX100J2T COIL PEAKING 10UH(BRN-BLK)
L201 5CPX101J2T COIL PEAKING 100UH(BRN-BRN)
L203 5CPX101J2T COIL PEAKING 100UH(BRN-BRN)
L250 5CPX101J2T COIL PEAKING 100UH(BRN-BRN)
L251 5CPX101J2T COIL PEAKING 100UH(BRN-BRN)
L301 5CPX100J2T COIL PEAKING 10UH(BRN-BLK)
L302 5CPX100J2T COIL PEAKING 10UH(BRN-BLK)
L303 5CPX100J2T COIL PEAKING 10UH(BRN-BLK)
L365 5CPX100J2T COIL PEAKING 10UH(BRN-BLK)
SECAM ONLY
L501 5CPX100J2T COIL PEAKING 10UH(BRN-BLK)
L503 5CPX680J2T COIL PEAKING 68UH(BLU-BLK)
L603 5CPX100J2T COIL PEAKING 10UH(BRN-BLK)
L853 56C220K695 COIL CHOKE(CAP TYPE) 22UH K 9X11.1 (CAP TYPE)
L860 56C220K695 COIL CHOKE(CAP TYPE) 22UH K 9X11.1 (CAP TYPE)
LD02 5CPX101J2T COIL PEAKING 100UH(BRN-BRN)
LD03 5CPX680J2T COIL PEAKING 68UH(BLU-BLK)
LD04 5CPX101J2T COIL PEAKING 100UH(BRN-BRN)
LD51 5CPX100J2T COIL PEAKING 10UH(BRN-BLK)
Q201 TZTC3198Y- TRANSISTOR KTC3198Y-(1815Y) (AUTO)
Q203 TZTC3202Y- TR KTC3202Y (AUTO)(1959Y)
Q204 TZTC3198Y- TRANSISTOR KTC3198Y-(1815Y) (AUTO)
Q205 TZTC3198Y- TRANSISTOR KTC3198Y-(1815Y) (AUTO)
Q206 TZTA1266Y- TR KTA1266Y- (AUTO)(1015Y)
Q207 TZTA1266Y- TR KTA1266Y- (AUTO)(1015Y)
Q208 TZTC3198Y- TRANSISTOR KTC3198Y-(1815Y) (AUTO)
Q601 TZSR2001 TR KSR2001 (AUTO)
Q602 TZRC104M TR KRC104M AUTO
Q603 TZRC104M TR KRC104M AUTO
Q644 TZTA1266Y- TR KTA1266Y- (AUTO)(1015Y)
Q670 TZTA1266Y- TR KTA1266Y- (AUTO)(1015Y)
Q671 TZTA1266Y- TR KTA1266Y- (AUTO)(1015Y)
Q844 TZTC3198Y- TRANSISTOR KTC3198Y-(1815Y) (AUTO)
Q850 TZTC3205Y- TR KTC3205Y (2236Y)
Q851 TZTC3205Y- TR KTC3205Y (2236Y)
Q852 TZTC3198Y- TRANSISTOR KTC3198Y-(1815Y) (AUTO)
Q853 TZTA1273Y- TR KTA1273Y(966Y)
Q856 TZTC3198Y- TRANSISTOR KTC3198Y-(1815Y) (AUTO)
Q858 TZTC3205Y- TR KTC3205Y (2236Y)
Q859 TZTC3205Y- TR KTC3205Y (2236Y)
Q860 TZTC3205Y- TR KTC3205Y (2236Y)
Q861 TZTC3205Y- TR KTC3205Y (2236Y)
QD01 TZTC3198Y- TRANSISTOR KTC3198Y-(1815Y) (AUTO)
QD02 TZTA1266Y- TR KTA1266Y- (AUTO)(1015Y)
SW511 5S50101Z97 SW TACT THVV952GBA 9.5M AUTO
SW512 5S50101Z97 SW TACT THVV952GBA 9.5M AUTO
SW513 5S50101Z97 SW TACT THVV952GBA 9.5M AUTO
SW516 5S50101Z97 SW TACT THVV952GBA 9.5M AUTO
49
ELECTRICAL PARTSLIST
50
ELECTRICAL PARTSLIST
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
SW517 5S50101Z97 SW TACT THVV952GBA 9.5M AUTO
SW7B5 5S50101Z90 SW TACT THVV502GDA
SW7C1 5S50101Z90 SW TACT THVV502GDA
SW7C2 5S50101Z90 SW TACT THVV502GDA
SW7C3 5S50101Z90 SW TACT THVV502GDA
SW7C4 5S50101Z90 SW TACT THVV502GDA
SW7C5 5S50101Z90 SW TACT THVV502GDA
X301 5XE4R433TB CRYSTAL QUARTZ HC-49/U 4.433619MHZ 15PPM (FORMING)
Z0013 PVMPJAS202 PCB MAIN AXIAL AS DC-B87D1S-NA
C002 CBZP1C103M C CERA SEMI 16V Y5S 0.01MF M (AXIAL)
C003 CCZB1H101K C CERA 50V B 100PF K (AXIAL) PAL ONLY
C005 CBZP1C103M C CERA SEMI 16V Y5S 0.01MF M (AXIAL)
C006 CCZB1H101K C CERA 50V B 100PF K (AXIAL) PAL ONLY
C007 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)
C014 CCZB1H101K C CERA 50V B 100PF K (AXIAL)
C160 CBZP1C103M C CERA SEMI 16V Y5S 0.01MF M (AXIAL)
C207 CCZF1H104Z C CERA HIKF 50V 0.1MF Z AXIAL
C321 CCZF1H104Z C CERA HIKF 50V 0.1MF Z AXIAL
C323 CCZF1H104Z C CERA HIKF 50V 0.1MF Z AXIAL
C324 CCZF1H104Z C CERA HIKF 50V 0.1MF Z AXIAL
C326 CCZF1H104Z C CERA HIKF 50V 0.1MF Z AXIAL
C329 CCZF1H104Z C CERA HIKF 50V 0.1MF Z AXIAL
C337 CBZP1C103M C CERA SEMI 16V Y5S 0.01MF M (AXIAL)
C341 CCZF1H104Z C CERA HIKF 50V 0.1MF Z AXIAL
C342 CBZP1C103M C CERA SEMI 16V Y5S 0.01MF M (AXIAL)
C350 CCZB1H221K C CERA 50V B 220PF K (AXIAL)
C361 CBZP1C103M C CERA SEMI 16V Y5S 0.01MF M (AXIAL)
SECAM ONLY
C502 CBZP1C103M C CERA SEMI 16V Y5S 0.01MF M (AXIAL)
C511 CBZP1C103M C CERA SEMI 16V Y5S 0.01MF M (AXIAL)
C517 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)
CD10 CCZB1H181K C CERA 50V B 180PF K (AXIAL)
CD22 CCZB1H181K C CERA 50V B 180PF K (AXIAL)
CD61 CCZF1H104Z C CERA HIKF 50V 0.1MF Z AXIAL
D001 DZN4148 - DIODE 1N4148 AUTO 52MM
D003 DZN4003 - DIODE IN4003
D301 DZN4148 - DIODE 1N4148 AUTO 52MM
D501 DZN4148 - DIODE 1N4148 AUTO 52MM
D503 DZN4148 - DIODE 1N4148 AUTO 52MM
D509 DZN4148 - DIODE 1N4148 AUTO 52MM
D510 DZN4148 - DIODE 1N4148 AUTO 52MM
D511 DZN4148 - DIODE 1N4148 AUTO 52MM
D512 DZN4148 - DIODE 1N4148 AUTO 52MM
D513 DZN4148 - DIODE 1N4148 AUTO 52MM
D518 DZN4148 - DIODE 1N4148 AUTO 52MM
D519 DZN4148 - DIODE 1N4148 AUTO 52MM
D520 DZN4148 - DIODE 1N4148 AUTO 52MM
D521 DZN4003 - DIODE IN4003
D523 DZN4003 - DIODE IN4003
D524 DZN4148 - DIODE 1N4148 AUTO 52MM
D525 DZN4004 - DIODE 1N4004(AUTO)
D531 DZUZ5R6BSB DIODE ZENER UZ-5.6BSB(5.46-5.70V)
D612 DZUZ5R6BSB DIODE ZENER UZ-5.6BSB(5.46-5.70V)
D613 DZUZ5R6BSB DIODE ZENER UZ-5.6BSB(5.46-5.70V)
D614 DZUZ13BSB- DIODE ZENER UZ-13BSB(12.59-13.16V)
D615 DZUZ13BSB- DIODE ZENER UZ-13BSB(12.59-13.16V)
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
D616 DZUZ13BSB- DIODE ZENER UZ-13BSB(12.59-13.16V)
D617 DZUZ13BSB- DIODE ZENER UZ-13BSB(12.59-13.16V)
D619 DZUZ5R6BSB DIODE ZENER UZ-5.6BSB(5.46-5.70V)
D630 DZN4148 - DIODE 1N4148 AUTO 52MM
D850 DZUZ33BSB- DIODE ZENER UZ-33BSB(30.32-31.38V)
D851 DZUZ13BSB- DIODE ZENER UZ-13BSB(12.59-13.16V)
D852 DZUZ5R6BSB DIODE ZENER UZ-5.6BSB(5.46-5.70V)
D855 DZUZ5R6BSB DIODE ZENER UZ-5.6BSB(5.46-5.70V)
D856 DZUZ3R9BSB DIODE ZENER UZ-3.9BSB(3.92-4.14)
D857 DZN4003 - DIODE IN4003
DD01 DZN4148 - DIODE 1N4148 AUTO 52MM
DD02 DZN4148 - DIODE 1N4148 AUTO 52MM
DD03 DZN4148 - DIODE 1N4148 AUTO 52MM
DD50 DZN4148 - DIODE 1N4148 AUTO 52MM
JP230 85801060TA WIRE COPPER 0.6X52MM TAPING
SECAM ONLY
JP288 85801060TA WIRE COPPER 0.6X52MM TAPING
SECAM ONLY
JP298 85801060TA WIRE COPPER 0.6X52MM TAPING
SECAM ONLY
JP299 85801060TA WIRE COPPER 0.6X52MM TAPING
SECAM ONLY
JP303 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
JP304 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
L151 5CPZ569K02 COIL PEAKING 5.6UH K (AXIAL 3.5MM)
L311 5CPZ100K02 COIL PEAKING 10UH K (AXIAL 3.5MM)
L340 5CPZ229K02 COIL PEAKING 2.2UH K(AXIAL 3.5MM)
L341 5CPZ229K02 COIL PEAKING 2.2UH K(AXIAL 3.5MM)
L342 5CPZ229K02 COIL PEAKING 2.2UH K(AXIAL 3.5MM)
L526 5CPZ100K02 COIL PEAKING 10UH K (AXIAL 3.5MM)
L602 5CPZ229K02 COIL PEAKING 2.2UH K(AXIAL 3.5MM)
L604 5CPZ229K02 COIL PEAKING 2.2UH K(AXIAL 3.5MM)
L605 5CPZ229K02 COIL PEAKING 2.2UH K(AXIAL 3.5MM)
L606 5CPZ229K02 COIL PEAKING 2.2UH K(AXIAL 3.5MM)
L612 5CPZ229K02 COIL PEAKING 2.2UH K(AXIAL 3.5MM)
L613 5CPZ229K02 COIL PEAKING 2.2UH K(AXIAL 3.5MM)
R001 RD-AZ221J- R CARBON FILM 1/6 220 OHM J PAL ONLY
R002 RD-AZ221J- R CARBON FILM 1/6 220 OHM J PAL ONLY
R003 RD-AZ122J- R CARBON FILM 1/6 1.2K OHM J PAL ONLY
R004 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R005 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
R006 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
R009 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J PAL ONLY
R051 RD-AZ751J- R CARBON FILM 1/6 750 OHM J
R052 RD-AZ751J- R CARBON FILM 1/6 750 OHM J
R054 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R190 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
R204 RD-AZ113J- R CARBON FILM 1/6 11K OHM J
R207 RD-AZ563J- R CARBON FILM 1/6 56K OHM J
R214 RD-AZ511J- R CARBON FILM 1/6 510 OHM J
R215 RD-AZ821J- R CARBON FILM 1/6 820 OHM J
R217 RD-AZ223J- R CARBON FILM 1/6 22K OHM J
R218 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J
R219 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R232 RD-AZ223J- R CARBON FILM 1/6 22K OHM J
R265 85801060TA WIRE COPPER 0.6X52MM TAPING
R266 RD-AZ333J- R CARBON FILM 1/6 33K OHM J
R267 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J
R268 RN-AZ3902F R METAL FILM 1/6 39K OHM F
51
ELECTRICAL PARTSLIST
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
R269 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J
R276 RD-AZ183J- R CARBON FILM 1/6 18K OHM J
R277 RD-AZ511J- R CARBON FILM 1/6 510 OHM J
R278 RD-AZ511J- R CARBON FILM 1/6 510 OHM J
R303 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
SECAM ONLY
R305 RD-AZ434J- R CARBON FILM 1/6 430K OHM J
R306 RD-AZ474J- R CARBON FILM 1/6 470K OHM J
R316 RD-AZ183J- R CARBON FILM 1/6 18K OHM J
R321 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R322 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J
R323 RD-AZ682J- R CARBON FILM 1/6 6.8K OHM J
R325 RD-AZ122J- R CARBON FILM 1/6 1.2K OHM J
R329 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R330 RD-AZ223J- R CARBON FILM 1/6 22K OHM J
R331 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R350 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
R351 RD-AZ430J- R CARBON FILM 1/6 43 OHM J
R370 RD-AZ473J- R CARBON FILM 1/6 47K OHM J
R381 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
SECAM ONLY
R399 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R402 RD-AZ393J- R CARBON FILM 1/6 39K OHM J
R403 RD-AZ122J- R CARBON FILM 1/6 1.2K OHM J
R423 RD-AZ153J- R CARBON FILM 1/6 15K OHM J
R513 RD-AZ331J- R CARBON FILM 1/6 330 OHM J
R514 RD-AZ331J- R CARBON FILM 1/6 330 OHM J
R525 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R535 RD-AZ473J- R CARBON FILM 1/6 47K OHM J
R537 RD-AZ473J- R CARBON FILM 1/6 47K OHM J
R540 RN-AZ103F- R METAL FILM 1/6 10K OHM F
R541 RN-AZ103F- R METAL FILM 1/6 10K OHM F
R545 RD-AZ121J- R CARBON FILM 1/6 120 OHM J
R546 RD-AZ121J- R CARBON FILM 1/6 120 OHM J
R550 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R551 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R555 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R556 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R557 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R558 RD-AZ153J- R CARBON FILM 1/6 15K OHM J
R559 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R560 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R588 RD-2Z189JS R CARBON FILM 1/2 1.8 OHM J SMALL
R602 RD-AZ391J- R CARBON FILM 1/6 390 OHM J
R603 RD-AZ391J- R CARBON FILM 1/6 390 OHM J
R610 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R612 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R616 RD-AZ301J- R CARBON FILM 1/6 300 OHM J
R617 RD-AZ301J- R CARBON FILM 1/6 300 OHM J
R625 RD-AZ474J- R CARBON FILM 1/6 470K OHM J
R626 RD-AZ474J- R CARBON FILM 1/6 470K OHM J
R627 RD-AZ474J- R CARBON FILM 1/6 470K OHM J
R628 RD-AZ474J- R CARBON FILM 1/6 470K OHM J
R631 85801060TA WIRE COPPER 0.6X52MM TAPING
R635 RD-AZ203J- R CARBON FILM 1/6 20K OHM J
R636 RD-AZ203J- R CARBON FILM 1/6 20K OHM J
R637 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
R638 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R644 RD-4Z751J- R CARBON FILM 1/4 750 OHM J
R670 RD-4Z751J- R CARBON FILM 1/4 750 OHM J
R671 RD-4Z751J- R CARBON FILM 1/4 750 OHM J
R678 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
R844 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R850 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J
R851 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J
R853 RD-2Z751JS R CARBON FILM 1/2 750 OHM J SMALL
R854 RD-4Z102JS R CARBON FILM 1/4 1K OHM J SMALL
R856 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R857 RD-AZ202J- R CARBON FILM 1/6 2K OHM J
R859 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R860 RD-AZ561J- R CARBON FILM 1/6 560 OHM J
R861 RD-AZ241J- R CARBON FILM 1/6 240 OHM J
R862 RD-AZ201J- R CARBON FILM 1/6 200 OHM J
RD04 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
RD10 RD-AZ471J- R CARBON FILM 1/6 470 OHM J
RD13 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
RD14 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
RD19 RD-AZ471J- R CARBON FILM 1/6 470 OHM J
RD22 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
RD26 RD-AZ333J- R CARBON FILM 1/6 33K OHM J
RD27 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
RD28 RD-AZ333J- R CARBON FILM 1/6 33K OHM J
RD29 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
RD31 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
RD32 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
RD50 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
RD51 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
RD52 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
RD54 RD-AZ220J- R CARBON FILM 1/6 22 OHM J
RD56 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
RD57 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
RD58 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
RD61 RD-AZ750J- R CARBON FILM 1/6 75 OHM J
RD64 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
RD65 RD-AZ470J- R CARBON FILM 1/6 47 OHM J
RD70 RD-AZ510J- R CARBON FILM 1/6 51 OHM J
RD71 RD-AZ510J- R CARBON FILM 1/6 51 OHM J
RD72 RD-AZ510J- R CARBON FILM 1/6 51 OHM J
RD73 RD-AZ510J- R CARBON FILM 1/6 51 OHM J
RD74 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
RD75 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
RD76 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
U001 97P65358MA PCB MAIN 330X246 D1B
Z0011 PVMGJ1LG00 PCB MPEG CHIP AS DQL-2303 BASIC(2CH)
CA11 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA12 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA13 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA14 HCQK121JBA C CHIP CERA 50V CH 120PF J 1608
CA16 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
CA17 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
CA18 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA19 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608
52
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
CA20 HCBF224KBA C CHIP CERA 16V X7R 0.22MF K 1608
CA21 HCBK471KBA C CHIP CERA 50V X7R 470PF K 1608
CA22 HCBK471KBA C CHIP CERA 50V X7R 470PF K 1608
CA23 HCBK391KBA C CHIP CERA 50V X7R 390PF K 1608
CA24 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA26 HCBK561KBA C CHIP CERA 50V X7R 560PF K 1608
CA27 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA28 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA29 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA30 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA31 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
CA32 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
CA33 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
CA34 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
CA35 HCBK561KBA C CHIP CERA 50V X7R 560PF K 1608
CA36 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
CA37 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
CA38 HCBK471KBA C CHIP CERA 50V X7R 470PF K 1608
CA39 HCBK471KBA C CHIP CERA 50V X7R 470PF K 1608
CA42 HCBK471KBA C CHIP CERA 50V X7R 470PF K 1608
CA43 HCBK471KBA C CHIP CERA 50V X7R 470PF K 1608
CA44 HCBK471KBA C CHIP CERA 50V X7R 470PF K 1608
CA45 HCBK471KBA C CHIP CERA 50V X7R 470PF K 1608
CA46 HCBK471KBA C CHIP CERA 50V X7R 470PF K 1608
CA47 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA48 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA49 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CB11 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
CC11 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC12 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC13 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC14 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC16 HCBK393KBA C CHIP CERA 50V X7R 0.039MF K 1608
CC17 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC18 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608
CC19 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608
CC20 HRFS000-BA R CHIP 1/16 0 OHM 1608
CC21 HCBK471KBA C CHIP CERA 50V X7R 470PF K 1608
CC22 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC23 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC24 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC25 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC26 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC27 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC28 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC29 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC30 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC31 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC32 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC33 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC34 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC35 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC36 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CD11 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CD12 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
CD13 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CD14 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CD15 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CD16 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CD17 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CD18 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CD23 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
CD24 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
CD25 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CD26 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CD27 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CM11 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CM13 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CM14 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CM15 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CM16 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CM17 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CM18 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CN11 97P62K06EP CONN FFC SMD SCB-2223-M-2 SMD ST 1.0
CN14 97P62K08E9 CONN FFC SMD SCB-2209-T-2 SMD RA 1.0
CN15 97P62K06EK CONN FFC SMD SCB-2219-M-2 SMD ST 1.0
CN18 97P62K06EF CONN FFC SMD SCB-2215-M-2 SMD ST 1.0
CP11 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CP12 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CP13 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CP14 HCBK471KBA C CHIP CERA 50V X7R 470PF K 1608
CP15 HCFF105ZBA C CHIP CERA 16V Y5V 1MF Z 1608
CP16 HCFF105ZBA C CHIP CERA 16V Y5V 1MF Z 1608
CP17 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CP18 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CP19 HCFF105ZBA C CHIP CERA 16V Y5V 1MF Z 1608
CP20 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
DA11 DRLS4148-B DIODE CHIP RLS4148TE-11 3415
DA12 DRLS4148-B DIODE CHIP RLS4148TE-11 3415
DD13 DRLS4148-B DIODE CHIP RLS4148TE-11 3415
IA02 1SA5810 E IC CHIP DRIVER SA5810 28 PIN HSOP REEL
IA13 TZM6K2 -Q FET CHIP SM6K2 T110 SOT-457 60V 0.2A 2EA
IC11 1M3355 -Q IC DVD 1 CHIP M3355 216-PIN LQFP TRAY
IC12 1BD5229G-B IC CHIP RESET BD5229G-TR 2.9V 5 PIN SSOP5 REEL
IC13 14ATM24D08 IC CHIP EEPROM AT24C08N 10SI-2.7 SOIC
IC14 1MX26LV80Q IC CHIP FLASH ROM MX26LV800TTC-55 48PIN TSOP TRAY
IC15 1ADS6616AQ IC CHIP SDRAM
ADS6616A4A-6 (4X16) 166M 54PIN TSOP TRAY
LA11 HLX1210001 BEAD CHIP TB201209Z121
LA12 HLX1210001 BEAD CHIP TB201209Z121
LA13 HLX1210001 BEAD CHIP TB201209Z121
LA14 HLX1210001 BEAD CHIP TB201209Z121
LD13 HLX1210001 BEAD CHIP TB201209Z121
LP12 HLX1210001 BEAD CHIP TB201209Z121
LP13 HLX1210001 BEAD CHIP TB201209Z121
LP14 HLX1210001 BEAD CHIP TB201209Z121
LP15 HLX1210001 BEAD CHIP TB201209Z121
LP16 HLX1210001 BEAD CHIP TB201209Z121
LP17 HLX1210001 BEAD CHIP TB201209Z121
LP18 HLX1210001 BEAD CHIP TB201209Z121
LP19 HLX1210001 BEAD CHIP TB201209Z121
ELECTRICAL PARTSLIST
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
LP20 HLX1210001 BEAD CHIP TB201209Z121
QA11 TZHU002N-Q FET CHIP RHU002N06 T106 SOT-323 60V 0.2A
QA12 T2SB1132-B TR CHIP 2SB1132 R MTP3 T100
QA13 T2SB1132-B TR CHIP 2SB1132 R MTP3 T100
RA11 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
RA12 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
RA14 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
RA16 HRFS000-BA R CHIP 1/16 0 OHM 1608
RA17 HRFS101JBA R CHIP 1/16 100 OHM J 1608
RA18 HRFS101JBA R CHIP 1/16 100 OHM J 1608
RA19 HRFS102JBA R CHIP 1/16 1K OHM J 1608
RA20 HRFS102JBA R CHIP 1/16 1K OHM J 1608
RA21 HRFS000-BA R CHIP 1/16 0 OHM 1608
RA22 HRFS100JBA R CHIP 1/16W 10 OHM J 1608
RA23 HRFS100JBA R CHIP 1/16W 10 OHM J 1608
RA24 HRFS100JBA R CHIP 1/16W 10 OHM J 1608
RA25 HRFS100JBA R CHIP 1/16W 10 OHM J 1608
RA26 HRFS000-BA R CHIP 1/16 0 OHM 1608
RA27 HRFS000-BA R CHIP 1/16 0 OHM 1608
RA28 HRFS123JBA R CHIP 1/16 12K OHM J 1608
RA31 HRFS822JBA R CHIP 1/16 8.2K OHM J 1608
RA32 HRFS222JBA R CHIP 1/16 2.2K OHM J 1608
RA33 HRFS222JBA R CHIP 1/16 2.2K OHM J 1608
RA34 HRFS222JBA R CHIP 1/16 2.2K OHM J 1608
RA35 HRFS222JBA R CHIP 1/16 2.2K OHM J 1608
RA36 HRFS433JBA R CHIP 1/16W 43K OHM J 1608
RA37 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RB16 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RB18 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RB20 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RB21 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RB22 HRFS102JBA R CHIP 1/16 1K OHM J 1608
RB24 HRFS000-BA R CHIP 1/16 0 OHM 1608
RB25 HRFS750JBA R CHIP 1/16 75 OHM J 1608
RB26 HRFS680JBA R CHIP 1/16 68 OHM J 1608
RB27 HRFS000-BA R CHIP 1/16 0 OHM 1608
RB28 HRFS680JBA R CHIP 1/16 68 OHM J 1608
RC11 HRFS180JBA R CHIP 1/16 18 OHM J 1608
RC12 HRFS180JBA R CHIP 1/16 18 OHM J 1608
RC13 HRFS561JBA R CHIP 1/16 560 OHM J 1608
RC14 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
RC15 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
RC16 HRFS102JBA R CHIP 1/16 1K OHM J 1608
RC17 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
RC18 HRFS201JBA R CHIP 1/16 200 OHM J 1608
RC19 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
RC20 HRFS105JBA R CHIP 1/16 1M OHM J 1608
RC21 HRFS689JBA R CHIP 1/16 6.8 OHM J 1608
RC22 HRFS689JBA R CHIP 1/16 6.8 OHM J 1608
RC23 HRFS000-BA R CHIP 1/16 0 OHM 1608
RC24 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RC25 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RC26 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RC27 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RC28 HRFS103JBA R CHIP 1/16 10K OHM J 1608
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
RC29 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RC30 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RC31 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RC32 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RC33 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RC34 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RC35 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RC36 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RC37 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
RC39 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
RC40 HRFS000-BA R CHIP 1/16 0 OHM 1608
RC41 HRFS101JBA R CHIP 1/16 100 OHM J 1608
RC42 HRFS101JBA R CHIP 1/16 100 OHM J 1608
RC45 HRFS101JBA R CHIP 1/16 100 OHM J 1608
RC46 HRFS000-BA R CHIP 1/16 0 OHM 1608
RD11 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RD12 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RD13 HRFS123JBA R CHIP 1/16 12K OHM J 1608
RD14 HRFS362JBA R CHIP 1/16 3.6K OHM J 1608
RD15 HRFS223JBA R CHIP 1/16 22K OHM J 1608
RD16 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RD17 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RD18 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RD19 HRFS333JBA R CHIP 1/16 33K OHM J 1608
RD20 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
RD21 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RD22 HRFS223JBA R CHIP 1/16 22K OHM J 1608
RD23 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
RD24 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RD25 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RD26 HRFS152JBA R CHIP 1/16 1.5K OHM J 1608
RD27 HRFS223JBA R CHIP 1/16 22K OHM J 1608
RD28 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RD29 HRFS152JBA R CHIP 1/16 1.5K OHM J 1608
RD30 HRFS273JBA R CHIP 1/16 27K OHM J 1608
RD31 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
RD32 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
RM11 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RM12 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RM13 HRFS102JBA R CHIP 1/16 1K OHM J 1608
RM15 HRFS000-BA R CHIP 1/16 0 OHM 1608
RM16 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RM17 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
RM28 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
RM30 HRFS000-BA R CHIP 1/16 0 OHM 1608
RM31 HRFS000-BA R CHIP 1/16 0 OHM 1608
RM32 HRFS000-BA R CHIP 1/16 0 OHM 1608
RM33 HRFS000-BA R CHIP 1/16 0 OHM 1608
RM34 HRFS102JBA R CHIP 1/16 1K OHM J 1608
UL01 97Q65326DA PCB DVD 121X97(243X195/4) C2V
XC01 5XJ27R00SE CRYSTAL QUARTZ HC-49/S 27.000MHZ 20PF 30PPM (SMD)
Z0012 PVMGJRLG00 PCB MPEG RADIAL AS DQL-2303 BASIC(2CH)
CA71 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
CA72 CEXF1A101A C ELECTRO 10V RSM 100MF 6.3X7
CA73 CEXF1A101A C ELECTRO 10V RSM 100MF 6.3X7
53
ELECTRICAL PARTSLIST
54
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
CA74 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP
CC42 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
CC43 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP
CC55 CEXE0J221S C ELECTRO 6.3V RSA 220MF 6.3X7
CD30 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP
CM21 CEXF1A101A C ELECTRO 10V RSM 100MF 6.3X7
CP31 CEXF1A101A C ELECTRO 10V RSM 100MF 6.3X7
CP32 CEXE0J221S C ELECTRO 6.3V RSA 220MF 6.3X7
CP33 CEXF1A101A C ELECTRO 10V RSM 100MF 6.3X7
CP35 CEXF1A101A C ELECTRO 10V RSM 100MF 6.3X7
CP36 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
CP37 CEXF1A101A C ELECTRO 10V RSM 100MF 6.3X7
CP38 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
CP39 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
CP40 CEXF1A101A C ELECTRO 10V RSM 100MF 6.3X7
CP41 CEXE0J221S C ELECTRO 6.3V RSA 220MF 6.3X7
Z008 PVPWMSE435 PCB POWER MANUAL AS DC-B87D1D-NB
C801 CL2EE3104M C LINE ACROSS AC 275V 0.1MF M PCX2 335M
C802 CH1CEE332M C CERA AC 2.5KV 3300PF M DE AC250V
C804 CEXF2G470V C ELECTRO 400V RSS 47MF 16X25
C811 CH1TFE222M C CERA AC 4.0KV 2200PF M AD AC250V
C821 CEXK1C102L C ELECTRO 16V 1000UF KXL (10X20)
C823 CEXK1E681L C ELECTRO 25V 680UF KXL
C825 CEXK1E681L C ELECTRO 25V 680UF KXL
C826 CEXK1C102L C ELECTRO 16V 1000UF KXL (10X20)
D821 D31DQ06 F DIODE SCHOTTKY 31DQ06-FC5
D823 DS2L20U F DIODE S2L20U 4004 P15
D825 DS2L20U F DIODE S2L20U 4004 P15
D826 D31DQ06 F DIODE SCHOTTKY 31DQ06-FC5
IC801 1K1010HE01 IC PHOTO COUPLER K1010HE01
L801 5PLF2055 FILTER LINE LF-2055
L802 5PLF2055 FILTER LINE LF-2055
P802 97P62Y02X2 CONN WAFER YFW800 STR 10MM 2P
P803 97P885X206 CONN AS 10H-10S 60MM
Q801 TKSC5027FR TR KSC5027FR
R802 RW02B229J- R WIRE WOUND 2W 2.2 OHM J
R806 RS02F104JS R M-OXIDE FILM 2W 100K OHM J SMALL
T801 57M8282320 TRANS SMPS TSW-VE3.0N
Z0081 PVPWJRE435 PCB POWER RADIAL AS DC-B87D1D-NB
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
C806 CBXB3A331K C CERA SEMI 1KV RR 330PF K
C807 CMXL2G333K C MYLAR 400V MEU 0.033MF K
C808 CMXM2A473J C MYLAR 100V 0.047MF J (TP)
C809 CMXM2A472J C MYLAR 100V 4700PF J (TP)
C810 CMXM2A473J C MYLAR 100V 0.047MF J (TP)
C822 CEXF1A221V C ELECTRO 10V RSS 220MF
C824 CEXK1H470L C ELECTRO 50V 47MF KXL
C827 CEXK1A471L C ELECTRO 10V470UF KXL
C828 CMXL1J104K C MYLAR MEU 63V 0.1MF K
F801 5FWPS2022L FUSE WIDE TL 250V 2A CASE
IC802 1KA431AZ IC REGULATOR KA431AZ 1% TO-92
Q802 TZTC3203Y- TR KTC3203Y (2120Y)
Z0082 PVPWJAE435 POWER AXIAL AUTO AS DC-B87D1D-NB
C805 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D802 DHER108S DIODE HER108S A-405 TYPE
D803 DZN4003 - DIODE IN4003
D804 DZN4148 - DIODE 1N4148 AUTO 52MM
D805 DZUZ3R0BSB DIODE ZENER UZ-3.0BSB(3.01-3.22V)
D806 DZN4005S DIODE IN4005S 1A 600V
D807 DZN4005S DIODE IN4005S 1A 600V
D808 DZN4005S DIODE IN4005S 1A 600V
D809 DZN4005S DIODE IN4005S 1A 600V
D822 DZ1F3E DIODE FR 1F3E
D824 DZ1F3E DIODE FR 1F3E
D827 DZ1F3E DIODE FR 1F3E
D828 DZGDZP18B- DIODE ZENER GDZP18B1
L805 5PB13857 COIL BEAD BI3857(AXIAL)
R803 RD-4Z394JS R CARBON FILM 1/4 390K OHM J SMALL
R804 RD-4Z394JS R CARBON FILM 1/4 390K OHM J SMALL
R805 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R807 RD-2Z820JS R CARBON FILM 1/2 82 OHM J SMALL
R808 RD-2Z560JS R CARBON FILM 1/2 56 OHM J SMALL
R809 RD-AZ681J- R CARBON FILM 1/6 680 OHM J
R810 RC-2Z565KP R CARBON COMP 1/2 5.6M OHM K
R821 RD-AZ470J- R CARBON FILM 1/6 47 OHM J
R823 RN-AZ132F- R METAL FILM 1/6 1.3K OHM F
R824 RD-AZ470J- R CARBON FILM 1/6 47 OHM J
R825 RN-AZ182F- R METAL FILM 1/6 1.8K OHM F
UP01 97P65458PA PCB POWER (330X199/5)D1B
ELECTRICAL PARTSLIST
55
ELECTRICAL PARTSLIST
* OPTION TABLE
OPTION DIODE(D50*) : DZN4148 - - -(1N4148 AUTO 52MM)
SYSTEM D501 D502 D503
PAL BG X X X
PAL BG(AUSTRALIA) X X O
PAL BG/DK(MIDDLE EAST) X O X
PAL II(S.AFRICA) X O O
PAL II O X X
SECAM LL’ OXO
SECAM LL’(SWISS) O O X
PAL BG/DK O O O
HI-FI/MONO D504
HI-FI(4H’D) X
MONO(2H’D) 0
1. SYSTEM
2. Hi-Fi/ Mono
BG/DK D507
BG X
DK 0
3. MODULATOR output change: BG->DK
DAEWOO/SANYO
D508
DAEWOO X
SANYO 0
NEW/OLD TMI D509
NEW(SMALL)TMI X
OLD TMI 0
4. SANYO REMOCON KEY CODE 5. NEW/OLD TMI
* REMARK
PAL BG/DK
PAL II
SECAM LL’
SECAM LL’(SWISS)
PAL BG/DK(AUSTRALIA)
PAL BG/DK(MIDDLE EAST)
PAL II(S.AFRICA)
2 Scart Jack
(Non 1 Scart)
Phone Jack
DAEWOO ELECTRONICS CORP.
686, AHYEON-DONG, MAPO-GU,
SEOUL, KOREA.
C.P.O. BOX 8003 SEOUL KOREA
PRINTED DATE: MAY. 2006
Loading...
