Daewoo CM-908S Service Manual

Service Manual

COLOR TELEVISION

CHASSIS : CM-908S

Model : DTR-14D9/20D9/21D9 ME/MP/MT/MZ

S/M No. : TCM

908

SEF0

DTR-14D2/21D2 ME/MP/MT/MZ

DTR-1420/2120 ME/MP/MT/MZ

DTR-2131/2132 ME/MP/MT/MZ

MODEL

TEXT

PIP

MODEL OPTION LIST

http : //svc.dwe.co.kr

Caution

: In this Manual, some parts can be changed for improving. their performance without notice in the parts list. So, if you need the latest parts information, please refer to PPL(Parts Price List)in Service Information Center(http://svc.dwe.co.kr)

DAEWOO ELECTRONICS Corp.

Jan. 2004

-1-

1. SPECIFICATIONS 2

2. SAFETY INSTRUCTION

3. ALIGNMENT INSTRUCTIONS

4. ELECTRICAL PARTS LIST (Different Parts)

5. DIFFERENT PARTS

5-1. CRT INCH DIFFERENT PARTS OF CM-908S

5-2. FUNCTION DIFFERENT PARTS OF CM-908S

6. SCHEMATIC DIAGRAM

7. PRINTED CIRCUIT BOARD

8. MECHANICAL EXPLODED VIEW AND PARTS LIST

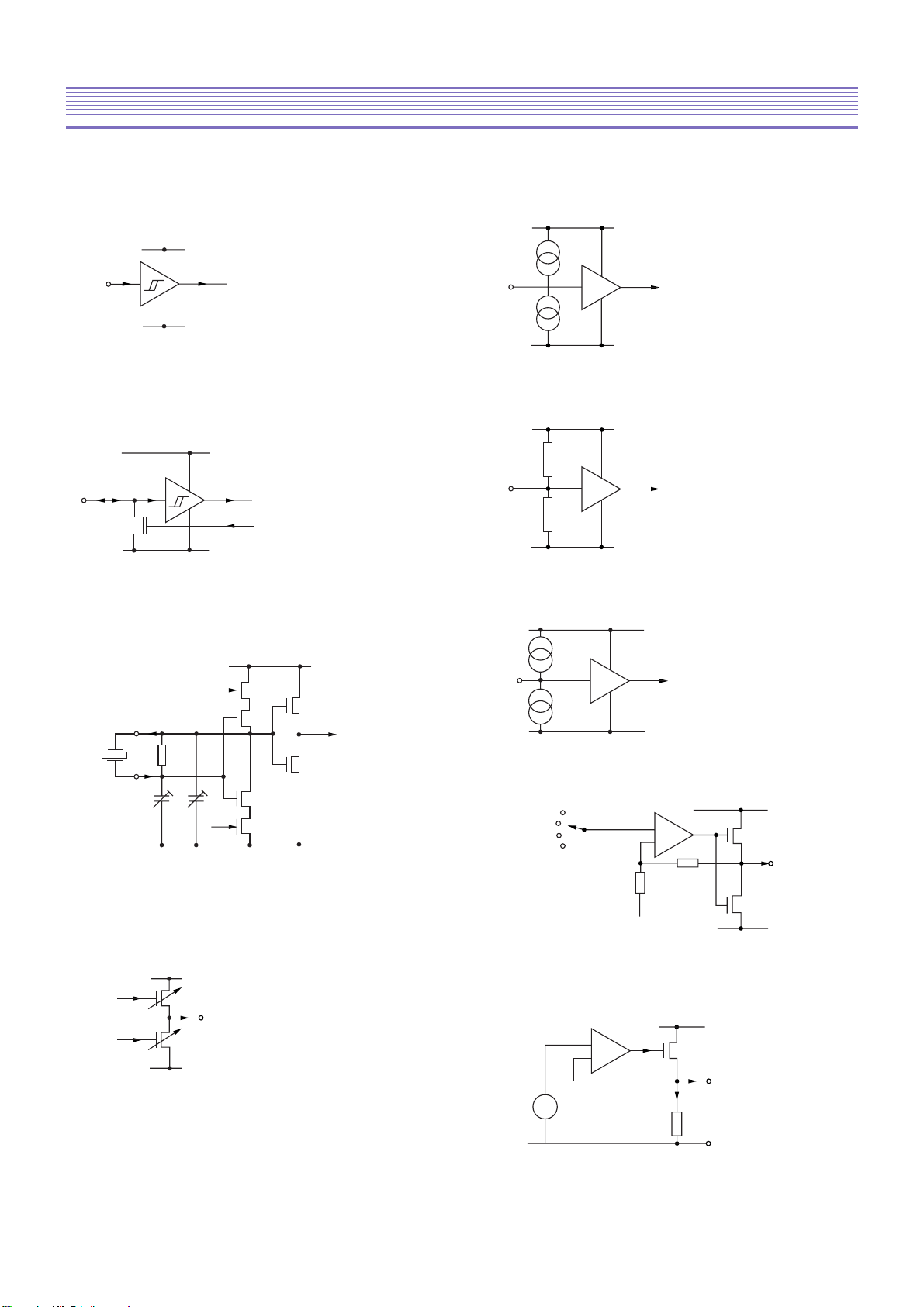

9. IC DESCRIPTION 26

10. TROUBLE SHOOTING CHARTS

TTABLE OF CONTENTS

ABLE OF CONTENTS

APPENDIX (“Appendix is provided only by internet [http://svc.dwe.co.kr]”)

-2-

1. SPECIFICATIONS

Items Model DTR-14D9/20D9/21D9 ME/MP/MT/MZ

DTR-14D2/21D2 ME/MP/MT/MZ DTR-1420/2120 ME/MP/MT/MZ DTR-2131/2132 ME/MP/MT/MZ

TV Standard Color system PAL/SECAM, NTSC-4.43(AV)

Sound system B/G, D/K, I Rated Voltage AC 110~250V, 50/60Hz Power consumption 14”=57W, 20”=69W, 21”=72W, 21”(Flat)=74W Sound Output Power 5W+5W(14”,20”), 7W+7W(21”,21”flat)

VHF-L : IC1-S6CH (43.25MHz~140.25MHz)

Channel Coverage VHF-H : IC1-S36CH (147.25MHz~423.25MHz)

UHF : S37-C57CH(431.25MHz~863.25MHz) Tuning System FS Tuning System Program No. Indication ON-Screen Display Program Selection 100 Programs Aux. Terminal AV input AV1(Rear) : RCA or Euro-Scart

AV2(Front) : RCA DVD(Rear) : RCA -> Y, Cr, Cb, or CVBS input

AV output Monitor Out : Rear RCA

TV out : Rear Scart (Optional)

Remote Control Unit R44C07

14” : 37Cm (Diagonal) Screen size 20” : 48Cm (Diagonal)

21”, 21”flat : 51Cm (Diagonal)

BEFORE SERVICING THIS CHASSIS READ THE “X-RAY RADIATION PRECAUTIONS”, “SAFETY PRECAUTIONS” AND “PRODUCT SAFETY NOTICE” BELOW.

-3-

2. SAFETY INSTRUCTION

NOTE

X-RAY RADIATION PRECAUTIONS

SAFETY PRECAUTIONS

PRODUCT SAFETY

1. Excessive high voltage can produce potentially hazardous X-RAY RADIATION. To avoid such hazards, the high voltage must not exceed the specified limit. The nominal value of the high voltage of this receiver is 25kV(21”) at max beam current. The high voltage must not, under any circumstances, exceed 27kV(21”). Each time a receiver requires servicing, the high volt-age should be checked. It is recommended the reading

of the high voltage recorded as a part of the service recorded as a part of the service records. It is important to use an accurate and reliable high voltage meter.

2. The only source of

X-RAY RADIATION

in this TV receiver is the picture tube. For continuous RADIATION protection, the replacement tube must be exactly the same type tube as specified in the “PART LIST”.

1. Potentials of high voltage are present when this receiver is operating. Operation of the receiver outside the cabinet or with the back cover removed involves a shock hazard from the receiver.

1) Servicing should not be attempted by anyone who is not

thoroughly familiar with the precautions necessary when working on high voltage equipment.

2) Always discharge the picture tube to avoid the shock

harzard before removing the anode cap.

3) Discharge the high potential of the picture tube before

handling the tube. The picture tube is highly evacuated and if broken, glass fragments will be violently expelled.

2. If any FUSE in this TV receiver is blown, replace it will the FUSE specified in the “PART LIST”.

3. When replacing a high wattage resistor (oxide metal film resistor) in circuit board, keep the resistor 10mm away from circuit board.

4. Keep wires away from high voltage or high temperature components.

5. This receiver must operate between AC 100-240 volts,50/60Hz. NEVER connect to DC supply or any other power or frequency.

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These characteristics are often passed unnoticed by a visual inspection and the X-RAY RADIATION protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this manual and its supple-

ments, electrical components having such features are identified by designated symbol on the “PART LIST”. Before replacing any of these components, read the “PARTLIST” in this manual carefully. The use of substitute replacement part which do not have the same safety characteristics as specified in the “PART LIST” may created X-RAY RADIATION.

SVC KEY

4. ALIGNMENT INSTRUCTIONS

ITEM

S1 S2 S3 S4

S10

S11

SVC

Heat-Run SCREEN

SOUND TEST

PICTURE TEST

BCL THR

BCL GAIN

WHITE PEAK

H-CENTER V-CENTER

V-SIZE H-SIZE

PARABOLA

V-LINEARITY

S-CORRECT

CORNER

H-BOW

H-PARALL

EW-PRAPEZ

P H POS

P V POS P R PEAK P G PEAK +00130 P B PEAK

P-BRIGHT

R-Drive G-Drive B-Drive

R-Bias G-Bias B-Bias

BRM

NOR BRIGHT

NOR CONTRAST

NOR COLOR

NOR SHARPNESS

PIP ON

DIGI EYE TEXT SEL

TELETEXT ON

LARGE VID FRAME HOTEL VOL

HOTEL MODE

CONTRAST

SCREEN IBRM

Main B +

BARE DATA

- - - - -

- - - - +00080 +00080 +00125 +00125 +00115 +00015 +00015 +00015 +00015 +00015

ON ON ON ON ON +00098 +00098 +00094 +00070 +00074 +03940 +03940 +03920 +03920 +03900 +00088 +00088 +00097 +00115 +00148 +01520 +01520 +01520 +01520 +01520

-00122 +00016 +00000 +00000 +00000 +00000 +00011 -00006 -00018 -00028 -00029 +00120

-00517 +00020 +00121 +00046 +00046 +00046 +00041 +00041 +00028 +00028 +00028 +00028 +00028 +00130 +00130 +00130 +00003 +00003 +00170 +00160 +00160 +00180 +00180 +00170 +00160 +00160 +00180 +00180 +00170 +00160 +00160 +00180 +00180 +00120 +00130 +00130 +00130 +00130 +00120 +00130 +00130 +00130 +00130 +00120 +00130 +00130 +00130 +00130

+00120 +00130 +00130 +00130 +00130 +00032 +00032

+00060 +00060 +00032 +00032 +00048 +00048 +00008 +00008

ON ON

OFF

+00020

OFF

400 420 420 420 430

14 inch 20 inch 21 inch 21" (FLAT)

(CPT/1489DY)

133V 133V 123V 123V

+00032 +00060 +00032 +00048 +00008 CORING

Don't Care

Don't Care Don't Care Don't Care Don't Care

+00130

+00130 +00003P-CONTRAST +00003

OFF

+00020

OFF

(CPT) (LGPD/OEC)

REMARK

Screen Adjust

FIXED, Maximum Beam Current Limit FIXED, Average Beam Current FIXED

Adjust for Geometry

Don't Care (For Large CRT)

FIXED

Don't Care (For Large CRT)

FIXED

For Sub-Brightness

don't care

For Screen adjusting

-5-

ALIGNMENT INSTRUCTIONS

SVC KEY EXPLAIN

(S5) BCL THD : MAX BEAM CURRENT ADJUST,DIFFERENT DATA FOR INCH.

BCL GAIN : AVERAGE BEAM ADJUST.

(S6) GEOMETRY : PAL (50Hz) adjust.

AV NTSC is auto correction.

---> H-CENTER(-1),V-SIZE(0),V-CENTER(+600),V-LINEARITY(-6)

S-CORRECTION(0),H-PALLEL(0)

(S10) NORMAL : PICTURE NORMAL data setting.

(SLEEP) : TXT CHECK ON LINE

(SIZE) : GAME FUNCTION CHECK ON LINE

(S11) OPTION

- HOTEL VOLUME :

HOTEL MODE MAX VOL DATA SETTING

- HOTEL MODE OFF : ON--> VOL MAX SET& INSTALL DONT OPERATING

* Software option for Function Change

PIP (ON)

- ON : With PIP Models (DTC-xxxxME seiese)

- OFF : Without PIP Models (DTC-xxxxMT seriese)

Digital EYE (ON)

- ON : Enable the Digital Sensor (for all Model)

- OFF : Disable the Digital Sensor

LARGE (OFF)

- ON : For 29 inch Models CM-907

- OFF : For 14~21 inch Models CM-907S

LATIN : English,French,Swedish,Czech,German,Spanish,Italian,Estonian

EAST: English,Slovakian,Hungarian,Serbian,Albanian,Polish,Turkian,Rumanian

RUSSIA : English,Russian,Bulgaian,Ukrainian,Serbian,Montenegro

TEXT sel. (OFF) PERSIAN : English,Farsi

ARAB : English,Arabic

OFF : Teletext Language depends on OSD Language selection

* Note : If OSD language & text selec. is different then Teletext depends on Text selec.

2. Heat-Run

- Press the “S1” button of Service Remote controller for ‘HEAT-RUN’

(The CRT must be heated up at least 30min. before adjusting.)

- Press the “S1” button again to release ‘HEAT-RUN’ mode.

3. Screen (G2) Alignment 3-1. Screen Alignment will be performed after sufficient Heat-Run of Set.

3-2. Please check the right EEPROM DATA

- Press S11 and ‘MENU’ button in sequence, then the Service Main Menu will be appeared.

- Please check the right SCR BRM data in the SVC Main Menu.

-6-

ALIGNMENT INSTRUCTIONS

- If you decrease the SCR BRM value, the adjusted Screen Voltage will be increase.

- Recommended SCR BRM Value : 420 20 (It will be changed for some particular CRT)

3-3. Press the “S2” button without any signal,

then the Screen OSD bar is appeared with Blue-Back screen.

3-4. Preparatory Focus (G1) Alignmet

- You must try to Focus Alignment roughly for exact SCREEN alignmet.

3-5. Adjust the Screen Volume of FBT in order that

the ‘RED’ OSD indicating Bar change to ‘BLACK’ (the numeric indicator must be 28~36)

3-6. Press the “S2” button again to release SCREEN Adjust mode.

FACTORY

+ 00016 G2-SCREEN

(Before Screen Adjustment)

FACTORY

+ 00032 G2-SCREEN

(After Screen Adjustment)

-7-

ALIGNMENT INSTRUCTIONS

4.The adjustment of FOCUS

4-1. Receive PAL RETMA PATTERN(signal of company:2CH., PAL-B).

4-2. Adjust the picture to best distinct picture of 350 Line by revolve Focus Volume.

5.The adjustment of WHITE BALANCE

5-1. NITSUKI Setting : Set Nitsuki to the ‘Auto Mode’, Reference to the ‘B’, and System to the ‘PAL’.

5-2. Setting the Normal Stats

5-2-1. Adjust Picture to Normal mode.

5-2-2. Adjust the Gain of Nitsuki to suitability by manual when condition is Normal.

- Adjust the standard illumination take within limit bright of Nitsuki and luminosity

of SET into acount.

- Exhortative Standard illumination, : High 70Cd/m

, LOW BEAM : about 15Cd/m

5-2-3. Press the [S8]key of SVC remocon to adjustment of Whit Balance.

X=0.288, Y=0.301

5-2-4. Memorize in Nitsuki after Adjustment of White Balance.

5-3. Adjustment of White Balance

5-3-1.Receive Nitsuki signal.

5-3-2.Adjust Picture to Normal mode.

5-3-3.The Adjustment of High Beam : Adjust R-DRIVE and G-DRIVE to R,G,B BAR come to center.

5-3-4.The Adjustment of Low Beam : Adjust R-BIAS and G-BIAS to R,G,B BAR come to center.

5-3-5.Repeat 5-3-3 and 5-3-4 to R,G,B BAR come to within center 1.

6.The adjustment of GEOMETRY

6-1. Press the [S-6]key on the SVC remocon to call up the Geometry mode.

And then, Geometry OSD will be displayed.

6-1-1. All adjustment is base on PAL(50Hz),

but it can be base on NTSC(60Hz) in case of need.

6-2. The adjustment of VERTICAL CENTER

6-2-1.Receive PAL RETMA pattern(signal of company:PAL-B 2CH).

6-2-2.Press the PR up/down Keys( ) to select V CENTER.

Adjust with Vol Up/Down ( ) keys so that the center mark of the CRT may be located on

the horizontal line in the middle of the pattern. In case of no center mark, adjust with

Vol Up/Down ( ) keys to obtain a vertically symmetrical pattern.

6-3. The adjustment of VERTICAL SIZE

6-3-1. Receive PAL RETMA pattern(signal of company:PAL-B 2CH).

6-3-2. Press the PR up/down Keys ( ) to select V-SIZE.

Adjust with Vol Up/Down ( ) keys so that the upper and the lower of RETMA

pattern may be located at the boundaries of the screen.

6-4. The adjustment of HORIZONTAL CENTER

6-4-1. Receive PAL RETMA pattern(signal of company:PAL-B 2CH).

6-4-2. Press the PR up/down Keys ( ) to select V-SIZE.

Referring to the both side scales, adjust with Vol Up/Down ( ) keys

so that RETMA pattern may be symmetrical.

6-5. The adjustment of Vertical Linearity

6-5-1. Receive PAL CROSSHATCH pattern(signal of company:PAL-B 5CH).

6-5-2. Fix adjustment of Vertical Linearity after EEPROM presetting,

but it can be adjusted in case of need.

6-5-3. Press the PR up/down Keys ( ) to select V LINEAR.

Adjust Vertical Linearity with Vol Up/Down ( ) keys.

6-6. The adjustment of VERTICAL S-Correction

6-6-1. Receive PAL CROSSHATCH pattern(signal of company:PAL-B 5CH).

6-6-2. Fix adjustment of Vertical S-Correction after EEPROM DATA presetting,

but it can be adjusted in case of need.

6-6-3. Press the PR up/down Keys ( ) to select S CORRECT.

Adjust S-Corrction with Vol Up/Down ( ) keys.

-8-

ALIGNMENT INSTRUCTIONS

-9-

ALIGNMENT INSTRUCTIONS

7. THE ADJUSTMENT OF SUB-PICTURE (SUB-BRIGHT,SUB-CONTRAST)

7-1. Receive PAL RETMA PATTERN(signal of company:2CH., PAL-B)

7-2. Press the [S9] KEY of SVC Remocon, BRM OSD wil be displayed.

7-3. The adjustment of SUB-BRIGHT

7-3-1. Press the PR up/down Keys ( ) to select SUB-BRIGHT in SUB-PICTURE MENU.

Adjust SUB-BRIGHT with Vol Up/Down ( ) keys.

7-3-2. Adjust With BRM, When SUB-BRIGHT is lacking in margin of adjustment.

7-3-3. Standard of adjustment : Adjust till instant of 1, 2th cordon disappear in

RETMA CONTRAST CHART(signal of company).

7-3-4. When Sub-Picture mode was exited after SUB’s adjustment, Normal vlaue is

brighter(about 18%) than adjustment-point(about 10%) of adjustment-mode because

BRIGHT is set to rise 2~3 step.

8. THE ADJUSTMENT OF PIP

8-1. Receive PAL RETMA pattern(signal of company:PAL-B 2CH) and Color Bar.

8-2. Press the [S7] KEY of SVC Remocon, PIP-Adjustment OSD wil be displayed.

8-3. Fix adjustment of PIP after EEPROM DATA presetting,

but it can be adjusted in case of need.

8-4. Adjust PIP after GEOMETRY, WHITE BALANCE and SUB-BRIGHT are adjusted.

8-5. List of adjustment

PIP H POSITON : Adjustment of H-position Sub-Picture,

(Reference : Presetting Value of EEPROM = 45)

PIP V POSITON : Adjustment of V-position of Sub-Picture,

(Reference : Presetting Value of EEPROM = 30)

PIP R/G/B Peak : Adjustment of Gain of PIP IC R,G,B Output

(Reference : Presetting Value of EEPROM = 130)

P CONTRAST : Adjustment of AC Gain(Contrast) of PIP IC RGB Output

(Reference : Presetting Value of EEPROM = 04)

P BRIGHT : Adjustment of DC Level(SUB BRIGHT) of PIP IC RGB Output

(Reference : Presetting Value of EEPROM = 00)

543

-10-

ALIGNMENT INSTRUCTIONS

9. REMOCON

9-1. SERVICE REMOCON 9-2. USER REMOCON

9-3. SERVICE REMOCON

1) Enter SERVICE MODE : Press keys of User Remocon, as follows. Ch91, Sharpness 0, Skip(red), Move(green), Menu.

2) Choice SERVICE MENU : Pr-Up/Down

3) Enter SERVICE SUB MENU : Vol-Up/Down

4) Adjust SERVICE MENU : Vol-Up/Down

S1 S2 S3

S4 S5 S6

S7 S8 S9

S11

RECALL

S10 S12

MUTE

POWER

TV/CATV

ADD/ERASE

TV/VIDEO

SOUND MODE

SURROUND

VOLVOL

PIP M/S

VOL

VPOSITION

POSITION

TV/VIDEO

PAUSE/

STILL

SIZE

SLEEP

R-34SVC

456

890

-11-

6. ELECTRICAL PA R TS LIST

LOC PART CODE PART NAME DESCRIPTION QTY

ZZ100

TRANSMITTER REMOCON

48B4844C13 R-44C13 (AA) 1 0100 BATTERY 4850Q00810 R6P/LN 2 ZZ131 CRT GROUND NET 48519A5310 2101S-1015-1P 1 ZZ132 COIL DEGAUSSING 58G0000147 DC-21SF 1 V901 CRT 4859640860 A51AEZ90X27 P38 1 P601A CONNECTOR 4850704S31 YH025-04+YRT205+ULW800400 1 SP01 SPEAKER 4858311110 12W 8 OHM SP-58126F 1 SP02 SPEAKER 4858311110 12W 8 OHM SP-58126F 1 C403 C MYLAR CMYH3C722J 1.6KV BUP 7200PF J 1 C407 C MYLAR CMYE2D274J 200V PU 0.27MF J 1 C801 C LINE ACROSS CL1UC3474M 0.47MF 1J(UCVSNDF/SV)+Q/O 1 C804 C ELECTRO CEYD2W151D 450V FHS 150MF (25X40) 1 C811 C CERA AC CH1BFE222M U/C/V AC400V 2200PF 1 D809 DIODE DRGP30J—- RGP30J DO-201AD 600V 3A 1 D813 DIODE DRGP30J—- RGP30J DO-201AD 600V 3A 1 D817 DIODE DRGP30J—- RGP30J DO-201AD 600V 3A 1 DE01 LED HOLDER AS DLH2PR5MH3 LH-2P-R-5M-H3 1 HP01 JACK EARPHONE 4859102130 YSC-1537 1 I301 IC VERTICAL 1LA78041— LA78041 1 I301A HEAT SINK 4857027100 SPCC T1.0+SN 1 I301B SCREW TAPPTITE 7174300811 TT2 RND 3X8 MFZN 1 I501 IC MICOM 1DW3832GB1 VCT3832-GB1 1 I601 IC AUDIO AMP 1TDA8946J- TDA8946J 1 I601A HEAT SINK 4857028217 AL EX 1 I601B SCREW TAPPTITE 7174301011 TT2 RND 3X10 MFZN 2 I602 IC AUDIO PROCESSOR 1TDA7442— TDA7442 1 I701 IC MEMORY 1CAT24C32P CAT24WC32P 1 I801 IC POWER 1STRW6754- STR-W6754 1 I801A HEAT SINK 4857026120 AL EX BK 1 I801B SCREW TAPPTITE 7174300811 TT2 RND 3X8 MFZN 1 I804 IC REGULATOR 1L7805CV— L7805CV 1 I901 IC VIDEO AMP 1TDA6107Q- TDA6107Q 1 I901A HEAT SINK 4857031300 A1050P-H24 T1.6 1 I901B SCREW TAPPTITE 7174301011 TT2 RND 3X10 MFZN 1 ID01 IC PHOTO SENSOR 1PNA4603H- PNA4603H 1 IF01 IC PREAMP 1TS0P1238W TS0P1238WI1 1 JP01 JACK PIN BOARD 4859110950 YS01-0001 1 JP02 JACK PIN BOARD 4859108450 YSC03P-4120-14A 1 JP03 JACK PIN BOARD 4859111750 PH-JB-9515 1 L401 COIL H-LINEARITY 58H0000020 L-76(76.5UH) 1 LF801 FILTER LINE 5PLF24A1— LF-24A1 1 P401 CONN WAFER 4859240120 YFW500-06 1 P901 CONNECTOR 4850708N08 BIC-08T-25T+C-20T+ULW=400 1 PD01A CONNECTOR 4850703S18 YH025-03+YBNH250+ULW=200 1 PW801 CORD POWER AS 4859903110 KKP-419J-H03VVH2+H0U=2200 1 Q402 TR HORI TST1803DH- ST1803DHI 1 Q402A HEAT SINK 4857027200 AL T1.0 1 Q402B SCREW TAPPTITE 7174301011 TT2 RND 3X10 MFZN 1 R801 POSISTOR DDC7R0M290 ECPCD7R0M290 1 R802 R CEMENT RX07B229JP 7W 2.2 OHM J BEN 15MM 4P 1 SCT01 SOCKET CRT 4859304130 ISHG93S 1 SW801 SW POWER PUSH 5S40101143 PS3-22SP (P.C.B) 1 T401 FBT 50H0000256 FFA69023M 1 T402 TRANS DRIVE 50D10A3—- TD-10A3 1 T801 TRANS SMPS 50M4042B3- TSM-4042B3 1 U100 TUNER VARACTOR 4859723730 TMDG1-837 1 X501 CRYSTAL QUARTZ 5XE20R250E HC-49/U 20.2500MHZ 30PPM 1 XP01 CRYSTAL QUARTZ 5XE20R250E HC-49/U 20.2500MHZ 30PPM 1 CC105 C CHIP CERA HCQK221JBA 50V CH 220PF J 1608 1 CC106 C CHIP CERA HCQK221JBA 50V CH 220PF J 1608 1 CC301 C CHIP CERA HCBK102KBA 50V X7R 1000PF K 1608 1

DTC-21D9ME

LOC PART CODE PART NAME DESCRIPTION QTY

CC302 C CHIP CERA HCBK102KBA 50V X7R 1000PF K 1608 1 CC304 C CHIP CERA HCBK103KBA 50V X7R 0.01MF K 1608 1 CC306 C CHIP CERA HCBK103KBA 50V X7R 0.01MF K 1608 1 CC310 C CHIP CERA HCBK102KBA 50V X7R 1000PF K 1608 1 CC414 C CHIP CERA HCQK101JBA 50V CH 100PF J 1608 1 CC505 C CHIP CERA HCBK473KBA 50V X7R 0.047MF K 1608 1 CC508 C CHIP CERA HCBK102KBA 50V X7R 1000PF K 1608 1 CC515 C CHIP CERA HCBK102KBA 50V X7R 1000PF K 1608 1 CC521 C CHIP CERA HCQK151JBA 50V CH 150PF J 1608 1 CC523 C CHIP CERA HCBH104KBA 25V X7R 0.1MF K 1608 1 CC525 C CHIP CERA HCBH104KBA 25V X7R 0.1MF K 1608 1 CC530 C CHIP CERA HCBH104KBA 25V X7R 0.1MF K 1608 1 CC531 C CHIP CERA HCQK309CBA CH 50V 3PF C 1608 1 CC532 C CHIP CERA HCQK309CBA CH 50V 3PF C 1608 1 CC533 C CHIP CERA HCQK221JBA 50V CH 220PF J 1608 1 CC534 C CHIP CERA HCQK221JBA 50V CH 220PF J 1608 1 CC535 C CHIP CERA HCBK103KBA 50V X7R 0.01MF K 1608 1 CC546 C CHIP CERA HCBH104KBA 25V X7R 0.1MF K 1608 1 CC607 C CHIP CERA HCBH104KBA 25V X7R 0.1MF K 1608 1 CC608 C CHIP CERA HCBH104KBA 25V X7R 0.1MF K 1608 1 CC609 C CHIP CERA HCBH104KBA 25V X7R 0.1MF K 1608 1 CC611 C CHIP CERA HCBH104KBA 25V X7R 0.1MF K 1608 1 CC612 C CHIP CERA HCBH104KBA 25V X7R 0.1MF K 1608 1 CC613 C CHIP CERA HCBK562KBA X7R 50V 5600PF K 1608 1 CC614 C CHIP CERA HCBK562KBA X7R 50V 5600PF K 1608 1 CC618 C CHIP CERA HCBK562KBA X7R 50V 5600PF K 1608 1 CC619 C CHIP CERA HCBK562KBA X7R 50V 5600PF K 1608 1 CC623 C CHIP CERA HCBK103KBA 50V X7R 0.01MF K 1608 1 CC624 C CHIP CERA HCFF224ZBA 16V Y5V 0.22MF Z 1608 1 CC625 C CHIP CERA HCFF224ZBA 16V Y5V 0.22MF Z 1608 1 CC626 C CHIP CERA HCFF224ZBA 16V Y5V 0.22MF Z 1608 1 CC628 C CHIP CERA HCFF224ZBA 16V Y5V 0.22MF Z 1608 1 CC637 C CHIP CERA HCBK102KBA 50V X7R 1000PF K 1608 1 CC638 C CHIP CERA HCBK472KBA 50V X7R 4700PF K 1608 1 CC639 C CHIP CERA HCBK102KBA 50V X7R 1000PF K 1608 1 CC640 C CHIP CERA HCBK472KBA 50V X7R 4700PF K 1608 1 CCA01 C CHIP CERA HCQK221JBA 50V CH 220PF J 1608 1 CCA02 C CHIP CERA HCQK221JBA 50V CH 220PF J 1608 1 CCA04 C CHIP CERA HCBK102KBA 50V X7R 1000PF K 1608 1 CCA05 C CHIP CERA HCBK102KBA 50V X7R 1000PF K 1608 1 CCA08 C CHIP CERA HCBK102KBA 50V X7R 1000PF K 1608 1 CCA10 C CHIP CERA HCBK102KBA 50V X7R 1000PF K 1608 1 CCA12 C CHIP CERA HCQK221JBA 50V CH 220PF J 1608 1 CCA14 C CHIP CERA HCBK102KBA 50V X7R 1000PF K 1608 1 CCA16 C CHIP CERA HCBK102KBA 50V X7R 1000PF K 1608 1 CCA17 C CHIP CERA HCBK102KBA 50V X7R 1000PF K 1608 1 CCA20 C CHIP CERA HCBK102KBA 50V X7R 1000PF K 1608 1 CCD01 C CHIP CERA HCBH104KBA 25V X7R 0.1MF K 1608 1 CCP01 C CHIP CERA HCQK240JBA 50V CH 24PF J 1608 1 CCP02 C CHIP CERA HCQK240JBA 50V CH 24PF J 1608 1 CCP05 C CHIP CERA HCBK103KBA 50V X7R 0.01MF K 1608 1 CCP12 C CHIP CERA HCBK103KBA 50V X7R 0.01MF K 1608 1 CCP14 C CHIP CERA HCQK561JBA 50V CH 560PF J 1608 1 CCP16 C CHIP CERA HCBK103KBA 50V X7R 0.01MF K 1608 1 CCP20 C CHIP CERA HCBK103KBA 50V X7R 0.01MF K 1608 1 CCP22 C CHIP CERA HCQK561JBA 50V CH 560PF J 1608 1 I802 IC CHIP PHOTO COUPLER 1LTV817C-Q LTV-817C TRAY 1 IP01 IC CHIP PIP 1SDA9488XE SDA9488X 1 RC102 R CHIP HRFT101JBA 1/10 100 OHM J 1608 1 RC103 R CHIP HRFT101JBA 1/10 100 OHM J 1608 1 RC106 R CHIP HRFT102JBA 1/10 1K OHM J 1608 1

-12-

ELECTRICAL PA R TS LIST

LOC PART CODE PART NAME DESCRIPTION QTY

RC107 R CHIP HRFT512JBA 1/10 5.1K OHM J 1608 1 RC108 R CHIP HRFT221JBA 1/10 220 OHM J 1608 1 RC109 R CHIP HRFT331JBA 1/10 330 OHM J 1608 1 RC111 R CHIP HRFT221JBA 1/10 220 OHM J 1608 1 RC112 R CHIP HRFT331JBA 1/10 330 OHM J 1608 1 RC114 R CHIP HRFT330JBA 1/10 33 OHM J 1608 1 RC127 R CHIP HRFT101JBA 1/10 100 OHM J 1608 1 RC305 R CHIP HRFT471JBA 1/10 470 OHM J 1608 1 RC306 R CHIP HRFT152JBA 1/10 1.5K OHM J 1608 1 RC503 R CHIP HRFT101JBA 1/10 100 OHM J 1608 1 RC506 R CHIP HRFT203JBA 1/10 20K OHM J 1608 1 RC508 R CHIP HRFT103JBA 1/10 10K OHM J 1608 1 RC511 R CHIP HRFT122JBA 1/10 1.2K OHM J 1608 1 RC512 R CHIP HRFT223JBA 1/10 22K OHM J 1608 1 RC515 R CHIP HRFT472JBA 1/10 4.7K OHM J 1608 1 RC516 R CHIP HRFT682JBA 1/10 6.8K OHM J 1608 1 RC518 R CHIP HRFT103JBA 1/10 10K OHM J 1608 1 RC519 R CHIP HRFT471JBA 1/10 470 OHM J 1608 1 RC520 R CHIP HRFT271JBA 1/10 270 OHM J 1608 1 RC522 R CHIP HRFT472JBA 1/10 4.7K OHM J 1608 1 RC528 R CHIP HRFT562JBA 1/10 5.6K OHM J 1608 1 RC533 R CHIP HRFT102JBA 1/10 1K OHM J 1608 1 RC534 R CHIP HRFT220JBA 1/10W 22 OHM J 1608 1 RC547 R CHIP HRFT182JBA 1/10 1.8K OHM J 1608 1 RC548 R CHIP HRFT223JBA 1/10 22K OHM J 1608 1 RC602 R CHIP HRFT431JBA 1/10 430 OHM J 1608 1 RC603 R CHIP HRFT562JBA 1/10 5.6K OHM J 1608 1 RC604 R CHIP HRFT102JBA 1/10 1K OHM J 1608 1 RC611 R CHIP HRFT133JBA 1/10 13K OHM J 1608 1 RC612 R CHIP HRFT133JBA 1/10 13K OHM J 1608 1 RC614 R CHIP HRFT223JBA 1/10 22K OHM J 1608 1 RC615 R CHIP HRFT221JBA 1/10 220 OHM J 1608 1 RC619 R CHIP HRFT829JBA 1/10 8.2 OHM J 1608 1 RC620 R CHIP HRFT829JBA 1/10 8.2 OHM J 1608 1 RC621 R CHIP HRFT829JBA 1/10 8.2 OHM J 1608 1 RC698 R CHIP HRFT102JBA 1/10 1K OHM J 1608 1 RC699 R CHIP HRFT102JBA 1/10 1K OHM J 1608 1 RC814 R CHIP HRFT103JBA 1/10 10K OHM J 1608 1 RC815 R CHIP HRFT102JBA 1/10 1K OHM J 1608 1 RC819 R CHIP HRFT103JBA 1/10 10K OHM J 1608 1 RC820 R CHIP HRFT103JBA 1/10 10K OHM J 1608 1 RC832 R CHIP HRFT222JBA 1/10 2.2K OHM J 1608 1 RC835 R CHIP HRFT561JBA 1/10 560 OHM J 1608 1 RC838 R CHIP HRFT331JBA 1/10 330 OHM J 1608 1 RC843 R CHIP HRFT471JBA 1/10 470 OHM J 1608 1 RC844 R CHIP HRFT221JBA 1/10 220 OHM J 1608 1 RC845 R CHIP HRFT102JBA 1/10 1K OHM J 1608 1 RC899 R CHIP HRFT301JBA 1/10 300 OHM J 1608 1 RC902 R CHIP HRFT101JBA 1/10 100 OHM J 1608 1 RC903 R CHIP HRFT101JBA 1/10 100 OHM J 1608 1 RCA01 R CHIP HRFT820JBA 1/10 82 OHM J 1608 1 RCA03 R CHIP HRFT820JBA 1/10 82 OHM J 1608 1 RCA05 R CHIP HRFT820JBA 1/10 82 OHM J 1608 1 RCA07 R CHIP HRFT102JBA 1/10 1K OHM J 1608 1 RCA09 R CHIP HRFT820JBA 1/10 82 OHM J 1608 1 RCA15 R CHIP HRFT101JBA 1/10 100 OHM J 1608 1 RCD01 R CHIP HRFT511JBA 1/10 510 OHM J 1608 1 RCD02 R CHIP HRFT222JBA 1/10 2.2K OHM J 1608 1 RCF71 R CHIP HRFT102JBA 1/10 1K OHM J 1608 1 RCF75 R CHIP HRFT152JBA 1/10 1.5K OHM J 1608 1 RCF76 R CHIP HRFT822JBA 1/10 8.2K OHM J 1608 1

LOC PART CODE PART NAME DESCRIPTION QTY

RCP07 R CHIP HRFT221JBA 1/10 220 OHM J 1608 1 ZZ200 PCB MAIN (RHU) AS PTMPJ0D837 DTR-21D9ME 1 C103 C ELECTRO CEXF1C222V 16V RSS 2200MF (16X31.5) TP 1 C311 C ELECTRO CEXF1E471V 25V RSS 470MF (10X16) TP 1 C312 C ELECTRO CEXF1E471V 25V RSS 470MF (10X16) TP 1 C410 C ELECTRO CEXF2E100V 250V RSS 10MF (10X20) TP 1 C522 C ELECTRO CEXF1C471V 16V RSS 470MF (8X12)TP 1 C545 C ELECTRO CEXF1C471V 16V RSS 470MF (8X12)TP 1 C805 C CERA CCXR3D681K 2KV R 680PF K 125C 1 C812 C CERA SEMI CBXB3D471K 2KV BL(N) 470PF K (T) 1 C813 C ELECTRO CEXF2C101V 160V RSS 100MF (16X25) TP 1 C814 C ELECTRO CEXF2C101V 160V RSS 100MF (16X25) TP 1 C816 C ELECTRO CEXF1C222V 16V RSS 2200MF (16X31.5) TP 1 C817 C ELECTRO CEXF1C222V 16V RSS 2200MF (16X31.5) TP 1 C818 C ELECTRO CEXF1E222V 25V RSS 2200MF (16X25) TP 1 C823 C ELECTRO CEXF1C471V 16V RSS 470MF (8X12)TP 1 C826 C ELECTRO CEXF1C471V 16V RSS 470MF (8X12)TP 1 C827 C ELECTRO CEXF1C471V 16V RSS 470MF (8X12)TP 1 C902 C CERA SEMI CBXB3D102K 2KV BL(N) 1000PF K (T) 1 ZZ200 PCB MAIN M-10 AS PTMPJBD837 DTR-21D9ME 1 10 TAPE MASKING 2TM18006BE 6.2X500 0.38 E401 EYE LET 4856310600 BSR T0.2 (R2.3) 1 E402 EYE LET 4856310600 BSR T0.2 (R2.3) 1 E403 EYE LET 4856310600 BSR T0.2 (R2.3) 1 E404 EYE LET 4856310600 BSR T0.2 (R2.3) 1 E405 EYE LET 4856310600 BSR T0.2 (R2.3) 1 E406 EYE LET 4856310600 BSR T0.2 (R2.3) 1 E407 EYE LET 4856310600 BSR T0.2 (R2.3) 1 E409 EYE LET 4856310300 BSR T0.2 (R1.6) 1 E410 EYE LET 4856310300 BSR T0.2 (R1.6) 1 E411 EYE LET 4856310300 BSR T0.2 (R1.6) 1 E412 EYE LET 4856310300 BSR T0.2 (R1.6) 1 E413 EYE LET 4856310300 BSR T0.2 (R1.6) 1 E414 EYE LET 4856310300 BSR T0.2 (R1.6) 1 E415 EYE LET 4856310300 BSR T0.2 (R1.6) 1 E416 EYE LET 4856310300 BSR T0.2 (R1.6) 1 E417 EYE LET 4856310300 BSR T0.2 (R1.6) 1 E601 EYE LET 4856310600 BSR T0.2 (R2.3) 1 E602 EYE LET 4856310600 BSR T0.2 (R2.3) 1 E801 EYE LET 4856310600 BSR T0.2 (R2.3) 1 E802 EYE LET 4856310600 BSR T0.2 (R2.3) 1 E803 EYE LET 4856310300 BSR T0.2 (R1.6) 1 E804 EYE LET 4856310300 BSR T0.2 (R1.6) 1 E805 EYE LET 4856310300 BSR T0.2 (R1.6) 1 E806 EYE LET 4856310600 BSR T0.2 (R2.3) 1 E807 EYE LET 4856310600 BSR T0.2 (R2.3) 1 E808 EYE LET 4856310300 BSR T0.2 (R1.6) 1 E809 EYE LET 4856310600 BSR T0.2 (R2.3) 1 E810 EYE LET 4856310600 BSR T0.2 (R2.3) 1 E811 EYE LET 4856310300 BSR T0.2 (R1.6) 1 E812 EYE LET 4856310600 BSR T0.2 (R2.3) 1 E813 EYE LET 4856310600 BSR T0.2 (R2.3) 1 E814 EYE LET 4856310600 BSR T0.2 (R2.3) 1 E815 EYE LET 4856310600 BSR T0.2 (R2.3) 1 E816 EYE LET 4856310600 BSR T0.2 (R2.3) 1 E817 EYE LET 4856310600 BSR T0.2 (R2.3) 1 N801 TERM PIN 4857417500 DA-IB0214(D2.3/DY PIN) 1 N802 TERM PIN 4857417500 DA-IB0214(D2.3/DY PIN) 1 N803 TERM PIN 4857417500 DA-IB0214(D2.3/DY PIN) 1 N804 TERM PIN 4857417500 DA-IB0214(D2.3/DY PIN) 1 P601 CONN WAFER 485923172S YW025-04 (STICK) 1

-13-

ELECTRICAL PA R TS LIST

LOC PART CODE PART NAME DESCRIPTION QTY

PD01 CONN WAFER 485923162S YW025-03 (STICK) 1 R308 R M-OXIDE FILM RS02Z221JS 2W 220 OHM J SMALL 1 R313 R M-OXIDE FILM RS02Z229JS 2W 2.2 OHM J SMALL 1 R314 R M-OXIDE FILM RS02Z229JS 2W 2.2 OHM J SMALL 1 R403 R M-OXIDE FILM RS02Z102JS 2W 1K OHM J SMALL 1 R405 R M-OXIDE FILM RS02Z102JS 2W 1K OHM J SMALL 1 R406 R M-OXIDE FILM RS02Z103JS 2W 10K OHM J SMALL 1 R408 R M-OXIDE FILM RS02Z100JS 2W 10 OHM J SMALL 1 R411 R M-OXIDE FILM RS02Z309JS 2W 3 OHM J SMALL 1 R805 R M-OXIDE FILM RS02Z228JS 2W 0.22 OHM J SMALL 1 R828 R M-OXIDE FILM RS02Z220JS 2W 22 0HM J SMALL 1 R831 R M-OXIDE FILM RS02Z100JS 2W 10 OHM J SMALL 1 R839 R M-OXIDE FILM RS02Z240JS 2W 24 0HM J SMALL 1 R840 R M-OXIDE FILM RS02Z240JS 2W 24 0HM J SMALL 1 ZZ200 PCB MAIN RADIAL AS PTMPJRD837 DTR-21D9ME 1 C101 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 1 C303 C MYLAR CMXM2A223J 100V 0.022MF J TP 1 C305 C CERA CXSL2H100D 500V SL 10PF D (TAPPING) 1 C307 C ELECTRO CEXF1H101V 50V RSS 100MF (8X11.5) TP 1 C308 C MYLAR CMXM2A104J 100V 0.1MF J (TP) 1 C401 C MYLAR CMXM2A104J 100V 0.1MF J (TP) 1 C402 C CERA CCXB2H102K 500V B 1000PF K (TAPPING) 1 C405 C CERA CCXB2H561K 500V B 560PF K (TAPPING) 1 C406 C ELECTRO CEXF2C229V 160V RSS 2.2MF (8X11.5)TP 1 C411 C CERA CXSL2H470J 500V SL 47PF J (TAPPING) 1 C412 C MYLAR CMXM2A104J 100V 0.1MF J (TP) 1 C501 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X11) TP 1 C504 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 1 C506 C ELECTRO CEXF1C221V 16V RSS 220MF (8X11.5) TP 1 C509 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 1 C510 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 1 C511 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 1 C512 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 1 C513 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 1 C514 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 1 C517 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X11) TP 1 C526 C ELECTRO CEXF1H339V 50V RSS 3.3MF (5X11) TP 1 C527 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X11) TP 1 C528 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X11) TP 1 C529 C ELECTRO CEXF1H220V 50V RSS 22MF (5X11) TP 1 C537 C ELECTRO CEXF1C221V 16V RSS 220MF (8X11.5) TP 1 C538 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP 1 C539 C CERA CCXB1H471K 50V B 470PF K (TAPPING) 1 C540 C CERA CCXB1H471K 50V B 470PF K (TAPPING) 1 C541 C CERA CCXB1H471K 50V B 470PF K (TAPPING) 1 C601 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 1 C602 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 1 C603 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 1 C604 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 1 C605 C ELECTRO CEXF1H479V 50V RSS 4.7MF (5X11) TP 1 C606 C ELECTRO CEXF1H479V 50V RSS 4.7MF (5X11) TP 1 C615 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 1 C616 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP 1 C620 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 1 C621 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 1 C622 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP 1 C627 C ELECTRO CEXF1H220V 50V RSS 22MF (5X11) TP 1 C630 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 1 C631 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 1 C636 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 1 C701 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 1

LOC PART CODE PART NAME DESCRIPTION QTY

C802 C CERA CCXF3A472Z 1KV F 4700PF Z (T) 1 C803 C CERA CCXF3A472Z 1KV F 4700PF Z (T) 1 C806 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 1 C807 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 1 C808 C CERA CCXB1H471K 50V B 470PF K (TAPPING) 1 C815 C ELECTRO CEXF2A100V 100V RSS 10MF (6.3X11) TP 1 C819 C MYLAR CMXL2E104K 250V MEU 0.1MF K 1 C820 C MYLAR CMXM2A104J 100V 0.1MF J (TP) 1 C822 C ELECTRO CEXF1C221V 16V RSS 220MF (8X11.5) TP 1 C825 C ELECTRO CEXF1C221V 16V RSS 220MF (8X11.5) TP 1 C901 C MYLAR CMXL2E104K 250V MEU 0.1MF K 1 CA06 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 1 CA07 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 1 CA09 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 1 CA11 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 1 CA21 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 1 CD02 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP 1 CF01 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP 1 CP06 C ELECTRO CEXF1H470V 50V RSS 47MF (6.3X11) TP 1 CP07 C CERA CCXB1H103K 50V B 0.01MF K 1 CP08 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 1 CP10 C CERA CCXB1H103K 50V B 0.01MF K 1 CP11 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 1 CP13 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 1 CP17 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP 1 CP21 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP 1 F801 FUSE 5FWPS4022L WIDE TL 250V 4A CASE 1 G901 SPARK GAP 4SG0DX0001 SSG-102-A1(1.0KV) TAP 1 G902 SPARK GAP 4SG0DX0001 SSG-102-A1(1.0KV) TAP 1 G903 SPARK GAP 4SG0DX0001 SSG-102-A1(1.0KV) TAP 1 G904 SPARK GAP 4SG0DX0001 SSG-102-A1(1.0KV) TAP 1 I803 IC REGULATOR 1H431CA—- H431CA 0.5% TO-92 1 L802 COIL CHOKE 58CX430599 AZ-9004Y 940K TP 1 Q102 TR TKTC3198Y- KTC3198Y 1 Q103 TR TKTC3198Y- KTC3198Y 1 Q401 TR TKTC3207— KTC3207 (TP) 1 Q403 TR TKTA1266Y- KTA1266Y (TP) 1 Q502 TR TKTA1266Y- KTA1266Y (TP) 1 Q503 TR TKTA1266Y- KTA1266Y (TP) 1 Q504 TR TKTA1266Y- KTA1266Y (TP) 1 Q505 TR TKTC3198Y- KTC3198Y 1 Q507 TR TKTA1266Y- KTA1266Y (TP) 1 Q510 TR TKTA1266Y- KTA1266Y (TP) 1 Q514 TR TKTC3198Y- KTC3198Y 1 Q515 TR TKTC3198Y- KTC3198Y 1 Q516 TR TKTC3198Y- KTC3198Y 1 Q601 TR TKTC3198Y- KTC3198Y 1 Q603 TR TKTC3198Y- KTC3198Y 1 Q802 TR TKTC3198Y- KTC3198Y 1 Q803 TR TKTC3198Y- KTC3198Y 1 Q804 TR TKTA1266Y- KTA1266Y (TP) 1 Q805 TR TKTC3198Y- KTC3198Y 1 Q806 TR TKTA1281Y- KTA1281Y 1 Q807 TR TKTC3198Y- KTC3198Y 1 Q808 TR TKTC3205Y- KTC3205Y (TP) 1 Q809 TR TKTC3205Y- KTC3205Y (TP) 1 Q810 TR TKTC3198Y- KTC3198Y 1 Q811 TR TKTC3198Y- KTC3198Y 1 Q812 TR TKTC3198Y- KTC3198Y 1 Q813 TR TKTA1270Y- KTA1270Y (TP) 1 Q814 TR TKTC3198Y- KTC3198Y 1

-14-

ELECTRICAL PA R TS LIST

LOC PART CODE PART NAME DESCRIPTION QTY

Q899 TR TKTC3198Y- KTC3198Y 1 QA01 TR TKTC3198Y- KTC3198Y 1 QE01 TR TKTC3198Y- KTC3198Y 1 R824 R METAL FILM RN02B390JS 2W 39 OHM J SMALL 1 R825 R METAL FILM RN02B390JS 2W 39 OHM J SMALL 1 R826 R METAL FILM RN02B390JS 2W 39 OHM J SMALL 1 R827 R METAL FILM RN02B390JS 2W 39 OHM J SMALL 1 R829 R METAL FILM RN02B569JS 2W 5.6 OHM J SMALL 1 R904 R METAL FILM RN01B101JS 1W 100 OHM J SMALL 1 SW701 SW TACT 5S50101090 THVH472GCA 1 SW702 SW TACT 5S50101090 THVH472GCA 1 SW703 SW TACT 5S50101090 THVH472GCA 1 SW704 SW TACT 5S50101090 THVH472GCA 1 SW705 SW TACT 5S50101090 THVH472GCA 1 SW706 SW TACT 5S50101090 THVH472GCA 1 ZZ200 PCB MAIN AXIAL AS PTMPJAD837 DTR-21D9ME 1 10 TAPE MASKING 2TM14006LB 3M #232 6.0X2000M 3.89 20 TAPE MASKING 2TM10006LB 3M #232-MAP-C 6.2X2000M 3.89 A001 PCB MAIN 4859804896 330X246 C1B 1 C408 C CERA SEMI CBZF1H104Z 50V F 0.1MF Z 1 C518 C CERA CCZF1H473Z 50V F 0.047MF Z 1 C519 C CERA CCZF1H473Z 50V F 0.047MF Z 1 C520 C CERA CCZF1H473Z 50V F 0.047MF Z 1 C610 C CERA SEMI CBZF1H104Z 50V F 0.1MF Z 1 C632 C CERA SEMI CBZF1H104Z 50V F 0.1MF Z 1 C633 C CERA SEMI CBZF1H104Z 50V F 0.1MF Z 1 C634 C CERA SEMI CBZF1H104Z 50V F 0.1MF Z 1 C635 C CERA SEMI CBZF1H104Z 50V F 0.1MF Z 1 C809 C CERA CCZF1H473Z 50V F 0.047MF Z 1 C810 C CERA CCZB1H821K 50V B 820PF K AXIAL 1 CA03 C CERA CCZB1H221K 50V B 220PF K (AXIAL) 1 CA13 C CERA CCZB1H221K 50V B 220PF K (AXIAL) 1 CA15 C CERA CCZB1H102K 50V B 1000PF K (AXIAL) 1 CP15 C CERA CCZF1H473Z 50V F 0.047MF Z 1 CP18 C CERA CCZB1H561K 50V B 560PF K 1 CP19 C CERA CCZF1H473Z 50V F 0.047MF Z 1 CP23 C CERA CCZF1H473Z 50V F 0.047MF Z 1 D101 DIODE ZENER DUZ33B—— UZ-33B 1 D301 DIODE D1N4004S— 1N4004S 1 D302 DIODE D1N4937G— 1N4937G (TAPPING) 1 D303 DIODE D1N4937G— 1N4937G (TAPPING) 1 D304 DIODE D1N4148—- 1N4148 (TAPPING) 1 D305 DIODE D1N4148—- 1N4148 (TAPPING) 1 D401 DIODE D1N4937G— 1N4937G (TAPPING) 1 D402 DIODE D1N4148—- 1N4148 (TAPPING) 1 D403 DIODE D1N4148—- 1N4148 (TAPPING) 1 D404 DIODE D1N4937G— 1N4937G (TAPPING) 1 D501 DIODE D1N4148—- 1N4148 (TAPPING) 1 D502 DIODE ZENER DUZ2R7B—- UZ-2.7B 1 D503 DIODE D1N4148—- 1N4148 (TAPPING) 1 D504 DIODE D1N4148—- 1N4148 (TAPPING) 1 D505 DIODE ZENER DUZ5R6BM— UZ-5.6BM 1 D506 DIODE D1N4148—- 1N4148 (TAPPING) 1 D507 DIODE D1N4148—- 1N4148 (TAPPING) 1 D508 DIODE D1N4148—- 1N4148 (TAPPING) 1 D511 DIODE D1N4148—- 1N4148 (TAPPING) 1 D512 DIODE D1N4148—- 1N4148 (TAPPING) 1 D513 DIODE D1N4148—- 1N4148 (TAPPING) 1 D514 DIODE D1N4148—- 1N4148 (TAPPING) 1 D801 DIODE DLT2A05G— LT2A05G (TP) 1 D802 DIODE DLT2A05G— LT2A05G (TP) 1

LOC PART CODE PART NAME DESCRIPTION QTY

D803 DIODE DLT2A05G— LT2A05G (TP) 1 D804 DIODE DLT2A05G— LT2A05G (TP) 1 D805 DIODE D1N4937G— 1N4937G (TAPPING) 1 D806 DIODE D1N4937G— 1N4937G (TAPPING) 1 D807 DIODE D1N4937G— 1N4937G (TAPPING) 1 D808 DIODE ZENER DUZ6R2BM— UZ-6.2BM 1 D811 DIODE D1N4937G— 1N4937G (TAPPING) 1 D814 DIODE ZENER DUZ5R1B—- UZ-5.1B 1 D815 DIODE D1N4148—- 1N4148 (TAPPING) 1 D816 DIODE ZENER DUZ2R7B—- UZ-2.7B 1 D818 DIODE ZENER DUZ5R6BM— UZ-5.6BM 1 D819 DIODE D1N4937G— 1N4937G (TAPPING) 1 D820 DIODE ZENER DUZ2R7B—- UZ-2.7B 1 D898 DIODE D1N4148—- 1N4148 (TAPPING) 1 D899 DIODE ZENER DUZ9R1BM— UZ-9.1BM 1 J001 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J002 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J003 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J004 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J005 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J006 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J007 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J008 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J009 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J010 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J012 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J015 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J016 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J017 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J018 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J019 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J020 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J021 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J022 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J023 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J025 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J026 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J027 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J028 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J029 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J030 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J031 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J032 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J033 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J034 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J035 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J036 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J037 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J038 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J039 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J040 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J041 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J042 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J043 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J044 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J045 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J046 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J047 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J048 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J049 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J050 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05

-15-

ELECTRICAL PA R TS LIST

LOC PART CODE PART NAME DESCRIPTION QTY

J051 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J052 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J053 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J054 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J055 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J056 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J057 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J058 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J059 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J060 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J061 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J062 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J063 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J064 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J065 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J066 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J067 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J068 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J069 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J070 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J071 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J072 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J073 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J074 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J075 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J076 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J077 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J078 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J079 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J080 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J081 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J082 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J083 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J084 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J085 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J086 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J087 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J088 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J089 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J090 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J091 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J092 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J093 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J094 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J095 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J097 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J098 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J099 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J123 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J200 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J201 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J202 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J203 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J204 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J205 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J206 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J208 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J210 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J211 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J215 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J216 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05

LOC PART CODE PART NAME DESCRIPTION QTY

J217 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J218 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J219 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J230 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J231 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J232 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J233 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J234 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J235 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J236 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J237 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J238 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J239 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J240 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J241 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J242 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J243 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J244 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J245 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J246 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J247 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J248 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J249 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J250 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J251 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J252 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J253 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J255 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J256 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J257 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J258 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J259 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J260 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J261 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J262 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J263 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J401 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J402 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J403 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J404 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J405 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J406 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J407 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J801 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 J802 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 JA601 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 JA602 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 JD01 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 JT01 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 JT02 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 L101 COIL PEAKING 5CPZ100K04 10UH 10.5MM K (LAL04TB) 1 L301 COIL BEAD 5MC0000100 HC-3550 1 L402 COIL PEAKING 5CPZ109M02 1UH M (AXIAL 3.5MM) 1 L501 COIL PEAKING 5CPZ100K02 10UH K (AXIAL 3.5MM) 1 L502 COIL PEAKING 5CPZ479K02 4.7UH K (AXIAL 3.5MM) 1 L503 COIL PEAKING 5CPZ479K02 4.7UH K (AXIAL 3.5MM) 1 L504 COIL PEAKING 5CPZ479K02 4.7UH K (AXIAL 3.5MM) 1 L505 COIL PEAKING 5CPZ100K02 10UH K (AXIAL 3.5MM) 1 L601 COIL PEAKING 5CPZ100K02 10UH K (AXIAL 3.5MM) 1 L602 COIL BEAD 5MC0000100 HC-3550 1 L603 COIL PEAKING 5CPZ100K02 10UH K (AXIAL 3.5MM) 1

-16-

ELECTRICAL PA R TS LIST

LOC PART CODE PART NAME DESCRIPTION QTY

L604 COIL PEAKING 5CPZ100K02 10UH K (AXIAL 3.5MM) 1 L701 COIL PEAKING 5CPZ100K02 10UH K (AXIAL 3.5MM) 1 L801 COIL BEAD 5MC0000100 HC-3550 1 LA01 COIL PEAKING 5CPZ479K02 4.7UH K (AXIAL 3.5MM) 1 LA02 COIL PEAKING 5CPZ479K02 4.7UH K (AXIAL 3.5MM) 1 LA03 COIL PEAKING 5CPZ479K02 4.7UH K (AXIAL 3.5MM) 1 LA04 COIL PEAKING 5CPZ100K02 10UH K (AXIAL 3.5MM) 1 LA05 COIL PEAKING 5CPZ100K02 10UH K (AXIAL 3.5MM) 1 LA06 COIL PEAKING 5CPZ100K02 10UH K (AXIAL 3.5MM) 1 LA07 COIL PEAKING 5CPZ100K02 10UH K (AXIAL 3.5MM) 1 LA08 COIL PEAKING 5CPZ100K02 10UH K (AXIAL 3.5MM) 1 LA09 COIL PEAKING 5CPZ100K02 10UH K (AXIAL 3.5MM) 1 LA10 COIL PEAKING 5CPZ479K02 4.7UH K (AXIAL 3.5MM) 1 LA11 COIL PEAKING 5CPZ479K02 4.7UH K (AXIAL 3.5MM) 1 LA12 COIL PEAKING 5CPZ100K02 10UH K (AXIAL 3.5MM) 1 LA13 COIL PEAKING 5CPZ100K02 10UH K (AXIAL 3.5MM) 1 LA15 COIL PEAKING 5CPZ100K02 10UH K (AXIAL 3.5MM) 1 LP01 COIL PEAKING 5CPZ100K02 10UH K (AXIAL 3.5MM) 1 LP02 COIL PEAKING 5CPZ100K02 10UH K (AXIAL 3.5MM) 1 LP03 COIL PEAKING 5CPZ100K02 10UH K (AXIAL 3.5MM) 1 LP04 COIL PEAKING 5CPZ100K02 10UH K (AXIAL 3.5MM) 1 R101 R CARBON FILM RD-2Z332J- 1/2 3.3K OHM J 1 R104 R CARBON FILM RD-AZ101J- 1/6 100 OHM J 1 R301 R CARBON FILM RD-AZ102J- 1/6 1K OHM J 1 R302 R CARBON FILM RD-AZ102J- 1/6 1K OHM J 1 R303 R CARBON FILM RD-AZ332J- 1/6 3.3K OHM J 1 R304 R CARBON FILM RD-AZ332J- 1/6 3.3K OHM J 1 R307 R CARBON FILM RD-AZ152J- 1/6 1.5K OHM J 1 R309 R CARBON FILM RD-2Z129J- 1/2 1.2 OHM J 1 R310 R CARBON FILM RD-2Z129J- 1/2 1.2 OHM J 1 R312 R CARBON FILM RD-AZ103J- 1/6 10K OHM J 1 R401 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J 1 R402 R CARBON FILM RD-AZ102J- 1/6 1K OHM J 1 R404 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J 1 R407 R CARBON FILM RD-AZ103J- 1/6 10K OHM J 1 R409 R CARBON FILM RD-4Z223J- 1/4 22K OHM J 1 R410 R CARBON FILM RD-4Z333J- 1/4 33K OHM J 1 R412 R CARBON FILM RD-4Z562J- 1/4 5.6K OHM J 1 R501 R CARBON FILM RD-AZ101J- 1/6 100 OHM J 1 R505 R CARBON FILM RD-AZ101J- 1/6 100 OHM J 1 R507 R CARBON FILM RD-AZ101J- 1/6 100 OHM J 1 R509 R CARBON FILM RD-AZ223J- 1/6 22K OHM J 1 R510 R CARBON FILM RD-AZ103J- 1/6 10K OHM J 1 R513 R CARBON FILM RD-AZ271J- 1/6 270 OHM J 1 R514 R CARBON FILM RD-AZ222J- 1/6 2.2K OHM J 1 R517 R CARBON FILM RD-AZ221J- 1/6 220 OHM J 1 R523 R CARBON FILM RD-AZ104J- 1/6 100K OHM J 1 R524 R CARBON FILM RD-AZ152J- 1/6 1.5K OHM J 1 R525 R CARBON FILM RD-AZ101J- 1/6 100 OHM J 1 R526 R CARBON FILM RD-AZ152J- 1/6 1.5K OHM J 1 R527 R CARBON FILM RD-AZ101J- 1/6 100 OHM J 1 R531 R CARBON FILM RD-AZ101J- 1/6 100 OHM J 1 R535 R CARBON FILM RD-AZ181J- 1/6 180 OHM J 1 R536 R CARBON FILM RD-AZ181J- 1/6 180 OHM J 1 R537 R CARBON FILM RD-AZ181J- 1/6 180 OHM J 1 R538 R CARBON FILM RD-AZ330J- 1/6 33 OHM J 1 R539 R CARBON FILM RD-AZ330J- 1/6 33 OHM J 1 R540 R CARBON FILM RD-AZ330J- 1/6 33 OHM J 1 R541 R CARBON FILM RD-AZ101J- 1/6 100 OHM J 1 R542 R CARBON FILM RD-AZ271J- 1/6 270 OHM J 1 R543 R CARBON FILM RD-AZ101J- 1/6 100 OHM J 1

LOC PART CODE PART NAME DESCRIPTION QTY

R544 R CARBON FILM RD-AZ271J- 1/6 270 OHM J 1 R545 R CARBON FILM RD-AZ101J- 1/6 100 OHM J 1 R546 R CARBON FILM RD-AZ271J- 1/6 270 OHM J 1 R601 R CARBON FILM RD-AZ102J- 1/6 1K OHM J 1 R605 R CARBON FILM RD-AZ562J- 1/6 5.6K OHM J 1 R606 R CARBON FILM RD-AZ562J- 1/6 5.6K OHM J 1 R607 R CARBON FILM RD-AZ101J- 1/6 100 OHM J 1 R608 R CARBON FILM RD-AZ101J- 1/6 100 OHM J 1 R609 R CARBON FILM RD-AZ183J- 1/6 18K OHM J 1 R610 R CARBON FILM RD-AZ183J- 1/6 18K OHM J 1 R613 R CARBON FILM RD-AZ223J- 1/6 22K OHM J 1 R617 R CARBON FILM RD-4Z151J- 1/4 150 OHM J 1 R618 R CARBON FILM RD-4Z151J- 1/4 150 OHM J 1 R622 R CARBON FILM RD-AZ829J- 1/6 8.2 OHM J 1 R623 R CARBON FILM RD-4Z100J- 1/4 10 OHM J 1 R701 R CARBON FILM RD-AZ101J- 1/6 100 OHM J 1 R702 R CARBON FILM RD-AZ101J- 1/6 100 OHM J 1 R804 R CARBON FILM RD-2Z104J- 1/2 100K OHM J 1 R806 R CARBON FILM RD-4Z100J- 1/4 10 OHM J 1 R807 R CARBON FILM RD-AZ152J- 1/6 1.5K OHM J 1 R808 R CARBON FILM RD-4Z221J- 1/4 220 OHM J 1 R809 R CARBON FILM RD-AZ102J- 1/6 1K OHM J 1 R810 R CARBON COMP RC-2Z565KP 1/2 5.6M OHM K 1 R811 R METAL FILM RN-4Z1003F 1/4 100K OHM F 1 R812 R METAL FILM RN-4Z6801F 1/4 6.8K OHM F 1 R813 R METAL FILM RN-4Z2201F 1/4 2.20K OHM F 1 R817 R CARBON FILM RD-AZ102J- 1/6 1K OHM J 1 R818 R CARBON FILM RD-AZ101J- 1/6 100 OHM J 1 R821 R CARBON FILM RD-AZ103J- 1/6 10K OHM J 1 R822 R CARBON FILM RD-4Z100J- 1/4 10 OHM J 1 R833 R CARBON FILM RD-AZ102J- 1/6 1K OHM J 1 R834 R CARBON FILM RD-AZ473J- 1/6 47K OHM J 1 R836 R CARBON FILM RD-AZ561J- 1/6 560 OHM J 1 R837 R CARBON FILM RD-AZ473J- 1/6 47K OHM J 1 R841 R CARBON FILM RD-AZ102J- 1/6 1K OHM J 1 R842 R CARBON FILM RD-AZ361J- 1/6 360 OHM J 1 R846 R CARBON FILM RD-AZ102J- 1/6 1K OHM J 1 R847 R CARBON FILM RD-AZ103J- 1/6 10K OHM J 1 R901 R CARBON FILM RD-AZ101J- 1/6 100 OHM J 1 R905 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 R906 R CARBON FILM RD-2Z102J- 1/2 1K OHM J 1 R907 R CARBON FILM RD-2Z102J- 1/2 1K OHM J 1 R908 R CARBON FILM RD-2Z102J- 1/2 1K OHM J 1 RA02 R CARBON FILM RD-AZ330J- 1/6 33 OHM J 1 RA04 R CARBON FILM RD-AZ330J- 1/6 33 OHM J 1 RA06 R CARBON FILM RD-AZ101J- 1/6 100 OHM J 1 RA10 R CARBON FILM RD-AZ330J- 1/6 33 OHM J 1 RA11 R CARBON FILM RD-AZ330J- 1/6 33 OHM J 1 RA12 R CARBON FILM RD-AZ820J- 1/6 82 OHM J 1 RA13 R CARBON FILM RD-AZ102J- 1/6 1K OHM J 1 RA14 R CARBON FILM RD-AZ102J- 1/6 1K OHM J 1 RA17 R CARBON FILM RD-AZ101J- 1/6 100 OHM J 1 RA18 R CARBON FILM RD-AZ101J- 1/6 100 OHM J 1 RE01 R CARBON FILM RD-AZ103J- 1/6 10K OHM J 1 RE02 R CARBON FILM RD-AZ473J- 1/6 47K OHM J 1 RE03 R CARBON FILM RD-AZ102J- 1/6 1K OHM J 1 RE04 R CARBON FILM RD-AZ391J- 1/6 390 OHM J 1 RF01 WIRE COPPER 85801065GY AWG22 1/0.65 TIN COATING 0.05 RF702 R CARBON FILM RD-AZ241J- 1/6 240 OHM J 1 RF703 R CARBON FILM RD-AZ391J- 1/6 390 OHM J 1 RF704 R CARBON FILM RD-AZ681J- 1/6 680 OHM J 1

-17-

ELECTRICAL PA R TS LIST

LOC PART CODE PART NAME DESCRIPTION QTY

RP01 R CARBON FILM RD-AZ102J- 1/6 1K OHM J 1 RP02 R CARBON FILM RD-AZ102J- 1/6 1K OHM J 1 RP03 R CARBON FILM RD-AZ101J- 1/6 100 OHM J 1 RP04 R CARBON FILM RD-AZ101J- 1/6 100 OHM J 1 RP05 R CARBON FILM RD-AZ103J- 1/6 10K OHM J 1 RP06 R CARBON FILM RD-AZ221J- 1/6 220 OHM J 1 RP08 R CARBON FILM RD-AZ221J- 1/6 220 OHM J 1

+ 40 hidden pages
