Daewoo AMI-729L, AMI-726LR, AMI-829L, AMI-826LR Service Manual

Service Manual

S/N No. :

Sep. 2002

ELECTRONICS CO., LTD.

Mini Component System

Model:

AMI-729L/R

AMI-829L/R

MINI COMPONENT SYSTEM

AMI-729L/R

AMI-829L/R

Table of Contents

SAFETY PRECAUTIONS......................................................................................... 2

ADJUSTMENTS....................................................................................................... 4

EXPLODED VIEW AND PARTS LIST ...................................................................... 5

WIRING DIAGRAM ................................................................................................... 8

BLOCK DIAGRAM .................................................................................................... 9

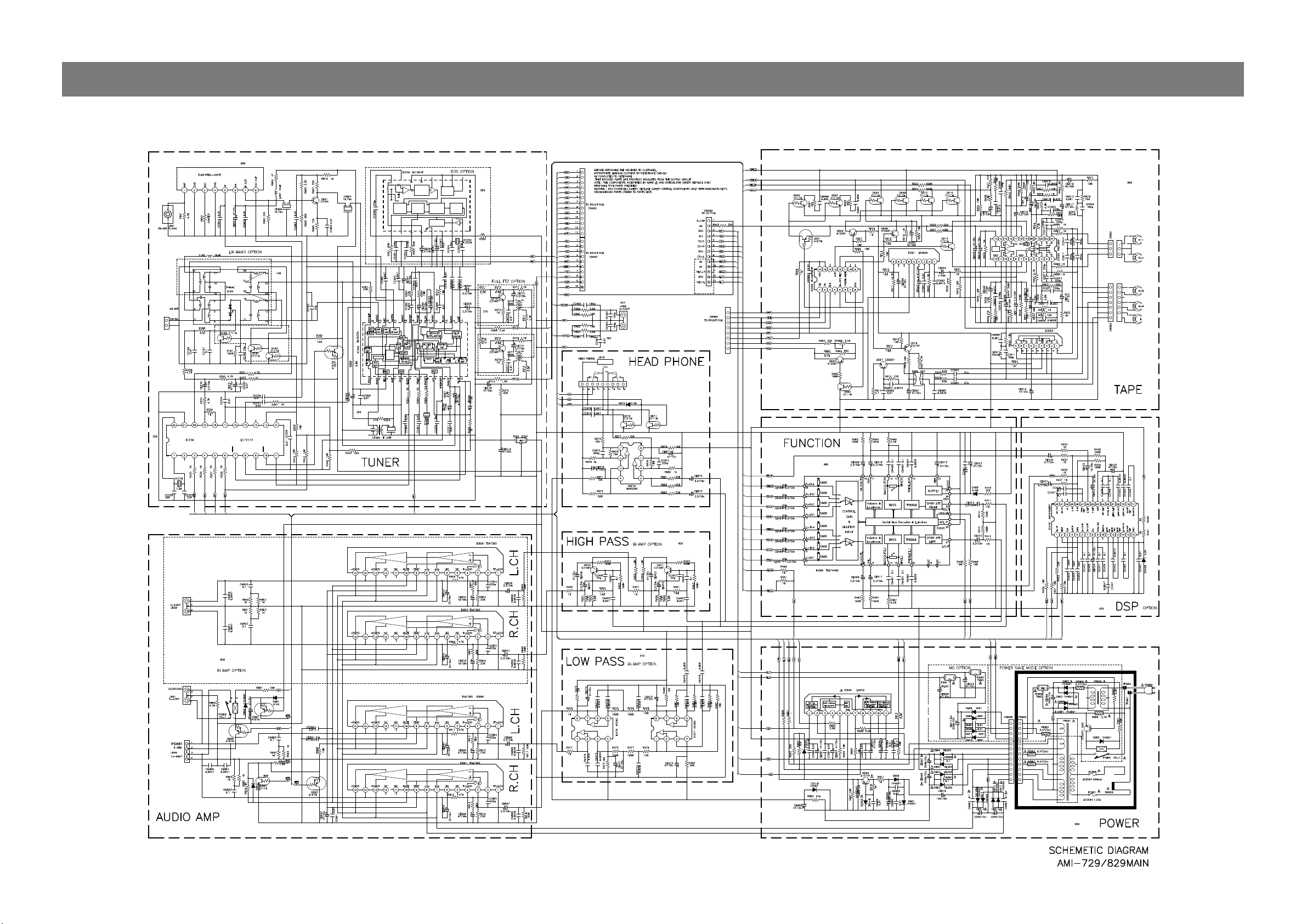

SCHEMATIC DIAGRAM ........................................................................................... 10

POWER / AMP /TUNER / TAPE .................................................................................................... 10

CD .................................................................................................................................................... 11

CONTROL ........................................................................................................................................ 12

PCB PATTERN LAYOUT ........................................................................................ 13

ELECTRICAL PART LIST ....................................................................................... 17

- 1 -

Safety Precautions

WARNING

THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION :

TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS POLARIZED AC
PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET
UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE
EXPOSURE.

THIS UNIT EMPLOYS A LASER. ONLY QUALIFIED SERVICE PERSONNEL
SHOULD REMOVE THE COVER OR ATTEMPT TO SERVICE THIS DEVICE
DUE TO POSSIBLE EYE INJURY.

CAUTION :

OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.

CAUTION :

PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION :

LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPON­DANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.

: TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE

CAUTION

RISK OF ELECTRIC SHOCKS

DO NOT OPEN

TO REDUCE THE RISK IF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF UNINSULTED "DANGEROUS VOLTAGE"

WITHIN THE PRODUCT'S ENCLOSURE THAT MAY BE

SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF
ELECTRIC SHOCK TO PERSONS.

THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE
(SERVICING) INSTRUCTIONS IN THE LITERATURE
ACCOMPANYING THE APPLIANCE.

CAUTION

LASER SAFETY

USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF

POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE

Important Safety Instructions

- All the safety and operating instructions should be read before
the appliance is operated.

- The safety and operating instructions should be retained for
future reference.

- All warnings on the appliance and in the operating instructions
should be adhered to.

- All operating and use instructions should be followed.

1. Water and Moisture - The appliance should not be

water - for example, near a bathtub, washbowl, kitchen sink,

used near

laundry tub, in a wet basement, or near a swimming pool,
and the like.

PORTABLE CART

Figure 2

only as recommended by the manufacturer.

ceiling

5. Ventilation - The appliance should be situated so
location or position does not interfere with
ventilation. For example, the appliance
on a bed, sofa, rug, or
ventilation
as a bookcase or cabinet that may impede the flow

through the ventilation openings.

6. Heat - The appliance should be situated away from
sources such as radiators, heat registers,
appliances (including amplifiers) that

7. Power Sources - The appliance should be
power supply only of the type
instructions or as marked

8. Grounding or Polarization - The precautions that
taken so that the grounding or

appliance is not defeated.

9. Power - Cord Protection - Power-supply cords
routed so that they are not likely to be
by items placed upon or
attention to cords at
point where

10.Protective Attachment Plug - The appliance is equipped with
an attachment plug having overload
safety feature.
resetting of
required, be sure the
replacement plug

same overload protection as the original plug.

11.Cleaning - The appliance should be cleaned only as
recommended by the manufacturer.

12.Power Lines - An outdoor antenna should be located
from power lines.

openings; or, placed in a built-in installation, such

protective device. If replacement of the plug is

2. Carts and Stands - The appliance
should be used only with a cart or
stand that is recommended by th
manufacturer.

3. An appliance and cart combination
should

be moved with care. Quick

stops, excessive force, and uneven
surfaces may cause the appliance

and

cart combination to overturn.

4. Wall or Ceiling Mounting - The appli-

ance

should be mounted to a wall or

its proper

should not be situated

similar surface that may block the

stoves, or other

produce heat.

connected to a

described in the operating

on the appliance.

polarization means of an

walked on or pinched

against them, paying particular

plugs, convenience receptacles, and the

they exit from the appliance.

protection. This is a

See Instruction Manual for replacement or

service technician has used a

specified by the manufacturer that has the

that its

should be

should be

of air

heat

away

- 2 -

Safety Precautions

13.Outdoor Antenna Grounding - If an outside antenna
connected to the receiver be sure the antenna

system is

grounded so as to provide some protection against voltage
surges and built-up static
Electrical Code,
regard to

proper grounding of the mast and supporting

charges. Article 810 of the National

ANSI/NFPA 70, provides information with

structure, grounding of the lead-in wire to an antenna-dis
charge unit, size of grounding conductors,location of antenna­discharge unit, connection to grounding electrodes and
requirements for the grounding electrode. See Figure 1.

EXAMPLE OF ANTENNA
GROUNDING

GROUND CLAMP

ELECTRIC
SERVICE
EQUIPMENT

NEC - NATIONAL ELECTRICAL CODE

POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250 PART H)

ANTENNA LEAD
IN WIRE

ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20)

GROUNDING CONDUCTORS
(NEC SECTION 810-21)

GROUND CLAMPS

14.Non-use Periods - The power cord of the appliance should be
unplugged from the outlet when left

unused for a long period

of time.

is

15.Object and Liquid Entry - Care should be taken so

that objects
do not fall and liquids are not spilled into the enclosure through
openings.

16.Damage Requiring Service - The appliance should

be

serviced by qualified service personnel when:
a) The power-supply cord or the plug has been
b) Objects have fallen, or liquid has been spilled

damaged; or

into the
appliance; or
c) The appliance has been exposed to rain; or

d) The appliance does not appear to operate
exhibits a marked change in

performance; or

e) The appliance has been dropped, or the

normally or

enclosure

damaged.

17.Servicing - The user should not attempt to service the
appliance beyond that described in the operating instructions.

All other servicing

should be referred to qualified service

personnel.

- 3 -

Adjustments

r

p

TAPE SECTION

Input Level
Measurement
Point

Output Level

Measurement

Point

R-CH

47 kohm

Input Point

VTVM

Scope

L-CH

47 kohm

Test Tape be used

Tape Contents Use

MTT-111N 3 KHz Tape Speed Adjustment
MTT-114N 10 KHz Head Azimuth Adjustment

MTT-5511 Blank Record Frequency Property

HEAD ADJUSTMENT (AZIMUTH)

1. 10KHz test tape(example: MTT-114N) must be used for this adjustment.

2. Connect to VTVM or oscilloscope to the headphone jack or speaker terminal.

3. Press the play button.

4. Adjust the azimuth by using a screw driver to maintain the max. L&R output voltage.

5. Adjust tape A(1), tape B(2) respectively, Please secure the azimuth position by using locking paint.

RECORDING BIAS OSCILLATOR FREQUENCY ADJUSTMENT

1. Connect the frequency counter to TP603, GND.

2. Press the REC button.

3. Adjust L603 to obtain 80 KHz

Step Item Reference Value Test Tape Adjust Point Test Point Note FIG.

Normal

Tape Speed

1

Adjustment

High

2

Azimuth Adjustment
Recording Bias Oscilla-

tor Frequency Adjust-

3

ment

±

100Hz

TAPE ALIGNMENT CHART

3,015~3,025Hz MTT-111N RV601

3,000~3,010Hz MTT-111N RV601

5,820~6,180Hz MTT-111N - - - - - -

Maximum Level
Phase:Within90°

80 KHz±0.5

MTT-114N Head Screw

MTT-5511 L603

Line Out L/R
Channel

Line Out L/R
Channel

Shorted
TP601,
TP602

Line Out L/R
Channel

TP603,GND

Confirm Wow & Flut­ter is within 0.35%

Confirm Tape Speed
of end position after
adjustment at tape
start position

Confirm High speed
after normal speed
adjustment

Adjust with frequency
counter connected.

FIG.1

FIG.1

FIG.1

FIG.2,3,4

FIG.1

Adjust with Frequency

Test Tape : MTT-111N(3kHz)

MTT-5511(Blank)

Set

Frequency Counte

Output Level
Measurement Point

FIG. 1 : Tape Speed & Record Bias Oscillator

Frequency Adjust Circuit

L-CH

Screw
Angle

Peak

R-CH
Peak

within

1 dB

Output Level

L-CH
Peak

R-CH
Peak

within

1 dB

Screw Angle

FIG. 3 : Tape Azimuth Adjust Head Screw & Waveform

FIG. 2 : Tape Azimuth Adjust Location

FIG. 4 : Tape Azimuth Adjust Circuit & Waveform

Counter Connected

Forward

Side

Reverse

Side

(Record/Playback Head)

MTT-114N

(10kHz)

L-CH

Set

Screen Pattern

In Phase 45 90 135 180

Good Wrong

Oscilloscope

VH

Output Level
Measurement Point

- 4 -

Exploded View and Mechanical Parts List

Model No:AMI-729L/R, 829L/R

- 5 -

Exploded View and Mechanical Parts List

Model No:AMI-729L/R, 829L/R

NO PARTS NAME CODE NO. DESCRIPTIONS Q'TY REMARKS

1 WINDOW DOOR A/B

2 DOOR COVER A/B

3 DOOR FRAME A/B
4 SPRING DOOR EJECT L 9CD30080L0 STS 1

5 SPRING DOOR EJECT R 9CD30080R0 STS 1
6 CUSHION FOOT 9CD4207700
7 KNOB VOLUME 9CD1337000 MIPS 1

DAMPER BASE "B"

8

DAMPER GEAR "B"
LOCKER BASE

9

LOCKER CAM

LOCKER SPRING
10 KNOB JOG DIAL 9CD1336800 MIPS 1
11 BRKT SIDE 9CD2412900 ABS 2
12 PANEL FRONT 9CD0308000 MIPS 1
13 WINDOW FLT 9CD1616700 ACRYL 1
14 KNOB CONTROL "A" 9CD13399A0 MIPS 1
15 KNOB CONTROL "B" 9CD13399B0 MIPS 1
16 KNOB FUNCTION 9CD1340000 ACRYL 1
17 PLATE FILTER 9CD0911200 LEXAN (T=0.125) 1
18 KNOB CONTROL "C" 9CD13399C0 MIPS 1
19 GUIDE FLT 9CD2506300 ABS 1
20 RING REFLECTOR 9CD3103700 ACRYL 1
21 BADGE BRAND ABS,STAMPING 1
22 CASS DECK MECHA 9CD6007800 S/S ADR 243AMW 1 AUTO REVERSE
23 DOOR CD 9CD1811400 MIPS 1

9CD16166A0
9CD16166B0

9CD18115A0
9CD18115B0

9CD1809400
9CD1809500

9CD2603300
9CD2603290

9CD0B01400
9CD0B01500
9CD0B01600

ACRYL

MIPS

MIPS

URETHAN FOAM RUBBER

ABS
ACETAL

ABS
ACETAL
PW-1

1
1

1
1

1
1

3

2
2

2
2
2

24 CD DECK MECHA

25 COVER TOP
26 COVER SIDE "L" 9CD0409200 MIPS 1

27 COVER SIDE "R" 9CD0409300 MIPS 1
28 CHASSIS BOTTOM 9CD0607100 SECC T1.0 1
29 HEAT SINK N50 9CD4405800 AL 7.0T 1 AMI-829L(50W)
30 HOLDER AC CORD 9CD2303300 ABS 1

9CD6007100
9CD6006900

9CD0409600
9CD0409100

CMS FR3 B TYPE
DCC-01B

MIPS 1

- 6 -

1

W/O HOLE
WITH HOLE

Exploded View and Mechanical Parts List

Model No:AMI-729L/R, 829L/R

NO PARTS NAME CODE NO. DESCRIPTIONS Q'TY REMARKS

31 COVER BACK 9CD0409813 MIPS 1
32 BRKT HEAT SINK 9CD2414600 SECC 1.0T 2 AMI-829L(50W)
33 BRKT HEAT SINK 9CD2414400 STS 1 AMI-829L(50W)
34 PLATE MICA "A" 9CD0910600 MICA 2
35 DECO MD DOOR 9CD1003100 MIPS 1
36 PLATE EON 9CD0911300 PVC 0.5T 1 DSP OPTION

S1 SCREW TAPTITE 7173261011 TT2 BIN 2.6X10 MFZN 12
S2 SCREW TAPTITE 7173301011 TT2 BIN 3X10 MFZN 15
S3 SCREW TAPTITE 7173301212 TT2 BIN 3X12 BK 25
S4 SCREW TAPTITE 7173400611 TT2 BIN 4X6 MFZN 8
S5 SCREW TAPTITE 7173300611 TT2 BIN 3X6 MFZN 5
S6 WASHER SCREW 9CD3102400 TT2 BIN 3X10+D14 1
S7 WASHER SCREW 9CD3102401 TT2 BIN 3X8+D10 4 AMI-829L(50W)
S8 SCREW TAPTITE 7173301412 TT2 BIN 3X14 BK 2 AMI-829L(50W)

P1 PCB CD 9CD6574800 197 X 123 X 1.6T 1
P2 PCB FRONT 9CD6580300 247 X 139 X 1.6T 1 AMI-829(50W)
P3 PCB MAIN 9CD6580500 319 X 197 X 1.6T 1 AMI-829(50W)
P4 PCB POWER 9CD6580600 106.5 X 88 X 1.6T 1 AMI-829(50W)
P5 PCD OPTICAL JACK 9CD6577800 29 X 21.5 X 1.6T 1

- 7 -

WIRING DIAGRAM

Model No:AMI-729L/R, 829L/R

SN:9738832101 7P 250MM

SN:9738833900 10P 350MM

CW900

P/T

30W

SN : 9738835000 3P 260MM

CW704

50W

SN : 9738804300 7P 350MM

CW703

10P CONN PINSN : 9736407800

SN : 9736407600 13P CONN PIN

SN : 9738833700 8P 220MM

FUNCTION

CN400

CN401

CW601

CW602

CW600

CW400

FD701

IC702

TUNER

CN900

CW508

SN:9738840900 19P 110MM

Pick-Up

CW503CW501

CN502

CW502

CN509

CW507

CN502 SN:9738824100 2P 400MM

SN:9738840800 16P 250MM

PLAY
HEAD

R/P HEAD

CW401

CW402

SN : 9738834000 11P 150MM

SN : 9738834100 13P 100MM

- 8 -

CW508

MM

CN703CN704CN701

MM

CD MECHA. ASS'Y

BLOCK DIAGRAM

Model No:AMI-729L/R, 829L/R

- 9 -

Schemetic Diagram

Model No:AMI-729L/R, 829L/R

Ass'y Name: POWER/AMP/TUNER/TAPE

13

42

811 7124 910 15

VSS2 VSS3

8th switched
capacitor

filter
anti
aliasimg

PLL 57KHz
RDS/ARI

QUAL

R/DATA

R/CLK

TEST

comparator

BIPHASE

PLL

1187.5Hz

1612 3 6 145 13

Differential

DECODER

DECODER

CLOCK

ANALOG

V REF

VSS1

VDD1

ALC

AM/FM
IF
BUFF

S-CURVE

19K 19K 0

304KHz

PD1

VSS

XOUT

DACECK

XIN

NC

NC

LW

AMIN

ST/MO

IF REQ

IFIN

SD

FM

VDD

FMIN

DO

AM/FM

- 10 -

Schemetic Diagram

Model No:AMI-729L/R, 829L/R

Ass'y Name: CD

- 11 -

Schemetic Diagram

Model No:AMI-729L/R, 829L/R

Ass'y Name: CONTROL

- 12 -

P.C.B Pattern Layout

Model No:AMI-729L/R, 829L/R

Ass'y Name: MAIN

- 13 -

P.C.B Pattern Layout

Model No:AMI-729L/R, 829L/R
Ass'y Name : CD P.C.B

- 14 -

P.C.B Pattern Layout

Model No:AMI-729L/R, 829L/R

Ass'y Name: PT

- 15 -

P.C.B Pattern Layout

Model No:AMI-729L/R, 829L/R

Ass'y Name: CONTROL

- 16 -

Electrical Parts List

MODEL

PART-CODE PART-DESCNO ASS'Y LOCATION PART-NAME

1 PCB MAIN AS 10000 PCB MAIN AS 9CDC057200 AMI-829LF O O
2 PCB MAIN AS B000 PCB MAIN 9CD6580500 330X197X1.6T O O
3 PCB MAIN AS CC001~004 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) O O
4 PCB MAIN AS CC100 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) O O
5 PCB MAIN AS CC101 C CERA CCXF1H104Z 50V F 0.1MF Z O O
6 PCB MAIN AS CC102 C CERA CXCH1H180J 50V CH 18PF J (TAPPING) O O
7 PCB MAIN AS CC103 C CERA CXCH1H470J 50V CH 47PF J (TAPPING) O O
8 PCB MAIN AS CC200 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) O O

9 PCB MAIN AS CC201 C CERA CCXF1H473Z 50V F 0.047MF Z (TAPPING) O O
10 PCB MAIN AS CC202 C CERA CCXF1H104Z 50V F 0.1MF Z O O
11 PCB MAIN AS CC203 C CERA CCXF1H473Z 50V F 0.047MF Z (TAPPING) O O
12 PCB MAIN AS CC204 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) O O
13 PCB MAIN AS CC205 C CERA CCXF1H223Z 50V F 0.022MF Z (TAPPING) O O
14 PCB MAIN AS CC206 C CERA CCXB1H821K 50V B 820PF K (TAPPING) O O
15 PCB MAIN AS CC207 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) O O
16 PCB MAIN AS CC209~211 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) O O
17 PCB MAIN AS CC230 C CERA CXCH1H390J 50V CH 39PF J (TAPPING) O O
18 PCB MAIN AS CC232 C CERA CXCH1H330J 50V CH 33PF J (TAPPING) O O
19 PCB MAIN AS CC234~239 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) O O
20 PCB MAIN AS CC260~262 C CERA CCXB1H331K 50V B 330PF K (TAPPING) O O
21 PCB MAIN AS CC263 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) O O
22 PCB MAIN AS CC264 C CERA CXCH1H820J 50V CH 82PF J (TAPPING) O O
23 PCB MAIN AS CC265 C CERA CXCH1H470J 50V CH 47PF J (TAPPING) O O
24 PCB MAIN AS CC266 C CERA CCXB1H331K 50V B 330PF K (TAPPING) O O
25 PCB MAIN AS CC401 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) O O
26 PCB MAIN AS CC430~431 C CERA CCXF1H104Z 50V F 0.1MF Z O O
27 PCB MAIN AS CC432~434 C CERA CXCH1H101J 50V CH 100PF J (TAPPING) O O
28 PCB MAIN AS CC435~440 C CERA CCXF1H104Z 50V F 0.1MF Z O O
29 PCB MAIN AS CC441 C CERA CCXB1H472K 50V B 4700PF K (TAPPING) O O
30 PCB MAIN AS CC442 C CERA CCXB1H122K 50V B 1200PF K (TAPPING) O O
31 PCB MAIN AS CC443 C CERA CCXB1H222K 50V B 2200PF K (TAPPING) O O
32 PCB MAIN AS CC444 C CERA CCXB1H562K 50V B 5600PF K (TAPPING) O O
33 PCB MAIN AS CC445~446 C CERA CCXF1H104Z 50V F 0.1MF Z O O
34 PCB MAIN AS CC447 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) O O
35 PCB MAIN AS CC490~493 C CERA CXCH1H101J 50V CH 100PF J (TAPPING) O O
36 PCB MAIN AS CC494 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) O O
37 PCB MAIN AS CC600 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) O O
38 PCB MAIN AS CC601 C CERA CCXF1H104Z 50V F 0.1MF Z O O
39 PCB MAIN AS CC602 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) O O
40 PCB MAIN AS CC603~604 C CERA CXCH1H470J 50V CH 47PF J (TAPPING) O O
41 PCB MAIN AS CC609~611 C CERA CXCH1H101J 50V CH 100PF J (TAPPING) O O
42 PCB MAIN AS CC612~615 C CERA CCXB1H221K 50V B 220PF K (TAPPING) O O
43 PCB MAIN AS CC616~619 C CERA CCXB1H821K 50V B 820PF K (TAPPING) O O
44 PCB MAIN AS CC620 C CERA CXCH1H101J 50V CH 100PF J (TAPPING) O O
45 PCB MAIN AS CC621~622 C CERA CCXB1H331K 50V B 330PF K (TAPPING) O O
46 PCB MAIN AS CC800~801 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) O O
47 PCB MAIN AS CC804~805 C CERA CCXB1H221K 50V B 220PF K (TAPPING) O O
48 PCB MAIN AS CC870~871 C CERA CCXF1H473Z 50V F 0.047MF Z (TAPPING) O O
49 PCB MAIN AS CC872~873 C CERA CCXB1H221K 50V B 220PF K (TAPPING) O O
50 PCB MAIN AS CC900~902 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) O O
51 PCB MAIN AS CC904 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) O O
52 PCB MAIN AS CC906 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) O O
53 PCB MAIN AS CC908 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) O O
54 PCB MAIN AS CE001 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP O O
55 PCB MAIN AS CE201 C ELECTRO CEXF1H220V 50V RSS 22MF (5X11) TP O O
56 PCB MAIN AS CE202~203 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP O O
57 PCB MAIN AS CE205 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP O O
58 PCB MAIN AS CE206 C ELECTRO CEXF1H478V 50V RSS 0.47MF (5X11) TP O O
59 PCB MAIN AS CE207~208 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP O O
60 PCB MAIN AS CE209 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP O O
61 PCB MAIN AS CE210 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP O O
62 PCB MAIN AS CE230 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP O O

729L

829L

- 17 -

Electrical Parts List

MODEL

PART-CODE PART-DESCNO ASS'Y LOCATION PART-NAME

63 PCB MAIN AS CE231 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP O O
64 PCB MAIN AS CE232 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP O O
65 PCB MAIN AS CE260 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP O O
66 PCB MAIN AS CE261 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP O O
67 PCB MAIN AS CE270 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP O O
68 PCB MAIN AS CE271~272 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP O O
69 PCB MAIN AS CE400~402 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP O O
70 PCB MAIN AS CE404~406 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP O O
71 PCB MAIN AS CE408~411 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP O O
72 PCB MAIN AS CE412 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP O O
73 PCB MAIN AS CE413 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X11) TP O O
74 PCB MAIN AS CE414~415 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP O O
75 PCB MAIN AS CE430~431 C ELECTRO CEXF1H479V 50V RSS 4.7MF (5X11) TP O O
76 PCB MAIN AS CE432~433 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP O O
77 PCB MAIN AS CE434~435 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP O O
78 PCB MAIN AS CE600~602 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP O O
79 PCB MAIN AS CE603 C ELECTRO CEXF1H478V 50V RSS 0.47MF (5X11) TP O O
80 PCB MAIN AS CE604 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP O O
81 PCB MAIN AS CE605~606 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP O O
82 PCB MAIN AS CE607 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP O O
83 PCB MAIN AS CE608 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP O O
84 PCB MAIN AS CE609 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP O O
85 PCB MAIN AS CE610~611 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP O O
86 PCB MAIN AS CE612~613 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP O O
87 PCB MAIN AS CE614~615 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP O O
88 PCB MAIN AS CE616~618 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP O O
89 PCB MAIN AS CE619 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP O O
90 PCB MAIN AS CE620 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP O O
91 PCB MAIN AS CE800~801 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP O O
92 PCB MAIN AS CE802 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP O O
93 PCB MAIN AS CE803~804 C ELECTRO CEXF1H220V 50V RSS 22MF (5X11) TP O O
94 PCB MAIN AS CE805~806 C ELECTRO CEXF1H470V 50V RSS 47MF (6.3X11) TP O O
95 PCB MAIN AS CE807~808 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP O O
96 PCB MAIN AS CE870~871 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP O O
97 PCB MAIN AS CE872~873 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP O O
98 PCB MAIN AS CE900~902 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP O O

99 PCB MAIN AS CE903 C ELECTRO CEXF1H101V 50V RSS 100MF (8X11.5) TP O O
100 PCB MAIN AS CE904~905 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP O O
101 PCB MAIN AS CE906 C ELECTRO CEXF1H101V 50V RSS 100MF (8X11.5) TP O O
102 PCB MAIN AS CE907~908 C ELECTRO CEYF1E222V 25V RSS 2200MF (16X25) O O
103 PCB MAIN AS CE910 C ELECTRO CEXF1H101V 50V RSS 100MF (8X11.5) TP O O
104 PCB MAIN AS CE913~914 C ELECTRO CEYF1V332V 35V RSS 3300MF (18X35.5) O O
105 PCB MAIN AS CF001~002 FILTER CERA 5PE107MJA- SFE 10.7MHZ RED O O
106 PCB MAIN AS CF200 FILTER 5PPCFAZ077 PCFAZ077 O O
107 PCB MAIN AS CM200~201 C MYLAR CMXM1H153J 50V 0.015MF J (TP) O O
108 PCB MAIN AS CM270~271 C MYLAR CMXM1H103J 50V 0.01MF J (TP) O O
109 PCB MAIN AS CM400~403 C MYLAR CMXM1H104J 50V 0.1MF J O O
110 PCB MAIN AS CM404~405 C MYLAR CMXM1H562J 50V 5600 PF J O O
111 PCB MAIN AS CM600~601 C MYLAR CMXM1H683J 50V 0.068 MF J O O
112 PCB MAIN AS CM602 C MYLAR CMXM1H103J 50V 0.01MF J (TP) O O
113 PCB MAIN AS CM603 C MYLAR CMXM1H332J 50V 3300 PF J O O
114 PCB MAIN AS CM605 C MYLAR CMXM1H392J 50V 0.0039MF J O O
115 PCB MAIN AS CM606~607 C MYLAR CMXM1H123J 50V 0.012 MF J O O
116 PCB MAIN AS CM608 C MYLAR CMXM1H102J 50V 0.001MF J (TP) O O
117 PCB MAIN AS CM609~610 C MYLAR CMXM1H682J 50V 0.0068MF J O O
118 PCB MAIN AS CM611~612 C MYLAR CMXM1H223J 50V 0.022MF J O O
119 PCB MAIN AS CM613 C MYLAR CMXM1H102J 50V 0.001MF J (TP) O O
120 PCB MAIN AS CM800~801 C MYLAR CMXM1H472J 50V 0.0047MF J O O
121 PCB MAIN AS CM802~803 C MYLAR CMXM1H104J 50V 0.1MF J O O
122 PCB MAIN AS CM808~809 C MYLAR CMXM1H392J 50V 0.0039MF J O O
123 PCB MAIN AS CM900~903 C MYLAR CMXM1H104J 50V 0.1MF J O O
124 PCB MAIN AS CM904~906 C MYLAR CMXM1H103J 50V 0.01MF J (TP) O O

729L

829L

- 18 -

Electrical Parts List

MODEL

PART-CODE PART-DESCNO ASS'Y LOCATION PART-NAME

125 PCB MAIN AS CN400 CONN AS 9736407600 PIN BASE 53095-1310 13P O O
126 PCB MAIN AS CN401 CONN PIN 9736407800 53095-1010 10PIN ANGLE O O
127 PCB MAIN AS CN900 CONN WAFER 9728804100 #22 10P P2.5 350 BOARD-IN O O
128 PCB MAIN AS CW100 CONN WAFER 9CD6258800 2P S2B-XH-A O O
129 PCB MAIN AS CW400 CONN AS 9738832101 8P 250 P=2.5 BOARDIN O O
130 PCB MAIN AS CW509 CONN AS 9738832101 8P 250 P=2.5 BOARDIN O O
131 PCB MAIN AS CW600 CONN AS 9738833700 #26 8P FLAT 220MM O O
132 PCB MAIN AS CW601 CONN AS 9738835000 UL 2851 #28X2C0 3P 260MM O O
133 PCB MAIN AS CW602 CONN AS 9728804300 #26 7P SHIELD 350MM O O
134 PCB MAIN AS D400 DIODE DZN4148--- 1N4148 AUTO 52MM O O
135 PCB MAIN AS D800 DIODE D1N4001--- 1N4001 O O
136 PCB MAIN AS D801~802 DIODE DZN4148--- 1N4148 AUTO 52MM O O
137 PCB MAIN AS D870 DIODE DZN4148--- 1N4148 AUTO 52MM O O
138 PCB MAIN AS D900~901 DIODE D1N4001--- 1N4001 O O
139 PCB MAIN AS D902~905 DIODE DRL202---- RL202 O O
140 PCB MAIN AS D910~913 DIODE D1N5402--- 1N5402 O O
141 PCB MAIN AS DZ430 DIODE ZENER DZTZ5R6B-- UZ-5.6B O O
142 PCB MAIN AS DZ900 DIODE ZENER DZTZ6R2B-- MTZ6.2B O O
143 PCB MAIN AS DZ901 DIODE ZENER DZTZ12B--- MTZ 12V 26MM TAPPING O O
144 PCB MAIN AS DZ902 DIODE ZENER DZTZ33B--- MTZ-33B O O
145 PCB MAIN AS IC200 IC 1LA1833N-- LA1833N O O
146 PCB MAIN AS IC201 IC 1MC78L05-- MC78L05AC O O
147 PCB MAIN AS IC230 IC PLL 1LC72131-- LC72131 O O
148 PCB MAIN AS IC260 IC 1TDA7479D- TDA7479D O O
149 PCB MAIN AS IC400 IC 1TDA7440-- TDA7440 O O
150 PCB MAIN AS IC430 IC 1M65849BFP M65849BFP(DIP32) O O
151 PCB MAIN AS IC600 IC PORT 1BU4094B-- BU4094B O O
152 PCB MAIN AS IC601 IC AMSS 1LA2000--- LA2000 O O
153 PCB MAIN AS IC602 IC 1TA8189N-- TA8189N O O
154 PCB MAIN AS IC603 IC 1BA3126N-- BA3126N O O
155 PCB MAIN AS IC800~801 IC 1TDA7296-- TDA7296 O
156 PCB MAIN AS IC800~801 IC 1TDA7295-- TDA7295 O
157 PCB MAIN AS IC870 IC 1BA4560N-- BA4560N(H/P AMP) O O
158 PCB MAIN AS IC900 IC 1L4959---- L4959 O O
159 PCB MAIN AS J001 JACK ANT 9736321900 PAT645 O O
160 PCB MAIN AS J490 JACK RCA 9CD6313700 S-436P O O
161 PCB MAIN AS J800 JACK SPEAKER 9736320500 CJ-9007-040 O O
162 PCB MAIN AS J801 JACK RCA 9CD6313700 S-436P O O
163 PCB MAIN AS J870 JACK HEADPHONE 9766319501 HTJ-064-05B GOLD O O
164 PCB MAIN AS L001 COIL PEAKING 5CPZ100K02 10UH K (AXIAL 3.5MM) O O
165 PCB MAIN AS L100 COIL MW BLOCK 5LR0000833 KSNT-213M O O
166 PCB MAIN AS L102 COIL PEAKING 5CPZ100K02 10UH K (AXIAL 3.5MM) O O
167 PCB MAIN AS L270~271 COIL 5P076068-- 6068MPX O O
168 PCB MAIN AS L600 COIL BIAS OSC 5L0503K643 SM-10F 5.04MH O O
169 PCB MAIN AS L601~602 COIL CHOKE 5LC333K804 33MH K O O
170 PCB MAIN AS Q001 TR TZTC3194Y- KTC3194Y O O
171 PCB MAIN AS Q231 TR TZTA107M-- KTA107M(AUTO) O O
172 PCB MAIN AS Q270~271 TR TZTC3198Y- KTC3198Y-(1815Y) (AUTO) O O
173 PCB MAIN AS Q600 TR TKRC111M-- KRC111M (KSR1010) O O
174 PCB MAIN AS Q601 TR TZTA107M-- KTA107M(AUTO) O O
175 PCB MAIN AS Q602 TR TKRC111M-- KRC111M (KSR1010) O O
176 PCB MAIN AS Q603~604 TR TZTA1266Y- KTA1266Y- (AUTO)(1015Y) O O
177 PCB MAIN AS Q605~606 TR TKRC111M-- KRC111M (KSR1010) O O
178 PCB MAIN AS Q607 TR TZTC3205Y- KTC3205Y (2236Y) O O
179 PCB MAIN AS Q608 TR TZTA1266Y- KTA1266Y- (AUTO)(1015Y) O O
180 PCB MAIN AS Q609 TR TKRC111M-- KRC111M (KSR1010) O O
181 PCB MAIN AS Q610 TR TZTA1273Y- KTA1273Y(966Y) O O
182 PCB MAIN AS Q612 TR TKRC111M-- KRC111M (KSR1010) O O
183 PCB MAIN AS Q614 TR TKRC111M-- KRC111M (KSR1010) O O
184 PCB MAIN AS Q616 TR TKRC111M-- KRC111M (KSR1010) O O
185 PCB MAIN AS Q800~802 TR TZTA107M-- KTA107M(AUTO) O O
186 PCB MAIN AS Q803 TR TKRC111M-- KRC111M (KSR1010) O O

729L

829L

- 19 -

Electrical Parts List

MODEL

PART-CODE PART-DESCNO ASS'Y LOCATION PART-NAME

187 PCB MAIN AS Q870~873 TR TKRC111M-- KRC111M (KSR1010) O O
188 PCB MAIN AS Q900 TR TZTA1273Y- KTA1273Y(966Y) O O
189 PCB MAIN AS R001 R CARBON FILM RD-AZ475J- 1/6 4.7M OHM J O O
190 PCB MAIN AS R002 WIRE JUMPER W581GY6095 AWG22 1/0.65 SN 6 AUTO O O
191 PCB MAIN AS R003 R CARBON FILM RD-AZ331J- 1/6 330 OHM J O O
192 PCB MAIN AS R004 R CARBON FILM RD-AZ470J- 1/6 47 OHM J O O
193 PCB MAIN AS R005 R CARBON FILM RD-AZ332J- 1/6 3.3K OHM J O O
194 PCB MAIN AS R006 R CARBON FILM RD-AZ681J- 1/6 680 OHM J O O
195 PCB MAIN AS R007 R CARBON FILM RD-AZ331J- 1/6 330 OHM J O O
196 PCB MAIN AS R009 R CARBON FILM RD-AZ121J- 1/6 120 OHM J O O
197 PCB MAIN AS R010 R CARBON FILM RD-AZ100J- 1/6 10 OHM J O O
198 PCB MAIN AS R100 R CARBON FILM RD-AZ223J- 1/6 22K OHM J O O
199 PCB MAIN AS R101 R CARBON FILM RD-AZ104J- 1/6 100K OHM J O O
200 PCB MAIN AS R200 R CARBON FILM RD-AZ682J- 1/6 6.8K OHM J O O
201 PCB MAIN AS R201 R CARBON FILM RD-AZ333J- 1/6 33K OHM J O O
202 PCB MAIN AS R202 R CARBON FILM RD-AZ102J- 1/6 1K OHM J O O
203 PCB MAIN AS R203 R CARBON FILM RD-AZ273J- 1/6 27K OHM J O O
204 PCB MAIN AS R204 R CARBON FILM RD-AZ183J- 1/6 18K OHM J O O
205 PCB MAIN AS R205 R CARBON FILM RD-AZ102J- 1/6 1K OHM J O O
206 PCB MAIN AS R206 R CARBON FILM RD-AZ151J- 1/6 150 OHM J O O
207 PCB MAIN AS R207 R CARBON FILM RD-AZ332J- 1/6 3.3K OHM J O O
208 PCB MAIN AS R208 R CARBON FILM RD-AZ100J- 1/6 10 OHM J O O
209 PCB MAIN AS R209~210 R CARBON FILM RD-AZ122J- 1/6 1.2K OHM J O O
210 PCB MAIN AS R211~212 R CARBON FILM RD-AZ332J- 1/6 3.3K OHM J O O
211 PCB MAIN AS R213 R CARBON FILM RD-AZ563J- 1/6 56K OHM J O O
212 PCB MAIN AS R230~231 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J O O
213 PCB MAIN AS R232 R CARBON FILM RD-AZ470J- 1/6 47 OHM J O O
214 PCB MAIN AS R233 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J O O
215 PCB MAIN AS R234~237 R CARBON FILM RD-AZ102J- 1/6 1K OHM J O O
216 PCB MAIN AS R239 R CARBON FILM RD-AZ102J- 1/6 1K OHM J O O
217 PCB MAIN AS R241 R CARBON FILM RD-AZ102J- 1/6 1K OHM J O O
218 PCB MAIN AS R243~244 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
219 PCB MAIN AS R245 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J O O
220 PCB MAIN AS R246 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
221 PCB MAIN AS R253 R CARBON FILM RD-AZ221J- 1/6 220 OHM J O O
222 PCB MAIN AS R254 R CARBON FILM RD-AZ473J- 1/6 47K OHM J O O
223 PCB MAIN AS R260 R CARBON FILM RD-AZ100J- 1/6 10 OHM J O O
224 PCB MAIN AS R261~262 R CARBON FILM RD-AZ823J- 1/6 82K OHM J O O
225 PCB MAIN AS R270~271 R CARBON FILM RD-AZ222J- 1/6 2.2K OHM J O O
226 PCB MAIN AS R272 R CARBON FILM RD-AZ221J- 1/6 220 OHM J O O
227 PCB MAIN AS R273 R CARBON FILM RD-AZ474J- 1/6 470K OHM J O O
228 PCB MAIN AS R274 R CARBON FILM RD-AZ102J- 1/6 1K OHM J O O
229 PCB MAIN AS R275 R CARBON FILM RD-AZ474J- 1/6 470K OHM J O O
230 PCB MAIN AS R276 R CARBON FILM RD-AZ102J- 1/6 1K OHM J O O
231 PCB MAIN AS R277~278 R CARBON FILM RD-AZ272J- 1/6 2.7K OHM J O O
232 PCB MAIN AS R400~401 R CARBON FILM RD-AZ105J- 1/6 1M OHM J O O
233 PCB MAIN AS R402~405 R CARBON FILM RD-AZ104J- 1/6 100K OHM J O O
234 PCB MAIN AS R406~407 R CARBON FILM RD-AZ562J- 1/6 5.6K OHM J O O
235 PCB MAIN AS R408~409 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
236 PCB MAIN AS R410 R CARBON FILM RD-AZ221J- 1/6 220 OHM J O O
237 PCB MAIN AS R411 R CARBON FILM RD-AZ102J- 1/6 1K OHM J O O
238 PCB MAIN AS R412~413 R CARBON FILM RD-AZ104J- 1/6 100K OHM J O O
239 PCB MAIN AS R414 R CARBON FILM RD-AZ102J- 1/6 1K OHM J O O
240 PCB MAIN AS R415~416 R CARBON FILM RD-AZ683J- 1/6 68K OHM J O O
241 PCB MAIN AS R430~431 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
242 PCB MAIN AS R432 R CARBON FILM RD-AZ223J- 1/6 22K OHM J O O
243 PCB MAIN AS R433 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
244 PCB MAIN AS R434~437 R CARBON FILM RD-AZ102J- 1/6 1K OHM J O O
245 PCB MAIN AS R438~439 R CARBON FILM RD-AZ104J- 1/6 100K OHM J O O
246 PCB MAIN AS R440~441 R CARBON FILM RD-AZ820J- 1/6 82 OHM J O O
247 PCB MAIN AS R442 R CARBON FILM RD-AZ221J- 1/6 220 OHM J O O
248 PCB MAIN AS R490 R CARBON FILM RD-AZ392J- 1/6 3.9K OHM J O O

729L

829L

- 20 -

Electrical Parts List

MODEL

PART-CODE PART-DESCNO ASS'Y LOCATION PART-NAME

249 PCB MAIN AS R491~492 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
250 PCB MAIN AS R493 R CARBON FILM RD-AZ392J- 1/6 3.9K OHM J O O
251 PCB MAIN AS R600 R CARBON FILM RD-AZ100J- 1/6 10 OHM J O O
252 PCB MAIN AS R601 R CARBON FILM RD-AZ561J- 1/6 560 OHM J O O
253 PCB MAIN AS R602 R CARBON FILM RD-AZ331J- 1/6 330 OHM J O O
254 PCB MAIN AS R603 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J O O
255 PCB MAIN AS R604 R CARBON FILM RD-AZ561J- 1/6 560 OHM J O O
256 PCB MAIN AS R606 R CARBON FILM RD-AZ561J- 1/6 560 OHM J O O
257 PCB MAIN AS R607 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
258 PCB MAIN AS R608 R CARBON FILM RD-AZ104J- 1/6 100K OHM J O O
259 PCB MAIN AS R609 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
260 PCB MAIN AS R610 R CARBON FILM RD-AZ473J- 1/6 47K OHM J O O
261 PCB MAIN AS R611 R CARBON FILM RD-AZ479J- 1/6 4.7 OHM J O O
262 PCB MAIN AS R612 R CARBON FILM RD-AZ101J- 1/6 100 OHM J O O
263 PCB MAIN AS R613~614 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
264 PCB MAIN AS R615 R CARBON FILM RD-AZ333J- 1/6 33K OHM J O O
265 PCB MAIN AS R616 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
266 PCB MAIN AS R617 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J O O
267 PCB MAIN AS R618 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
268 PCB MAIN AS R619 R CARBON FILM RD-AZ102J- 1/6 1K OHM J O O
269 PCB MAIN AS R620 R CARBON FILM RD-AZ101J- 1/6 100 OHM J O O
270 PCB MAIN AS R621 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J O O
271 PCB MAIN AS R622~623 R CARBON FILM RD-AZ184J- 1/6 180K OHM J O O
272 PCB MAIN AS R624 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
273 PCB MAIN AS R625 R CARBON FILM RD-AZ105J- 1/6 1M OHM J O O
274 PCB MAIN AS R626 R CARBON FILM RD-AZ221J- 1/6 220 OHM J O O
275 PCB MAIN AS R627 R CARBON FILM RD-AZ683J- 1/6 68K OHM J O O
276 PCB MAIN AS R628~629 R CARBON FILM RD-AZ823J- 1/6 82K OHM J O O
277 PCB MAIN AS R631 R CARBON FILM RD-AZ102J- 1/6 1K OHM J O O
278 PCB MAIN AS R633~635 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
279 PCB MAIN AS R636 R CARBON FILM RD-AZ105J- 1/6 1M OHM J O O
280 PCB MAIN AS R637 R CARBON FILM RD-AZ271J- 1/6 270 OHM J O O
281 PCB MAIN AS R638~639 R CARBON FILM RD-AZ392J- 1/6 3.9K OHM J O O
282 PCB MAIN AS R640 R CARBON FILM RD-AZ271J- 1/6 270 OHM J O O
283 PCB MAIN AS R641~642 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
284 PCB MAIN AS R643~644 R CARBON FILM RD-AZ184J- 1/6 180K OHM J O O
285 PCB MAIN AS R645 R CARBON FILM RD-AZ183J- 1/6 18K OHM J O O
286 PCB MAIN AS R646 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
287 PCB MAIN AS R647 R CARBON FILM RD-AZ470J- 1/6 47 OHM J O O
288 PCB MAIN AS R648~649 R CARBON FILM RD-AZ334J- 1/6 330K OHM J O O
289 PCB MAIN AS R650~651 R CARBON FILM RD-AZ151J- 1/6 150 OHM J O O
290 PCB MAIN AS R652~653 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
291 PCB MAIN AS R654~655 R CARBON FILM RD-AZ272J- 1/6 2.7K OHM J O O
292 PCB MAIN AS R656 R CARBON FILM RD-AZ102J- 1/6 1K OHM J O O
293 PCB MAIN AS R658 R CARBON FILM RD-AZ102J- 1/6 1K OHM J O O
294 PCB MAIN AS R659~660 R CARBON FILM RD-AZ682J- 1/6 6.8K OHM J O O
295 PCB MAIN AS R662~663 R CARBON FILM RD-AZ683J- 1/6 68K OHM J O O
296 PCB MAIN AS R664~665 R CARBON FILM RD-AZ820J- 1/6 82 OHM J O O
297 PCB MAIN AS R666~669 R CARBON FILM RD-AZ102J- 1/6 1K OHM J O O
298 PCB MAIN AS R670 R CARBON FILM RD-AZ183J- 1/6 18K OHM J O O
299 PCB MAIN AS R671 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
300 PCB MAIN AS R800 R CARBON FILM RD-AZ475J- 1/6 4.7M OHM J O O
301 PCB MAIN AS R801 R CARBON FILM RD-AZ101J- 1/6 100 OHM J O O
302 PCB MAIN AS R802~805 R CARBON FILM RD-AZ100J- 1/6 10 OHM J O O
303 PCB MAIN AS R806 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
304 PCB MAIN AS R808 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
305 PCB MAIN AS R809 WIRE JUMPER W581GY6095 AWG22 1/0.65 SN 6 AUTO O O
306 PCB MAIN AS R810 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
307 PCB MAIN AS R811~812 R CARBON FILM RD-AZ473J- 1/6 47K OHM J O O
308 PCB MAIN AS R813~814 R CARBON FILM RD-AZ681J- 1/6 680 OHM J O O
309 PCB MAIN AS R815~816 R CARBON FILM RD-AZ223J- 1/6 22K OHM J O O
310 PCB MAIN AS R817~818 R CARBON FILM RD-AZ104J- 1/6 100K OHM J O O

729L

829L

- 21 -

Electrical Parts List

MODEL

PART-CODE PART-DESCNO ASS'Y LOCATION PART-NAME

311 PCB MAIN AS R870 R CARBON FILM RD-AZ102J- 1/6 1K OHM J O O
312 PCB MAIN AS R871 R CARBON FILM RD-AZ101J- 1/6 100 OHM J O O
313 PCB MAIN AS R872 R CARBON FILM RD-AZ563J- 1/6 56K OHM J O O
314 PCB MAIN AS R874 R CARBON FILM RD-AZ101J- 1/6 100 OHM J O O
315 PCB MAIN AS R876 R CARBON FILM RD-AZ183J- 1/6 18K OHM J O O
316 PCB MAIN AS R877 R CARBON FILM RD-AZ101J- 1/6 100 OHM J O O
317 PCB MAIN AS R878 R CARBON FILM RD-AZ183J- 1/6 18K OHM J O O
318 PCB MAIN AS R879 R CARBON FILM RD-AZ101J- 1/6 100 OHM J O O
319 PCB MAIN AS R880 R CARBON FILM RD-AZ102J- 1/6 1K OHM J O O
320 PCB MAIN AS R881 R CARBON FILM RD-AZ333J- 1/6 33K OHM J O O
321 PCB MAIN AS R882 R CARBON FILM RD-AZ563J- 1/6 56K OHM J O O
322 PCB MAIN AS R883 R CARBON FILM RD-AZ333J- 1/6 33K OHM J O O
323 PCB MAIN AS R900~901 R CARBON FILM RD-AZ109J- 1/6 1 OHM J O O
324 PCB MAIN AS R902~903 R CARBON FILM RD-AZ221J- 1/6 220 OHM J O O
325 PCB MAIN AS R904 R CARBON FILM RD-4Z271J- 1/4 270 OHM J O O
326 PCB MAIN AS R905 R CARBON FILM RD-AZ562J- 1/6 5.6K OHM J O O
327 PCB MAIN AS R906~908 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
328 PCB MAIN AS R909 R CARBON FILM RD-AZ562J- 1/6 5.6K OHM J O O
329 PCB MAIN AS R910 R CARBON FILM RD-AZ102J- 1/6 1K OHM J O O
330 PCB MAIN AS R911 R CARBON FILM RD-AZ100J- 1/6 10 OHM J O O
331 PCB MAIN AS R912 R CARBON FILM RD-AZ562J- 1/6 5.6K OHM J O O
332 PCB MAIN AS R913 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
333 PCB MAIN AS RV600 R SEMI FIXED RV1417222- 1/10 2.2K OHM B V6EK-PV1S O O
334 PCB MAIN AS RY800 SW RELAY 5SC2001A01 SDT-S-105LMR O O
335 PCB MAIN AS TU001 TUNER PACK 9737613100 FTE4-401T/KST-F401VA-1 O O
336 PCB MAIN AS XC200 C DISCRIMINATOR 5P107MG86C CDA10.7MG86N-C O O
337 PCB MAIN AS XC230 X-TAL 5XA7R20000 7.2M O O
338 PCB MAIN AS XC260 X-TAL 5XA4R332M- 4.332M O O

1 PCB FRONT AS 12000 PCB FRONT AS 9CDC057300 AMI-829LF O O
2 PCB FRONT AS B701 PCB FRONT 9CD6580300 247X139X1.6T O O
3 PCB FRONT AS CC701 C CERA CCXF1H223Z 50V F 0.022MF Z (TAPPING) O O
4 PCB FRONT AS CC702 C CERA CCXF1H104Z 50V F 0.1MF Z O O
5 PCB FRONT AS CC703 C CERA CCXF1H223Z 50V F 0.022MF Z (TAPPING) O O
6 PCB FRONT AS CC704~705 C CERA CCXF1H104Z 50V F 0.1MF Z O O
7 PCB FRONT AS CC709~710 C CERA CZCH1E101J CH 25V 100PF J AXL 52MM O O
8 PCB FRONT AS CC711 C CERA CCXF1H223Z 50V F 0.022MF Z (TAPPING) O O

9 PCB FRONT AS CC712~713 C CERA CCXF1H104Z 50V F 0.1MF Z O O
10 PCB FRONT AS CC714 C CERA CZCH1E150J CH 25V 15PF J (AXIAL) O O
11 PCB FRONT AS CC715 C CERA CZCH1E180J CH 25V 18PF J (AXIAL) O O
12 PCB FRONT AS CC716~717 C CERA CZCH1E330J CH 25V 33PF J AXIAL 52MM O O
13 PCB FRONT AS CC718 C CERA CCXF1H223Z 50V F 0.022MF Z (TAPPING) O O
14 PCB FRONT AS CC719 C CERA CZCH1E330J CH 25V 33PF J AXIAL 52MM O O
15 PCB FRONT AS CC720 C CERA CCXF1H223Z 50V F 0.022MF Z (TAPPING) O O
16 PCB FRONT AS CC721 C CERA CCXF1H104Z 50V F 0.1MF Z O O
17 PCB FRONT AS CC722 C CERA CCXF1H223Z 50V F 0.022MF Z (TAPPING) O O
18 PCB FRONT AS CC723 C CERA CZCH1E101J CH 25V 100PF J AXL 52MM O O
19 PCB FRONT AS CC724 C CERA CCZB1E221K 25V B 220PF K (AXIAL) O O
20 PCB FRONT AS CC725~726 C CERA CCXF1H104Z 50V F 0.1MF Z O O
21 PCB FRONT AS CE701~702 C ELECTRO CEXF1H479V 50V RSS 4.7MF (5X11) TP O O
22 PCB FRONT AS CE703 C ELECTRO CEYF1A102V 10V 1000MF RSS 10X16 O O
23 PCB FRONT AS CE704 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X11) TP O O
24 PCB FRONT AS CE705 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP O O
25 PCB FRONT AS CE706 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP O O
26 PCB FRONT AS CN701 CONN AS 9738833700 #26 8P FLAT 220MM O O
27 PCB FRONT AS CN703 CONN AS 9738834100 #26 13P FLAT 100MM O O
28 PCB FRONT AS CN704 CONN AS 9738834000 #26 2.0PITCH 11P FLAT 150 O O
29 PCB FRONT AS CN707 CONN AS 9728804600 FFC 23P P=1.25 150MM O O
30 PCB FRONT AS CW401 PIN WAFER 9736407700 52084-1310 13P BOTTOM O O
31 PCB FRONT AS CW402 CONN WAFER 9736407900 52084-1010 10P BOTTOM O O
32 PCB FRONT AS CW508 CONN WAFER 9736408300 52492-1920 19P BOTTOM O O
33 PCB FRONT AS CW77A CONN WAFER 9CD6260500 52044-2345 O O
34 PCB FRONT AS CW77B CONN WAFER 9CD6260600 52492-2320 O O

729L

829L

- 22 -

Electrical Parts List

MODEL

PART-CODE PART-DESCNO ASS'Y LOCATION PART-NAME

35 PCB FRONT AS D701~706 DIODE D1N4148--- 1N4148 (TAPPING) O O
36 PCB FRONT AS FD701 VFD DBJ703GNK- BJ703GNK O O
37 PCB FRONT AS IC701 IC 1M24C04--- M24C04-BN6 O O
38 PCB FRONT AS IC702 IC 138199829L MICOM 1M38199-829L O O
39 PCB FRONT AS IC703 IC 1MSGEQ5A-- MSGEQ5A O O
40 PCB FRONT AS IC704 IC 1BU4094BCF BU4094BCF(SOP16) O O
41 PCB FRONT AS IC705 IC PRE AMP 1TM97CT38P LTM97CT-38P O O
42 PCB FRONT AS LD701~702 LED DLTL16KGE- LTL-16KGE(GREEN)PI3.1 O O
43 PCB FRONT AS LD703 LED DLTL16KEE- LTL-16KEE(RED)PI3.1 O O
44 PCB FRONT AS LD704~705 LED DLTL16KGE- LTL-16KGE(GREEN)PI3.1 O O
45 PCB FRONT AS LD706 LED DLTL16KEE- LTL-16KEE(RED)PI3.1 O O
46 PCB FRONT AS LD707~708 LED DLTL16KGE- LTL-16KGE(GREEN)PI3.1 O O
47 PCB FRONT AS LD709 LED DLTL16KEE- LTL-16KEE(RED)PI3.1 O O
48 PCB FRONT AS LD710~711 LED DLTL16KGE- LTL-16KGE(GREEN)PI3.1 O O
49 PCB FRONT AS LD712 LED DLTL16KEE- LTL-16KEE(RED)PI3.1 O O
50 PCB FRONT AS LD713~714 LED DLTL307EE- LTL-307EE(RED)PI5 O O
51 PCB FRONT AS Q701 TR TKRC107M-- KRC107-M TAPPING(KSR1006) O O
52 PCB FRONT AS Q702~703 TR TKRC111M-- KRC111M (KSR1010) O O
53 PCB FRONT AS Q704 TR TZTC3198Y- KTC3198Y-(1815Y) (AUTO) O O
54 PCB FRONT AS Q705 TR TZTA1273Y- KTA1273Y(966Y) O O
55 PCB FRONT AS Q706 TR TKRC107M-- KRC107-M TAPPING(KSR1006) O O
56 PCB FRONT AS Q707 TR TZTA1273Y- KTA1273Y(966Y) O O
57 PCB FRONT AS Q708 TR TKRC107M-- KRC107-M TAPPING(KSR1006) O O
58 PCB FRONT AS Q709 TR TZTA1273Y- KTA1273Y(966Y) O O
59 PCB FRONT AS Q710 TR TKRC107M-- KRC107-M TAPPING(KSR1006) O O
60 PCB FRONT AS Q711 TR TKRA111M-- KRA111-M TAPPING(KSR2010) O O
61 PCB FRONT AS Q712 TR TKRC107M-- KRC107-M TAPPING(KSR1006) O O
62 PCB FRONT AS Q713~716 TR TKRA111M-- KRA111-M TAPPING(KSR2010) O O
63 PCB FRONT AS Q717 TR TKRC107M-- KRC107-M TAPPING(KSR1006) O O
64 PCB FRONT AS R301 R CARBON FILM RD-AZ101J- 1/6 100 OHM J O O
65 PCB FRONT AS R302 R CARBON FILM RD-AZ151J- 1/6 150 OHM J O O
66 PCB FRONT AS R303 R CARBON FILM RD-AZ181J- 1/6 180 OHM J O O
67 PCB FRONT AS R304 R CARBON FILM RD-AZ271J- 1/6 270 OHM J O O
68 PCB FRONT AS R305 R CARBON FILM RD-AZ331J- 1/6 330 OHM J O O
69 PCB FRONT AS R306 R CARBON FILM RD-AZ391J- 1/6 390 OHM J O O
70 PCB FRONT AS R307 R CARBON FILM RD-AZ471J- 1/6 470 OHM J O O
71 PCB FRONT AS R308 R CARBON FILM RD-AZ561J- 1/6 560 OHM J O O
72 PCB FRONT AS R309 R CARBON FILM RD-AZ821J- 1/6 820 OHM J O O
73 PCB FRONT AS R310 R CARBON FILM RD-AZ152J- 1/6 1.5K OHM J O O
74 PCB FRONT AS R311 R CARBON FILM RD-AZ272J- 1/6 2.7K OHM J O O
75 PCB FRONT AS R312 R CARBON FILM RD-AZ682J- 1/6 6.8K OHM J O O
76 PCB FRONT AS R313 R CARBON FILM RD-AZ101J- 1/6 100 OHM J O O
77 PCB FRONT AS R314 R CARBON FILM RD-AZ151J- 1/6 150 OHM J O O
78 PCB FRONT AS R315 R CARBON FILM RD-AZ181J- 1/6 180 OHM J O O
79 PCB FRONT AS R316 R CARBON FILM RD-AZ271J- 1/6 270 OHM J O O
80 PCB FRONT AS R317 R CARBON FILM RD-AZ331J- 1/6 330 OHM J O O
81 PCB FRONT AS R318 R CARBON FILM RD-AZ391J- 1/6 390 OHM J O O
82 PCB FRONT AS R319 R CARBON FILM RD-AZ471J- 1/6 470 OHM J O O
83 PCB FRONT AS R320 R CARBON FILM RD-AZ561J- 1/6 560 OHM J O O
84 PCB FRONT AS R321 R CARBON FILM RD-AZ821J- 1/6 820 OHM J O O
85 PCB FRONT AS R322 R CARBON FILM RD-AZ101J- 1/6 100 OHM J O O
86 PCB FRONT AS R323 R CARBON FILM RD-AZ151J- 1/6 150 OHM J O O
87 PCB FRONT AS R324 R CARBON FILM RD-AZ181J- 1/6 180 OHM J O O
88 PCB FRONT AS R325 R CARBON FILM RD-AZ271J- 1/6 270 OHM J O O
89 PCB FRONT AS R326 R CARBON FILM RD-AZ331J- 1/6 330 OHM J O O
90 PCB FRONT AS R327 R CARBON FILM RD-AZ391J- 1/6 390 OHM J O O
91 PCB FRONT AS R328 R CARBON FILM RD-AZ471J- 1/6 470 OHM J O O
92 PCB FRONT AS R329 R CARBON FILM RD-AZ681J- 1/6 680 OHM J O O
93 PCB FRONT AS R701~704 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
94 PCB FRONT AS R705~707 R CARBON FILM RD-AZ104J- 1/6 100K OHM J O O
95 PCB FRONT AS R708 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
96 PCB FRONT AS R712 R CARBON FILM RD-AZ392J- 1/6 3.9K OHM J O O

729L

829L

- 23 -

Electrical Parts List

MODEL

PART-CODE PART-DESCNO ASS'Y LOCATION PART-NAME

97 PCB FRONT AS R713~714 R CARBON FILM RD-AZ473J- 1/6 47K OHM J O O
98 PCB FRONT AS R715 R CARBON FILM RD-AZ333J- 1/6 33K OHM J O O
99 PCB FRONT AS R716 R CARBON FILM RD-AZ393J- 1/6 39K OHM J O O

100 PCB FRONT AS R717 R CARBON FILM RD-AZ683J- 1/6 68K OHM J O O
101 PCB FRONT AS R718~720 R CARBON FILM RD-AZ152J- 1/6 1.5K OHM J O O
102 PCB FRONT AS R721 R CARBON FILM RD-AZ681J- 1/6 680 OHM J O O
103 PCB FRONT AS R722 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J O O
104 PCB FRONT AS R723~724 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
105 PCB FRONT AS R725 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J O O
106 PCB FRONT AS R726 R CARBON FILM RD-AZ331J- 1/6 330 OHM J O O
107 PCB FRONT AS R727 R CARBON FILM RD-AZ102J- 1/6 1K OHM J O O
108 PCB FRONT AS R728 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
109 PCB FRONT AS R729~730 R CARBON FILM RD-AZ102J- 1/6 1K OHM J O O
110 PCB FRONT AS R731 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
111 PCB FRONT AS R732~733 R CARBON FILM RD-AZ102J- 1/6 1K OHM J O O
112 PCB FRONT AS R734 R CARBON FILM RD-AZ182J- 1/6 1.8K OHM J O O
113 PCB FRONT AS R735 R CARBON FILM RD-AZ102J- 1/6 1K OHM J O O
114 PCB FRONT AS R736 R CARBON FILM RD-4Z689J- 1/4 6.8 OHM J O O
115 PCB FRONT AS R737~738 R CARBON FILM RD-AZ102J- 1/6 1K OHM J O O
116 PCB FRONT AS R739 R CARBON FILM RD-4Z689J- 1/4 6.8 OHM J O O
117 PCB FRONT AS R740~742 R CARBON FILM RD-AZ222J- 1/6 2.2K OHM J O O
118 PCB FRONT AS R743 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J O O
119 PCB FRONT AS R745 R CARBON FILM RD-AZ223J- 1/6 22K OHM J O O
120 PCB FRONT AS R747 R CARBON FILM RD-AZ391J- 1/6 390 OHM J O O
121 PCB FRONT AS R748 R CARBON FILM RD-AZ271J- 1/6 270 OHM J O O
122 PCB FRONT AS R749 R CARBON FILM RD-AZ391J- 1/6 390 OHM J O O
123 PCB FRONT AS R750 R CARBON FILM RD-AZ271J- 1/6 270 OHM J O O
124 PCB FRONT AS R751 R CARBON FILM RD-AZ391J- 1/6 390 OHM J O O
125 PCB FRONT AS R752 R CARBON FILM RD-AZ271J- 1/6 270 OHM J O O
126 PCB FRONT AS R753 R CARBON FILM RD-AZ391J- 1/6 390 OHM J O O
127 PCB FRONT AS R754 R CARBON FILM RD-AZ271J- 1/6 270 OHM J O O
128 PCB FRONT AS R755 R CARBON FILM RD-AZ390J- 1/6 39 OHM J O O
129 PCB FRONT AS R756 R CARBON FILM RD-AZ104J- 1/6 100K OHM J O O
130 PCB FRONT AS R757 R CARBON FILM RD-AZ334J- 1/6 330K OHM J O O
131 PCB FRONT AS R758 R CARBON FILM RD-AZ334J- 1/6 330K OHM J O O
132 PCB FRONT AS R759 R CARBON FILM RD-AZ104J- 1/6 100K OHM J O O
133 PCB FRONT AS R760 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
134 PCB FRONT AS R761 R CARBON FILM RD-AZ106J- 1/6 10M OHM J O O
135 PCB FRONT AS R762 R CARBON FILM RD-AZ334J- 1/6 330K OHM J O O
136 PCB FRONT AS R763 R CARBON FILM RD-AZ101J- 1/6 100 OHM J O O
137 PCB FRONT AS R764 R CARBON FILM RD-AZ100J- 1/6 10 OHM J O O
138 PCB FRONT AS R765 R CARBON FILM RD-AZ184J- 1/6 180K OHM J O O
139 PCB FRONT AS R766 R CARBON FILM RD-AZ102J- 1/6 1K OHM J O O
140 PCB FRONT AS R768~769 R CARBON FILM RD-AZ101J- 1/6 100 OHM J O O
141 PCB FRONT AS R770 R CARBON FILM RD-AZ102J- 1/6 1K OHM J O O
142 PCB FRONT AS R771 R CARBON FILM RD-AZ224J- 1/6 220K OHM J O O
143 PCB FRONT AS R772 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
144 PCB FRONT AS R774 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
145 PCB FRONT AS R775 R CARBON FILM RD-AZ222J- 1/6 2.2K OHM J O O
146 PCB FRONT AS R776 R CARBON FILM RD-AZ101J- 1/6 100 OHM J O O
147 PCB FRONT AS R778 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
148 PCB FRONT AS R779 R CARBON FILM RD-AZ153J- 1/6 15K OHM J O O
149 PCB FRONT AS R780 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
150 PCB FRONT AS R781 R CARBON FILM RD-AZ333J- 1/6 33K OHM J O O
151 PCB FRONT AS R782 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
152 PCB FRONT AS R783 R CARBON FILM RD-AZ333J- 1/6 33K OHM J O O
153 PCB FRONT AS R784~787 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
154 PCB FRONT AS SW701~707 SW TACT 5S50101001 KPT-1105A 1C-1P O O
155 PCB FRONT AS SW709~717 SW TACT 5S50101001 KPT-1105A 1C-1P O O
156 PCB FRONT AS SW719~731 SW TACT 5S50101001 KPT-1105A 1C-1P O O
157 PCB FRONT AS VR701 SW ENCORDER 5SH162401- EC16B24204 24P W/DETENT O O
158 PCB FRONT AS XC701 RESONATOR 5PCSA8MTZ- CSA8MTZ, 8MHZ O O

729L

829L

- 24 -

Electrical Parts List

MODEL

PART-CODE PART-DESCNO ASS'Y LOCATION PART-NAME

159 PCB FRONT AS XC702 X-TAL 5XA32R768- DT-38 32.768KHZ 20PPM O O

1 PCB OPTICAL JACK AS 14000 PCB OPTICAL JACK AS 9CDC050700 AMI-710R0F(OM MECHA) O O

2 PCB OPTICAL JACK AS B001 PCB OPTICAL 9CD6577800 29X21X1.6T O O

3 PCB OPTICAL JACK AS BD501 CORE BEAD 9768602000 H.B-T15X25X13ON O O

4 PCB OPTICAL JACK AS CC561 C CERA CCXF1H104Z 50V F 0.1MF Z O O

5 PCB OPTICAL JACK AS CN510 CONN AS 9738841800 #26 400MM 3P 2.5P O O

6 PCB OPTICAL JACK AS IC507 IC 1T0TX178-- T0TX178 O O

7 PCB OPTICAL JACK AS L502 WIRE JUMPER W581GY6095 AWG22 1/0.65 SN 6 AUTO O O

1 PCB P/T AS 13000 PCB P/T AS 9CDC057400 AMI-829LF O O

2 PCB P/T AS B000 PCB P/T 9CD6580501 108X123X1.6T O O

3 PCB P/T AS CC980 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) O O

4 PCB P/T AS CD900 CORD AC 9736900200 KKP419C,KLCE-2F,0.75SQURE O O

5 PCB P/T AS CE980 C ELECTRO CEYF1E102V 25V RSS 1000MF (13X20) O O

6 PCB P/T AS CW900 CONN WAFER 9728804100 #22 10P P2.5 350 BOARD-IN O O

7 PCB P/T AS D980~985 DIODE D1N4001--- 1N4001 O O

8 PCB P/T AS F981 FUSE GLASS TUBE 5FSGB6312L SEMKO TL 0.63A 250V MF51 O

9 PCB P/T AS F981 FUSE GLASS TUBE 5FSGB1222R 1.25A 250V QCK ACT 179020 O
10 PCB P/T AS FC901~902 CLIP FUSE 9734600700 FC-5N O O
11 PCB P/T AS IC980 IC 1MC78L05-- MC78L05AC O O
12 PCB P/T AS PT980 TRANS POWER 5TP8028829 EI=28X12 230V 50HZ O O
13 PCB P/T AS PT981 TRANS POWER 5TP8066830 EI=66X45 230V 50HZ O
14 PCB P/T AS PT981 TRANS POWER 5TP8074837 EI=74X42 230V 50HZ O
15 PCB P/T AS Q981 TR TZTC3205Y- KTC3205Y (2236Y) O O
16 PCB P/T AS R980 R METAL FILM RN-2Y475J- 1/2 4.7M OHM J O O
17 PCB P/T AS R981 R CARBON FILM RD-4Z101J- 1/4 100 OHM J O O
18 PCB P/T AS R982 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
19 PCB P/T AS R983 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J O O
20 PCB P/T AS RF980 R FUSIBLE RF01F4780J 0.47OHM 1W O O
21 PCB P/T AS RF982~983 R FUSIBLE RF01F4780J 0.47OHM 1W O O
22 PCB P/T AS RY980 SW RELAY 5SC2001A01 SDT-S-105LMR O O
23 PCB P/T AS TP980~981 PIN WRAPPING 9713550400 1.0X2.5X15 O O

1 PCB CD AS 11000 PCB CD AS 9CDC05340D AMI-829LF O O

2 PCB CD AS B501 PCB CD 9CD6579500 197X247X1.6T O O

3 PCB CD AS CC500 C CERA CXCH1H309C 50V CH 3PF C O O

4 PCB CD AS CC501 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) O O

5 PCB CD AS CC502 C CERA CCXF1H223Z 50V F 0.022MF Z (TAPPING) O O

6 PCB CD AS CC503 C CERA CCXB1H102K 50V B 1000PF K (TAPPING) O O

7 PCB CD AS CC504~505 C CERA CXCH1H330J 50V CH 33PF J (TAPPING) O O

8 PCB CD AS CC506 C CERA CCXF1H223Z 50V F 0.022MF Z (TAPPING) O O

9 PCB CD AS CC508 C CERA CXCH1H330J 50V CH 33PF J (TAPPING) O O
10 PCB CD AS CC509 C CERA CCXB1H102K 50V B 1000PF K (TAPPING) O O
11 PCB CD AS CC511 C CERA CCXF1H223Z 50V F 0.022MF Z (TAPPING) O O
12 PCB CD AS CC512 C CERA CCXB1H151K 50V B 150PF K (TAPPING) O O
13 PCB CD AS CC513 C CERA CCXB1H331K 50V B 330PF K (TAPPING) O O
14 PCB CD AS CC514 C CERA CCXB1H151K 50V B 150PF K (TAPPING) O O
15 PCB CD AS CC515 C CERA CCXB1H331K 50V B 330PF K (TAPPING) O O
16 PCB CD AS CC516 C CERA CXCH1H101J 50V CH 100PF J (TAPPING) O O
17 PCB CD AS CC517~526 C CERA CCXF1H104Z 50V F 0.1MF Z O O
18 PCB CD AS CC527~528 C CERA CCXB1H222K 50V B 2200PF K (TAPPING) O O
19 PCB CD AS CE501 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP O O
20 PCB CD AS CE502 C ELECTRO CEYF1C102V 16V RSS 1000MF (10X20) O O
21 PCB CD AS CE503~505 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X11) TP O O
22 PCB CD AS CE506 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP O O
23 PCB CD AS CE507 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X11) TP O O
24 PCB CD AS CE508~509 C ELECTRO CEXF1H478V 50V RSS 0.47MF (5X11) TP O O
25 PCB CD AS CE510 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP O O
26 PCB CD AS CE511 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP O O
27 PCB CD AS CE512 C ELECTRO CEXF1H338V 50V RSS 0.33MF (5X11) TP O O
28 PCB CD AS CE513~514 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X11) TP O O
29 PCB CD AS CE515 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP O O
30 PCB CD AS CE516 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X11) TP O O
31 PCB CD AS CE517 C ELECTRO CEXF1H479V 50V RSS 4.7MF (5X11) TP O O

729L

829L

- 25 -

Electrical Parts List

MODEL

PART-CODE PART-DESCNO ASS'Y LOCATION PART-NAME

32 PCB CD AS CE518 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP O O
33 PCB CD AS CE519~520 C ELECTRO CEXF1H479V 50V RSS 4.7MF (5X11) TP O O
34 PCB CD AS CE521 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X11) TP O O
35 PCB CD AS CE522~523 C ELECTRO CEXF1H479V 50V RSS 4.7MF (5X11) TP O O
36 PCB CD AS CE524~525 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X11) TP O O
37 PCB CD AS CM501 C MYLAR CMXM1H473J 50V 0.047MF J O O
38 PCB CD AS CM502 C MYLAR CMXM1H103J 50V 0.01MF J (TP) O O
39 PCB CD AS CM503~504 C MYLAR CMXM1H104J 50V 0.1MF J O O
40 PCB CD AS CM505~506 C MYLAR CMXM1H103J 50V 0.01MF J (TP) O O
41 PCB CD AS CM507 C MYLAR CMXM1H333J 50V 0.033MF J (TP) O O
42 PCB CD AS CM508~509 C MYLAR CMXM1H472J 50V 0.0047MF J O O
43 PCB CD AS CM510 C MYLAR CMXM1H103J 50V 0.01MF J (TP) O O
44 PCB CD AS CM511 C MYLAR CMXM1H104J 50V 0.1MF J O O
45 PCB CD AS CM512 C MYLAR CMXM1H222J 50V 2200PF J O O
46 PCB CD AS CM513~514 C MYLAR CMXM1H104J 50V 0.1MF J O O
47 PCB CD AS CM515 C MYLAR CMXM1H333J 50V 0.033MF J (TP) O O
48 PCB CD AS CM516 C MYLAR CMXM1H472J 50V 0.0047MF J O O
49 PCB CD AS CM517 C MYLAR CMXM1H103J 50V 0.01MF J (TP) O O
50 PCB CD AS CM518 C MYLAR CMXM1H152J 50V 1500PF J O O
51 PCB CD AS CM519 C MYLAR CMXM1H103J 50V 0.01MF J (TP) O O
52 PCB CD AS CM520 C MYLAR CMXM1H333J 50V 0.033MF J (TP) O O
53 PCB CD AS CM521 C MYLAR CMXM1H103J 50V 0.01MF J (TP) O O
54 PCB CD AS CM522 C MYLAR CMXM1H333J 50V 0.033MF J (TP) O O
55 PCB CD AS CM523 C MYLAR CMXM1H152J 50V 1500PF J O O
56 PCB CD AS CM525 C MYLAR CMXM1H152J 50V 1500PF J O O
57 PCB CD AS CN501 CONN AS 9738840800 FFC 16P P1.0X250MM R O O
58 PCB CD AS CN508 CONN AS 9738840900 FFC 19P P1.25X110MM K O O
59 PCB CD AS CN509 CONN AS 9738832101 8P 250 P=2.5 BOARDIN O O
60 PCB CD AS CW501 CONN WAFER 9CD6259300 52807-1610 O O
61 PCB CD AS CW502 CONN WAFER 9CD6259600 2503-WS-2P O O
62 PCB CD AS CW507 CONN WAFER 9CD6259400 2001-WS-12P O O
63 PCB CD AS CW508 CONN WAFER 9736408400 52045-1945 19P O O
64 PCB CD AS CW510 CONN AS 9738841800 #26 400MM 3P 2.5P O O
65 PCB CD AS D501 DIODE DZN4148--- 1N4148 AUTO 52MM O O
66 PCB CD AS DZ501~502 DIODE ZENER DZTZ5R6A-- MTZ-5.6 52MM TAPPING O O
67 PCB CD AS DZ503 DIODE ZENER DZTZ3R9B-- MTZ3.9B O O
68 PCB CD AS DZ504 DIODE ZENER DZTZ5R6A-- MTZ-5.6 52MM TAPPING O O
69 PCB CD AS IC501 IC CHIP DSP 1KS9286B-- KS9286B DSP+DAC O O
70 PCB CD AS IC502 IC CHIP RF 1KB9223--- KB9223 RF+SSP+AF O O
71 PCB CD AS IC503 IC CHIP 1KA9258D-- KA9258D O O
72 PCB CD AS IC504~505 IC 1DBL2084-- DBL2084(D/W) O O
73 PCB CD AS JW540 R CARBON FILM RD-AZ102J- 1/6 1K OHM J O O
74 PCB CD AS JW543 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J O O
75 PCB CD AS L501~502 COIL PEAKING 5CPZ101K02 100UH K (AXIAL 3.5MM) O O
76 PCB CD AS Q501 TR TZTC3198Y- KTC3198Y-(1815Y) (AUTO) O O
77 PCB CD AS Q502 TR TKSC2331Y- KSC2331Y O O
78 PCB CD AS Q503~504 TR TKSA928AY- KSA928A-Y O O
79 PCB CD AS R501 R CARBON FILM RD-AZ100J- 1/6 10 OHM J O O
80 PCB CD AS R502 R CARBON FILM RD-AZ561J- 1/6 560 OHM J O O
81 PCB CD AS R503 R CARBON FILM RD-AZ121J- 1/6 120 OHM J O O
82 PCB CD AS R504 R CARBON FILM RD-AZ102J- 1/6 1K OHM J O O
83 PCB CD AS R505~506 R CARBON FILM RD-AZ332J- 1/6 3.3K OHM J O O
84 PCB CD AS R507 R CARBON FILM RD-AZ273J- 1/6 27K OHM J O O
85 PCB CD AS R508 R CARBON FILM RD-AZ105J- 1/6 1M OHM J O O
86 PCB CD AS R509 R CARBON FILM RD-AZ822J- 1/6 8.2K OHM J O O
87 PCB CD AS R510 R CARBON FILM RD-AZ154J- 1/6 150K OHM J O O
88 PCB CD AS R511 R CARBON FILM RD-AZ104J- 1/6 100K OHM J O O
89 PCB CD AS R512 WIRE JUMPER W581GY6095 AWG22 1/0.65 SN 6 AUTO O O
90 PCB CD AS R513 R CARBON FILM RD-AZ123J- 1/6 12K OHM J O O
91 PCB CD AS R514 R CARBON FILM RD-AZ124J- 1/6 120K OHM J O O
92 PCB CD AS R515 R CARBON FILM RD-AZ473J- 1/6 47K OHM J O O
93 PCB CD AS R516 R CARBON FILM RD-AZ683J- 1/6 68K OHM J O O

729L

829L

- 26 -

Electrical Parts List

MODEL

PART-CODE PART-DESCNO ASS'Y LOCATION PART-NAME

94 PCB CD AS R517 R CARBON FILM RD-AZ153J- 1/6 15K OHM J O O
95 PCB CD AS R518 R CARBON FILM RD-AZ683J- 1/6 68K OHM J O O
96 PCB CD AS R519 R CARBON FILM RD-AZ563J- 1/6 56K OHM J O O
97 PCB CD AS R520 R CARBON FILM RD-AZ823J- 1/6 82K OHM J O O
98 PCB CD AS R521 R CARBON FILM RD-AZ393J- 1/6 39K OHM J O O
99 PCB CD AS R522 R CARBON FILM RD-AZ474J- 1/6 470K OHM J O O

100 PCB CD AS R523 R CARBON FILM RD-AZ102J- 1/6 1K OHM J O O
101 PCB CD AS R524 R CARBON FILM RD-AZ104J- 1/6 100K OHM J O O
102 PCB CD AS R525 R CARBON FILM RD-AZ154J- 1/6 150K OHM J O O
103 PCB CD AS R526 R CARBON FILM RD-AZ153J- 1/6 15K OHM J O O
104 PCB CD AS R527 R CARBON FILM RD-AZ682J- 1/6 6.8K OHM J O O
105 PCB CD AS R528 R CARBON FILM RD-AZ220J- 1/6 22 OHM J O O
106 PCB CD AS R529 R CARBON FILM RD-AZ124J- 1/6 120K OHM J O O
107 PCB CD AS R530~533 R CARBON FILM RD-AZ683J- 1/6 68K OHM J O O
108 PCB CD AS R534 R CARBON FILM RD-AZ124J- 1/6 120K OHM J O O
109 PCB CD AS R536~537 R CARBON FILM RD-AZ123J- 1/6 12K OHM J O O
110 PCB CD AS R538 R CARBON FILM RD-AZ824J- 1/6 820K OHM J O O
111 PCB CD AS R539 R CARBON FILM RD-AZ474J- 1/6 470K OHM J O O
112 PCB CD AS R540 R CARBON FILM RD-AZ273J- 1/6 27K OHM J O O
113 PCB CD AS R541~543 R CARBON FILM RD-AZ562J- 1/6 5.6K OHM J O O
114 PCB CD AS R544 R CARBON FILM RD-AZ273J- 1/6 27K OHM J O O
115 PCB CD AS R546~548 R CARBON FILM RD-AZ562J- 1/6 5.6K OHM J O O
116 PCB CD AS R549 R CARBON FILM RD-AZ273J- 1/6 27K OHM J O O
117 PCB CD AS R550 R CARBON FILM RD-AZ273J- 1/6 27K OHM J O O
118 PCB CD AS R551 R CARBON FILM RD-AZ184J- 1/6 180K OHM J O O
119 PCB CD AS R552 R CARBON FILM RD-2Y229J- 1/2 2.2 OHM J O O
120 PCB CD AS R554~555 R CARBON FILM RD-4Z100J- 1/4 10 OHM J O O
121 PCB CD AS R556~561 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J O O
122 PCB CD AS R562 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
123 PCB CD AS R563~566 R CARBON FILM RD-AZ104J- 1/6 100K OHM J O O
124 PCB CD AS R567 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J O O
125 PCB CD AS R568 R CARBON FILM RD-AZ221J- 1/6 220 OHM J O O
126 PCB CD AS R569 R CARBON FILM RD-AZ102J- 1/6 1K OHM J O O
127 PCB CD AS R574 WIRE JUMPER W581GY6095 AWG22 1/0.65 SN 6 AUTO O O
128 PCB CD AS R575 R CARBON FILM RD-AZ104J- 1/6 100K OHM J O O
129 PCB CD AS R576 R CARBON FILM RD-AZ103J- 1/6 10K OHM J O O
130 PCB CD AS XC501 RESONATOR CERA 5PCSA16R93 CSA16.93MXZ04 O O

729L

829L

- 27 -
