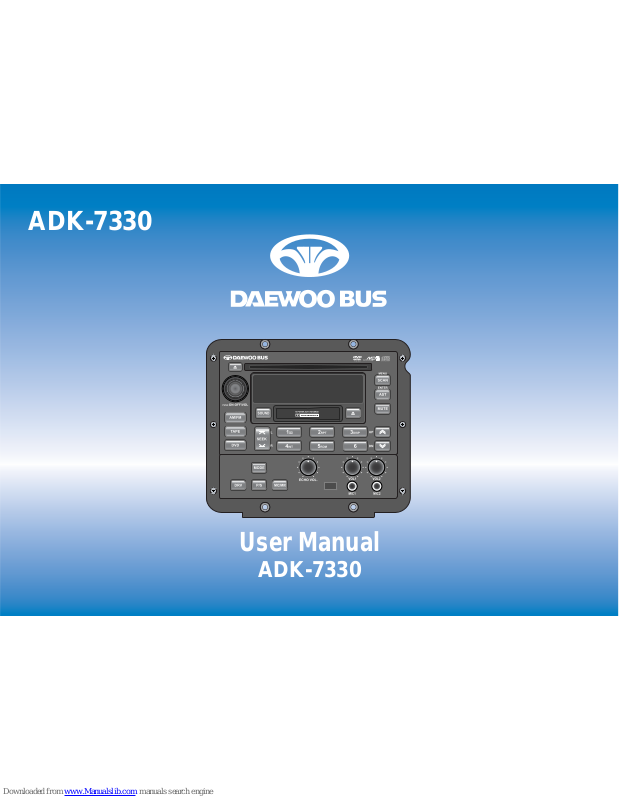

DAEWOO ADK-7330 User Manual

ADK-7330

User Manual

ADK-7330

User Manual

ADK-7330

●

Please read these instructions carefully before using this product and save
this manual for future use.

●

The illustrations used in this manual are for you convenience only, and may
be different from actual objects.

Contents

1

ADK-7330

Precautions

Safety information

...................................................................

2

Handling precautions for safety

..............................................

3

Location of controls

Front view

...............................................................................

4

Remote control for DVD/Video CD player only

.......................

6

Display window

.......................................................................

7

Getting started

Turn on/off the unit, Setting the sound

....................................

8

Muting the sound quickly

........................................................

9

Adjusting volume directly

........................................................

9

Radio

Tuning in a station

.................................................................

10

Storing a station manually

.....................................................

10

Storing stations automatically

...............................................

11

Listening to a preset station

..................................................

11

Cassette player

Before cassette playback

......................................................

12

Listening to a tape

.................................................................

12

Stopping and ejecting a tape

................................................

12

Fast-winding the tape

............................................................

13

Controlling the playback

........................................................

13

For Dolby B noise reduction tape

..........................................

13

MP3/Audio CD player

Before MP3/Audio CD disc playback

....................................

14

Loading a disc and starting playback

....................................

14

Stopping and ejecting a disc

.................................................

14

Changing the display items

...................................................

15

Controlling the playback

........................................................

15

Selecting the playback modes

..............................................

16

About CD-R/CD-RW

.............................................................

16

About MP3

............................................................................

17

DVD/Video CD player

Before DVD/Video CD disc playback

....................................

18

Playing DVD/Video disc

........................................................

19

Controlling the playback

........................................................

19

Stopping playback and ejecting a disc

..................................

19

Viewing the playback informations

........................................

20

Switching the Sound Track/Subtitle

......................................

20

Changing the playback modes

..............................................

20

Switching the Angle (DVD only)

............................................

21

Playing a DivX Movie file

......................................................

21

DVD Setup Operation - using remote control only

................

22

Setting the language

.............................................................

22

Setting the Display, Setting the Audio

..................................

23

Setting the Speakers

.............................................................

24

Setting the Rating Level (Parental Lock)

..............................

24

A/V Controller

Location of controls

...............................................................

25

Selecting the External input mode

........................................

26

Using the External microphone

.............................................

26

Auto Announcement System for guidance

Location of controls

..............................................................

27

Announcement for guidance automatically

..........................

28

Announcement for guidance manually

.................................

28

Passenger Earphone controller

Location of controls, Usage

................................................

29

Troubleshooting

Common, Radio

.....................................................................

30

Cassette

................................................................................

31

MP3/CD Player

.....................................................................

32

DVD/Video CD player, Remote control unit

..........................

33

Specifications

General section, AM/FM Radio section

................................

34

Cassette section

...................................................................

34

CD section, DVD/Video CD section

.....................................

35

Service Information

Customer nter-active Center Numbers

.................................

36

2

ADK-7330

Precautions

▶ Safety information

This equipment has been tested and found to comply with
the limits for a Class 1 laser product, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio reception, which can be determined
by turning the equipment off or on, the user is encouraged
to consult the dealer or an experienced radio technician for
help.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS PRODUCT TO RAIN OR
MOISTURE.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
AND ANNOYING INTERFERENCE, USE ONLY THE
INCLUDED COMPONENTS.

CAUTION:

THIS PRODUCT IS A CLASS 1 LASER PRODUCT.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR BY
YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.

Part 15 of the FCC Rules

FCC Warning:

Any unauthorized changes or modifications to this
equipment would void the user’s authority to operate this
device.

3

ADK-7330

Precautions

◆

This unit is designed for DC 24V negative-ground vehicles

only. Do not use a non-standard power supply.

◆

Do not use gasoline, thinner, benzene, organic solvent,
etc., to clean the unit.

◆

Do not press function buttons forcibly.
By pressing lightly, damage can be avoided.

▶ Safety Information

▶

Handling precautions for safety

When Driving

Keep the volume level low enough to be aware of road and
traffic conditions.

When Washing Your Car

Do not expose the product, including the speakers and
CDs, to water or excessive moisture. This could cause
electrical shorts, fire, or other damage.

When Parked

Parking in direct sunlight can produce very high
temperatures inside your car. Give the interior a chance to
cool down before switching the unit on.

Use the Proper Power Supply

This product is designed to operate with a 24 V DC,
negative-ground battery system.

Disc Mechanism

Do not insert coins or other small objects.
Keep screwdrivers and other metallic objects away from
the disc mechanism and disc.

Use Authorized Service Centres

This product is made of precision parts. Do not attempt to
disassemble or adjust any parts. Please refer to the
Service Centre list included with this product for service
assistance.

For Installation

This product should be installed in a horizontal position
with the front end up at a convenient angle, but not more
than 30°.

Note:

- The preset memory is cleared to return to the original factory setting
when the power connector or battery is disconnected.

4

ADK-7330

4

2
3

1

5
6

7

8

9

10 11

14

13

12

16

15

Location of controls

▶

Front view

1. Disc slot

Insert the disc, playback starts.

2. Disc eject ( ) button

To eject the disc.

3. Display window

4. POWER button with VOLUME dial

Press to: turn on the power or mute
Press and hold : turn off the power
Rotate to: adjust the volume or value

5. Cassette slot

Insert the tape, playback starts.

6. Sound button

To select various sound quality controls.

7. AM/FM button

To turn on the AM or FM radio.

8. TAPE button

To turn on the Cassette tape.

9. DVD button

To turn on the CD/MP3 player.

10. SEEK buttons

To skip a tracks/fast-forward, reverse a track, find
a station manually/select a setting.

5

ADK-7330

11. Number 1 ~ 6 buttons

- During the Radio function

1 ~ 6 To store a stations or to receive stored stations

- During the Cassette function

1 : Dolby noise reduction on/off
2 RPT : Repeat playback

- During the MP3/CD/DVD function

2 RPT : Repeat playback
3 DISP : to change the display mode(press)
4 INT : Intro playback
5 RDM : Random playback

12. SCAN button

To scan the stations automatically.

13. AST button

To scan the stations and store to each preset buttons
automatically.

14. MUTE button

Turn on/off the mute.

15. Tape Eject ( ) button

To eject the tape.

16. Tune Up/Down(

/

) buttons

To find a station manually, Fast-winding MP3/CD/DVD
tacks, titles or chapters.

▶

Front view

Location of controls

Location of controls

6

ADK-7330

▶

Remote control for DVD/Video CD player only

1. POWER button

Turns the power ON and OFF.

2. MUTE button

Turns the mute ON and OFF.

3 ~ 5. Function buttons

Selects the each function.
DVD/CD/CD Changer(Optional)

6. SETUP button

DVD SETUP list display appears.

7. TITLE button

DVD mode: Shows the Title display.

8. MENU button

DVD : Shows the menu display.
Video CD : PBC ON/OFF (Video CD with

PBC function)

9. SUB.T button

DVD : Switches the subtitle.

10. ANGLE button

DVD : Switches the angle of the picture.

11. SEL/EQ button

Selects item or switches the Equalizer.

12. AUDIO button

DVD/Video CD mode: Switches audio.

13. Direction(

▲▲▼▼◀◀▶▶

) buttons

Selects an item displayed in the screen.

14. OK button

Enters the selected item.

15. ZOOM button

DVD : Enlarges video image.

16. VOL(

∧∧∨∨

) button

Increase or decreases the volume level.

17. TRACK(

∧∧∨∨

) button

Move to the desired position on the disc.

18. Numeric Keypad (0 ~ 9)

Inputs numbers.

19. RETURN button

DVD/Video CD (PBC ON) mode: Returns
to the previous display. (Does not return in
some discs.)

20. CLEAR button

Removes numbers (one character at a
time) that have been selected and input.

7

ADK-7330

10

9

21 4 5 6 7

11

3 8

▶

Display window

Location of controls

1. Disc load/playback indicator

2. Cassette indicator

3. Tape Direction indicator

4. Weak FM station indicator

5. Dolby noise reduction indicator

6. FM Stereo indicator
ST lights when a stereo broadcast is received.

7. Playback mode indicator

8. Equalizer indicator
[EQ] OFF / CLASSIC / POP / ROCK / JAZZ / VOICE

9. MP3 indicator

10. Function Mode indicator
TAPE, CD, DVD, AM/FM or Preset channel number

11. Multi-function display area

8

ADK-7330

Getting started

▶

Setting the sound

▶

Turn on/off the unit

2 Press Power/Volume(ON-OFF/VOL) to turn

on the unit.

- If the source is ready, playback also starts.

- If you turn off the power while listening to a disc,
disc play will start from where playback has been
stopped previously.

- By pressing AM/FM, you can also turn on the radio
directly.

- If you turned off the power while listening to the
radio, the same radio station will be selected.

3 Press and hold Power/Volume(ON-OFF/VOL)

to turn off the unit.

- If you turned off the power while listening to a disc
or tape, disc or tape play will start from where
playback was stopped previously.

- If you turned off the power while listening to the
radio, the same radio station will be selected.

1 Press SOUND repeatedly to select sound

setting mode.

◆

You can adjust the bass, middle, treble, fader, balance, equalizer and

volume level.

1 Turn your car’s ignition key to ACC or ON

position.

The clock is displayed.

2 Rotate Power/Volume(ON-OFF/VOL) to

adjust each level or balance.

- BAS(Bass): adjust the bass sound level (-5 to +5).

- MID(Middle): adjust the middle sound level (-5 to +5).

- TRE (Treble): adjust the treble sound level (-5 to +5).

- FAD (Fader): adjust the sound fade between the front and
rear speakers (F15 to R15).

- BAL (Balance): adjust the sound balance between the right
and left speakers (L15 to R15).

- EQ (Equalizer): select an equalizer effect (EQ OFF,
CLASSIC, DANCE, ROCK, JAZZ, POP, VOICE,
TECHNO).
To cancel the equalizing effect, select “EQ OFF”.

- VOL (Volume): adjust the volume level (0 to 41).

9

ADK-7330

Getting started

▶

Adjusting volume directly

1 Rotate Power/Volume(ON-OFF/VOL) to

increase or to decrease the volume level.

The display will show the volume level (0 to 41).

1 Press MUTE to set mute on.

The display will show “MUTE”.
To restore the sound, press MUTE again.

▶

Muting the sound quickly
