DDU4C
Doc #97034 DATA DELAY DEVICES, INC. 1
12/10/97 3 Mt. Prospect Ave. Clifton, NJ 07013
5-TAP, HCMOS-INTERFACED
FIXED DELAY LINE
(SERIES DDU4C)
FEATURES PACKAGES
• Five equally spaced outputs
• Fits standard 8-pin DIP socket
• Low profile
• Auto-insertable
• Input & outputs fully CMOS interfaced & buffered
• 10 T2L fan-out capability
FUNCTIONAL DESCRIPTION
The DDU4C-series device is a 5-tap digitally buffered delay line. The
signal input (IN) is reproduced at the outputs (T1-T5), shifted in time by an
amount determined by the device dash number (See Table). The total
delay of the line is measured from IN to T5. The nominal tap-to-tap delay
increment is given by one-fifth of the total delay.
SERIES SPECIFICATIONS
• Minimum input pulse width: 20% of total delay
• Output rise time: 8ns typical
• Supply voltage: 5VDC ± 5%
• Supply current: I
CCL
= 40µa typical
I
CCH
= 10ma typical
• Operating temperature: 0° to 70° C
• Temp. coefficient of total delay: 300 PPM/°C
20% 20% 20% 20% 20%
VDD GNDIN T1 T2 T3 T4 T5
DDU4C Functional diagram
1997 Data Delay Devices
data
delay
devices,
inc.
3
1
2
3
4
5
6
7
14
13
12
11
10
9
8
IN
N/C
N/C
T2
N/C
T4
GND
VDD
N/C
T1
N/C
T3
N/C
T5
14
12
10
8
1
4
6
7
IN
T2
T4
GND
VCC
T1
T3
T5
DIP
DDU4C-xx Comm.
DDU4C-xxM Military
SMD
DDU4C-xxA2 Comm.
DDU4C-xxB2 Comm.
DDU4C-xxMC2 Military
PIN DESCRIPTIONS
IN Signal Input
T1-T5 Tap Outputs
VDD +5 Volts
GND Ground
DASH NUMBER SPECIFICATIONS
Part
Number
Total
Delay (ns)
Delay Per
Tap (ns)
DDU4C-5050
50 ± 2.5 10.0 ± 3.0
DDU4C-5060
60 ± 3.0 12.0 ± 3.0
DDU4C-5075
75 ± 4.0 15.0 ± 3.0
DDU4C-5100
100 ± 5.0 20.0 ± 3.0
DDU4C-5125
125 ± 6.5 25.0 ± 3.0
DDU4C-5150
150 ± 7.5 30.0 ± 3.0
DDU4C-5200
200 ± 10.0 40.0 ± 4.0
DDU4C-5250
250 ± 12.5 50.0 ± 5.0
DDU4C-5300
300 ± 15.0 60.0 ± 6.0
DDU4C-5400
400 ± 20.0 80.0 ± 8.0
DDU4C-5500
500 ± 25.0 100.0 ± 10.0
NOTE: Any dash number between 5050 and 5500
not shown is also available.
DDU4C
Doc #97034 DATA DELAY DEVICES, INC. 2
12/10/97 Tel: 973-773-2299 Fax: 973-773-9672 http://www.datadelay.com
APPLICATION NOTES
HIGH FREQUENCY RESPONSE
The DDU4C tolerances are guaranteed for input
pulse widths and periods greater than those
specified in the test conditions. Although the
device will function properly for pulse widths as
small as 20% of the total delay and periods as
small as 40% of the total delay (for a symmetric
input), the delays may deviate from their values at
low frequency. However, for a given input
condition, the deviation will be repeatable from
pulse to pulse. Contact technical support at Data
Delay Devices if your application requires device
testing at a specific input condition.
POWER SUPPLY BYPASSING
The DDU4C relies on a stable power supply to
produce repeatable delays within the stated
tolerances. A 0.1uf capacitor from VDD to GND,
located as close as possible to the VDD pin, is
recommended. A wide VDD trace and a clean
ground plane should be used.
DEVICE SPECIFICATIONS
TABLE 1: ABSOLUTE MAXIMUM RATINGS
PARAMETER SYMBOL MIN MAX UNITS NOTES
DC Supply Voltage V
DD
-0.3 7.0 V
Input Pin Voltage V
IN
-0.3 VDD+0.3 V
Storage Temperature T
STRG
-55 150 C
Lead Temperature T
LEAD
300 C 10 sec
TABLE 2: DC ELECTRICAL CHARACTERISTICS
(0C to 70C, 4.75V to 5.25V)
PARAMETER SYMBOL MIN TYP MAX UNITS NOTES
High Level Output Voltage V
OH
3.98 4.4 V VDD = 5.0, IOH = MAX
VIH = MIN, VIL = MAX
Low Level Output Voltage V
OL
0.15 0.26 V VDD = 5.0, IOL = MAX
VIH = MIN, VIL = MAX
High Level Output Current I
OH
-4.0 mA
Low Level Output Current I
OL
4.0 mA
High Level Input Voltage V
IH
3.15 V
Low Level Input Voltage V
IL
1.35 V
Input Current I
IH
0.10
µA
VDD = 5.0
DDU4C
Doc #97034 DATA DELAY DEVICES, INC. 3
12/10/97 3 Mt. Prospect Ave. Clifton, NJ 07013
PACKAGE DIMENSIONS
DDU4C-xx (Commercial DIP)
.780 MAX.
1 4 6 7
814 12 10
.290
MAX.
.015 TYP.
.070 MAX.
.018
TYP.
.600±.010
.280
MAX.
.350
MAX.
.010±.002
Lead Material:
Nickel-Iron alloy 42
TIN PLATE
DDU4C-xxM (Military DIP)
.130
±
.030
.820 MAX.
1 4 6 7
814 12 10
.320
MAX.
.018 TYP.
.410
TYP.
.300
TYP.
.020 TYP.
.600 TYP.
.020
TYP.
.100
TYP.
DDU4C-xxA2 (Commercial Gull-Wing)
.790 MAX.
.430
TYP.
.020 TYP. .040
TYP.
.100.090
.600
.300
MAX.
.270
TYP.
.010 TYP.
.050
TYP.
1 2 3 4 5 6 7
891011121314
DDU4C-xxB2 (Commercial J-Lead)
.790 MAX.
1 2 3 4 5 6 7
8
.320
TYP.
.020 TYP.
.040
TYP.
.100.110
.600
.350
MAX.
.270
TYP.
.050 TYP.
.110
TYP.
91011121314
DDU4C-xxMC2 (Military SMD)
.780±.020
.882
±
.005
1 2 3 4 5 6 7
8
.020 TYP. .040
TYP.
.100.090
.600
.320
MAX.
.590
MAX.
.010±.002
.050
±
.010
.710
±
.005
.007
±
.005
91011121314
DDU4C
Doc #97034 DATA DELAY DEVICES, INC. 4
12/10/97 Tel: 973-773-2299 Fax: 973-773-9672 http://www.datadelay.com
DELAY LINE AUTOMATED TESTING
TEST CONDITIONS
INPUT: OUTPUT:
Ambient Temperature: 25oC ± 3oC Load: 1 FAST-TTL Gate
Supply Voltage (VDD): 5.0V ± 0.1V C
load
: 5pf ± 10%
Input Pulse: High = 5.0V ± 0.1V Threshold: 2.5V (Rising & Falling)
Low = 0.0V ± 0.1V
Source Impedance: 50Ω Max.
Rise/Fall Time: 5.0 ns Max. (measured
between 0.5V and 4.5V )
Pulse Width: PWIN = 1.5 x Total Delay
Period: PERIN = 10 x Total Delay
NOTE: The above conditions are for test only and do not in any way restrict the operation of the device.

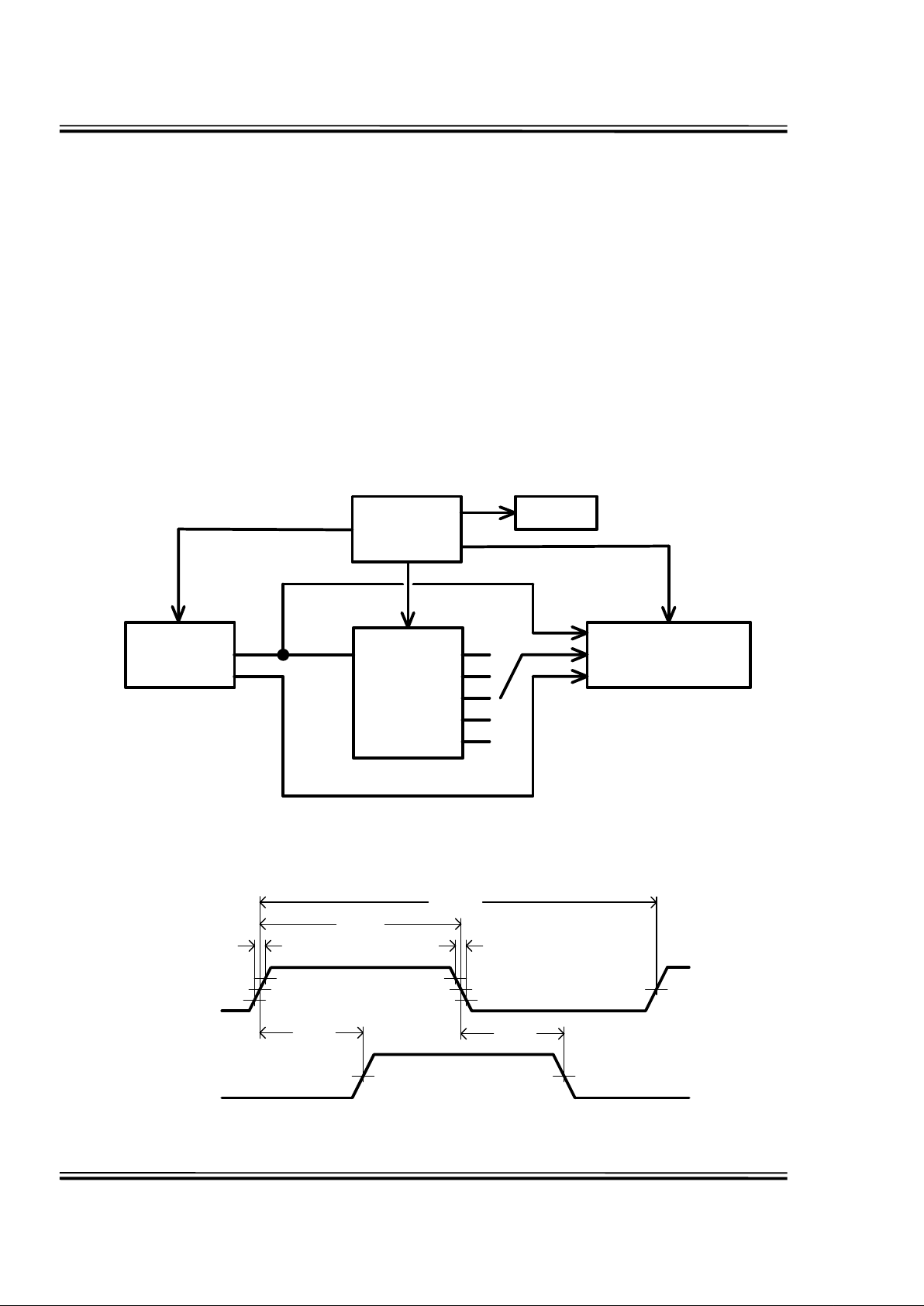

T1OUT
TRIG
IN
REF
TRIG
Test Setup
DEVICE UNDER
TEST (DUT)
TIME INTERVAL
COUNTER
PULSE
GENERATOR
COMPUTER
SYSTEM
PRINTER
IN
T2
T3
T4
T5
0.5V0.5V
Timing Diagram For Testing
T
RISE
T
FALL
PER
IN
PW
IN
T
RISE
T
FALL
2.5V2.5V
4.5V 4.5V
2.5V2.5V
V
IH
V
IL
V
OH
V
OL
INPUT
SIGNAL
OUTPUT
SIGNAL
