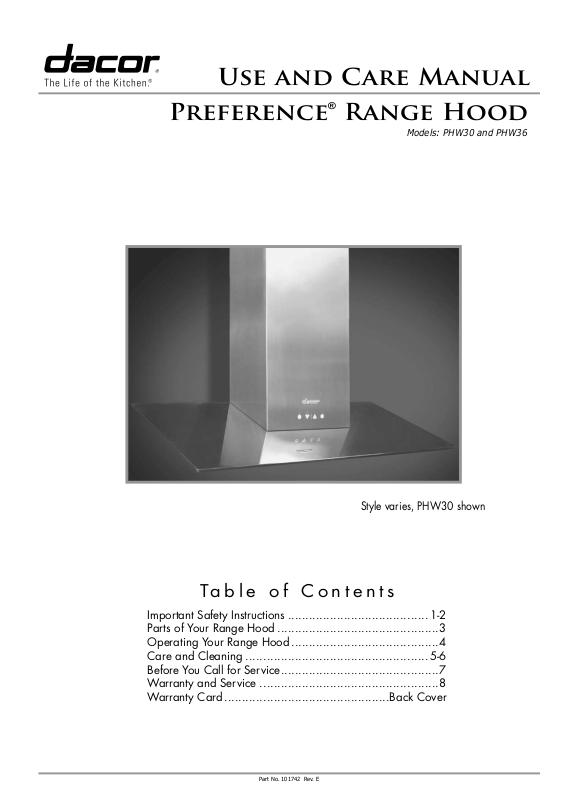

Use and Care Manual
Preference
®
Range Hood
Models: PHW30 and PHW36
Style varies, PHW30 shown
Table of Contents
Important Safety Instructions ........................................ 1-2
Parts of Your Range Hood ..............................................3
Operating Your Range Hood ..........................................4
Care and Cleaning .................................................... 5-6
Before You Call for Service .............................................7
Warranty and Service ...................................................8
Warranty Card ...............................................Back Cover
Part No. 101742 Rev. E
© 2007 Dacor, all rights reserved.
Important Safety Instructions
INSTALLER: LEAVE THESE INSTRUCTIONS WITH THE
APPLIANCE.
CUSTOMER: READ THIS USE AND CARE MANUAL COMPLETELY BEFORE USING THIS RANGE HOOD. SAVE IT FOR
FUTURE
REFERENCE. IT CONTAINS IMPORTANT USE AND CARE INFORMATION. KEEP YOUR SALES RECEIPT OR CANCELED CHECK,
BECAUSE PROOF OF ORIGINAL PURCHASE DATE IS REQUIRED
FOR WARRANTY SERVICE.
For warranty and service information see page 8.
If you have any questions (other than warranty questions), call:
Dacor Customer Service
(800) 793-0093 (U.S.A. and Canada)
Monday — Friday 6:00 a.m. to 5:00 p.m. Pacic Time
Web site: www.Dacor.com
Have the complete model and serial number for your
range hood available. The model and serial number are
printed on the product data label. See page 3 for the
location.
Important Information About
Safety Instructions
The Important Safety Instructions and warnings in
this manual cannot cover all possible problems and conditions that can occur. Use common sense and caution
when installing, maintaining or operating this appliance.
Safety Symbols and Labels
danger
Immediate hazards that WILL result in severe
personal injury or death.
warning
Hazards or unsafe actions that COULD result in severe
personal injury or death.
Model number _________________________________
Serial number _________________________________
Date of purchase _______________________________
Since we continuously improves the quality and performance of our products, we may need to make changes
to the appliance without updating this manual. Visit
www.Dacor.com to download the latest version of this
manual.
Hazards or unsafe actions that COULD result in minor
personal injury or property damage.
danger
IMPORTANT: To avoid the possibility of explosion or
fire, do not store or use combustible, flammable or
explosive vapors and liquids (such as gasoline) inside
or in the vicinity of this or any other appliance. Keep
items that could explode, such as aerosol cans away
from the burners and oven. Do not store flammable or
explosive materials in adjacent cabinets or areas.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
caution
warning
Use this unit only in the manner intended by the a)
manufacturer. If you have questions, contact the
manufacturer.
Before servicing or cleaning unit, switch power off b)
at service panel and lock the service disconnecting
means to prevent power from being switched
on accidentally. When the service disconnecting
means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the
service panel.
READ AND SAVE THESE INSTRUCTIONS
1
2
Important Safety Instructions
General Safety Precautions
To reduce the risk of re, electric shock, serious injury or death when using your range hood, follow basic safety
precautions, including the following:
warning
If you receive a damaged product, immediately •
contact your dealer or builder. Do not install or
use a damaged hood.
Make sure that the range hood has been properly •
installed and grounded by a qualified installer
according to the accompanying installation
instructions. Have the installer show you the
location of the circuit breaker panel or fuse box so
that you know where and how to turn the power
off.
Do not install, repair or replace any part of the •
range hood unless specifically recommended in
the literature accompanying it. A qualified service
technician should perform all other service.
To avoid the risk of electric shock, before cleaning •
the range hood, turn off the main power switch.
Use the range hood only for its intended purpose •
as outlined in this manual. DO NOT use this
range hood to vent hazardous or explosive
materials or vapors.
Do not tamper with the controls.•
Never allow the filters to become blocked or •
clogged. Do not allow foreign objects, such as
cigarettes or napkins, to be sucked into the hood.
Clean the filter(s) and all grease-laden surfaces •
often to prevent grease fires and maintain
performance.
If the cooktop and range hood are near a window, •
use an appropriate window treatment. Avoid long
drapes or other window coverings that could blow
over the cooktop and hood, resulting in a fire
hazard.
Always run the blower(s) whenever the range or •
cooktop is operating.
Never leave the range or cooktop unattended •
when a burner (or element) is in use. Boil-overs
and greasy spills may smoke and/or ignite.
warning
Do not leave children alone or unattended in the •
area where the range/cooktop and range hood are
in use. Never allow children to sit or stand on an
appliance. Do not let children play with a range,
cooktop or range hood. Do not store items of
interest to children above or around the cooktop,
range or range hood.
The minimum vertical distance between the •
cooktop surface and the exterior part of the hood
must be no less than the distance specified in
the installation instructions. The vertical distance
may be more for the range or cooktop being
used. Consult the range or cooktop installation
instructions for the minimum and maximum
vertical distance from the appliance being used.
TO REDUCE THE RISK OF INJURY TO PERSONS IN
THE EVENT OF A RANGE TOP GREASE FIRE:
SMOTHER FLAMES with a close-fitting lid, cookie a)
sheet or metal tray, then turn off the burner. BE
CAREFUL TO PREVENT BURNS. If the flames do
not go out immediately, EVACUATE AND CALL THE
FIRE DEPARTMENT.
NEVER PICK UP A FLAMING PAN - you may be b)
burned.
DO NOT USE WATER, including wet dish clothes or c)
towels - a violent steam explosion may result.
Use a fire extinguisher ONLY if:d)
You have a Class ABC extinguisher, and you •
already know how to operate it.
The fire is small and contained in the area •
where it started.
The fire department is being called.•
You can fight the fire with your back to an •
exit.
3
Parts of Your Range Hood
A
C
D
B
Exterior
A CHIMNEY - The blower assembly, lters, light
and main power switch are located inside. The blower
assembly pulls heat and smoke into the chimney and
vents them up and outside.
B CHIMNEY OPENING - On the bottom of the range
hood. Access to the light, main power switch and lters
is through this opening. The blower assembly is also
located inside. The blower assembly pulls heat and
smoke into the chimney and vents them up and outside.
C CONTROL PANEL - Use the keys on the control
panel to control your hood’s various features.
D HOOD - The glass hood helps direct heat and smoke
into the chimney opening. It comes in different sizes
and colors. See the table below.
Interior
E FILTERS - Prevent grease and grime from getting
into the blower assembly.
F MAIN POWER SWITCH - Controls power to the
control panel, light and blower assembly.
G LIGHT - Single piece halogen bulb with built-in lens
and reector.
H PRODUCT DATA LABEL - Located behind the left
lter.
H
g
EE f
View From Bottom of Hood
Glass Assembly Part Numbers
30 Inch (Wide) Glass 36 Inch (Wide) Glass
Model Number Color Model Number Color
PHG30TS Titanium silver PHG36TS Titanium silver
PHG30SG Sterling gray PHG36SG Sterling gray
PHG30BU Blue water PHG36BU Blue water
PHG30AG Anthracite gray PHG36AG Anthracite gray
PHG30GN Slate green PHG36GN Slate green
PHG30BK Black PHG36BK Black
4
Operating Your Range Hood
warning
Never operate the range hood without the filters in
place. Also, do not operate the hood with grimy or
grease-laden filters. Personal injury, fire or damage to
the range hood could result.
Important Operating Tips
Always use the blower when using the cooktop or •
range.
Turn the blower on a few minutes before starting to •
cook to establish an airow pattern in the room.
Adjust the fan speed according to the volume and •
weight of the food you are cooking.
Shut nearby windows and doors, turn off ceiling fans •
and close nearby heating and air conditioning outlets to reduce air currents around the hood.
Place your largest pots and pans on the back burn-•
ers when possible.
In the interest of safety, heat oils and fats slowly.•
Operation
Main Power Switch
The main power switch is located inside the chimney
opening next to the light (see page 3 for location).
Push in on the switch to turn power on or off. The •
control panel is lit when the main power switch is
on.
Turning on the Light
Touch the light key • A to turn on the light.
Touch and release the “• -” key B on the control
panel to decrease the speed.
Touch and hold the “• -” key to turn the blower com-
pletely off.
LOW HIGHMEDIUMOFF
Blower Speed Indicator
NOTE: To conserve energy, the blower automatically
turns itself off if it is left on for four hours continuously.
Timer Key
The timer turns the blower and lights off after 10 •
minutes.
To start the timer, with the blower set to the desired •
speed, touch the timer key E . The control panel
lights will ash to indicate the timer is counting
down.
Energy Saving Tips
Do not operate the blower at a speed higher than •
necessary to remove heat and smoke. Running at
too high a speed will draw in air from outside the
house, increasing heating and cooling costs.
Keep the lters and hood surfaces free of grease •
and grime to improve efciency.
Turn the blower off as soon as all smoke and odors •
have been cleared.
Select cookware of the proper size, material and •
construction for the cooking task. Always use lids on
cookware to retain heat and moisture.
Minimize the amount of liquid used to cook food.•
A B C D E
Control Panel
Touch the light key again to turn it off.•
Turning on the Blower
The blower has four speed settings. The speed is indicated by the number of lights that glow on the blower
speed indicator C .
Touch the “• +” key D to turn on the blower.
To increase speed, touch and release the “• +” key
until the blower is at the desired setting.
5
Care and Cleaning
Cleaning
warning
To prevent electric shock or damage to the blower, •
thoroughly dry the filters before reinstalling them
after cleaning.
To prevent electric shock turn off the main power •
switch (see page 3) before cleaning the range
hood or filters.
Clean the hood only in the manner specified.•
To avoid dangerous fumes or damage to your •
hood’s surfaces, use only the types of cleaning
solutions specified in this manual.
To avoid personal injury, turn off the cooktop or •
range and make sure that the appliance and range
hood are cool before cleaning.
Always wipe stainless steel (silver colored) •
surfaces with the grain. To prevent scratching, do
not use abrasive cleaners or scrubbers on stainless
steel or glass surfaces.
To avoid damage to the blower, do not reinstall •
damaged or worn filters (see page 6 for
replacement part number).
Proper cleaning is necessary to ensure safe operation
and maintain hood performance and appearance. The
frequency of cleaning should be adjusted according to
the type and amount of cooking. Best results will be
achieved by cleaning soiled components as soon as possible.
Cleaning the Filters
Clean the lters a minimum of every two months; clean
them sooner if grease begins to build up.
To remove the filters:
Turn off the main power switch (see page 3 for loca-1.
tion).
Pull on the release lever 2. A near the bottom of
the lter and lower it out of the hood. The lters
are located inside the chimney opening B on the
bottom of the hood. Remove both lters for cleaning.
A
B
Cleaning Stainless Steel Surfaces
Clean stainless steel surfaces with a mild solution of
detergent or dishwashing soap and warm water. Rinse
and dry with a soft, lint-free cloth.
You may also use Dacor Stainless Steel Cleaner* on the
stainless steel surfaces. Use it according to the directions on the package.
Cleaning the Glass
Use a mild glass cleaner to remove nger prints on glass
surfaces. You can also clean glass surfaces with Dacor
Cook Top Cleaning Creme*. Use it according to the
directions on the package.
* See page 6 for ordering information.
To clean the filters:
Hand wash the lters in hot water with a mild detergent
solution or place them in an automatic dishwasher. Dry
the lters completely before reinstalling them.
To reinstall the filters:
Insert the end of the lter opposite the release lever 1.
into the slot right next to the light and main switch
panel. The release lever must be facing out.
Pull on the release lever while sliding the bottom 2.
end of the lter into the lter opening.
Release the lever.3.
6
Care and Cleaning
Maintenance
warning
To prevent an electric shock hazard, turn off the •
main power switch before replacing the light bulb.
To avoid personal injury, make sure the cooktop •
or range, the hood and the light are cool before
changing the light bulb.
Light Bulb Replacement
Light bulb replacement is considered to be a homeowner
maintenance operation. If the light does not work,
before replacing it, check to make sure that the main
circuit breaker (or fuse) and the main power switch on
the hood are on.
Replace the light bulb only with Dacor Part No. 101945.
See the replace, available from any authorized Dacor
parts dealer.
Turn off the main power switch, located next to the 1.
light.

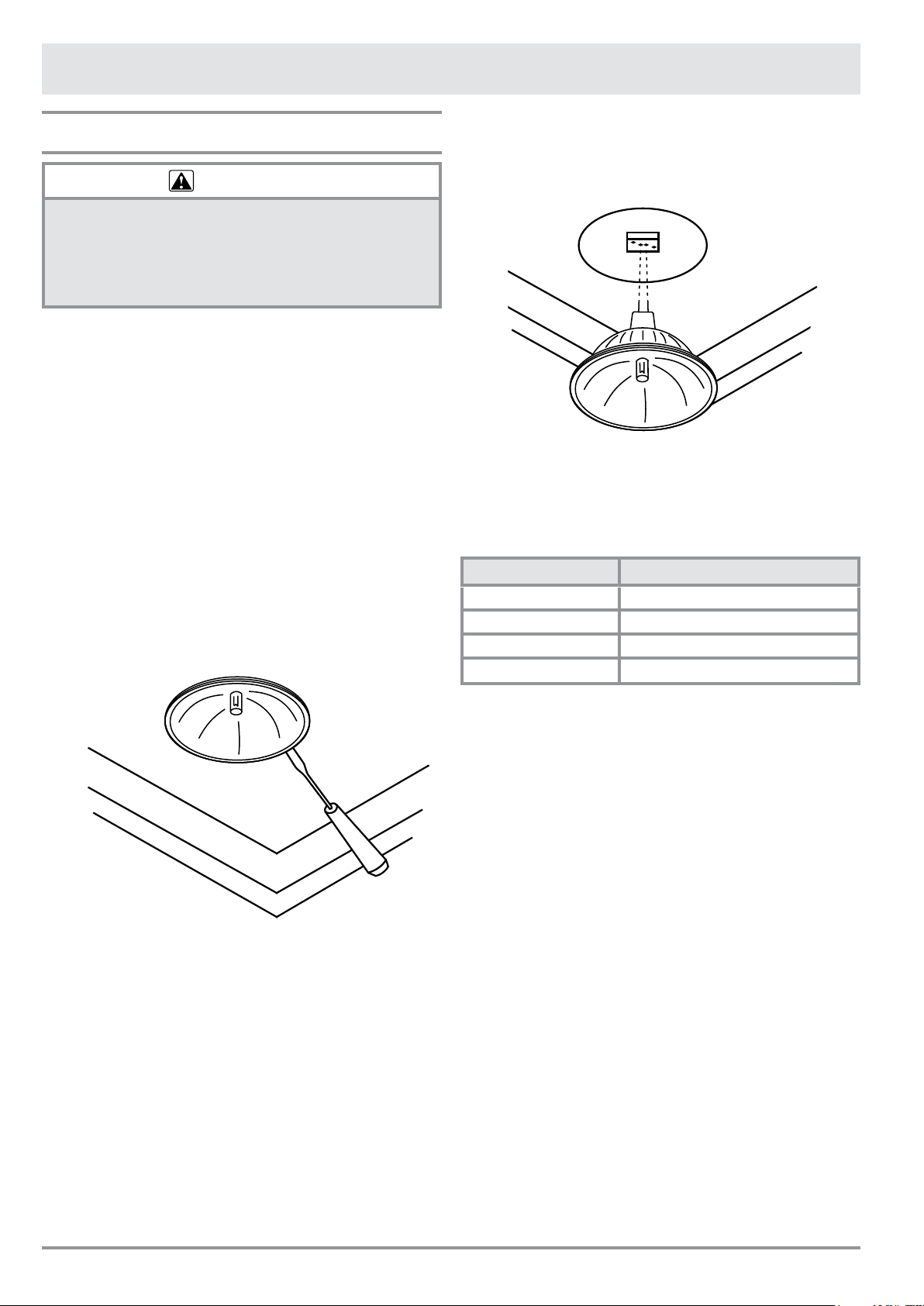

Reach up into the hood and pry the edge of the lens 2.
loose with a at blade screwdriver, or disposable
plastic knife. If using a at blade screwdriver, cover
the end with tape to avoid damage to the metal
surfaces.
Replacement Parts
Dacor Part Number Description
Line up the prongs on the new light with the holes 4.
in the light socket. If there are more than two holes,
insert the prongs into the center two holes. You may
need a ashlight to see inside the opening.
Gently push up on the new light until it stops.5.
Turn on the main power switch. Touch the light key 6.
to make sure it is working.
101945 Light bulb
101951 Filter (two per unit)
A300 Dacor Cooktop Cleaning Cream
A302 Dacor Stainless Steel Cleaner
Once the light bulb is loose, pull down on it with a 3.
gentle rocking motion until it pulls free.
To order parts and accessories, contact your Dacor
dealer or visit www.everythingdacor.com.
7
Before You Call for Service
Problem Solution Guide
Problem May be caused by What to do
Nothing Works. Control panel is
not lit. Blower does not work.
Light does not work. Control
panel is not lit.
Light does not work. Control
panel is lit.
Blower does not draw heat and
smoke properly.
Blower shuts off by itself after
being left on for a long time.
Power to hood is off. Turn on power at junction or fuse box.
Check for tripped breaker or blown fuse.
Hood main power switch is off. Make sure hood main power switch is on
(see page 3).
Power outage. Contact power company.
Hood not connected to electric
power.
See Nothing Works above.
Loose light bulb. Check to make sure that both prongs on the
Light bulb burned out. Replace light bulb (see page 6).
Filters clogged or dirty. Check lters. Make sure they are completely
Blower set to low setting. See Operating Your Range Hood section.
Damper jammed shut or duct
work clogged.
Normal operation. To conserve energy, the blower automati-
Have qualied installer connect hood to
electric power.
light bulb are inserted into the holes on the
light socket (see page 6).
clean and not blocked by foreign objects.
Consult with a qualied installation professional.*
cally turns itself off if it is left on for four
hours continuously.
Blower does not work. Control
panel not lit.
Blower does not work. Control
panel lit.
* The duct work connected from the range hood chimney to outside the house or building required to vent heat
and smoke is not manufactured, warranted or serviced by Dacor. The customer is responsible for having a qualied
installer install and maintain the duct work.
See Nothing Works above.
Blower malfunction. Call for service.
Warranty and Service
OUTSIDE THE FIFTY STATES OF THE U.S.A., THE
If You Need Service
Before you request service, please review the Before
You Call for Service section on page 7. If you have
performed the checks in the Problem Solution Guide
and the problem has not been remedied, please contact
us at one of the numbers below. Prior to requesting service, it is helpful to be familiar with the warranty terms
and conditions in the Warranty section on this page.
For warranty repairs, call:
Dacor Distinctive Service
Phone: (877) 337-3226 (U.S.A. and Canada)
Monday — Friday 6:00 a.m. to 4:00 p.m. Pacic Time
For a list of Dacor service agents for non-warranty
repairs:
Dacor Customer Service
Phone: (800) 793-0093 (U.S.A. and Canada)
Business Hours: 6:00 a.m. - 5:00 p.m. Pacic Time
At Dacor, we believe that our quality of service equals
that of our product. Should your experience with our
service network or product be different, please contact
our Customer Service Team and share your encounter
with us. We will do our utmost to resolve the situation
for you and deliver on our Dacor promise.
If you need anything claried, just let us know.
Warranty
What Is Covered
CERTIFICATE OF WARRANTIES: DACOR RANGE
HOODS
WITHIN THE FIFTY STATES OF THE U.S.A., THE
DISTRICT OF COLUMBIA, AND CANADA*:
FULL ONE-YEAR WARRANTY
If your DACOR product fails to function within one year
of the original date of purchase, due to a defect in
material or workmanship, DACOR will remedy the defect
without charge to you or subsequent users. The owner
must provide proof of purchase upon request, and have
the appliance accessible for service.
*Warranty is null and void if non-CSA approved product
is transported from the U.S.
DISTRICT OF COLUMBIA, AND CANADA:
LIMITED FIRST YEAR WARRANTY
If your DACOR product fails to function within one
year of the original date of purchase, due to a defect
in material or workmanship, DACOR will furnish a new
part, F.O.B. factory, to replace the defective part. All
delivery, installation, and labor costs are the responsibility of the purchaser. The owner must provide proof of
purchase, upon request, and have the appliance accessible for service.
What Is Not Covered
THE REMEDIES PROVIDED FOR IN THE ABOVE EXPRESS WARRANTIES ARE THE SOLE AND EXCLUSIVE REMEDIES. THEREFORE, NO OTHER EXPRESS WARRANTIES ARE MADE, AND
OUTSIDE THE FIFTY STATES OF THE UNITED STATES, THE
DISTRICT OF COLUMBIA, AND CANADA, ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE, ARE LIMITED IN DURATION TO
ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE. IN NO
EVENT SHALL DACOR BE LIABLE FOR INCIDENTAL EXPENSE
OR CONSEQUENTIAL DAMAGES. NO WARRANTIES, EXPRESS
OR IMPLIED, ARE MADE TO ANY BUYER FOR RESALE.
Some states do not allow limitations on how long an
implied warranty lasts, or do not allow the exclusion
or limitation of inconsequential damages, so the above
limitations or exclusions may not apply to you. This war-
ranty gives you specic legal rights, and you may also
have other rights that vary from state to state.
Service calls to educate the customer in the proper •
use and care of the product.
Failure of the product when used for commercial, •
business, rental or any application other than for
residential consumer use.
Replacement of house fuses or fuse boxes, or reset-•
ting of circuit breakers.
Damage to the product caused by accident, re, •
ood or other acts of God.
Breakage, discoloration or damage to glass, metal •
surfaces, plastic components, trim, paint or other
cosmetic nish, caused by improper usage or care,
abuse or neglect.
8
fold here
DACOR
ATTN WARRANTY PROCESSING DEPT
PO BOX 90070
CITY OF INDUSTRY CA 91715-9907
NO POSTAGE
NECESSARY
IF MAILED
IN THE
UNITED STATES
BUSINESS REPLY MAIL
FIRST-CLASS MAIL CITY OF INDUSTRY CAPERMIT NO 1600
POSTAGE WILL BE PAID BY ADDRESSEE
Web site: www.Dacor.com
Corporate phone: (800) 793-0093
WARRANTY INFORMATION
IMPORTANT:
Your warranty will not be activated until you activate it online or return this form to Dacor. If you have purchased more
than one Dacor product, please return all forms in one envelope or activate the warranty for each product online.
Please rest assured that under no conditions will Dacor sell your name or any of the information on this form for mailing list purposes. We
are very grateful that you have chosen Dacor products for your home and do not consider the sale of such information to be a proper way
of expressing our gratitude!
Place Serial Number Label Here
Your willingness to take a few seconds to fill in the section below will be sincerely appreciated. Thank you.
1. How were you first exposed to Dacor products? (Please check one only.)
A. T.V. Cooking Show F Builder
B. Magazine G. Architect/Designer
C. Appliance Dealer Showroom H. Another Dacor Owner
D. Kitchen Dealer Showroom I. Model Home
E. Home Show J. Other
2. Where did you buy your Dacor appliances?
A. Appliance Dealer D. Builder
B. Kitchen Dealer E. Other
C. Builder Supplier
3. For what purpose was the product purchased?
A. Replacement only C. New Home
B. Part of a Remodel D. Other
4. What is your household income?
A. Under $75,000 D. $150,000 – $200,000
B. $75,000 – $100,000 E. $200,000 – $250,000
C. $100,000 – $150,000 F. Over $250,000
5. What other brands of appliances do you have in your kitchen?
A. Cooktop C. Dishwasher
B. Oven D. Refrigerator
6. Would you buy or recommend another Dacor product?
Yes No
Comments:
Owner’s Name:
Street:
City: State: Zip:
Purchase Date: Email: Telephone:
Dealer:
City: State: Zip:
(Please Print or Type)
Last First Middle
cut here cut here
Please visit www.Dacor.com to activate your warranty online.
Thank you very much for your assistance. The information you have
provided will be extremely valuable in helping us plan for the future
and giving you the support you deserve.
Loading...
