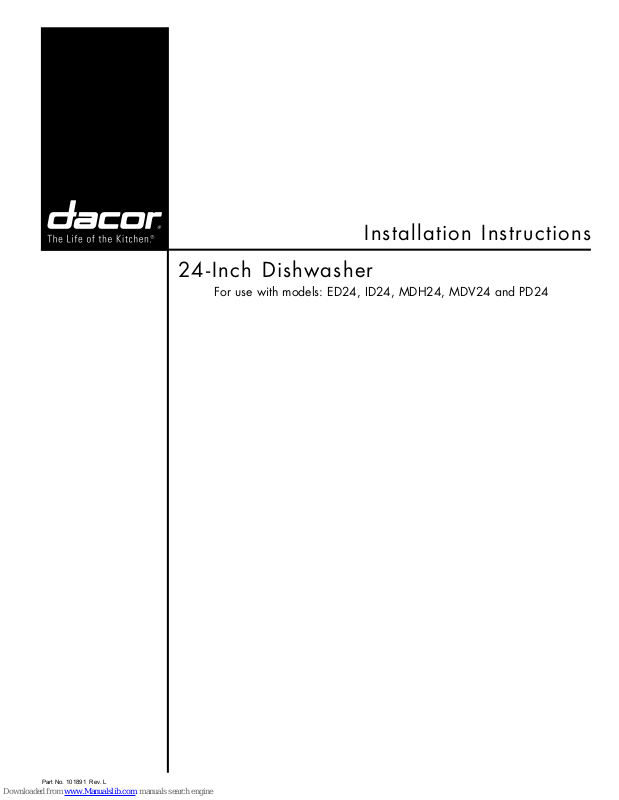

Page 1
Installation Instructions
24-Inch Dishwasher
For use with models: ED24, ID24, MDH24, MDV24 and PD24
Part No. 101891 Rev. L
Page 2
Table of Contents
Important Safety Instructions .......................................... 1
Important Information About Safety Instructions .............. 1
Safety Symbols and Labels ............................................. 1
General Safety Precautions ............................................. 2
Design Specifications ....................................................... 3
Product Specifications ...................................................... 3
Preparing for Installation .................................................. 4
Preparing the Location ..................................................... 4
Power Supply Preparation ............................................... 5
Plumbing Preparation ....................................................... 5
Preparing the Drain .......................................................... 5
Installation Instructions .................................................... 6
Verify the Package Contents ............................................ 6
Electrical Connection ....................................................... 7
Plumbing Connections ..................................................... 9
Installing the Unit in the Cabinet ...................................... 9
Drain Line Installation .................................................... 12
Verifying Proper Operation ............................................. 13
Before You Begin...
Important:
Installer: In the interest of safety and to minimize problems, read these installation instructions completely and carefully
before you begin the installation process. Leave these installation instructions with the customer.
Customer: Keep these installation instructions for future reference and the local electrical inspector’s use.
Customer Service Information
If You Need Help...
If you have questions or problems with installation, contact
your Dacor dealer or the Dacor Customer Service Team.
For repairs to Dacor appliances under warranty call the
Dacor Distinctive Service line. Whenever you call, have the
model and serial number of the appliance ready. The model
and serial number are printed on the product data label.
Dacor Distinctive Service (repairs under warranty only)
Phone: (877) 337-3226 (U.S.A. and Canada)
Monday — Friday 6:00
Dacor Customer Service
Phone: (800) 793-0093 (U.S.A. and Canada)
Monday — Friday 6:00
Web site: www.Dacor.com
a.m. to 4:00 p.m. Pacific Time
a.m. to 5:00 p.m. Pacific Time
Product Data Label Location
The product data label is located on the left door jamb.
Open the door to expose it.
All specifications are subject to change without notice. Dacor
© 2007 Dacor, all rights reserved.
®
assumes no liability for changes to specifications.
Page 3
Important Safety Instructions
Important Information About
Safety Symbols and Labels
Safety Instructions
DANGER
The • Important Safety Instructions and warnings in
these instructions are not meant to cover all possible
problems and conditions that can occur. Use common
sense and caution when installing, maintaining or
operating this or any other appliance.
Always contact the Dacor Customer Service Team about •
problems and conditions that you don’t understand. See
Customer Service Information.
DANGER
To avoid the possibility of explosion or fire, do not store or use combustible, flammable or explosive vapors and liquids
(such as gasoline) inside or in the vicinity of this or any other appliance. Do not store flammable or explosive materials
in adjacent cabinets or areas.
Immediate hazards that WILL result in severe personal
injury or death.
WARNING
Hazards or unsafe practices that COULD result in severe
personal injury or death.
CAUTION
Hazards or unsafe practices that COULD result in minor
personal injury or property damage.
WARNING
A qualified technician must complete the installation of this built-in appliance. The owner is responsible to make sure the
dishwasher is properly installed. Improper connection of the electrical wiring may create an electric shock or fire hazard
and may result in damage to the dishwasher’s electrical system.
READ AND SAVE THESE INSTRUCTIONS
1
Page 4
Important Safety Instructions
General Safety Precautions
To reduce the risk of fire, electric shock, serious injury or death when using your appliance, follow basic safety
precautions, including the following:
WARNING
Do not install or operate this dishwasher if it has •
been damaged, dropped, has damaged electrical
conduit or wires or is not working properly. If the
product is damaged when received, immediately
contact the dealer or builder.
Use this dishwasher only for its intended purpose •
as outlined in the use and care manual. It is not
intended for commercial use. Read the use and care
manual completely before use.
Keep all packaging materials away from children. •
Plastic bags can cause suffocation.
To avoid electric shock, this dishwasher must be •
installed and grounded by a qualified installer in
a completely enclosed cabinet according to these
installation instructions.
All installation work, plumbing connections and •
electrical wiring must be performed in accordance
with all applicable codes and standards.
Install or locate this appliance only in accordance •
with these installation instructions.
The installer must show the customer the location •
of the fuse box or circuit breaker panel so that the
customer knows where and how to turn the power
off.
Before installing or servicing the dishwasher, switch •
power off at the fuse box or circuit breaker panel
and lock the electrical panel door to prevent power
from being switched on accidentally. When the circuit
breaker panel cannot be locked, securely fasten
a prominent warning device, such as a tag, to the
electrical panel.
Do not tamper with the controls.•
Do not leave children alone or unattended in the •
area where the dishwasher is in use. Never allow
children to sit or stand on an appliance. Do not let
children play with this appliance.
Never allow anyone, including children, to sit or •
stand on any part of the dishwasher. Stepping or
sitting on any part of it may result in tipping, damage
and serious injury.
Many surfaces within the dishwasher achieve high •
temperatures. Do not touch interior surfaces or items
inside the dishwasher during or immediately after
use. Exercise caution when opening the door. Let
hot air and steam escape before looking or reaching
inside.
WARNING
Do not operate the dishwasher without the door •
completely closed and the toe kick panel in place.
Store all detergents and rinse aids out of the reach •
of children.
During loading, insert all sharp or pointed objects •
with the handles up. Locate these items where they
will not damage the door seal or cause personal
injury.
Do not tamper with the controls.•
Under certain conditions hydrogen gas may be •
produced in a hot water system that has not been
used for two weeks or more. Hydrogen gas is
explosive. If the hot water system has not been used
for a period of time, turn on all hot water faucets and
let the water flow for several minutes to release any
accumulated hydrogen gas. Do not smoke or use an
open flame during this process.
To prevent child entrapment, always remove the •
door from an old dishwasher when removing it from
service.
To prevent household mold and mildew damage, •
periodically check the inlet and drain hoses for leaks.
If the dishwasher outlet is connected to a garbage •
disposal, make sure the disposal is completely empty
before running the dishwasher.
To avoid damage to the racks, do not let sharp edges •
come into contact with them.
This appliance is designed for installation by more •
than one person. To avoid personal injury, do not
attempt to move or lift the dishwasher without
assistance.
To prevent personal injury and damage to the unit •
due to it tipping over, do not push down on the door
anytime it is open. To reduce the chance of tipping,
attach the anti-tip brackets to the cabinet before
operation.
The customer should not install, repair or replace •
any part of the dishwasher unless specifically
recommended in the literature accompanying it.
A qualified service technician should perform all
other service. Contact the nearest Dacor authorized
service representative for examination, repair or
adjustment.
2
Page 5
Design Specifications
20" (50.8 cm)*
Door in lowered position
Adjustable toekick
23 3/4" (60.3 cm)
47” (119.4 cm)
ED24:
29 5/8" (75.2 cm)
ID24:
26 7/8" (68.3 cm)
33 3/4"
(85.7 cm)
to
36 1/4"
(92.1 cm)
1 5/8” (4.1 cm)
23 7/8” (60.6 cm)
Product Specifications
Technical
Dimensions
Water Pressure 20 to 120 psi (138 - 827 kPa)
Water Temperature 120 °F, minimum
Electrical Circuit
Requirements
Total Connected
Load
* For reference only. For exact specifications see the product data label
located inside the left door jamb.
15 Amp. 120 Vac, 60 Hz dedicated, grounded, circuit.
12 Amp. @ 120 Vac, 60 Hz.*
Tolerances: +1/16”, -0, (+1.6 mm, -0)
unless otherwise stated
Door style varies with model number.
*Allows for hose on back of unit
3
Page 6
Preparing for Installation
Fasten anti-tip anchors into material
under counter top and adjacent cablinets
Access hole for utilities
90°
90°
24” (61.0 cm)
24” (61.0 cm)
8” H X 5“ D
(20.3 cm X 12.7 cm)
33 3/4”
(85.7 cm)
to
36 1/4”
(92.1 cm)
Min. countertop 25" (63.5 cm)
WARNING
Observe all governing codes and ordinances during
planning and installation. Contact your local building
department for further information.
Preparing the Location
Carefully check the location where the dishwasher is to be
installed. Put it in a location with convenient access. Make
certain that electrical power can be provided in the selected
location.
Plan the installation so that the appliance can be removed
if service is required.
IMPORTANT: Follow all cabinet and countertop minimum
dimensions shown below to insure safe operation.
Prepare the installation location as shown below. All
minimum product dimensions be must met or exceeded
(see page 3). Dimensions shown provide minimum
clearances, unless otherwise noted.
The floor must be solid, level and all cut-out surfaces must
be at right angles. The dishwasher must be secured to the
adjacent cabinets using the anti-tip brackets for safety and
proper operation.
CUT-OUT FRONT VIEW CABINET INSTALLATION SIDE VIEW
4
Page 7
Preparing for Installation
Drain line 44"
(1118 mm) long
from chassis
strap
C
L
Hot water inlet
Chassis strap
(do not remove)
Back of
dishwasher
Loop in
drain hose,
do not remove
or change
5 1/2"
(140 mm)
Power Supply Preparation
WARNING
The electrical power supply for the dishwasher must be
installed only by a licensed electrician as specified below.
It is the owner’s responsibility to ensure that the electrical
connection of this appliance is performed by a licensed
electrician.
Electrical Specifications
The electrical installation, including minimum supply
wire size and grounding, must be in accordance with the
National Electric code ANSI/NFPA* (or latest revision) and
local codes and ordinances.
*A copy of this standard may be obtained from:
National Fire Protection Association
1 Batterymarch Park
Quincy, Massachusetts 02269-9101
Power supply requirements:
The dishwasher requires a grounded, dedicated •
120 Vac, 60 Hz circuit protected by a 15 Amp. circuit
breaker or time delay fuse installed by a licensed
electrician.
It must be located to the right or left of the cut-out, in an •
adjacent cabinet, so that power can be disconnected
without removing the dishwasher.
The ground terminal (or lead) on the appliance must be •
connected to a grounded, metallic, permanent wiring
system or grounding conductor installed by a licensed
electrician.
Do not ground the appliance or appliance wiring to a •
gas pipeline or to the neutral (white) power supply wire.
Do not install a fuse in the neutral or ground circuit.•
The dishwasher can be connected to:
A UL/CSA approved, grounded, three-prong receptacle (if
local code permits). This method is the easiest to install.
OR
Directly to the house wiring. Hard-wire the dishwasher
according to local code directly to a three wire grounded,
single phase connection in a junction box.
NOTE: In either case, be sure the power cable or wire is
long enough to remain connected when the appliance is
removed from the cut-out for service.
If the electrical service does not meet the
specifications above:
Have a licensed electrician prepare the electrical •
receptacle or junction box for final connection inside the
adjacent cabinet according to the specifications above.
Plumbing Preparation
The water pressure must be between 20 and 120 psi •
(138-827 kPa). The household hot water heater must
supply a minimum of 120 °F water to the dishwasher
location for best results.
Install a valve for the hot water supply line where it is •
easily accessible after the dishwasher is installed.
A flexible braided hot water inlet hose is highly •
recommended for connection to the hot water supply.
Connect it to the unit just prior to installation into the
cabinet. The dishwasher ships with a 3/8” (10 mm) male
compression fitting on the hot water inlet to facilitate
installation.
Preparing the Drain
CAUTION
Keep the factory installed high loop drain hose in
place to ensure proper dishwasher operation. Do not
cut, tie, strap or lower it. If it is necessary to lengthen
it, install an aftermarket drain extension kit, available
at most home improvement stores.
IMPORTANT: A drain hose is supplied with the product
(see above). Should a longer drain hose be required, use a
hose approved for detergents and high temperature water.
The drain hose supplied with the dishwasher meets an
AHAM DW-1 test standard. Longer drain hoses should not
be longer than a total of 12 ft. in length.
You must install an air gap in the drain if the drain hose •
is connected to household plumbing lower than 20 in.
(50.8 cm) from the floor or if required by local codes.
Plan for the air gap in the sink or countertop area
adjacent to the dishwasher. A section of drain hose (not
provided) needs to be installed from the air gap to the
disposal or waste tee.
If an air gap is not required, the drain hose must be •
installed to an inlet or waste tee above the drain trap in
the household plumbing.
The drain hose supplied with the dishwasher should be •
connected to a minimum 1/2 in. I.D. drain connection.
5
Page 8
Installation Instructions
24-Inch
Integrated
Custom
Panel
Installation
Verify the Package Contents
NOTE: Model ID24 ships without a front panel. It is
designed for the installation of an integrated front panel that
matches the surrounding cabinets.
With the assistance of at least one person, remove the •
dishwasher from the shipping carton. Place the unit to
the side of the cabinet opening.
Remove all of the packing materials from inside and •
outside of the unit. DO NOT allow any of the shipping
materials, loose screws or plastic to remain inside.
Remove the racks. Set them aside for later installation.
Unpack the parts box and verify that all required •
components have been provided. If any item is missing
or damaged, please contact the dealer immediately. Do
not install a damaged or incomplete appliance.
Extended toe kick
A
Left side access panel
B
6 Plastic fasteners (for access panel)
C
Use and care manual
D
Model ID24 only: Integrated template, screws and
E
door tensioning springs for heavy door panels.
®
A bottle of Dacor
included with models having stainless steel doors.
Tools required for installation:
Wire strippers
F
Level
G
Crescent wrench
H
Phillips screwdriver
J
Tape measure
K
Materials required for installation
(not provided):
2 wire nuts to fit wire mentioned above. Additional
L
wire nuts may be required for connection to house
wiring.
3/4” UL/CSA approved strain relief
M
Hose clamp (for 1 3/8” OD drain hose)
N
3/8” flexible braided fill hose (required length varies)
P
Wire or three-prong UL/CSA approved electric cord
Q
(see electrical specifications)
Stainless Steel Cleaner is also
G
D
B
A
C
E
F
J
K
H
L
Make sure you have everything necessary for proper
installation before proceeding.
6
M
N
Q
P
Page 9
Installation Instructions
Electrical Connection
WARNING
Do not install the dishwasher unless the electrical •
service provided meets the dishwasher specifications
(see page 5).
To avoid an electrical shock hazard, turn off power •
to the electrical outlet or junction box at the circuit
breaker panel or fuse box before proceeding. Do not
turn on the power or water supply until instructed to do
so on the following pages.
To prevent the possibility of a short circuit if using •
metal conduit for the electrical connection, route it on
the ground under the bottom of the dishwasher as
instructed below.
Make sure power to the electrical receptacle or house 1.
junction box is off.
Before connecting the wiring and the plumbing, push 2.
the dishwasher into position with the back of the unit
about six (6) inches in front of the cut-out.
Remove the two (2) screws that hold the toe kick 3.
assembly in place and remove it. NOTE: Do not
reinstall the toe kick until the dishwasher is completely
installed and tested.
Remove the dishwasher junction box cover screw and 5.
remove the cover. The junction box is mounted to the
dishwasher chassis below the door.
Screw
Junction Box Location
Install a 3/4” UL/CSA approved strain relief on the base 6.
of the dishwasher junction box.
Strain
relief
Wire
nuts
Base
Door
Retaining screw,
2 places
Route the electrical wiring through the back of the unit 4.
to the back of the dishwasher electrical junction box.
IMPORTANT: If using metal conduit, prevent a short
circuit condition by routing it on the ground under the
unit and bringing the end up behind the junction box as
shown below. Doing so reduces the chance of shorts
against the internal motor and heater terminals.
Toe kick
assembly
Motor base
plate
Motor assembly
inside unit
Ground
connection
Junction Box Wiring
Strip the three (3) wires on the end of the electric cord 7.
or one end of the wire that will connect to the house
wiring.
Feed the end of the wire or cord through the 8.
dishwasher chassis into the junction box base through
the strain relief.
Loosen the grounding screw on the base and connect 9.
the green wire. Tighten it into place.
Connect the power cord (or house wiring) black 10.
and white wires to the black and white wires inside
the junction box. Match the colors. Use wire nuts to
connect them.
Tighten the strain relief. Pull gently on the wiring from 11.
the back to make sure it is secure.
Replace the junction box cover and screw.12.
Conduit
7
Page 10
GREEN
GREEN
WHITE
WHITE
BLACK
BLACK
Installation Instructions
GREEN
GREEN
WHITE
WHITE
BLACK
BLACK
Electrical Connection
(Continued)
13. Feed the electric wire or cord into the utility hole in
the side of the cut-out. Pull all of the slack out of the wire.
If the unit is to be connected directly to the house
wiring:
With power turned off at the circuit breaker or fuse •
box, remove the house junction box cover.
Feed the dishwasher wiring into the junction box. •
Secure the wire with a UL/CSA approved strain relief.
Strip and connect the wires according to one of the •
wiring diagrams below.
Tighten the strain relief. Check to make sure the wire •
is secure.
Replace the junction box cover and screws.•
WARNING
Connect the dishwasher ground wire to a separate, •
properly grounded wire installed by a licensed
electrician.
A grounded cold water pipe must have metal continuity •
to an electrical ground and must not be interrupted by
insulating materials. Any insulating materials must be
jumped with a length of No. 4 copper wire securely
clamped to bare metal at both ends. See diagram
below.
To house circuit breaker
panel or fuse box
Junction box
Utility cut-outs
Hoses
Wire or
cord
Feed the electric cord (or wire) and both hoses into the
utility cutout(s); direction varies with installation.
To house circuit breaker
panel or fuse box
Separate No. 10 (minimum)
copper ground wire
Wire nut,
3 places
Strain relief
To dishwasher
Standard 3-Wire Connection
Junction box
to House Junction Box*
* Does not apply when using a 3-prong power cord.
8
Strain relief
To dishwasher
3-Wire Connection
with External Ground*
Fasten clamp tightly
on pipe
Wire nut,
3 places
Meter
No. 4
copper wire
Clamps
Bare metal
Insulated Pipe Jumper
(if necessary)
Page 11
Installation Instructions
Plumbing Connections
Connect one end of the 3/8” flexible braided hot water 1.
inlet hose to the hot water supply valve.
Prepare to prime the hose by routing it through the 2.
back of the unit near the bottom and pull the end out of
the utility access hole on the left side of the appliance.
To prime, put the unconnected end of the hose over a
bucket. Turn on the hot water valve to clean out any
debris in the hose and to fill it with water. Turn the
valve off.
Keeping as much water as possible in the hose, 3.
connect it to the hot water inlet through the access hole
on left side of the chassis.
Installing the Unit in the Cabinet
WARNING
Do not allow any material, including the hoses or
electrical wiring to be directly behind the dishwasher
while pushing it into the cut-out opening. Carefully pull the
slack out of both hoses and the wiring from outside the
cut-out during push back to prevent pinching. An electric
shock hazard or water damage may result from pinched
wires or hoses. Damage due to improper installation is
not covered under warranty.
Make sure the water valve is off before sliding the unit •
into the cabinet.
Care should be exercised when the appliance is •
installed or removed to reduce the likelihood of damage
to the power cord or hoses.
Before sliding the unit into the cut-out, make sure the •
hoses and wiring are positioned in the utility cut-outs as
shown on the facing page.
Level the Dishwasher
Inlet hose
4. Turn on the water valve and check both ends for leaks.
5. Using the included plastic fasteners, attach the left side
access panel. NOTE: The top edge of the access panel
slides behind the chassis corner as shown below.
Access panel
6. Slide the drain hose into the utility access hole in the
side of the appliance cut-out. See facing page.
Hot water iInlet
Dishwasher Left Side
Slide this edge behind
chassis corner
Access hole in side
Chassis
corner
CAUTION
A level unit is very important to proper operation. Be sure
to level the unit front to back and side to side.
Level the dishwasher using the adjustable legs on the front
and back before sliding the unit into the cut-out.
Measure the height of the front and back of the cut-out 1.
with a tape measure.
Measure the height of of the front and back of the 2.
dishwasher.
Using a crescent wrench, loosen the leg nut on all four 3.
legs and turn the legs to adjust them. The maximum
height of the dishwasher must be 1/8” lower than the
maximum height of the cut-out.
Leg nut
Front leg Rear leg
Remove the lower rack from the dishwasher and place 4.
a level on the tank side wall rack guides to verify the
unit is level front to back. To verify left to right level,
place a level on the front door jamb.
Adjust the legs until the unit is level and does not 5.
exceed the height specifications in step 3.
Tighten the leg nut to the chassis to secure the leg in 6.
place.
NOTE: The leg nuts can be removed to make the
dishwasher lower. See page 10.
Leg nut
9
Page 12
Installation Instructions
Installing the Unit in the Cabinet
(continued)
NOTE: The leg nuts can be removed to make the
dishwasher lower. To do so:
Turn the leg until it comes out of the chassis.1.
Remove the nut from the leg.2.
Re-thread the leg into the chassis.3.
Reach inside the chassis from the back and thread the 4.
nut onto the top of the leg.
Attach the Anti-Tip Brackets:
CAUTION
Make sure to anchor at least one anti-tip bracket on •
each side of the dishwasher.
The anchoring material must be no more than 1/4” •
(6mm) from the anti-tip bracket.
To prevent leaks, square the dishwasher in the cut-•
out. When attaching the anti-tip brackets make sure
the tub and frame are not skewed so that the tub
gasket contacts the door liner fully all the way around
the door.
Do not over torque the leveling legs. Doing so •
will distort the dishwasher chassis leading to door
alignment problems and possible water damage.
To prevent damaging the dishwasher, adjust the •
leveling legs only 1/2” (13 mm) at a time, per leg.
The anti-tip brackets protect against possible tipping
caused by heavy bottom rack loads on the door.
There are anti-tip mounting locations provided around 1.
the top and sides of the dishwasher front frame.
To attach the anti-tip bracket anchors, insert the 2.
anchoring screws through the 1/2” diameter access
holes inside the dishwashing compartment on the
ceiling and the sides, near the front. Make sure that the
anchoring screws pass through the anti-tip brackets
located on the outside of the dishwasher.
Slide the Dishwasher into the Cutout
Pull the electrical wiring and both hoses (drain and •
water supply) through the utility access hole(s) in the
side(s) of the cabinet as you slide the dishwasher into
the opening. Stop when the dishwasher contacts the
back wall or aligns with the front cabinet opening.
Top anti-tip
bracket
Side anti-tip
bracket
Square up the installation:
Check to make sure the dishwasher is square in the •
cutout by observing the door to tub alignment on each
side. Readjust the top or bottom of the unit as needed to
square up the unit.
10
Page 13
Installation Instructions
Cabinet Panel Installation
(Model ID24 Only)
For proper door spring operation, the maximum door •
panel weight, including hardware, is 12 lbs. (5.4 kg).
Install the custom panel and/or custom toe kick •
according to the instructions on the included template
(Dacor PN 101934). If the panel requires decorative
door hardware, attach it before panel installation.
CAUTION
To prevent corrosion and the possibility of the panel •
falling off, use only stainless steel screws where
instructed.
The provided mounting screws are designed for •
panels with a thickness of 5/8” to 3/4”. Smaller panels
may require different mounting hardware to prevent
damage to the outside surface.
Failure to construct the custom panel and/or toe kick •
as instructed on the template may result an improper
fit and may prevent the door from closing properly.
CUSTOM PANEL
INSTALLATION
(ID24 ONLY)
Continued...
11
Page 14
20" Min.
Installation Instructions
20"
Min.
Drain Line Installation
CAUTION
For proper dishwasher operation and drainage, the •
drain line must be routed through the bottom of the
cabinet and up to the drain or air gap connection. The
drain hose or air gap outlet must connect above the
sink trap.
If required, the air gap must be installed at countertop •
level.
Air gap
Route drain hose
through bottom of
cabinet
Connect the flexible drain line to the air gap or directly 1.
to the drain tee or disposal above the sink trap as
shown below.
Tighten the holding clamp. For installations with an 2.
air gap, check to make sure the drain line from the air
gap to the disposal/drain tee is connected and tight on
both ends. If the drain is connected to a disposal, see
the disposal manufacturer’s installation instructions for
correct drain hose mounting techniques.
Route drain hose
through bottom of
cabinet
Sink trap
INSTALLATION WITH AIR GAP AND DISPOSAL
Drain Tee
Sink trap
Air gap
Route drain hose
through bottom of
cabinet
Sink trap
Floor
DISPOSAL INSTALLATION WITHOUT AIR GAP
Drain tee
Route drain hose
through bottom of
cabinet
Sink trap
Floor
INSTALLATION WITH AIR GAP AND WASTE TEE
12
WASTE TEE INSTALLATION WITHOUT AIR GAP
Page 15
Installation Instructions
Verifying Proper Operation
WARNING
To ensure a safe and proper installation, the following •
checklist should be completed by the installer to
ensure that no part of the installation has been
overlooked and the unit is working properly.
Proper installation is the responsibility of the •
homeowner. The importance of proper installation of
your Dacor dishwasher cannot be overemphasized.
Pre-verification Check List
Confirm that the main power supply (at the circuit □
breaker panel or fuse box) is off.
Remove all packing material from inside the dishwasher. □
Check the orientation of the bottom door seal. The seal □
“bulb” should be facing into the tank. If it is oriented
towards the exterior of the door, open the dishwasher
door fully and orientate the door seal so that it is facing
into the tank.
□
Familiarize yourself with operation of the dishwasher by
reading the use and care manual.
Remove any protective film, if present from the control □
panel, door panel, etc.
Verify that all wiring is secure and is not being pinched □
or in contact with door springs or any other dishwasher
components.
Verify that the dishwasher is level by pulling the lower □
rack half way out. Let go of the rack and make sure it
does not roll in or out. If it does, re-level the dishwasher.
□
Add two quarts of water to the bottom of the dishwasher
to lubricate the pump seal.
You should hear the dishwasher drain and then begin □
to fill with water. Wait approximately two (2) minutes,
then carefully open the door to verify water is filling the
dishwasher tank. If there is water present, close the
door and continue the process. Should the water not
fill the tank or the pump is not running, immediately
push the START/STOP button to stop the dishwasher.
Verify that the water supply valve is turned on, power is
connected, and that main power supply is on.
□
Check for leaks under the dishwasher. If any leaks are
found, immediately push the START/STOP button and
disconnect power. Tighten the water supply connections.
Reconnect power and restart the cycle.
□
Check for leaks around the door. A leak around the door
could be caused by the dishwasher door rubbing or
hitting against adjacent cabinets. Disconnect power and
reposition and/or re-square the dishwasher if necessary.
Restart the unit after repositioning.
□
The dishwasher will drain after the first fill. Check the
drain line for leaks. If leaks are found, immediately push
the START/STOP button and disconnect the power
plug. Tighten the drain connections. Reconnect power
and restart the cycle.
□
Open the dishwasher door and verify that most of the
water has drained. If not, verify that the disposer plug
has been removed and/or the air gap is not plugged.
Run the dishwasher through another fill and drain cycle. □
Verify that there are no leaks.
If the dishwasher does not operate correctly, see the □
instructions below.
If the fill, wash and drain cycles operate properly, □
reinstall the toe kick. Adjust it so that the bottom of the
chassis and the legs below the door are completely
covered. If the toe kick does not cover the chassis and
legs completely, install the included extended toe kick.
□
Turn on the water supply and check for plumbing leaks.
Tighten connections if necessary.
Verify that the door springs do not come in contact with □
any dishwasher components.
□
Verify the hot water temperature by turning on the
hot water faucet at the sink. The water going to the
dishwasher must be between 120 ºF and 150 ºF.
Wet Test Check List
Plug in the power cord if the dishwasher is equipped □
with one. Turn on the main power supply.
□
Program the dishwasher to run a short wash. See the
use and care manual for specific operating instructions.
□
Close the door completely.
□
Activate the warranty on-line or fill out the warranty card
and mail it.
If the dishwasher fails to operate properly:
Verify that power is supplied to the dishwasher.•
Check all plumbing connections.•
Repeat the above test.•
If the appliance still does not work, contact Dacor •
Distinctive Service at (877) 337-3226. Do not attempt
to repair the appliance yourself. If you need service, be
sure to have the model and serial numbers available
when you call. See the inside cover for location.
Dacor is not responsible for the cost of correcting problems
caused by a faulty installation.
13
Page 16
Dacor ● Phone: (800) 793-0093 ● FAX: (626) 403-3130 ● www.Dacor.com
Loading...
