Dacor MW User Manual

Wa r m I n g ov e n

For use with models:
EW, EWO
MW, MWO
PW, PWO
IWO, IOWO

In s t a l l a t I o n In s t r u c t I o n s

Part No. 65034 Rev. K

ta b l e o f co n t e n t s

Product Data

Label

Warming Oven

with Drawer Removed

(see page 6)

Important Safety Instructions .....................................................1

Design Specifications ...............................................................2-3

Product Dimensions .................................................................2-3

Installation Specifications ........................................................4-6

Installation Planning .................................................................4-5

Power Supply Requirements ......................................................6

Installing the Support Platform in the Cabinet ............................6

Installation Instructions ............................................................7-8

Verifying the Package Contents .................................................7

Removing the Drawer .................................................................7

Installing the Chassis ..................................................................7

Re-Installing the Drawer .............................................................8

Verifying Operation .....................................................................8

Installation Checklist ...................................................................8

IMPORTANT:

I◊ NSTALLER: In the interest of safety, read these installation instructions completely before you begin the installation process.

Leave these installation instructions with the homeowner.
HOMEOWNER◊ : Keep these installation instructions for future reference. Save them for the local electrical inspector’s use.

cu s t o m e r se r v I c e In f o r m a t I o n

Any questions or problems with this installation
should be directed to your Dacor dealer or the Dacor
Customer Service Team.

Dacor Customer Service Team

[phone] (U.S.A. and Canada)
Monday — Friday 6:00

E-mail: [e-mail]

a.m. to 5:00 p.m. Pacific Time

Web site: www.Dacor.com
If the unit requires service, be sure to have the model and serial

number available when you call. The model and serial number are
found on the product data label.

Product Data Label Location

All specifications subject to change without notice.

Dacor® assumes no liability for changes to specifications.

© 2006 Dacor, all rights reserved.

Im p o r t a n t sa f e t y In s t r u c t I o n s

Im p o r t a n t In f o r m a t I o n ab o u t
sa f e t y In s t r u c t I o n s

Important Safety Instructions and warnings appearing in these
instructions are not meant to cover all possible conditions and
situations that can occur. Common sense, caution and care
must be exercised when installing, maintaining or operating an
appliance.

Installation should be done by a qualified installer.
Always contact Dacor about problems or conditions you do not

understand.

Safety Symbols and Labels

DANGER

Immediate hazards that WILL result in severe personal injury or
death.

WARNING

Hazards or unsafe practices that COULD result in severe
personal injury or death.

CAUTION

Hazards or unsafe practices that COULD result in minor
personal injury or property damage.

ge n e r a l sa f e t y pr e c a u t I o n s

To reduce the risk of fire, electric shock, serious injury or death when installing or using this appliance, follow basic safety
precautions, including the following:

WARNING

1. Read all instructions before using the appliance.

2. This appliance must be grounded. Connect only
to a properly grounded outlet. See “Grounding
Instructions.”

11. Keep the electrical cord away from heated surfaces.

12. Some products, such as whole eggs and sealed
containers such as closed glass jars may explode
and should not be heated in this oven.

3. Install or locate this appliance only in accordance
with these installation instructions.

4. Use this appliance only for its intended use as
described in this manual. Do not use corrosive
chemicals or vapors in this appliance. This type of
oven is specifically designed to heat and cook food.
It is not designed for industrial or laboratory use.

5. As with any appliance, close supervision is
necessary when used by children.

6. Do not operate this appliance if it has a damaged
electrical cord or plug, if it is not working properly or
if it has been damaged or dropped.

7. This appliance should be serviced only by qualified
service personnel. Contact the nearest Dacor

Authorized Servicer at [phone], or at www.
Dacor.com for examination, repair or adjustment.

8. Do not cover or block any openings on the
appliance.

9. Do not store or use this appliance outdoors, except
as noted in these instructions. Do not use this
product near water – for example, near a kitchen
sink, in a wet basement or near a swimming pool,
etc.

13. To reduce the risk of fire in the oven cavity: Do not
overcook food. Carefully attend the appliance if
paper, plastic or other combustible materials are
placed inside the oven.

14. If materials inside the oven should ignite, keep the
oven drawer closed and shut off the power at the fuse
or the circuit breaker panel.

15. Only model IOWO24 is approved for use in outdoor
applications and near water (bathrooms).

16. Model IOWO24, when installed as a towel warmer,
must have the wire rack (supplied with the product)
installed in the drawer bottom. Secure the rack with
with a screw and clip supplied with the rack.

10. Do not immerse the electrical cord or plug in water.

1

De s I g n spec I f I c a t I o n s

23 1/16"

(586mm)

Chassis

Drawer open

5/64"

(2mm)

23 13/16”

(605mm)

D

C

E

1/2"

(13mm)

1/2"

(13mm)

Chassis view

without drawer

Mounting

holes

40" (1016mm)

3 prong

120 Vac power cord

10"

(254mm)

9"

(229mm)

10 1/8"

(257mm)

3 5/16"

(84mm)

1"

(25mm)

EWO

1"

(25mm)

1 5/16"

(33mm)

MWO

1"

(25mm)

2 3/16"

(56mm)

PWO

3 7/16"
(87mm)

EW

3 1/4"

(83mm)

PW

2 1/4"

(57mm)

MW

1"

(25mm)

1 5/32"

(29mm)

1 1/8"

(29mm)

pr o D u c t DI m e n s I o n s

NOTE: All tolerances are + 1/16,” - 0”
unless otherwise stated.

Overall Dimensions
(EW, EWO, MW, MWO, PW, PWO)

Drawer Face Dimensions

(MW Shown)

Overall Dimensions - Top View

(EWO shown)

Chassis Dimensions

Handle Dimensions

Model

“C” Drawer Face

Width

“D” Chassis Face

Width

“E” Chassis Width

EWO24 23 7/8” (606mm) 23 11/16” (602mm) 22 3/16” (564mm)
EW27
EWO27
MW27
MWO27

26 7/8” (683mm) 26 11/16” (678mm)

PW27
EW30
EWO30
MW30
MWO30

29 7/8” (759mm) 29 11/16” (754mm)

25 3/16” (640mm)

PW30
PWO30
EWO36 35 7/8” (911mm) 35 11/16” (906mm) 34 1/4” (870mm)

2

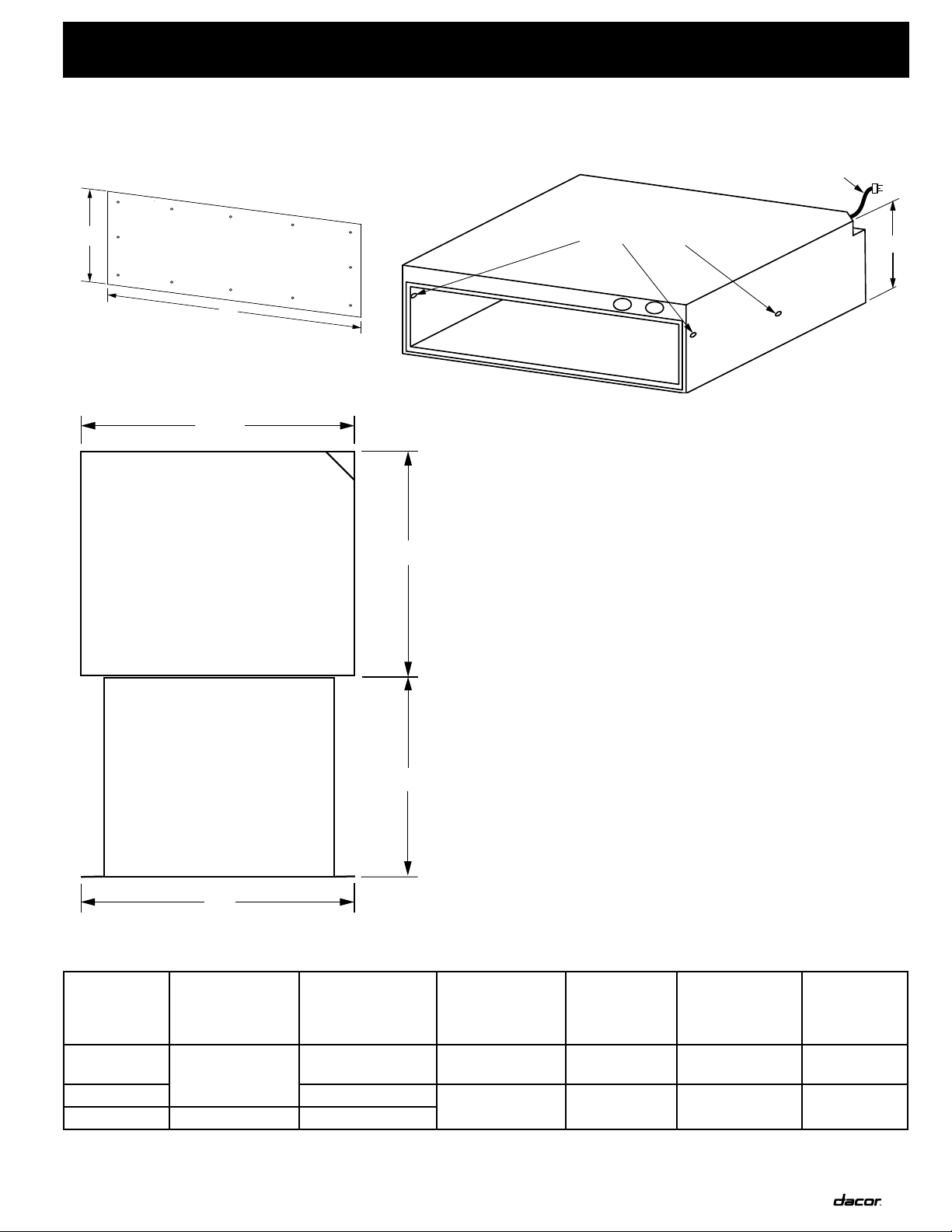

Warming Oven Overall Dimensions

F

C

40" (1016mm)

3 prong

120 Vac power cord

Chassis view

without drawer

Mounting holes

(rear holes IOWO model only)

K

Chassis

Drawer open

J

G

E

C

Overall Dimensions
(IWO, IOWO)

Drawer Face Dimensions

(IWO Shown)

De s I g n spec I f I c a t I o n s

Chassis Dimensions

(IOWO Shown)

NOTE: Only model IOWO24 warming ovens are
approved for outdoor use. They are designed for
installation of a custom designed drawer front or for
the Dacor Epicure

®

drawer front and handle. Order

accessory model number AEWP24 through your

Overall Dimensions

Top View

Warming

Oven

Model No.

IOWO24

IWO24 22 3/8” (568mm)
IWO27 25 5/16” (643mm) 25 3/8” (645mm)

Dimension “C”

Drawer face

width

22 5/16” (567mm)

Dimension “E”

Chassis face

22 1/2” (572mm)

width

8 15/16” (227mm)

Dacor dealer.

Dimension “F”

Drawer face

height

11 13/16”

(300mm)

Dimension

“G”

Chassis depth

19 3/4”

(502mm)

23 1/16”

(586mm)

Dimension “J”

Drawer depth

18 13/16”

(478mm)

23 13/16”

(605mm)

Dimension

“K”

Chassis

height

11 7/8”

(302mm)

9” (229mm)

Integrated Warming Oven Overall Dimensions

3

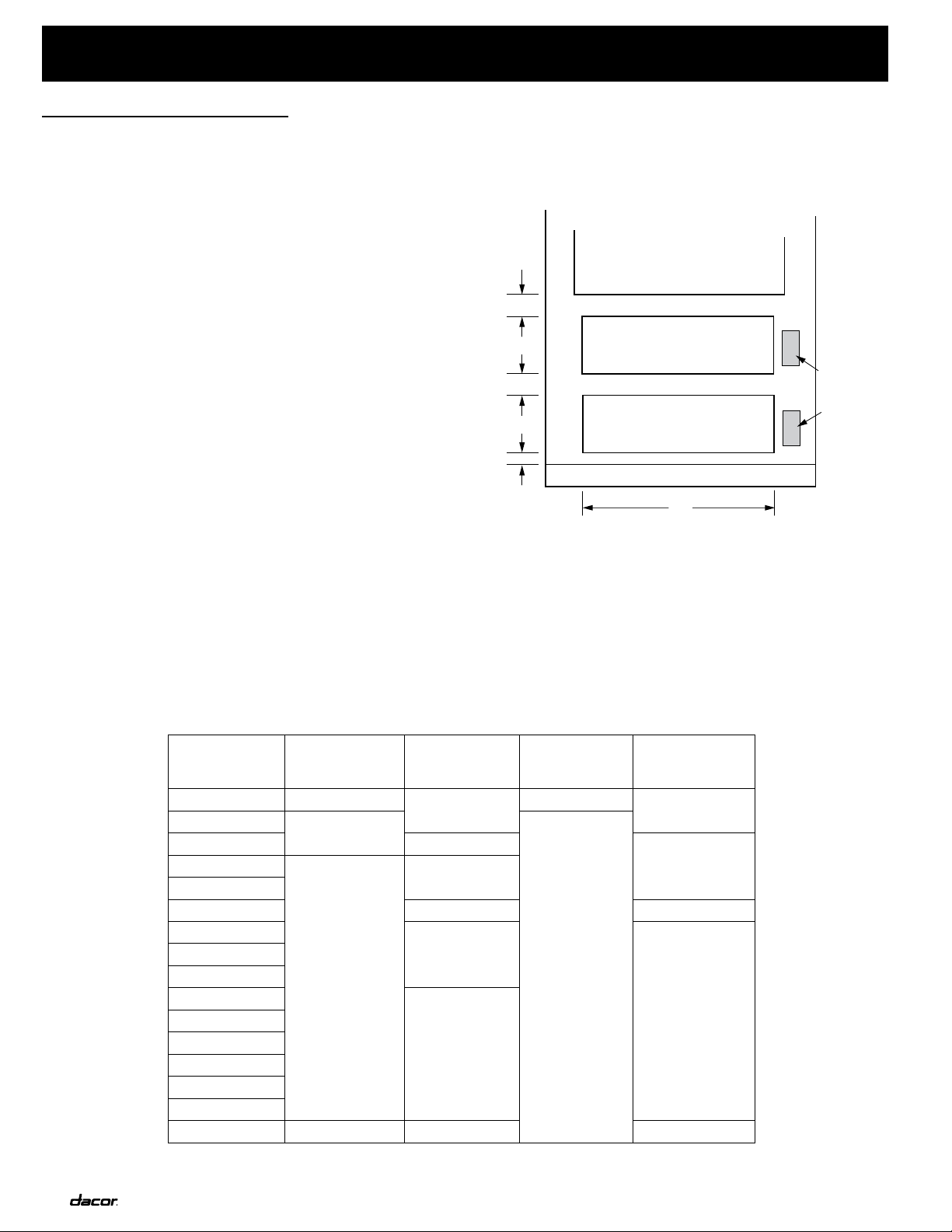

In s t a l l a t I o n sp e c I f I c a t I o n s

27"/30"/36"

Dacor

single oven

Warming Oven

Warming Oven

Toe Kick

1 ¾” Min.
(44mm)

5/8” Min.
(16mm)

D

C

C

A

120 Vac

electrical

outlets

In s t a l l a t I o n pl a n n I n g

A qualified technician must complete the installation of this ◊
built-in appliance. Proper installation is the responsibility of
the customer.

Carefully check the installation location. The oven should be ◊
placed for convenient access. Make certain that electrical
power can be provided in the selected location.

Plan the installation so that all minimum clearances are ◊
met or exceeded. Dimensions shown provide minimum
clearances, unless otherwise noted. Be certain that proper
clearance is provided for the oven door when it is in the open
position.

The specified minimum cabinet depth and width must be ◊
provided. The cabinet depth and width must completely
enclose the recessed portion of the oven.

Cabinet cutout dimensions must be used as indicated. All ◊
contact surfaces between the appliance and the cabinet must
be solid and level. The oven support platform must be flush
with the bottom edge of the cabinet cutout.

Make certain that you have everything necessary to ensure a ◊
proper installation before proceeding.

NOTES:

1. Minimum Cutout Depth:
Model IOWO24 - 20” (508mm)

All other models - 23 3/8” (594mm)

2. The IOWO24 and EWO36 models cannot be stacked.

3. The IOWO24 warming oven is not approved for
installation under a wall oven.

“A” Cutout

Width

22 1/2” (572mm)

25 1/2” (648mm)

Model

IOWO24 22 9/16” (573mm)
IWO24
EWO24 24 1/4” (616mm)

EWO27
IWO27 N/A* N/A*
MW27
MWO27
PW27
EW30
EWO30
MW30
MWO30
PW30
PWO30
EWO36 34 3/8” (873mm) 36 1/4” (921mm

* Depends on size of cabinet face installed.

4

“B” Min. Width

to Adjacent

Doors/Drawers

N/A*

27 1/4” (692mm)

27 1/4” (692mm)

30 1/4” (768mm)

Table 1: Cutouts Dimensions

“C” Cutout

12 1/8” (308mm)

9 1/8” (232mm)

Stacked Installation with Wall Oven

“D” Min. Gap

Height

Between Cutouts

N/A*

1 1/16” (27mm)EW27

1 1/16” (27mm)

3” (76mm)

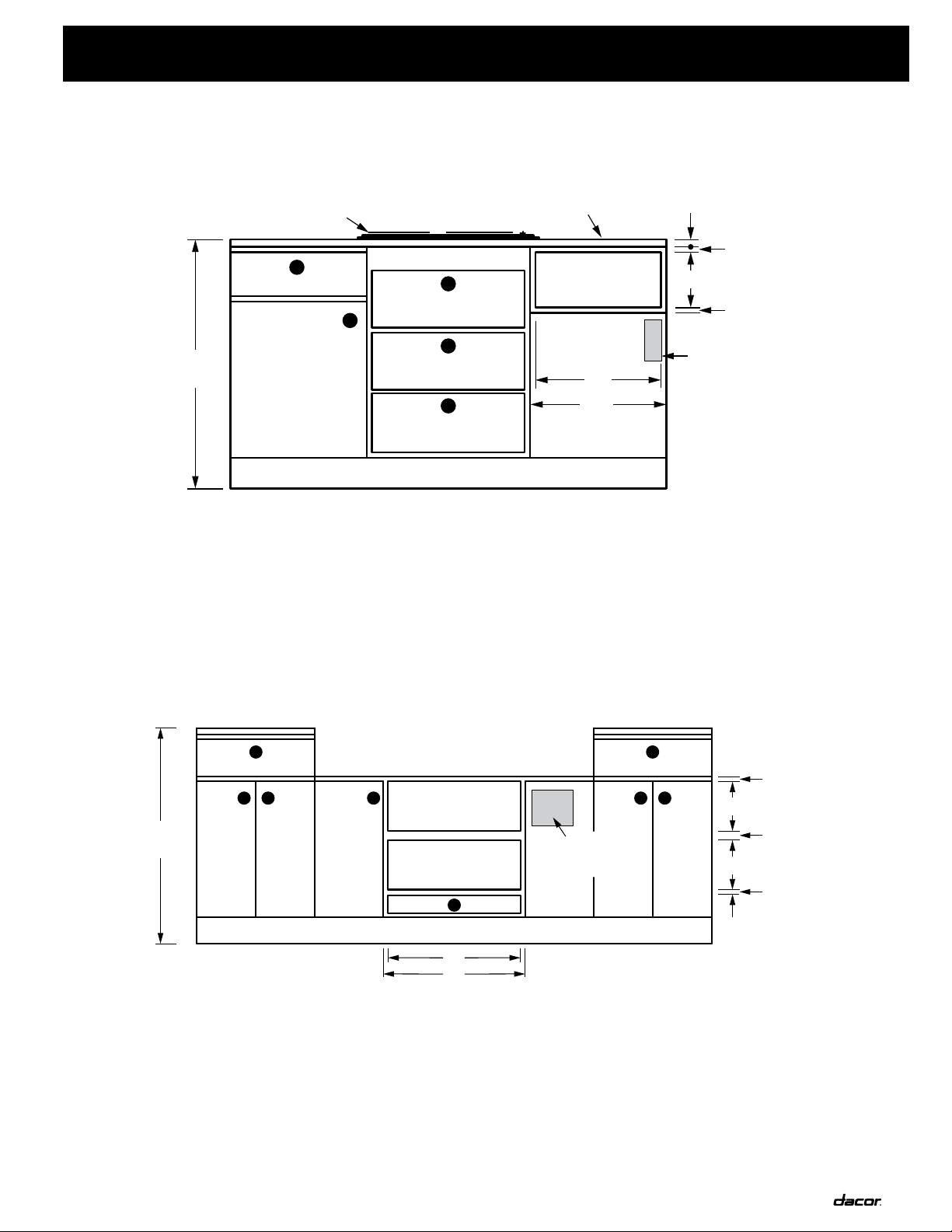

In s t a l l a t I o n sp e c I f I c a t I o n s

Warming Oven

Cooktop

1 1/2" (38mm)

Typical countertop

3/4" Min.
(19mm)

5/8" Min.
(16mm)

120 Vac
electrical
outlet

A

36" Typ.

(914mm)

B

C

A

Warming Oven

Warming Oven

OB Outdoor Grill

EG Epicure Gas Cooktop

B

3/4" Min.
(19mm)

D

5/8" Min

.

(16mm)

120 Vac
electrical
outlet

36" typ.

(914mm)

C

C

Single Installation to Side of Cooktop

Stacked Installation Below Cooktop or Grill

5

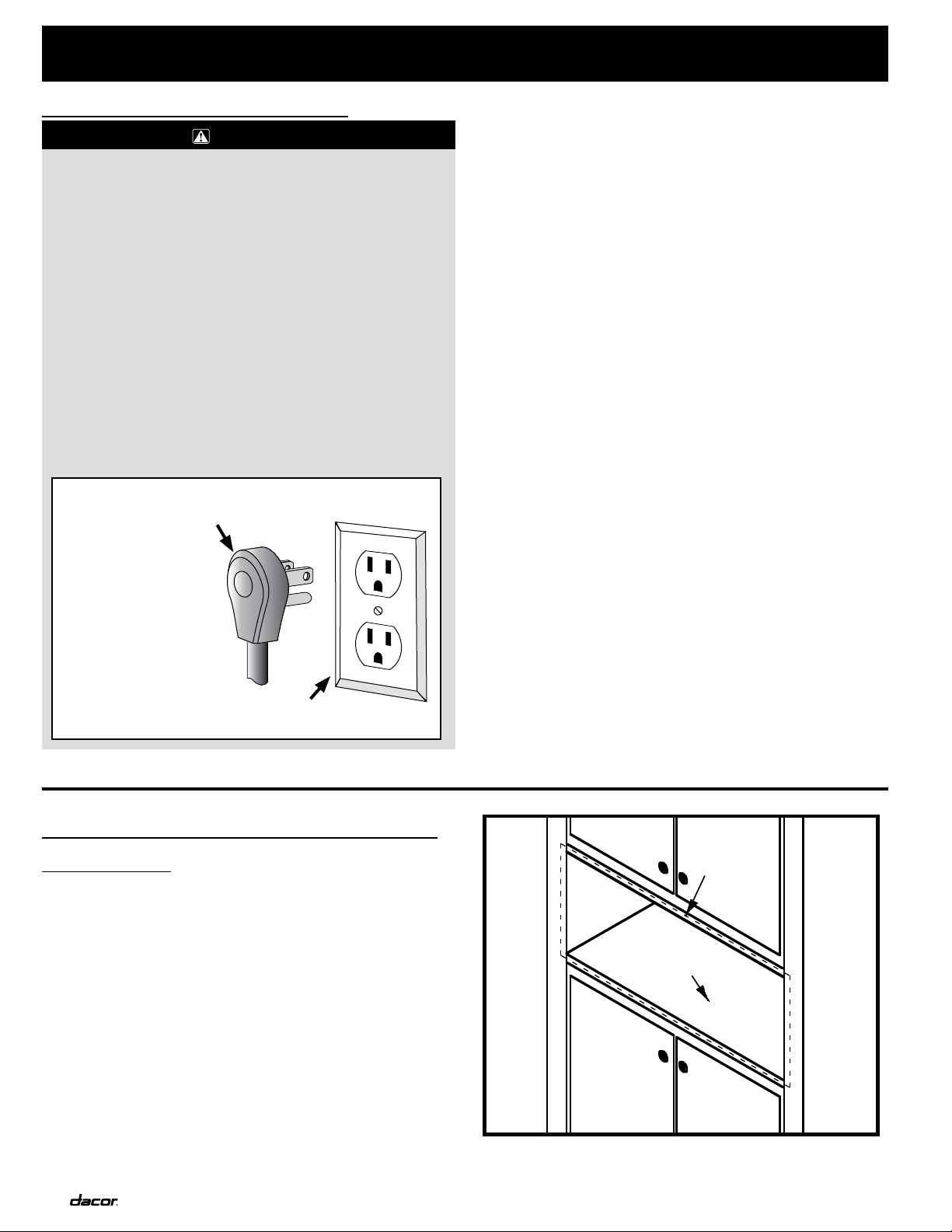

In s t a l l a t I o n sp e c I f I c a t I o n s

Support
platform

Chassis
face

po W e r su p p l y re q u I r e m e n t s

WARNING

Electric shock Hazard – This appliance is equipped

with a 40” (1016mm) power cord with a three prong
grounded plug. Plug it only into a grounded three prong

electrical outlet.

• Do not remove the ground prong.

• Do not use a 2-prong adapter.

• Do not use an extension cord.

• Do not use a power cord that is frayed or

damaged.

Failure to comply with the above can result in fire,
electric shock, or death.

The electrical outlet for this appliance must only be
installed by a licensed electrician.

Power cord with

three-prong grounding plug

The correct voltage, frequency and amperage must be supplied
to the electrical outlet from a grounded, single phase circuit that is
protected by a properly sized circuit breaker or time-delay fuse.

Circuit Requirements:

120 Vac, 60 Hz, 15 Amp. dedicated circuit.◊

Total Connected Load:

Model EWO36: 0.8kW (6.5 Amp.)◊
All other models: ◊ 0.5kW (4 Amp.)

NOTES:

The above specifications are for reference only. Refer 1.
to the product date label for exact specifications. If the
requirements above do not agree with those listed on
the product data label, use the information found on the
label. See inside the front cover for location.

If the electrical service provided does not meet the 2.
product specifications, or does not conform to the NEC
or local standards, do not proceed with the installation.
Call a licensed electrician to install the required
electrical service before proceeding.

Grounding type
electrical outlet

In s t a l l I n g t h e su p p o r t pl a t f o r m I n

t h e ca b I n e t

Provide a platform (100lb. load capacity) within the cabinet upon
which the warming oven will be supported. The platform must
be installed level and straight. The top edge of the platform must
be flush with the cutout at the front of the cabinet. There are no
provisions to level the warming oven after it has been installed.
3/4” (19mm) thick plywood is recommended.

NOTE:

If the oven is not installed in a level fashion, the drawer
may slide open on its own or may not seal tightly, allowing
heat to escape and resulting in poor performance.

3. Be certain to locate the electrical outlet in an
accessible location, so that the warming oven may be
easily unplugged if service becomes necessary.

4. It is the owner’s responsibility to ensure that the
electrical outlet for this appliance has been installed
by a qualified electrician. The electrical installation
must comply with the latest revision of the National
Electric Code ANSI/NFPA 70 and local codes and
ordinances.

6

In s t a l l a t I o n In s t r u c t I o n s

ve r I f y I n g t h e pa c k a g e co n t e n t s

•Useandcaremanual

•Mountingscrews

•Wirerackwithmountinghardware(IOWOmodelonly)

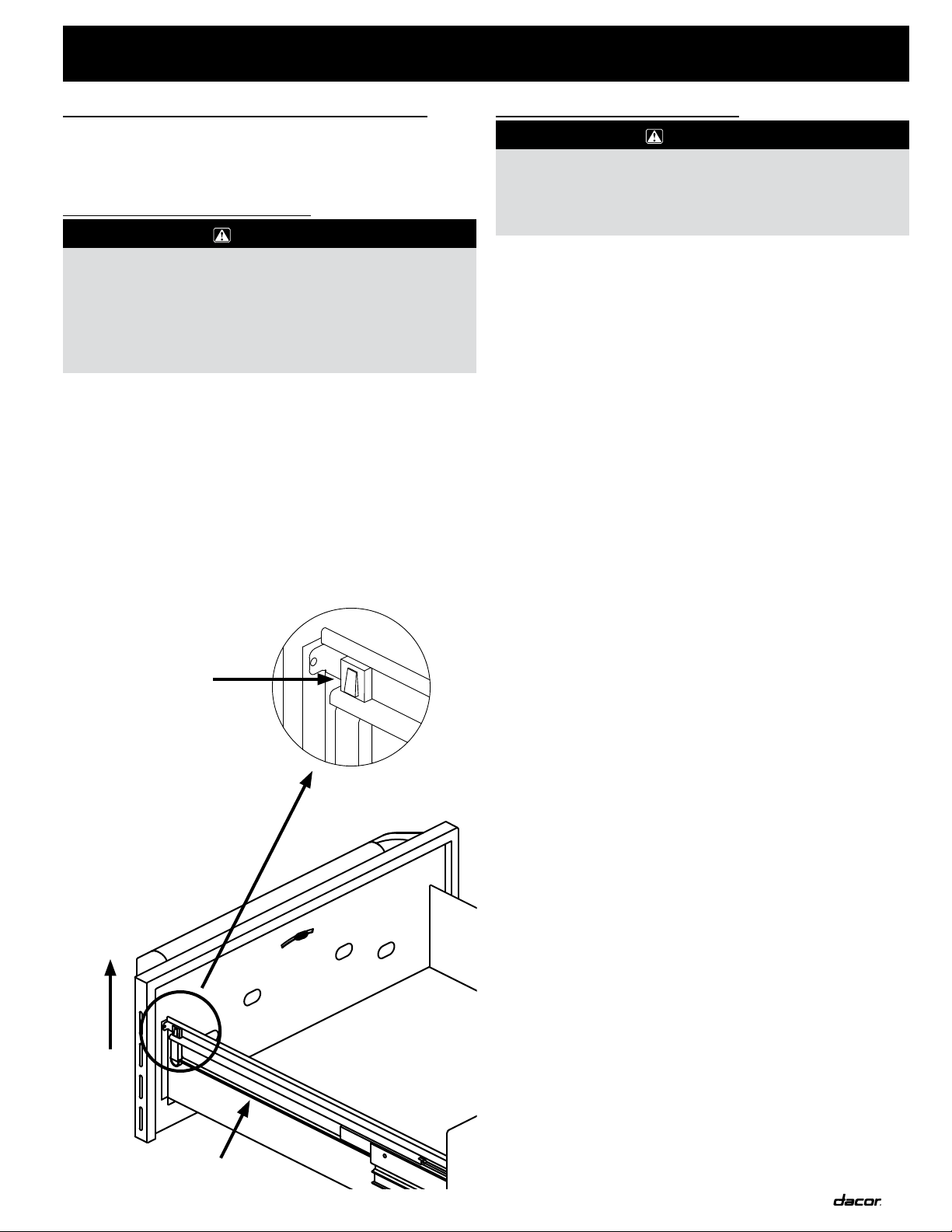

re m o v I n g t h e Dr a W e r

WARNING

1. Verify that the electrical outlet for the warming
oven meets the Power Supply Requirements on
the facing page before proceeding.

2. Be certain that power plug is disconnected from
the electrical outlet before installation.

Remove the drawer from the appliance to allow access
to the mounting holes during installation, and to reduce
weight:

Pull the drawer out to the fully open position. 1.
Push in on the locking tab on one side as you pull the 2.

drawer up.
When the drawer comes loose on the slide, repeat the 3.

same process on the opposite side.
Grip the drawer on both sides and pull it free.4.
For safety, push both drawer slides into the drawer 5.

opening.

In s t a l l I n g t h e ch a s s I s

WARNING

To avoid personal injury caused by the appliance
falling forward when the drawer is opened, secure
the chassis to the cabinet and support platform as
instructed.

Grasp the warming oven chassis on opposite sides and 1.
slide it partially into the cabinet opening.

Temporarily support the oven in place so that it will not 2.
tilt or fall.

From an adjoining cabinet, reach in behind the oven 3.
and pull the power cord until the plug is next to the
electrical outlet. Do not plug in the power cord at this
time.

After positioning the power cord and plug, slide the 4.
chassis completely into the cabinet until the front frame
is positioned flush against the cabinet face.

Use the screws provided to secure the warming oven 5.
chassis to the cabinet and support platform, (You may
want to drill pilot holes prior to installing the mounting
screws.) Install one mounting screw through the hole
provided in the front. A pair of holes go through the side
of the chassis for mounting to the cabinet walls.

continued...

STEP 2: Push
locking tab

STEP 3: Pull up on
front of drawer

Drawer Slide

7

In s t a l l a t I o n In s t r u c t I o n s

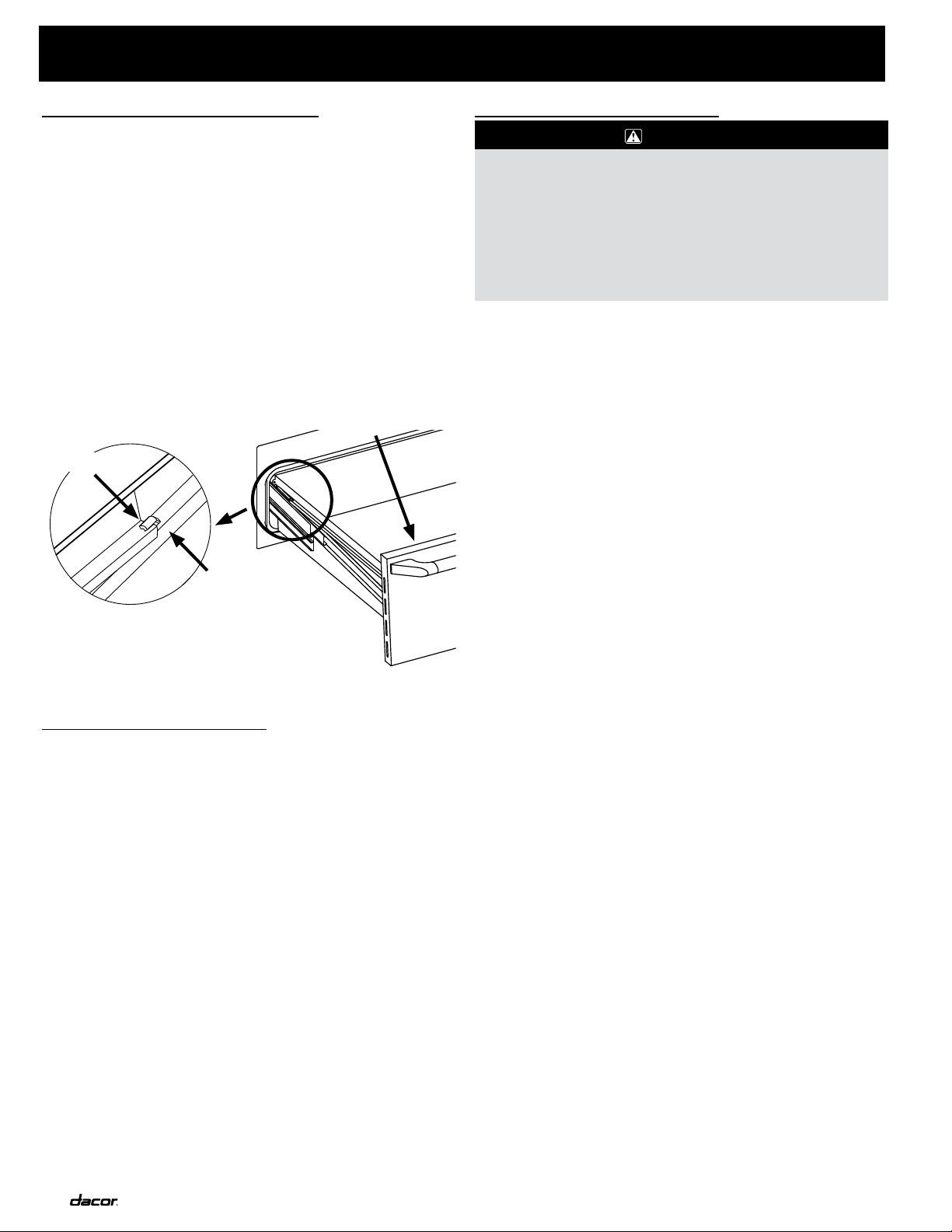

re-I n s t a l l I n g t h e Dr a W e r

Pull the drawer slides all the way out of the drawer 1.
opening.

Gently lower the drawer between the extended slides 2.
until the drawer is suspended by the slide rails.

Slide the back of the drawer mounting brackets under 3.
the drawer mounting clips on the slides.

Push the side of the drawer down onto its locking tab, 4.
until the tab locks into place.

Repeat the same process on the opposite side.5.
Gently open and close the drawer to make sure that it 6.

is properly installed.

STEP 3: Slide mounting
bracket under clip on
slide

Clip on slide

Slide

STEP 4: Push front of
drawer down until tabs
lock into place

In s t a l l a t I o n ch e c k l I s t

WARNING

To ensure a safe and proper installation, the
following checklist should be completed by the
installer to ensure that no part of the installation
has been overlooked.

Proper installation is the responsibility of the
homeowner. The importance of proper installation
of your warming oven cannot be over-emphasized.

Has a properly grounded, dedicated, three prong □
electrical outlet been installed for the appliance by a
licensed electrician? See page 6.

Has the mounting platform been installed according to □
the instructions on page 6?

Has the chassis been properly fastened to the □
mounting platform and sides of the cabinet?
See page 7.

Has the drawer been properly installed? □
Has proper operation been verified? □
Have any problems been noted on the warranty card □

or during the on-line warranty activation? Has the
warranty been activated on-line or the warranty card
filled out completely and mailed?

ve r I f y I n g op e r a t I o n

Before connecting the power plug, turn the 1.
TEMPERATURE and TIMER knobs are set to the OFF
position.

Plug the power cord into the electrical outlet.2.
Operate the warming drawer as outlined in the use and 3.

care manual that accompanied this product.

8

Dacor ● 1440 Bridge Gate Drive, Diamond Bar, CA 91765 ● Tel: [phone] ● FAX: [phone] ● www.Dacor.com
