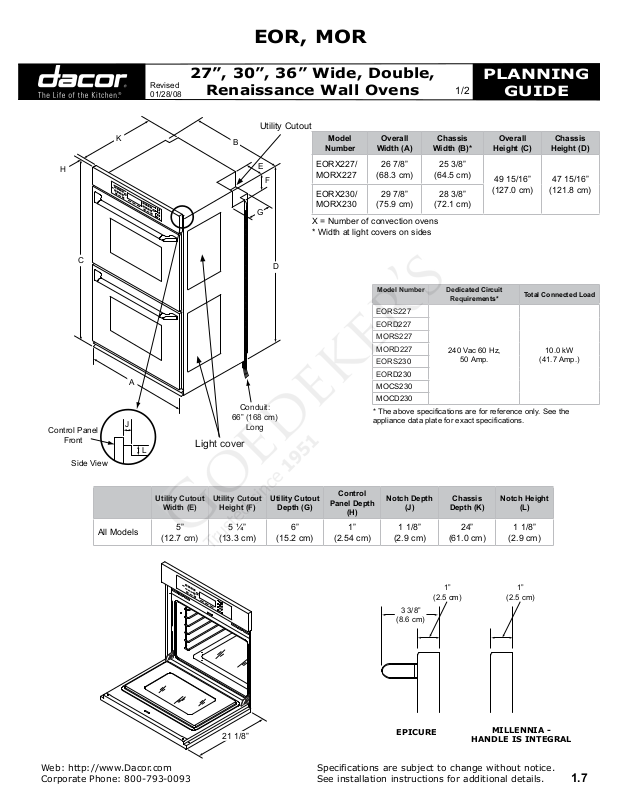

Dacor MOR 36 User Manual
EOR, MOR
C
H
B
G
F
E
A
J
K
L
Side View
Control Panel
Front
Conduit:
66” (168 cm)
Long
D
3 3/8”
(8.6 cm)
1”
(2.5 cm)
1”
(2.5 cm)
21 1/8”
Revised
01/28/08
27”, 30”, 36” Wide, Double,
Renaissance Wall Ovens
Utility Cutout
Model
Number
EORX227/
MORX227
EORX230/
MORX230
X = Number of convection ovens
* Width at light covers on sides
Overall
Width (A)
26 7/8”
(68.3 cm)
29 7/8”
(75.9 cm)
Model Number Dedicated Circuit
EORS227
EORD227
MORS227
MORD227
EORS230
EORD230
MOCS230
MOCD230
* The above specifications are for reference only. See the
appliance data plate for exact specifications.
1/2
Chassis
Width (B)*
25 3/8”
(64.5 cm)
28 3/8”
(72.1 cm)
Requirements*
240 Vac 60 Hz,
50 Amp.
PLANNING
GUIDE
Overall
Height (C)
49 15/16”
(127.0 cm)
Total Connected Load
Chassis
Height (D)
47 15/16”
(121.8 cm)
10.0 kW
(41.7 Amp.)
Web: http://www.Dacor.com
Corporate Phone: 800-793-0093
All Models
Light cover
Utility Cutout
Width (E)
5”
(12.7 cm)
Utility Cutout
Height (F)
(13.3 cm)
5 ¼”
Utility Cutout
Depth (G)
6”
(15.2 cm)
Control
Panel Depth
(H)
1”
(2.54 cm)
Notch Depth
(J)
1 1/8”
(2.9 cm)
EPICURE
Chassis
Depth (K)
24”
(61.0 cm)
Notch Height
1 1/8”
(2.9 cm)
MILLENNIA -
HANDLE IS INTEGRAL
(L)
Specifications are subject to change without notice.
See installation instructions for additional details.
1.7
EOR, MOR
4” Typical Toe Kick
Recommended
Electrical
Location
“M”
“N”
“P”
3/4” (1.9 cm)
Support Platform
1” (2.5 cm) min.
to bottom of
cabinet door
1” (2.5 cm) min.
to top of
drawer face
9 5/8” (24.4 cm)
Recommended
Revised
01/04/08
27”, 30”, 36” Wide, Double,
Renaissance Wall Ovens
2/2
PLANNING
GUIDE
EORX227/
MORX227
EORX230/
MORX230
Double Wall Oven - Cut Out Dimensions
Model
Number
Minimum
Cabinet
Width (M)
27”
(68.6 cm)
30”
(76.2 cm)
Minimum Cut
Out Width (N)
25 ½”
(64.8 cm)
28 ½”
(72.4 cm)
Minimum Cut
out Height
(P)
49 1/16”
(124.6 cm)
Web: http://www.Dacor.com
Corporate Phone: 800-793-0093
X = Number of convection ovens
Specifications are subject to change without notice.
See installation instructions for additional details.
1.8
