Dacor EOR, MOR User Manual

0 (0)

Installation Instructions

Renaissance Wall Oven

Models:

EOR, MOR

Part No. 102579 Rev. G

All specifications are subject to change without notice. Dacor ® assumes no liability for changes to specifications.

© 2007 Dacor, all rights reserved.

Table of Contents

Before You Begin...............................................................

1

Important Safety Instructions...........................................

1

Important Information About Safety Instructions..............

1

Safety Symbols and Labels..............................................

1

General Safety Precautions..............................................

2

Customer Service Information..........................................

3

If You Need Help...............................................................

3

Appliance Data Plate........................................................

3

Model Identification...........................................................

3

Product Specifications......................................................

4

Power Supply Requirements............................................

4

Product Dimensions..........................................................

4

Installation Specifications.................................................

6

Installation Planning..........................................................

6

Installation Instructions....................................................

8

Verify the Package Contents............................................

8

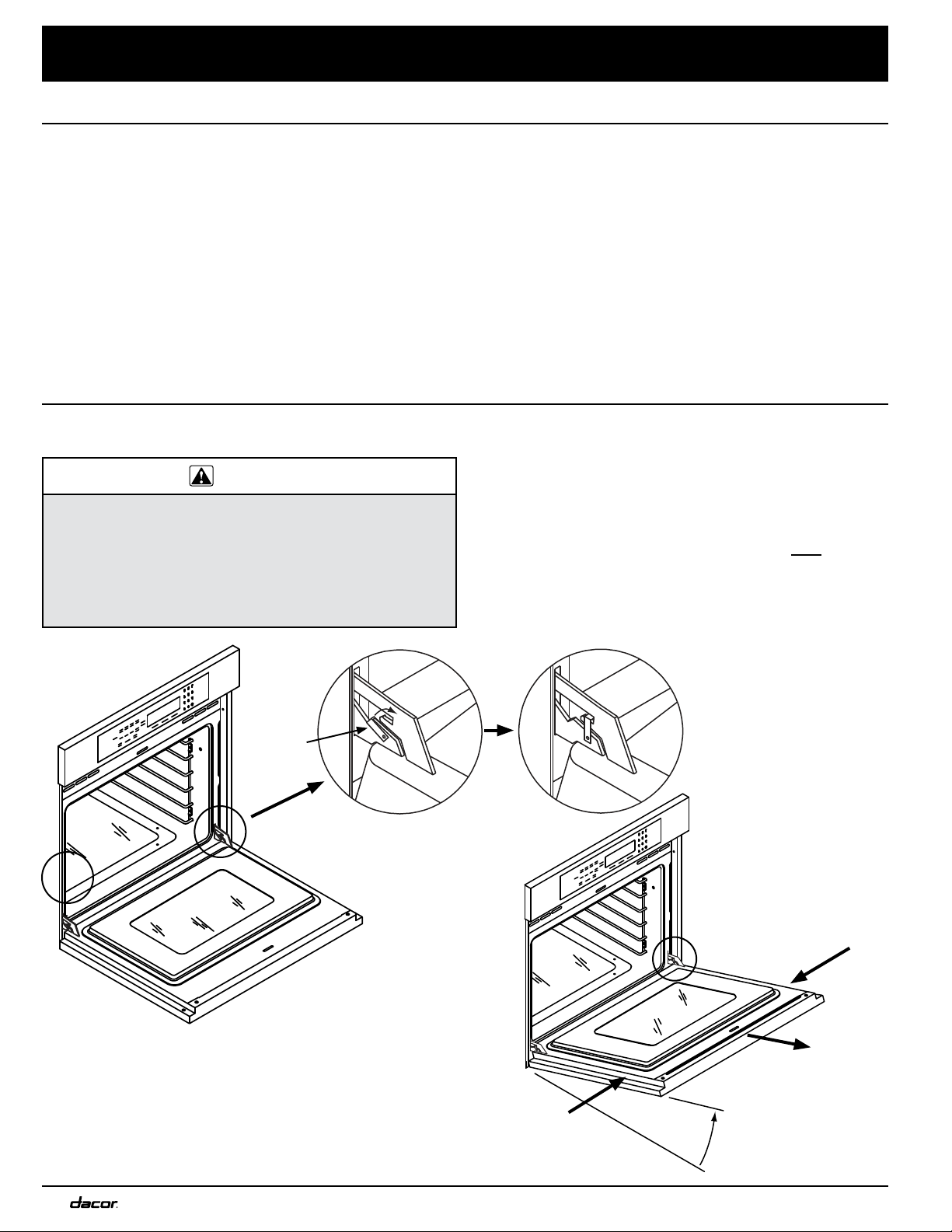

Remove the oven door(s).................................................

8

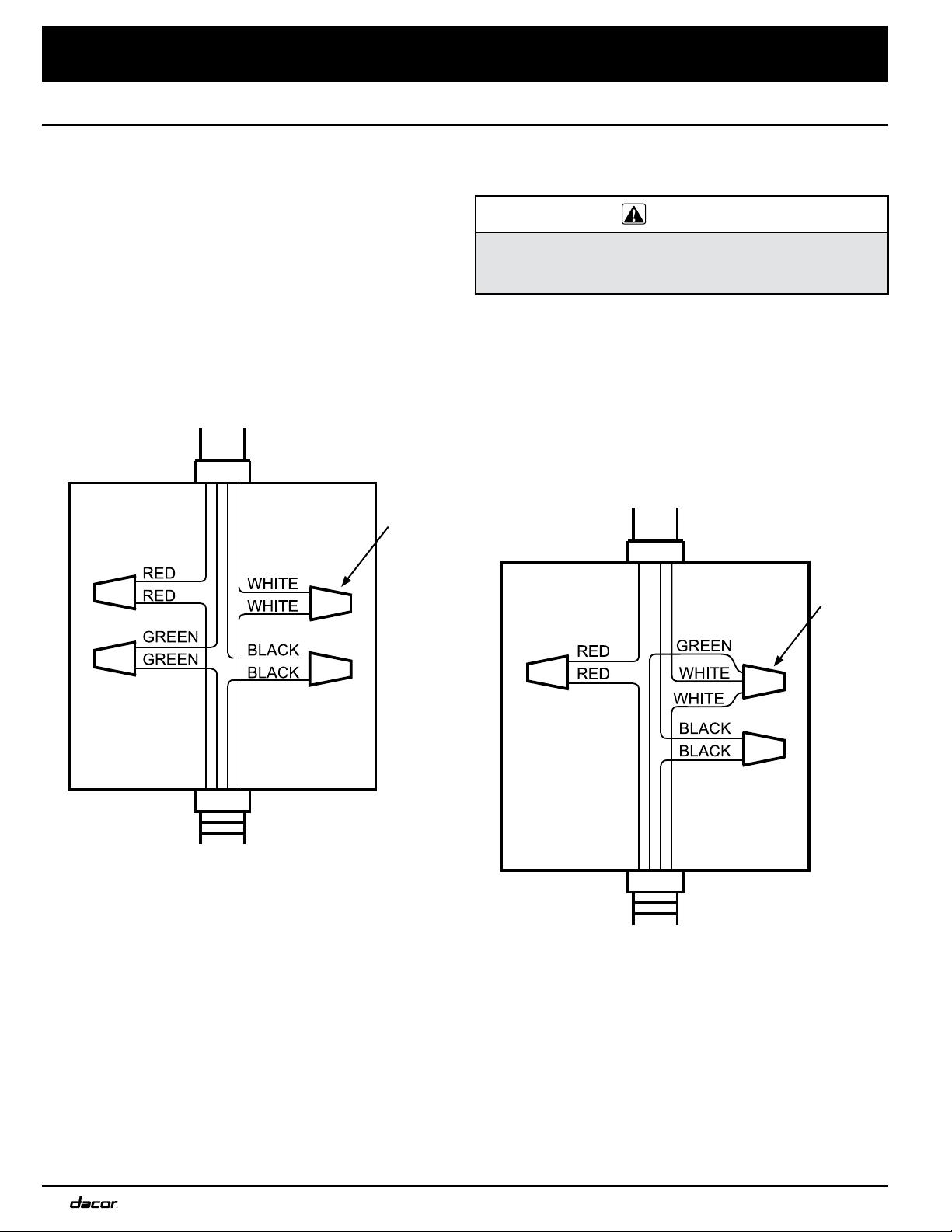

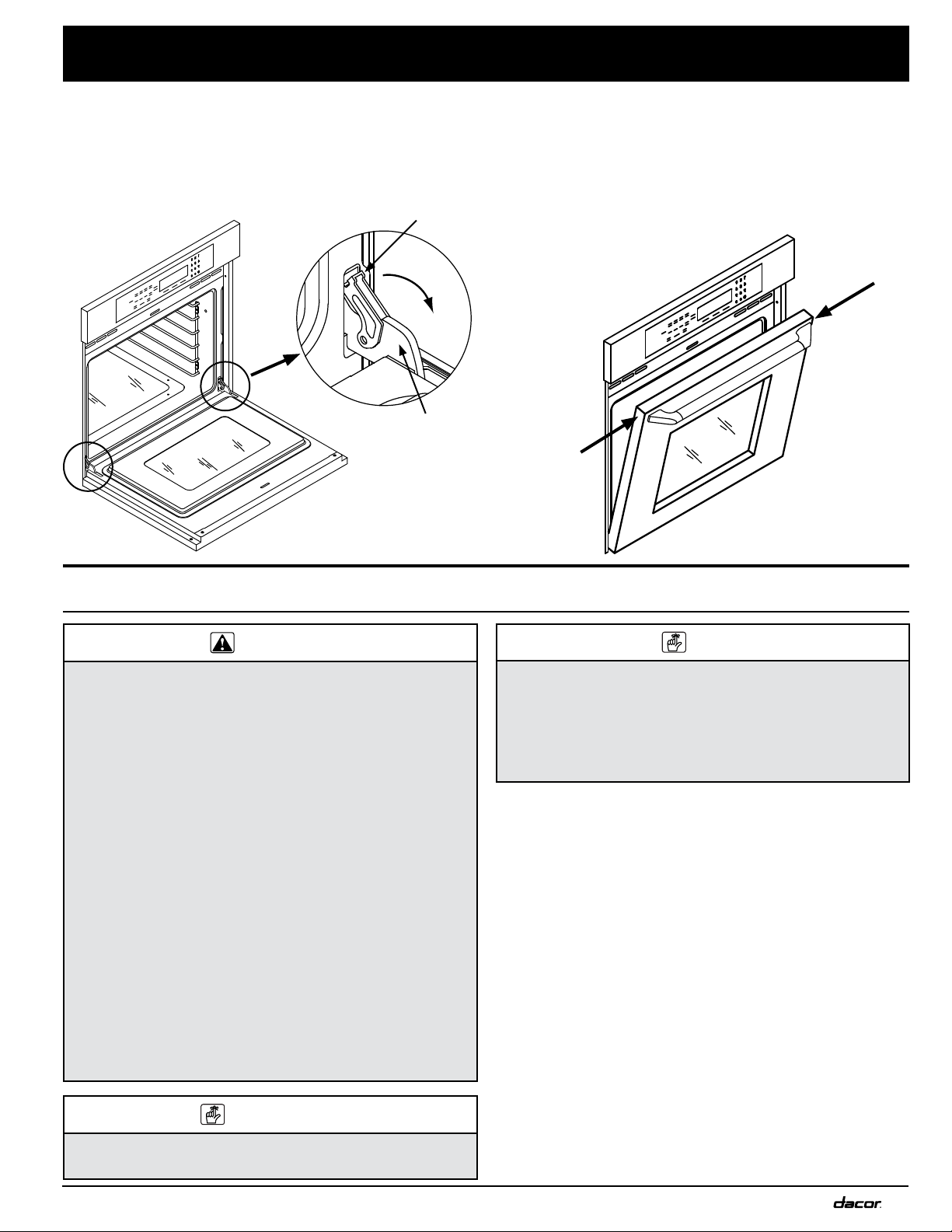

Electrical Connection........................................................

9

Installing the Oven in the Cabinet..................................

12

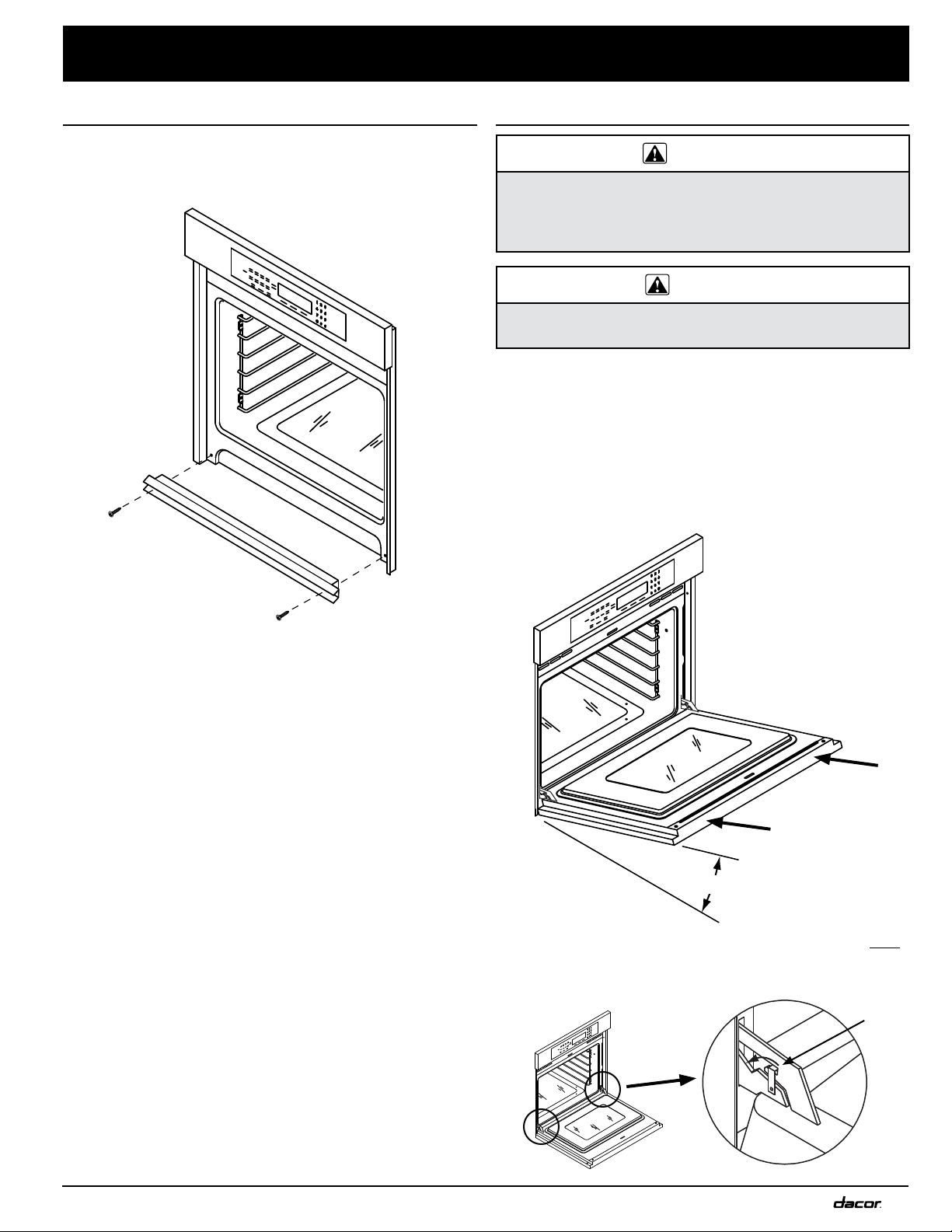

Installing the Exhaust Grill..............................................

13

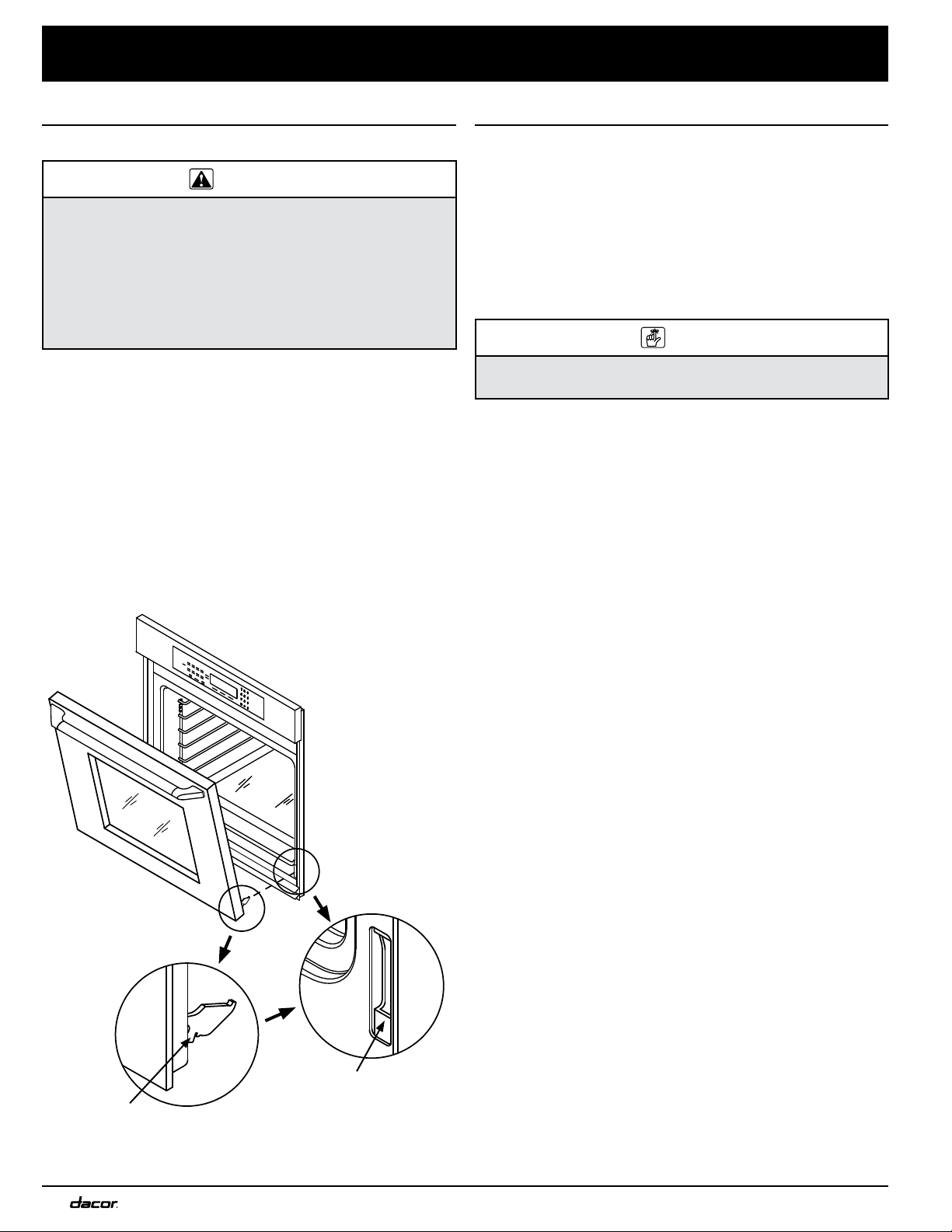

Reinstalling the Oven Doors...........................................

13

Verifying Proper Operation.............................................

14

Installation Checklist.......................................................

15

Before You Begin...

Important:

Installer: In the interest of safety and to minimize problems, read these installation instructions completely and carefully before you begin the installation process. Leave these installation instructions with the customer.

Customer: Keep these installation instructions for future reference and the local electrical inspector’s use.

Important Safety Instructions

Important Information About

Safety Instructions

The Important Safety Instructions and warnings in these instructions are not meant to cover all possible problems and conditions that can occur. Use common sense and caution when installing, maintaining or operating this or any other appliance.

Always contact the Dacor Customer Service Team about problems and conditions that you don’t understand. See Customer Service Information.

Safety Symbols and Labels

DANGER

Immediate hazards that WILL result in severe personal injury or death.

warning

Hazards or unsafe practices that COULD result in severe personal injury or death.

caution

Hazards or unsafe practices that COULD result in minor personal injury or property damage.

READ AND SAVE

THESE INSTRUCTIONS

DANGER

IMPORTANT: Do not store or use combustible, flammable, or explosive vapors and liquids (such as gasoline) inside or in the vicinity of this or any other appliance. Also keep items that could explode, such as aerosol cans, away from the oven. Do not store flammable or explosive materials in adjacent cabinets or areas.

warning

WARNING – NEVER use this appliance as a space heater to heat or warm the room. Doing so may result in carbon monoxide poisoning and overheating of the appliance.

warning

WARNING – NEVER cover any slots, holes or passages in the oven bottom or cover an entire rack with materials such as aluminum foil. Doing so blocks air flow through the oven and may cause a fire hazard or carbon monoxide poisoning.

warning

Do not install this appliance outdoors and/or near water, for example, near a pool.

warning

When using the BROIL and CONVECTION BROIL settings, the oven door must be completely shut.

1

Important Safety Instructions

General Safety Precautions

To reduce the risk of fire, electric shock, serious injury or death when using your appliance, follow basic safety precautions, including the following:

WARNING

1.Read the accompanying use and care manual before operating this appliance.

2.Keep packaging materials away from children. Plastic sheets and bags can cause suffocation.

3.If you receive a damaged product, immediately contact your dealer or builder. Do not install or use a damaged appliance. Do not install or use the appliance if the conduit is damaged.

4.This oven must be properly installed and grounded by a qualified installer according to these installation instructions prior to use. The installer must show the customer the location of the circuit breaker panel or fuse box so that they know where and how to turn off electric power to the oven. Dacor

is not responsible for service required to correct a faulty installation. The owner is responsible to make sure this appliance is properly installed.

5.Do not use the door handle(s) to lift or move the oven.

6.A minimum of two people are required to safely install this appliance.

7.To avoid an electric shock hazard, do not install this appliance outside or near water. Do not install or use this appliance if it has been exposed to water.

8.Do not install, repair or replace any part of the oven unless specifically recommended in the literature accompanying it. A qualified service technician should perform all other service.

9.Before performing any type of service or installation, make sure that the electric power to the oven is turned off at the circuit breaker or fuse box.

10.Only use the oven for cooking tasks expected of a home appliance as outlined in the literature accompanying it. This oven is not intended for commercial use.

11.Do not climb on any part of the appliance.

12.Do not leave children alone or unattended in the area around the oven. Do not allow children to play with the controls, pull on the handle or touch other parts of the oven.

13.Do not store items of interest to children above the oven. Children could be burned or injured while climbing on the appliance.

14.Do not tamper with the controls. Do not adjust or alter any part of the oven unless specifically instructed to do so in this manual.

WARNING

15.To prevent injury due to the unit from tipping forward, secure the oven to the cabinet using the supplied mounting screws.

16.Keep flammable items, such as paper, cardboard, plastic and cloth away from hot surfaces. Do not put such items in the oven. Do not allow pot holders to touch hot surfaces.

17.Do not wear loose or hanging apparel while using the oven. Do not allow clothing to come into contact with the interior of the oven and the surrounding areas during and immediately after use.

18.Do not use the oven for storage.

19.Do not touch the interior surfaces of the oven during use. After use, make sure these surfaces have had sufficient time to cool before touching them.

20.Do not touch the outside surfaces of the oven during the self-clean cycle. They will be hot. Venting from the oven may cause the trim to become hot.

21.For your safety, do not use the oven to cook without the convection filter installed. When the filter is not installed, the spinning fan blades at the back of the oven are exposed.

22.Non-stick coatings, when heated, can be harmful to birds. Remove birds to a separate, well-ventilated room during cooking.

23.To prevent damage, remove the meat probe from the oven when it is not being used.

24.Do not line the oven with aluminum foil or other materials. These items can melt or burn up during self-cleaning and cause permanent damage to the oven.

25.Do not leave metal objects, such as aluminum foil, the meat probe, cookie sheets, etc. on the bottom of the oven. Objects left on the bottom of the oven could damage the bake element. In addition, the objects themselves could be damaged.

26.Do not allow heating elements in the top and bottom of the oven chamber to become covered up by cookie sheets, aluminum foil, pots, pans, etc. Covering the heating elements could cause them to over-heat, damaging the oven. On some models the heating elements are behind glass panels.

27.Always ensure that the light fixture lens covers are in place when using the oven. The lens covers protect the light bulbs from breakage caused by high oven temperatures or mechanical shock.

2

Dacor EOR, MOR User Manual

Customer Service Information

If You Need Help...

• If you have questions or problems with installation, contact your Dacor dealer or the Dacor Customer Service Team. When you call, have the model and serial number of the appliance ready. The model and serial number are printed on the appliance data plate.

Dacor Customer Service Team

Phone:

(800) 793-0093

E-mail:

customerservice@Dacor.com

Web site:

www.Dacor.com

Appliance Data Plate

The appliance data plate contains the model and serial number information and the electrical and gas supply requirements.

It can be seen through the grill located below the control panel. Open the door to expose the grill. On double ovens, the plate is located behind the top grill.

View data plate through grate

Model Identification

EORS227SCH

A BC D E

A MODEL:

EOR = Epicure Renaissance MOR = Millennia Renaissance

B NUMBER OF CONVECTION OVENS:

S = Single

D = Double

C NUMBER OF OVENS:

1 = Single

2 = Double D WIDTH:

27 = 27 Inch

30 = 30 Inch

36 = 36 Inch E TRIM:

SCH = Stainless Steel with Chrome Trim B = Black Handle, Black Trim

BK = Black Handle, Stainless Trim

S = Stainless Handle (Millennia Style)

3

Product Specifications

Power Supply Requirements

• It is the owner’s responsibility to ensure that a licensed electrician performs the installation of the electrical supply for this appliance. The electrical installation, including minimum supply wire size, must comply with the National Electric Code ANSI/NFPA 70 (latest revision) and local codes and ordinances.

A copy of this standard may be obtained from:

National Fire Protection Association 1 Batterymarch Park

Quincy, Massachusetts 02269-9101

The correct voltage, frequency and amperage must be supplied to the appliance from a dedicated, grounded, single phase circuit that is protected by a properly sized circuit breaker or time-delay fuse. If a time-delay fuse is utilized, fuse both sides of the line (L1 and L2).

The required voltage, frequency and amperage ratings are listed on the appliance data plate (see page 3) and in the table for reference.

Preheat times and cavity temperature recovery times will be increased slightly if operating the unit with less than a 240 Vac circuit.

This appliance is provided with electrical wiring in a flexible metal conduit.

Model

Dedicated Circuit

Total Connected

Number

Requirements*

Load

EORS127





MORS127

240 Vac 60 Hz,

5.0 kW (21 Amp.)

EORS130

30 Amp.



MORS130







EORS136



5.3 kW (22 Amp.)

EORS227





MORS227

240 Vac 60 Hz,

7.8 kW (33 Amp.)

EORS230

40 Amp.



MORS230





EORD227





MORD227

240 Vac 60 Hz,

10.0 kW (42 Amp.)

EORD230

50 Amp.



MORD230





* The above specifications are for reference only. See the appliance data plate (page 3) for exact specifications.

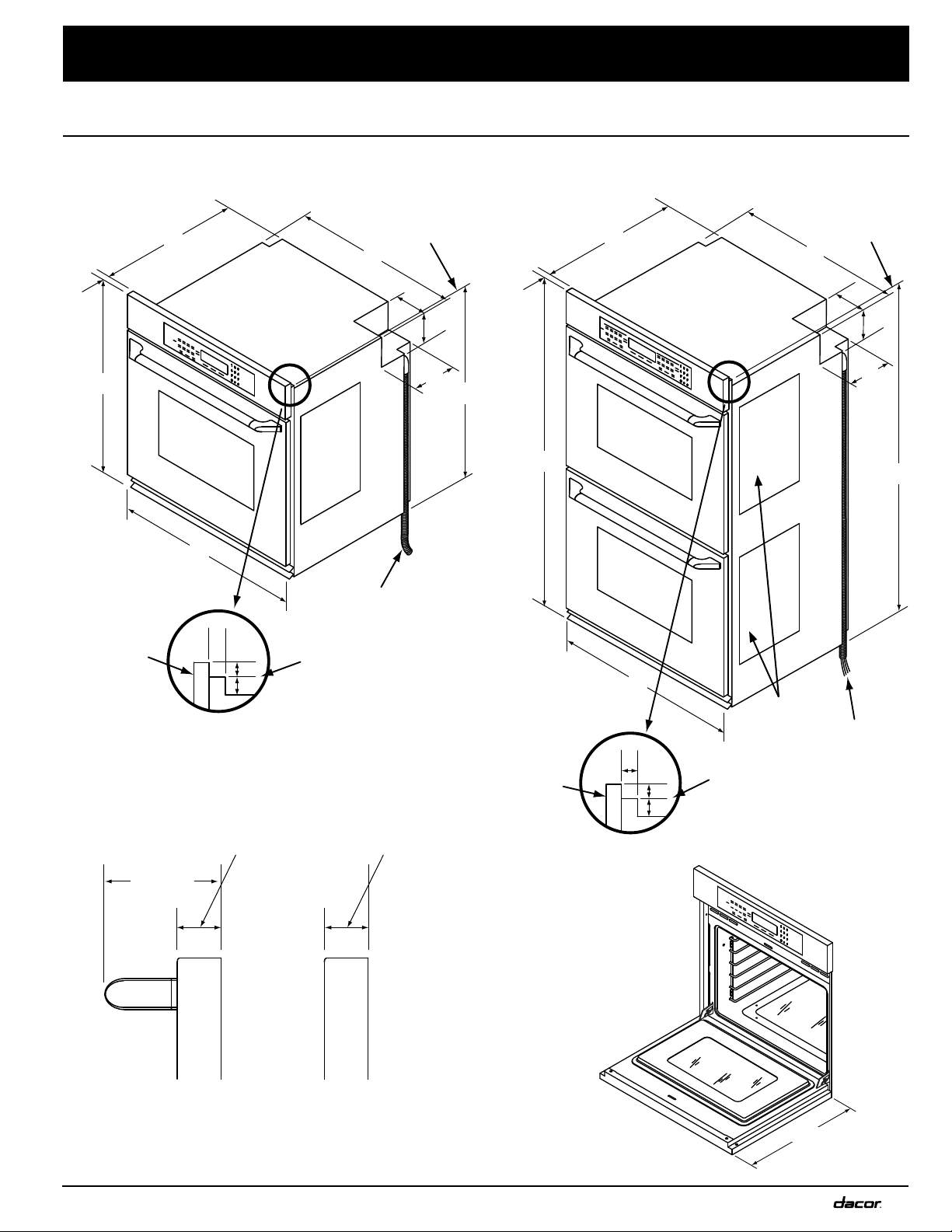

Product Dimensions

All tolerances: +1/16 (1.6 mm). -0, unless otherwise stated.

Model

Overall

Chassis

Overall

Chassis

Control Panel

Number

Width (A)

Width (B)*

Height (C)

Height (D)**

Overlay (E)

EORS127/

26 7/8”

25 3/8”







MORS127

(68.3 cm)

(64.5 cm)

28 7/16”

27 1/2”

15/16”

EORS130/

29 7/8”

28 3/8”

(72.2 cm)

(69.9 cm)

(23.8 cm)

MORS130

(75.9 cm)

(72.1 cm)







EORS136

35 7/8”

34 3/8”

28 5/8”

27 5/8”

1” (2.5 cm)

(91.1 cm)

(87.3 cm)

(72.7 cm)

(70.2 cm)





EORX227/

26 7/8”

25 3/8”







MORX227

(68.3 cm)

(64.5 cm)

49 15/16”

49 1/16”

7/8”

EORX230/

29 7/8”

28 3/8”

(127.0 cm)

(124.6 cm)

(2.2 cm)

MORX230

(75.9 cm)

(72.1 cm)







X = Number of convection ovens, see page 3

*Width at light covers on sides

**To top of chassis notch behind control panel



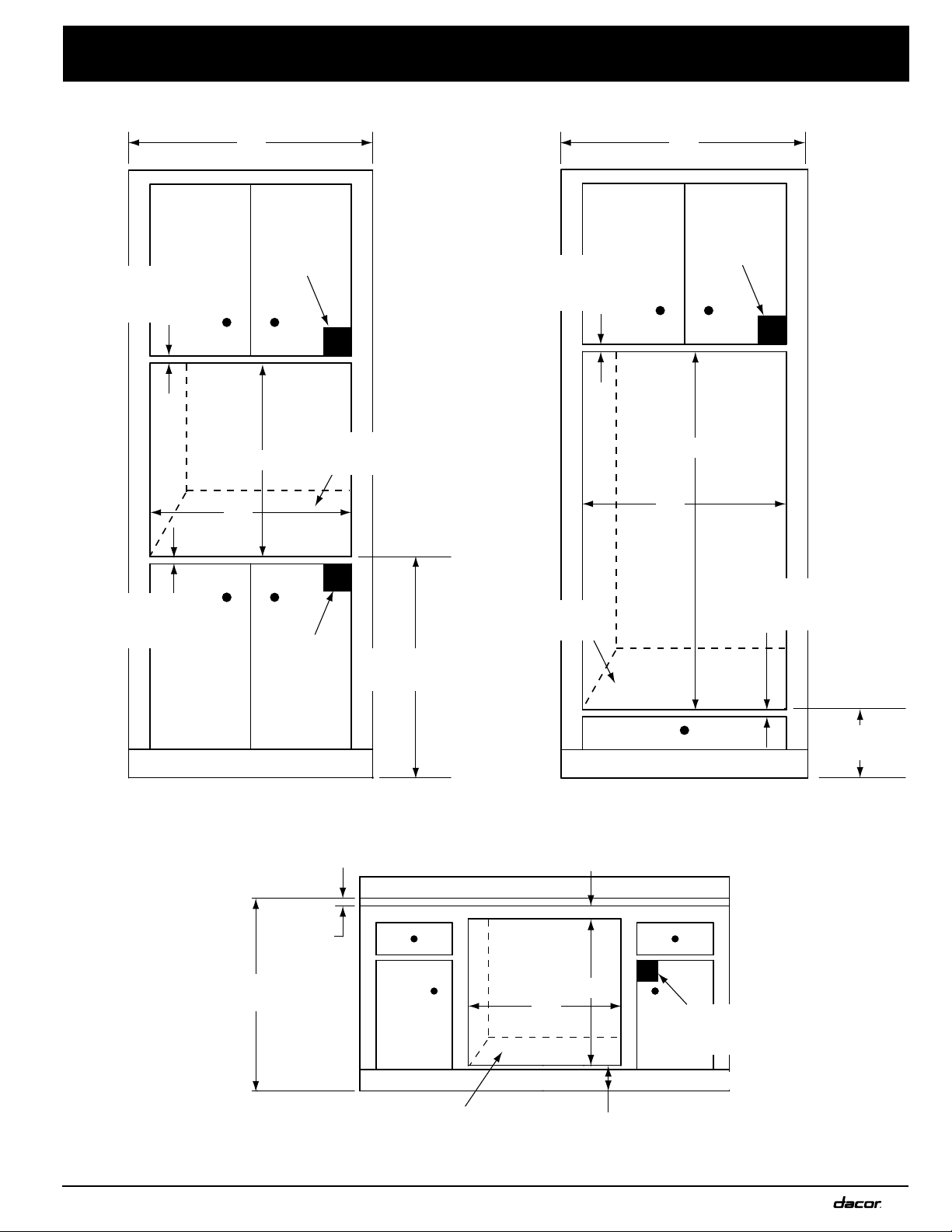

Utility

Utility

Utility

Control

Notch

Chassis

Notch



Cutout

Cutout

Cutout

Panel



Depth (K)

Depth (L)

Height (M)



Width (F)

Height (G)

Depth (H)

Depth (J)









All Models

5”

5 ¼”

6”

1”

1 1/8”

24”

1”

(12.7 cm)

(13.3 cm)

(15.2 cm)

(2.54 cm)

(2.9 cm)

(61.0 cm)

(2.5 cm)



4
