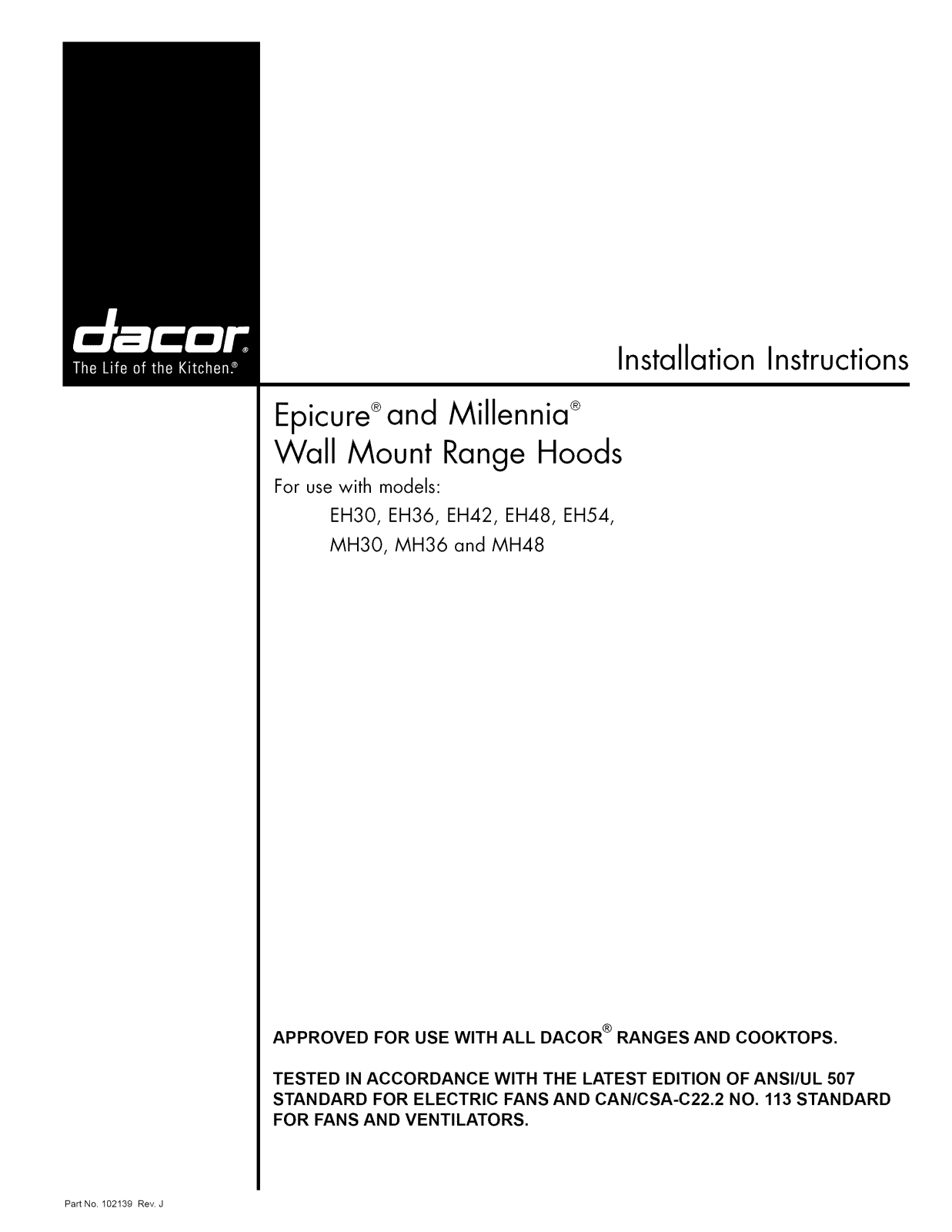

Dacor EH3012SCH, EH3018SCH, EH3612SCH, EH3618SCH, EH4212SCH Installation Guide

Installation

Instructions

Epicure®and

Wall Mount

For usewith models:

EH30, EH36, EH42, EH48, EH54,

MH30, MH36 and MH48

Millennia ®

Range Hoods

Part No. 102139 Rev. d

APPROVED FOR USE WITH ALL DACOR ® RANGES AND COOKTOPS.

TESTED IN ACCORDANCE WITH THE LATEST EDITION OF ANSI/UL 507

STANDARD FOR ELECTRIC FANS AND CAN/CSA-C22.2 NO. 113 STANDARD

FOR FANS AND VENTILATORS.

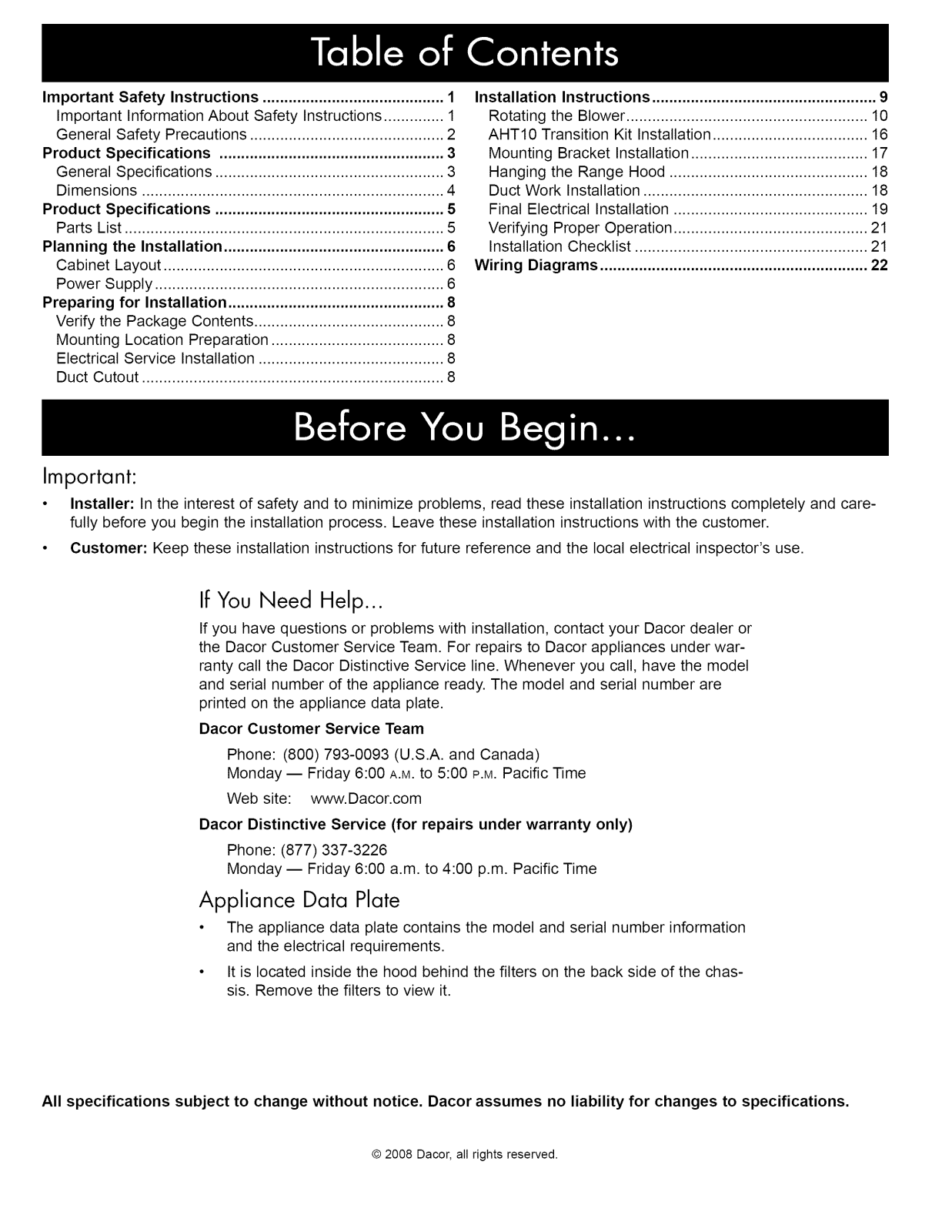

Important Safety Instructions .......................................... 1

Important Information About Safety Instructions .............. 1

General Safety Precautions ............................................. 2

Product Specifications .................................................... 3

General Specifications ..................................................... 3

Dimensions ...................................................................... 4

Product Specifications ..................................................... 5

Parts List .......................................................................... 5

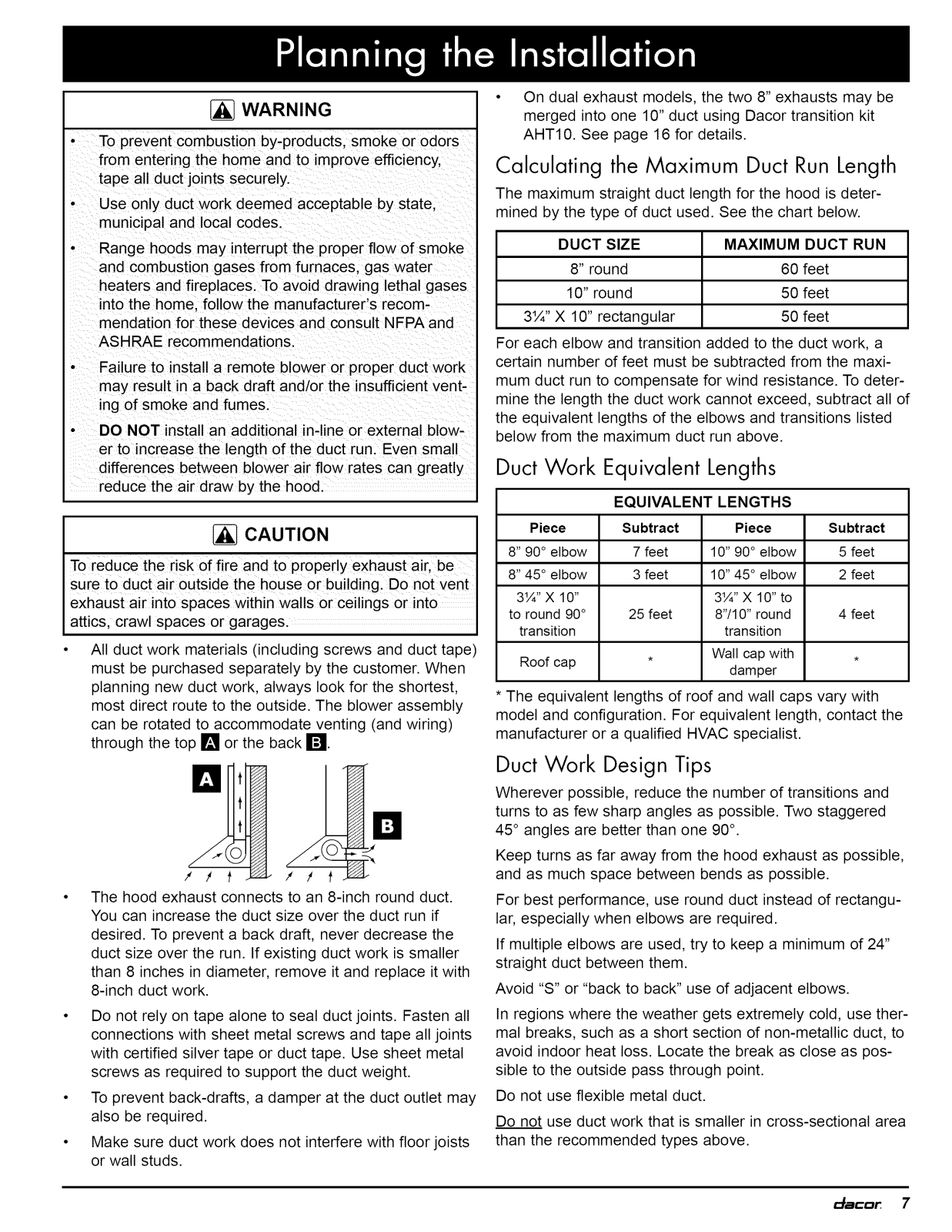

Planning the Installation ................................................... 6

Cabinet Layout ................................................................. 6

Power Supply ................................................................... 6

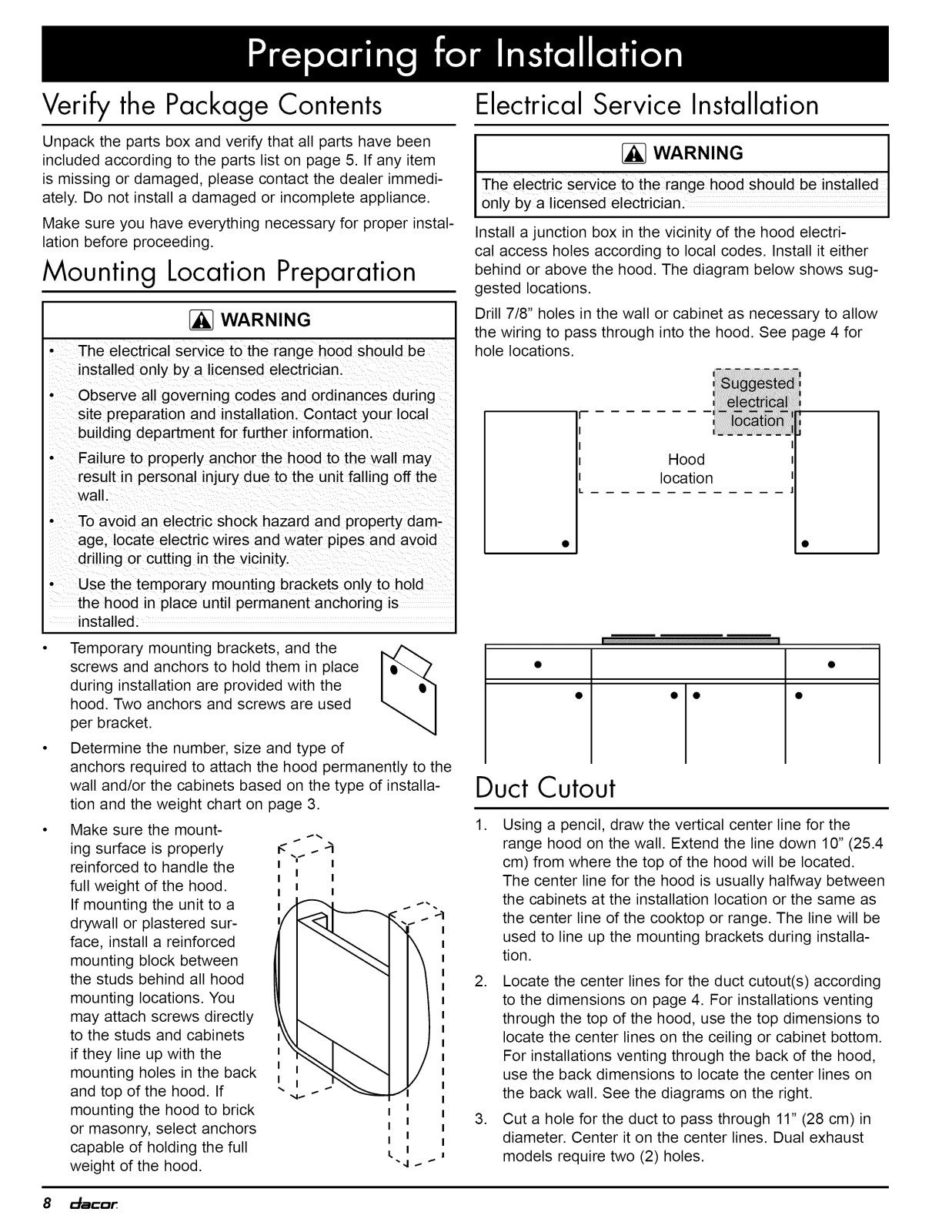

Preparing for Installation .................................................. 8

Verify the Package Contents ............................................ 8

Mounting Location Preparation ........................................ 8

Electrical Service Installation ........................................... 8

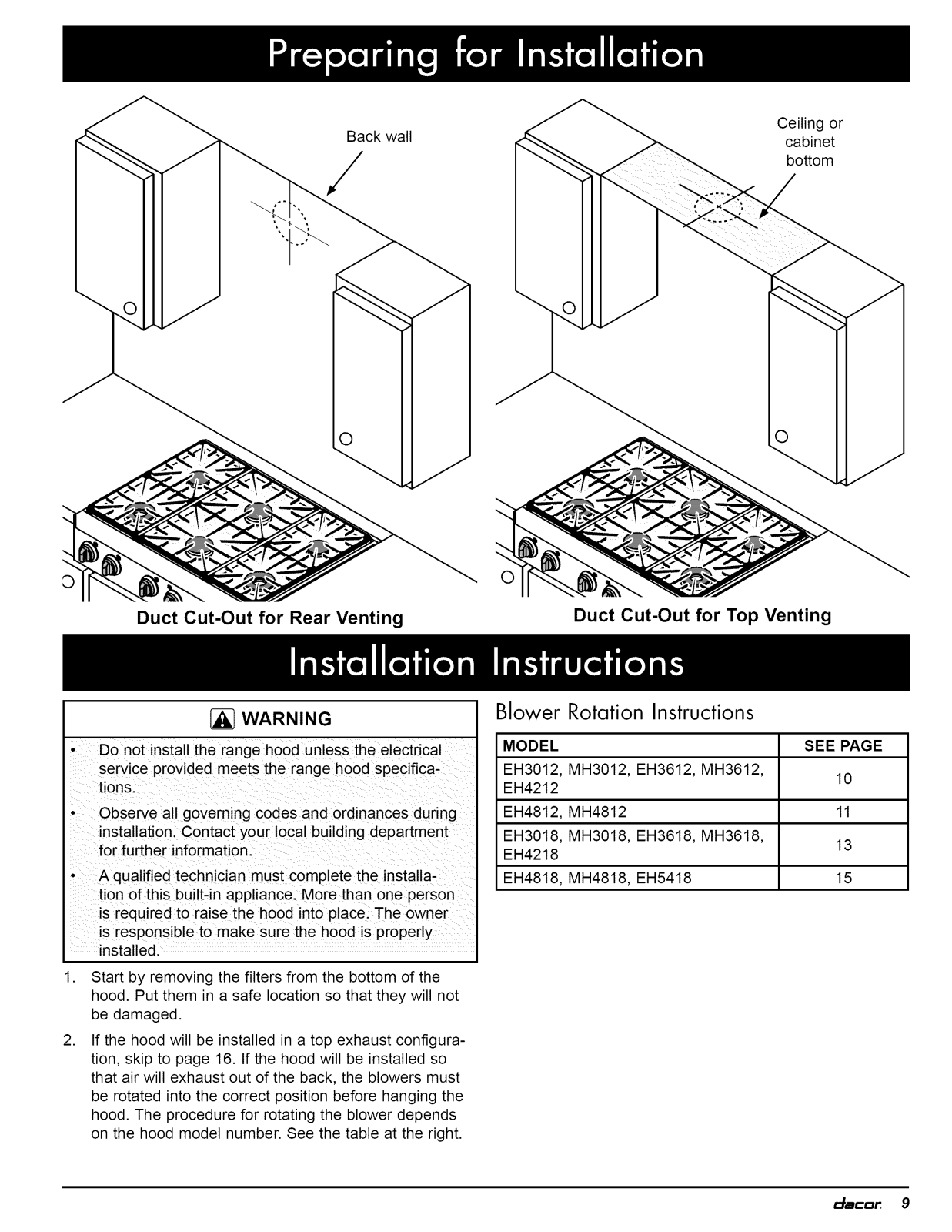

Duct Cutout ...................................................................... 8

Installation Instructions .................................................... 9

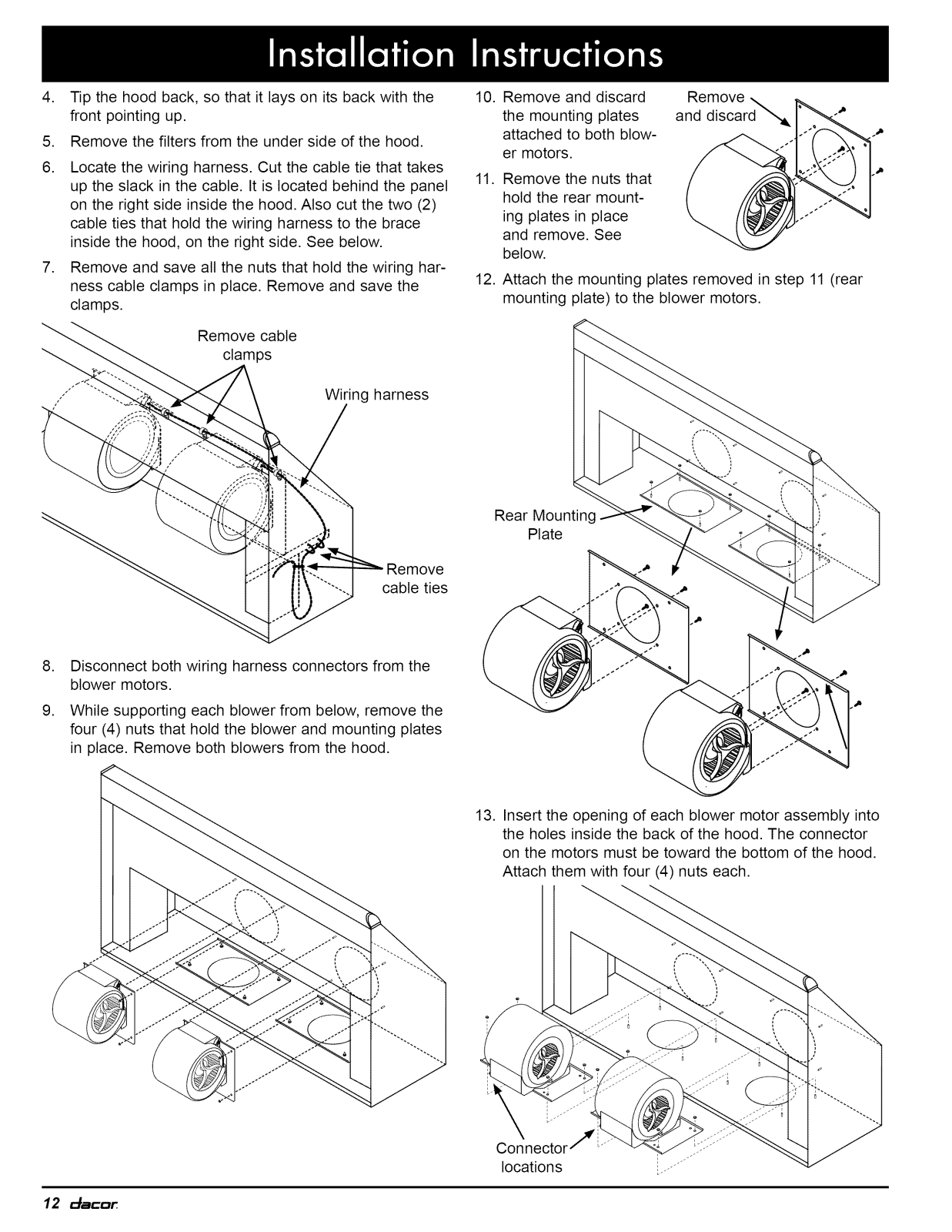

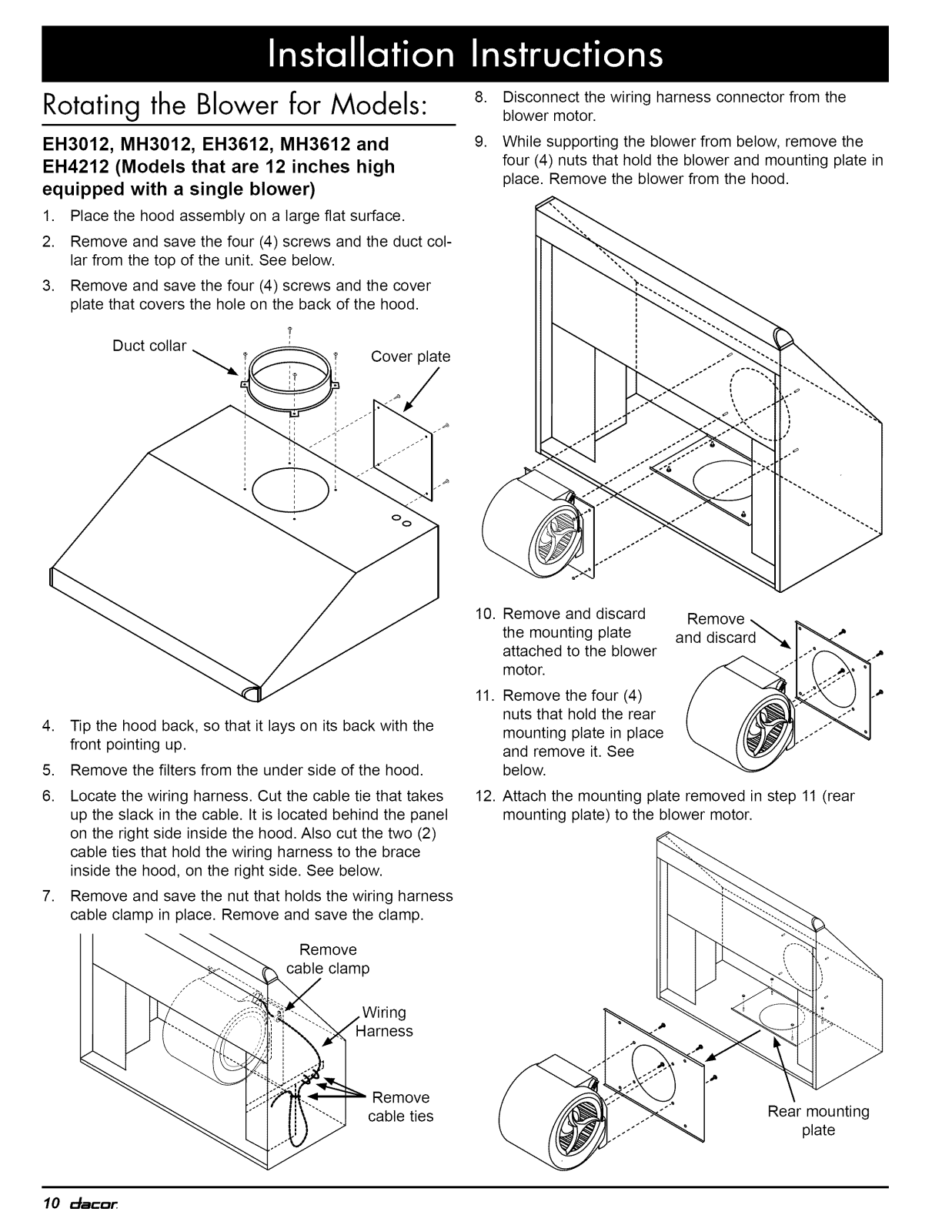

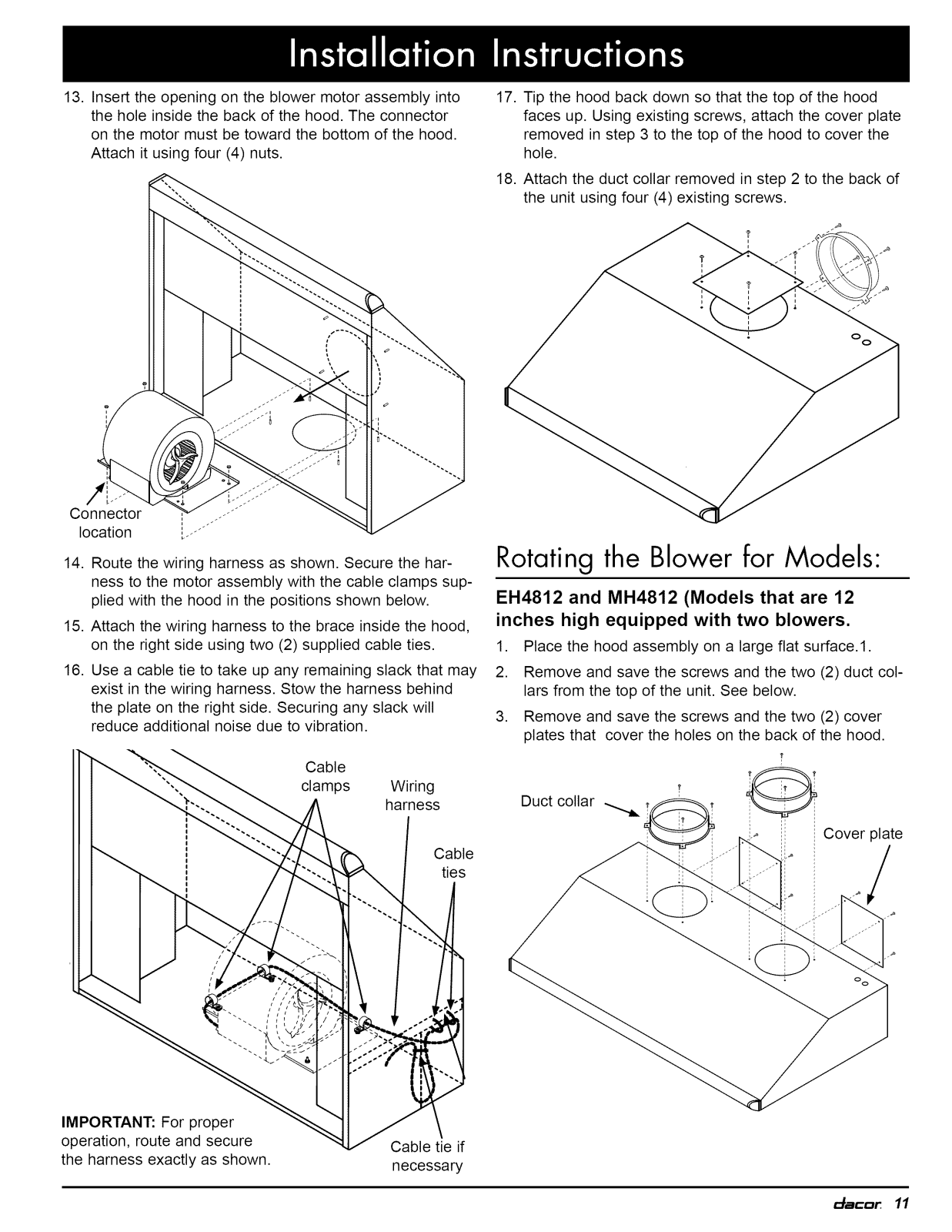

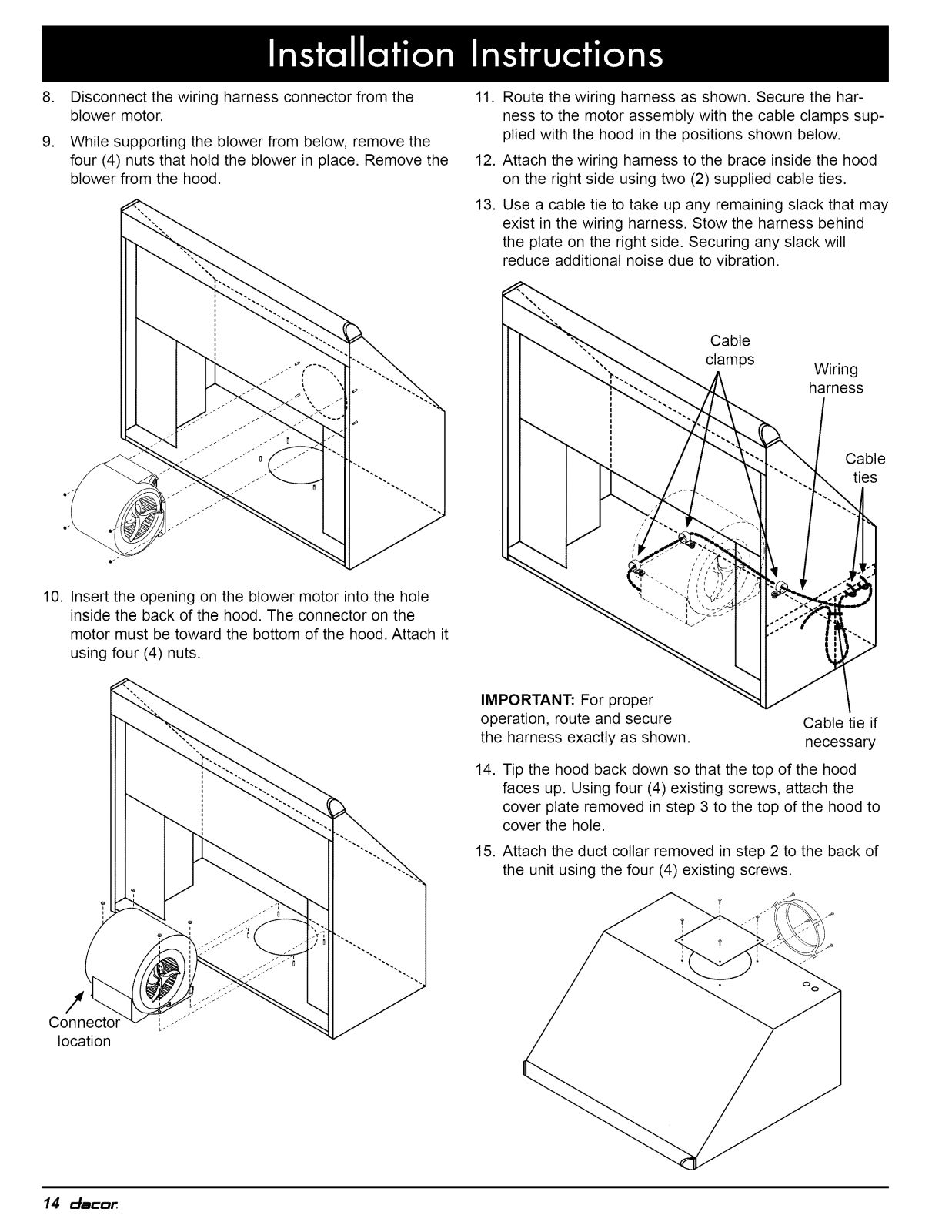

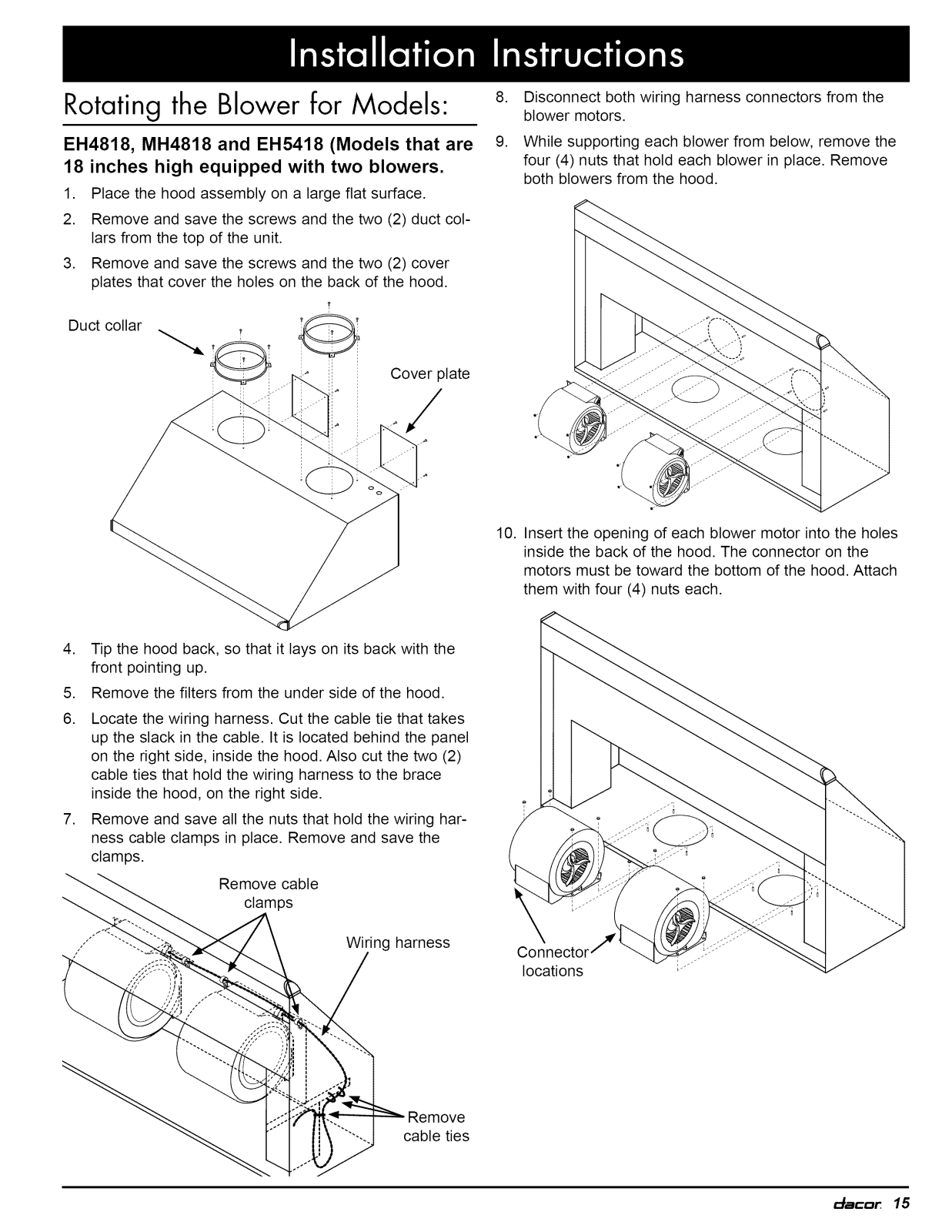

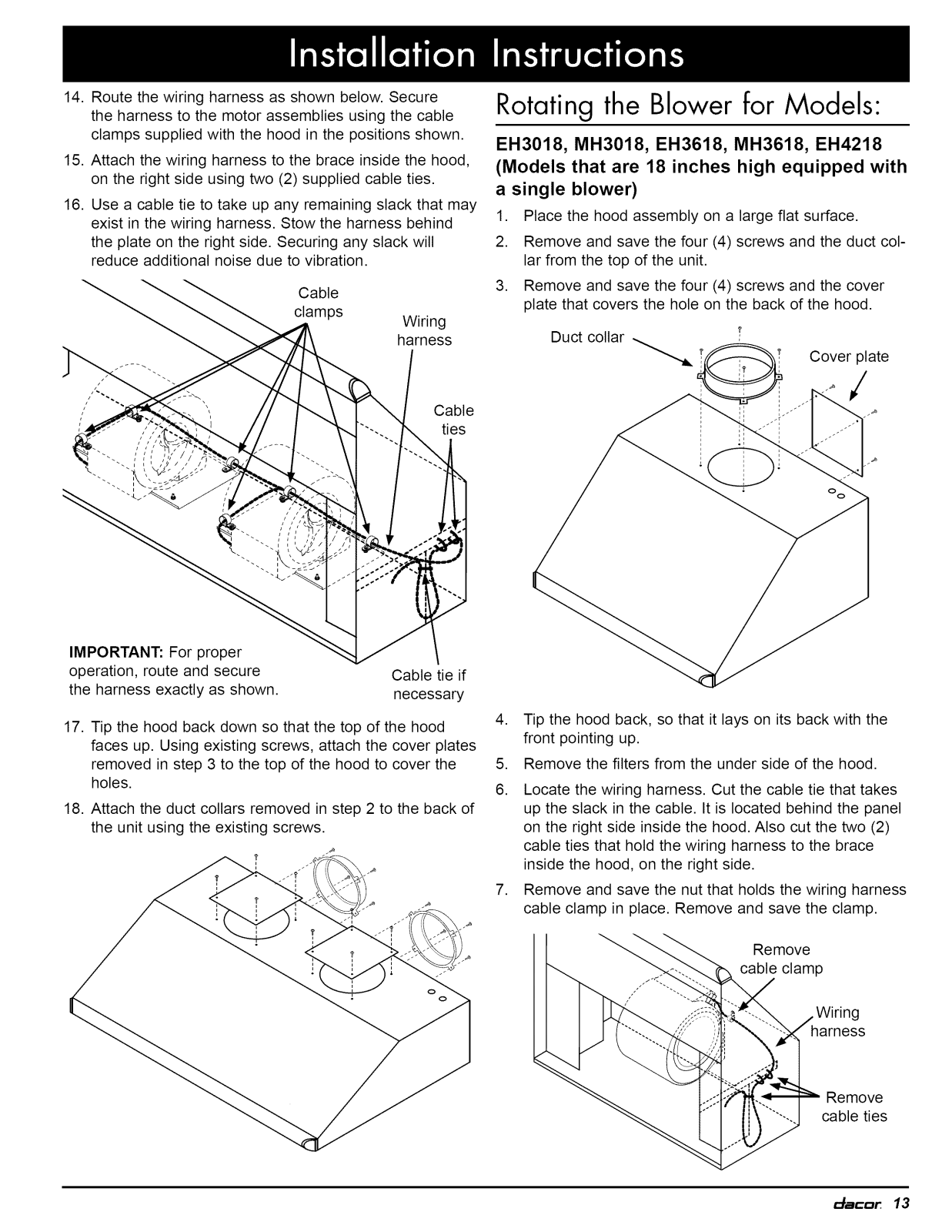

Rotating the Blower ........................................................ 10

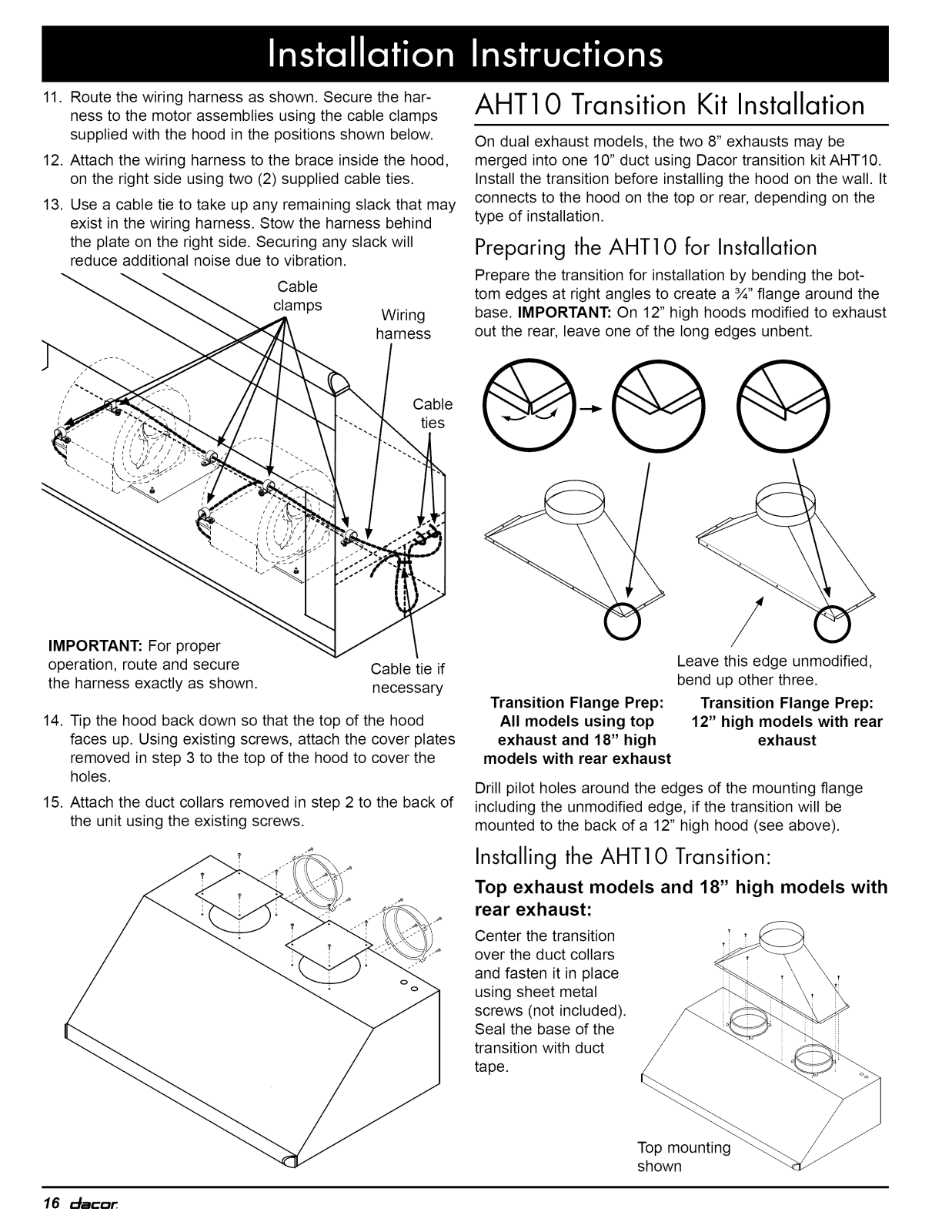

AHT10 Transition Kit Installation.................................... 16

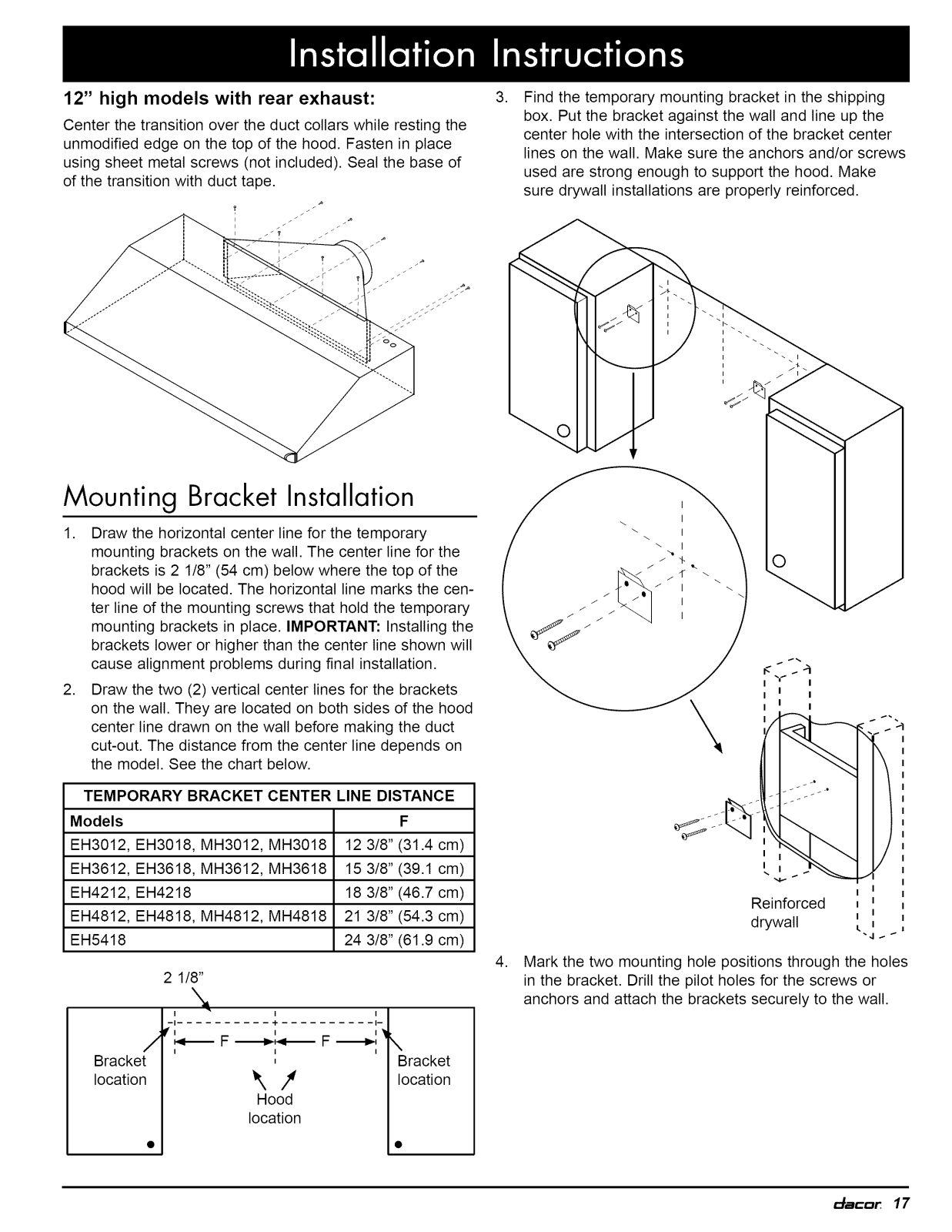

Mounting Bracket Installation......................................... 17

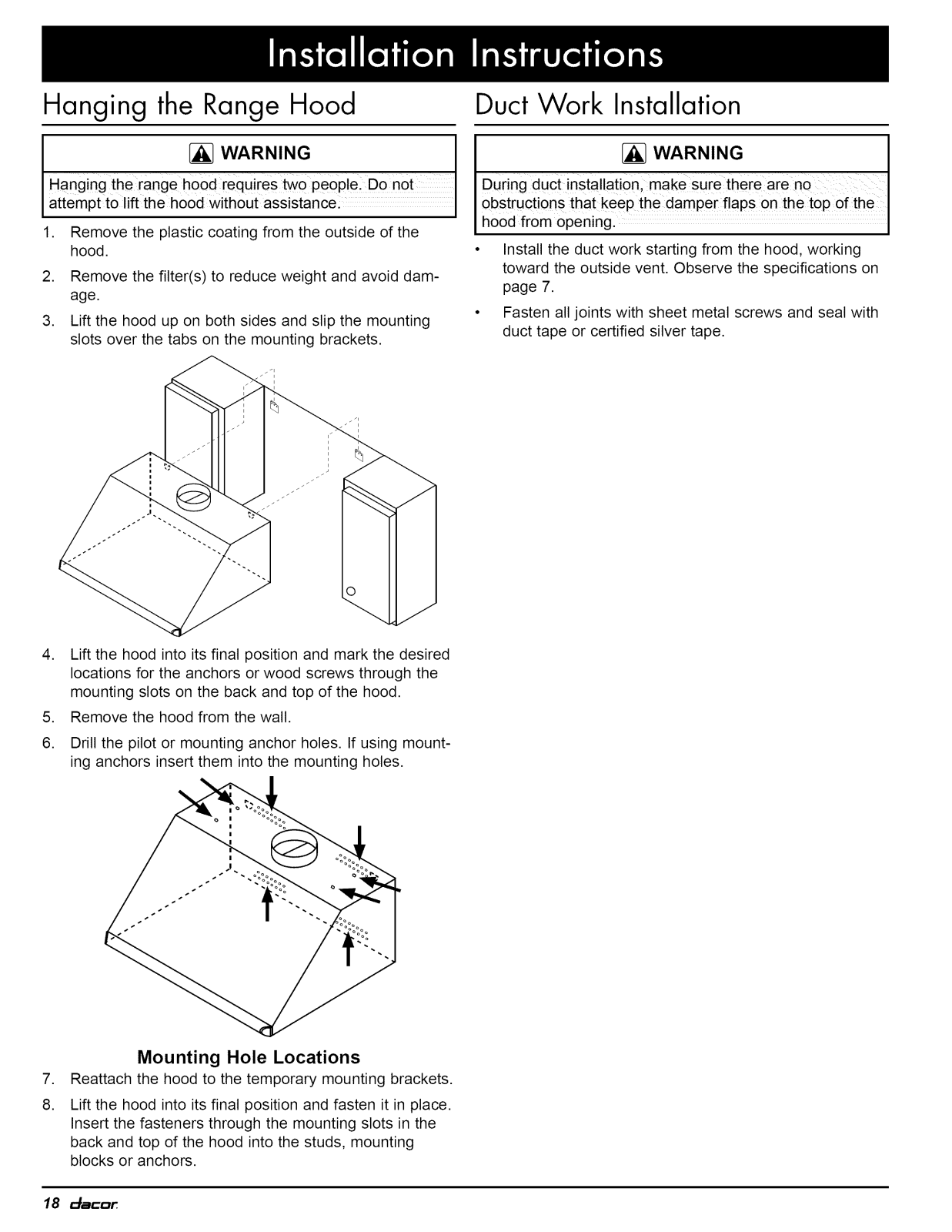

Hanging the Range Hood .............................................. 18

Duct Work Installation.................................................... 18

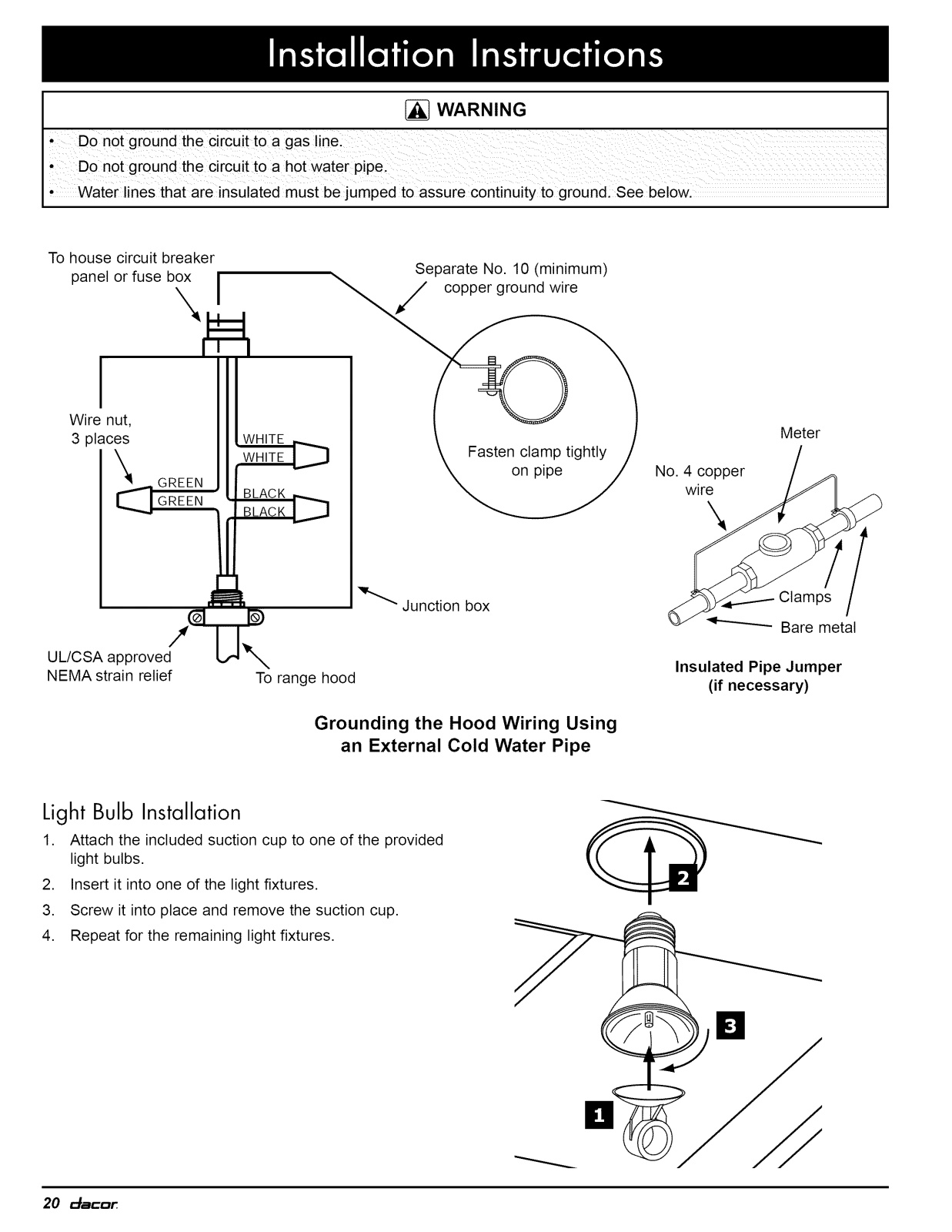

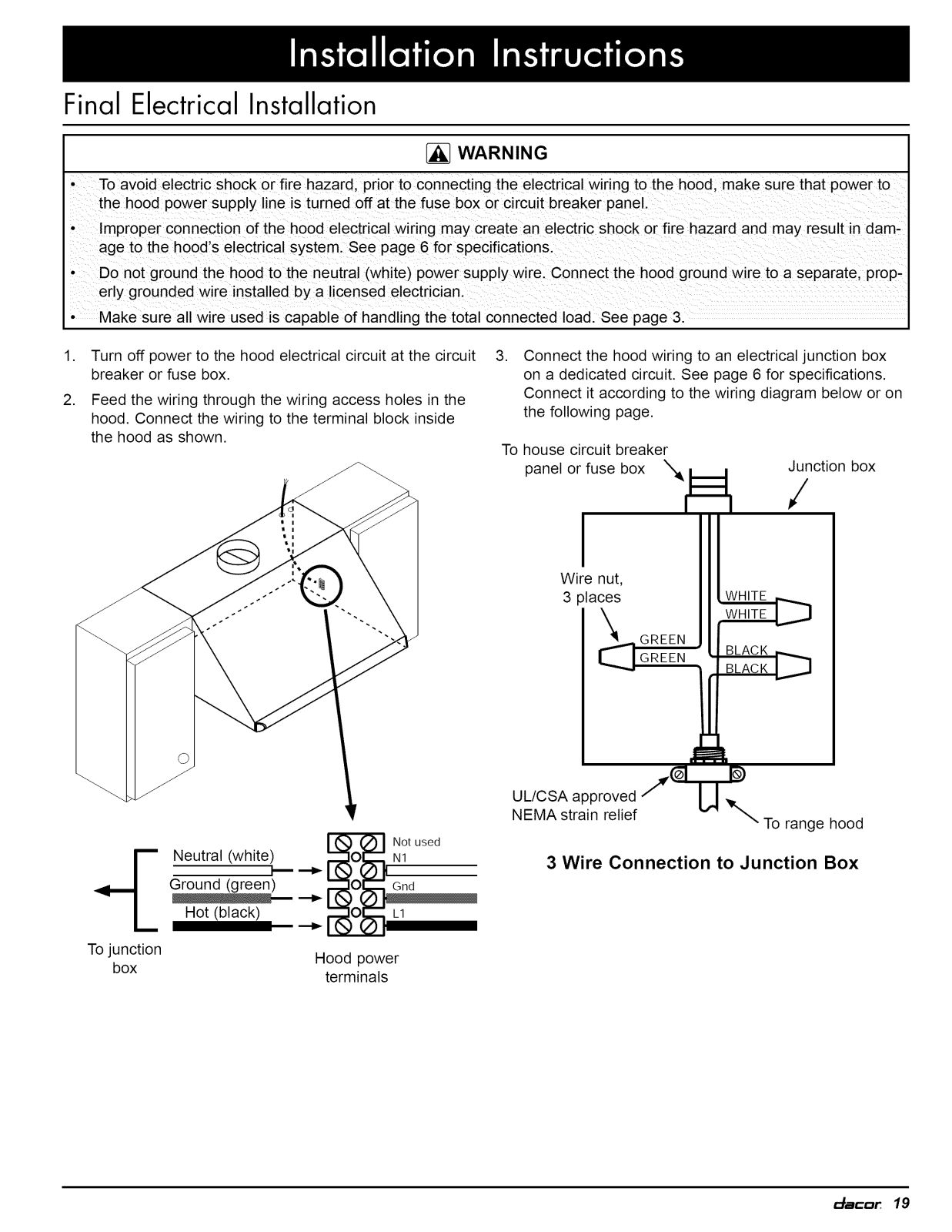

Final Electrical Installation ............................................. 19

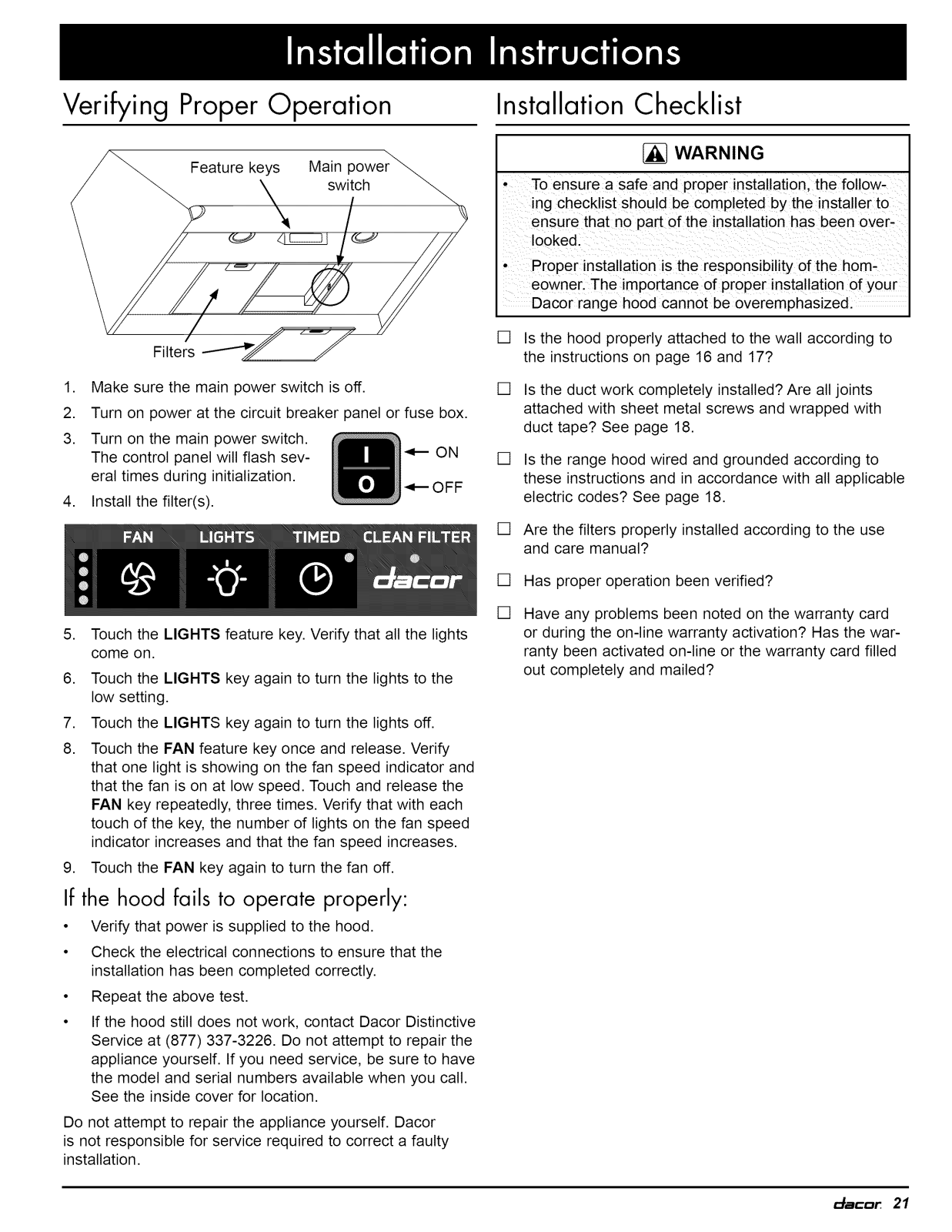

Verifying Proper Operation ............................................. 21

Installation Checklist ...................................................... 21

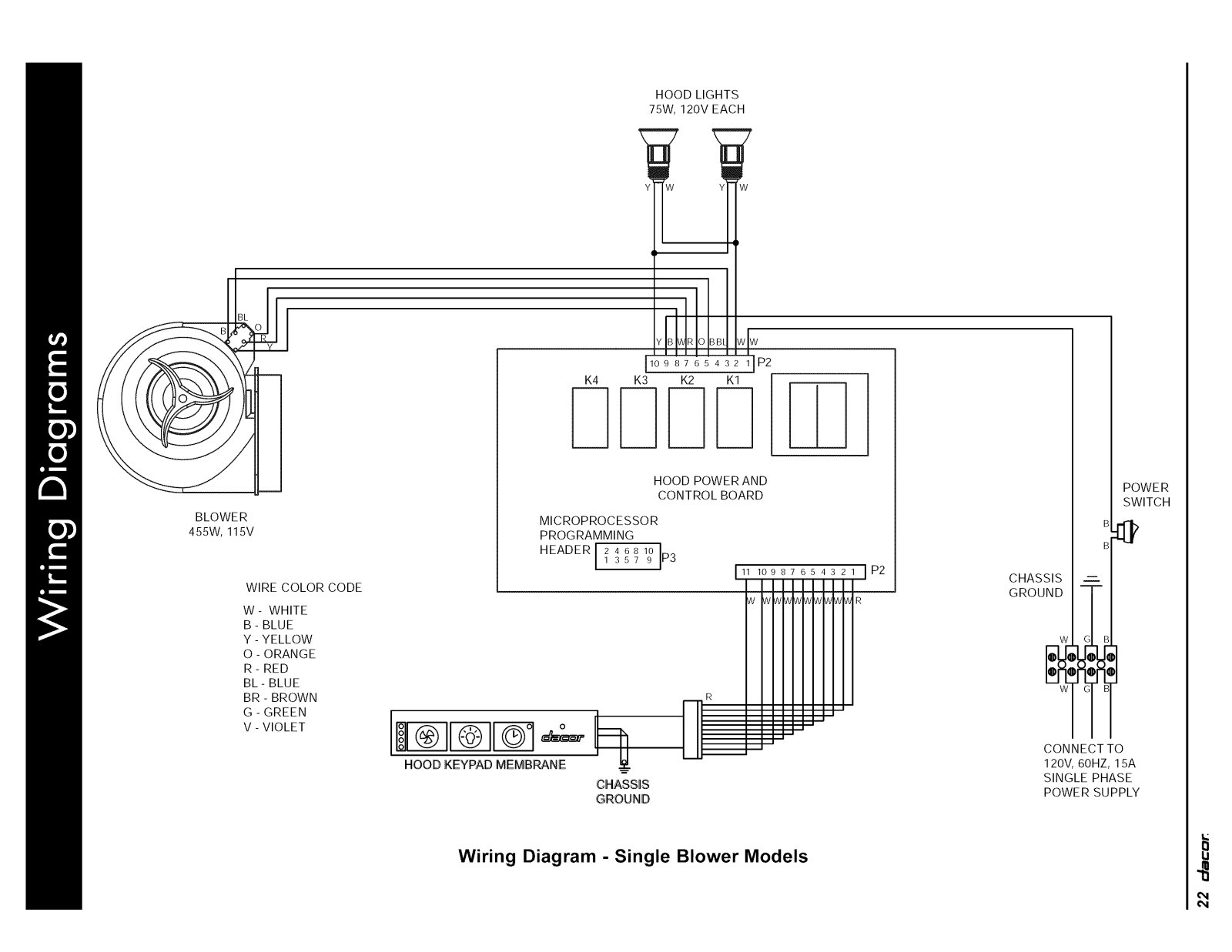

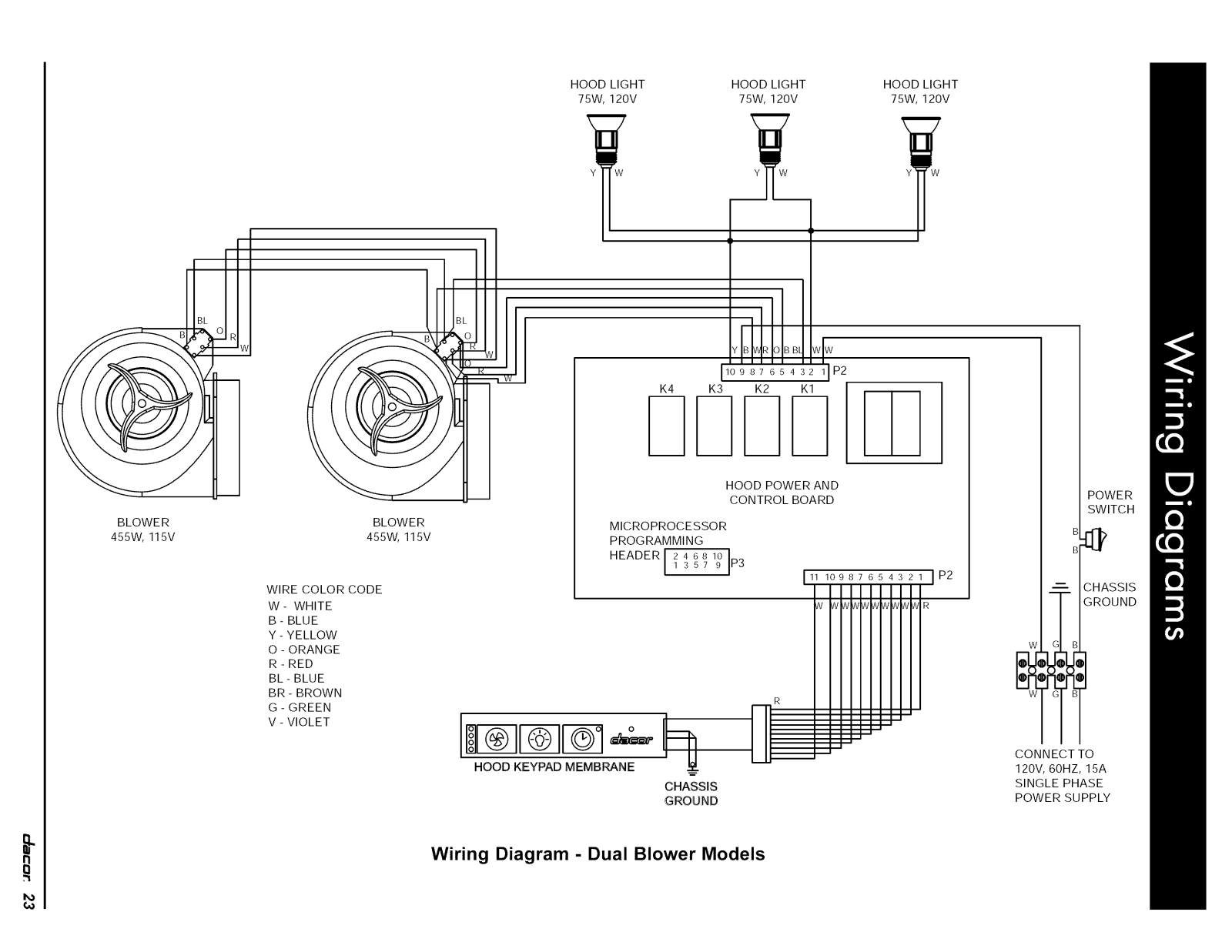

Wiring Diagrams .............................................................. 22

Important:

• Installer: In the interest of safety and to minimize problems, read these installation instructions completely and care-
fully before you begin the installation process. Leave these installation instructions with the customer.

• Customer: Keep these installation instructions for future reference and the local electrical inspector's use.

If You Need Help...

If you have questions or problems with installation, contact your Dacor dealer or
the Dacor Customer Service Team. For repairs to Dacor appliances under war-
ranty call the Dacor Distinctive Service line. Whenever you call, have the model
and serial number of the appliance ready. The model and serial number are
printed on the appliance data plate.

Dacor Customer Service Team

Phone: [phone] (U.S.A. and Canada)
Monday -- Friday 6:00 A.M.to 5:00 P.M.Pacific Time

Web site: www.Dacor.com

Dacor Distinctive Service (for repairs under warranty only)

Phone: [phone]

Monday -- Friday 6:00 a.m. to 4:00 p.m. Pacific Time

Appliance Data Plate

• The appliance data plate contains the model and serial number information
and the electrical requirements.

• It is located inside the hood behind the filters on the back side of the chas-
sis. Remove the filters to view it.

All specifications subject to change without notice. Dacor assumes no liability for changes to specifications.

© 2008 Dacor, all rights reserved.

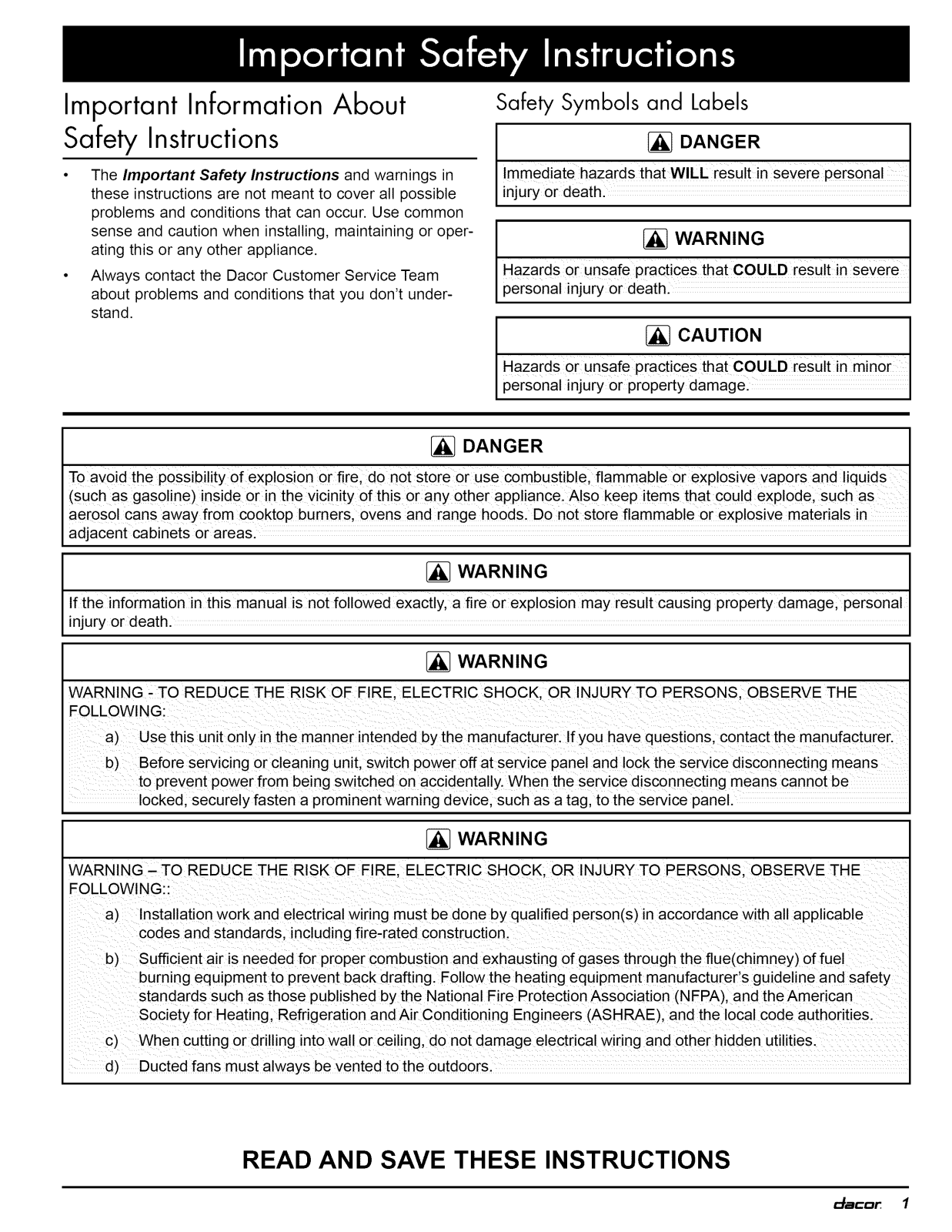

Important

Information About

Safety Symbols and Labels

Safety

The Important Safety Instructions and warnings in
these instructions are not meant to cover all possible

problems and conditions that can occur. Use common
sense and caution when installing, maintaining or oper-
ating this or any other appliance.

• Always contact the Dacor Customer Service Team
about problems and conditions that you don't under-

stand.

Instructions

[] DANGER

Immediate hazards that WILL resu t n severe pers0n a

injury or death ........................... I

[_ WARNING

Hazards 0r Unsafe practices that COULD result insevere
personal injury or death.

CAUTION

Hazards Or Unsafe practices that COULD result in minor

rsonal injury or property damagel

[_ DANGER

To avoid the PoSsibilitY Ofexplosion 0r fire, do not store or use combustible, flammable or explosive Vapors and liquids
(such as gasoline ) inside 0rin the vicinity ofthi s or any 0ther appliance. AIs0 keep items that could explode, such as

aerosol cans away from cooktop burners, ovens and range hoods. Do not store flammable or explosive materials in
adjacent cabinets or areas.

WARNING

If the information this manual is not followed exactly, a fire or explosi0n may result causing property damagei personal

injury or death ..................................................................

WARNING

to preven t power from being switched on accidentally, When the service disconnecting means cannot be

locked, securely fasten a prominent warning device, such as a tag, to the service panel. ...............

WARNING

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING::

a)b)Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable

codes and standards, including fire-rated construction.
Sufficient air is needed for proper combustion and exhausting of gases through the flue(chimney) of fuel

burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guideline and safety

standards such as those published by the National Fire Protection Association (NFPA), and the American

Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

c) When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
d) Ducted fans must always be vented to the outdoors.

READ AND SAVE THESE INSTRUCTIONS

_mCD_ 1

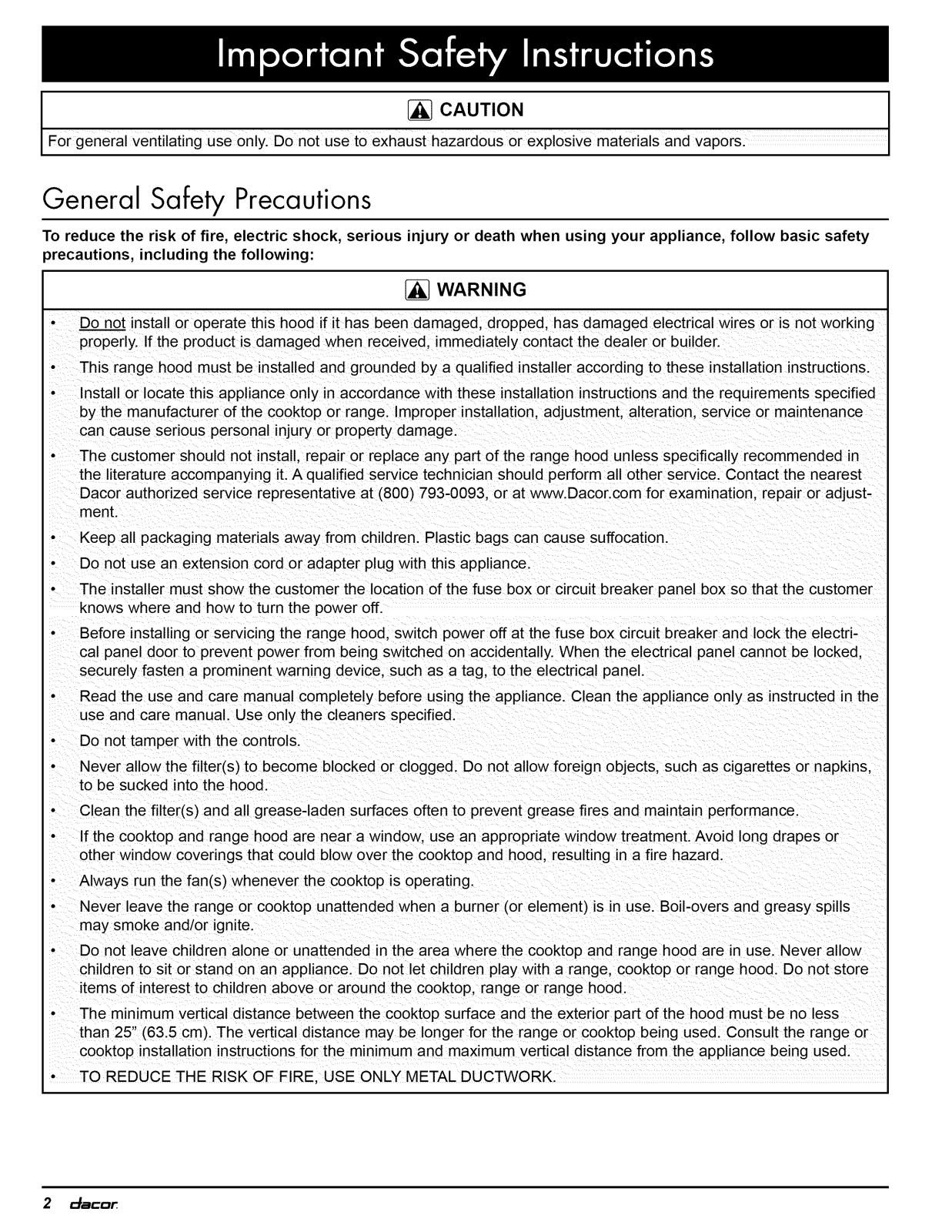

I [_ CAUTION

Forgenera Vent atng UseOn y.Do notuse toexhausthazardousorexp Os ve matera sand Vaporsl

General Safety Precautions

To reduce the risk of fire, electric shock, serious injury or death when using your appliance, follow basic safety
precautions, including the following:

WARNING

• Do not.install or operate this hood if it has been damaged, dropped, has damaged electrical wires or is not working
properly. If the product is damaged when received, immediately contact the dealer or builder.

• This range hood must be installed and grounded by a qualified installer according to these installation instructions

• Install or locate this appliance only in accordance with these installation instructions and the requirements specified
by the manufacturer of the cooktop or range. Improper installation, adjustment, alteration, service or maintenance
can cause serious personal injury or property damage.

• The customer should not install repair or replace any part of the range hood unless specifically recommended in
the literature accompanying it. A qualified service techn c an should perform all other serv ce. Contact the nearest

Dacor authorized service representative at [phone], or at www.Dacor.com for examination, repair or adjust-
ment

• Keep all packaging materials away from children. Plastic bags can cause suffocation.

• Do not use an extension cord or adapter plug with this appliance.

• The installer must show the customer the location of the fuse box or circuit breaker panel box so that the customer
knows where and how to turn the power off.

• Before instaIling or servicing the range hood, switch power off at the fuse box circuit breaker and lock the electri-
cal panel door to prevent power from being switched on accidentally. When the electrical panel cannot be locked,
securely fasten a prominent warning device, such as a tag, to the electrical panel.

• Read the use and care manual completely before using the appliance. Clean the appliance only as instructed in the
use and care manual. Use only the cleaners specified.

• Do not tamper with the controls.

• Never allow the filter(s) to become blocked or clogged. Do not allow foreign objects, such as cigarettes or napkins,
to be sucked nto the hood

• Clean the filter(s) and all grease-laden surfaces often to prevent grease fires and maintain performance.

• If the cooktop and range hood are near a window, use an appropriate window treatment. Avoid long drapes or
other window coverings that could blow over the cookto p and hood, resulting in a fire hazard.

• Always run the fan(s) whenever the cooktop is operating

• Never leave the range or cooktop unattended when a burner (or element) is in use. Boil-overs and greasy spills
may smoke and/or ignite.

• Do not leave children alone or unattended in the area where the cooktop and range hood are in use. Never allow
children to sit or stand on an appliance. Do not let children play with a range, cooktop or range hood. Do not store
items of interest to children above or around the cooktop, range or range hood.

• The minimum vertical distance between the cooktop surface and the exterior part of the hood must be no less
than 25" (63.5 cm). The vertical distance may be longer for the range or cooktop being used Consult the range or
cooktop installation instructions for the minimum and maximum vertical distance from the appliance being used.

• TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

2 _mC_

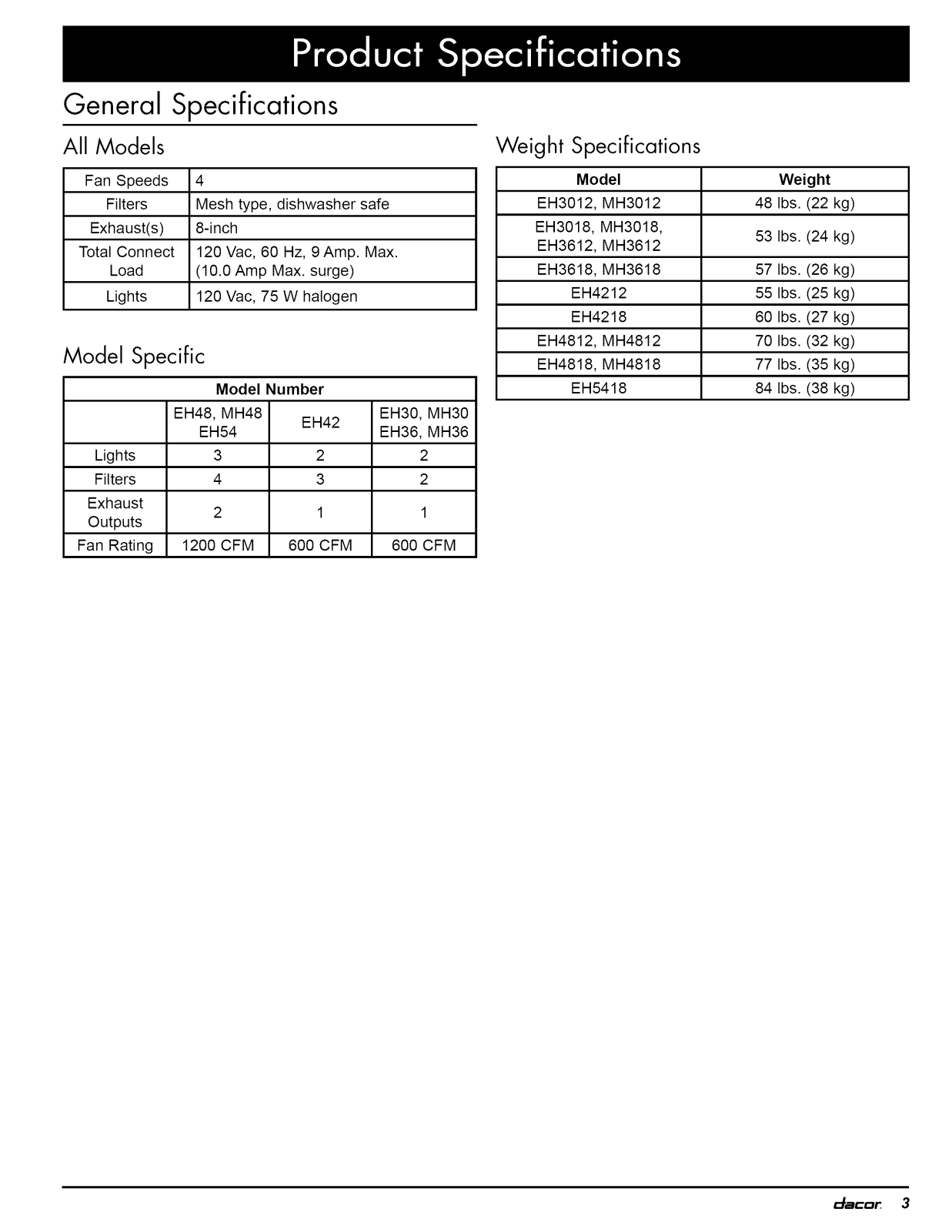

General Specifications

All Models

Fan Speeds 4

Filters Mesh type, dishwasher safe

Exhaust(s) 8-inch

Total Connect 120 Vac, 60 Hz, 9 Amp. Max.

Load (10.0 Amp Max. surge)

Lights 120 Vac, 75 W halogen

Model Specific

Model Number

EH48, MH48 EH42 EH30, MH30

EH54 EH36, MH36

Lights 3 2 2
Filters 4 3 2

Exhaust
Outputs

Fan Rating 1200 CFM 600 CFM 600 CFM

2 1 1

Weight Specifications

Model

EH3012, MH3012

EH3018, MH3018,

EH3612, MH3612
EH3618, MH3618

EH4212
EH4218

EH4812, MH4812
EH4818, MH4818

EH5418

Weight

48 Ibs. (22 kg)
53 Ibs. (24 kg)

57 Ibs. (26 kg)
55 Ibs. (25 kg)
60 Ibs. (27 kg)

70 Ibs. (32 kg)
77 Ibs. (35 kg)
84 Ibs. (38 kg)

_mCD_ 3

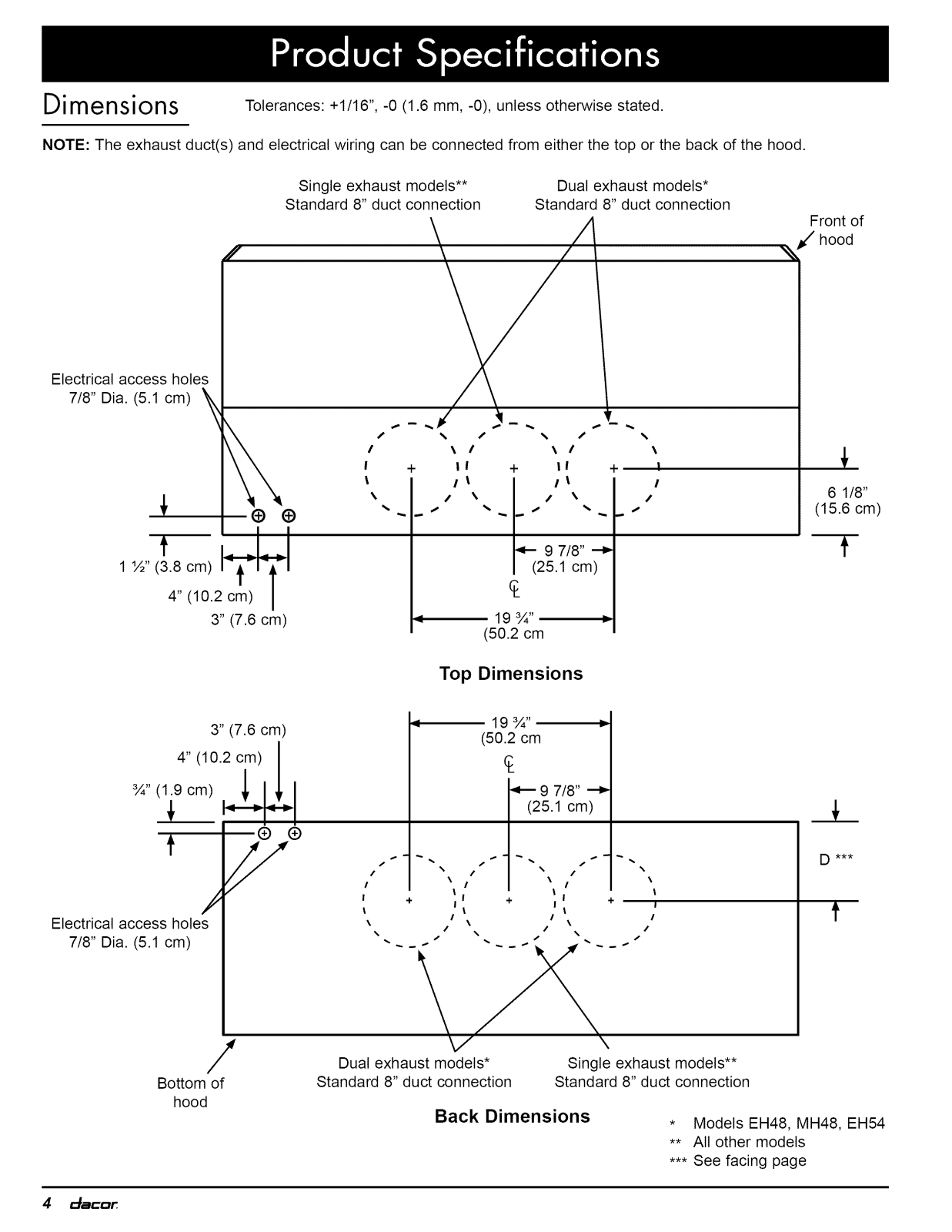

Dimensions Tolerances: +1/16",-0 (1.6 mm,-0), unless otherwise stated.

NOTE: The exhaust duct(s) and electrical wiring can be connected from either the top or the back of the hood.

Electrical access holes

7/8" Dia. (5.1 cm)

1 ½" (3.8 cm)

4" (10.2 cm) I

3" (7.6 cm)

Single exhaust models**

Standard 8" duct connection

_ [

,I" % _"

/ \ !

I + II

\ I \

l I II

+

_-- 9 7/8" "-_

19¾"

(50.2 cm

Dual exhaust models*

Standard 8" duct connection

M

\ / \

I! + I

I I I

/ \ /

S % S

(25.1 cm)

Front of

hood

6 1/8"

(15.6 cm)

f

4" (10.2 cm) |

¾,, (1_9 cm) i_1 '

Electrical access holes

7/8" Dia. (5.1 cm)

Bottom of

hood

3" (7.6 cm)

/

/

/

I I _\ I / _'\

I ! +

1 l

\ \

Dual exhaust models*

Standard 8" duct connection

Top Dimensions

19¾" ._

(50.2 cm

9 7/8" --_

(25.1 cm)

l l

I I

I I

I I

Standard 8" duct connection

Back Dimensions

i I \

I +

l

\

l
I

I

/

Single exhaust models**

* Models EH48, MH48, EH54
** All other models

*** See facing page

D ***

f

4 _mC_

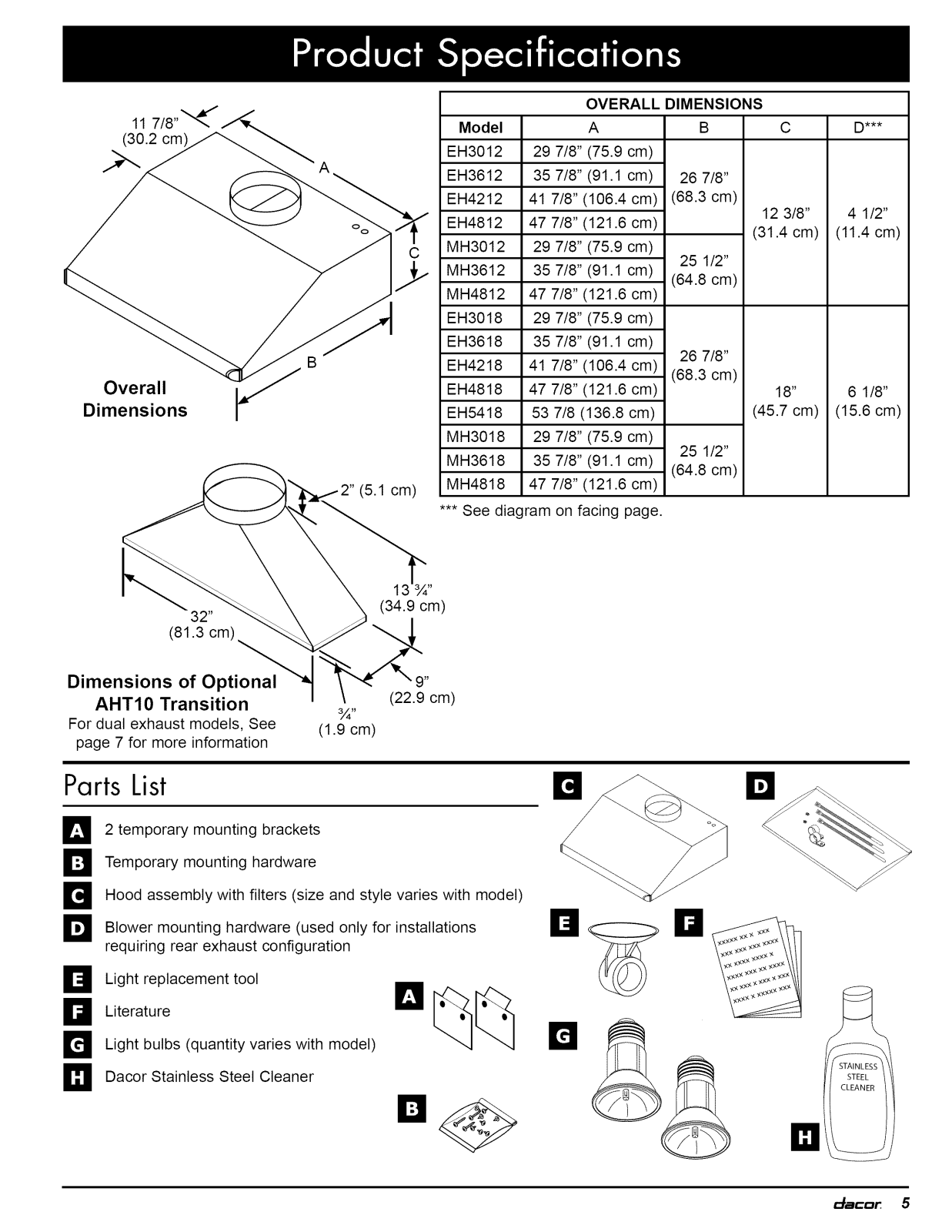

11

(30.2 cm)

.>..

Overall

Dimensions

(5.1 cm)

OVERALL DIMENSIONS

A

EH3012
EH3612
EH4212
EH4812

MH3012
MH3612
MH4812

EH3018
EH3618
EH4218
EH4818

EH5418
MH3018
MH3618
MH4818

*** See diagram on facing page.

29 7/8" (75.9 cm)
35 7/8" (91.1 cm)

41 7/8" (106.4 cm)
47 7/8" (121.6 cm)

29 7/8" (75.9 cm)
35 7/8" (91.1 cm)

47 7/8" (121.6 cm)

29 7/8" (75.9 cm)
35 7/8" (91.1 cm)

41 7/8" (106.4 cm)
47 7/8" (121.6 cm)

53 7/8 (136.8 cm)

29 7/8" (75.9 cm)
35 7/8" (91.1 cm)

47 7/8" (121.6 cm)

B C D***Model

26 7/8"

(68.3 cm)

25 1/2"

(64.8 cm)

26 7/8"

(68.3 cm)

25 1/2"

(64.8 cm)

12 3/8"

(31.4 cm)

18"

(45.7 cm)

4 1/2"

(11.4 cm)

6 1/8"

(15.6 cm)

//4 _

32"

(81.3 cm)

Dimensions of Optional

AHT10 Transition

For dual exhaust models, See

page 7 for more information

(1.9 cm)

(34.9 cm)

9_

(22.9 cm)

PartsList

2 temporary mounting brackets
Temporary mounting hardware

Hood assembly with filters (size and style varies with model)

r,!

Blower mounting hardware (used only for installations

El

requiring rear exhaust configuration
Light replacement tool

0

Literature O

0

Light bulbs (quantity varies with model)

ra

Dacor Stainless Steel Cleaner

ra

O

!'4

_mCD_ 5

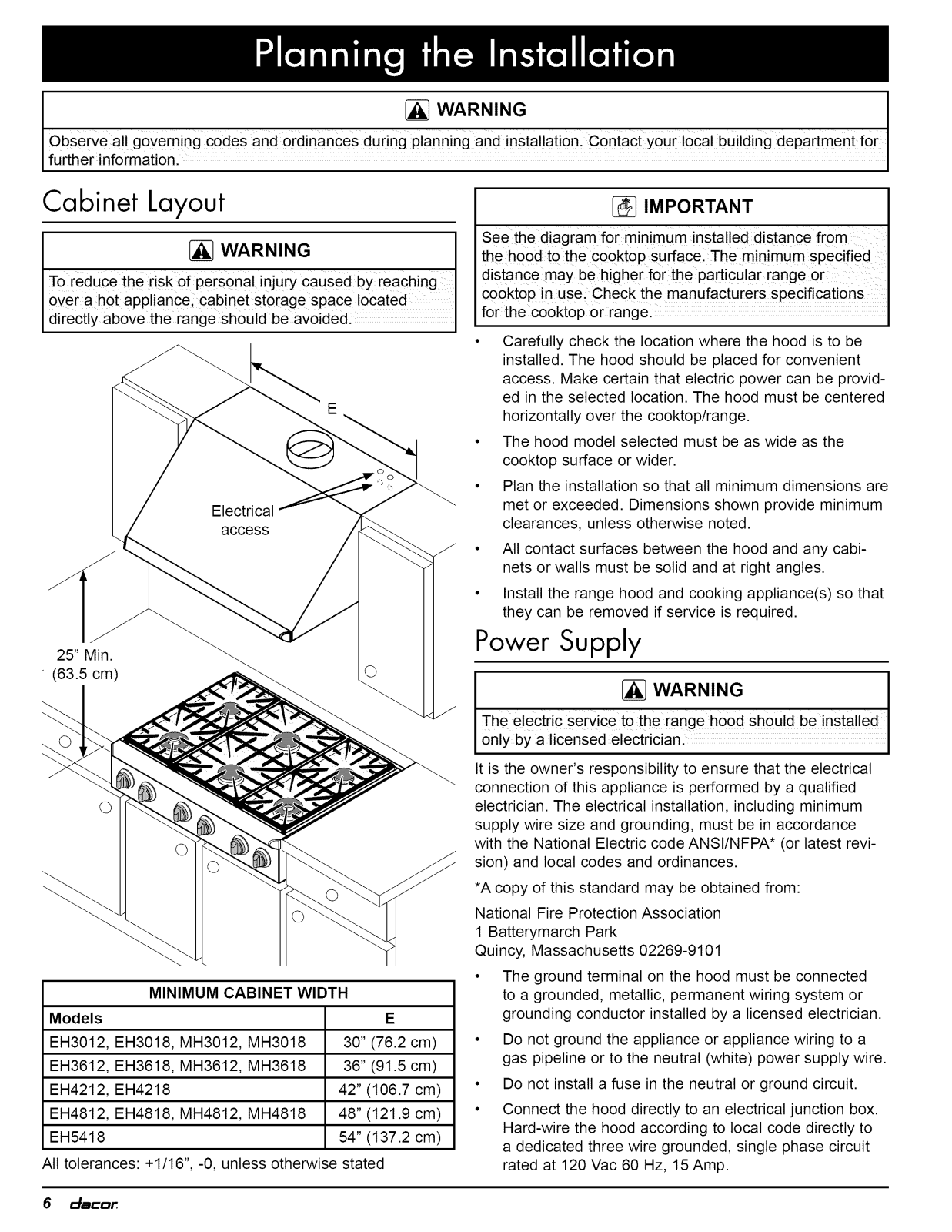

WARNING I

observe all g0verning c0des and ordinances during planning and installationl Contact y0ur local building department for I
further informati0nl I

Cabinet Layout

{_ WARNING

To reduce the risk of personal injury caused by reaching
over a hot appliancel cabinet storage space located
directly above the range should be avoided.

25" Min.

• (63.5 cm)

©

MINIMUM CABINET WIDTH
Models
EH3012, EH3018, MH3012, MH3018

EH3612, EH3618, MH3612, MH3618
EH4212, EH4218

EH4812, EH4818, MH4812, MH4818
EH5418

All tolerances: +1/16", -0, unless otherwise stated

E

30" (76.2 cm)
36" (91.5 cm)

42" (106.7 cm)
48" (121.9 cm)

54" (137.2 cm)

[_ IMPORTANT

See the diagram for minimum installed distance from

the hood t0 the co0ktop surfacel The minimum specified

distance maybe higher for the particular range or
cooktop in use: Check the manufacturers specifications

for the €0oktop 0r rangel

Carefully check the location where the hood is to be

installed. The hood should be placed for convenient

access. Make certain that electric power can be provid-
ed in the selected location. The hood must be centered

horizontally over the cooktop/range.

• The hood model selected must be as wide as the
cooktop surface or wider.

• Plan the installation so that all minimum dimensions are

met or exceeded. Dimensions shown provide minimum

clearances, unless otherwise noted.

• All contact surfaces between the hood and any cabi-

nets or walls must be solid and at right angles.

• Install the range hood and cooking appliance(s) so that
they can be removed if service is required.

Power Supply

[_ WARNING I

The electric service to the rang e h00d Sh0U nsta ed

only by a licensed electrician. .................

It is the owner's responsibility to ensure that the electrical
connection of this appliance is performed by a qualified
electrician. The electrical installation, including minimum
supply wire size and grounding, must be in accordance
with the National Electric code ANSI/NFPA* (or latest revi-
sion) and local codes and ordinances.

*A copy of this standard may be obtained from:

National Fire Protection Association

1 Batterymarch Park
Quincy, Massachusetts 02269-9101

• The ground terminal on the hood must be connected

to a grounded, metallic, permanent wiring system or
grounding conductor installed by a licensed electrician.

• Do not ground the appliance or appliance wiring to a

gas pipeline or to the neutral (white) power supply wire.

Do not install a fuse in the neutral or ground circuit.

Connect the hood directly to an electrical junction box.

Hard-wire the hood according to local code directly to

a dedicated three wire grounded, single phase circuit

rated at 120 Vac 60 Hz, 15Amp.

6 _mC_

[_ WARNING

• To prevent combustion by-products, smoke or odors
from entering the home and to improve efficiency,

tape all duct joints securely.

• Use only duct work deemed acceptable by state,
municipal and local codes.

• Range hoods may interrupt the proper flow of smoke
and combustion gases from furnaces, gas water

heaters and fireplaces. To avoid drawing lethal gases
into the home, follow the manufacturer's recom-

mendation for these devices and consult NFPA and

ASHRAE recommendations.

Failure to install a remote blower or proper duct work
may result in a back draft and/or the insufficient vent-
ing of smoke and fumes.

• DO NOT install an additional in-line or external blow-
er to increase the length of the duct run. Even small

differences between blower air flow rates can greatly
reduce the air draw by the hood,

[_ CAUTION

To reduce the risk of fire and to properly exhaust air, be
sure to duct air outside the h0use 0r building. Do not vent
exhaust air into spaces within walls or ceilings or into

attics, crawl spaces or garages. ...............

All duct work materials (including screws and duct tape)

must be purchased separately by the customer. When
planning new duct work, always look for the shortest,
most direct route to the outside. The blower assembly
can be rotated to accommodate venting (and wiring)

through the top [] or the back I='1.

D

The hood exhaust connects to an 8-inch round duct.
You can increase the duct size over the duct run if

desired. To prevent a back draft, never decrease the
duct size over the run. If existing duct work is smaller

than 8 inches in diameter, remove it and replace it with

8-inch duct work.
Do not rely on tape alone to seal duct joints. Fasten all

connections with sheet metal screws and tape all joints

with certified silver tape or duct tape. Use sheet metal

screws as required to support the duct weight.

• To prevent back-drafts, a damper at the duct outlet may
also be required.

• Make sure duct work does not interfere with floor joists

or wall studs.

• On dual exhaust models, the two 8" exhausts may be
merged into one 10" duct using Dacor transition kit

AHT10. See page 16 for details.

Calculating the Maximum Duct Run Length

The maximum straight duct length for the hood is deter-

mined by the type of duct used. See the chart below.

DUCT SIZE MAXIMUM DUCT RUN

8" round 60 feet

10" round 50 feet

31/4"X 10" rectangular 50 feet

For each elbow and transition added to the duct work, a
certain number of feet must be subtracted from the maxi-

mum duct run to compensate for wind resistance. To deter-
mine the length the duct work cannot exceed, subtract all of

the equivalent lengths of the elbows and transitions listed

below from the maximum duct run above.

Duct Work Equivalent Lengths

EQUIVALENT LENGTHS

Piece Subtract Piece Subtract

8" 90° elbow 7feet 10" 90° elbow 5feet
8"45° elbow 3feet 10" 45° elbow 2 feet

3¼" X 10" 3¼" X 10" to

to round 90° 25 feet 8"/10" round 4 feet

transition transition
Roof cap , Walt capwith ,

The equivalent lengths of roof and wall caps vary with
model and configuration. For equivalent length, contact the
manufacturer or a qualified HVAC specialist.

damper

Duct Work Design Tips

Wherever possible, reduce the number of transitions and

turns to as few sharp angles as possible. Two staggered
45 ° angles are better than one 90°.

Keep turns as far away from the hood exhaust as possible,
and as much space between bends as possible.

For best performance, use round duct instead of rectangu-
lar, especially when elbows are required.

If multiple elbows are used, try to keep a minimum of 24"
straight duct between them.

Avoid "S" or "back to back" use of adjacent elbows.

In regions where the weather gets extremely cold, use ther-
mal breaks, such as a short section of non-metallic duct, to
avoid indoor heat loss. Locate the break as close as pos-
sible to the outside pass through point.

Do not use flexible metal duct.
Do not use duct work that is smaller in cross-sectional area

than the recommended types above.

_mCD_ 7
