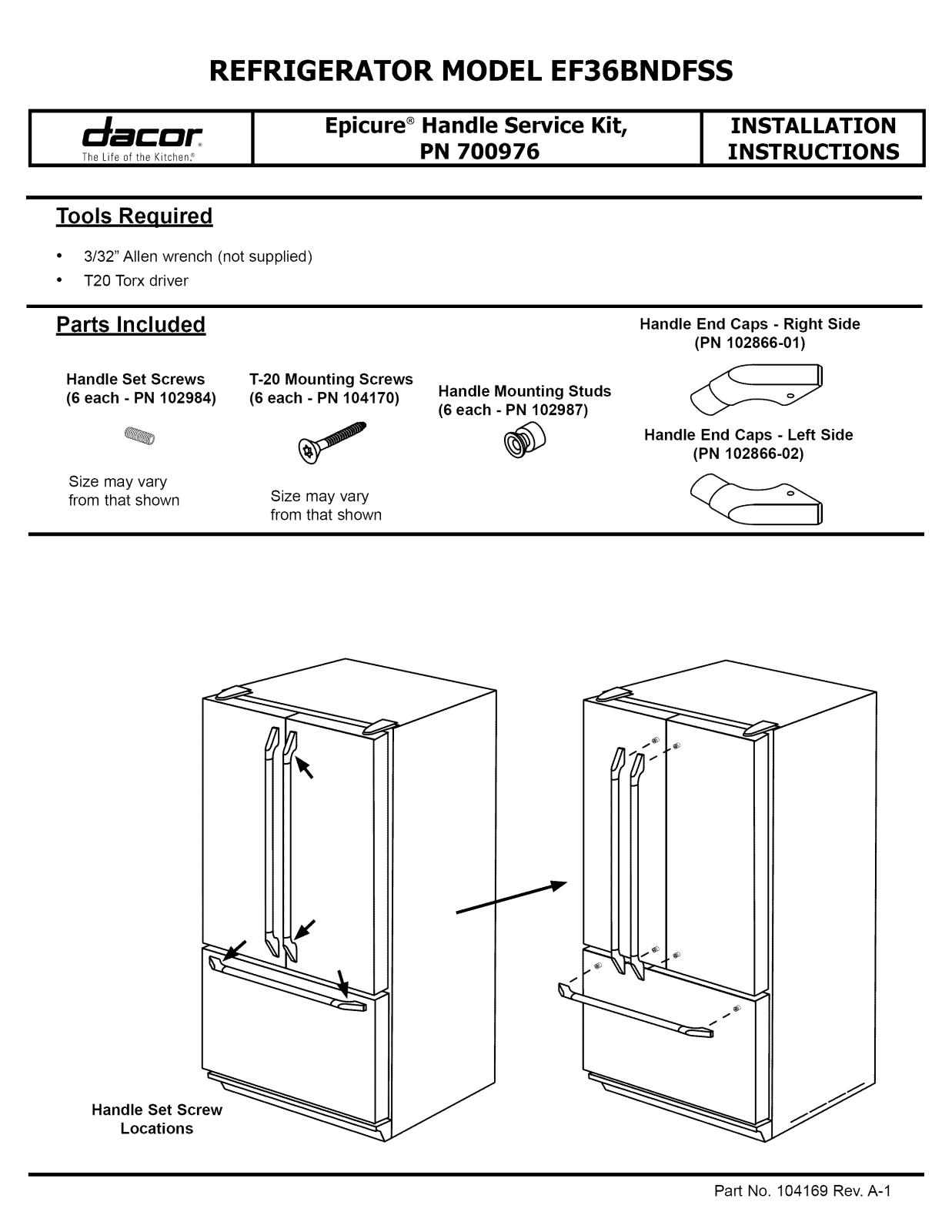

REFRIGERATOR MODEL EF36BNDFSS

I

The Life of the Kitchen. _

Tools Required

• 3/32" Allen wrench (not supplied)

• T20 Torx driver

I

Epicure ®Handle Service Kit,

PN 700976

I INSTALLATIONINSTRUCTIONS I

Parts Included

Handle Set Screws

(6 each - PN 102984)

Size may vary
from that shown

T-20 Mounting Screws
(6 each - PN 104170)

Size may vary
from that shown

Handle End Caps - Right Side

(PN 102866-01)

Handle Mounting Studs
(6 each - PN 102987)

Handle End Caps - Left Side

(PN 102866-02)

Handle Set Scr_

Locations

I

v'

Part No. 104169 Rev. A-1

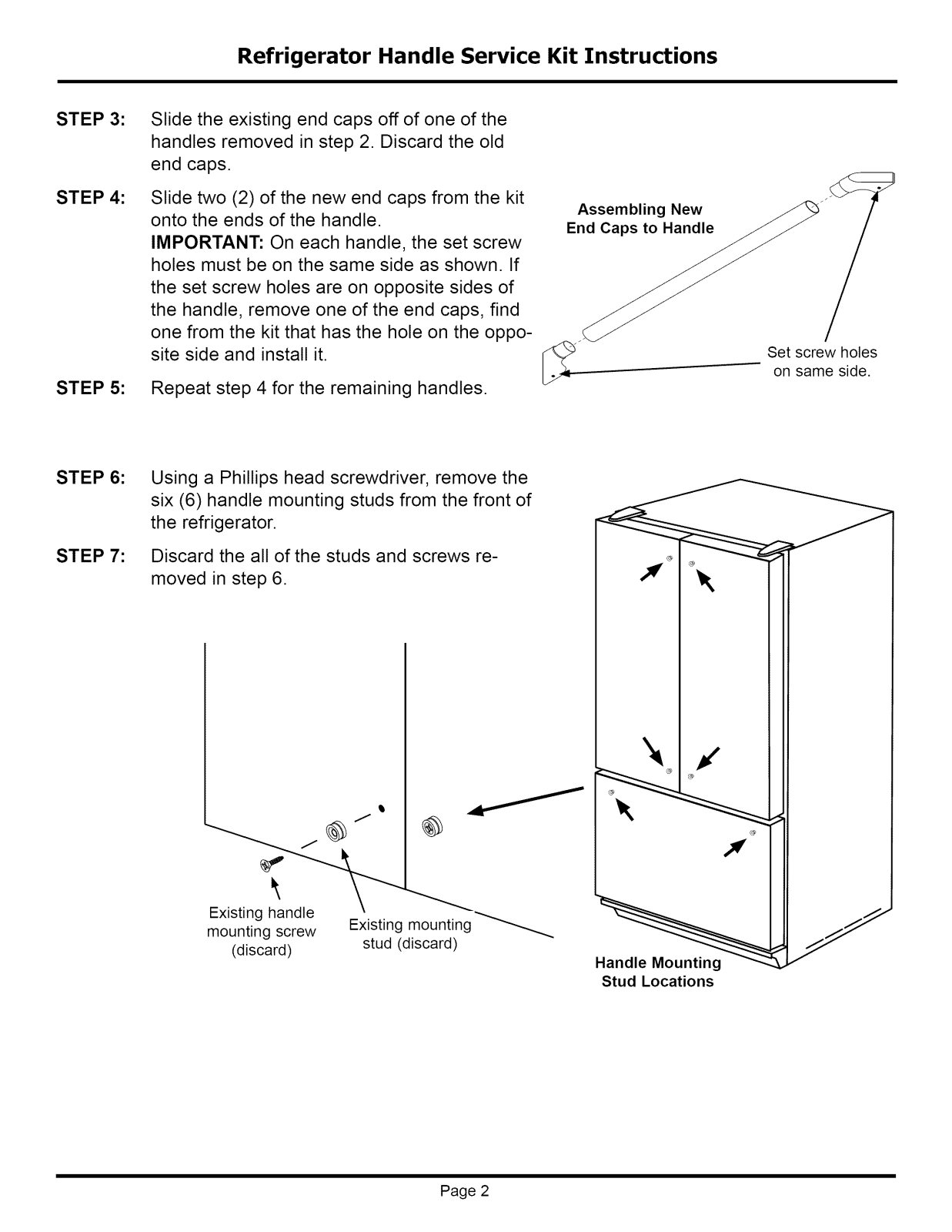

Refrigerator Handle Service Kit Instructions

STEP 3:

STEP 4:

STEP 5:

STEP 6:

STEP 7:

Slide the existing end caps off of one of the
handles removed in step 2. Discard the old

end caps.
Slide two (2) of the new end caps from the kit

onto the ends of the handle.
IMPORTANT: On each handle, the set screw

holes must be on the same side as shown. If
the set screw holes are on opposite sides of

the handle, remove one of the end caps, find
one from the kit that has the hole on the oppo-

site side and install it.
Repeat step 4 for the remaining handles.

Using a Phillips head screwdriver, remove the
six (6) handle mounting studs from the front of

the refrigerator.
Discard the all of the studs and screws re-

moved in step 6.

Assembling New __

End__

Set screw holes

on same side.

@

Existing handle

mounting screw

(discard)

O / ®

Existing mounting

stud (discard)

@

@

Handle Mounting

Stud Locations

Page 2
